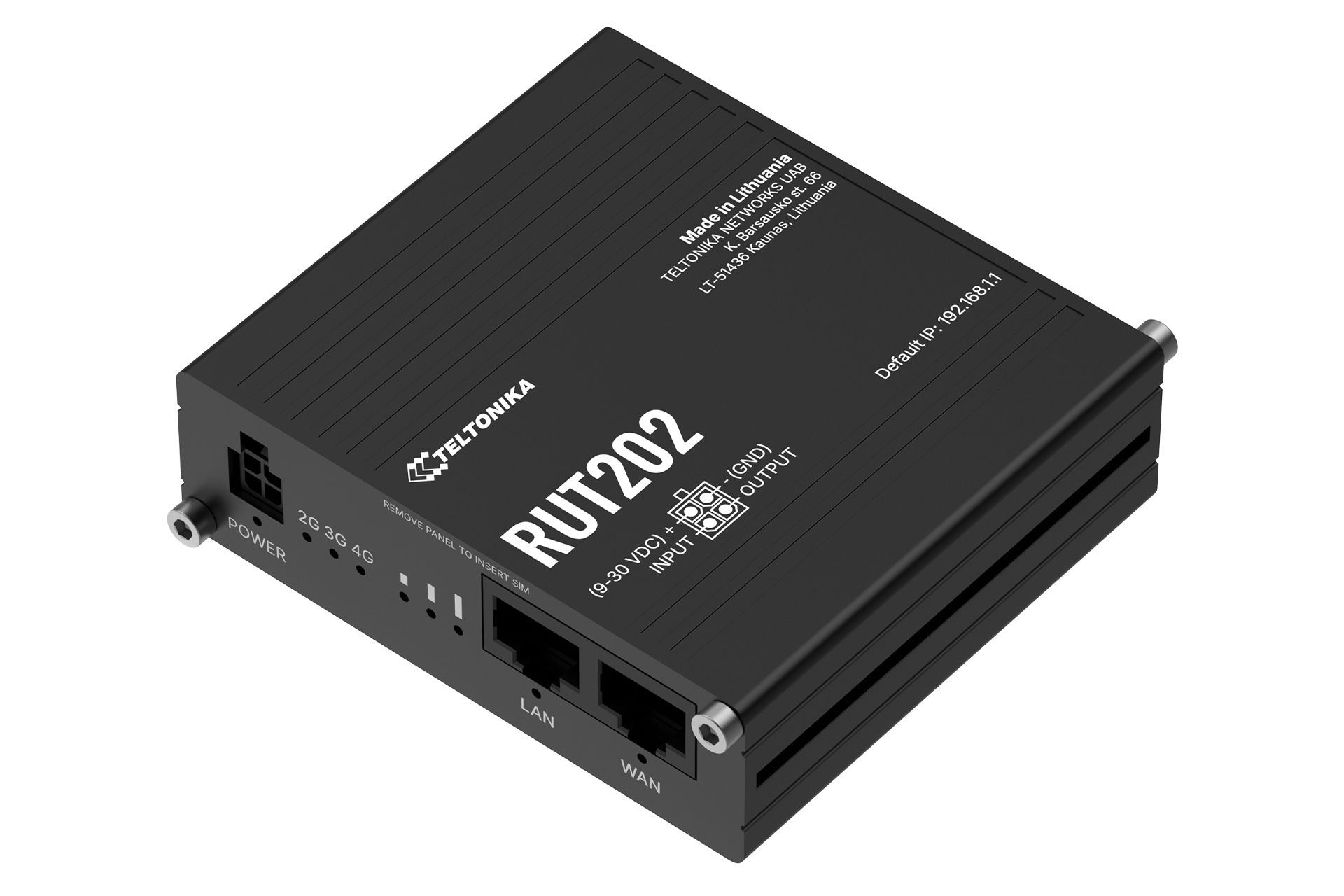

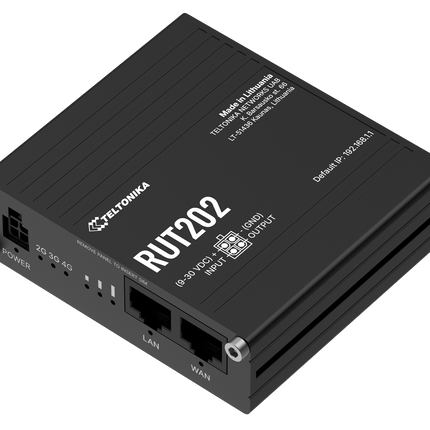

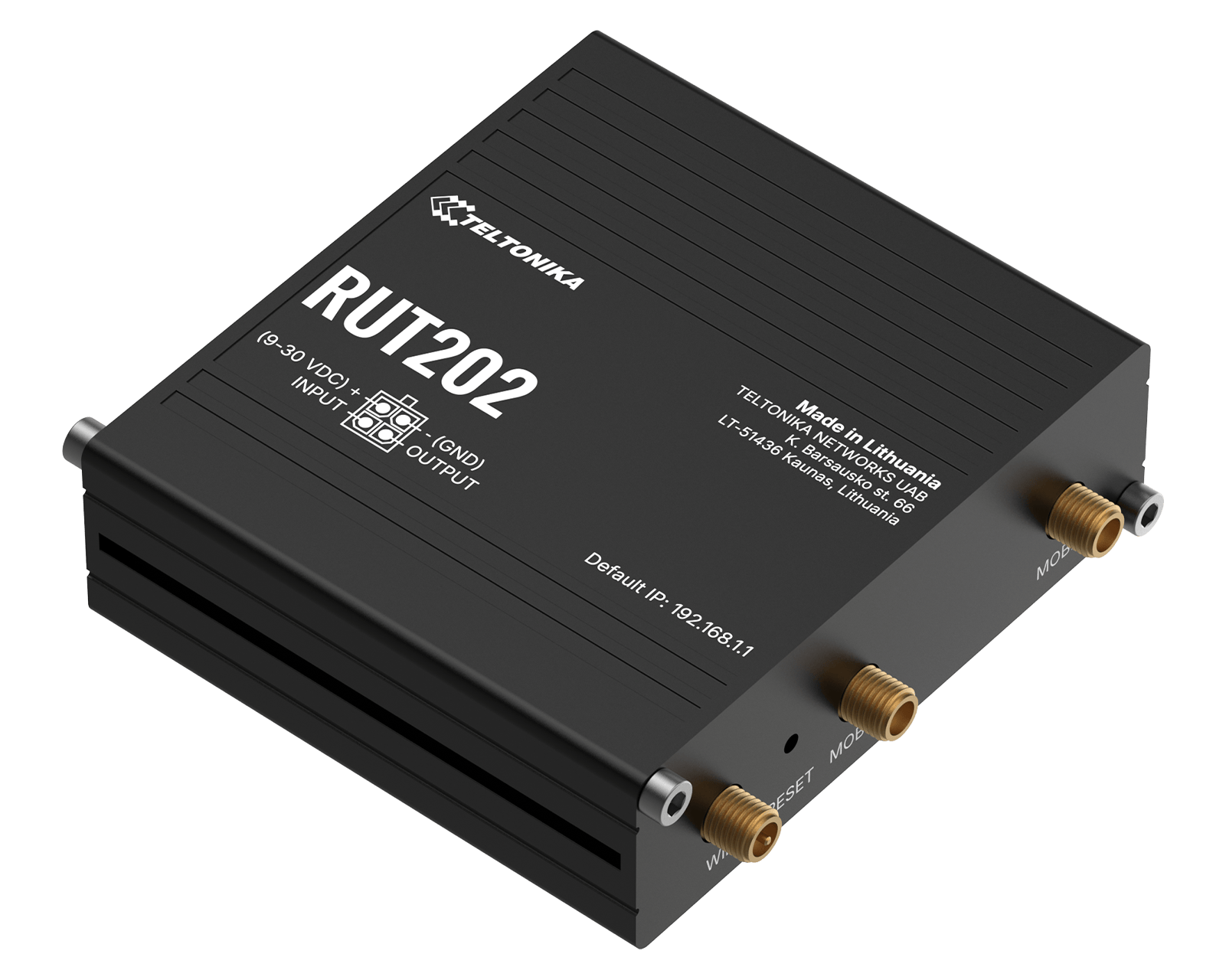

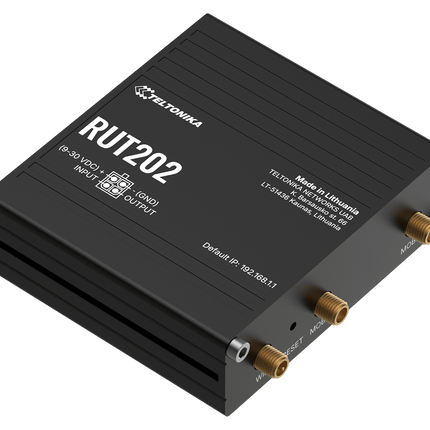

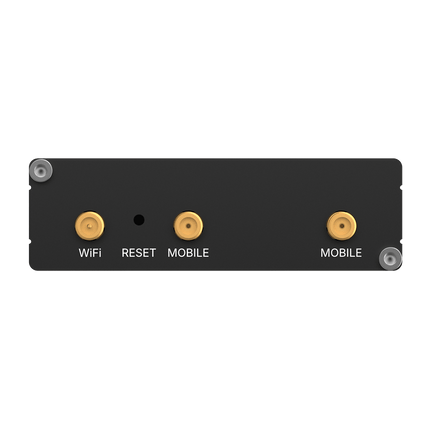

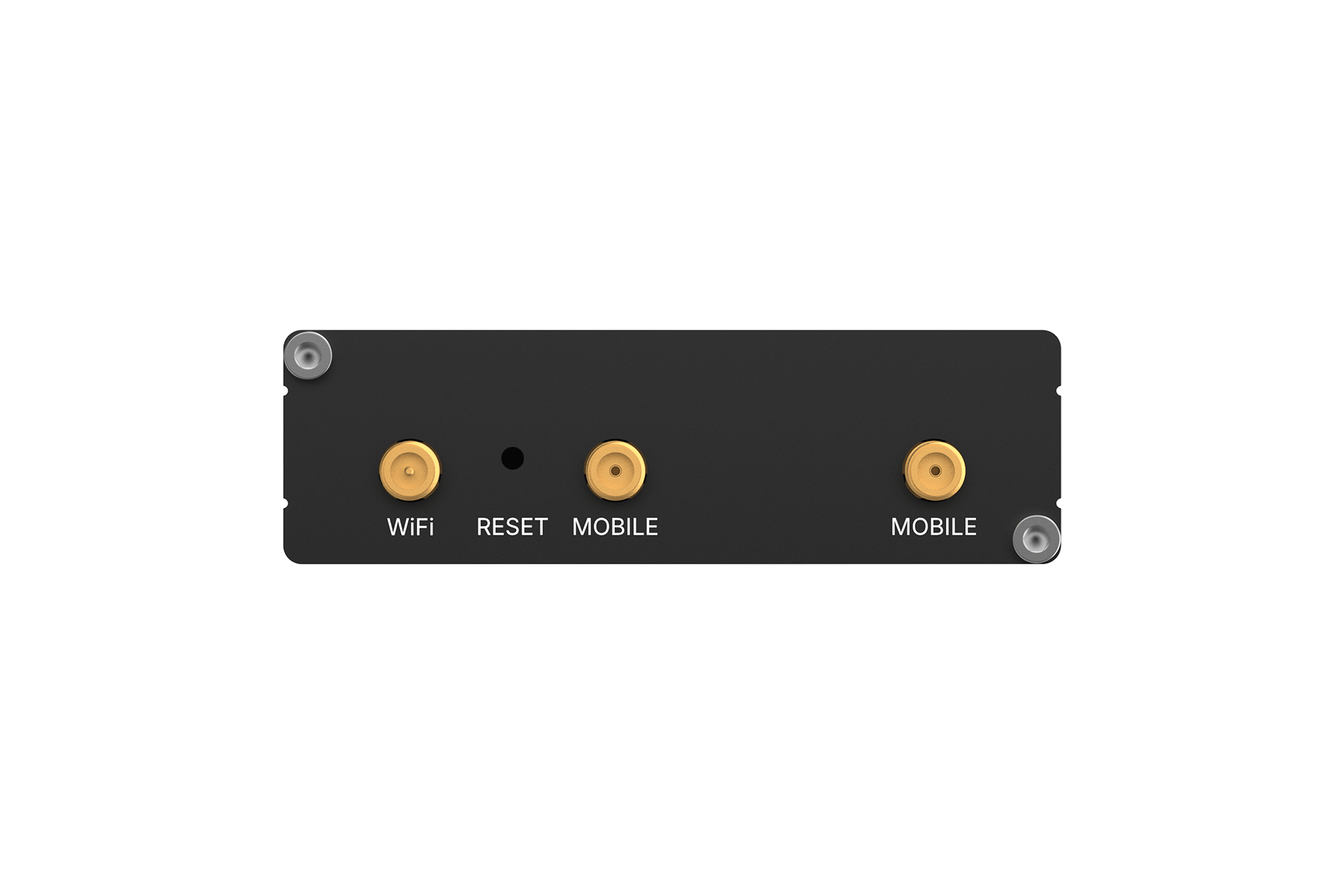

Teltonika RUT202 Industrial Rugged Compact Cellular LTE 4G Router Dual SIM
Compact Industrial Dual-SIM 4G LTE Router for Reliable Remote Connectivity
The Teltonika RUT202 is an ultra-compact industrial 4G LTE Cat 4 router designed to provide secure and reliable internet connectivity in demanding environments. Featuring dual internal SIM cards with automatic failover, Wi-Fi 4, dual Ethernet ports, industrial-grade construction, and Teltonika's powerful RutOS operating system, the RUT202 is ideal for Industrial IoT, smart city infrastructure, retail deployments, utilities, remote monitoring, and embedded networking applications.
Its space-efficient aluminium housing and protected internal SIM design make it particularly suitable for installations where reliability, security, and compact size are critical.
Key Features
Dual SIM Redundancy
- Dual internal Mini-SIM slots
- Automatic SIM failover
- SIM switching based on:
- Weak signal
- Data limits
- SMS limits
- Roaming status
- Network failure
- Data connection failure
- Increased uptime for critical applications
4G LTE Connectivity
- LTE Cat 4
- Download speeds up to 150 Mbps
- Upload speeds up to 50 Mbps
- Backward compatible with 3G and 2G networks
- Automatic APN configuration
- Bridge mode and IP Passthrough support
Wi-Fi 4 Connectivity
- IEEE 802.11b/g/n
- Access Point (AP) mode
- Station (STA) mode
- Up to 50 simultaneous Wi-Fi clients
- Fast roaming support (802.11r)
- Wireless QR code onboarding
- WPA2/WPA3 security support

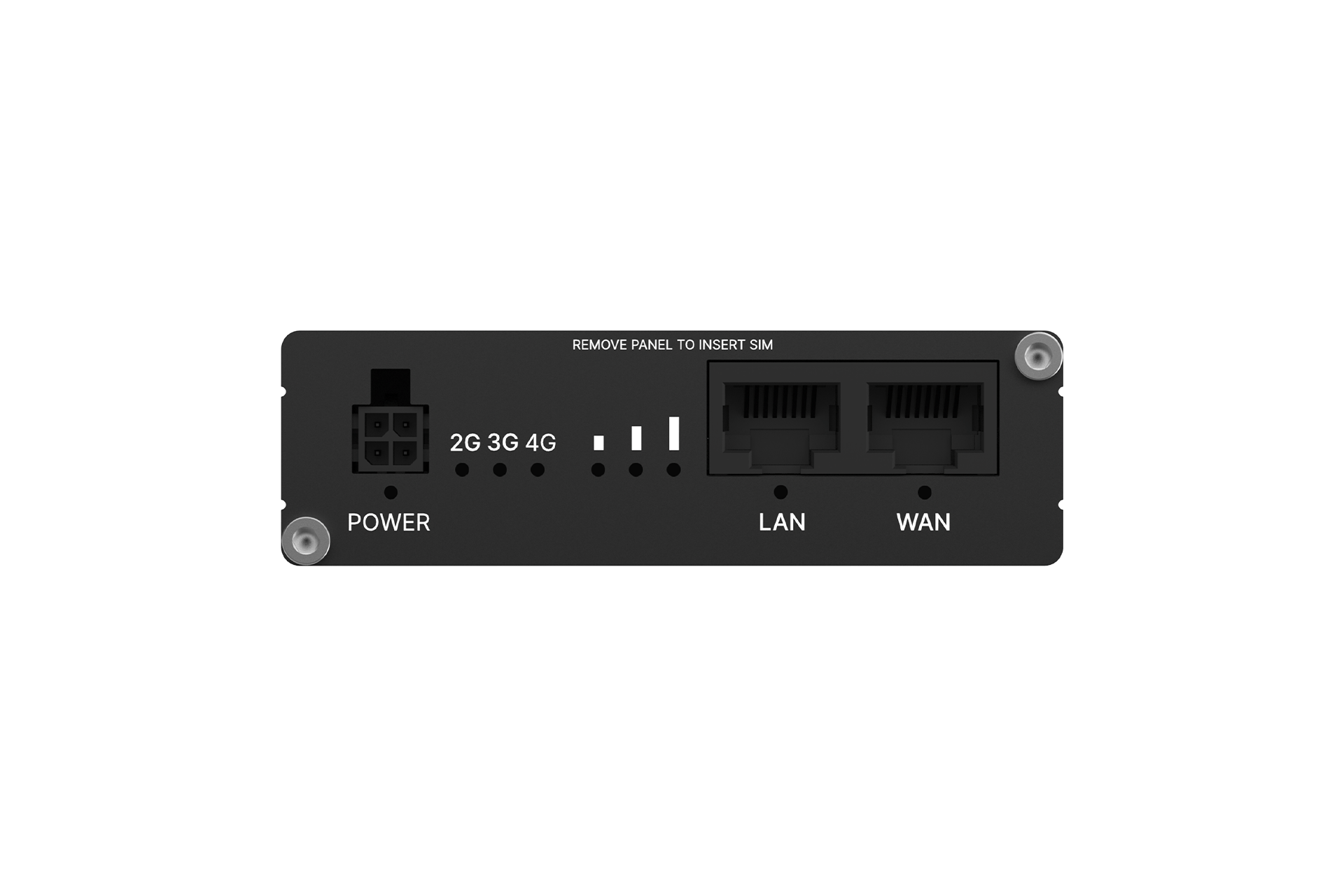

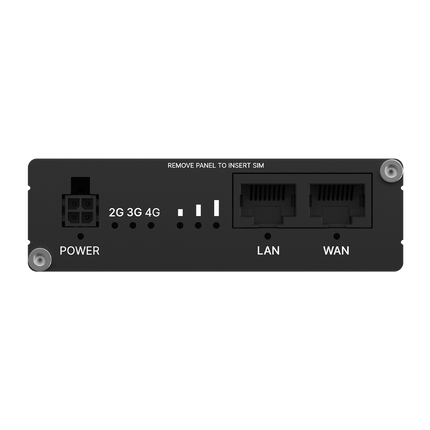

Dual Ethernet Ports
- 1 × WAN port (10/100 Mbps)
- 1 × LAN port (10/100 Mbps)
- WAN port configurable as LAN
- Auto MDI/MDIX support
Industrial Design
- Compact anodized aluminium housing
- Internal protected SIM cards
- DIN rail, wall mount or flat surface mounting (optional accessories)
- Operating temperature: -40°C to +75°C
- IP30 industrial enclosure
- E-Mark certified for vehicle applications
Why Choose the Teltonika RUT202?
The RUT202 is designed for applications requiring:
- Reliable mobile internet connectivity
- Network redundancy through dual SIM failover
- Compact installation footprint
- Remote management and diagnostics
- Industrial-grade reliability
- Secure VPN connectivity
- Cloud platform integration
- Long-term unattended operation
Typical Applications
Industrial IoT
Provide internet connectivity to PLCs, sensors, gateways and remote monitoring systems.
Retail & Digital Signage
Ensure continuous connectivity for POS systems, kiosks, digital displays and payment terminals.
Smart City Infrastructure
Connect traffic systems, environmental monitoring stations and public infrastructure.
Energy & Utilities
Support remote monitoring of substations, water infrastructure and utility metering systems.
Embedded Networking
Ideal for OEM equipment requiring reliable mobile connectivity in a very compact footprint.
Industrial Protocol Support
Despite its compact size, the RUT202 supports a comprehensive range of industrial protocols.
Modbus
Supported modes:
- Modbus TCP Client
- Modbus TCP Server
Supported formats:
Supported byte orders:
OPC UA
Supported:
- OPC UA Client
- OPC UA Server
- TCP connectivity
BACnet
Supported:
- BACnet Router
- BACnet/IP
- BBMD support
- Multiple BACnet interfaces
DNP3
Supported:
- Station mode
- Outstation mode
- TCP communication
DLMS/COSEM
Supported:
- Utility metering applications
- Client mode
- TCP connectivity
MQTT & Cloud Integration
MQTT Gateway
Built-in Modbus MQTT Gateway:
- Read Modbus devices through MQTT
- Publish telemetry to cloud platforms
- Remote command execution via MQTT broker
Data to Server
Supports:
- HTTP
- HTTPS
- MQTT
- Azure MQTT
Features:
- Data aggregation
- Multi-source data collection
- Custom Lua scripting
- Cloud publishing to a single endpoint
Advanced Networking Features
Supports:
- Static Routing
- Dynamic Routing (BGP, OSPF, RIP, EIGRP)
- Policy-Based Routing
- Load Balancing
- Automatic Failover
- DHCP Server & Relay
- DDNS
- QoS / Smart Queue Management
- DNS over HTTPS
- Hotspot Portal
- Hotspot 2.0
- SSHFS
- Traffic Management
- Network Topology Visualisation
Security Features
Authentication
Supports:
- X.509 certificates
- TACACS+
- Internal & External RADIUS
- Login blocking
- Random password generation
- 802.1X network access control
Firewall
Features:
- NAT
- NAT-T
- NAT64
- DMZ
- VLAN separation
- Port forwarding
- Custom firewall rules
- Web filtering
- Access control lists
Cybersecurity Protection
Includes:
- DDoS protection
- SYN flood protection
- SSH attack prevention
- HTTP/HTTPS protection
- Port scan detection
- Brute-force protection
VPN Support
The RUT202 includes enterprise-grade VPN functionality:
- OpenVPN
- WireGuard
- IPsec
- GRE
- PPTP
- L2TP
- SSTP
- DMVPN
- ZeroTier
- Tinc
- OpenConnect
- EoIP (Ethernet over IP)
Remote Monitoring & Management
Management options include:
- Web UI
- SSH
- SMS management
- Call-based control
- MQTT
- SNMP v1/v2/v3
- JSON-RPC API
- TR-069
- RMS Remote Management System
- Firmware Over-The-Air (FOTA) updates
RMS Compatibility
The Teltonika RMS platform enables:
- Centralised device management
- Remote troubleshooting
- VPN access
- Firmware deployment
- Configuration backups
- Monitoring and alerts
- Fleet-wide management of multiple routers
Digital Input & Output
Unlike many compact cellular routers, the RUT202 includes built-in I/O:
Digital Input
- 1 × Digital Input
- Logic Low: 0–6 V
- Logic High: 8–30 V
Digital Output
- 1 × Digital Output
- Open collector output
- Maximum 30 V
- Maximum 300 mA
Event Notifications
Supports:
- Email alerts
- SMS alerts
- RMS alerts
I/O events can be used to trigger automation actions and remote notifications.
Hardware Specifications
System Platform
- CPU: MediaTek 580 MHz MIPS 24KEc
- RAM: 128 MB DDR2
- Storage: 32 MB SPI Flash
- Operating System: RutOS (OpenWrt-based Linux)
Mobile Connectivity
Supported Australian version bands:
4G LTE-FDD
4G LTE-TDD
3G
2G

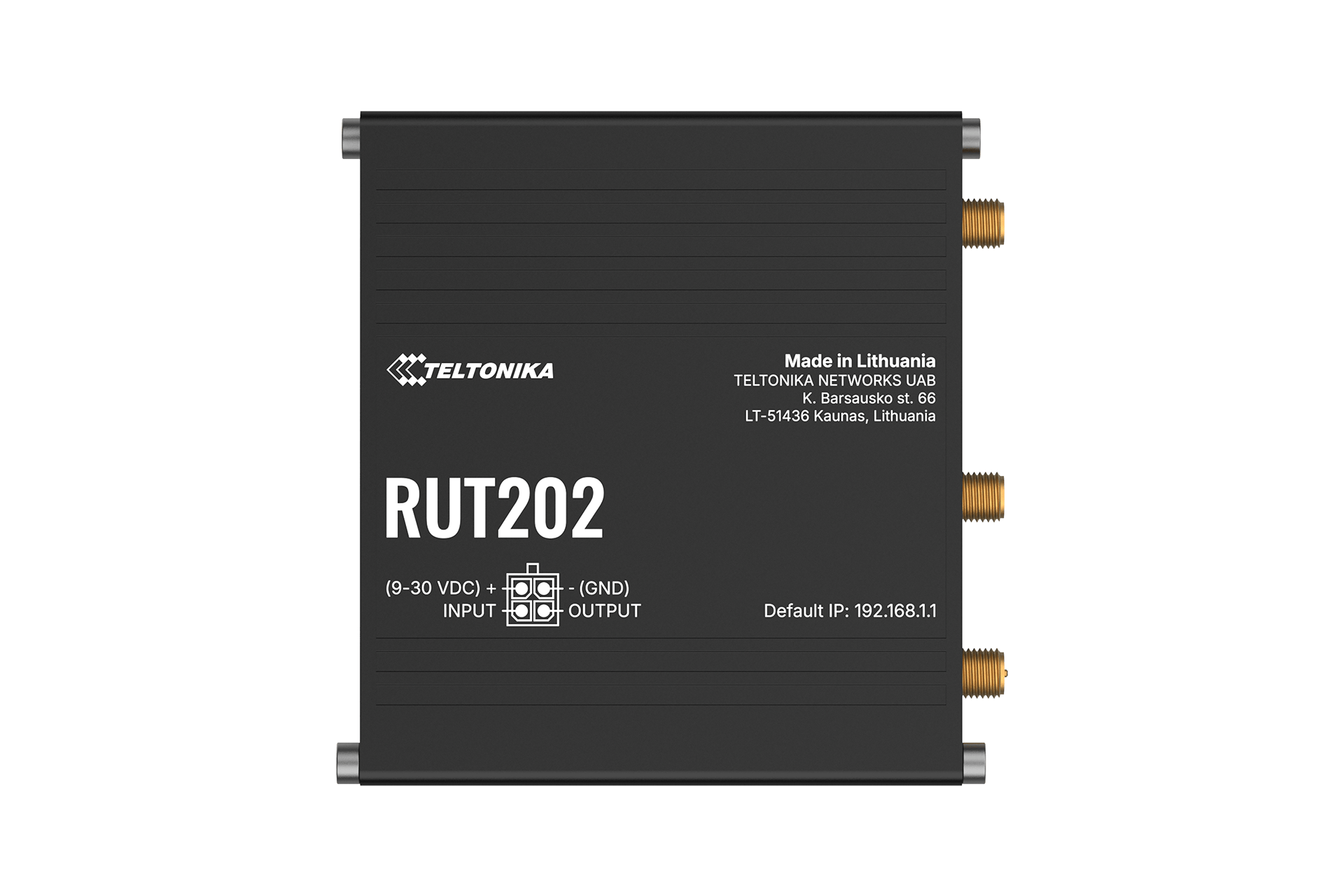

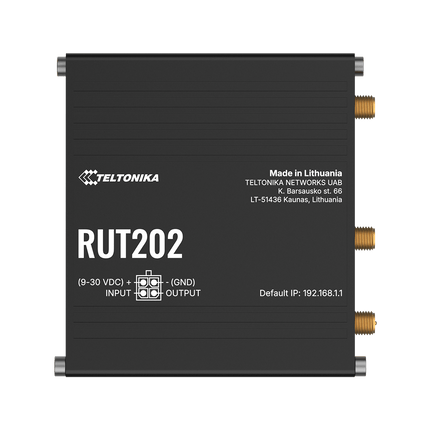

Power
- Input Voltage: 9–30 VDC
- Reverse polarity protection
- Surge protection
- Passive PoE support on LAN1
- Maximum power consumption: < 6.5 W
Physical Specifications
- Dimensions: 83 × 25 × 83 mm
- Weight: 130 g
- Anodized aluminium enclosure
- Compact industrial form factor
Environmental Specifications
- Operating temperature: -40°C to +75°C
- Operating humidity: 10–90% non-condensing
- IP30 rating
