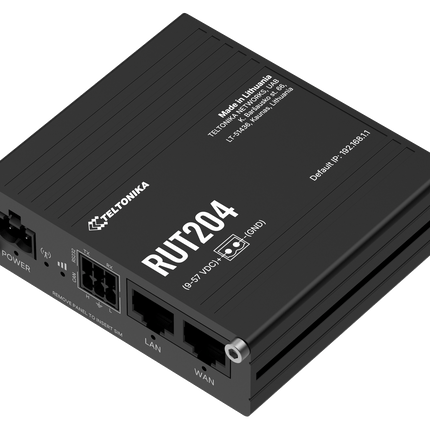

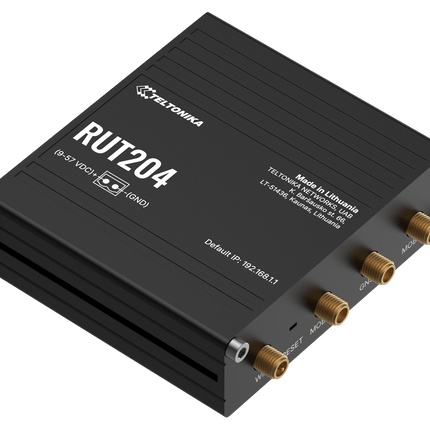

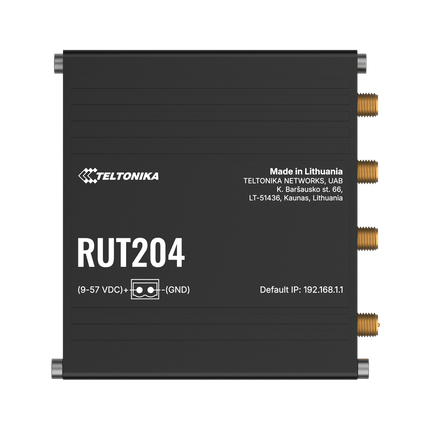

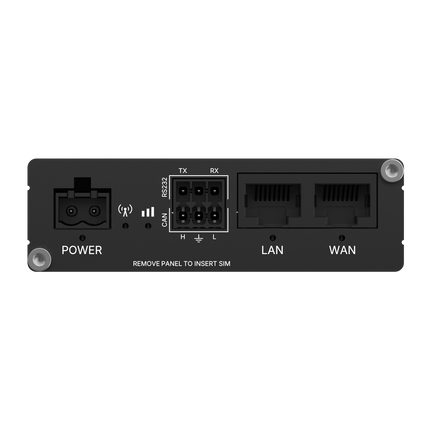

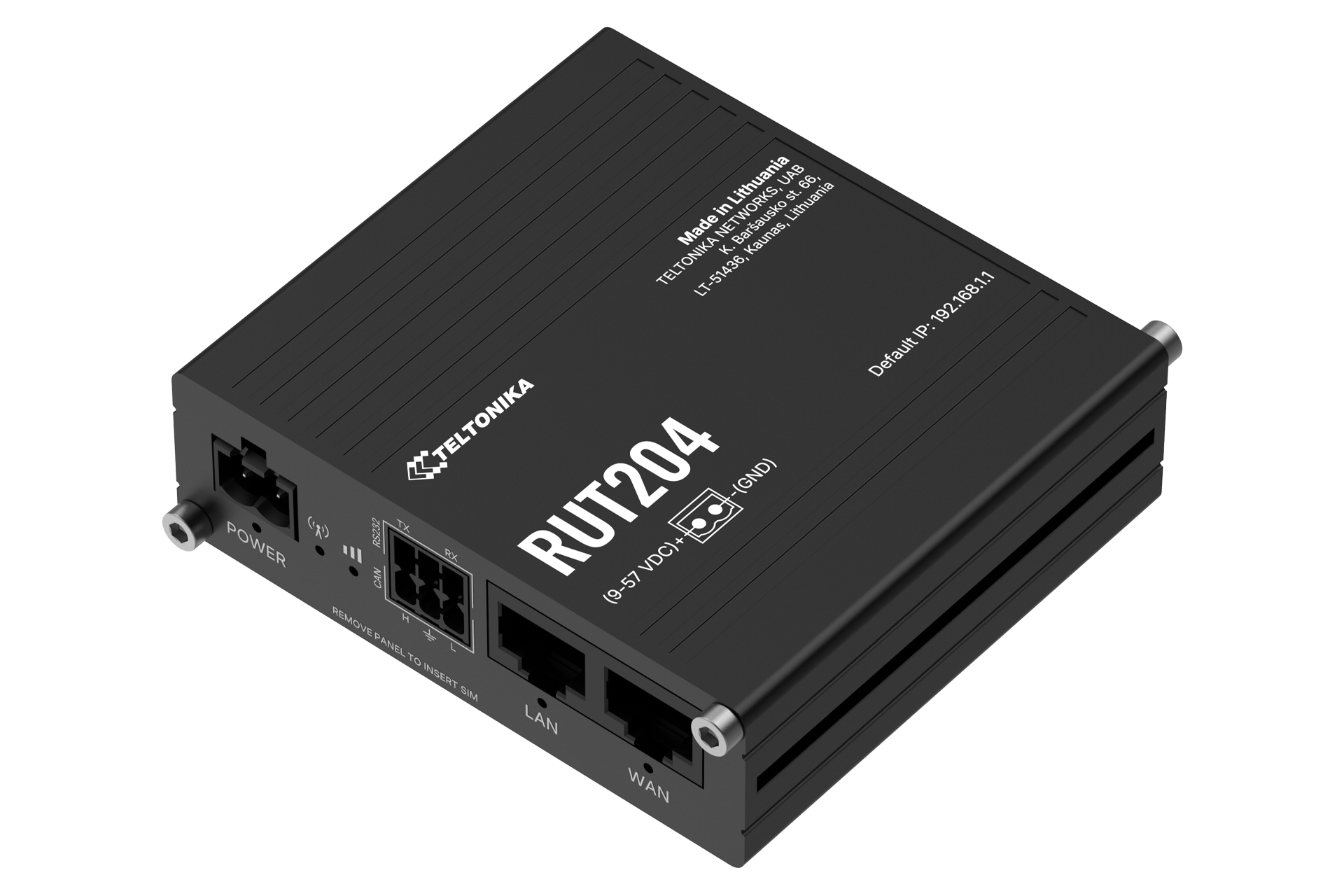

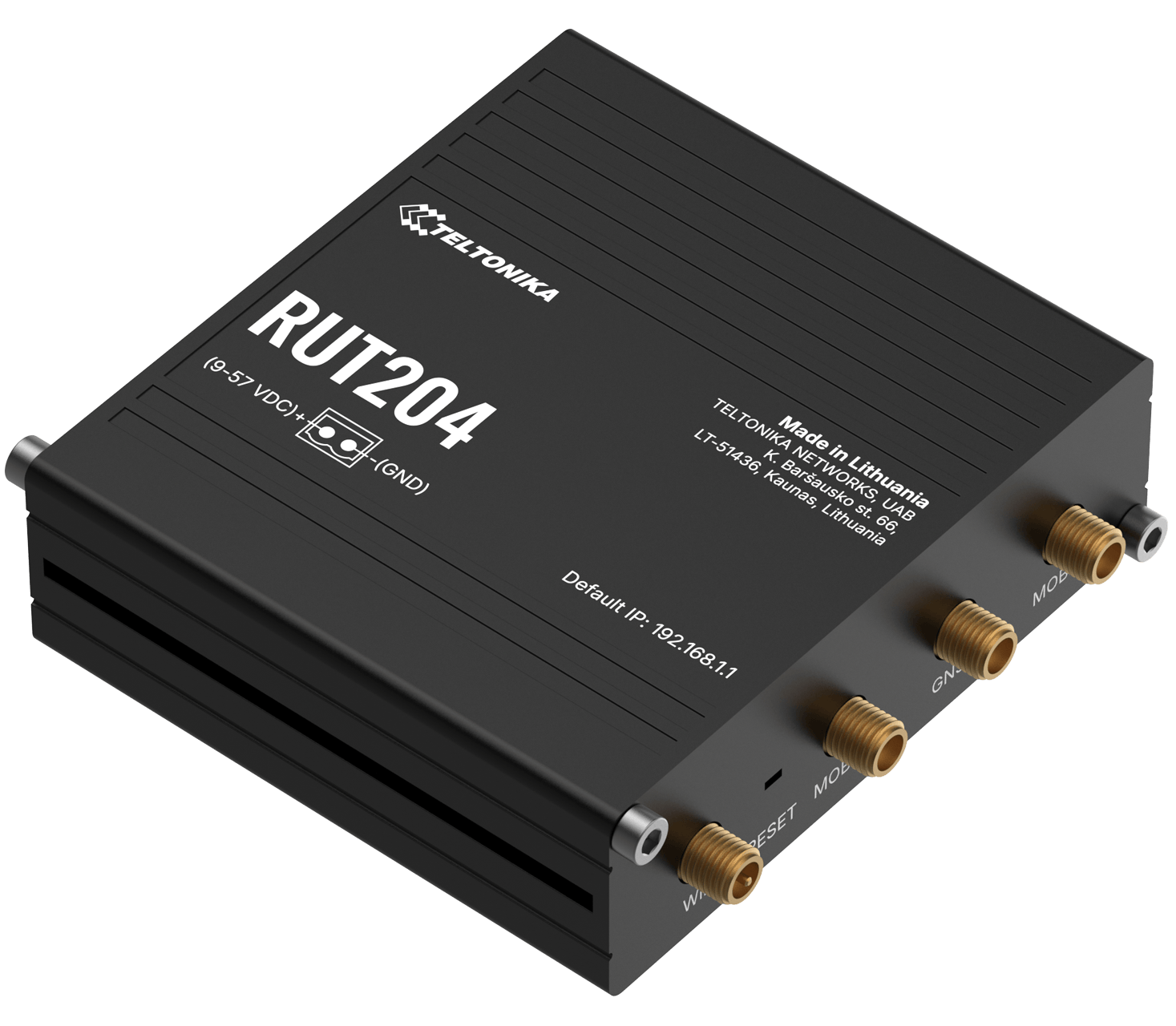

Teltonika RUT204 Industrial Rugged CAN BUS Cellular LTE 4G Router
Industrial LTE Router with Native CAN Bus, GNSS & Remote Fleet Connectivity
The Teltonika RUT204 is a compact industrial LTE router purpose-built for vehicle telematics, industrial automation, smart transport, and machine connectivity applications. Featuring native CAN Bus support, LTE Cat 4 cellular connectivity, GNSS positioning, and rugged industrial design, the RUT204 enables direct and secure access to machine and vehicle data without requiring external converters.
According to the official Teltonika datasheet and flyer, the RUT204 supports CANOpen and SAE J1939 protocols, integrated data logging, dual SIM failover, RS232, PoE-In, and remote fleet management through Teltonika RMS.
Key Features
-
Native CAN Bus Integration
Built-in CAN interface with support for CANOpen and SAE J1939 protocols for direct machine data access.
-
4G LTE Cat 4 Connectivity
High-speed LTE with download speeds up to 150 Mbps and fallback to 3G/2G networks.
-
Dual SIM Failover
Automatic SIM switching for reliable network redundancy and uptime.
-
Integrated GNSS Tracking
Supports GPS, GLONASS, Galileo, BeiDou, and QZSS for accurate positioning and fleet tracking.
-
Industrial Interfaces
Includes RS232, CAN Bus, Ethernet, WiFi 4, and PoE-In support for flexible deployments.
-
Remote Fleet Management (RMS)
Simplifies zero-touch deployment, monitoring, configuration, and firmware updates.
-
Advanced RutOS Platform
Supports MQTT, Modbus, OPC UA, DNP3, DLMS/COSEM, VPNs, and cloud integrations.
Why Choose RUT204?
-
Direct CAN Bus Connectivity
Eliminate external converters and simplify machine integration
-
Ideal for Fleet & Mobile Applications
Compact, rugged, and designed for transportation environments
-
Reliable Industrial Networking
Dual SIM redundancy and industrial-grade durability ensure uptime
-
Powerful Remote Management
RMS support enables scalable fleet deployment and maintenance
The RUT204 is ideal for applications requiring vehicle data acquisition, machine telemetry, and rugged industrial connectivity.
Typical Applications
- Vehicle telematics & fleet management
- Industrial machinery monitoring
- Smart transportation systems
- Construction & mining equipment connectivity
- Agricultural equipment telemetry
- Remote asset tracking
- Energy & utility field deployments
Technical Highlights
-
Cellular: LTE Cat 4 up to 150 Mbps DL / 50 Mbps UL
-
WiFi: WiFi 4 (802.11b/g/n), AP & Station modes
-
Ethernet: 2 × RJ45 ports (1 WAN + 1 LAN, 10/100 Mbps)
-
CAN Bus: Integrated CAN interface with CAN Gateway support
-
Protocols: CANOpen Client (planned), SAE J1939 Client (planned)
-
Serial: 1 × RS232 interface
-
GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS
-
CPU: Mediatek 580 MHz, MIPS 24KEc
-
Memory: 128 MB RAM, 32 MB Flash
-
Storage Expansion: MicroSD up to 2 TB
-
Power:
- 9–57 VDC industrial input
- Active PoE-In (802.3af)
- Passive PoE support
-
Operating Temp: -40°C to +75°C
-
Housing: Rugged anodized aluminium enclosure
-
Dimensions: 83 × 25 × 83 mm
-
Weight: 140 g
Resources:
Teltonika RUT204 Flyer
Teltonika RUT204 Datasheet
Teltonika RUT204 Quick User Guide
Teltonika RUT204 User Guide
Teltonika RUT204 3D Models
