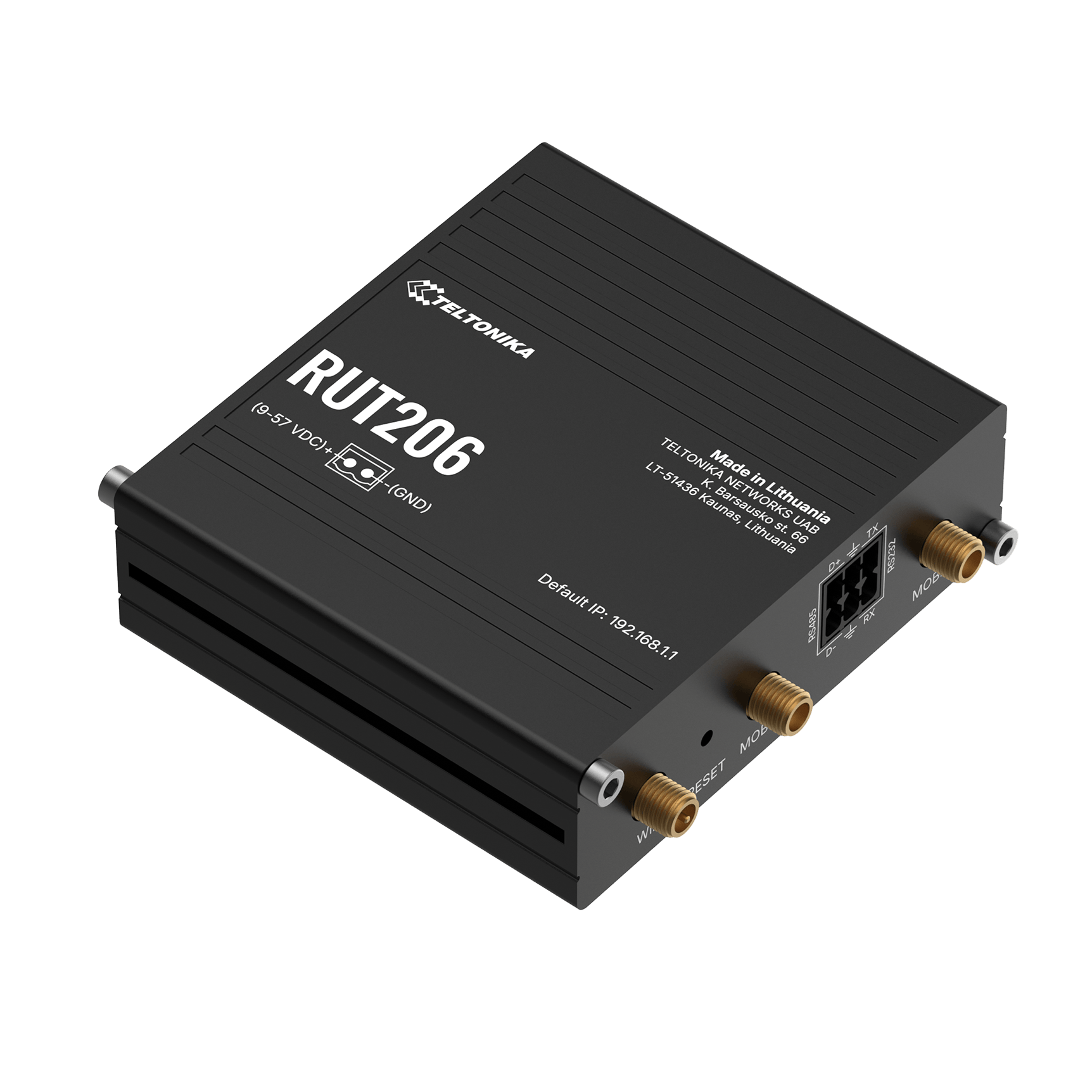

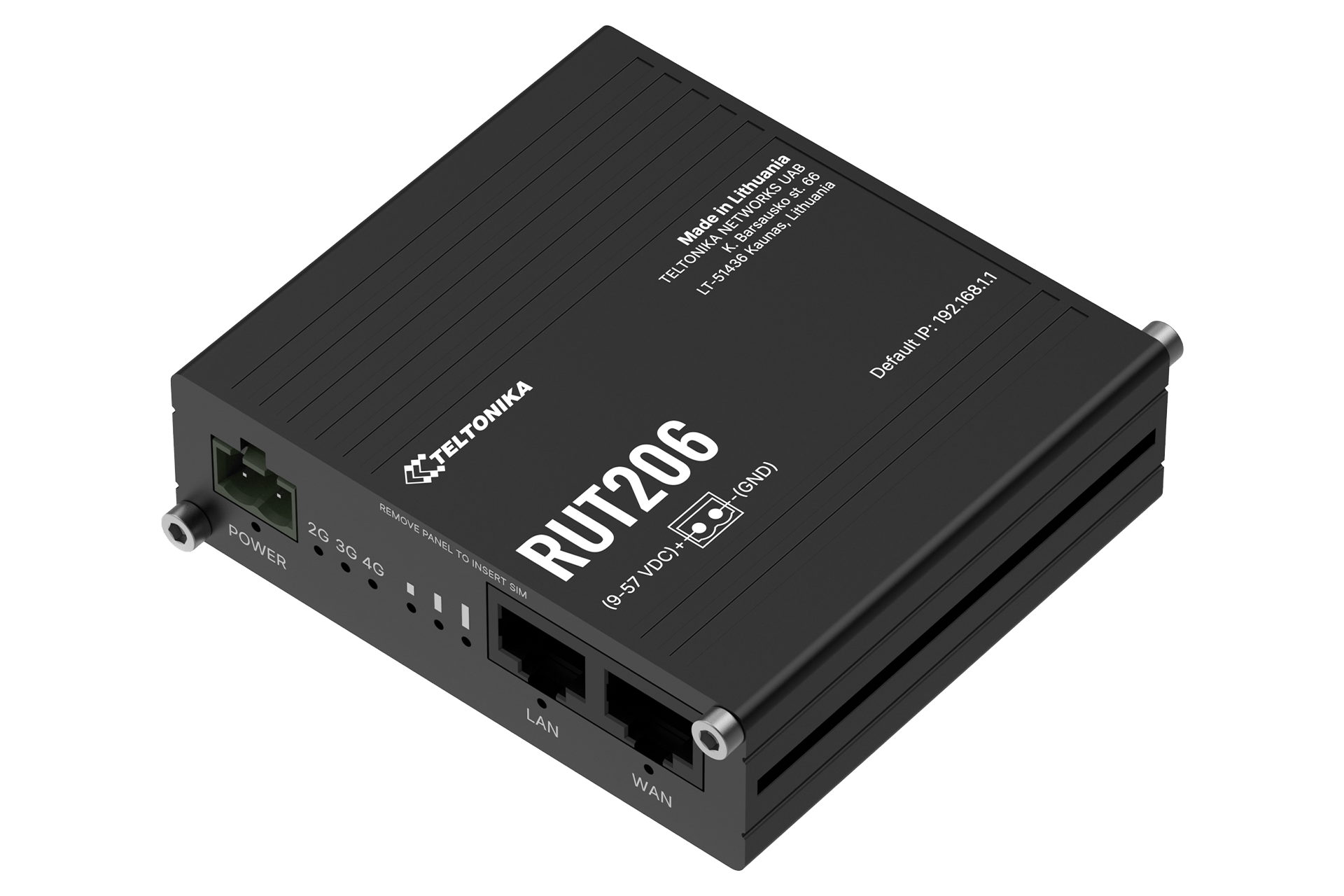

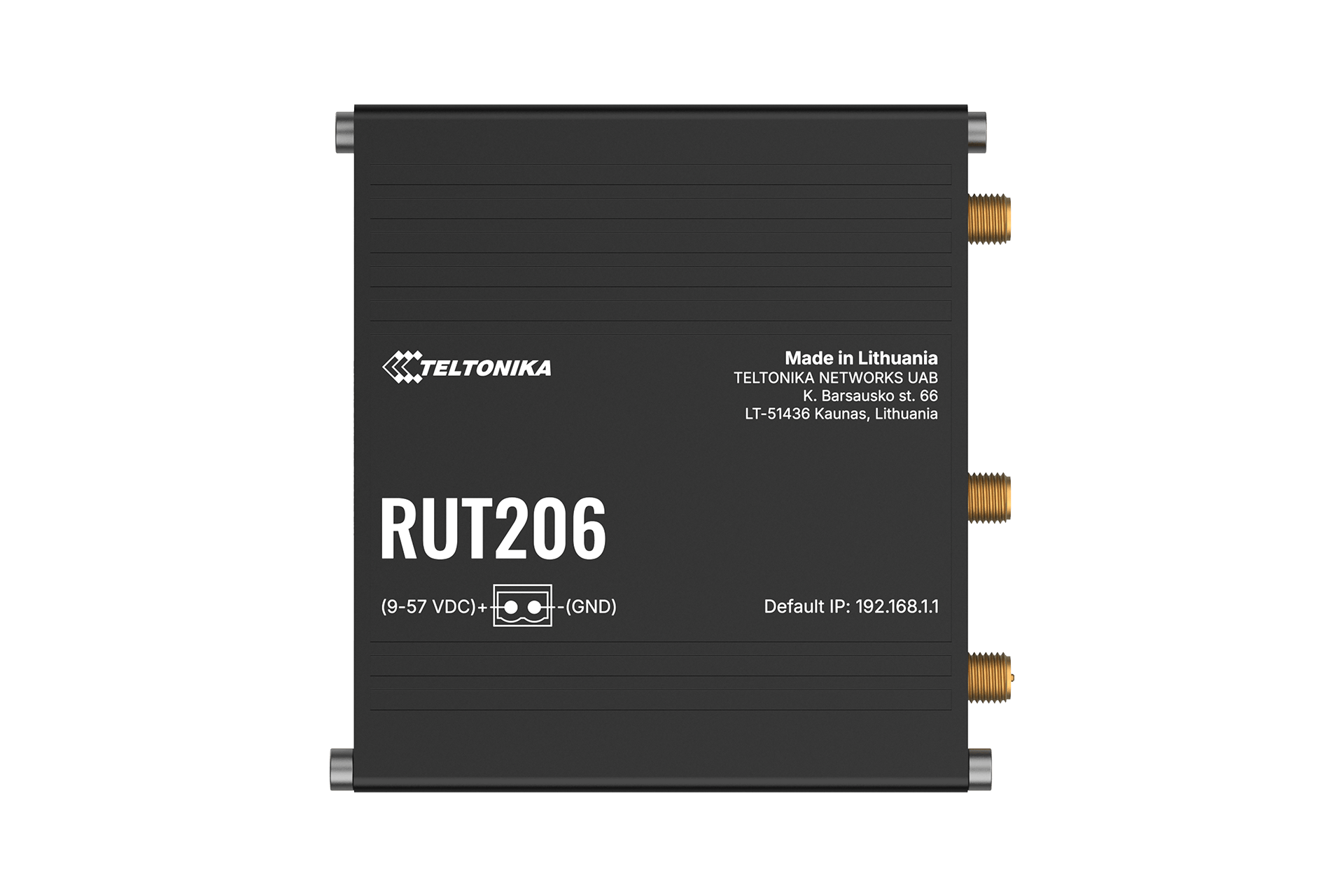

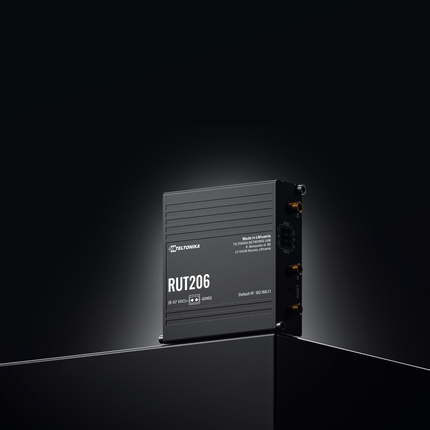

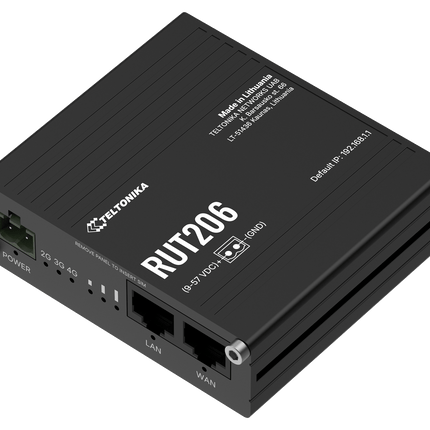

Teltonika RUT206 Industrial Rugged Cellular LTE 4G Router (PoE, RS232, RS485, WiFi)
Industrial 4G Router with Serial Interfaces, PoE & Advanced IoT Connectivity
The Teltonika RUT206 Industrial LTE Router is a compact yet highly capable networking device designed for industrial IoT, automation, and SCADA applications. Featuring RS232, RS485, dual SIM, PoE input, and WiFi connectivity, the RUT206 enables seamless integration of legacy equipment with modern cloud-based systems.
Built on Teltonika’s robust RutOS (Linux-based) platform, the RUT206 supports a wide range of industrial protocols, secure networking, and remote management—making it an ideal solution for data acquisition, remote monitoring, and M2M communication.
Key Features
-
4G LTE Cat 4 Connectivity with Dual SIM
Reliable high-speed connectivity with automatic failover and redundancy
-
RS232 & RS485 Serial Interfaces
Connect PLCs, RTUs, meters, and legacy industrial equipment directly
-
Active & Passive PoE Input Support
Flexible power options via Ethernet or DC supply (9–57 VDC)
-
WiFi Access Point (802.11 b/g/n)
Supports up to 50 concurrent users for local connectivity
-
MicroSD Storage Expansion (Up to 2TB)
Local data logging and storage for industrial applications
-
Industrial Protocol Support
Supports Modbus, DNP3, DLMS, OPC UA, MQTT and more
-
Remote Management (RMS)
Monitor, configure, and update devices remotely via Teltonika RMS
Why Choose RUT206?
-
Perfect for Industrial & SCADA Integration
Combines serial interfaces, cellular, and Ethernet in one device
-
Flexible Power Options (PoE + DC)
Simplifies deployment in remote or power-constrained environments
-
All-in-One Connectivity Hub
Cellular, WiFi, Ethernet, and serial communication in a single compact router
-
Rugged Industrial Design
Operates in harsh environments from -40°C to +75°C
The RUT206 is ideal for applications requiring secure, reliable, and versatile connectivity across industrial systems.
Typical Applications
- Industrial automation & PLC connectivity
- SCADA & telemetry systems
- Smart metering (water, gas, electricity)
- Renewable energy monitoring (solar, wind)
- Smart agriculture & irrigation
- Remote asset monitoring
Technical Highlights
-
Cellular: 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G
-
SIM: Dual SIM with automatic switching
-

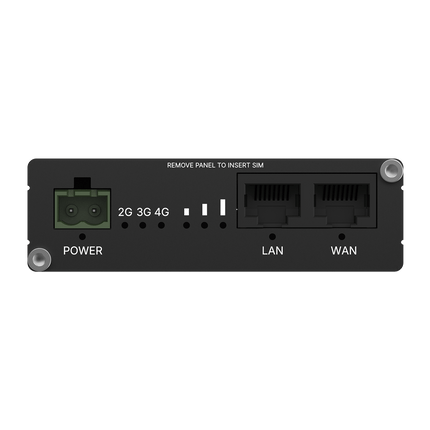

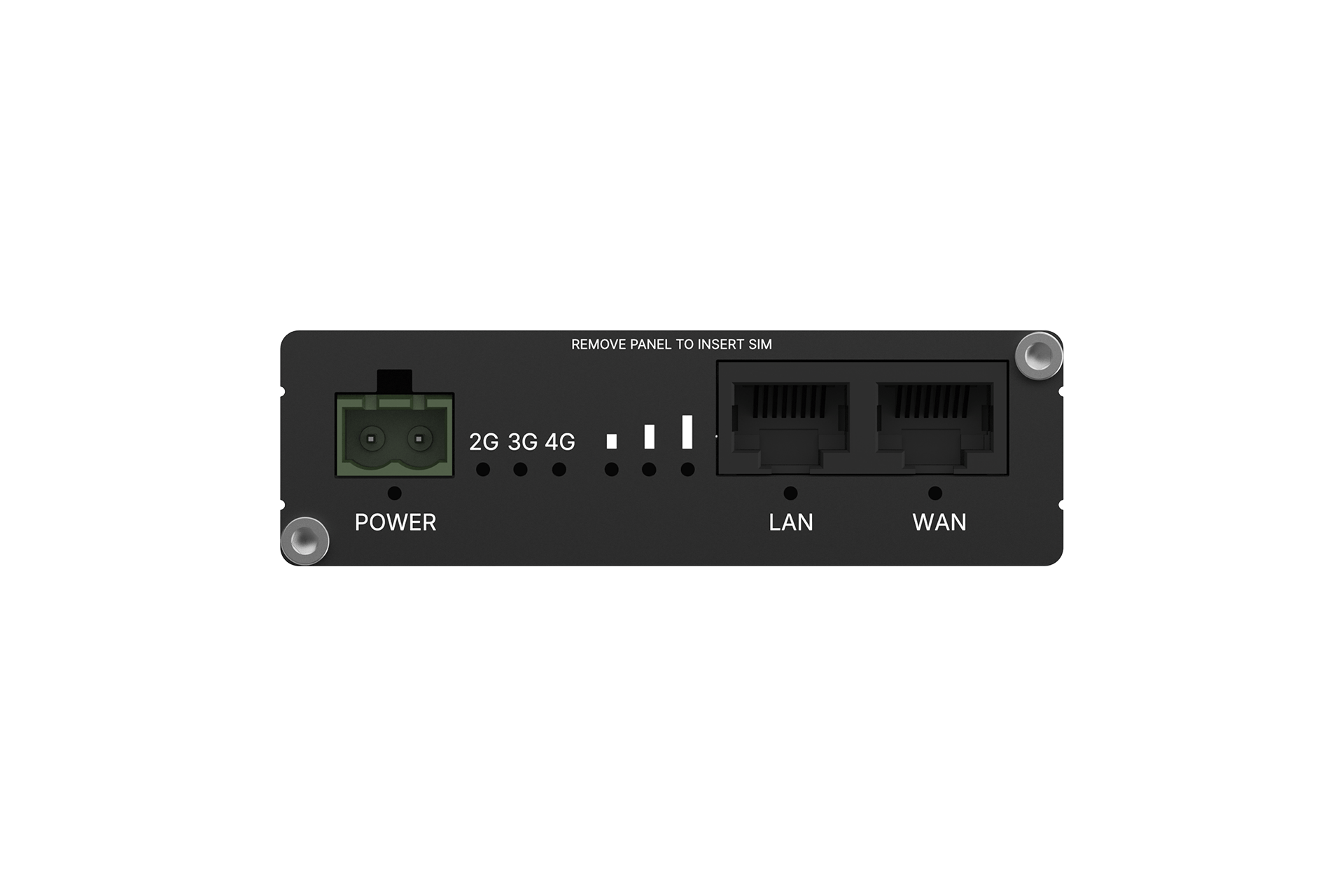

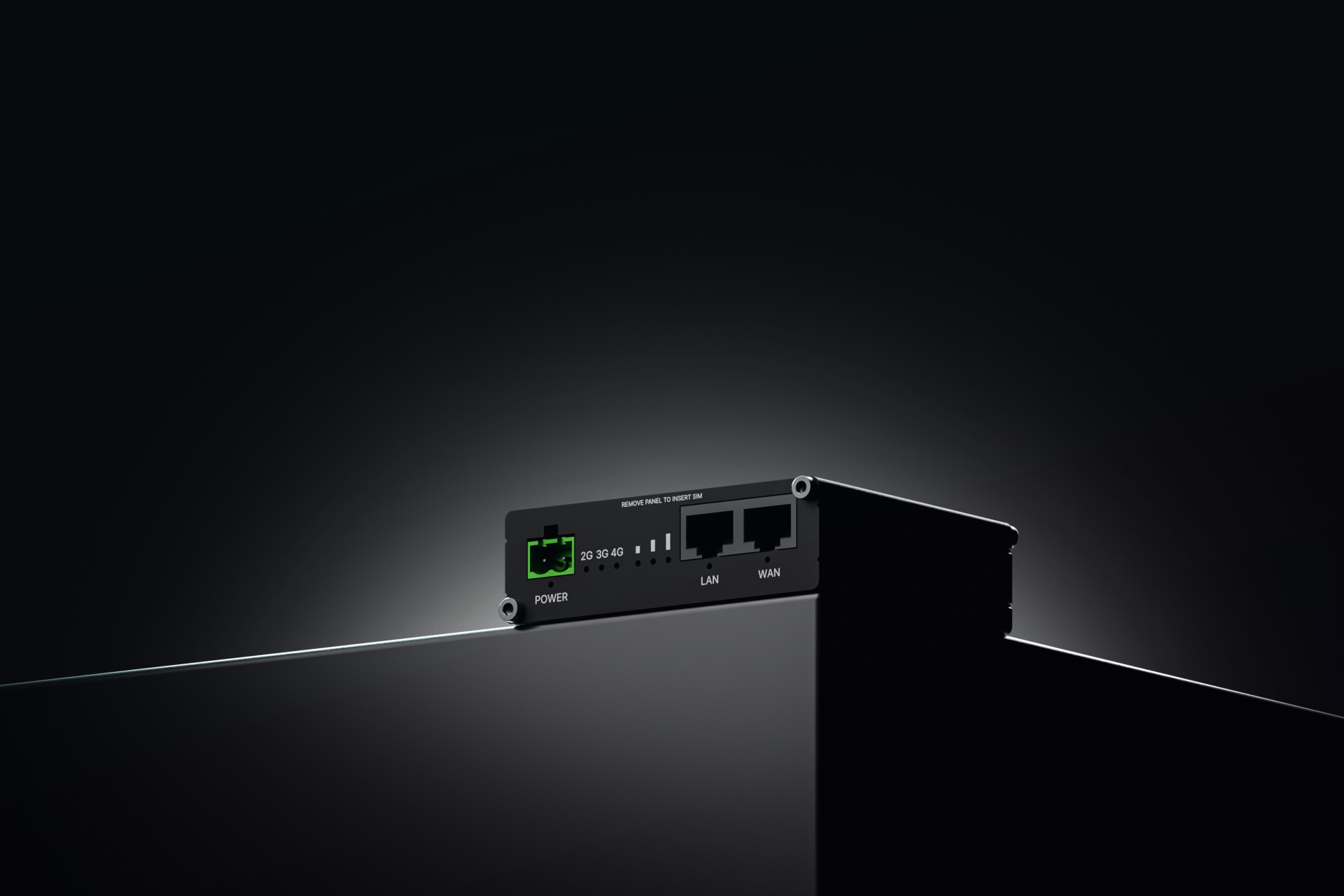

Ethernet: 2 × RJ45 (LAN + WAN, configurable)
-
WiFi: 802.11 b/g/n (WiFi 4), AP & Station modes
-

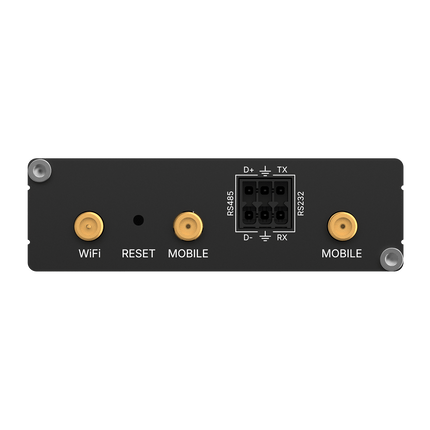

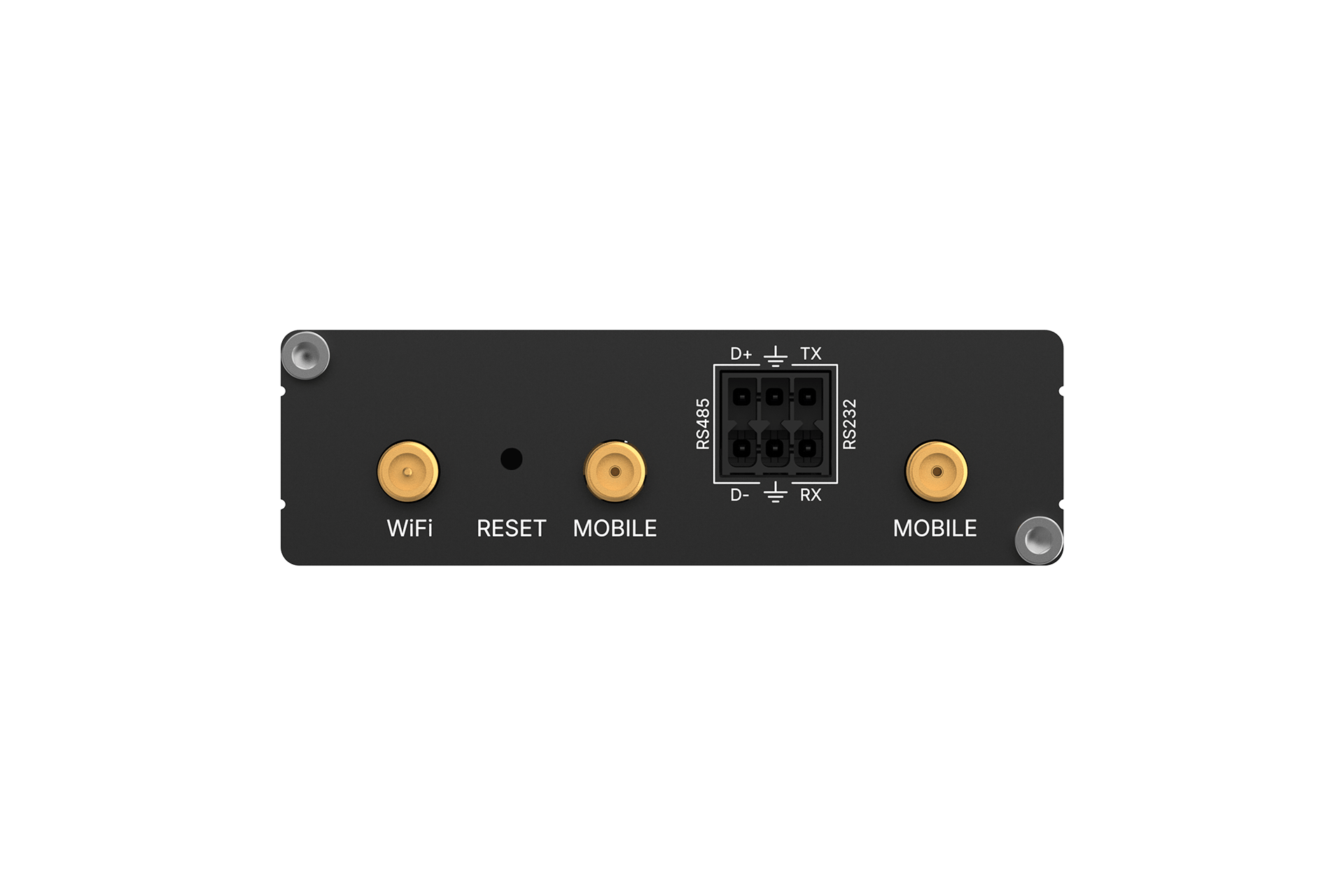

Serial: 1 × RS232, 1 × RS485 (6-pin terminal block)
-
PoE: Active (802.3af) and passive PoE input supported
-
Storage: MicroSD support up to 2TB
-

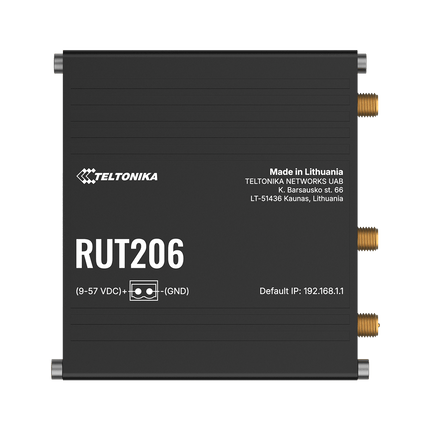

Power: 9–57 VDC input
-
Operating Temp: -40°C to +75°C
-
OS: RutOS (OpenWrt-based Linux OS)
What’s in the Box
- RUT206 Industrial Router
- 2-pin terminal block
- 2 × 3-pin connectors
- SIM adapter kit
- Hex key
- Quick Start Guide
Resources:
Teltonika RUT206 Flyer
Teltonika RUT206 Datasheet
Teltonika RUT206 Quick User Guide
Teltonika RUT206 User Guide
Teltonika RUT206 3D Models
