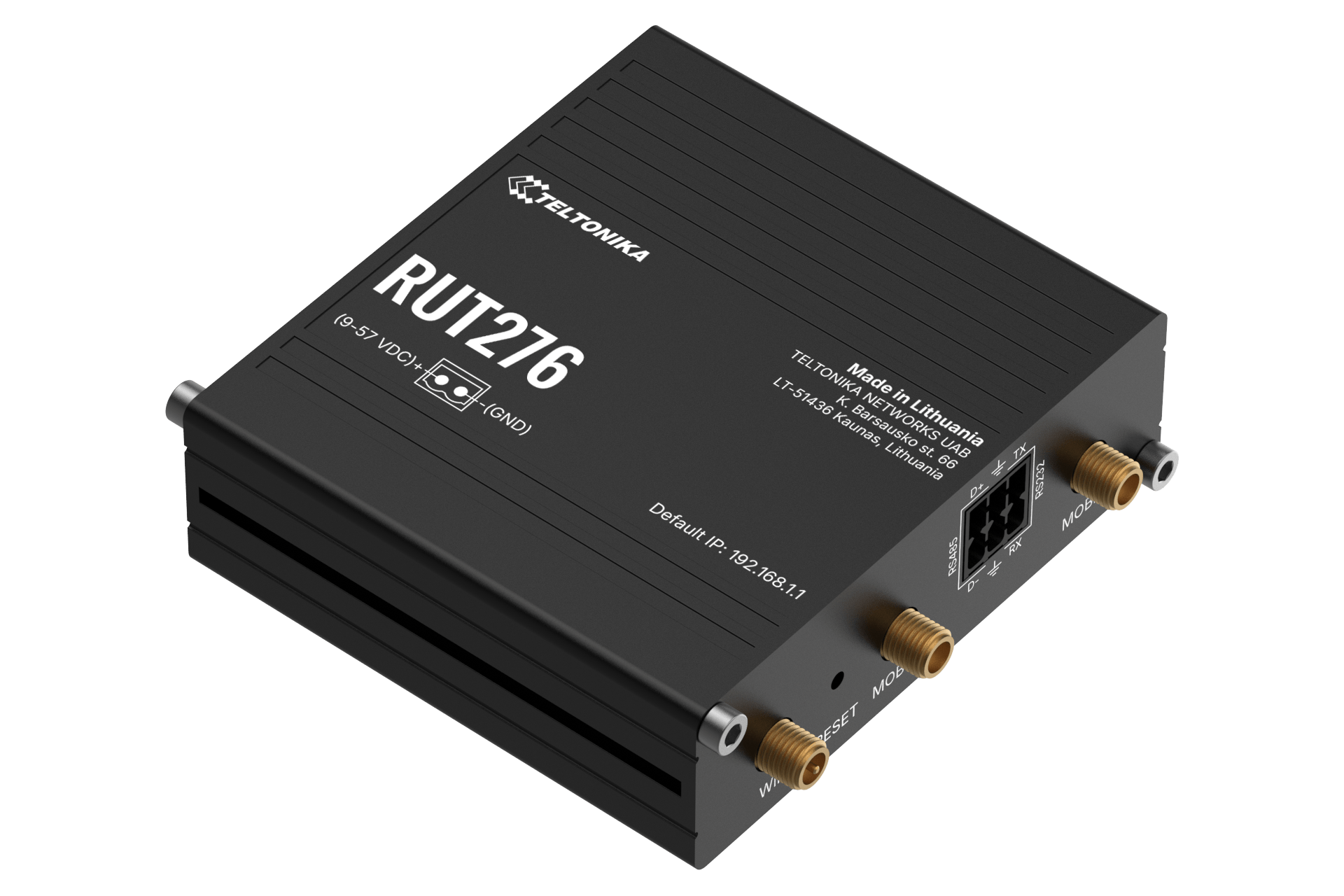

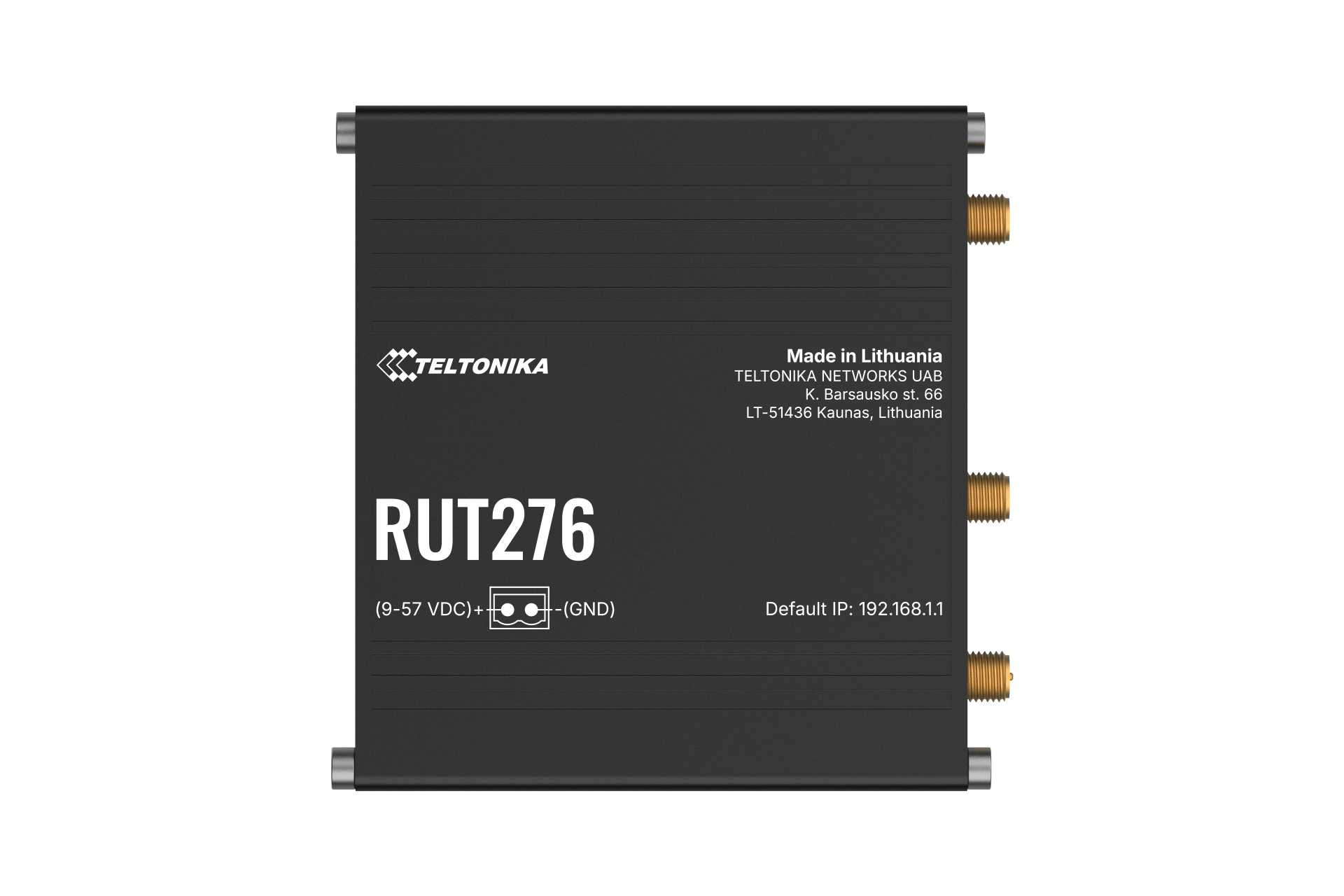

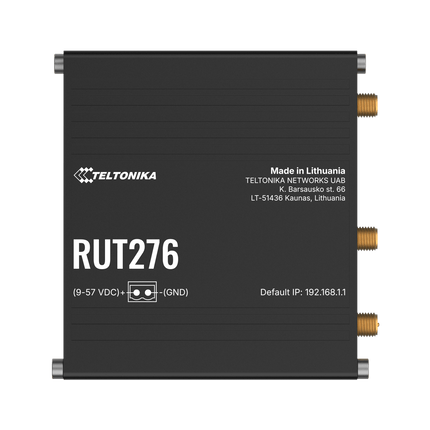

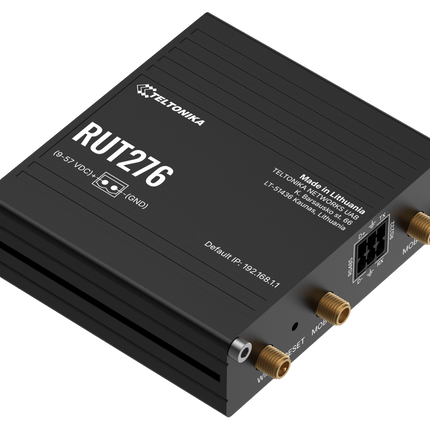

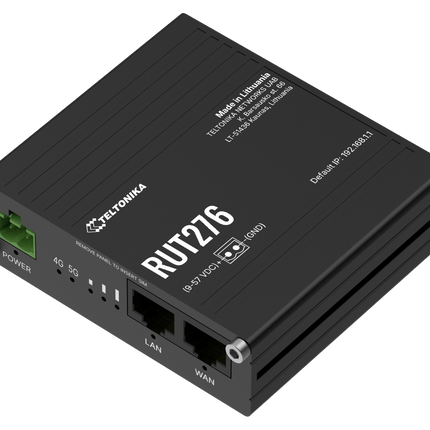

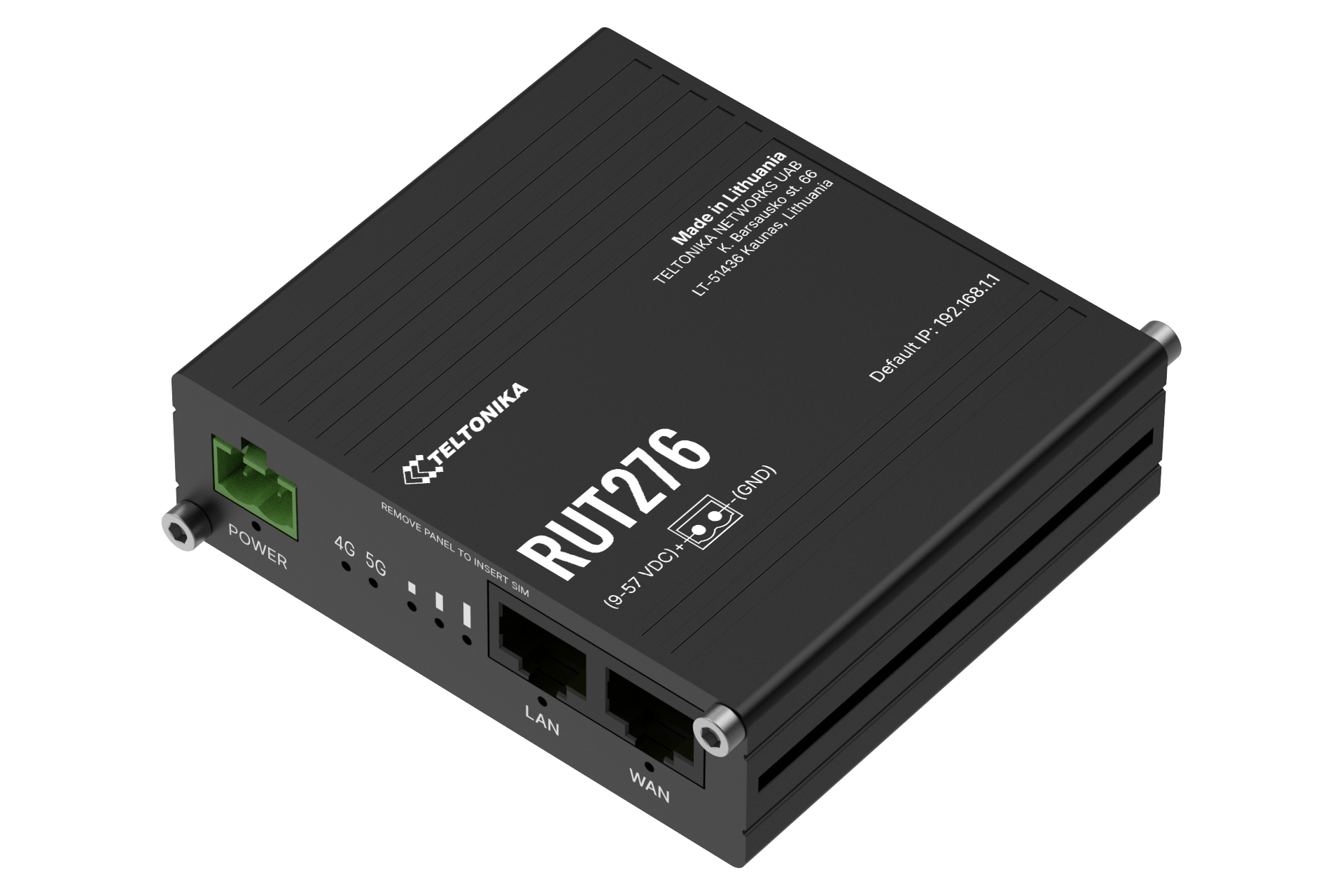

Teltonika RUT276 Industrial Rugged Cellular 5G RedCap Router
Compact Industrial 5G RedCap Router with RS232/RS485 for IoT & Automation
The Teltonika RUT276 Industrial 5G RedCap Router is a compact and cost-efficient industrial networking solution designed for IIoT, automation, utilities, and smart city deployments. Powered by 5G RedCap (Reduced Capability) technology, the RUT276 delivers the key advantages of 5G — including low latency, improved capacity, and better efficiency — without the cost and power demands of full 5G hardware.
As highlighted in the official datasheet and flyer, the RUT276 features built-in RS232 and RS485 interfaces, native support for Modbus, OPC UA, and BACnet, and rugged industrial construction for reliable deployment in demanding environments
Key Features
-
5G RedCap Connectivity
Enjoy low latency and improved throughput at a more competitive price point than traditional 5G routers
-

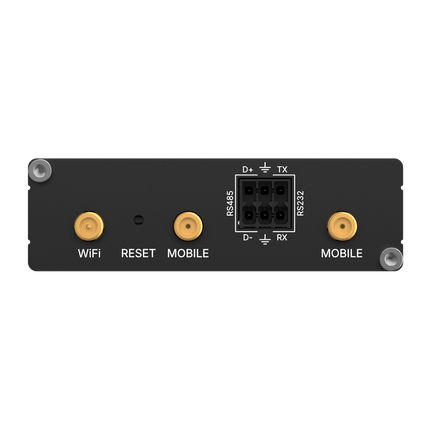

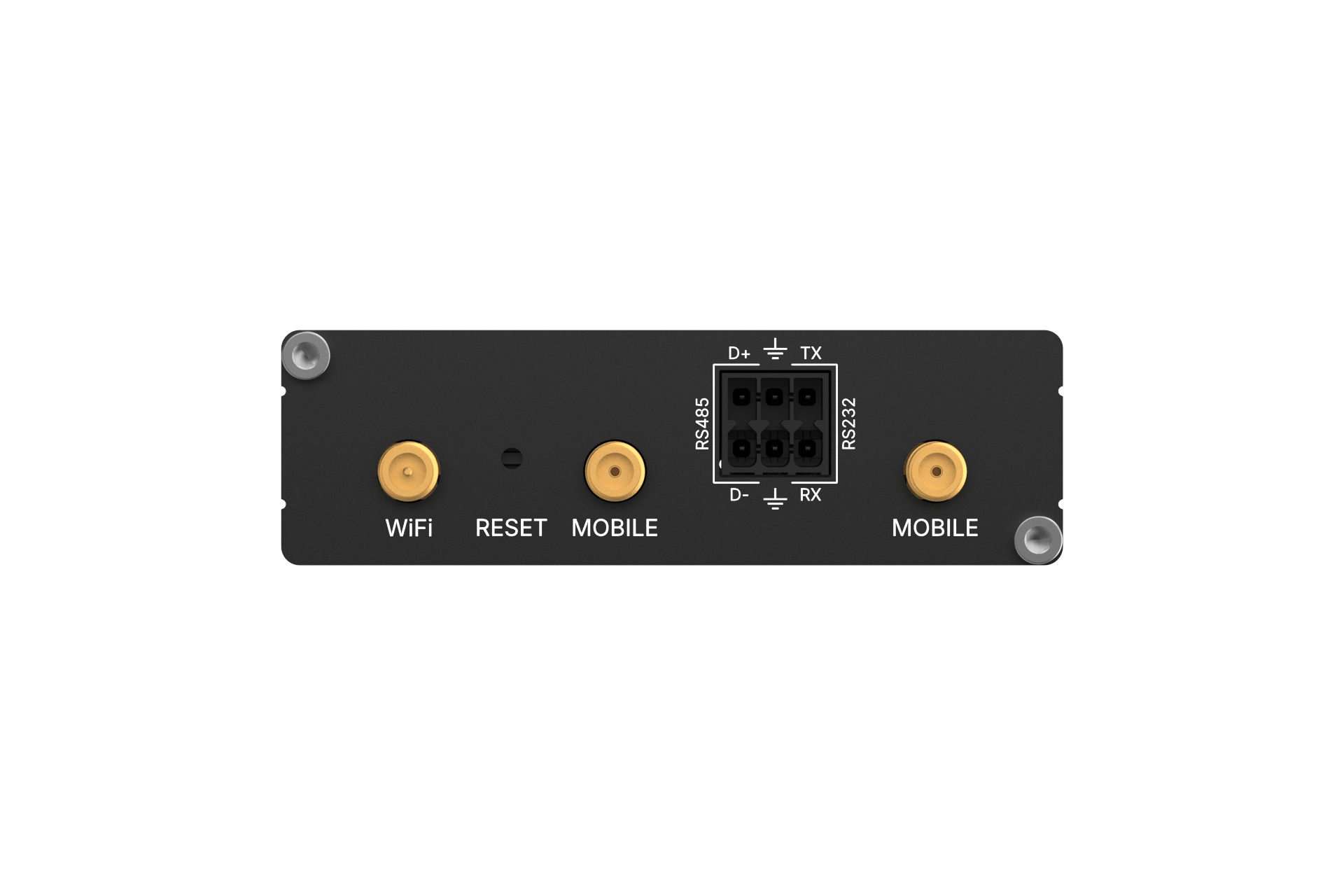

Built-In RS232 & RS485 Interfaces
Seamless integration with PLCs, RTUs, industrial controllers, and legacy equipment
-
Protocol-Ready for Industrial Systems
Native support for Modbus, OPC UA, BACnet, DNP3, and DLMS/COSEM
-
Dual SIM with Automatic Failover
Ensures continuous uptime and network redundancy
-
Industrial Rugged Design
Aluminium housing with wide operating temperature range and flexible mounting options
-
Wi-Fi 4 Connectivity
Supports Access Point, Client, Mesh (802.11s), and Multi-AP modes
-
Advanced RutOS Platform
Includes VPNs, firewall, RMS remote management, and cloud integration
Why Choose RUT276?
-
Affordable Entry into 5G IoT
RedCap technology delivers core 5G benefits without premium 5G costs
-
Perfect for Industrial Integration
RS232/RS485 support makes it ideal for SCADA and automation systems
-
Designed for Continuous Operation
Rugged hardware and failover connectivity ensure reliability in critical environments
-
Compact & Easy to Deploy
Small form factor fits industrial cabinets and control panels easily
The RUT276 is ideal for deployments requiring cost-effective industrial 5G connectivity with serial integration.
Typical Applications
- Industrial automation & SCADA
- Smart energy & utility monitoring
- Smart city infrastructure
- Remote telemetry systems
- Industrial IoT gateways
- Building management systems (BMS)
- Renewable energy monitoring
Technical Highlights
-
5G: Sub-6GHz SA RedCap, up to 223 Mbps DL / 123 Mbps UL
-
4G Fallback: LTE Cat 4, up to 195 Mbps DL
-
Wi-Fi: IEEE 802.11b/g/n (Wi-Fi 4)
-

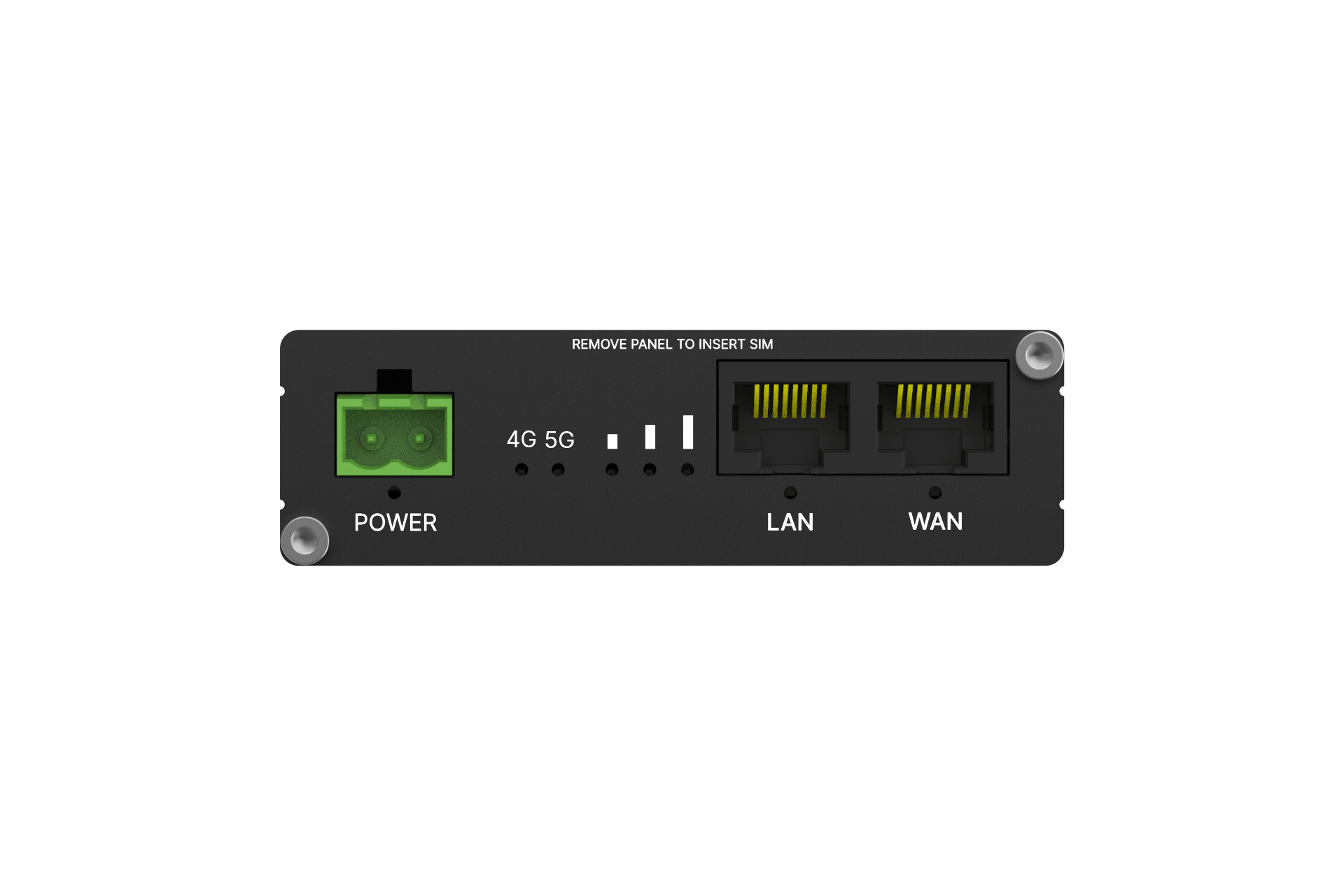

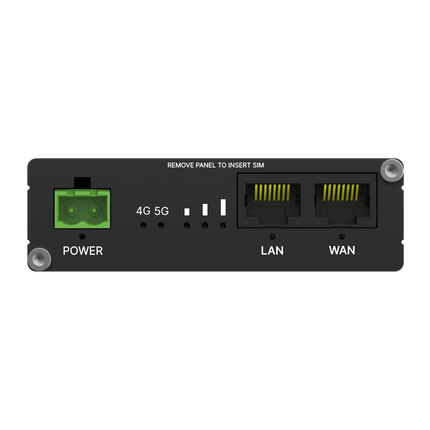

Ethernet:
- 1 × WAN port (10/100 Mbps)
- 1 × LAN port (10/100 Mbps)
-
Serial Interfaces:
-
SIM: Dual Mini SIM slots with failover
-
PoE Input: Active PoE 802.3af + Passive PoE support
-
CPU: MediaTek 580 MHz, MIPS 24KEc
-
Memory: 128 MB RAM, 32 MB SPI Flash
-
Storage Expansion: MicroSD support up to 2 TB
-
Operating Temp: -40°C to +75°C
-
Dimensions: 83 × 25 × 83 mm
-
Housing: Rugged aluminium enclosure
-
OS: RutOS (OpenWrt-based Linux OS)
