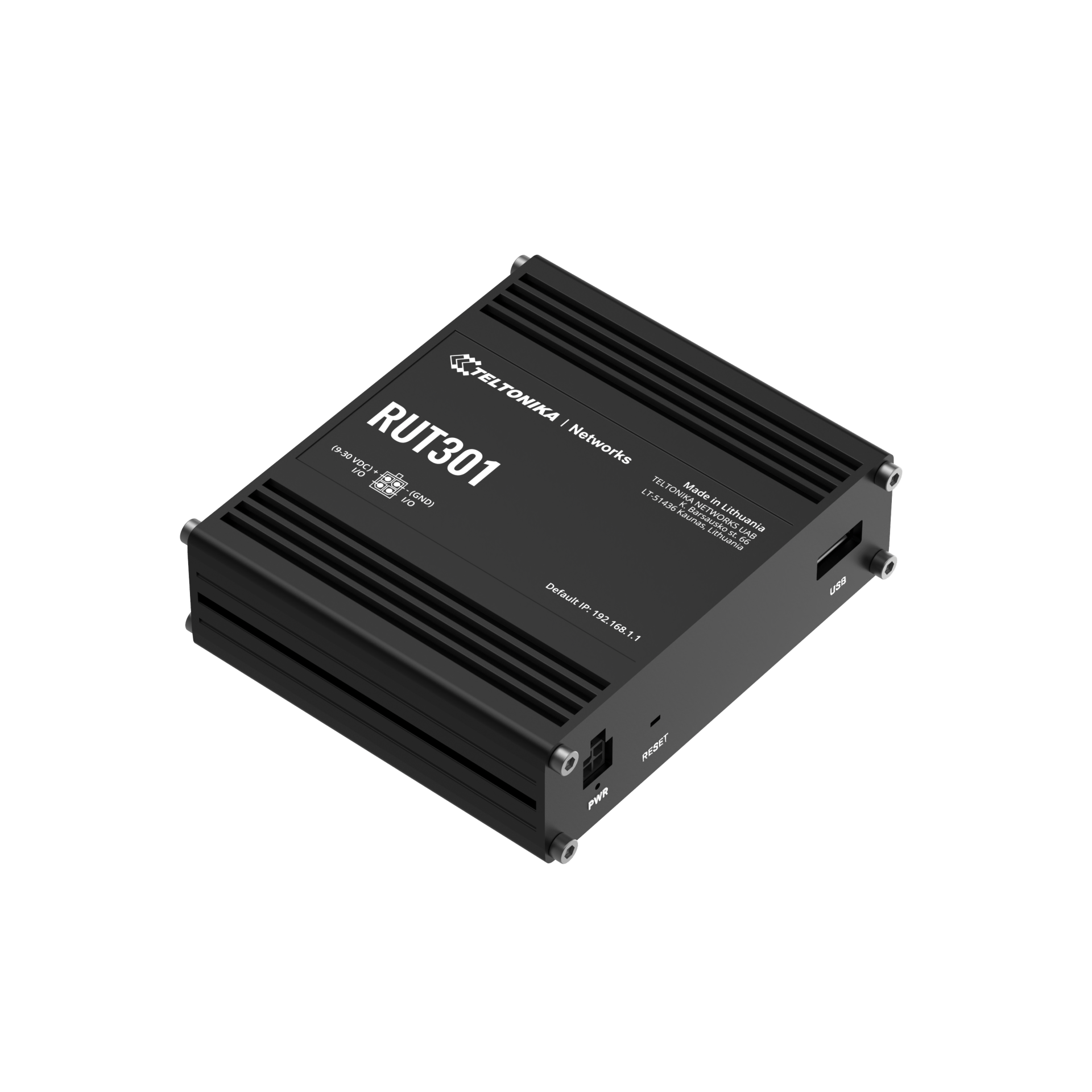

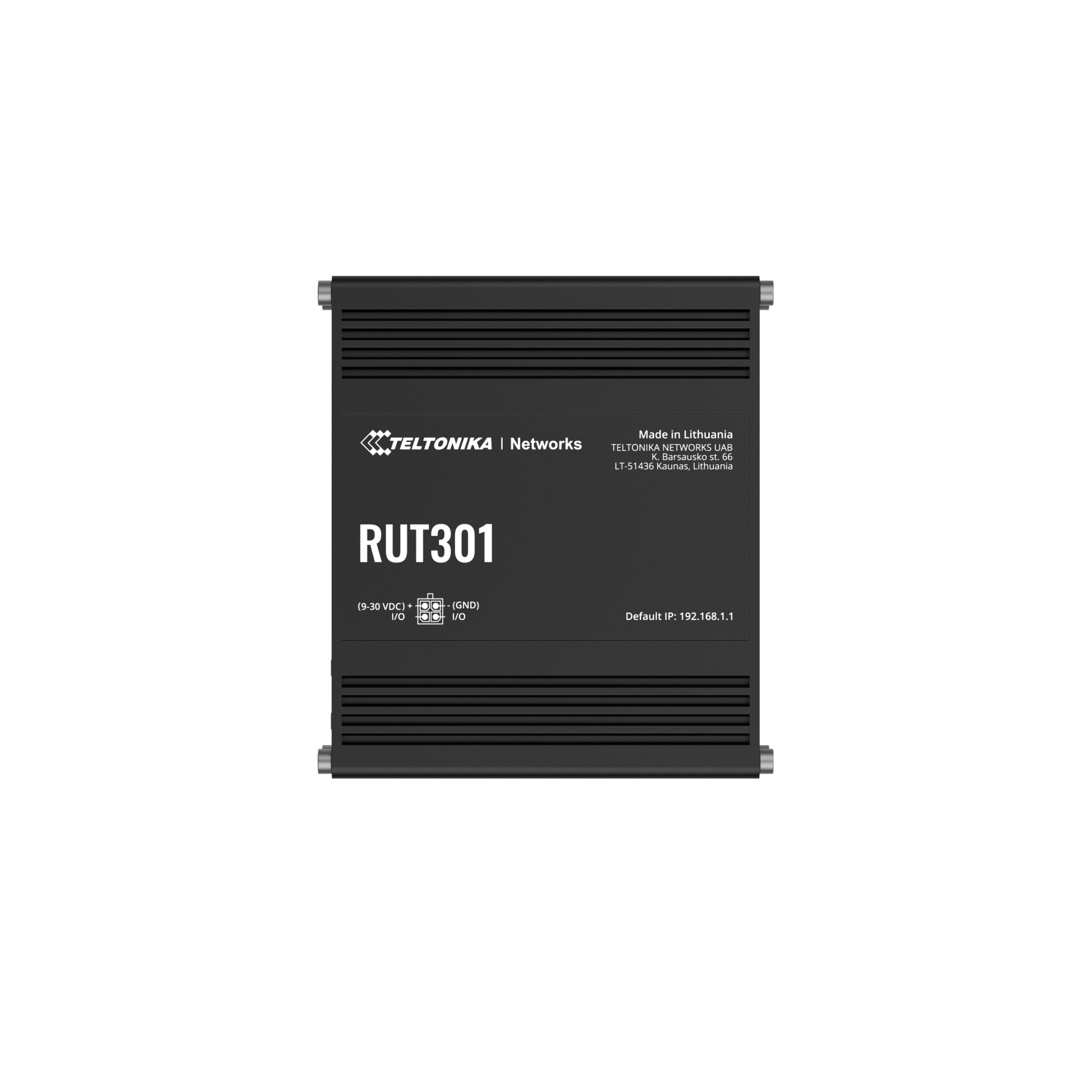

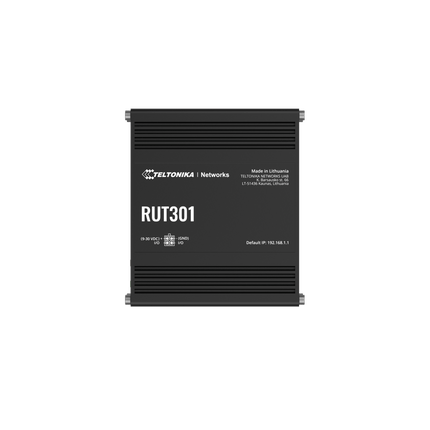

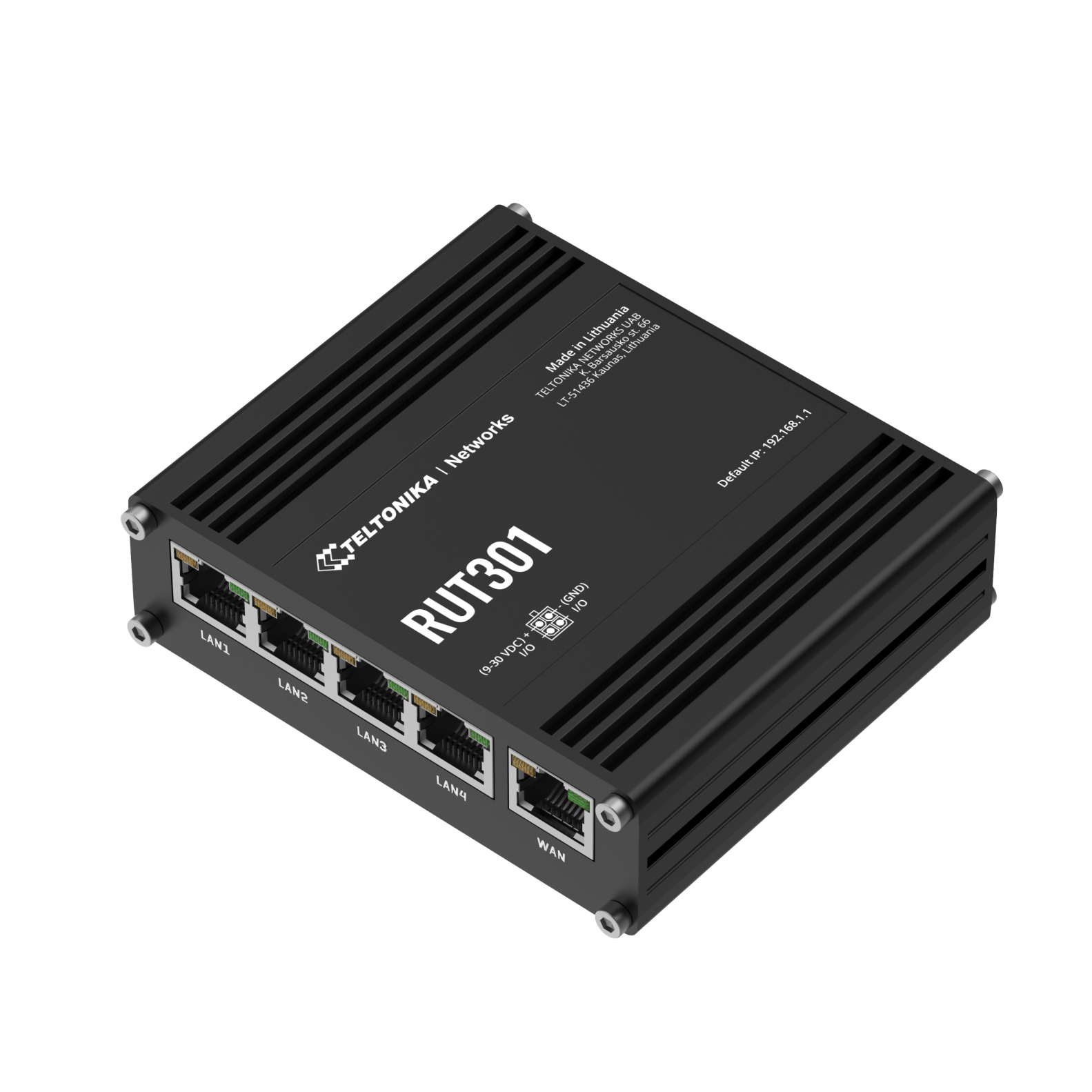

Teltonika RUT301 Industrial Rugged Ethernet Router
Industrial Ethernet Router with 5-Port Switching, VPN Security & Remote Management
The Teltonika RUT301 is a compact and cost-efficient industrial Ethernet router designed for industrial automation, smart energy, enterprise networking, retail systems, and IoT infrastructure. Featuring 5 × Ethernet ports, advanced VPN security, configurable digital I/O, and USB connectivity, the RUT301 delivers reliable wired networking for industrial and enterprise environments.
According to the official Teltonika datasheet and flyer, the RUT301 includes pre-configured firewall functionality, RMS remote management support, multiple industrial communication protocols, and rugged industrial-grade construction for demanding deployments.
Key Features
-
5 × Ethernet Ports
Includes 1 × WAN and 4 × LAN Fast Ethernet ports for flexible industrial networking.
-
Advanced Security Suite
Pre-configured firewall and extensive VPN support for secure remote access and communications.
-
Industrial Digital I/O
Configurable digital inputs and outputs for automation and event-based control.
-
USB 2.0 Connectivity
Supports USB-to-serial adapters, storage devices, printers, and additional peripherals.
-
Advanced Routing & Failover
Supports dynamic routing, load balancing, VRRP failover, VLANs, and QoS management.
-
Remote Management via RMS
Centralised monitoring, firmware updates, VPN access, and remote troubleshooting.
-
Industrial Rugged Design
Aluminium housing with wide operating temperature range for harsh environments.
Why Choose RUT301?
-
Reliable Wired Industrial Networking
Ideal for environments where Ethernet reliability is essential
-
Cost-Effective Industrial Router
Delivers enterprise-grade routing and security at an affordable price point
-
Flexible Integration
Digital I/O and USB support simplify industrial equipment integration
-
Enterprise Security & VPN Support
Multiple VPN technologies and firewall capabilities ensure secure operation
The RUT301 is ideal for deployments requiring robust industrial Ethernet networking with advanced security and management features.
Typical Applications
- Industrial automation & control systems
- Factory floor networking
- Smart energy & utility infrastructure
- Retail and kiosk networking
- Building management systems
- CCTV and security systems
- Industrial IoT gateways
- Remote Ethernet network management
Technical Highlights
-
Ethernet:

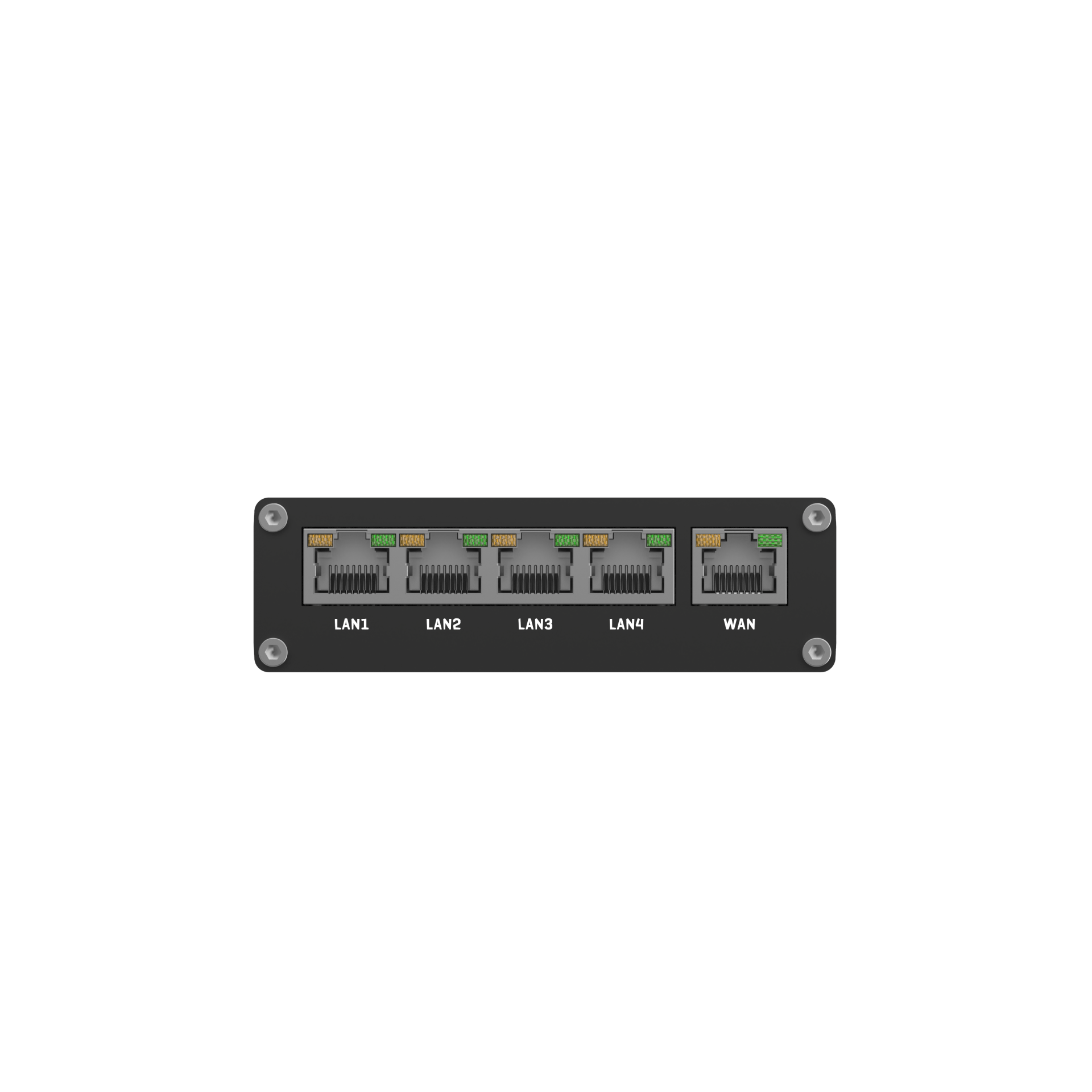

- 1 × WAN Fast Ethernet port
- 4 × LAN Fast Ethernet ports (10/100 Mbps)
-
CPU: Mediatek 580 MHz, MIPS 24KEc
-
Memory: 128 MB DDR2 RAM, 16 MB NOR Flash
-
USB:

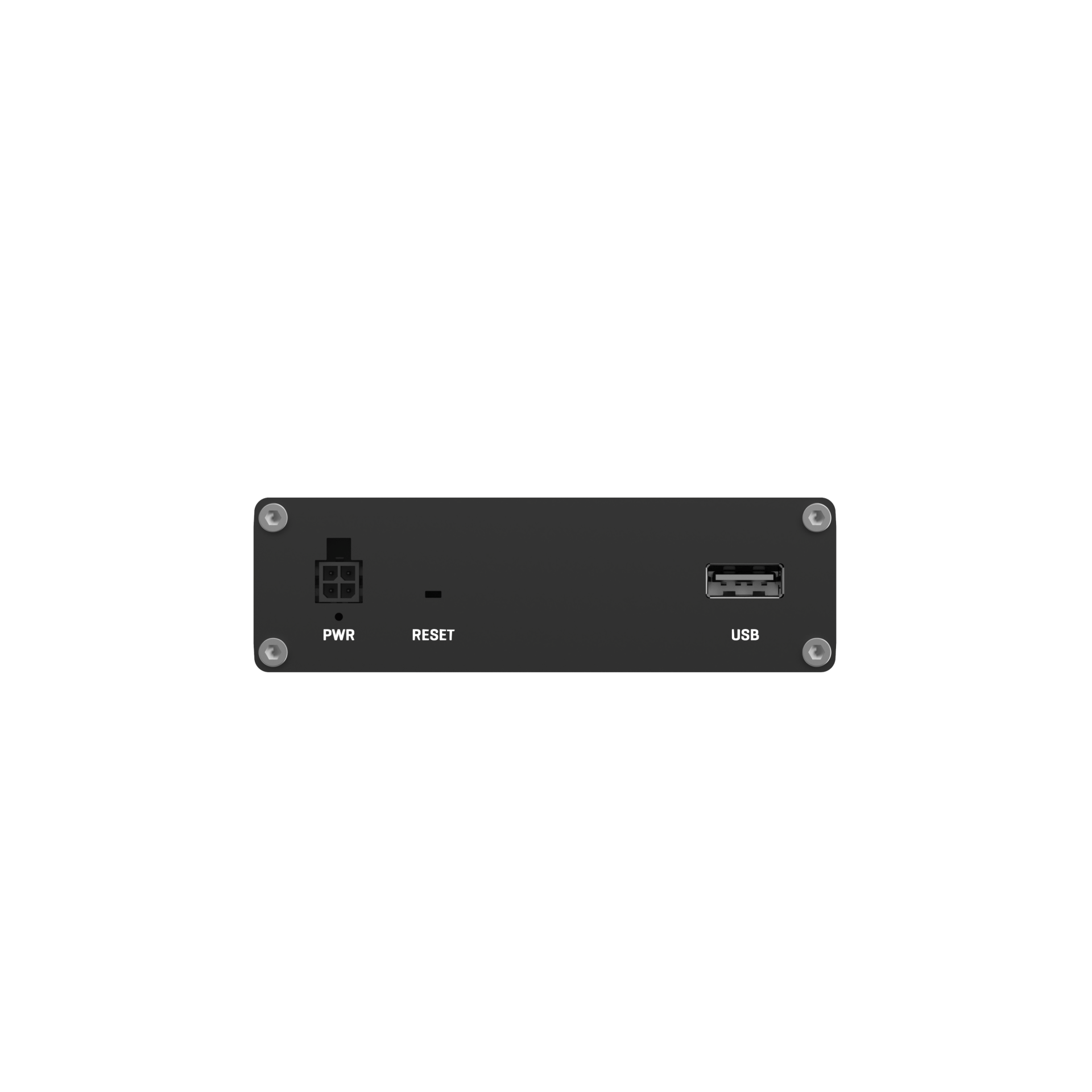

- 1 × USB 2.0 Type-A host port
-
Digital I/O:
- Up to 2 × configurable digital inputs
- Up to 2 × configurable digital outputs
-
Routing Protocols: BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP, policy-based routing
-
VPN Support: OpenVPN, IPsec, WireGuard, GRE, PPTP, L2TP, SSTP, ZeroTier, DMVPN and more
-
Industrial Protocols: MQTT, Modbus TCP, OPC UA, DNP3, DLMS/COSEM
-
Power Input: 9–30 VDC industrial power input
-
Power Consumption: Idle < 0.8W, Max < 3.8W
-
Operating Temp: -40°C to +75°C
-
Ingress Protection: IP30
-
Dimensions: 100 × 30 × 85 mm
-
Weight: 233 g
-
Operating System: RutOS (OpenWrt-based Linux OS)
Resources:
Teltonika RUT301 Flyer
Teltonika RUT301 Datasheet
Teltonika RUT301 Quick User Guide
Teltonika RUT301 User Guide
Teltonika RUT301 3D Models
