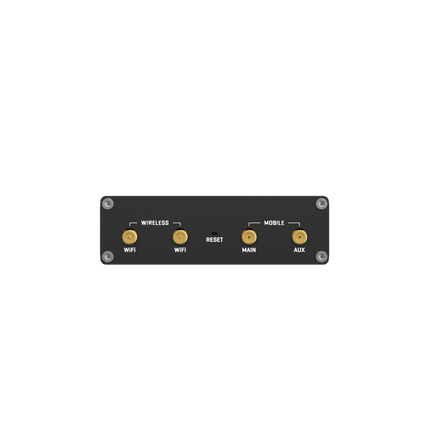

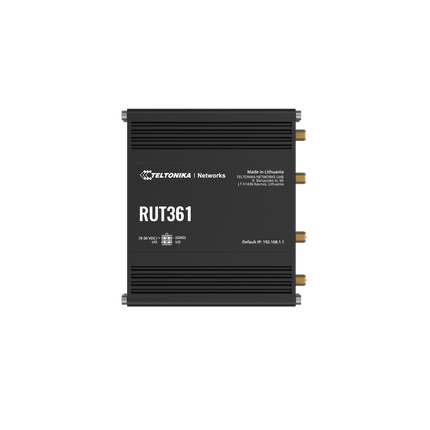

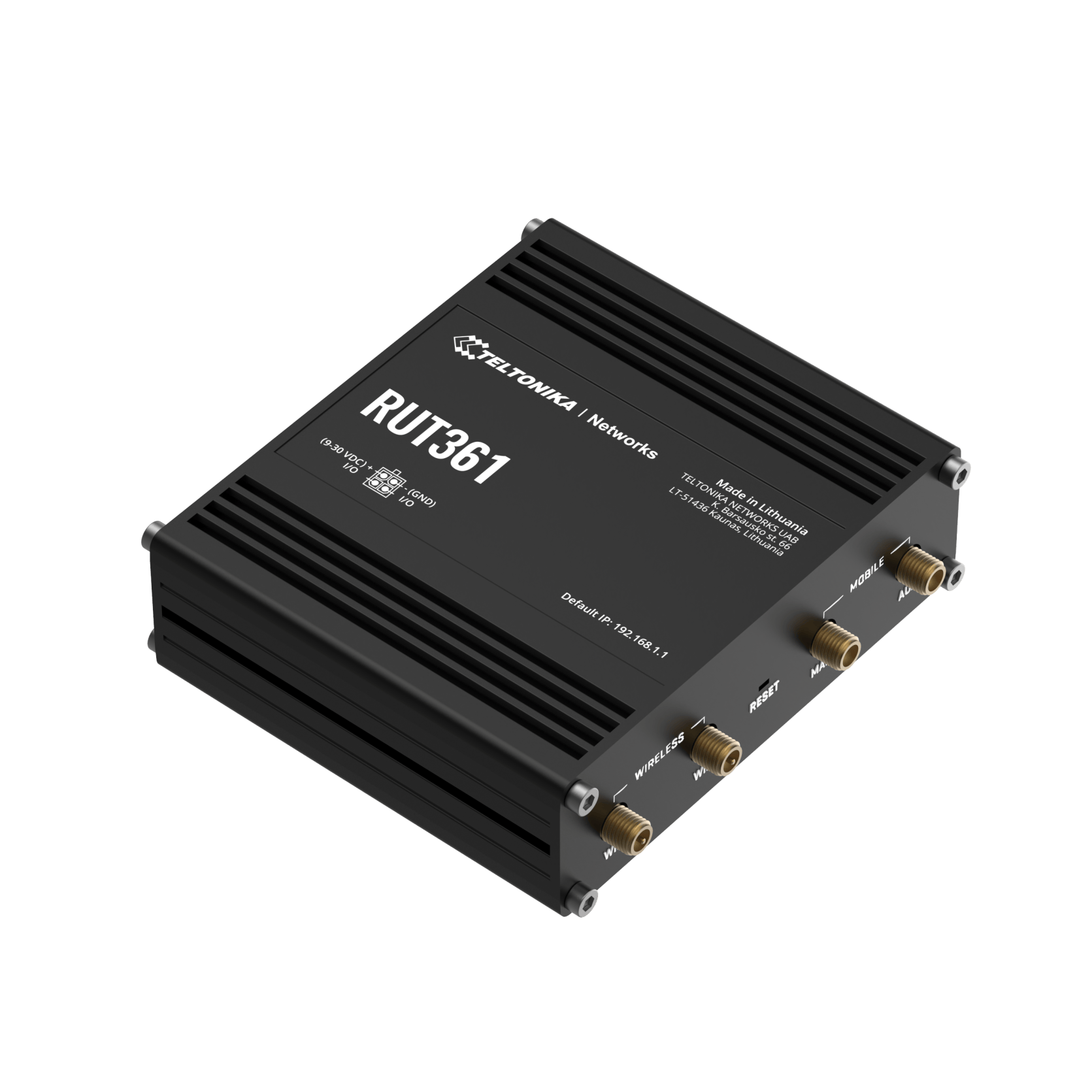

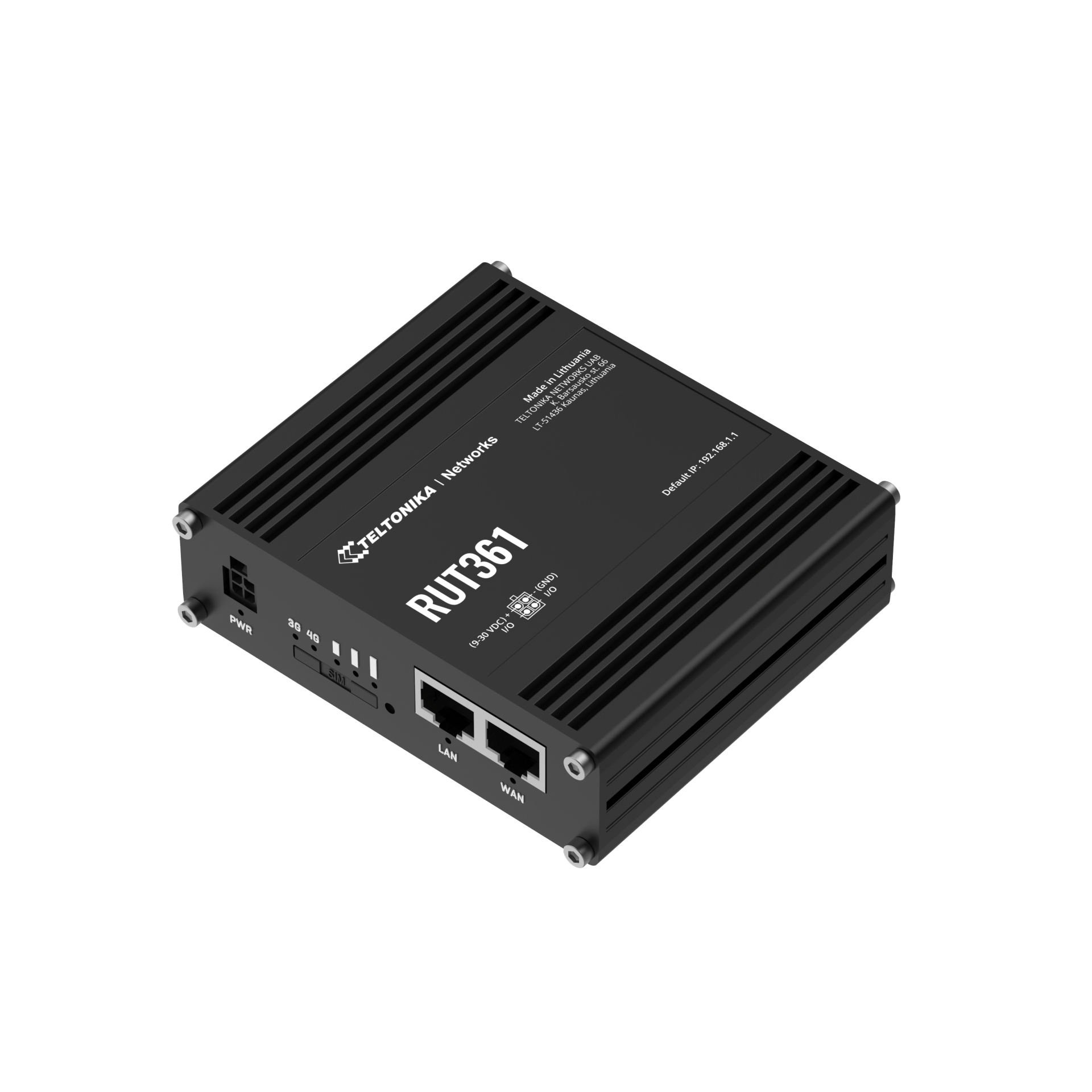

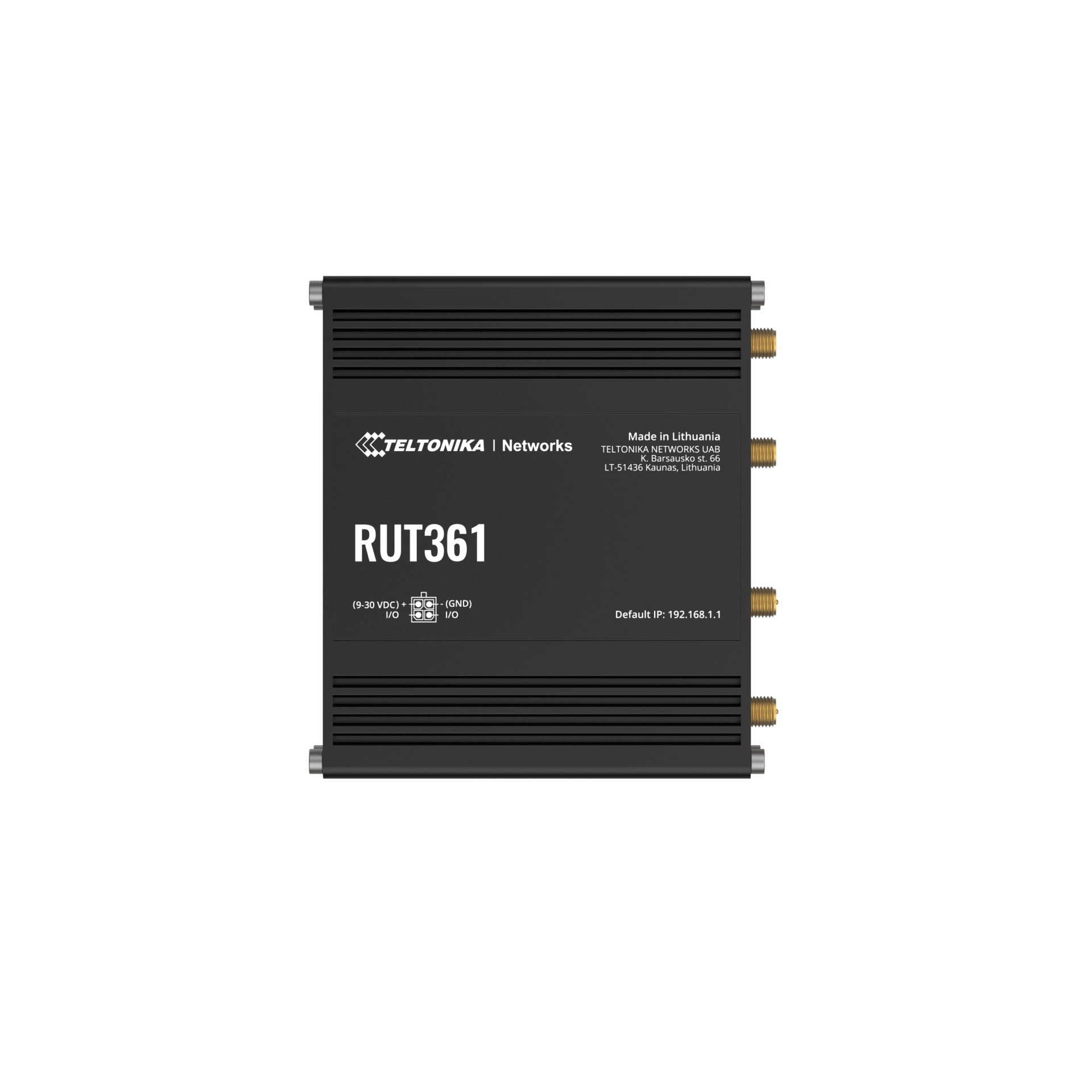

Teltonika RUT361 Industrial Rugged Cellular LTE 4G CAT6 Router
Industrial LTE Cat 6 Router with Carrier Aggregation, WiFi & WAN Failover
The Teltonika RUT361 is a high-performance industrial LTE Cat 6 router designed for industrial automation, enterprise networking, smart city infrastructure, energy systems, and remote IoT connectivity. With carrier aggregation technology delivering speeds up to 300 Mbps, dual WiFi antennas, advanced RutOS networking, and rugged industrial construction, the RUT361 provides reliable and secure connectivity in demanding environments.
According to the official Teltonika datasheet and flyer, the RUT361 features LTE Cat 6 with carrier aggregation, WAN failover, RMS remote management, VPN support, and configurable digital I/O, making it ideal for mission-critical M2M and industrial networking applications.
Key Features
-
4G LTE Cat 6 with Carrier Aggregation
Achieve download speeds up to 300 Mbps for faster and more stable industrial connectivity.
-
Dual WiFi Antennas with 2×2 MIMO
Enhanced wireless coverage and performance for industrial and enterprise applications.
-
Automatic WAN Failover
Seamlessly switches to backup connectivity for uninterrupted operation.
-
Industrial Digital I/O
Features configurable digital inputs and outputs for automation and monitoring tasks.
-
Advanced RutOS Networking
Supports VPNs, MQTT, Modbus, OPC UA, VLANs, load balancing, and cloud integrations.
-
Remote Management via RMS
Simplifies deployment, monitoring, firmware updates, and VPN access across distributed devices.
-
Industrial Rugged Design
Aluminium housing with wide operating temperature range and flexible mounting options.
Why Choose RUT361?
-
Faster LTE Performance
LTE Cat 6 carrier aggregation improves speed and network stability
-
Reliable Industrial Connectivity
Designed for continuous operation in harsh industrial conditions
-
Advanced Security & VPN Support
Enterprise-grade security for remote and distributed deployments
-
Flexible Industrial Integration
Digital I/O and advanced routing capabilities support diverse automation use cases
The RUT361 is ideal for applications requiring high-speed industrial LTE connectivity with advanced networking and failover capabilities.
Typical Applications
- Industrial automation & SCADA
- Smart city infrastructure
- Retail and branch networking
- Remote CCTV and surveillance
- Energy & utility monitoring
- Transportation and fleet systems
- Enterprise backup connectivity
- Smart manufacturing and IIoT
Technical Highlights
-
Cellular: LTE Cat 6 up to 300 Mbps DL / 50 Mbps UL
-

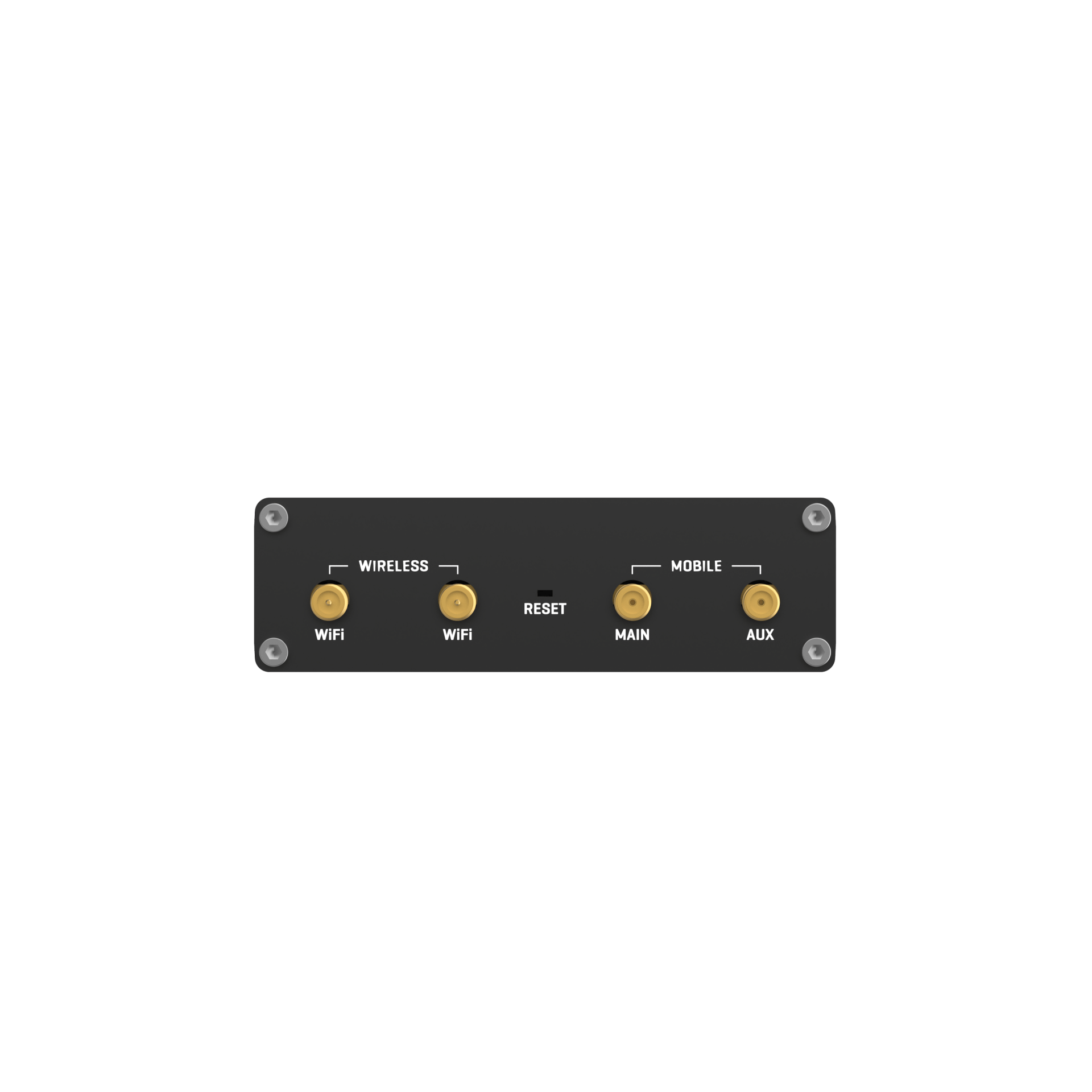

WiFi: 802.11b/g/n, 2×2 MIMO, AP & Station modes
-

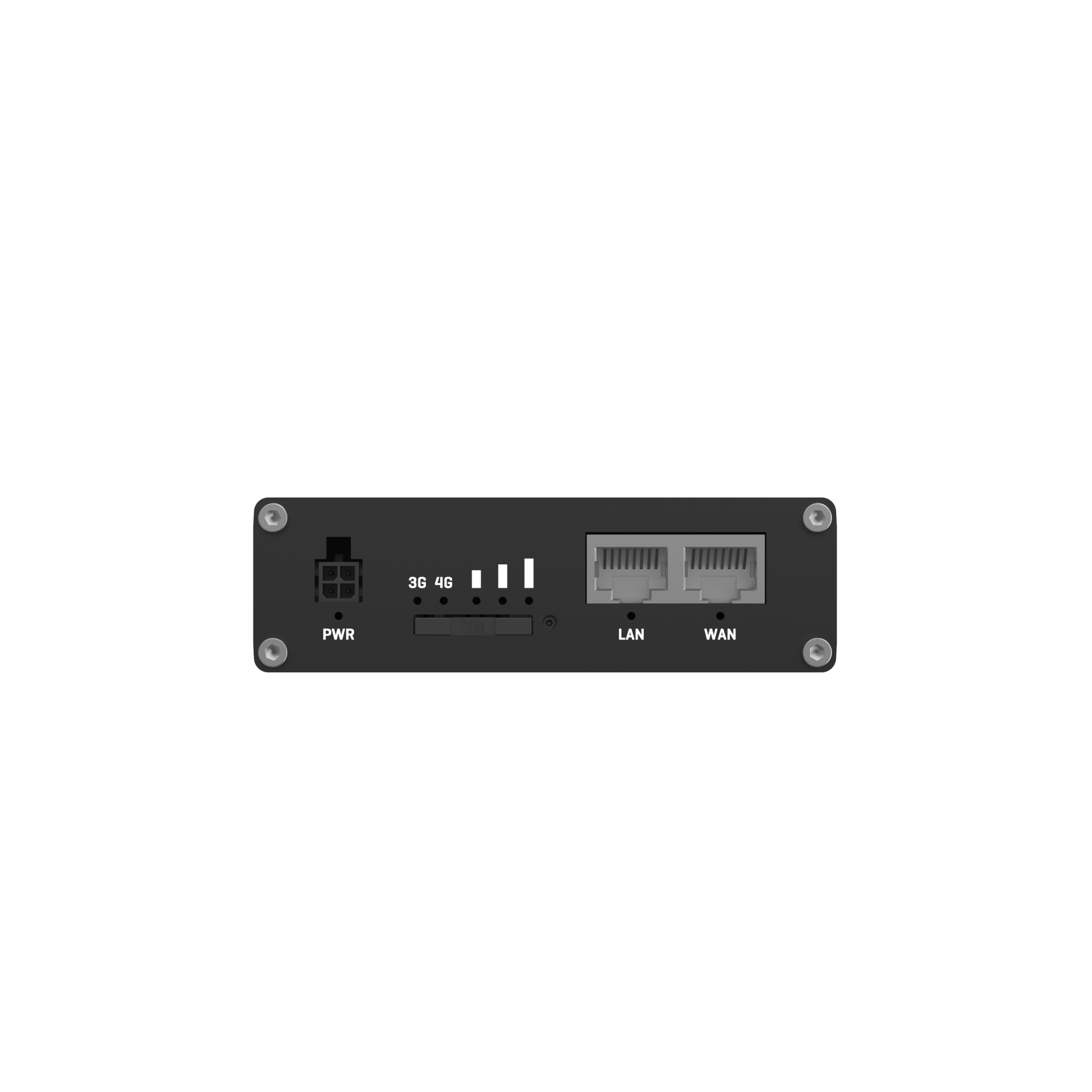

Ethernet: 2 × RJ45 ports (1 WAN + 1 LAN, 10/100 Mbps)
-
SIM: 1 × Mini SIM (2FF), external SIM holder
-
CPU: Mediatek 580 MHz, MIPS 24KEc
-
Memory: 128 MB DDR2 RAM, 16 MB NOR Flash
-
Digital I/O:
- Up to 2 × configurable digital inputs
- Up to 2 × configurable digital outputs
-
VPN Support: OpenVPN, IPsec, WireGuard, GRE, PPTP, L2TP, SSTP, ZeroTier, Tailscale and more
-
Protocols: MQTT, Modbus TCP, OPC UA, DNP3, DLMS/COSEM
-
Power Input: 9–30 VDC industrial power input
-
Power Consumption: Idle < 2.4W, Max < 4.7W
-
Operating Temp: -40°C to +75°C
-
Ingress Protection: IP30
-
Dimensions: 100 × 30 × 85 mm
-
Weight: 243 g
-
Operating System: RutOS (OpenWrt-based Linux OS)
Resources:
Teltonika RUT361 Flyer
Teltonika RUT361 Datasheet
Teltonika RUT361 Quick User Guide
Teltonika RUT361 User Guide
Teltonika RUT361 3D Models
