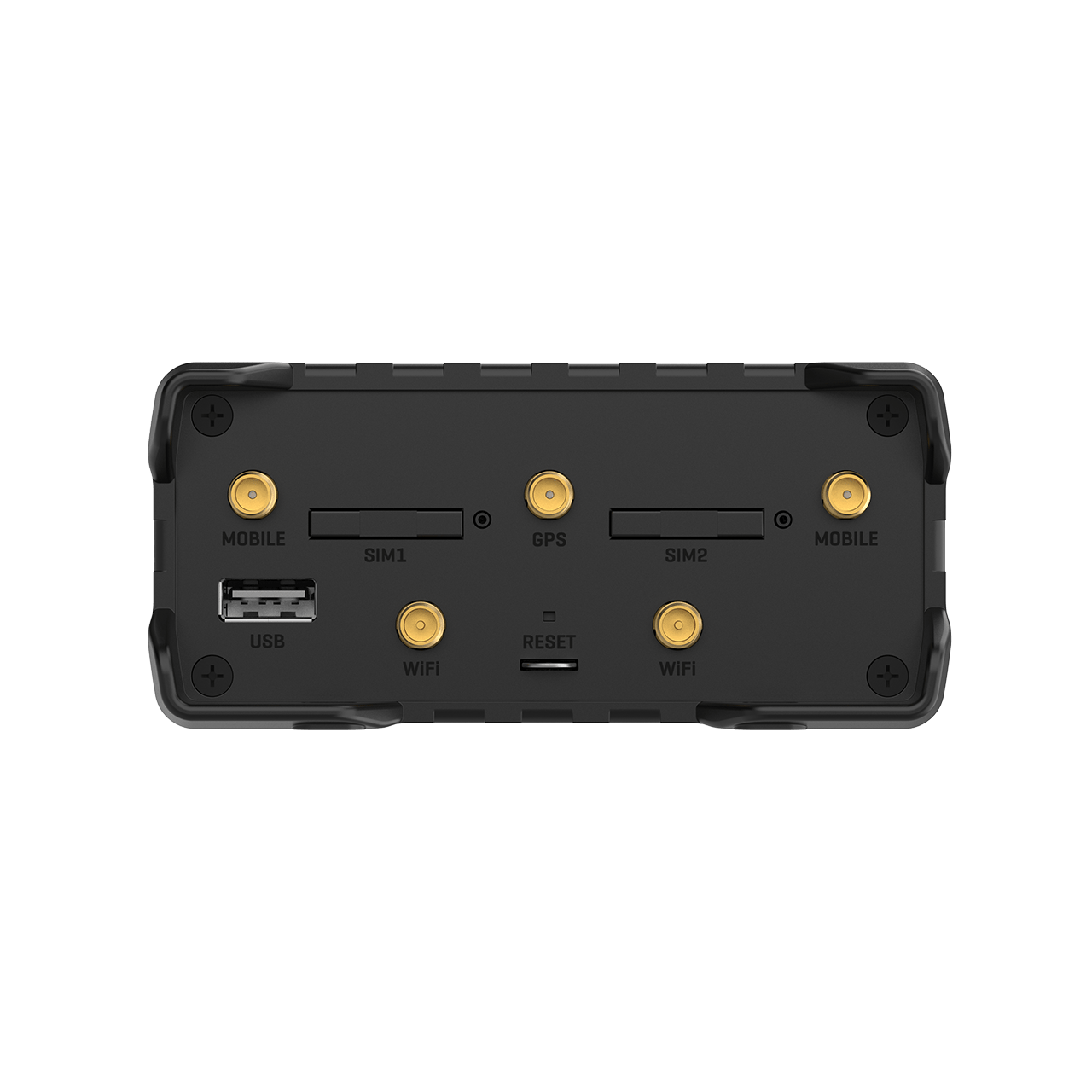

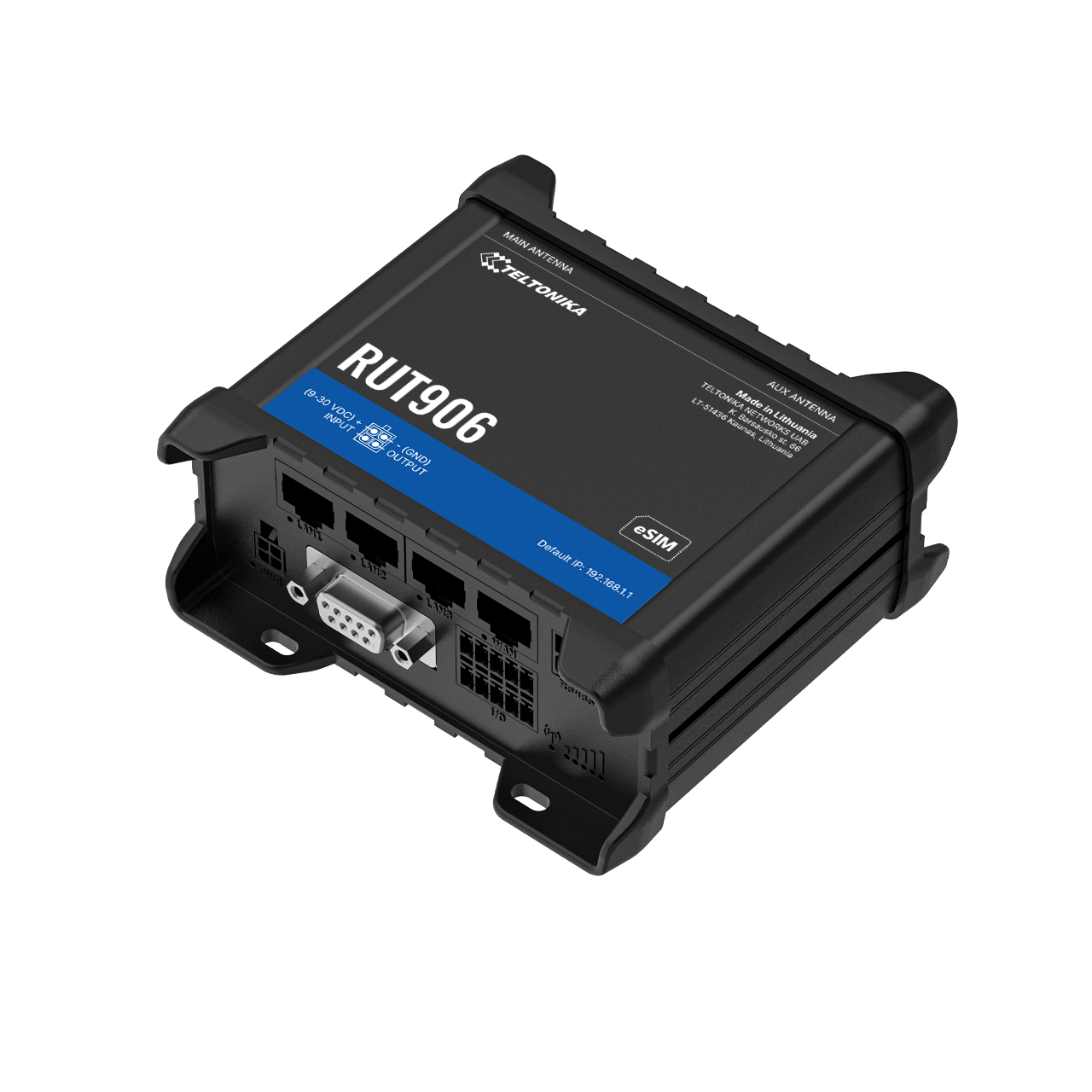

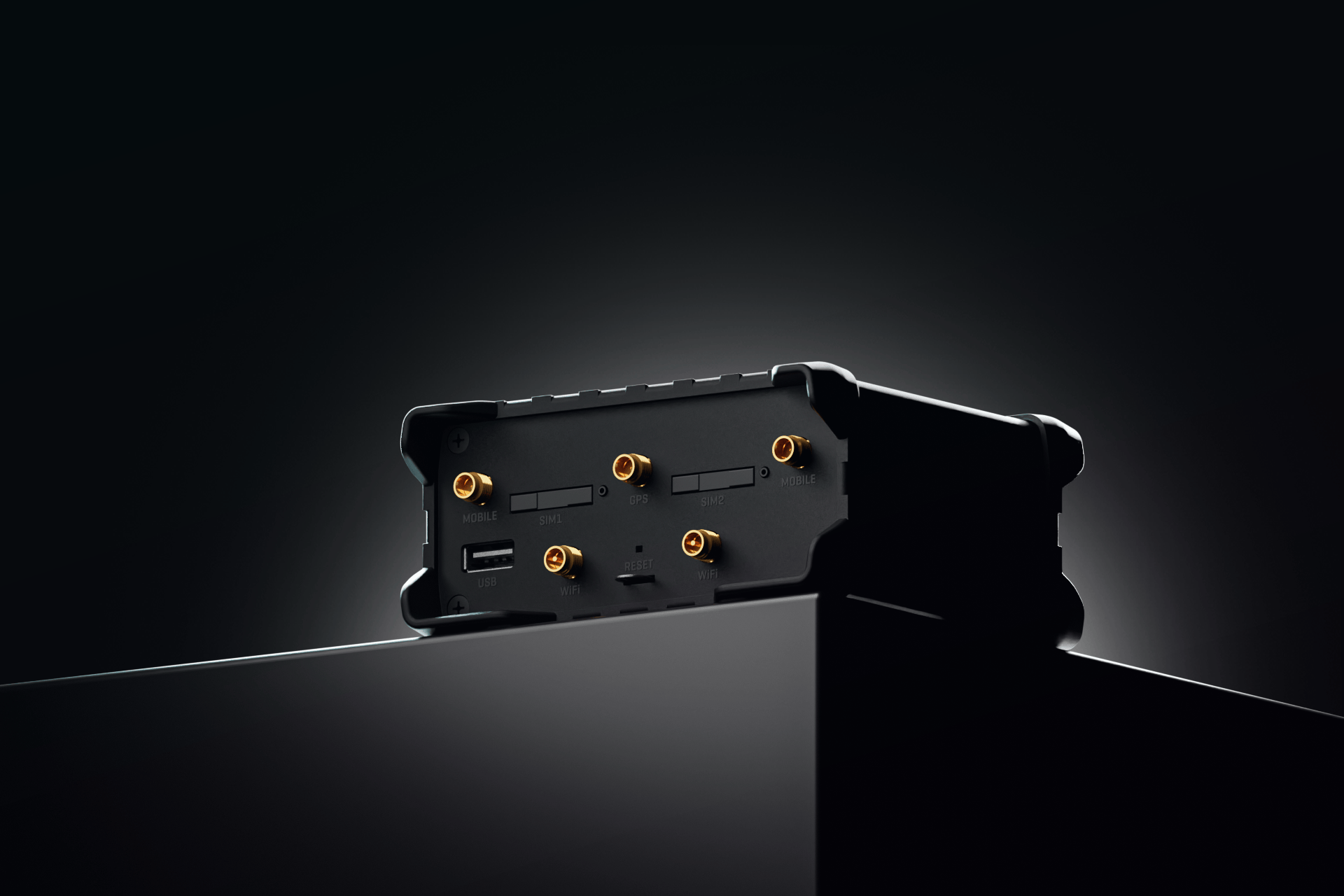

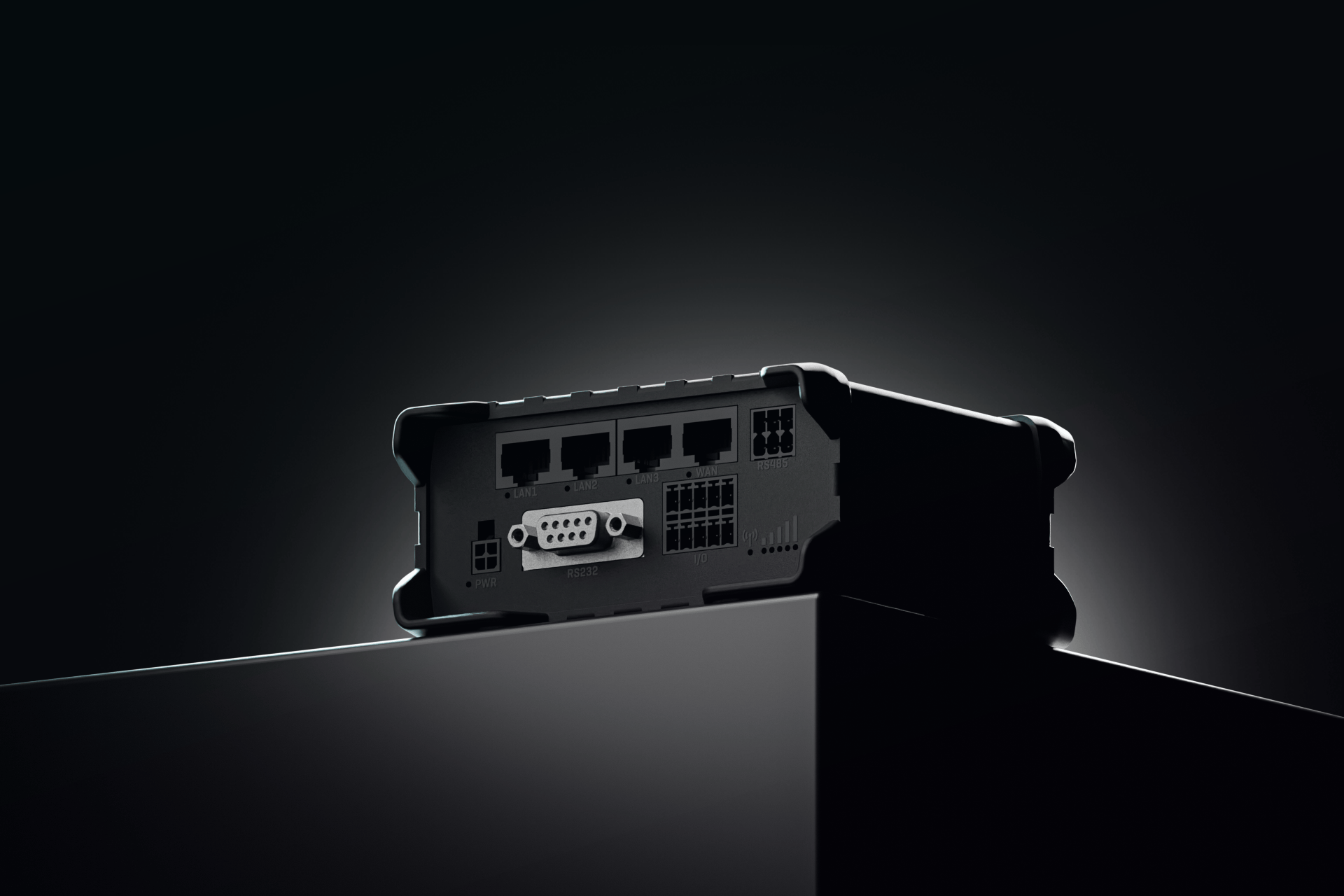

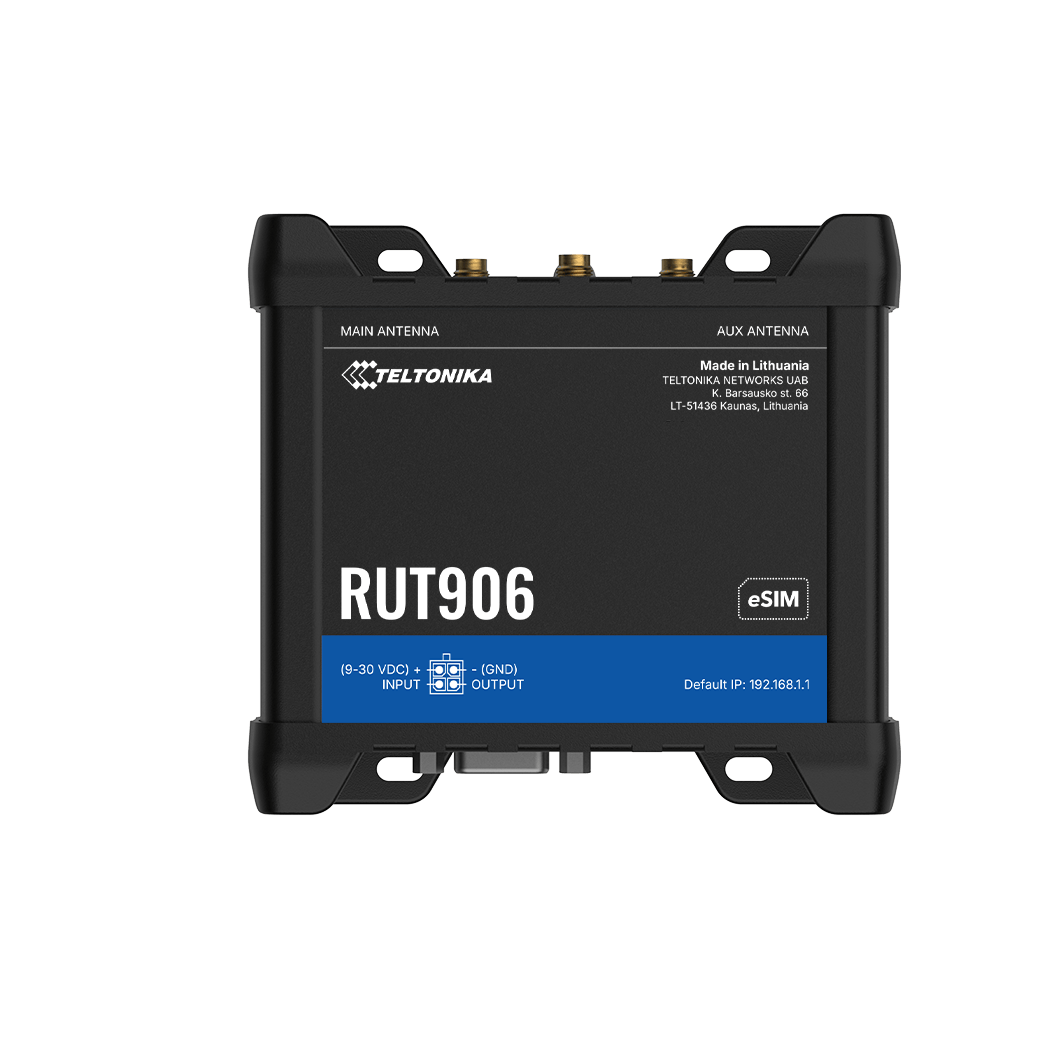

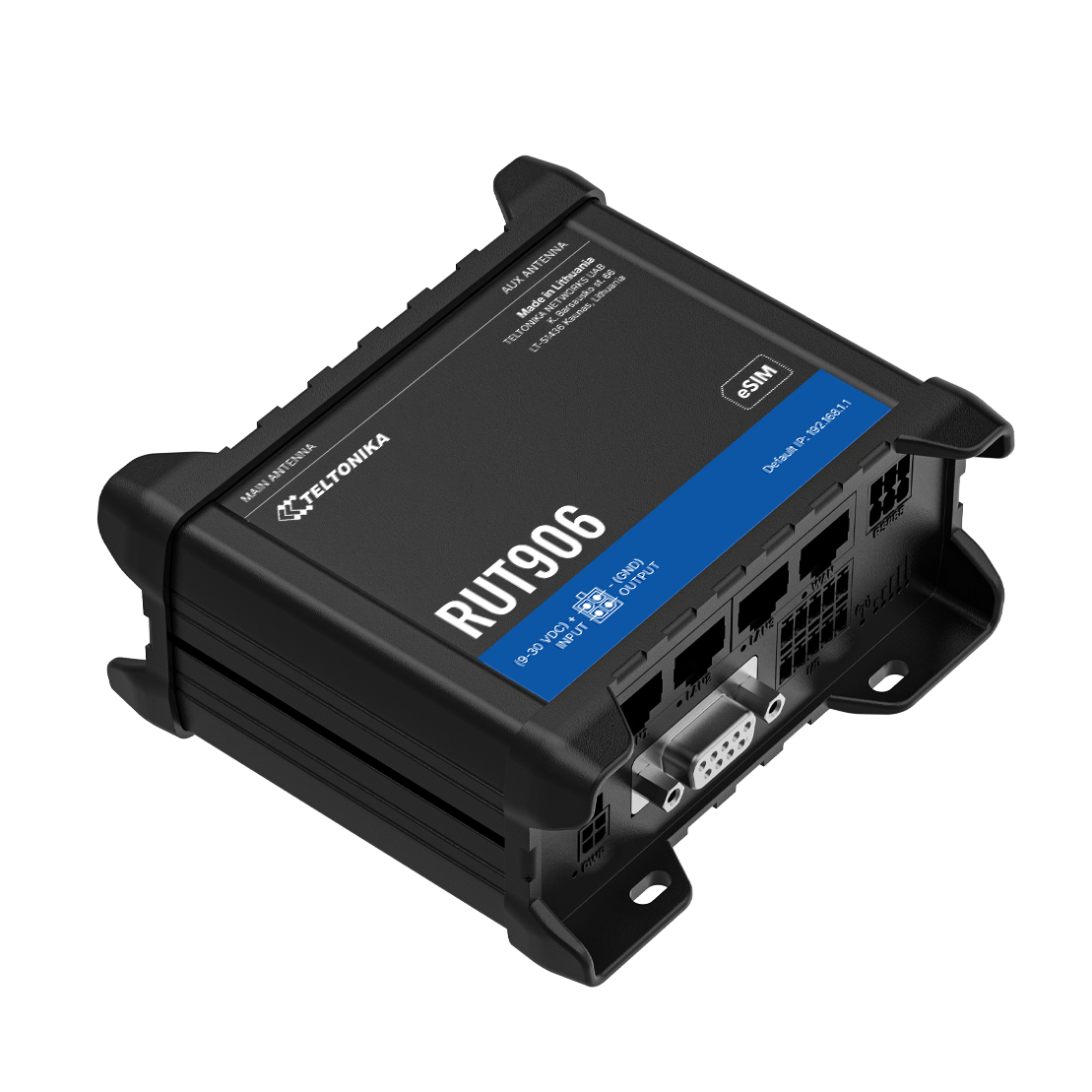

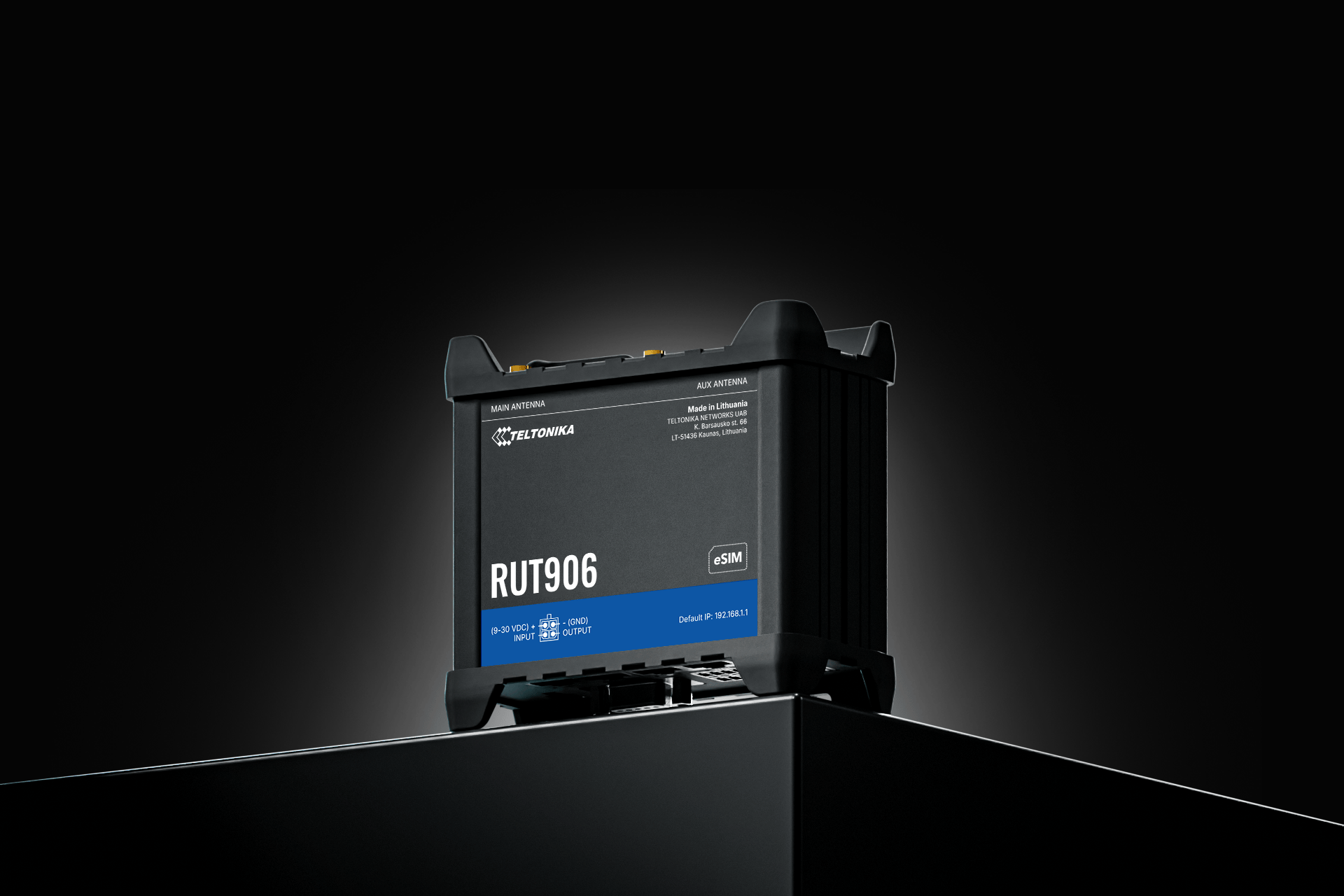

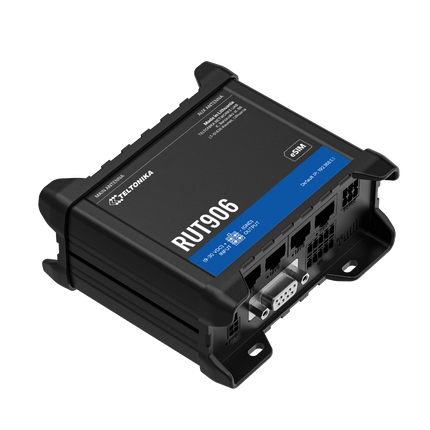

Teltonika RUT906 Industrial Rugged Cellular LTE 4G Router (RS232, RS485, GNSS, Dual SIM)
Advanced Industrial 4G Router with Serial Interfaces, GNSS & IoT Protocol Support
The Teltonika RUT906 Industrial LTE Router is a powerful all-in-one connectivity solution designed for industrial IoT, SCADA systems, and remote monitoring applications. Combining 4G LTE Cat 4 connectivity, RS232/RS485 serial interfaces, GNSS tracking, and advanced I/O capabilities, the RUT906 enables seamless integration of legacy industrial equipment into modern cloud-based infrastructures.
Built on Teltonika’s robust RutOS (Linux-based) platform, the RUT906 supports a wide range of industrial protocols and secure networking features, making it ideal for energy, utilities, automation, and smart infrastructure deployments.
Key Features
-
4G LTE Cat 4 Connectivity with Dual SIM Failover
Ensures reliable communication with automatic switching and backup WAN support
-
RS232 & RS485 Serial Interfaces
Direct integration with PLCs, RTUs, meters, and industrial controllers
-
Built-in GNSS (GPS, GLONASS, Galileo, BeiDou)
Supports asset tracking, geofencing, and time synchronisation
-
Advanced Industrial Protocol Support
Includes MQTT, Modbus, DNP3, OPC UA, BACnet, DLMS/COSEM
-
Comprehensive I/O Capabilities
Digital inputs/outputs, relay output, and analog input for control and monitoring
-
WiFi Access Point (802.11 b/g/n)
Supports up to 100 simultaneous connections for local networking
-
USB & MicroSD Support
Expand functionality and enable local data logging (up to 2TB storage)
Why Choose RUT906?
-
All-in-One Industrial Connectivity Hub
Combines cellular, serial, GNSS, I/O, and Ethernet in one device
-
Perfect for SCADA & Industrial Automation
Seamlessly integrates legacy systems with modern IoT platforms
-
Highly Reliable & Fail-Safe Networking
Dual SIM, failover, and load balancing ensure uptime
-
Advanced Remote Management (RMS)
Monitor, configure, and update devices remotely
The RUT906 is ideal for applications requiring data acquisition, protocol conversion, and real-time connectivity in harsh industrial environments.
Typical Applications
- Industrial automation & PLC connectivity
- SCADA & telemetry systems
- Smart metering (water, gas, electricity)
- Renewable energy (solar, wind monitoring)
- Fleet & asset tracking (GNSS-enabled)
- Smart city infrastructure
Technical Highlights
-
Cellular: 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G
-
SIM: Dual SIM (optional eSIM depending on version)
-
WiFi: 802.11 b/g/n (WiFi 4), AP & Station modes
-

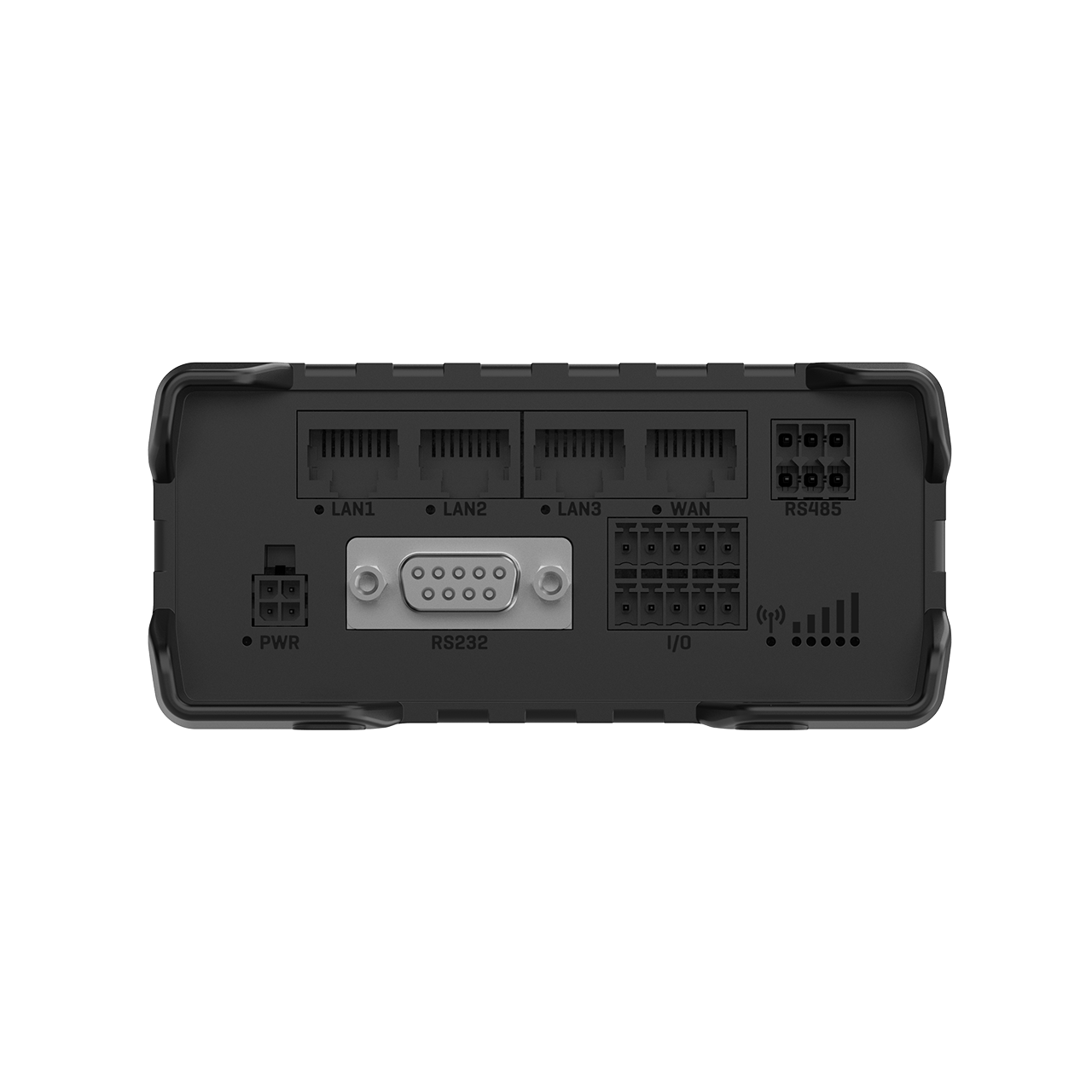

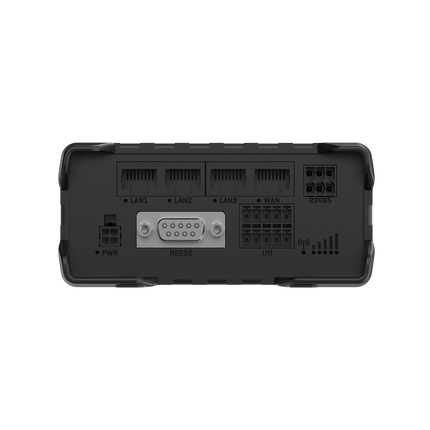

Ethernet: 4 × RJ45 (1 WAN + 3 LAN)
-
Serial: 1 × RS232 (DB9), 1 × RS485 (industrial socket)
-
GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS
-
I/O: Multiple digital inputs/outputs, relay output, analog input
-
USB: 1 × USB host port
-
Storage: MicroSD support up to 2TB
-
Power: 9–30 VDC industrial input
-
Operating Temp: -40°C to +75°C
-
OS: RutOS (OpenWrt-based Linux OS)
What’s in the Box
- RUT906 Router
- 2 × LTE antennas
- 2 × WiFi antennas
- GNSS antenna
- Power supply
- Ethernet cable
- Connectors set
- SIM adapter kit
- Quick Start Guide
Resources:
Teltonika RUT906 Flyer
Teltonika RUT906 Datasheet
Teltonika RUT906 Quick User Guide
Teltonika RUT906 User Guide
Teltonika RUT906 3D Models
