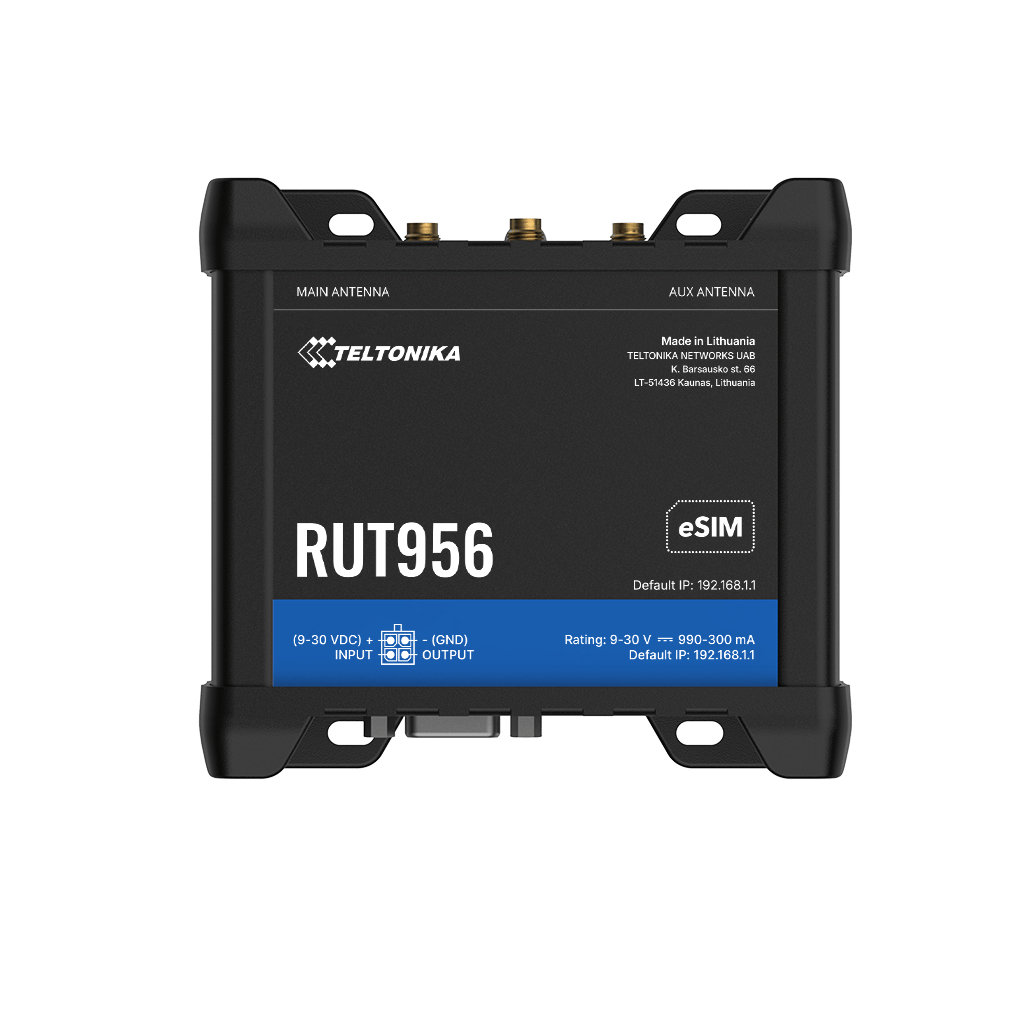

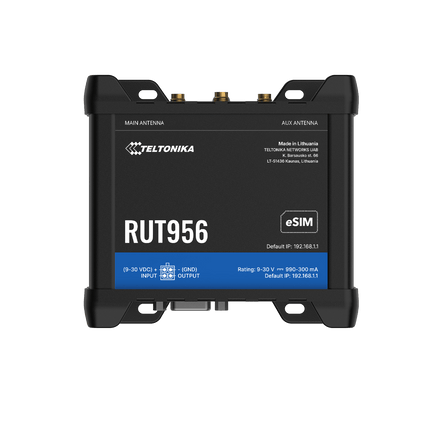

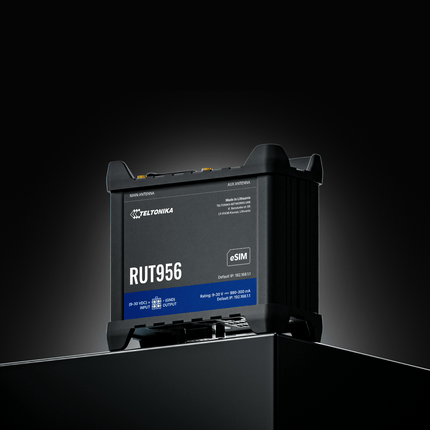

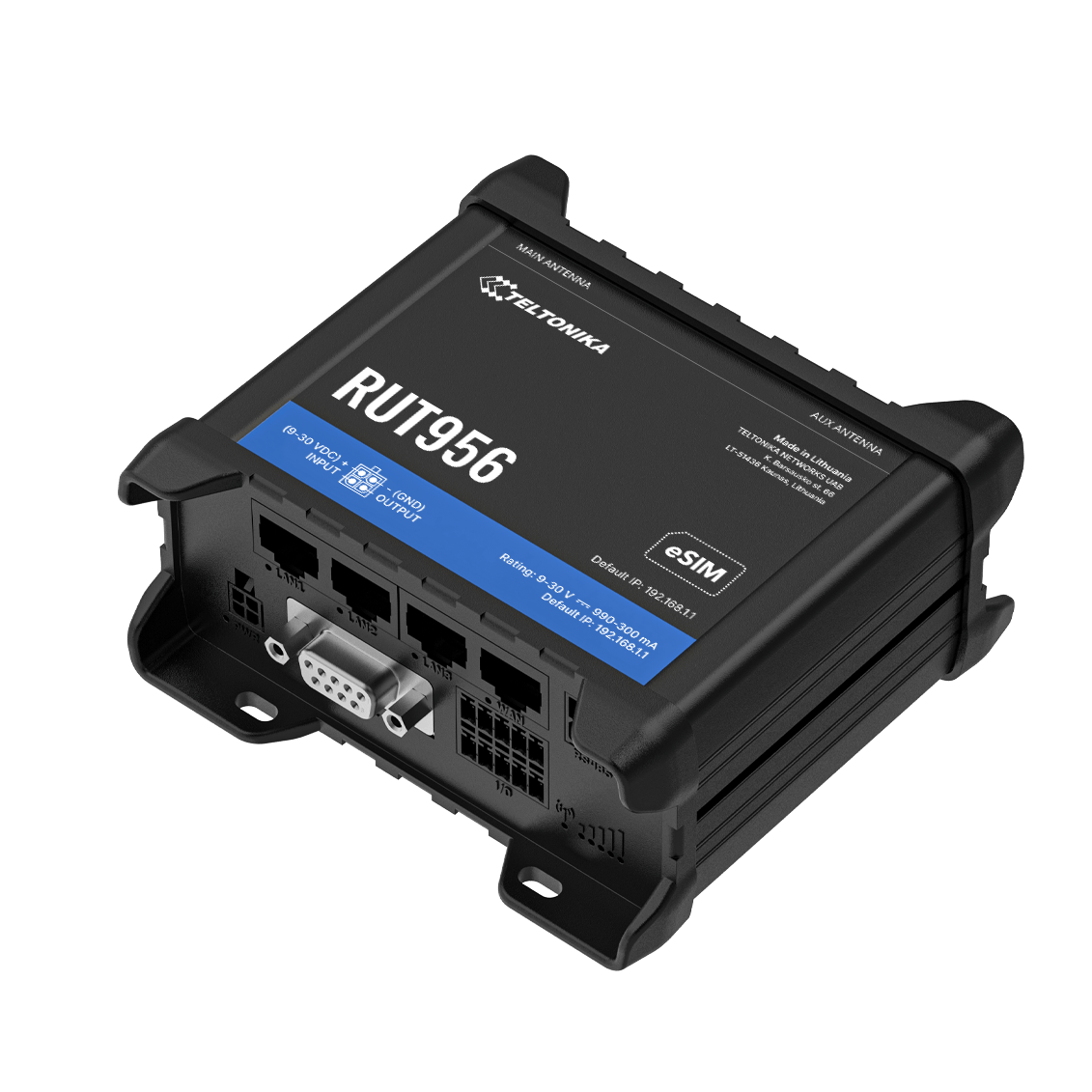

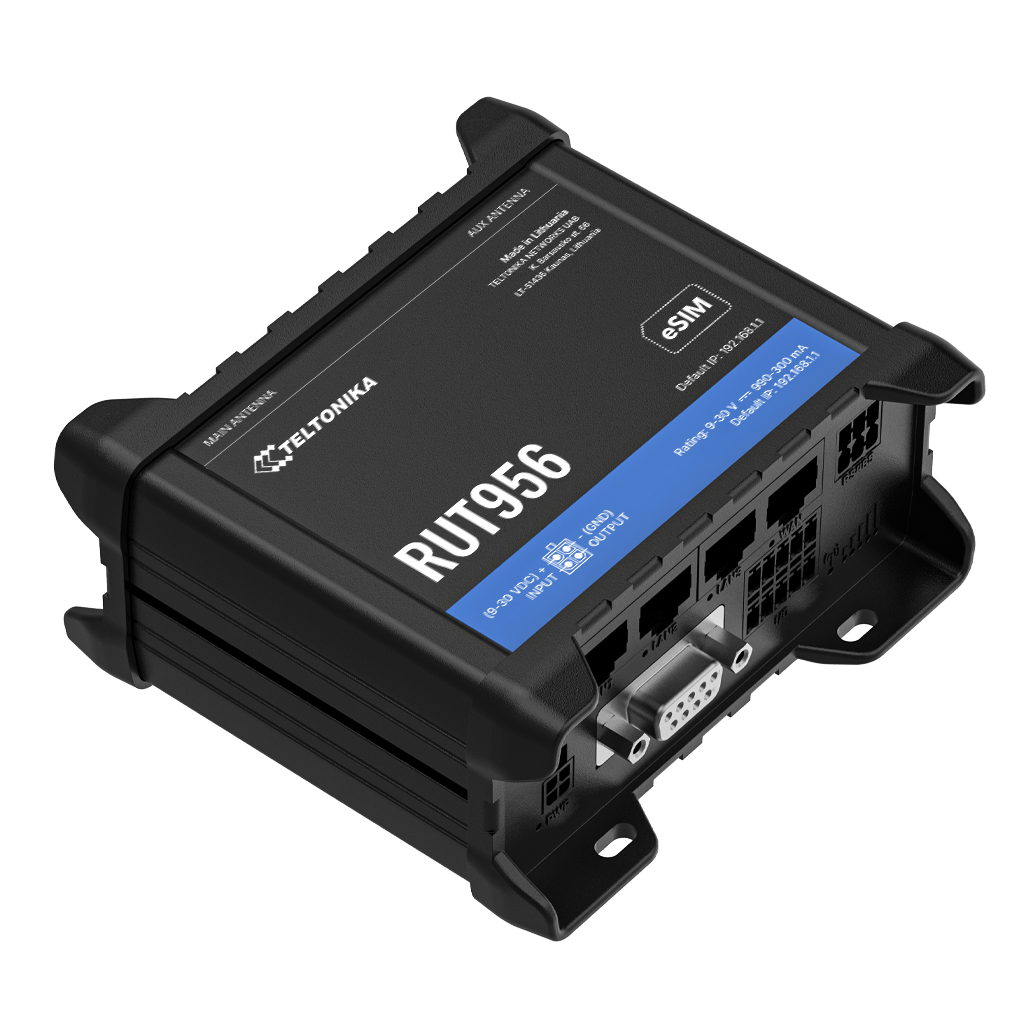

Teltonika RUT956 Industrial Rugged Cellular LTE 4G Router (WiFi, GNSS, RS232, RS485, Dual SIM)
High-Performance Industrial 4G Router with GNSS, Serial Interfaces & Advanced IoT Connectivity
The Teltonika RUT956 Industrial LTE Router is a feature-rich connectivity solution designed for industrial IoT, automation, SCADA, and remote monitoring applications. Combining 4G LTE Cat 4, dual SIM failover, WiFi, GNSS positioning, RS232/RS485 serial interfaces, and advanced I/O, the RUT956 delivers a complete industrial networking platform in one rugged device.
As shown in the datasheet, the RUT956 integrates cellular, wired, wireless, and serial connectivity with GNSS location services, making it ideal for complex IoT deployments across industries.
Key Features
-
4G LTE Cat 4 Connectivity with Dual SIM Failover
Reliable connectivity with automatic switching, backup WAN, and load balancing
-
Built-in GNSS (GPS, GLONASS, Galileo, BeiDou)
Enables asset tracking, geofencing, and time synchronisation
-
RS232 & RS485 Serial Interfaces
Seamless integration with PLCs, RTUs, meters, and legacy industrial equipment
-
Comprehensive I/O & Automation Capabilities
Digital inputs/outputs, relay output, and analog input for control and monitoring
-
WiFi Access Point (802.11 b/g/n)
Supports up to 100 concurrent users for local connectivity
-
Industrial Protocol Support
Includes MQTT, Modbus, DNP3, OPC UA, BACnet, DLMS/COSEM
-
Remote Management (RMS)
Centralised monitoring, configuration, and firmware updates
Why Choose RUT956?
-
Ultimate All-in-One Industrial Router
Combines cellular, WiFi, Ethernet, GNSS, serial, and I/O in one device
-
Perfect for SCADA & Industrial Automation
Enables seamless integration of legacy and modern systems
-
Highly Reliable & Fail-Safe Connectivity
Dual SIM, failover, and WAN backup ensure uptime
-
Advanced Data & Protocol Handling
Ideal for protocol conversion, edge data processing, and IoT integration
The RUT956 is one of Teltonika’s most versatile routers—perfect for complex industrial deployments requiring both connectivity and control capabilities.
Typical Applications
- Industrial automation & PLC connectivity
- SCADA & telemetry systems
- Smart metering (water, gas, electricity)
- Renewable energy monitoring (solar, wind)
- Fleet & asset tracking (GNSS-enabled)
- Smart city infrastructure
- Remote equipment monitoring & control
Technical Highlights
-
Cellular: 4G LTE Cat 4 (150 Mbps DL / 50 Mbps UL), 3G, 2G
-

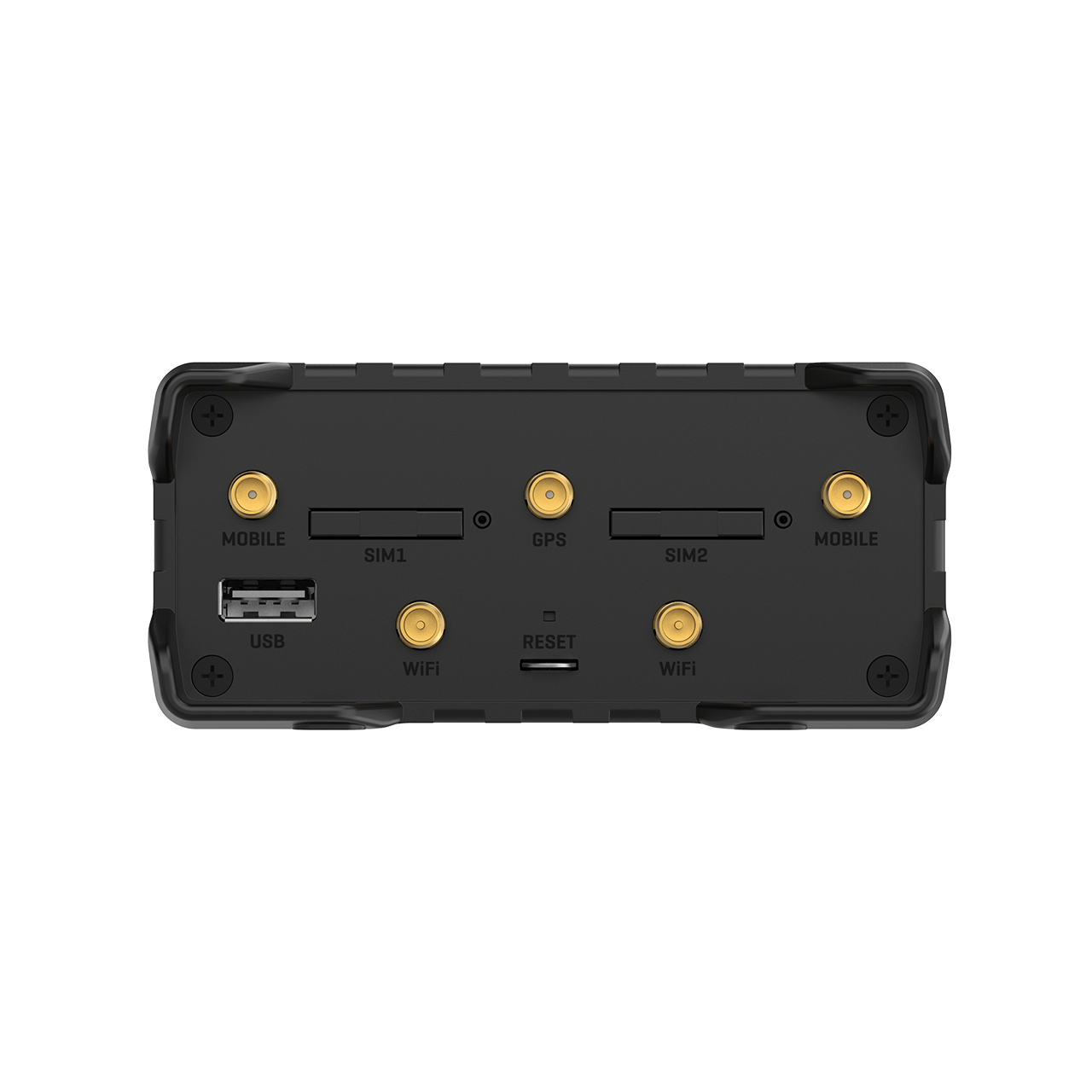

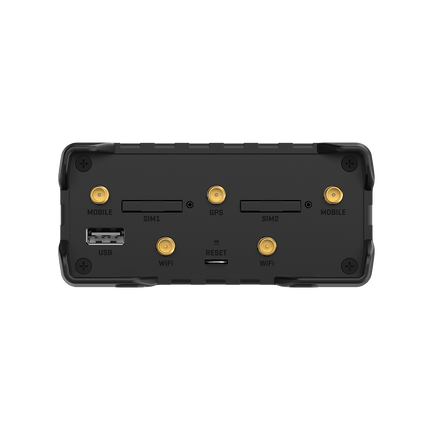

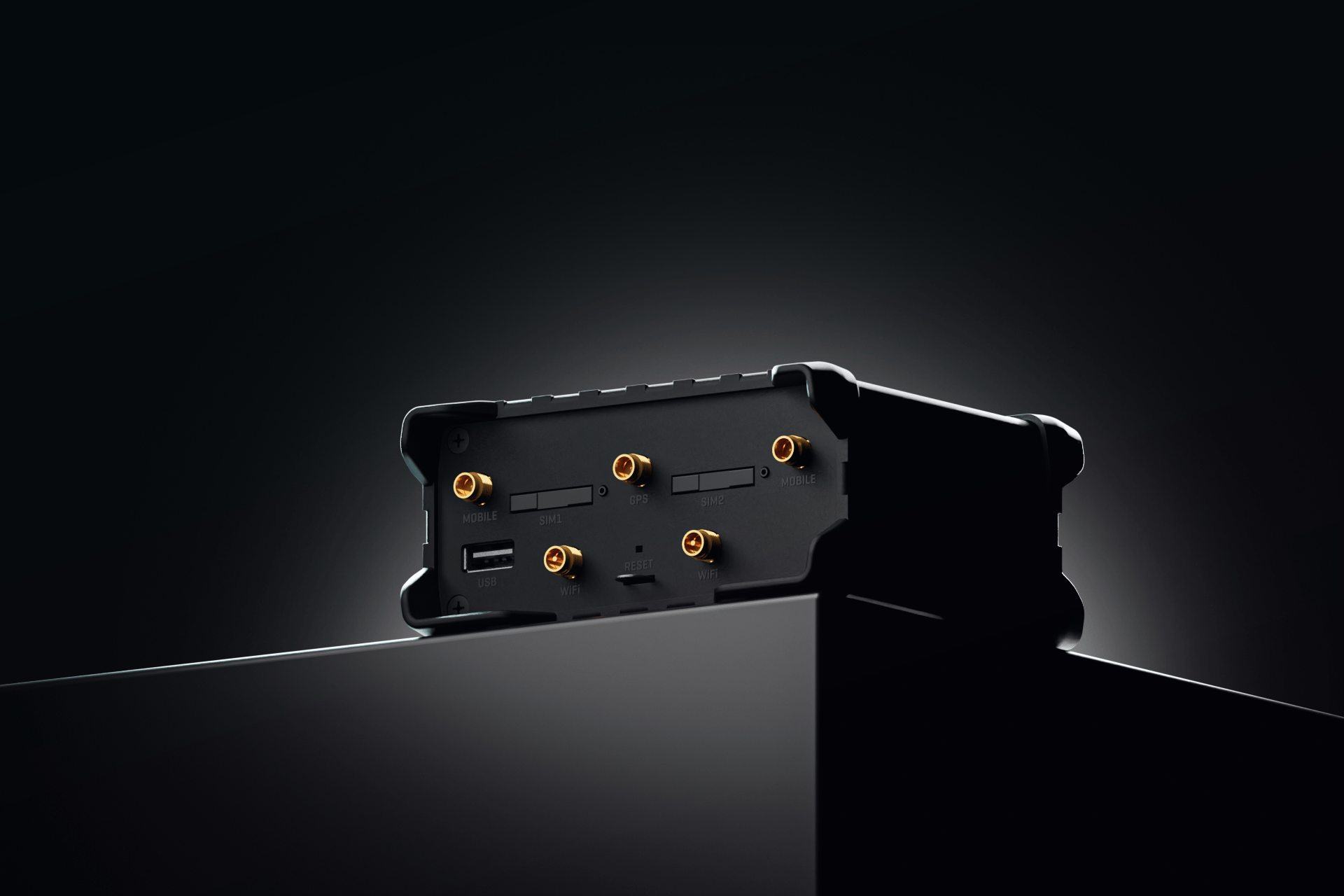

SIM: Dual SIM + optional eSIM support
-
WiFi: 802.11 b/g/n (WiFi 4), AP & Station modes
-

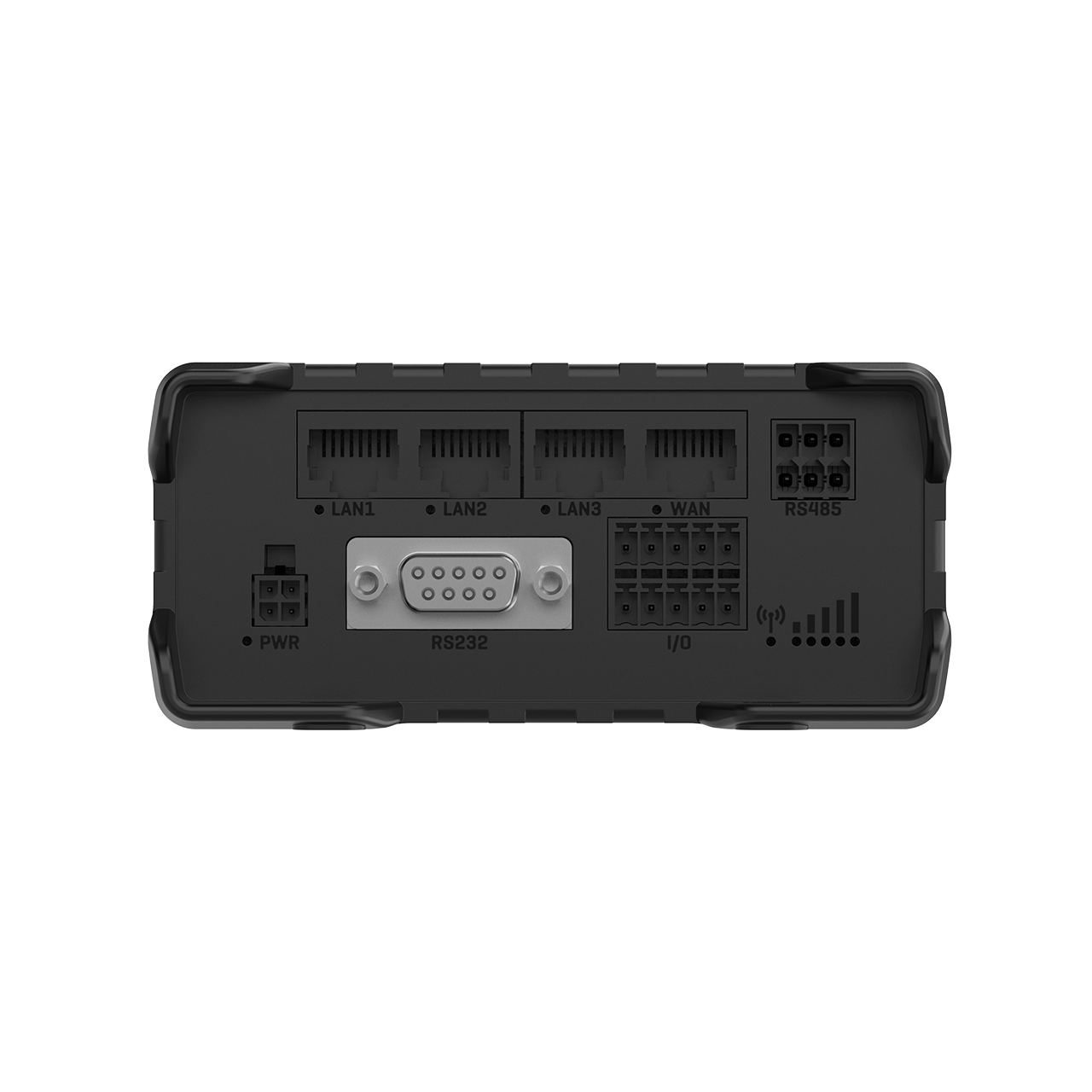

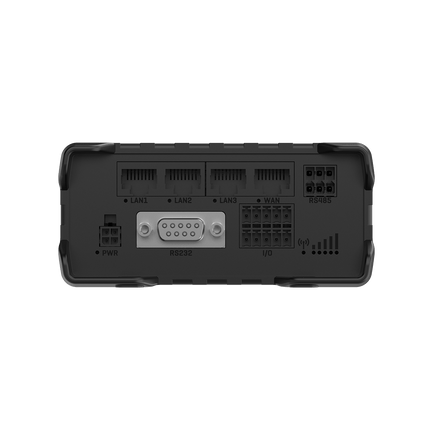

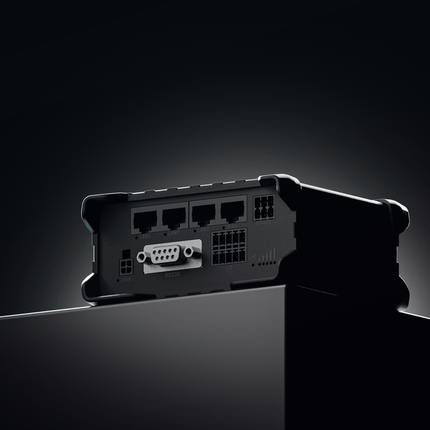

Ethernet: 4 × RJ45 (1 WAN + 3 LAN)
-
Serial: 1 × RS232 (DB9), 1 × RS485
-
GNSS: GPS, GLONASS, Galileo, BeiDou, QZSS
-
I/O: Digital inputs/outputs, relay output, analog input
-
USB: 1 × USB host port
-
Storage: MicroSD support up to 2TB
-
Power: 9–30 VDC, passive PoE supported
-
Operating Temp: -40°C to +75°C
-
OS: RutOS (OpenWrt-based Linux OS)
What’s in the Box
- RUT956 Router
- 2 × LTE antennas
- 2 × WiFi antennas
- GNSS antenna
- Power supply
- Ethernet cable
- Connectors set
- SIM adapter kit
- Quick Start Guide
Resources:
Teltonika RUT956 Flyer
Teltonika RUT956 Datasheet
Teltonika RUT956 Quick User Guide
Teltonika RUT956 User Guide
Teltonika RUT956 3D Models
