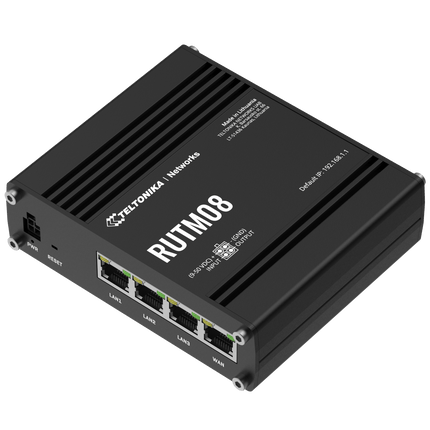

Teltonika RUTM08 Industrial Rugged Wired Ethernet Router
Industrial Gigabit Ethernet Router with Advanced VPN, VLAN & Industrial Protocol Support
The Teltonika RUTM08 is a powerful industrial-grade wired Ethernet router designed for secure industrial networking, automation systems, smart infrastructure, and enterprise IoT applications. Featuring 4 × Gigabit Ethernet ports, advanced VPN capabilities, VLAN support, industrial protocols, and robust RutOS software, the RUTM08 delivers reliable high-speed wired connectivity for demanding industrial environments.
According to the official Teltonika flyer and datasheet, the RUTM08 supports up to 128 port/tag-based VLANs, multiple industrial communication protocols, advanced routing, RMS remote management, and enterprise-grade VPN services.
Key Features
-
4 × Gigabit Ethernet Ports
Includes 1 × WAN and 3 × LAN Gigabit RJ45 ports for high-speed industrial networking.
-
Advanced VLAN Support
Supports up to 128 port/tag-based VLANs for flexible and secure network segmentation.
-
Industrial VPN & Security
Supports OpenVPN, IPsec, WireGuard, ZeroTier, Tailscale, DMVPN, and more.
-
Industrial Protocol Support
Native support for MQTT, Modbus, DNP3, DLMS/COSEM, OPC UA, and MQTT Gateway functionality.
-
Remote Management via RMS
Fully compatible with Teltonika RMS for remote access, monitoring, VPN services, and firmware updates.
-
High-Performance Industrial Hardware
Dual-core MediaTek CPU with Gigabit networking and industrial-grade reliability.
-
Industrial Digital I/O
Includes configurable digital input and output for automation and event-triggered applications.
-
USB Host Support
Connect external storage, USB-to-serial adapters, or additional peripherals.
Why Choose the Teltonika RUTM08?
The RUTM08 is ideal for applications requiring:
- Reliable wired Gigabit networking
- Industrial-grade VPN security
- VLAN-based network segmentation
- Advanced routing capabilities
- Industrial IoT protocol support
- High-speed Ethernet switching
- Remote management via RMS
- Rugged industrial reliability
Its combination of industrial-grade networking, security, and protocol support makes it an excellent solution for modern industrial Ethernet infrastructure.
Typical Applications
- Industrial automation & SCADA
- Factory floor networking
- Smart energy & utility systems
- Enterprise branch networking
- Industrial IoT gateways
- Building management systems
- CCTV & security systems
- Data acquisition networks
- Edge industrial infrastructure
- Smart manufacturing environments
Technical Highlights

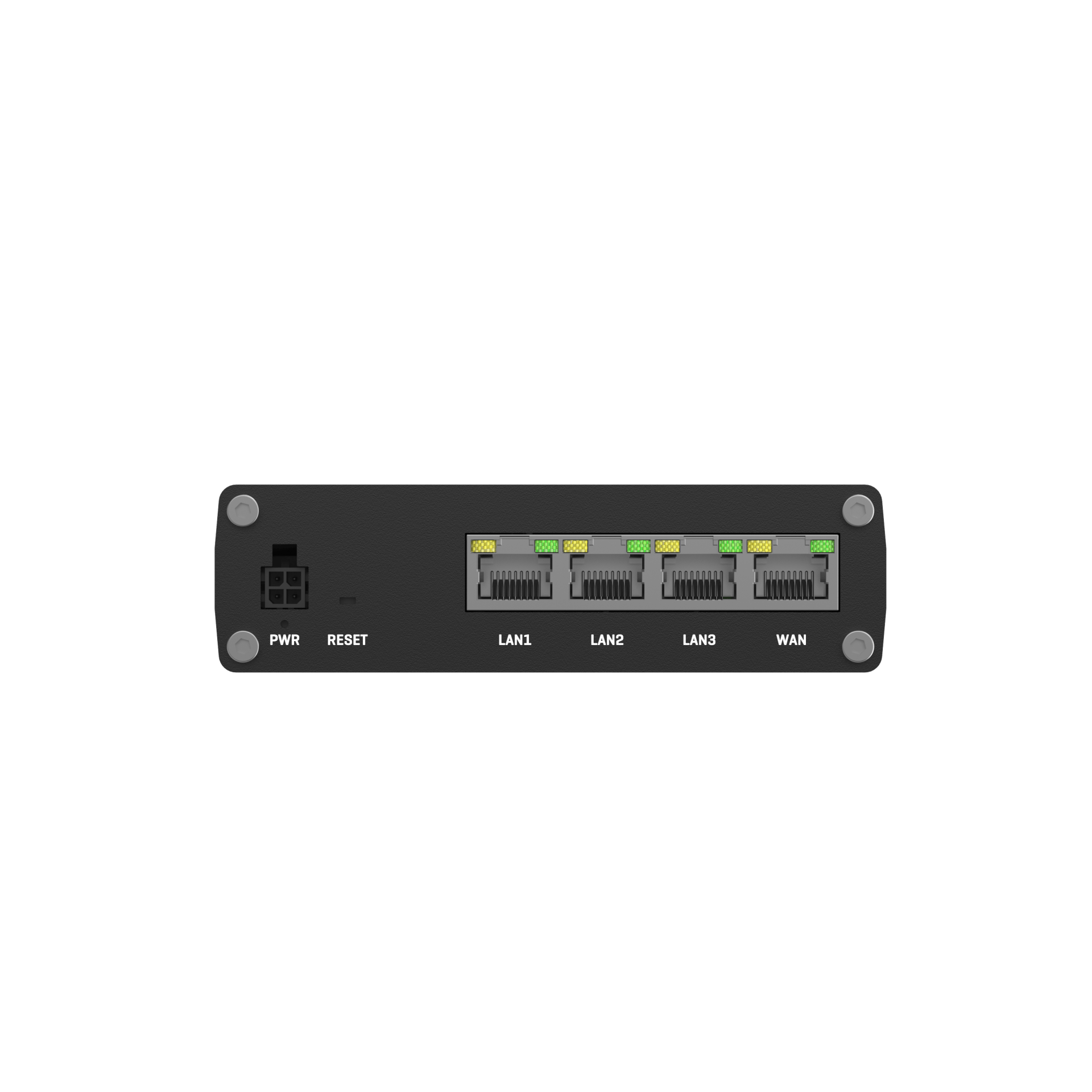

Ethernet Connectivity
- 1 × Gigabit WAN port
- 3 × Gigabit LAN ports
- 10/100/1000 Mbps support
- Auto MDI/MDIX support
Routing & Networking
Supports:
- Static routing
- BGP
- OSPF v2
- RIP v1/v2
- EIGRP
- Policy-based routing
- VRRP
- Load balancing
- WAN failover
VPN & Security
Supports:
- OpenVPN
- IPsec
- WireGuard
- GRE
- PPTP/L2TP
- SSTP
- ZeroTier
- DMVPN
- Tailscale
- Tinc VPN
Industrial Protocols
- MQTT
- OPC UA
- Modbus TCP/USB
- DNP3
- DLMS/COSEM
- Modbus MQTT Gateway
Hardware Platform
- MediaTek Dual-Core 880 MHz CPU
- 256 MB DDR3 RAM
- 16 MB NOR Flash + 256 MB NAND Flash
USB Support
- USB 2.0 Host port
- USB-to-Serial support
- External storage support
- Printer & peripheral support
Digital I/O
- 1 × Digital Input
- 1 × Digital Output
Management
- RMS Remote Management
- SNMP
- MQTT
- TR-069
- JSON-RPC API
- SSH
- WEB UI
- CLI
- FOTA updates
Power
- 9–50 VDC industrial input
- Passive PoE support via LAN1
- Surge & reverse polarity protection
Physical Specifications
- Anodized aluminium housing
- Dimensions: 115 × 32.2 × 95.2 mm
- Weight: 353 g
Operating Environment
- Operating temperature: -40°C to +75°C
- IP30 rated
