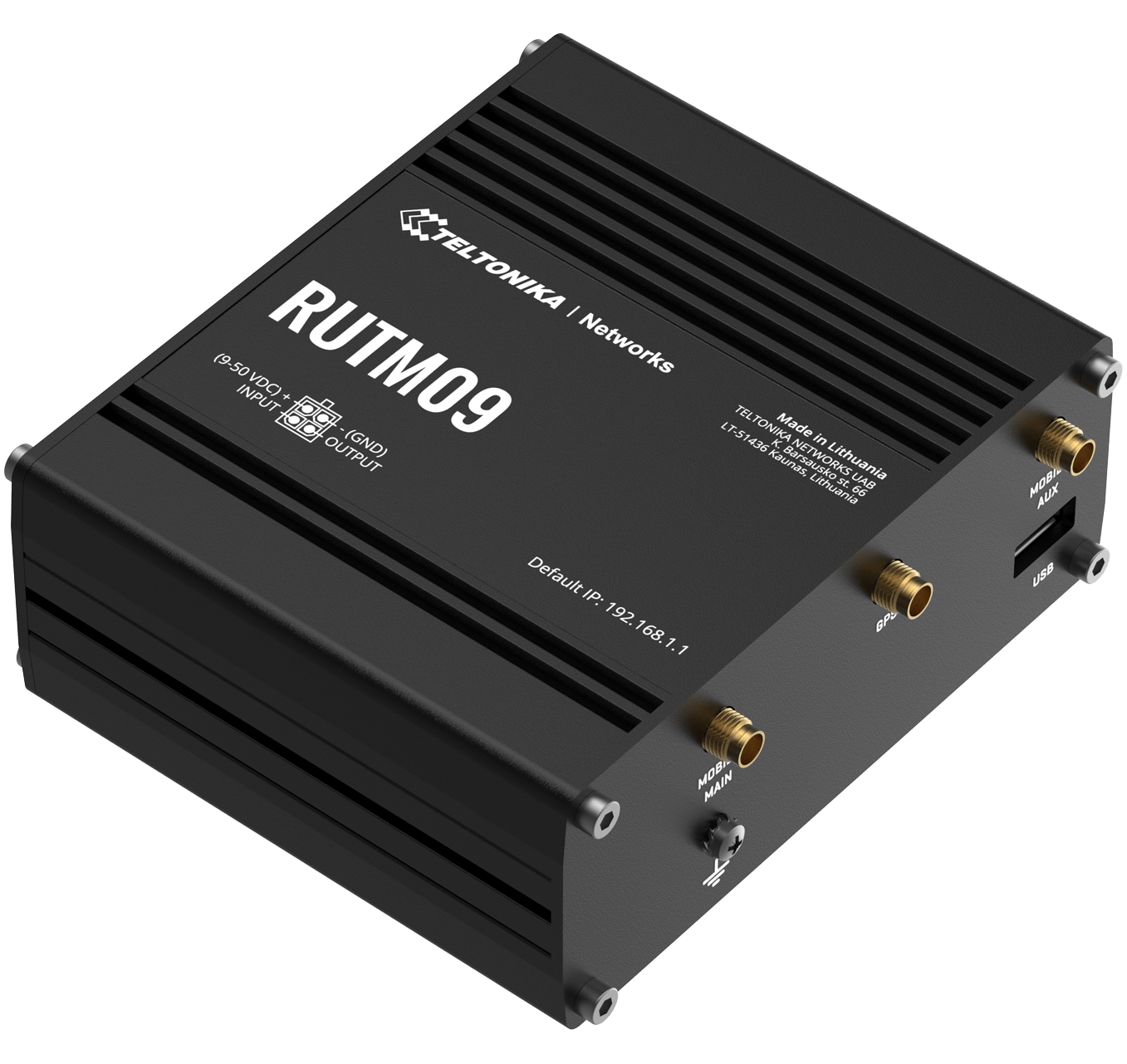

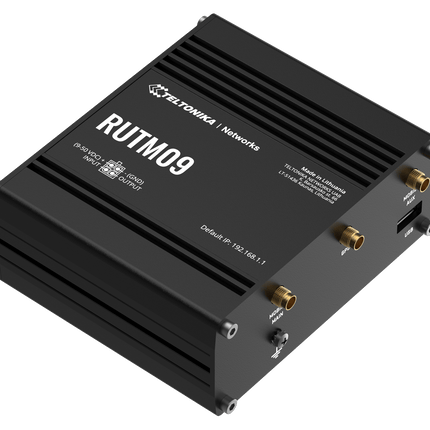

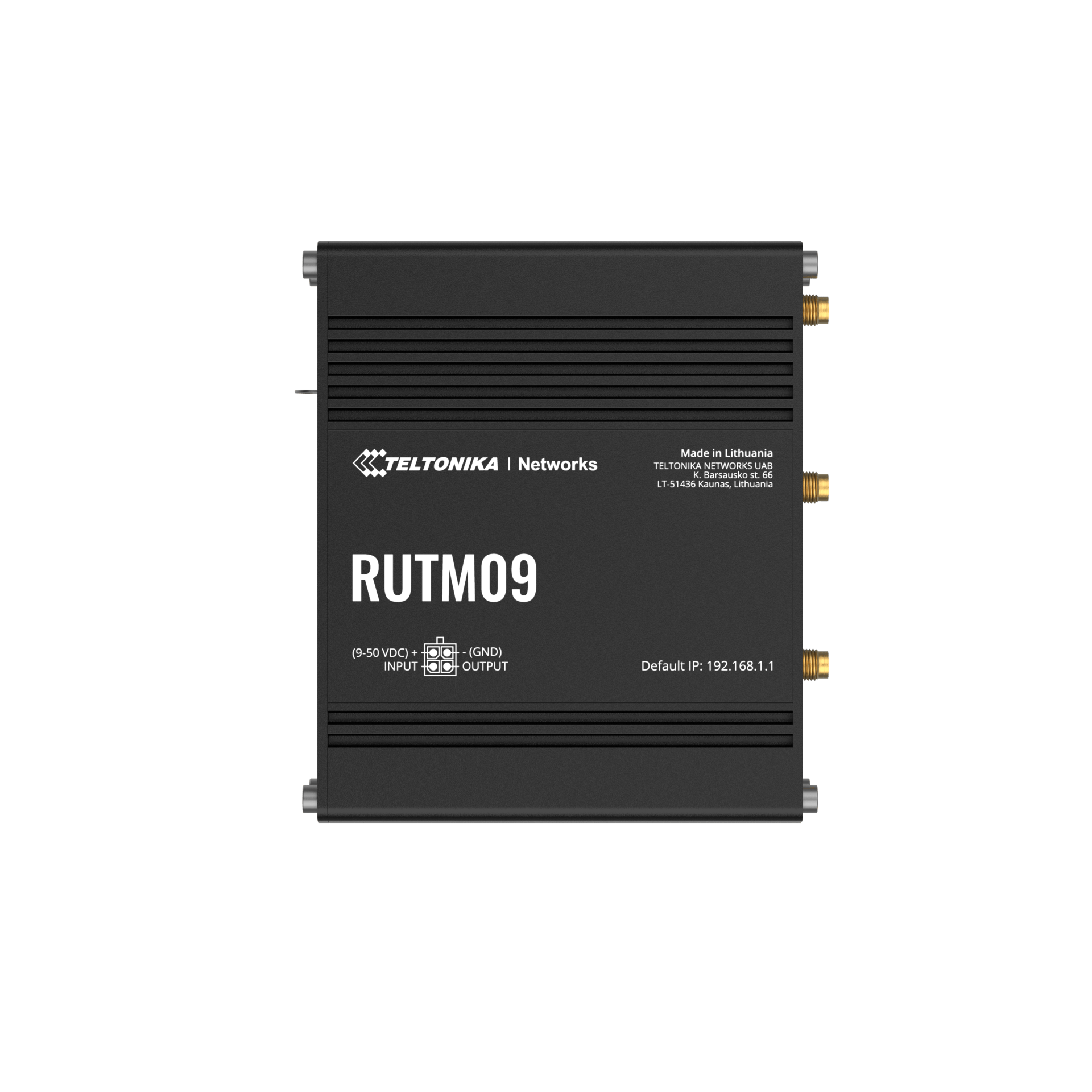

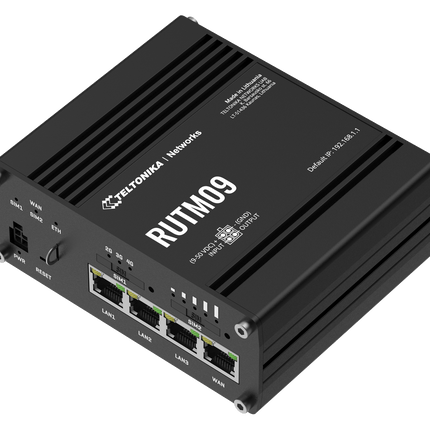

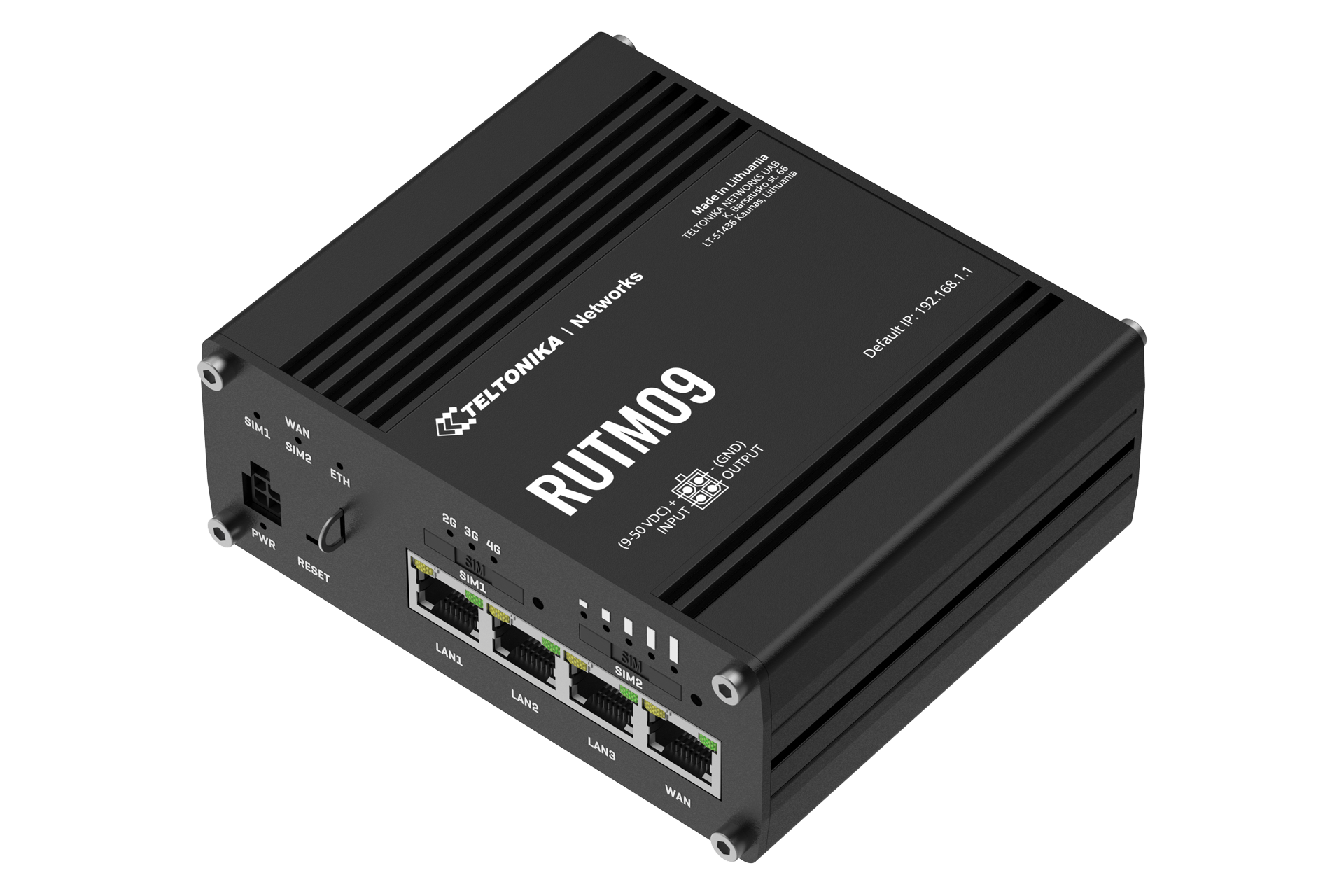

Teltonika RUTM09 Industrial Rugged Cellular LTE 4G Cat6 Router
High-Performance Industrial 4G LTE Cat 6 Router with Dual SIM, Gigabit Ethernet & GNSS
The Teltonika RUTM09 is a powerful industrial-grade 4G LTE Cat 6 cellular router designed for high-speed, mission-critical IoT and industrial networking applications. Featuring Dual SIM failover, Gigabit Ethernet ports, GNSS location tracking, advanced VPN support, and industrial remote management, the RUTM09 delivers reliable and secure connectivity in demanding environments.
According to the official Teltonika flyer, the RUTM09 supports LTE Cat 6 speeds up to 300 Mbps, carrier aggregation, failover functionality, GNSS tracking, and four Gigabit Ethernet ports, making it ideal for mobile and industrial deployments requiring uninterrupted connectivity.
Key Features
-
4G LTE Cat 6 Connectivity
Supports LTE Cat 6 with download speeds up to 300 Mbps for high-performance industrial networking.
-
Dual SIM with Auto Failover
Automatic SIM switching for maximum uptime and network redundancy.
-
Carrier Aggregation Support
Improves throughput and connection reliability for demanding applications.
-
4 × Gigabit Ethernet Ports
High-speed Gigabit WAN and LAN connectivity for industrial devices and networks.
-
GNSS Location Tracking
Integrated GPS, GLONASS, BeiDou, Galileo and QZSS support for positioning and fleet applications.
-
Advanced VPN & Security
Extensive VPN protocol support including OpenVPN, WireGuard, IPsec, ZeroTier and Tailscale.
-
Industrial Remote Management
Fully compatible with Teltonika RMS for centralised device monitoring and configuration.
-
Industrial Rugged Design
Compact anodized aluminium housing designed for harsh environments and industrial installations.
Why Choose the Teltonika RUTM09?
The RUTM09 is an excellent choice for applications requiring:
- High-speed LTE Cat 6 connectivity
- Carrier aggregation for better mobile performance
- Reliable Dual-SIM failover
- Industrial-grade ruggedness
- GPS/GNSS location tracking
- Advanced remote management
- Secure VPN networking
- High-speed Gigabit Ethernet connectivity
Its combination of performance, reliability, and industrial flexibility makes it ideal for modern IoT and industrial automation deployments.
Typical Applications
- Industrial automation & SCADA
- Remote telemetry systems
- Smart transportation & fleet tracking
- CCTV & security networking
- Smart city infrastructure
- Utility & energy monitoring
- Mining & remote operations
- Mobile industrial equipment
- Vehicle networking
- Edge IoT gateway deployments
Technical Highlights
Cellular Connectivity
- 4G LTE Cat 6
- Up to 300 Mbps download / 50 Mbps upload
- 3G fallback support
SIM Features
- Dual Mini-SIM slots
- Automatic failover
- SIM idle protection
- Band management
- Multiple PDN support

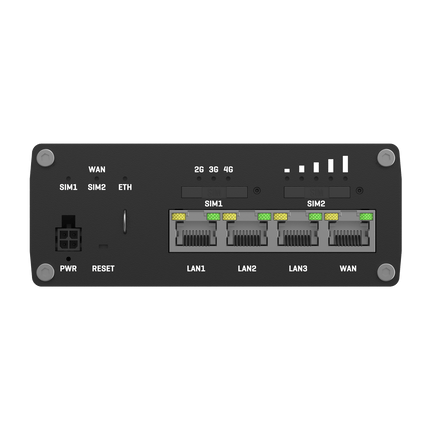

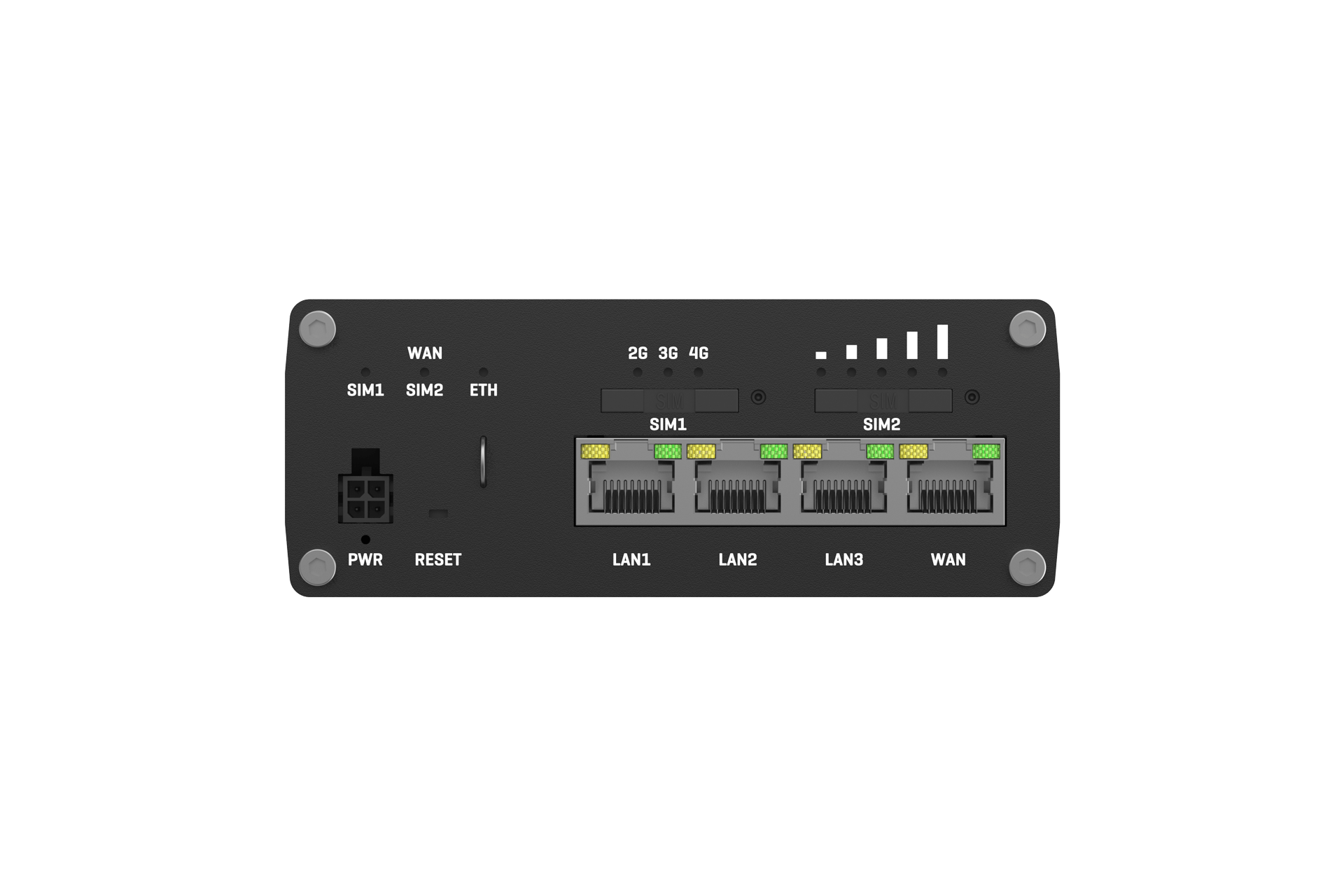

Ethernet
- 1 × Gigabit WAN port
- 3 × Gigabit LAN ports
- 10/100/1000 Mbps support
VPN & Security
Supports:
- OpenVPN
- IPsec
- WireGuard
- GRE
- ZeroTier
- Tailscale
- DMVPN
- SSTP
- PPTP/L2TP
Industrial Protocols
- MQTT
- OPC UA
- Modbus TCP/USB
- DNP3
- DLMS/COSEM
GNSS & Location Services
Supports:
- GPS
- GLONASS
- Galileo
- BeiDou
- QZSS
- Geofencing
- NMEA output
Management
- RMS Remote Management
- SNMP
- MQTT
- TR-069
- JSON-RPC API
- SMS & Email alerts
- AWS IoT Core
- Azure IoT Hub
Hardware Platform
- MediaTek Dual-Core 880 MHz CPU
- 256 MB DDR3 RAM
- 16 MB NOR Flash + 256 MB NAND Flash
Digital I/O
- 1 × Digital Input
- 1 × Digital Output

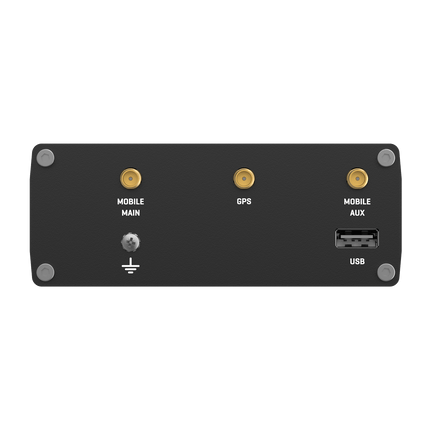

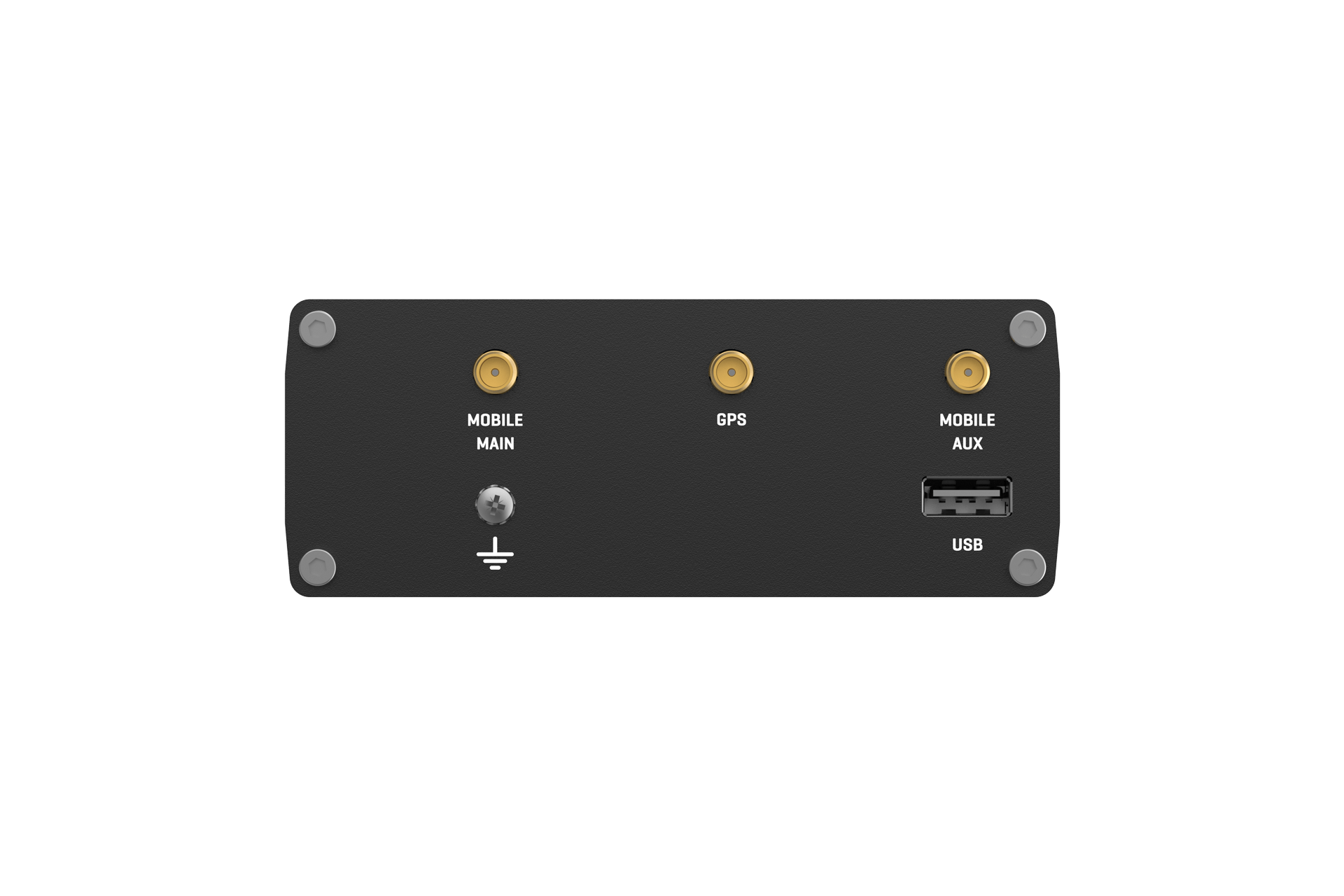

USB Support
- USB 2.0 port
- USB-to-Serial support
- External storage support
- Additional modem support
Power
- 9–50 VDC input range
- Passive PoE support via LAN1
Physical Specifications
- Anodized aluminium housing
- Dimensions: 115 × 44.2 × 95.1 mm
- Weight: 457 g
Operating Environment
- Operating temperature: -40°C to +75°C
- IP30 rated
Resources:
Teltonika RUTM09 Flyer
Teltonika RUTM09 Datasheet
Teltonika RUTM09 Quick User Guide
Teltonika RUTM09 User Guide
Teltonika RUTM09 3D Models
