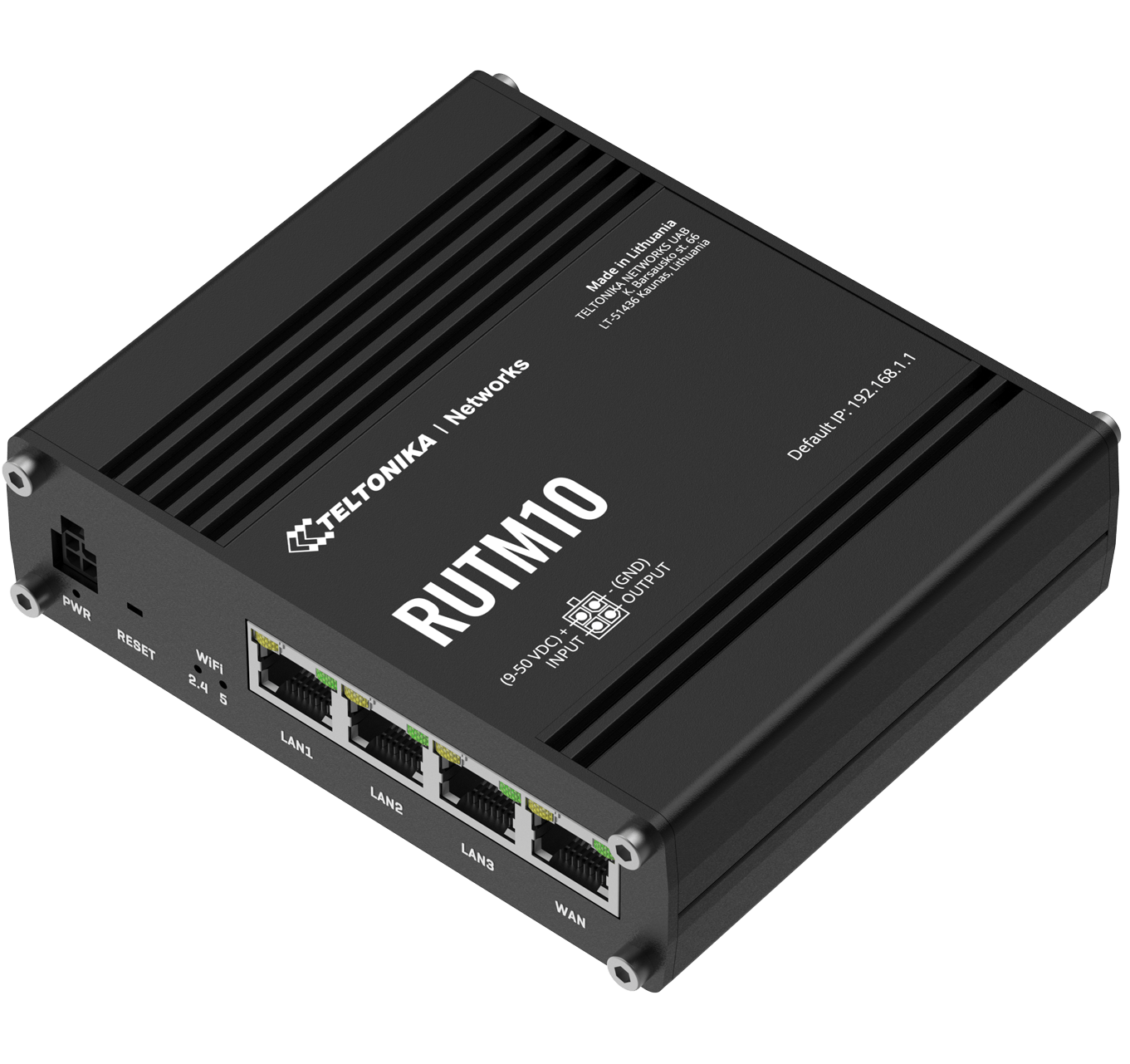

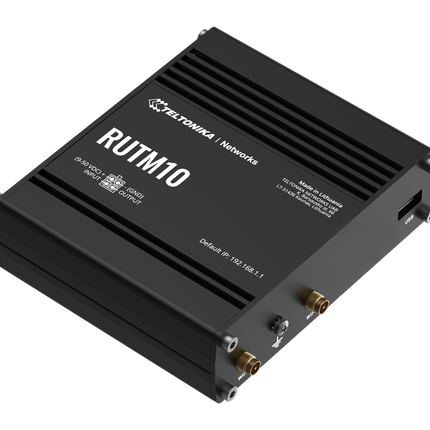

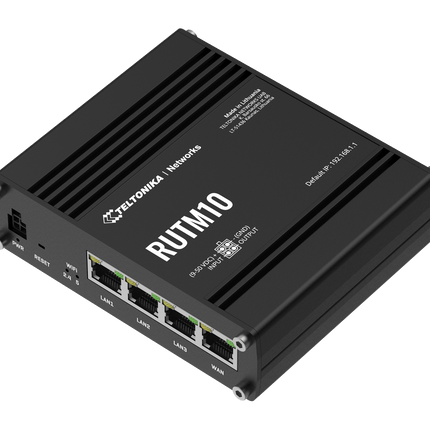

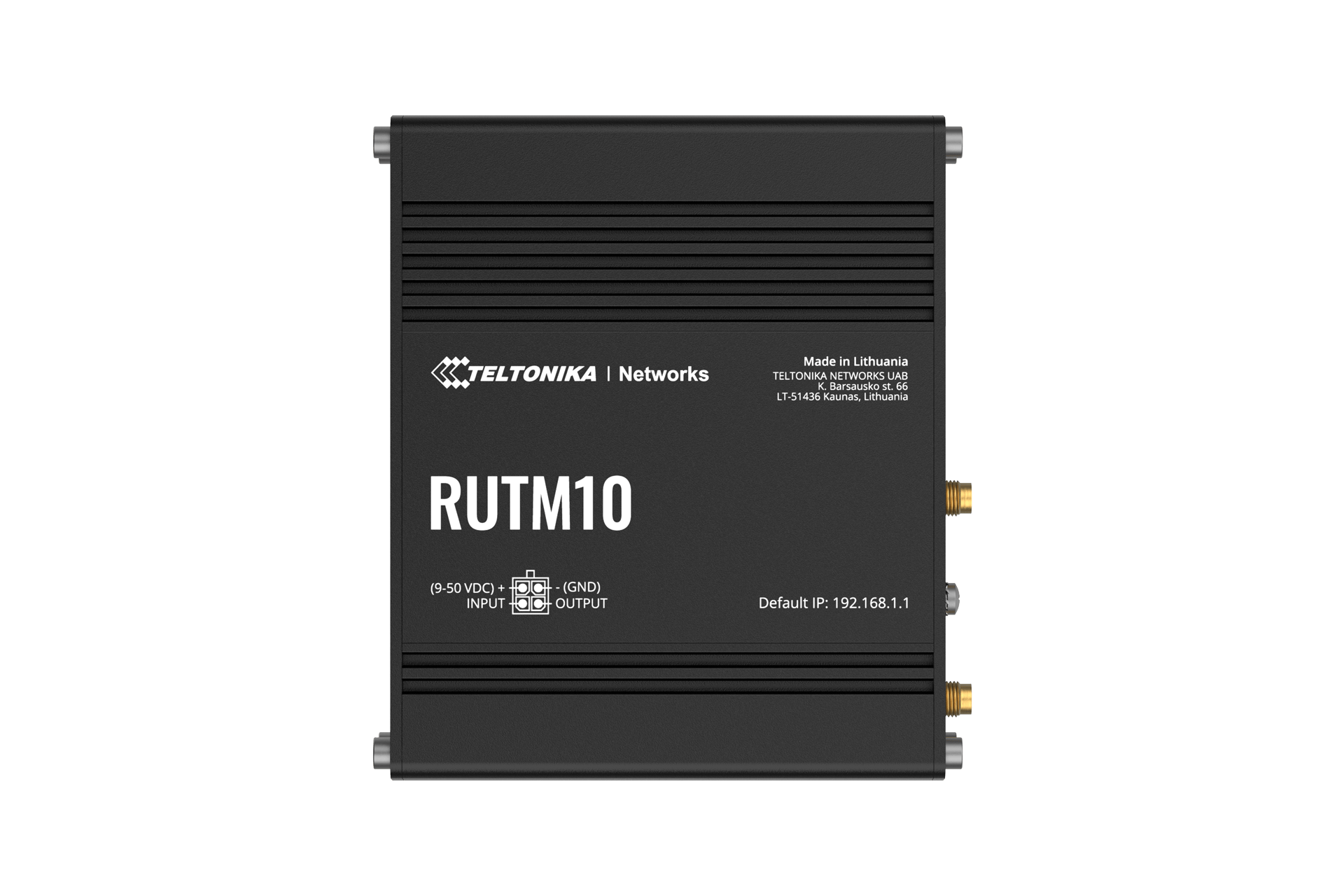

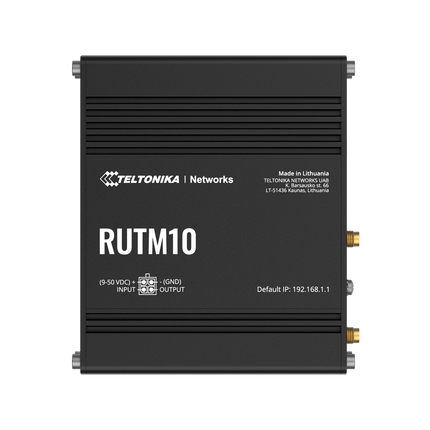

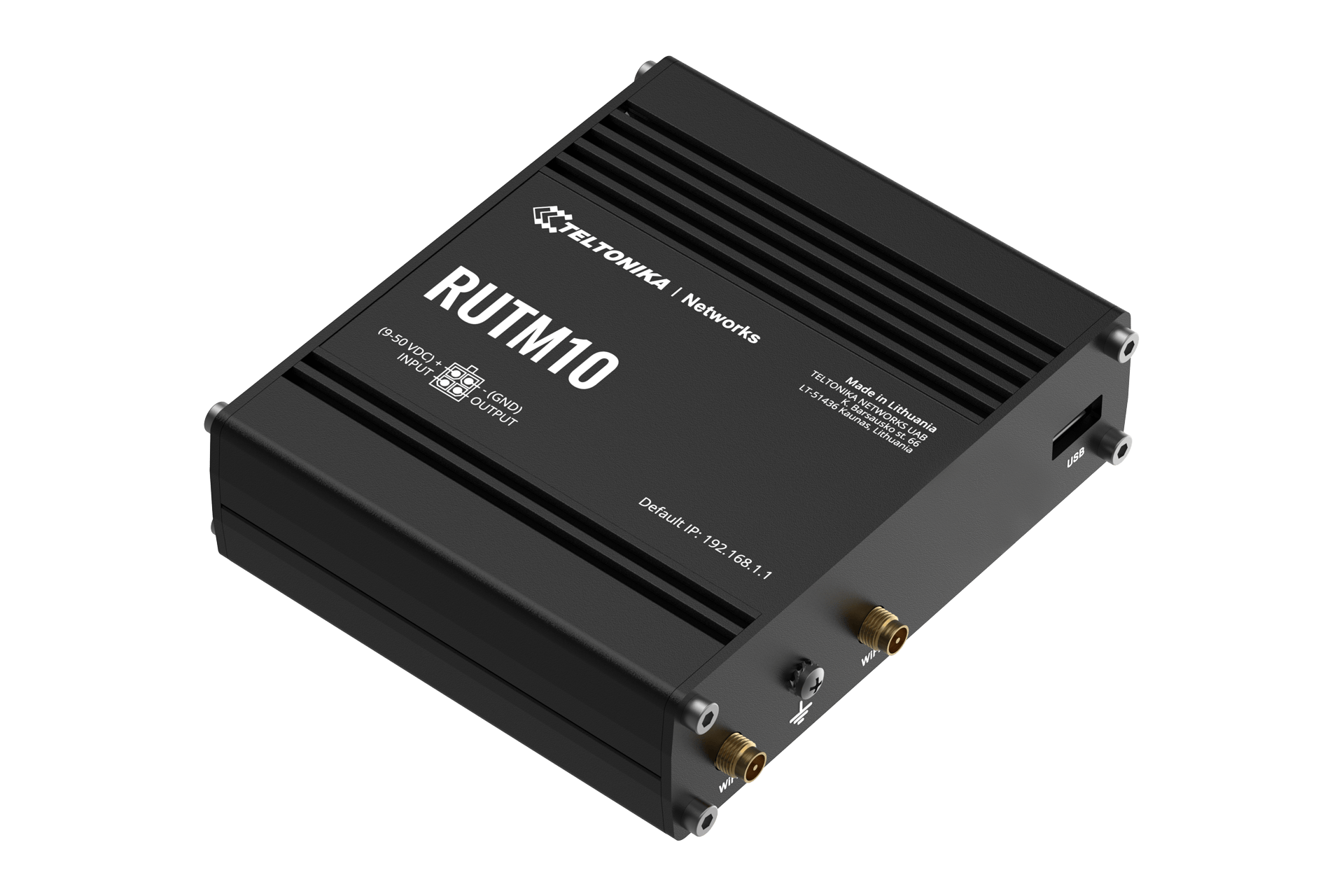

Teltonika RUTM10 Industrial Rugged Wired Wi-Fi Router
Industrial Gigabit Ethernet & Wi-Fi 5 Router with Advanced VPN, VLAN & Industrial Protocol Support
The Teltonika RUTM10 is a powerful industrial-grade wired Ethernet and Wi-Fi router designed for industrial automation, enterprise networking, smart infrastructure, IoT gateways, and secure remote networking applications. Combining 4 × Gigabit Ethernet ports, dual-band Wi-Fi 5, advanced VPN support, industrial protocol compatibility, and enterprise-grade RutOS features, the RUTM10 delivers reliable and secure wired and wireless networking in demanding environments.
According to the official Teltonika datasheet and flyer, the RUTM10 supports Wi-Fi mesh networking, up to 128 VLANs, advanced routing protocols, and RMS remote management, making it ideal for mission-critical industrial deployments.
Key Features
-
4 × Gigabit Ethernet Ports
Includes 1 × WAN and 3 × LAN Gigabit RJ45 ports for high-speed industrial networking.
-
Dual-Band Wi-Fi 5 (802.11ac Wave 2)
Supports MU-MIMO, fast roaming, mesh networking, and speeds up to 867 Mbps.
-
Advanced VPN & Security
Extensive VPN support including OpenVPN, IPsec, WireGuard, ZeroTier, DMVPN, and Tailscale.
-
Industrial Protocol Support
Native support for MQTT, OPC UA, Modbus TCP, DNP3, and DLMS/COSEM.
-
Up to 128 VLANs Supported
Flexible network segmentation for industrial and enterprise deployments.
-
Remote Management via RMS
Simplified deployment, firmware management, VPN access, and device monitoring.
-
Industrial Digital I/O
Includes configurable digital input and output for automation and monitoring applications.
-

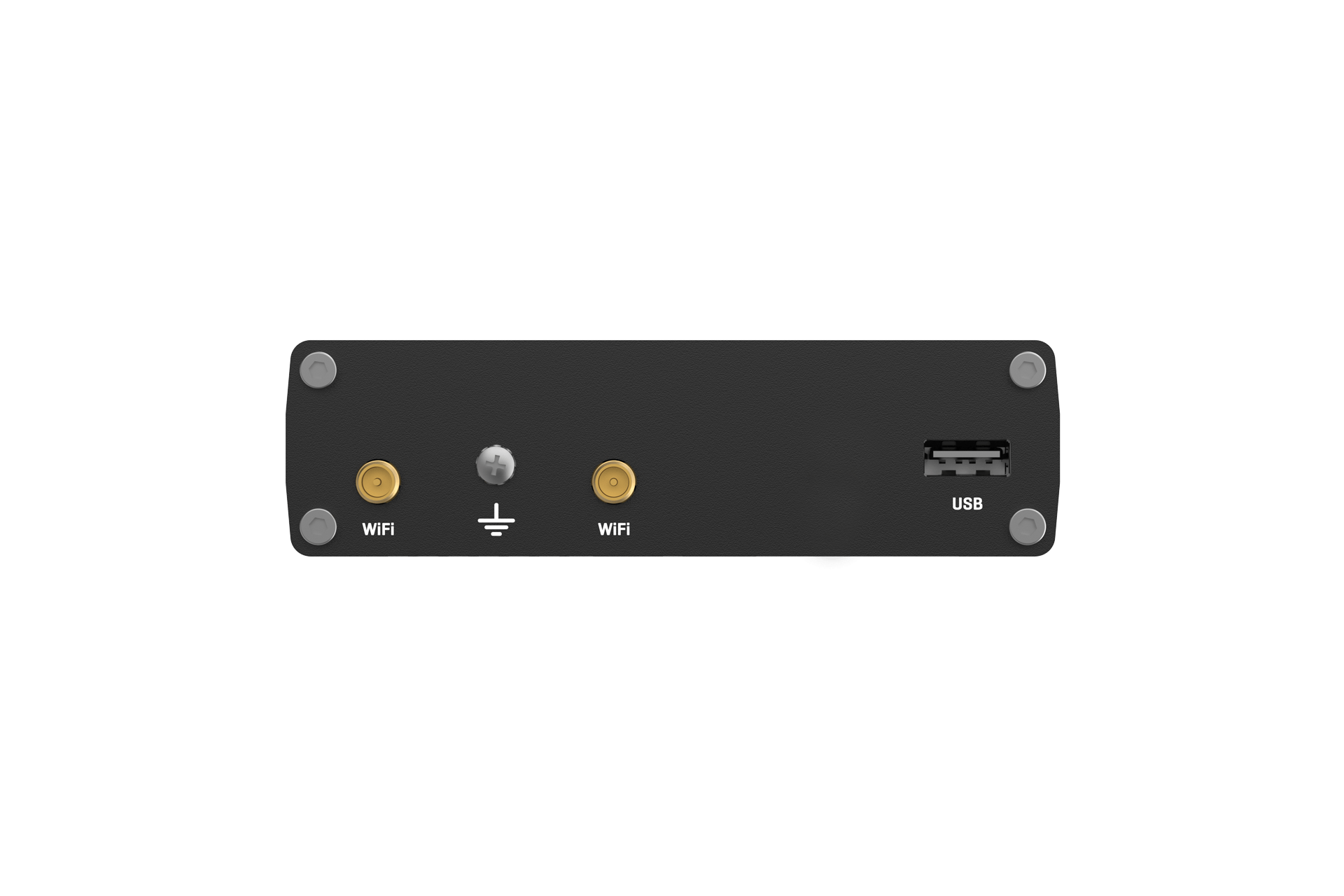

USB Host Port
Supports USB-to-serial adapters, storage devices, and additional peripherals.
Why Choose the Teltonika RUTM10?
The RUTM10 is an excellent choice for deployments requiring:
- Reliable industrial Ethernet networking
- Secure wireless connectivity
- Advanced VPN infrastructure
- Enterprise-grade routing
- VLAN network segmentation
- Industrial protocol integration
- Wi-Fi mesh networking
- Rugged industrial reliability
Its combination of wired Gigabit performance and advanced wireless capabilities makes it ideal for modern industrial and enterprise environments.
Typical Applications
- Industrial automation & SCADA
- Factory and warehouse networking
- Smart buildings & BMS
- Retail and branch office networking
- Industrial IoT gateways
- CCTV and surveillance systems
- Smart city infrastructure
- Utility and energy systems
- Enterprise Wi-Fi deployments
- Remote industrial monitoring
Technical Highlights

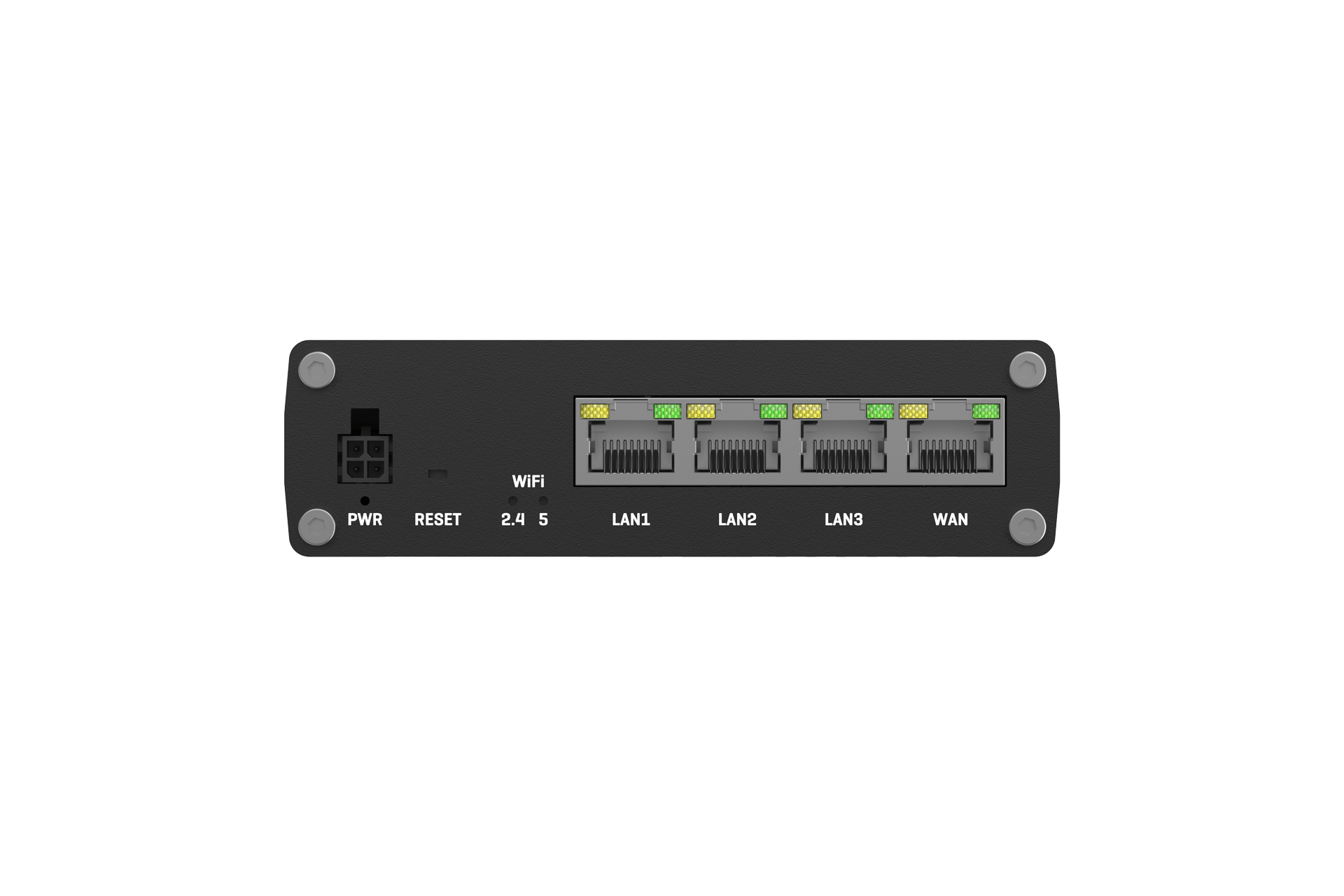

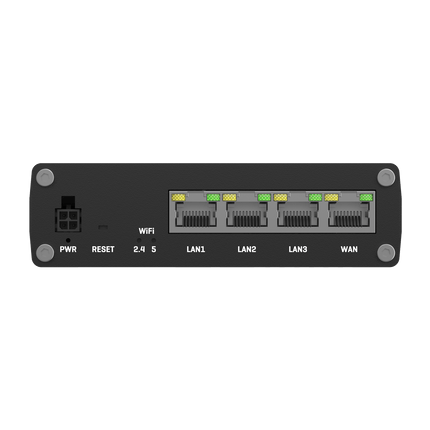

Ethernet Connectivity
- 1 × Gigabit WAN port
- 3 × Gigabit LAN ports
- 10/100/1000 Mbps support
- Auto MDI/MDIX crossover support
Wi-Fi
- Dual-Band Wi-Fi 5 (802.11ac Wave 2)
- MU-MIMO support
- Up to 867 Mbps
- Wireless mesh (802.11s)
- Fast roaming (802.11r)
- BSS transition management (802.11v)
- Supports up to 150 simultaneous users
Routing & Networking
Supports:
- Static routing
- BGP
- OSPF v2
- RIP v1/v2
- EIGRP
- Policy-based routing
- Load balancing
- WAN failover
- VRF support
VPN & Security
Supports:
- OpenVPN
- IPsec
- GRE
- PPTP/L2TP
- SSTP
- WireGuard
- ZeroTier
- DMVPN
- Tinc
- Tailscale
Industrial Protocols
- MQTT
- OPC UA
- Modbus TCP/USB
- DNP3
- DLMS/COSEM
- Modbus MQTT Gateway
Hardware Platform
- MediaTek Dual-Core 880 MHz CPU
- 256 MB DDR3 RAM
- 16 MB NOR Flash + 256 MB NAND Flash

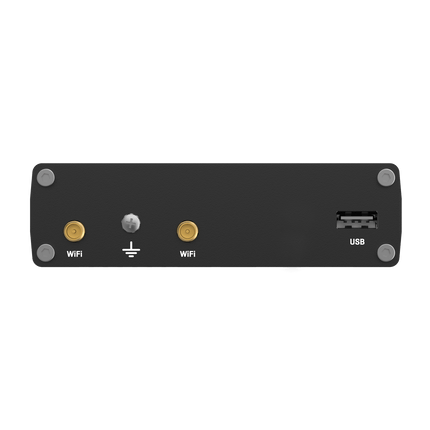

USB & I/O
- USB 2.0 Host port
- 1 × Digital Input
- 1 × Digital Output
Power
- 9–50 VDC industrial input
- Passive PoE via LAN1
- Reverse polarity and surge protection
Physical Specifications
- Anodized aluminium housing
- Dimensions: 115 × 32.2 × 95.2 mm
- Weight: 359 g
Operating Environment
- Operating temperature: -40°C to +75°C
- IP30 rated
Resources:
Teltonika RUTM10 Flyer
Teltonika RUTM10 Datasheet
Teltonika RUTM10 Quick User Guide
Teltonika RUTM10 User Guide
Teltonika RUTM10 3D Models
