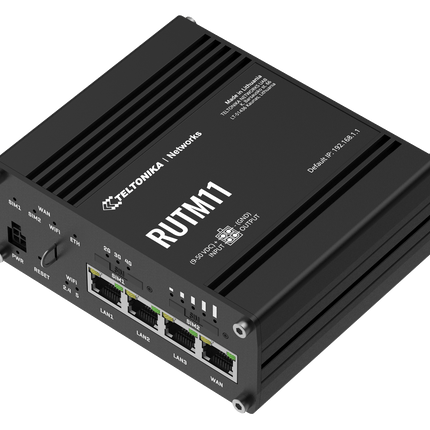

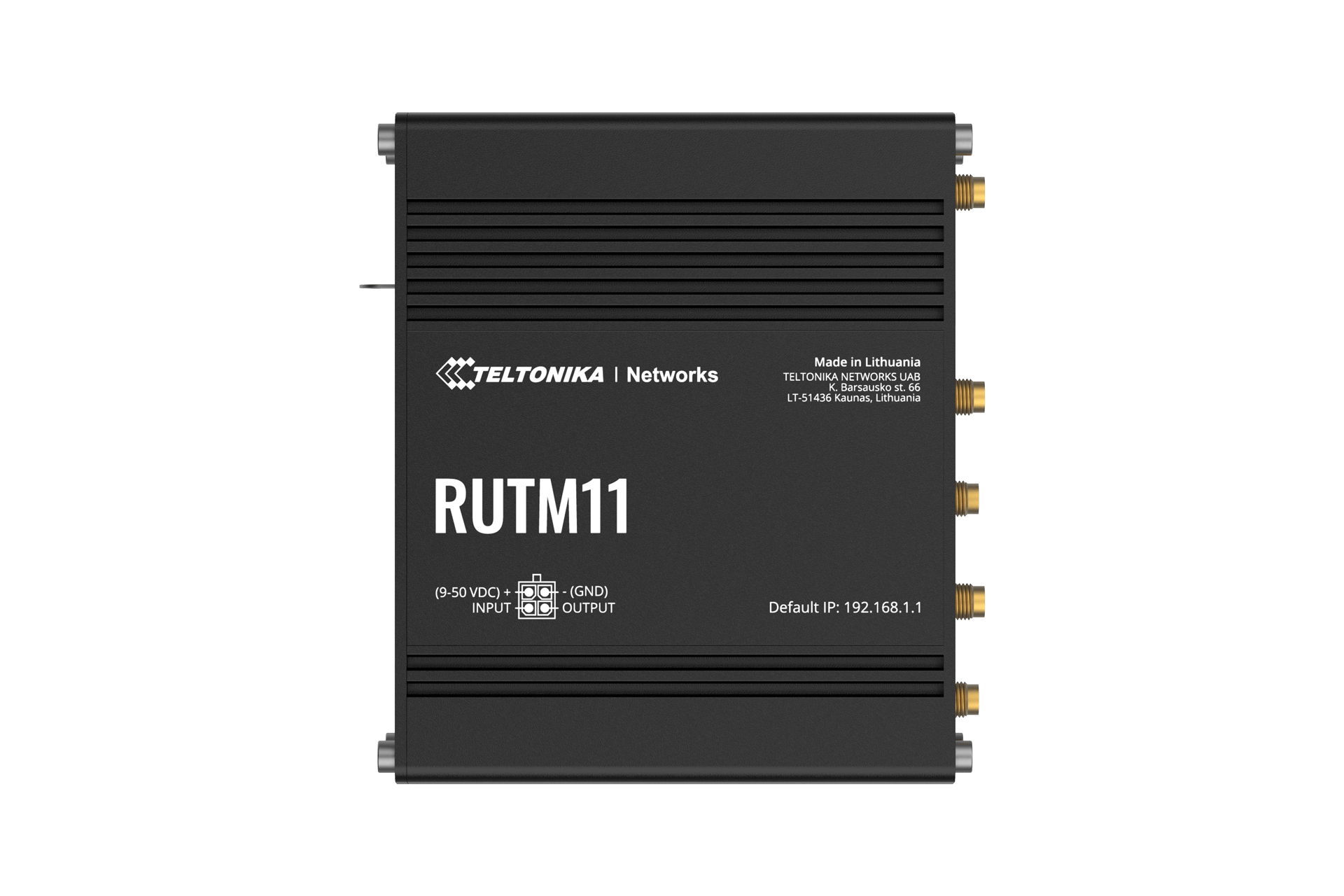

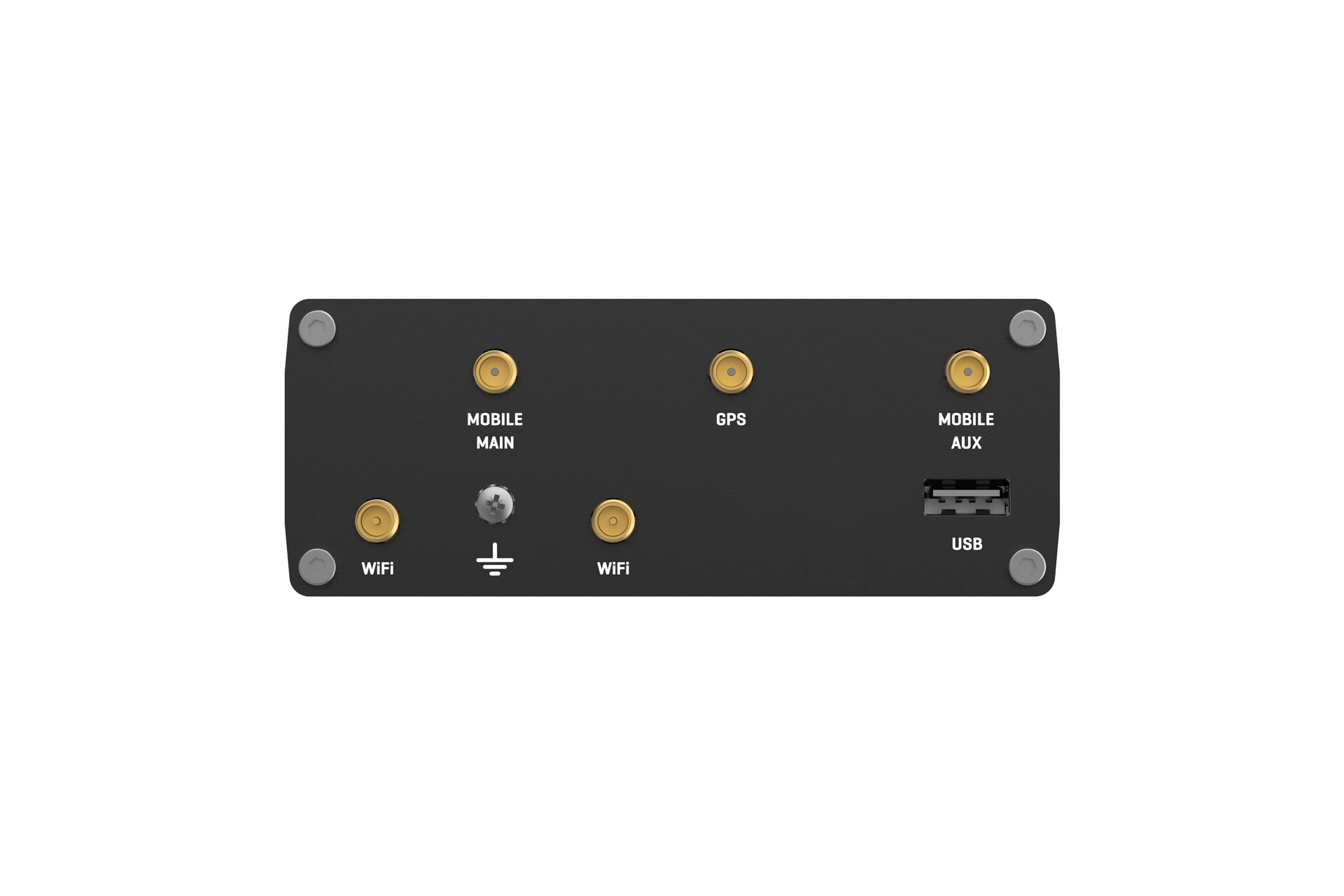

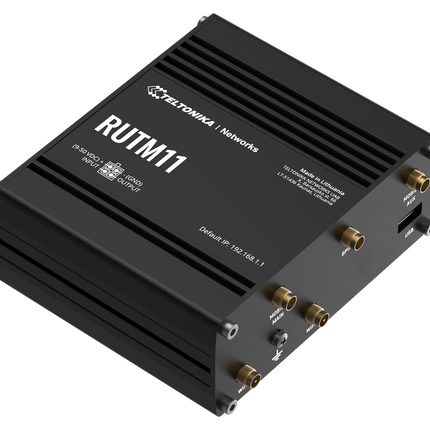

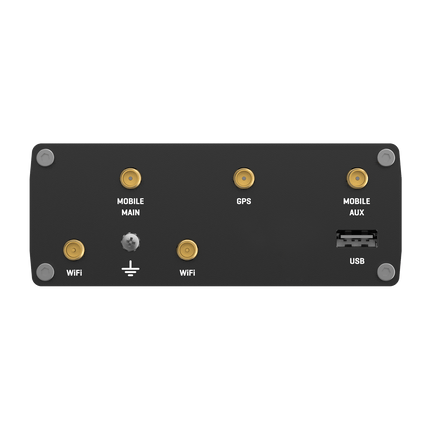

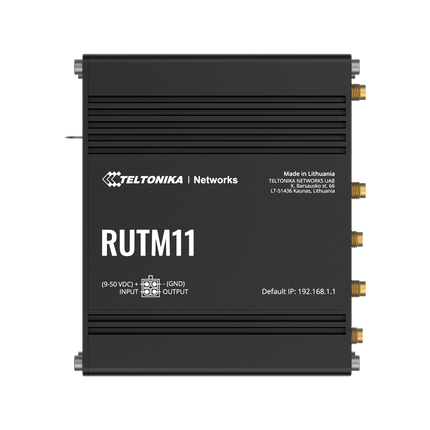

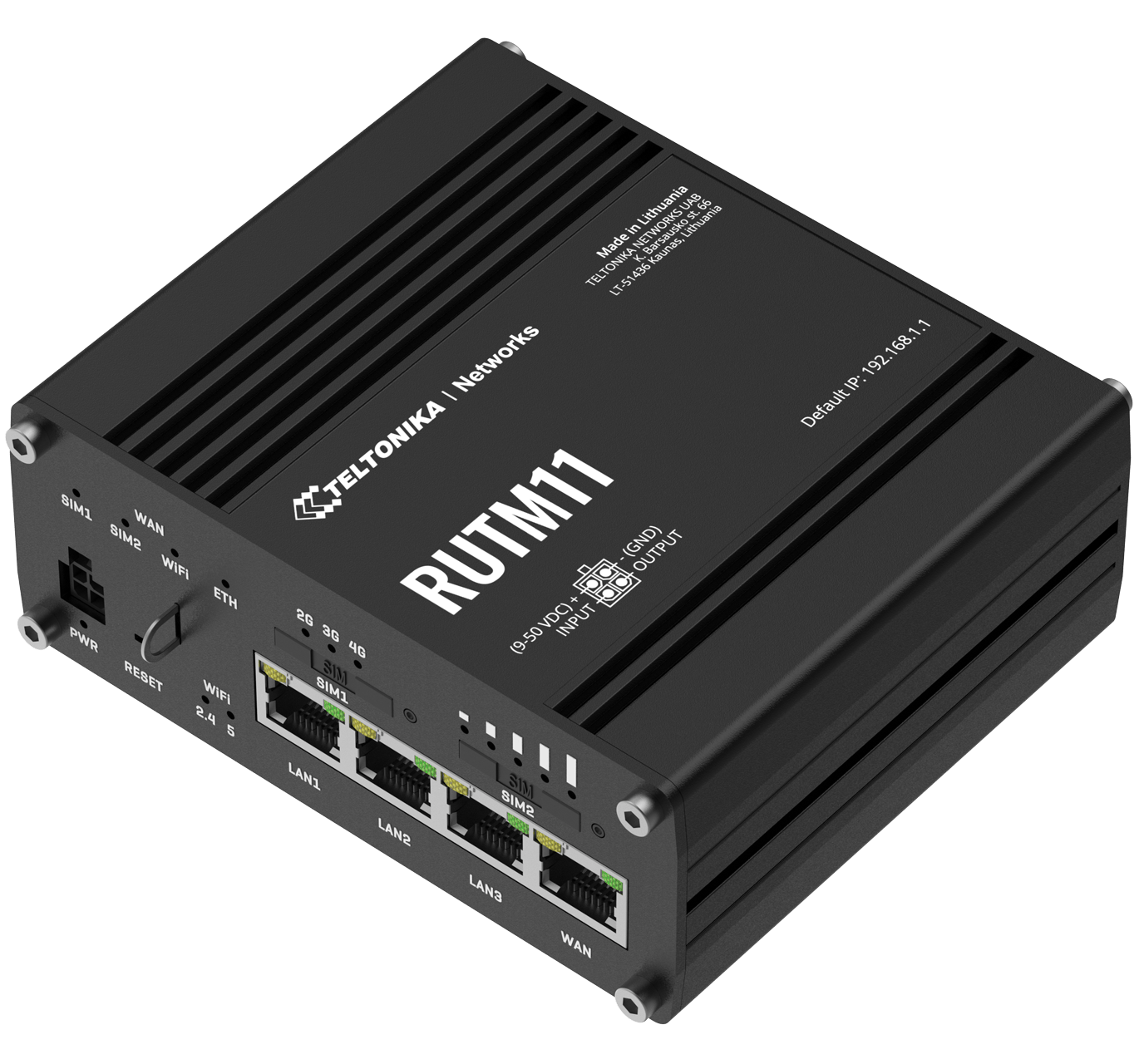

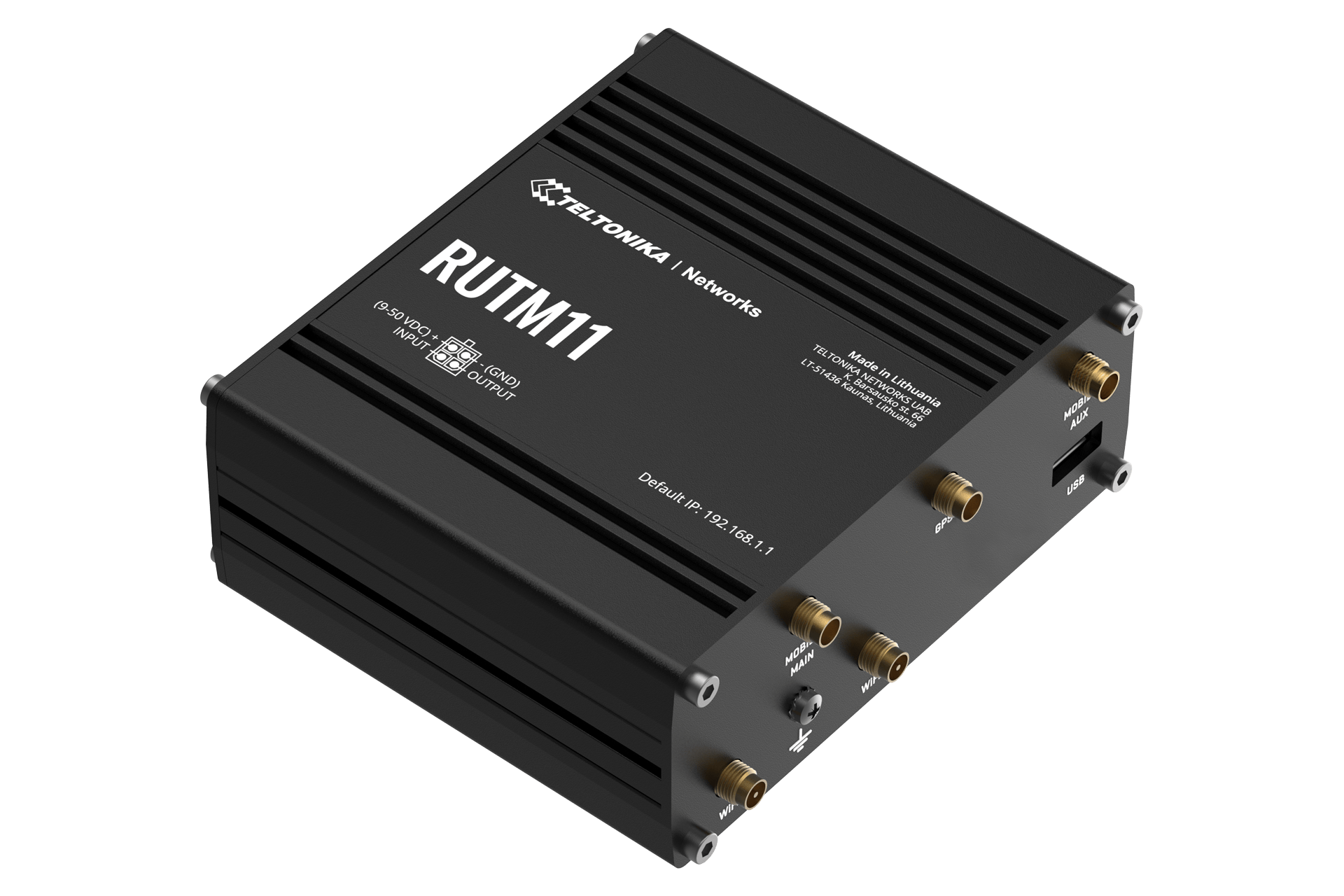

Teltonika RUTM11 Industrial Rugged Cellular LTE 4G Cat 6 Router
Industrial LTE Cat 6 Router with Dual SIM, WiFi 5, GNSS & Gigabit Ethernet
The Teltonika RUTM11 is a high-performance industrial 4G LTE Cat 6 router engineered for applications requiring high data throughput, low latency, advanced failover, and reliable remote connectivity. Featuring Dual SIM redundancy, Gigabit Ethernet, dual-band WiFi 5, GNSS positioning, and advanced RutOS networking, the RUTM11 is ideal for demanding industrial and enterprise IoT deployments.
According to the official Teltonika datasheet and flyer, the RUTM11 supports LTE Cat 6 speeds up to 300 Mbps with carrier aggregation, advanced VPN and security features, industrial protocols, and RMS remote management capabilities.
Key Features
-
4G LTE Cat 6 with Carrier Aggregation
Delivers mobile speeds up to 300 Mbps for high-performance industrial networking.
-
Dual SIM with Auto Failover
Ensures uninterrupted connectivity with automatic switching between SIMs.
-
Dual-Band WiFi 5 (802.11ac Wave 2)
High-speed wireless networking with MU-MIMO, mesh, and fast roaming support.
-
4 × Gigabit Ethernet Ports
Includes 1 × WAN and 3 × LAN Gigabit RJ45 ports with support for up to 128 VLANs.
-
Integrated GNSS Tracking
Supports GPS, GLONASS, Galileo, BeiDou, and QZSS for location services and fleet applications.
-
Advanced VPN & Security
Extensive support for OpenVPN, WireGuard, IPsec, ZeroTier, Tailscale, and more.
-
Industrial Protocol Support
Native support for MQTT, OPC UA, Modbus, DNP3, DLMS, and BACnet.
-
Remote Management via RMS
Centralised monitoring, remote access, firmware updates, and VPN services via Teltonika RMS.
Why Choose the Teltonika RUTM11?
The RUTM11 is designed for industrial environments requiring:
- High-speed LTE Cat 6 connectivity
- Advanced failover and load balancing
- Secure remote VPN networking
- Reliable wireless and wired connectivity
- Industrial protocol integration
- GNSS location services
- Enterprise-grade routing and VLAN support
- Rugged industrial reliability
Its combination of connectivity, security, and industrial protocol support makes it ideal for mission-critical IoT infrastructure.
Typical Applications
- Industrial automation & SCADA
- Smart manufacturing
- Smart city infrastructure
- Remote telemetry systems
- Fleet & transportation connectivity
- Energy & utility monitoring
- CCTV & surveillance networking
- Retail & enterprise branch networking
- Building management systems
- Industrial edge computing
Technical Highlights
Cellular Connectivity
- 4G LTE Cat 6
- Up to 300 Mbps download
- Carrier aggregation support
- 3G fallback support
SIM Features
- Dual Mini-SIM slots
- Automatic failover
- SIM idle protection
- Multiple PDN support
- Band management
- Black/white list support
WiFi
- Dual-Band WiFi 5 (802.11ac Wave 2)
- MU-MIMO support
- Up to 867 Mbps
- Wireless mesh (802.11s)
- Fast roaming (802.11r)
- Supports up to 150 simultaneous users
Ethernet
- 1 × Gigabit WAN port
- 3 × Gigabit LAN ports
- 10/100/1000 Mbps support
- Up to 128 VLANs supported
GNSS & Location Services
Supports:
- GPS
- GLONASS
- Galileo
- BeiDou
- QZSS
- Geofencing
- NTRIP
- NMEA output
VPN & Security
Supports:
- OpenVPN
- WireGuard
- IPsec
- GRE
- PPTP/L2TP
- SSTP
- ZeroTier
- Tailscale
- DMVPN
- Tinc VPN
Industrial Protocols
- MQTT
- OPC UA
- Modbus TCP/USB
- DNP3
- DLMS
- BACnet
- Modbus MQTT Gateway
Hardware Platform
- MediaTek Dual-Core 880 MHz CPU
- 256 MB DDR3 RAM
- 16 MB NOR Flash + 256 MB NAND Flash
USB & I/O
- USB 2.0 Host port
- 1 × Digital Input
- 1 × Digital Output
Power
- 9–50 VDC industrial input
- Passive PoE support via LAN1
- Surge & reverse polarity protection
Physical Specifications
- Anodized aluminium housing
- Dimensions: 115 × 44.2 × 95.1 mm
- Weight: 460 g
Operating Environment
- Operating temperature: -40°C to +75°C
- IP30 rated
Resources:
Teltonika RUTM11 Flyer
Teltonika RUTM11 Datasheet
Teltonika RUTM11 Quick User Guide
Teltonika RUTM11 User Guide
Teltonika RUTM11 3D Models
