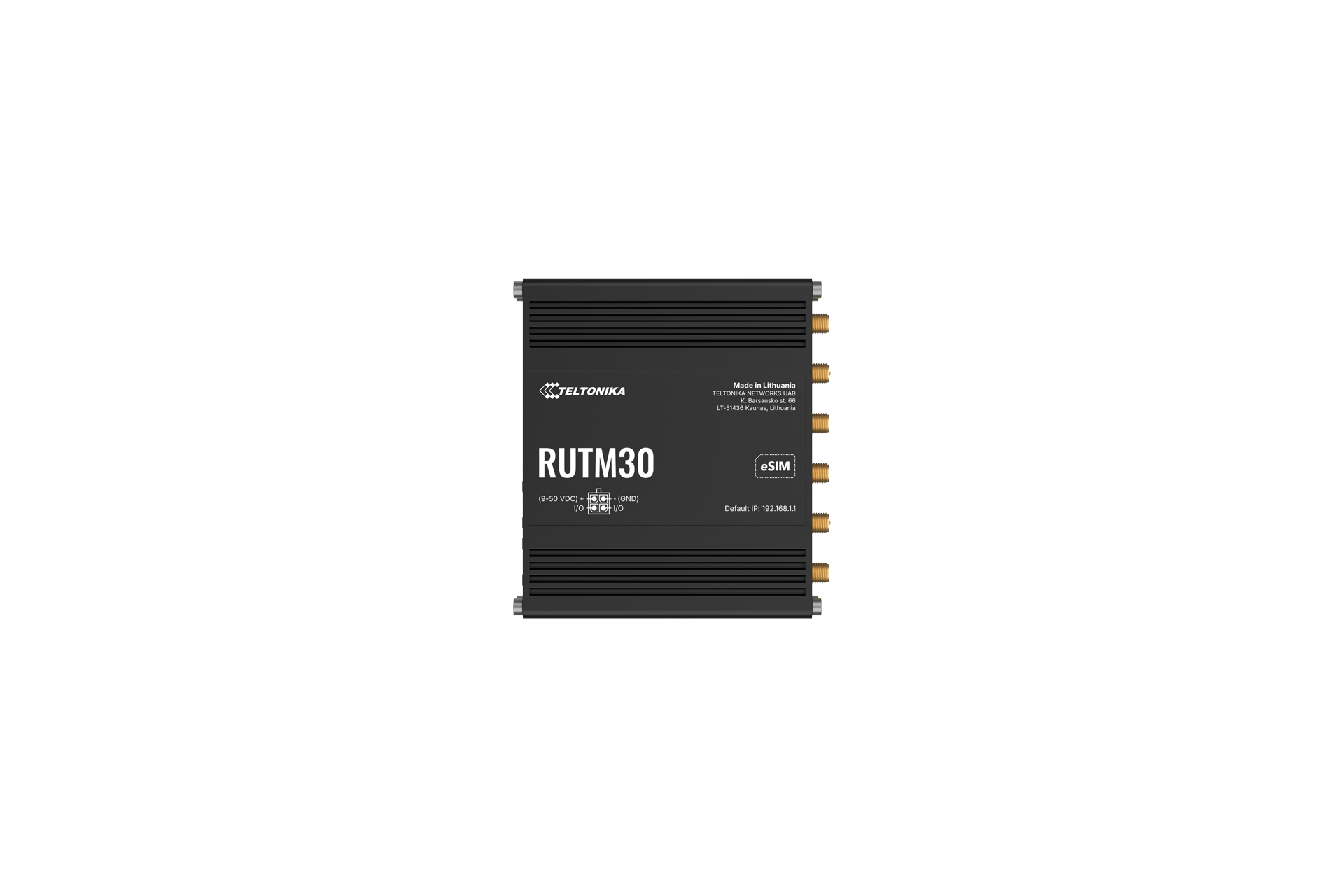

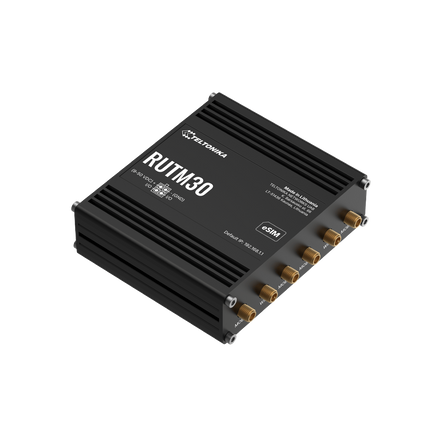

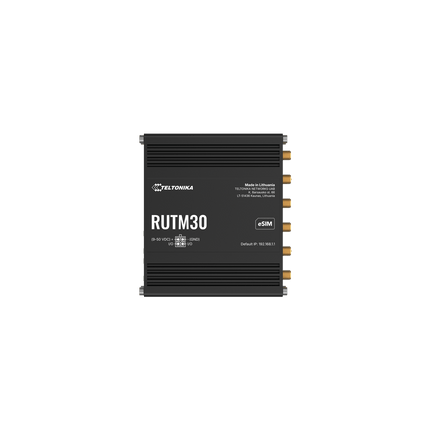

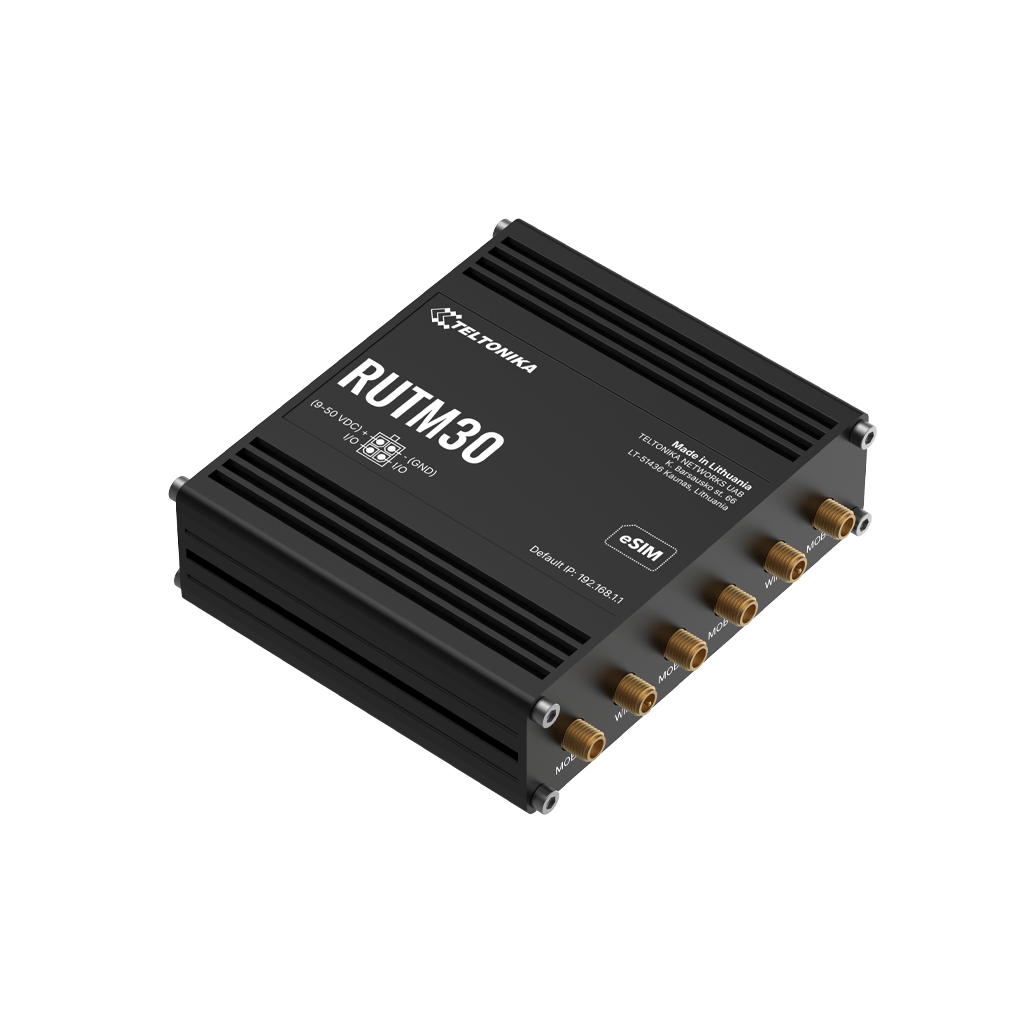

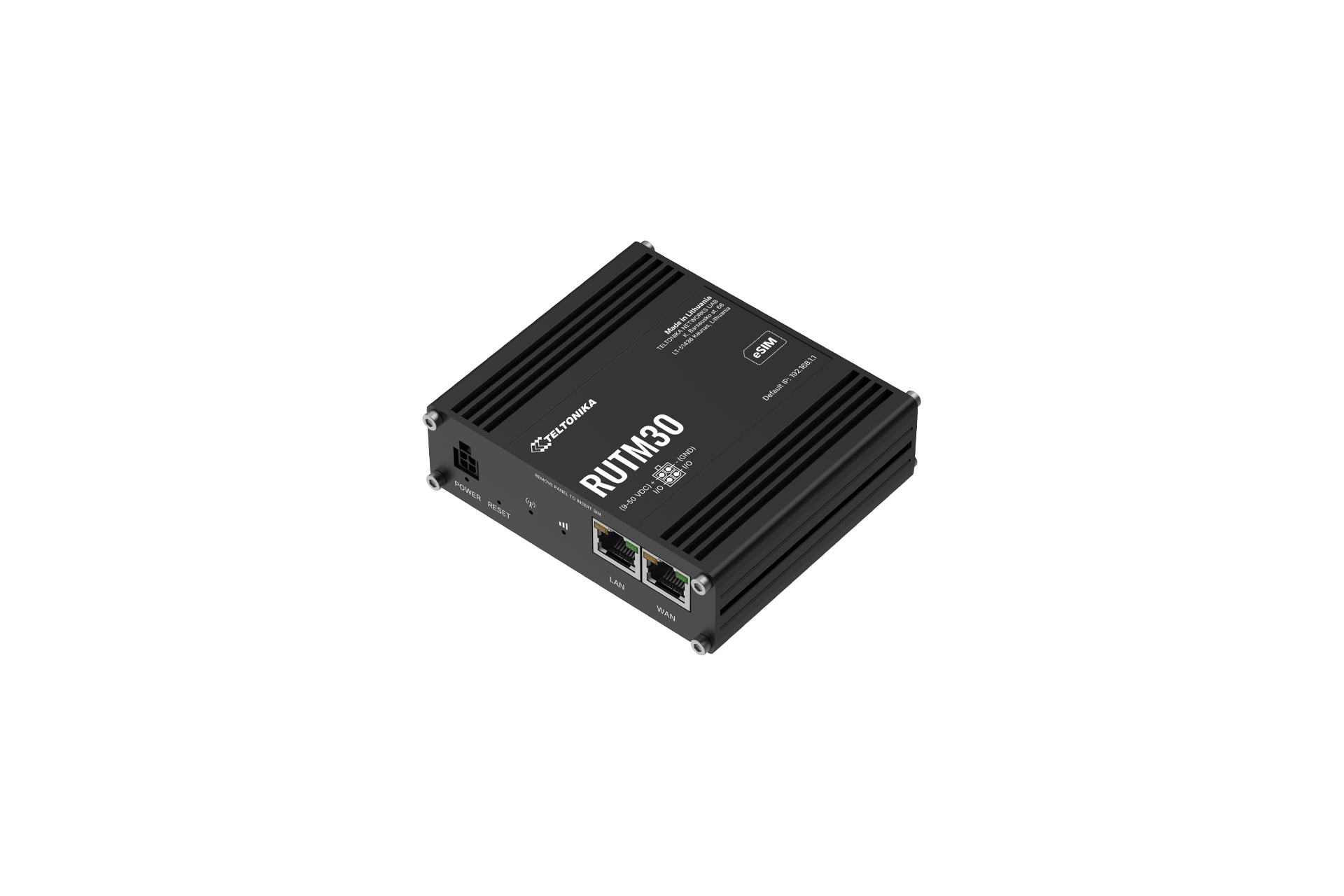

Teltonika RUTM30 Industrial Rugged Cellular LTE 5G Router
Compact Industrial 5G Router with Dual SIM, eSIM and Gigabit Ethernet
The Teltonika RUTM30 is a compact industrial-grade 5G router designed for demanding IoT, M2M and industrial networking applications. Combining ultra-fast 5G connectivity, dual SIM redundancy, integrated eSIM support, dual Gigabit Ethernet ports and powerful RutOS software, the RUTM30 delivers secure and reliable networking for industrial automation, utilities, retail, enterprise and smart city deployments.
Its compact form factor, industrial durability and extensive remote management capabilities make it ideal for installations where reliable high-speed connectivity is critical.
Key Features
High-Speed 5G Connectivity
The RUTM30 supports global 5G Sub-6 GHz connectivity with:
- 5G NR Standalone (SA)
- 5G NR Non-Standalone (NSA)
- LTE Cat 19 fallback
- 3G fallback
Performance:
- 5G SA: Up to 2.4 Gbps download / 900 Mbps upload
- 5G NSA: Up to 3.4 Gbps download / 550 Mbps upload
- LTE Cat 19: Up to 1.6 Gbps download
- LTE Cat 18: Up to 200 Mbps upload
- 3G: Up to 42 Mbps download / 5.76 Mbps upload
Built on 3GPP Release 16 technology for future-ready deployments.
Dual SIM and eSIM Redundancy
The RUTM30 is designed for maximum network uptime with:
- 2 × Mini SIM (2FF) slots
- Integrated eSIM support
- Up to 7 eSIM profiles
- Automatic SIM switching
Failover triggers include:
- Weak signal
- Data limit reached
- SMS limit reached
- Roaming detection
- No network availability
- Network denied
- Data connection failure
This ensures continuous operation in critical industrial applications.
Compact Industrial Design
The RUTM30 delivers enterprise-grade networking in a highly compact enclosure.
Dimensions:
Weight:
Construction:
- Anodized aluminium housing
- Industrial-grade design
- DIN rail mounting (optional kit)
- Wall mounting (optional kit)
Suitable for installations where cabinet space is limited.
Why Choose the RUTM30?
The RUTM30 is ideal for organisations requiring:
- High-speed 5G connectivity
- Dual SIM failover
- Integrated eSIM support
- Compact industrial design
- Secure remote management
- Enterprise VPN connectivity
- Industrial protocol support
- Cloud integration
- Low power consumption
- Harsh environment operation
It provides the perfect balance between compact size, advanced networking capabilities and industrial reliability.
Industrial Applications
Industrial Automation
Connect PLCs, HMIs, SCADA systems and remote equipment using reliable 5G connectivity.
Energy and Utilities
Monitor:
- Solar farms
- Water infrastructure
- Remote pumping stations
- Utility metering systems
Enterprise Networking
Provide secure WAN connectivity for:
- Remote offices
- Branch locations
- Temporary installations
- Mobile networking
Retail
Support:
- POS systems
- Digital signage
- Smart kiosks
- Store connectivity
Smart Cities
Enable:
- Traffic management
- Environmental monitoring
- Public infrastructure
- Surveillance systems
Designed specifically for professional IoT and industrial deployments.

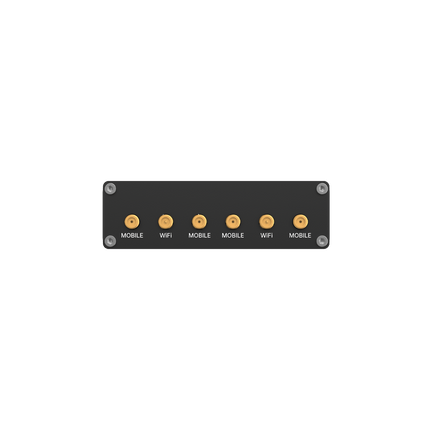

Wireless Connectivity
The RUTM30 includes dual-band Wi-Fi 5 technology.
Features:
- IEEE 802.11b/g/n/ac Wave 2
- Dual-band operation
- MU-MIMO
- Access Point mode
- Station mode
- Fast roaming (802.11r)
- Wireless mesh (802.11s)
- BSS transition management (802.11v)
- Radio resource measurement (802.11k)
Performance:
- Up to 867 Mbps Wi-Fi throughput
- Up to 150 simultaneous wireless clients
Additional capabilities include QR-code onboarding and TravelMate hotspot forwarding.

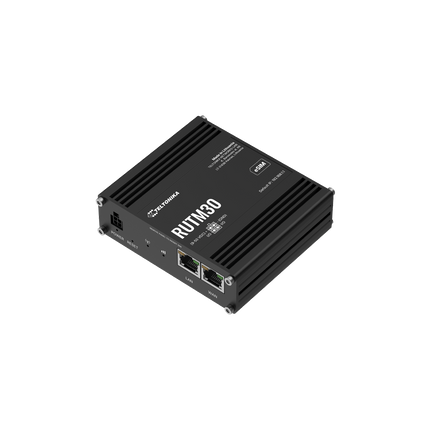

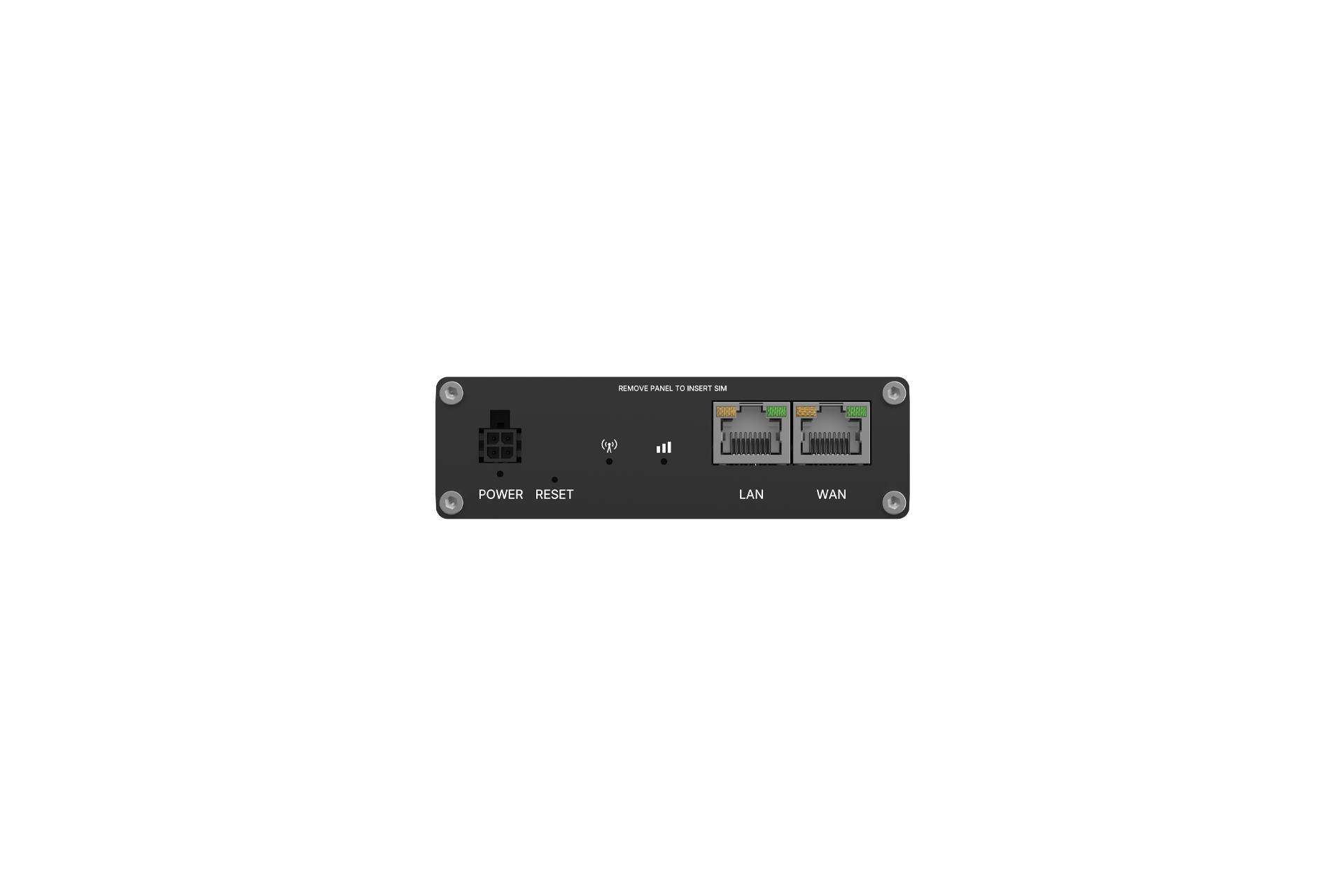

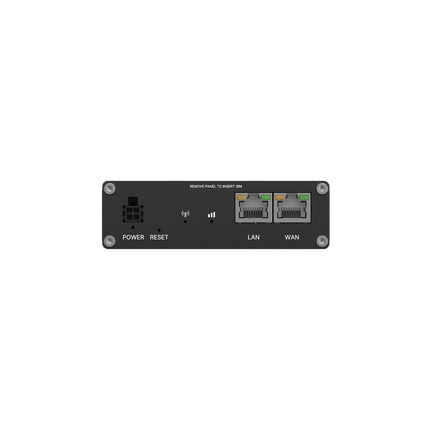

Gigabit Ethernet Connectivity
The RUTM30 provides:
- 1 × Gigabit WAN port
- 1 × Gigabit LAN port
Both ports support:
- 10/100/1000 Mbps
- IEEE 802.3 compliance
- Auto MDI/MDIX crossover
Suitable for:
- Industrial controllers
- Edge gateways
- Network switches
- IP cameras
- Industrial PCs
while maintaining a compact footprint.
Configurable Digital Inputs and Outputs
Integrated configurable I/O allows direct monitoring and control.
Digital Inputs
- Logic Low: 0–6 V
- Logic High: 8–50 V
Digital Outputs
- Open collector outputs
- Maximum 30 V
- Maximum 300 mA
Applications include:
- Alarm monitoring
- Equipment control
- Status indication
- Industrial automation
without requiring external I/O modules.
Industrial Protocol Support
OPC UA
Supports:
- OPC UA Client
- OPC UA Server
- TCP communication
Suitable for Industry 4.0 environments.
Modbus
Supports:
- Modbus TCP Client
- Modbus TCP Server
- Custom Register Blocks
Supported data formats:
Supported byte orders:
Ideal for industrial monitoring and automation systems.
MQTT Gateway
Built-in Modbus MQTT Gateway supports:
- Modbus-to-MQTT conversion
- Remote telemetry
- Industrial cloud integration
- Data acquisition
without external gateways.
DNP3
Supports:
- Station mode
- Outstation mode
- TCP communication
Ideal for utility and SCADA deployments.
DLMS/COSEM
Supports:
- DLMS Client
- Utility meter integration
- TCP communications
Suitable for smart metering applications.
Advanced Networking Features
Routing Protocols
Supports:
- Static Routing
- BGP
- OSPF v2
- RIP v1/v2
- EIGRP
- NHRP
- Policy-Based Routing
Network Services
- DHCP Server
- DHCP Relay
- QoS / Smart Queue Management
- DDNS
- DNS over HTTPS
- VRF Support
- Hotspot & Hotspot 2.0
- Load Balancing
- Automatic Failover
- Network Backup
- SSHFS
- Traffic Monitoring
Providing enterprise-grade networking flexibility.
Security and VPN
The RUTM30 includes extensive cybersecurity features.
Security
- Stateful Firewall
- NAT / NAT-T / NAT64
- VLAN Segmentation
- TPM 2.0 Security Module
- DDoS Protection
- Port Scan Prevention
- Website Filtering
- Access Control
- Certificate Manager
- 802.1X Authentication
VPN Support
Includes:
- OpenVPN
- IPsec
- WireGuard
- GRE
- PPTP
- L2TP
- SSTP
- DMVPN
- ZeroTier
- Tinc
- Tailscale
- Stunnel
Enabling secure site-to-site and remote access connectivity.
Cloud and Remote Management
The RUTM30 provides multiple management options:
- Web UI
- SSH
- SMS Control
- Email Alerts
- MQTT
- SNMP v1/v2/v3
- JSON-RPC API
- TR-069
- Modbus TCP Control
- Teltonika RMS
Cloud integrations include:
- RMS
- Microsoft Azure IoT Hub
- AWS IoT Core
- ThingWorx
- Cumulocity IoT
Ideal for large-scale remote deployments.
Power and Efficiency
Power Input:
- 9–50 VDC
- Reverse polarity protection
- Surge protection
Passive PoE Input:
Power Consumption:
- Idle: <3.9 W
- Maximum: <9 W
Suitable for solar-powered and remote applications.
Hardware Specifications
System
- CPU: MediaTek Dual-Core 880 MHz
- RAM: 256 MB DDR3
- Storage:
- 16 MB NOR Flash
- 256 MB NAND Flash
- Operating System: RutOS (OpenWrt-based)
Cellular
- 5G SA/NSA
- LTE Cat 19
- Dual SIM
- eSIM
Ethernet
- 1 × Gigabit WAN
- 1 × Gigabit LAN
Wireless
- Dual-Band Wi-Fi 5
- MU-MIMO
- Up to 150 clients
I/O
- 2 × Configurable Digital Inputs/Outputs
Power
- 9–50 VDC
- Passive PoE Support
Environmental
- Operating Temperature: -40°C to +75°C
- Humidity: 10–90% RH
- IP30 Rated
Construction
- Anodized Aluminium Housing
