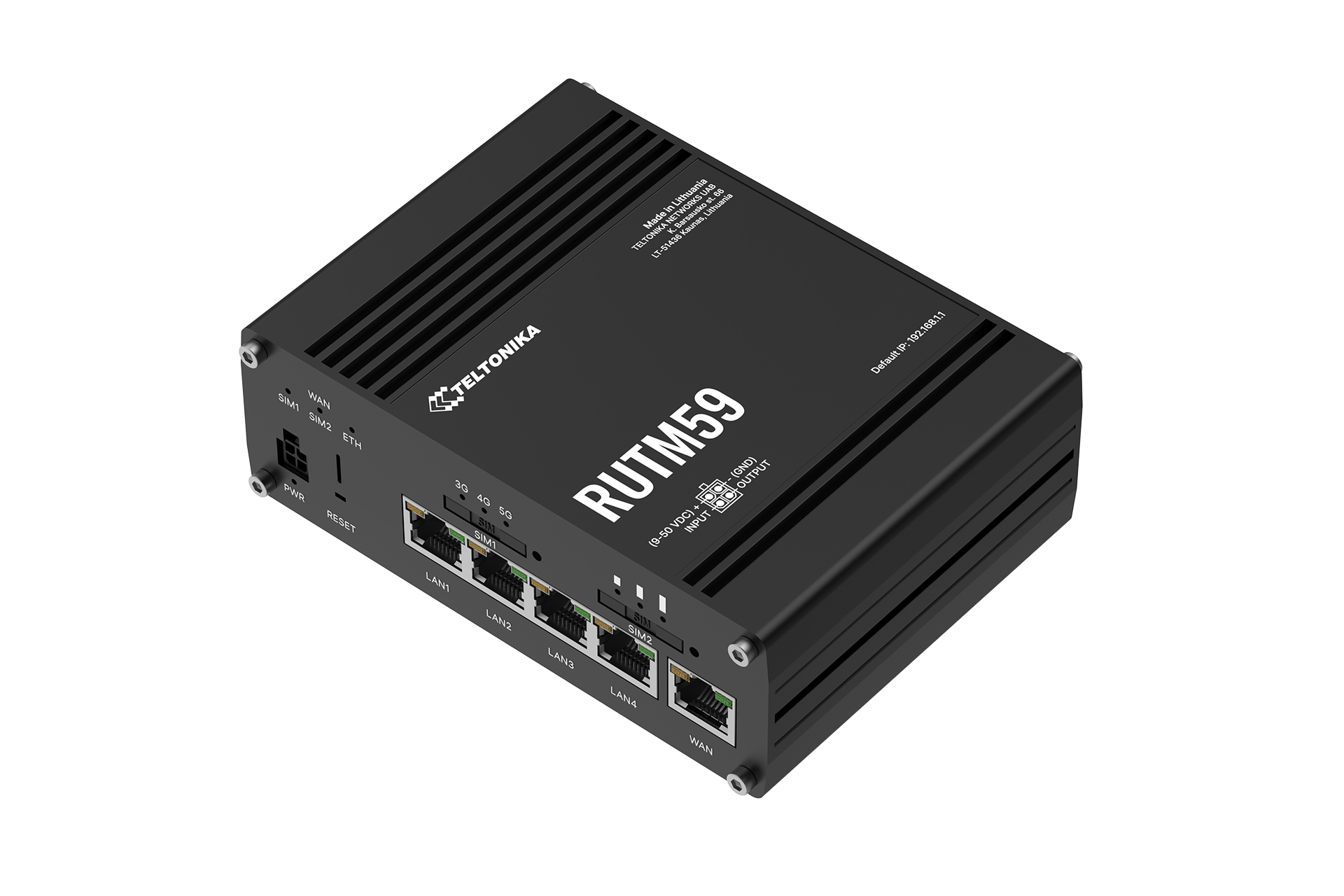

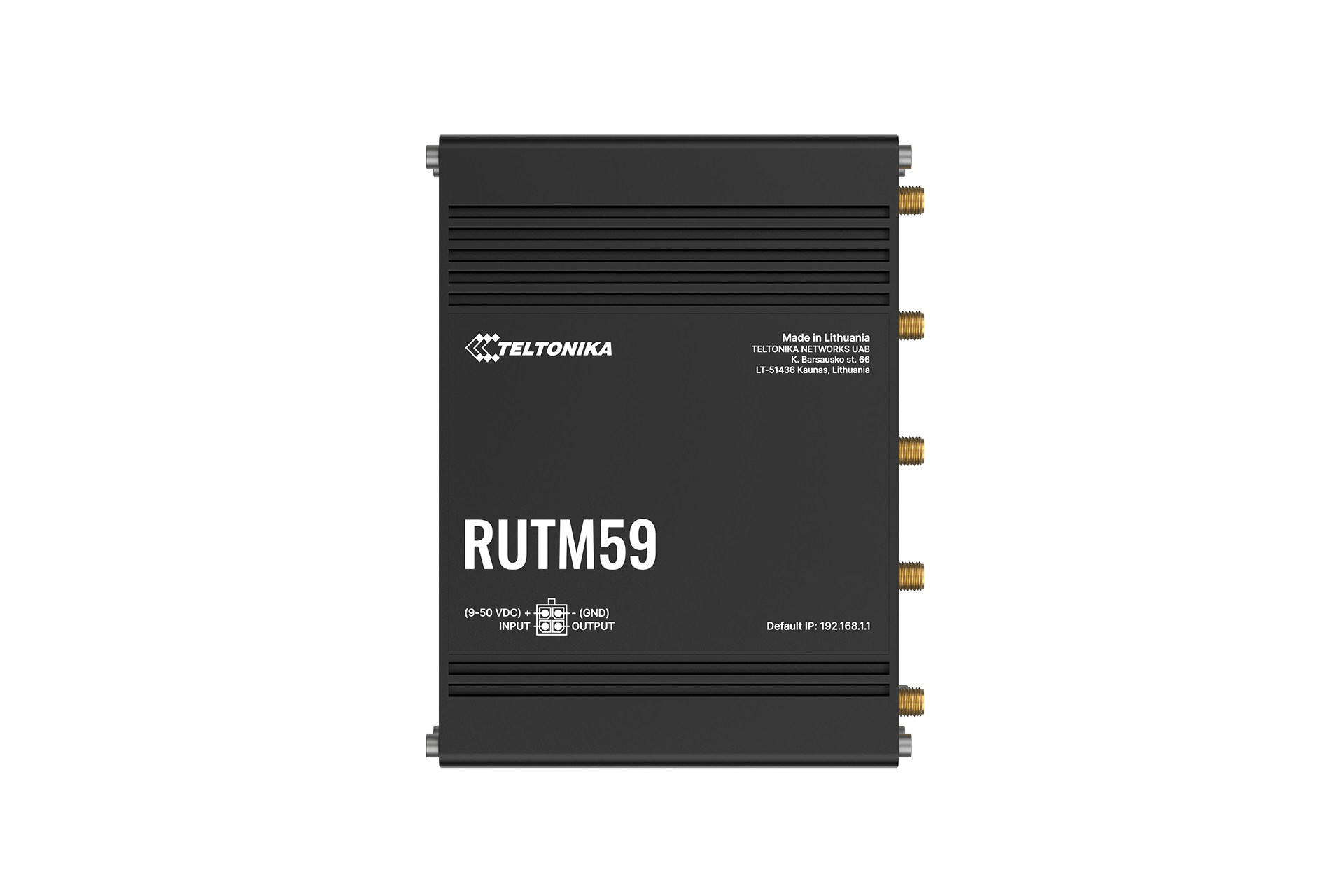

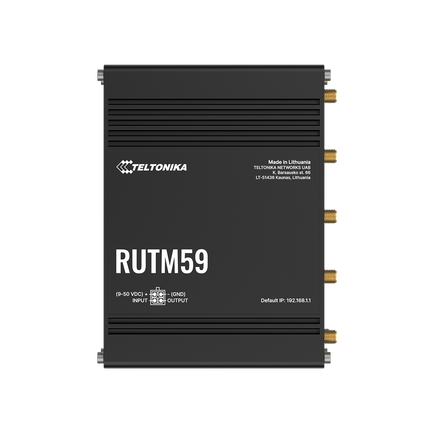

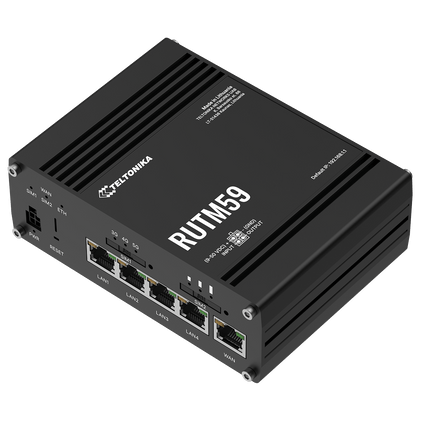

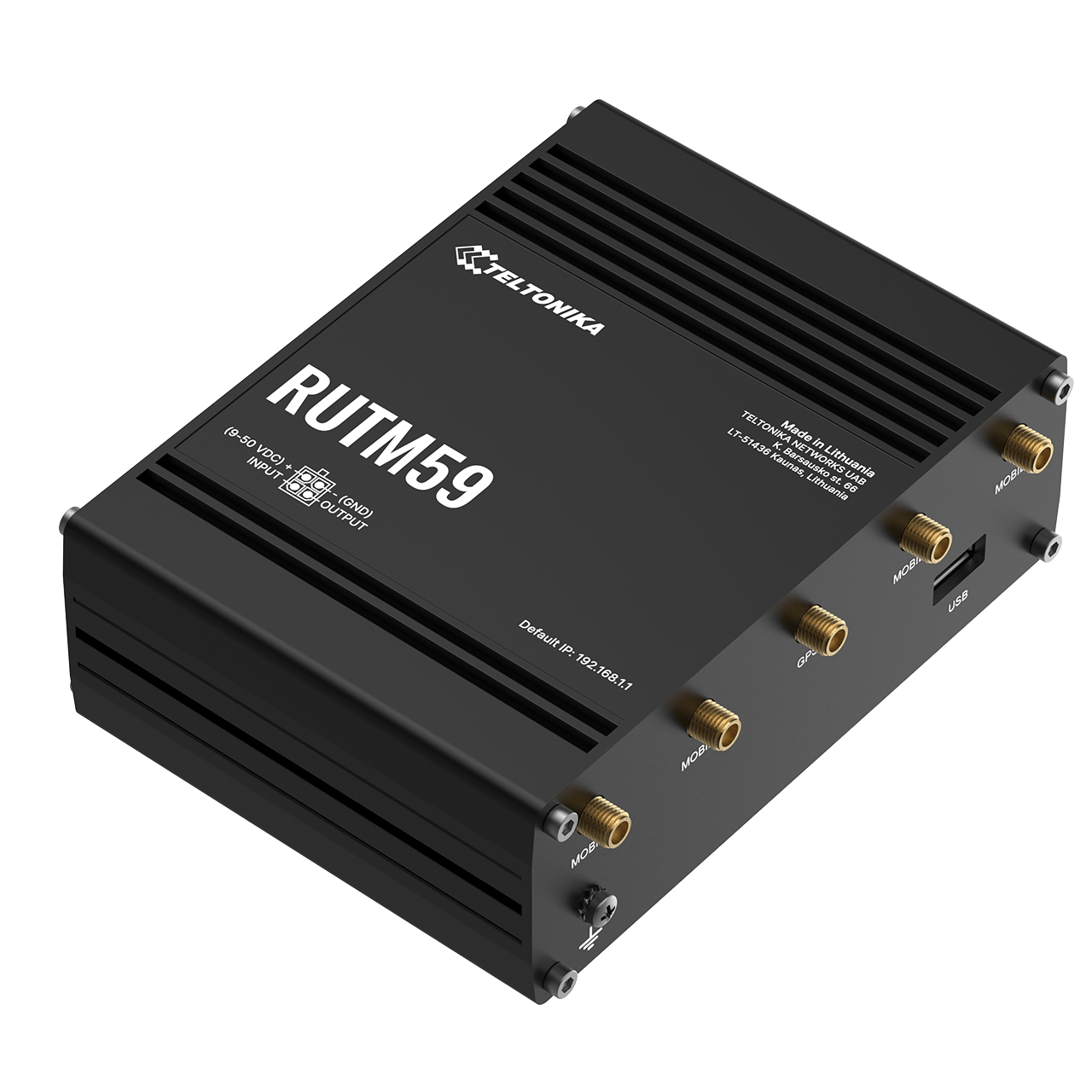

Teltonika RUTM59 Industrial Rugged Cellular LTE 5G Router
High-Performance Industrial 5G Router with Dual SIM, Gigabit Ethernet and Enterprise Networking
The Teltonika RUTM59 is a high-performance industrial 5G cellular router designed for demanding industrial, enterprise, utility, retail and smart city applications. Featuring ultra-fast 5G Sub-6 GHz connectivity with download speeds up to 3.4 Gbps, dual SIM failover, Gigabit Ethernet, advanced VPN support and industrial-grade reliability, the RUTM59 delivers secure and uninterrupted connectivity in mission-critical environments.
Built on Teltonika's powerful RutOS (OpenWrt-based) operating system, the RUTM59 provides extensive routing, cybersecurity, remote management and industrial protocol support, making it an ideal solution for IoT, SCADA, remote monitoring, automation and edge networking applications.
Key Features
Ultra-Fast 5G Connectivity
The RUTM59 supports:
- 5G Sub-6 GHz SA (Standalone)
- 5G NSA (Non-Standalone)
- 4G LTE Cat 19 fallback
- 3GPP Release 16
Performance:
- Up to 3.4 Gbps Download
- Up to 900 Mbps Upload
- LTE Download up to 1.6 Gbps
- LTE Upload up to 200 Mbps
This enables high-speed connectivity for bandwidth-intensive industrial and enterprise applications.
Dual SIM Redundancy
The RUTM59 includes:
- 2 × Mini SIM Slots
- Automatic SIM Failover
- Backup WAN Support
- Multiple Switching Scenarios
Automatic SIM switching can occur when:
- Signal quality drops
- Data limits are exceeded
- SMS limits are reached
- Roaming conditions occur
- Network connection fails
- SIM idle protection is triggered
This ensures maximum network uptime and business continuity.
Future-Proof Connectivity
The RUTM59 supports both:
- 5G Standalone (SA)
- 5G Non-Standalone (NSA)
and remains fully backward compatible with:
- LTE Cat 19
- Legacy mobile network deployments
This provides long-term investment protection while supporting current and future carrier networks.
Why Choose the RUTM59?
The RUTM59 delivers enterprise-grade networking and industrial reliability in a compact rugged enclosure.
Key benefits include:
- 5G SA & NSA Support
- Dual SIM Failover
- Five Gigabit Ethernet Ports
- Advanced VPN Support
- Industrial Protocol Integration
- Digital Input & Output
- GNSS Positioning
- Azure IoT, AWS IoT & RMS Integration
- Load Balancing & WAN Failover
- Industrial Temperature Rating
- RutOS OpenWrt Platform

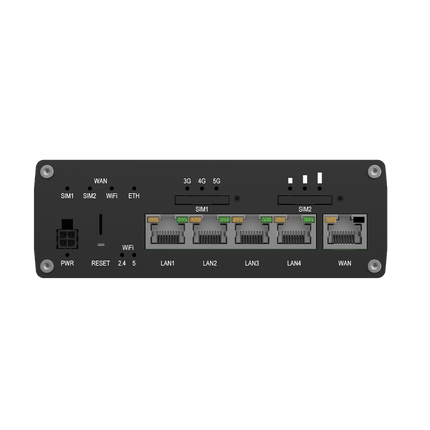

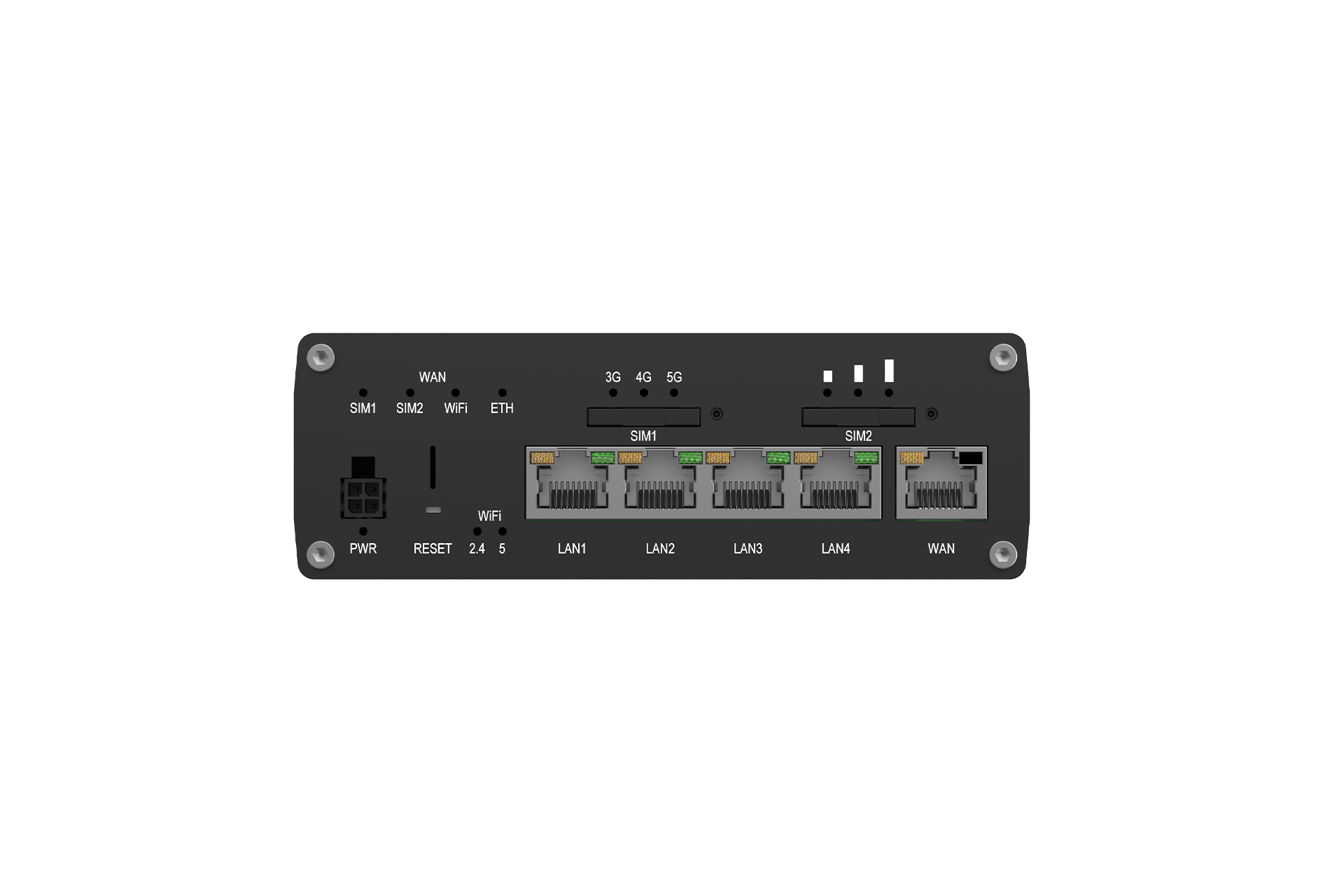

Gigabit Ethernet Connectivity
The router includes:
Ethernet Interfaces
- 1 × Gigabit WAN Port
- 4 × Gigabit LAN Ports
- Auto MDI/MDIX Support
- IEEE 802.3 Compliance
The WAN port can also be configured as a LAN port when required.
Advanced Networking Features
The RUTM59 offers a comprehensive enterprise networking stack.
Routing Protocols
Supports:
- Static Routing
- BGP
- OSPF v2
- RIP v1/v2
- EIGRP
- NHRP
- Policy-Based Routing
Network Services
- DHCP Server
- DHCP Relay
- DDNS
- DNS over HTTPS
- QoS
- Smart Queue Management (SQM)
- Captive Portal
- Load Balancing
- Network Backup
- VRF Support
- SSHFS
- Traffic Monitoring
Ideal for complex industrial and enterprise networks.
Load Balancing and Failover
The RUTM59 supports multiple redundancy mechanisms:
WAN Failover
Automatic switching between:
- Primary Cellular Connection
- Secondary SIM
- Wired WAN
- VRRP Backup
Load Balancing
Traffic can be distributed across multiple WAN paths to maximise bandwidth utilisation and resilience.
Enterprise Security
The router incorporates advanced security features to protect critical infrastructure.
Security Functions
- Stateful Firewall
- NAT / NAT64
- VLAN Segmentation
- DDoS Protection
- Port Scan Prevention
- Mobile Data Quotas
- Website Filtering
- 802.1X Authentication
- TACACS+
- Internal & External RADIUS
- SSL Certificate Management
Additional protections include:
- Login Attempt Blocking
- Time-Based Login Restrictions
- Random Password Generation
VPN Support
The RUTM59 supports a broad range of VPN technologies.
Supported VPN Protocols
- OpenVPN
- IPsec
- WireGuard
- GRE
- PPTP
- L2TP
- SSTP
- DMVPN
- ZeroTier
- Tinc
- Tailscale
- Stunnel
This allows secure remote access and site-to-site connectivity for industrial deployments.
Industrial Protocol Support
The RUTM59 is more than a router—it is also an industrial edge networking platform.
OPC UA
- OPC UA Client
- OPC UA Server
Modbus
- Modbus TCP Client
- Modbus TCP Server
- USB Modbus Support
- Modbus MQTT Gateway
Supported data formats include:
DNP3
- Station Mode
- Outstation Mode
DLMS/COSEM
- Utility Meter Integration
- Client Mode
Suitable for utilities, SCADA and industrial automation systems.
Data Collection and IoT Integration
The built-in Data to Server functionality allows the router to:
- Collect data from multiple protocols
- Aggregate industrial data
- Forward data to cloud platforms
- Execute custom LUA scripts
Supported protocols:
- HTTP
- HTTPS
- MQTT
- Azure MQTT
This simplifies integration with industrial IoT systems.
Cloud Platform Integration
Supported cloud platforms include:
- Teltonika RMS
- Microsoft Azure IoT Hub
- AWS IoT Core
- ThingWorx
- Cumulocity IoT
Additional management methods:
- MQTT
- SNMP
- TR-069
- JSON-RPC API
- SSH
- SMS
- Email
- Web UI
Ideal for large-scale remote deployments.
Remote Management System (RMS)
The RUTM59 is fully compatible with Teltonika RMS.
RMS provides:
- Remote Access
- Device Monitoring
- Firmware Updates
- Configuration Management
- Alerts and Notifications
- FOTA Management
This allows centralised management of distributed installations.
GNSS Positioning
Integrated GNSS functionality supports:
- GPS
- GLONASS
- Galileo
- BeiDou
- QZSS
Additional capabilities:
- NMEA 0183
- NTRIP
- Geofencing
- RMS Integration
- SMS Coordinate Reporting
Suitable for transport, fleet and mobile applications.
Digital Input and Output
Built-in industrial I/O includes:
Digital Input
- Logic Low: 0–6 V
- Logic High: 8–50 V
Digital Output
- Open Collector Output
- Maximum 50 V
- Maximum 300 mA
Event Notifications
Can trigger:
- Email Alerts
- SMS Notifications
- RMS Events
I/O events can also be used to automate workflows and remote control actions.
USB Connectivity
The integrated USB 2.0 port supports:
- USB-to-Serial Adapters
- Flash Drives
- External HDDs
- Additional Cellular Modems
- Printers
Supported file systems:
- FAT
- FAT32
- exFAT
- ext2/ext3/ext4
- NTFS (Read Only)
This provides additional flexibility for industrial deployments.
Power and Environmental Specifications
Power Input
- 9–50 VDC
- Reverse Polarity Protection
- Surge Protection
Passive PoE
- Power via LAN1
- 9–50 VDC
- Mode B Passive PoE
Power Consumption
- Idle: < 5 W
- Maximum: < 18 W
Environmental
- Operating Temperature: -40°C to +75°C
- Humidity: 10–90% RH
- IP30 Rated
Designed for harsh industrial environments.
Hardware Specifications
System
- CPU: MediaTek Dual-Core 880 MHz
- RAM: 256 MB DDR3
- Storage:
- 16 MB NOR Flash
- 256 MB NAND Flash
- Operating System: RutOS (OpenWrt-Based)
Cellular
- 5G Sub-6 GHz SA/NSA
- LTE Cat 19 Fallback
- Dual SIM
Ethernet
- 1 × Gigabit WAN
- 4 × Gigabit LAN
GNSS
- GPS
- GLONASS
- Galileo
- BeiDou
- QZSS
I/O
- 1 × Digital Input
- 1 × Digital Output
Construction
Dimensions:
Weight:
