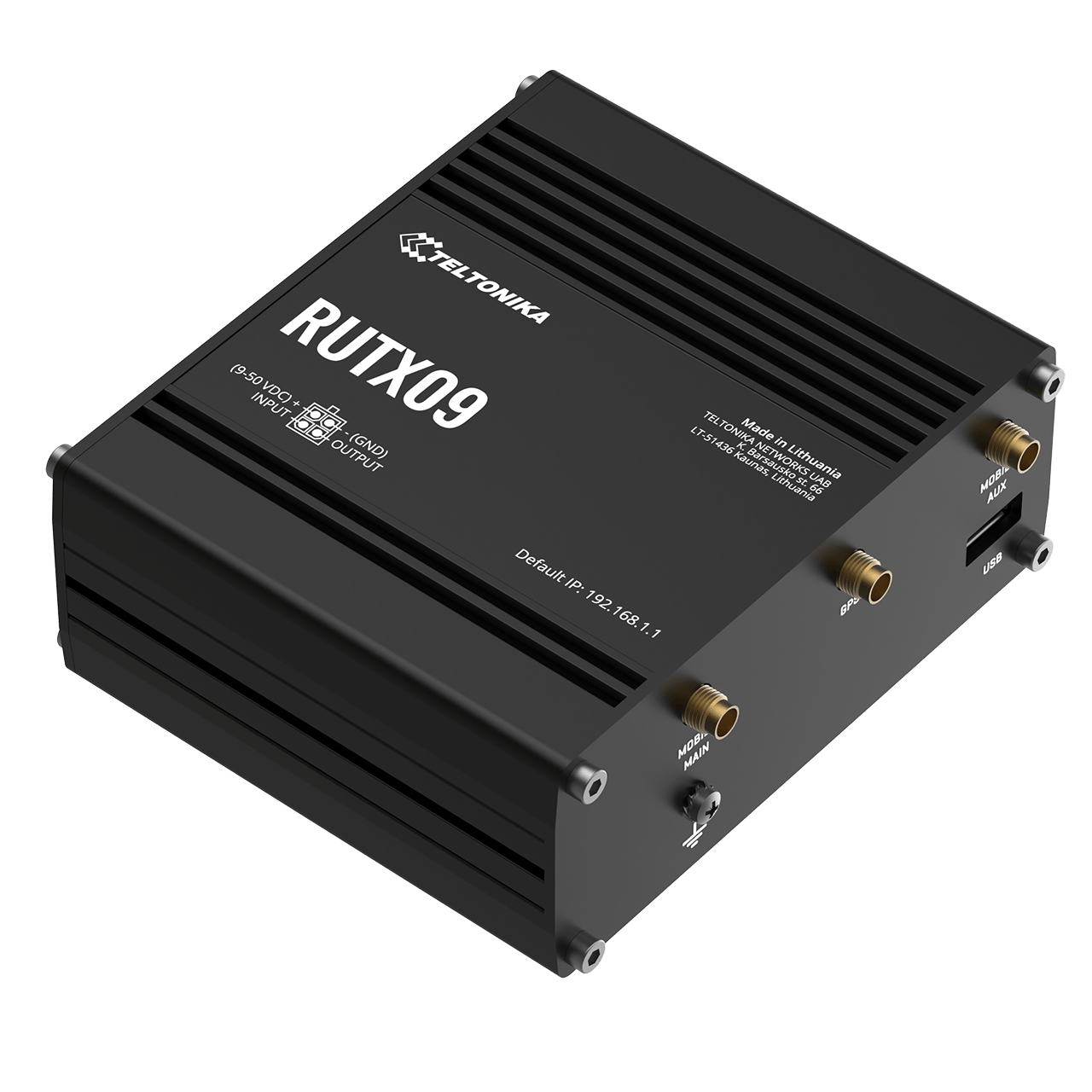

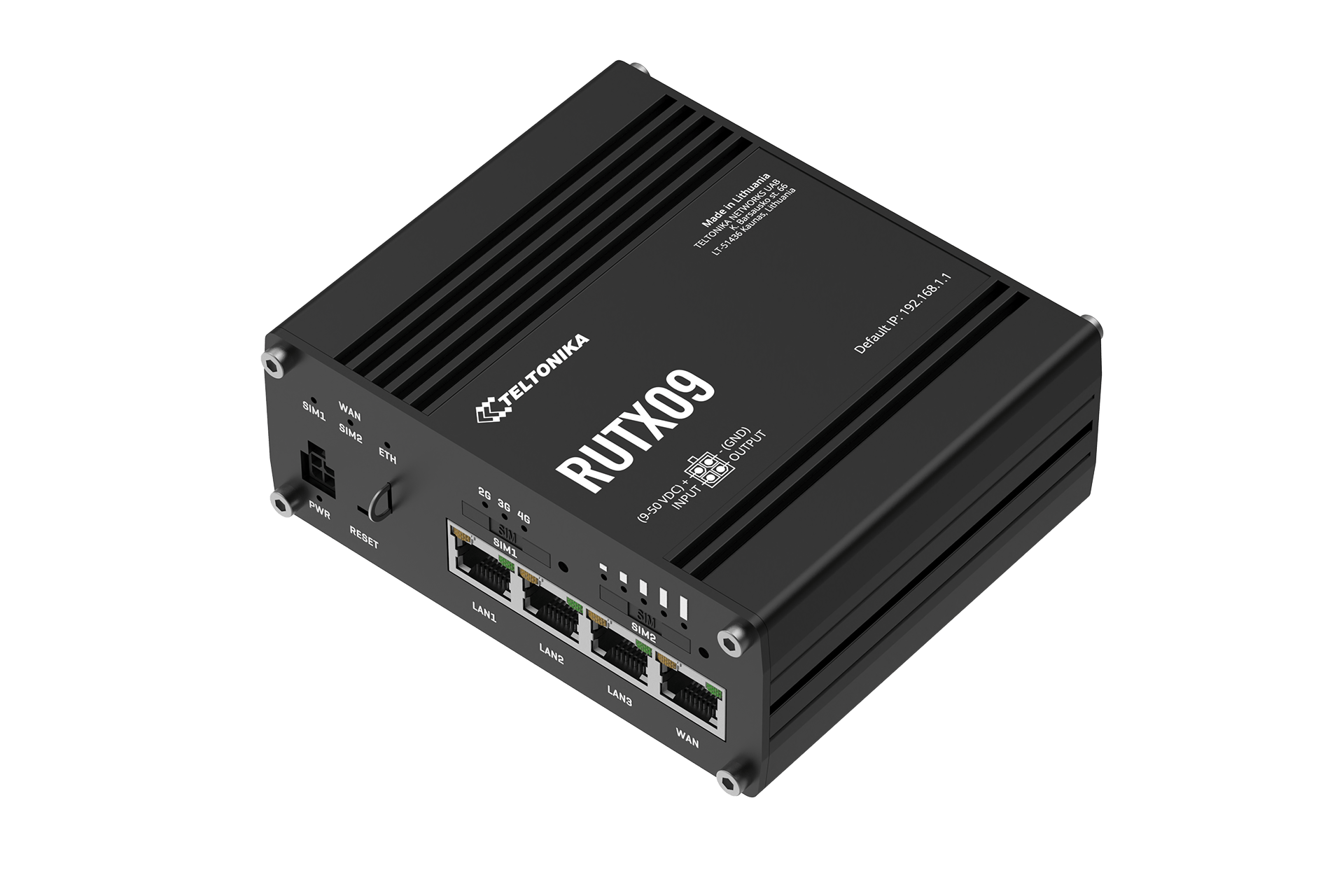

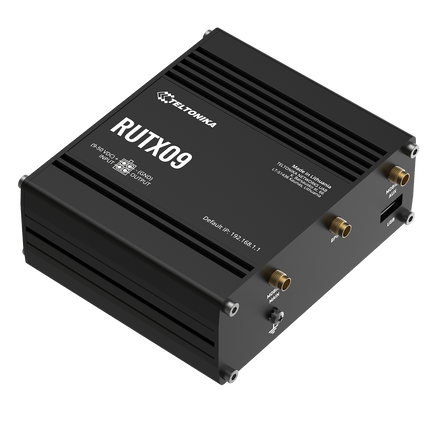

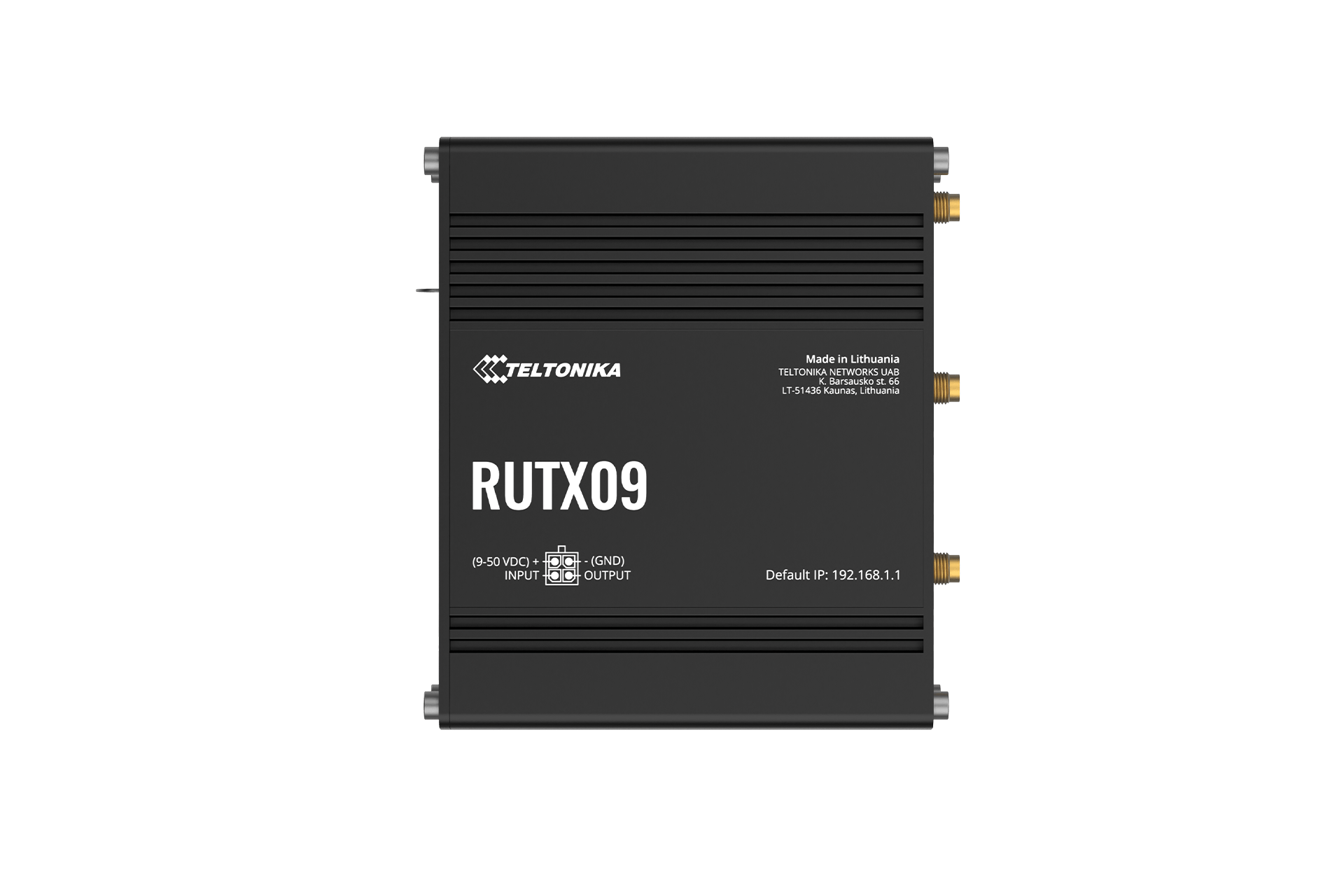

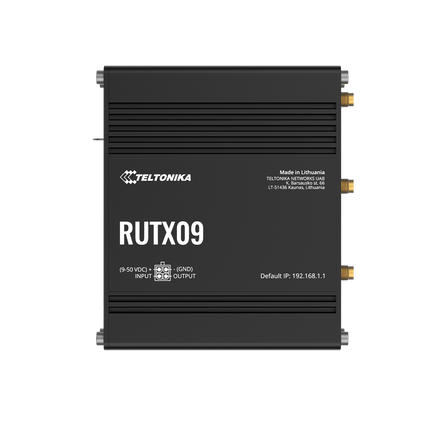

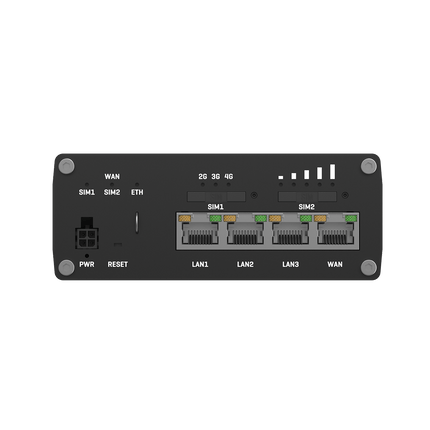

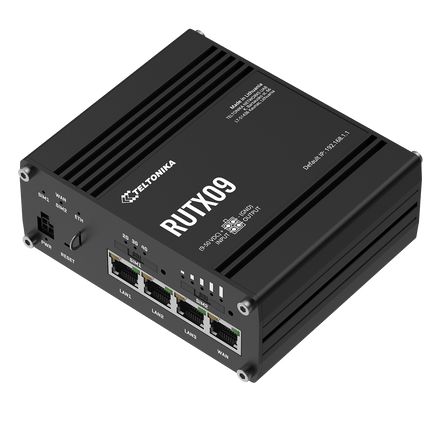

Teltonika RUTX09 Industrial Rugged Cellular LTE 4G Router
High-Performance Industrial LTE Router with Dual SIM, Gigabit Ethernet and Advanced VPN Support
The Teltonika RUTX09 is a powerful industrial-grade LTE Cat 6 cellular router designed for mission-critical applications requiring reliable connectivity, advanced networking capabilities, and secure remote access. Featuring Dual SIM failover, Carrier Aggregation, Gigabit Ethernet, GNSS positioning, and Teltonika's feature-rich RutOS, the RUTX09 is ideal for industrial automation, utilities, smart cities, transportation, remote monitoring, and enterprise networking applications.
Designed for demanding environments, the RUTX09 combines robust industrial hardware with enterprise-level security, extensive VPN support, industrial protocol integration, and centralised device management through Teltonika RMS.
Key Features
LTE Cat 6 Connectivity
The RUTX09 delivers high-speed mobile connectivity with:
- 4G LTE Cat 6
- Carrier Aggregation Technology
- Download Speeds up to 300 Mbps
- Upload Speeds up to 50 Mbps
- 3G Fallback Support
This ensures fast and stable connectivity in remote and industrial deployments.
Dual SIM for Maximum Uptime
The router includes:
- 2 × External SIM Slots
- Automatic SIM Failover
- Data Usage Monitoring
- SMS Limit Switching
- Roaming Detection
- Network Availability Monitoring
- SIM Idle Protection
Automatic switching ensures continuous operation even when one network becomes unavailable.

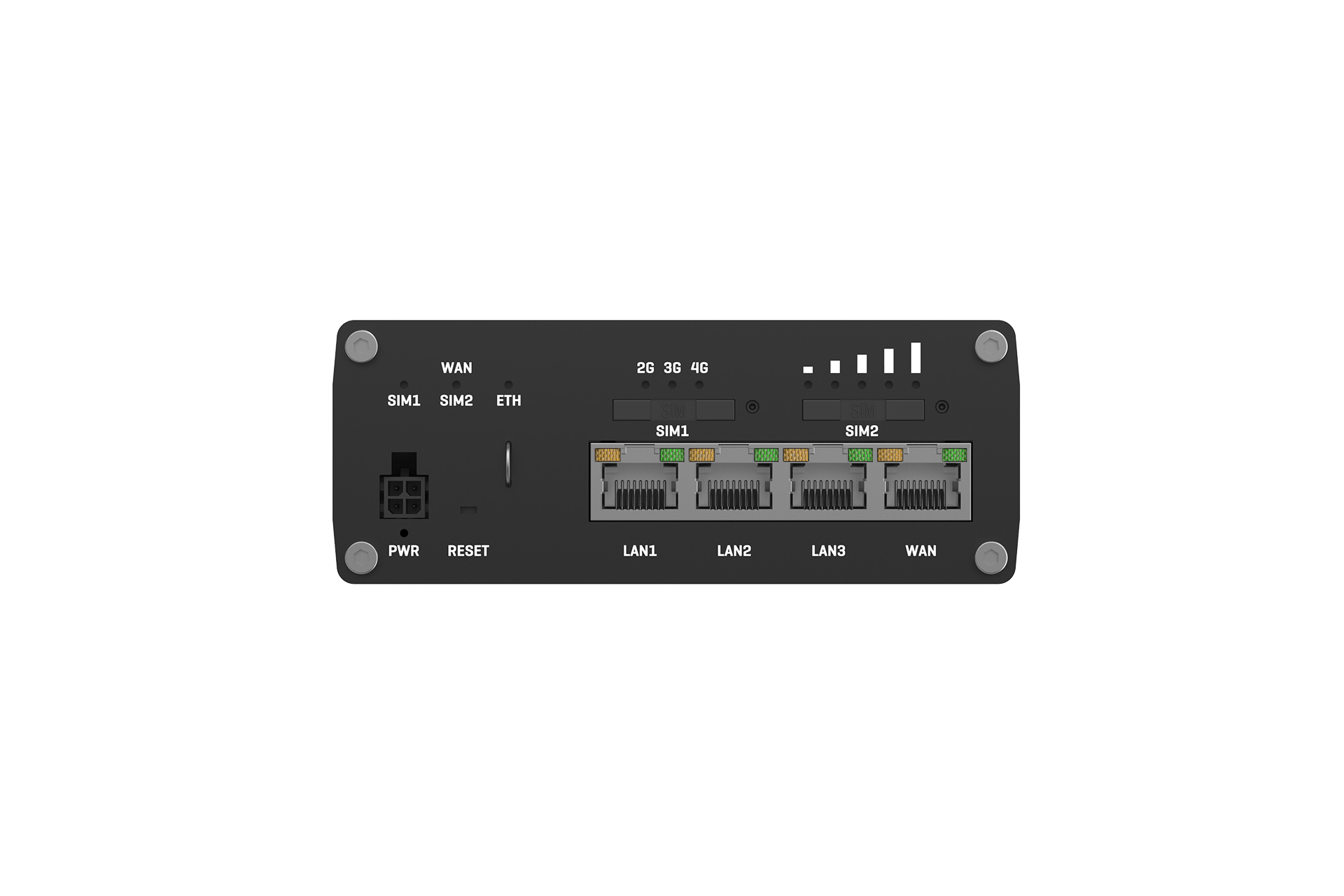

Gigabit Ethernet Performance
The RUTX09 features:
- 1 × Gigabit WAN Port
- 3 × Gigabit LAN Ports
- Auto MDI/MDIX Support
- IEEE 802.3 Compliance
- Up to 128 VLANs
Perfect for connecting industrial controllers, PLCs, SCADA systems, cameras, and network infrastructure.
Why Choose the RUTX09?
The RUTX09 provides a complete industrial networking platform with cellular redundancy, industrial protocol support, and advanced cybersecurity.
Key benefits include:
- LTE Cat 6 with Carrier Aggregation
- Dual SIM Automatic Failover
- Gigabit Ethernet Connectivity
- GNSS Positioning and Time Synchronisation
- Advanced VPN Support
- Industrial Protocol Integration
- MQTT Gateway Functionality
- Digital Input & Output
- Teltonika RMS Compatibility
- OpenWrt-Based RutOS
- Rugged Industrial Design
- -40°C to +75°C Operating Range
Enterprise Networking Features
The RUTX09 includes advanced routing and networking functionality.
Routing Protocols
Supports:
- Static Routing
- BGP
- OSPF v2
- RIP v1/v2
- EIGRP
- NHRP
- Policy-Based Routing
Suitable for complex enterprise and industrial network architectures.
Network Services
Built-in networking features include:
- DHCP Server
- DHCP Relay
- DNS over HTTPS
- DDNS
- QoS / Smart Queue Management
- Captive Portal
- VRRP
- Wake-on-LAN
- SSHFS
- Traffic Monitoring
- Network Topology Visualisation
- Load Balancing
- Automatic Failover
These capabilities provide flexibility for sophisticated industrial deployments.
Load Balancing and Failover
The RUTX09 is designed for uninterrupted connectivity.
Automatic Failover
Supports:
- Dual SIM Switching
- Mobile Backup
- Wired WAN Backup
- VRRP Redundancy
- Link Monitoring
Load Balancing
Internet traffic can be distributed across multiple WAN connections for improved resilience and performance.
Advanced Security
The RUTX09 includes enterprise-grade security features.
Security Features
- Stateful Firewall
- NAT / NAT64
- DMZ
- VLAN Segmentation
- 802.1X Authentication
- TACACS+
- Internal & External RADIUS
- X.509 Certificates
- Certificate Manager
- Time-Based Login Restrictions
- Random Password Generation
Threat Protection
- SYN Flood Protection
- SSH Attack Prevention
- HTTP/HTTPS Attack Prevention
- Port Scan Prevention
Ideal for critical infrastructure and industrial cybersecurity requirements.
Advanced VPN Support
The RUTX09 supports a comprehensive range of VPN technologies.
Supported VPN Protocols
- OpenVPN
- IPsec
- WireGuard
- GRE
- PPTP
- L2TP
- SSTP
- DMVPN
- ZeroTier
- Tinc
- Tailscale
- Stunnel
Supports both client and server deployments, enabling secure remote access and site-to-site networking.
Industrial Protocol Support
The RUTX09 is designed for industrial automation and SCADA applications.
OPC UA
Supported modes:
- OPC UA Client
- OPC UA Server
Modbus
Supported modes:
- Modbus TCP Client
- Modbus TCP Server
- USB Modbus Support
Supported data formats:
DNP3
Supported modes:
DLMS/COSEM
Supports utility metering and energy monitoring applications.
MQTT and Data Collection
The built-in Data-to-Server engine enables:
- Multi-protocol Data Collection
- HTTP/HTTPS Integration
- MQTT Integration
- Azure MQTT Support
- Custom Lua Scripting
Modbus MQTT Gateway
The RUTX09 can:
- Read Modbus Devices
- Publish Data to MQTT Brokers
- Receive Commands via MQTT
Ideal for Industrial IoT and telemetry deployments.
Cloud and IoT Platform Integration
The RUTX09 integrates with major IoT platforms including:
- Teltonika RMS
- Microsoft Azure IoT Hub
- AWS IoT Core
- ThingWorx
- Cumulocity IoT
- Cloud of Things
Additional management options include:
- MQTT
- SNMP
- TR-069
- JSON-RPC API
- SSH
- Web UI
This provides seamless integration into enterprise and Industrial IoT ecosystems.
Remote Management System (RMS)
The RUTX09 is fully compatible with Teltonika RMS.
RMS provides:
- Remote Access
- Device Monitoring
- Configuration Management
- Firmware Updates
- Alert Notifications
- Fleet Management
Ideal for managing large deployments from a single platform.

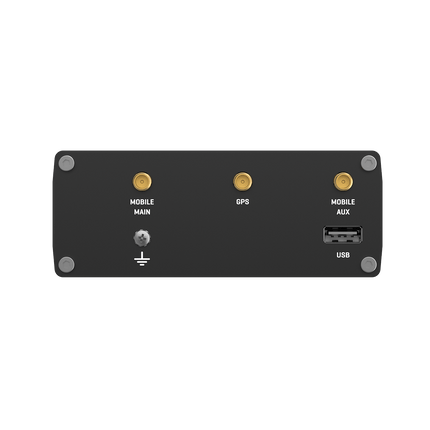

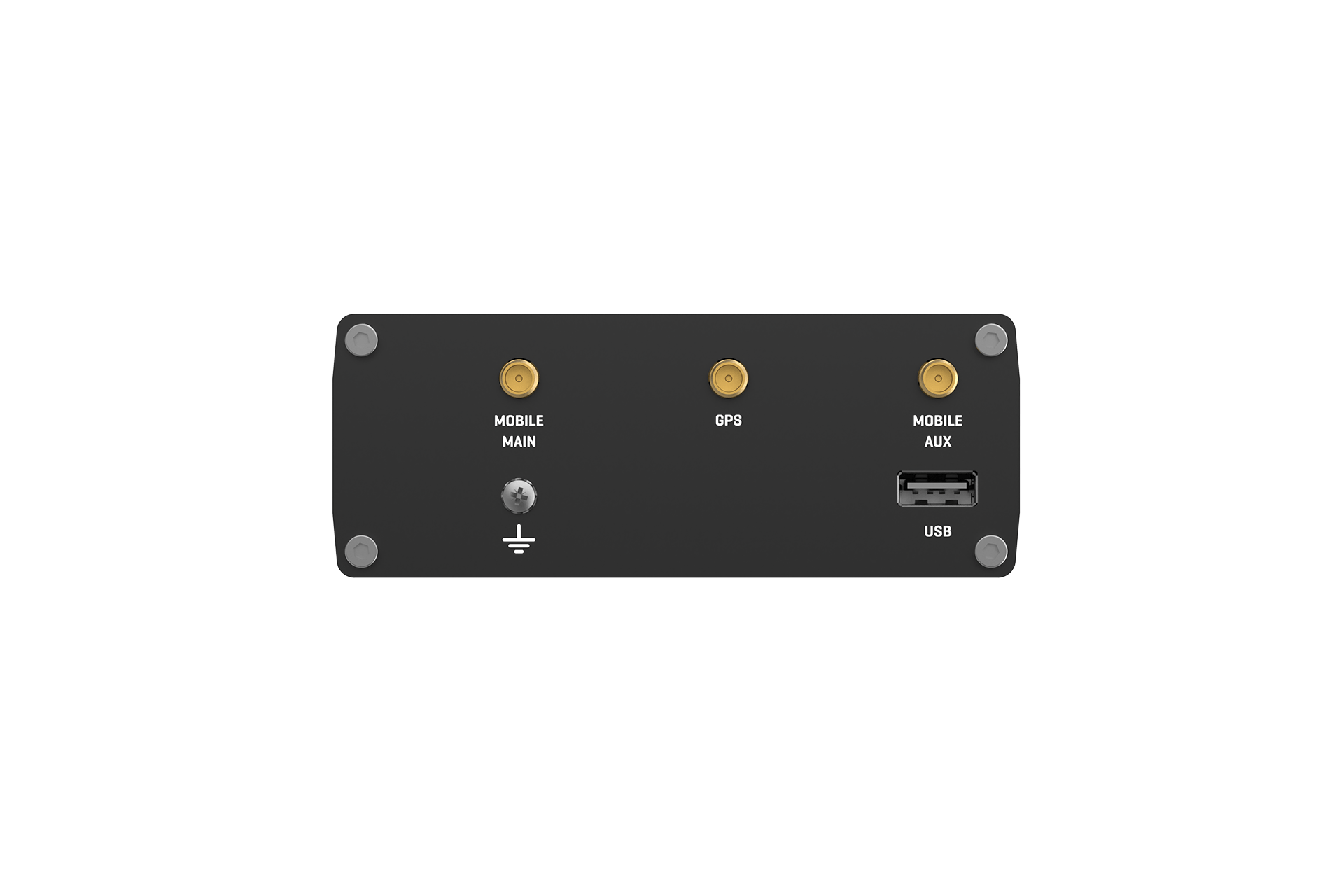

GNSS Positioning
Integrated GNSS functionality supports:
- GPS
- GLONASS
- BeiDou
- Galileo
- QZSS
Applications include:
- Asset Tracking
- Fleet Monitoring
- Geofencing
- Time Synchronisation
- AVL Systems
Coordinates can be accessed via:
- Web Interface
- SMS
- RMS
- TAVL Platform
Digital Input and Output
Built-in industrial I/O enables remote monitoring and automation.
Digital Input
- Logic Low: 0–6 V
- Logic High: 8–30 V
Digital Output
- Open Collector Output
- Maximum Output Voltage: 30 V
- Maximum Output Current: 300 mA
Event Notifications
Can trigger:
- Email Alerts
- SMS Alerts
- RMS Notifications
Ideal for alarm systems, equipment monitoring and remote control applications.
USB Connectivity
The integrated USB 2.0 port supports:
- USB-to-Serial Adapters
- External Storage
- Additional Modems
- Printers
- Flash Drives
Supported file systems:
- FAT
- FAT32
- exFAT
- ext2/ext3/ext4
- NTFS (Read Only)
Hardware Specifications
System
- CPU: Qualcomm Quad-Core ARM Cortex-A7, 717 MHz
- RAM: 256 MB DDR3
- Storage: 256 MB SPI Flash
- Operating System: RutOS (OpenWrt-Based)
Cellular
- LTE Cat 6
- Carrier Aggregation
- Dual SIM
Ethernet
- 1 × Gigabit WAN
- 3 × Gigabit LAN
GNSS
- GPS
- GLONASS
- Galileo
- BeiDou
- QZSS
USB
I/O
- 1 × Digital Input
- 1 × Digital Output
Construction
Dimensions:
Weight:
Power Specifications
Input Voltage
- 9–50 VDC
- Reverse Polarity Protection
- Surge Protection
Passive PoE
Supports:
- Passive PoE on LAN1
- 9–50 VDC Input
- Mode B
Power Consumption
Suitable for solar-powered and remote industrial installations.
Environmental Specifications
Operating Conditions
- Temperature: -40°C to +75°C
- Humidity: 10–90% RH (Non-Condensing)
- Protection Rating: IP30
Designed for demanding industrial environments.
Certifications and Compliance
The RUTX09 complies with major international standards including:
- CE
- UKCA
- FCC
- IC (ISED)
- RCM
- UL/CSA Safety
- CB Certification
- E-Mark
- RoHS
- REACH
- MTCTE
Suitable for global industrial and commercial deployments.
