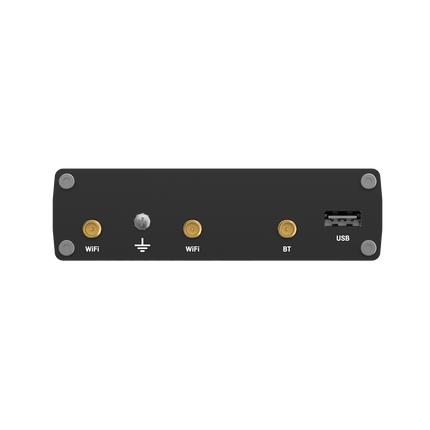

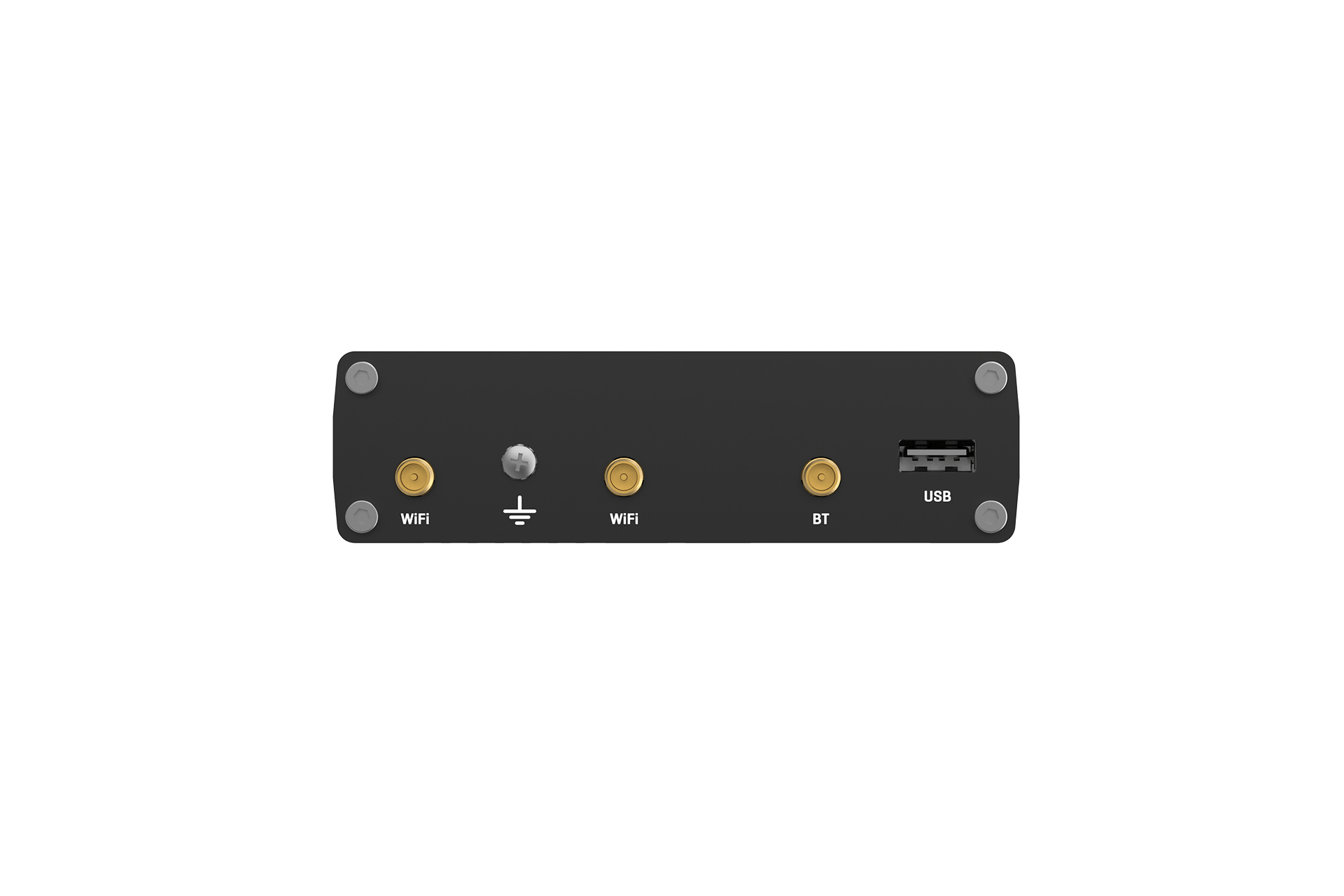

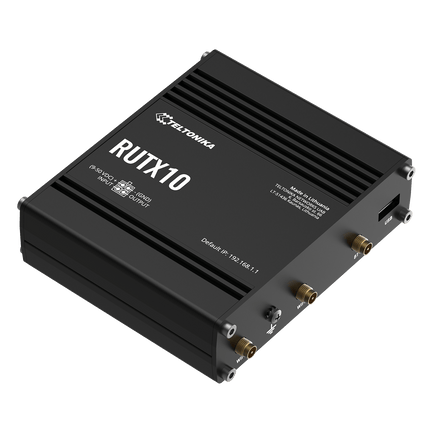

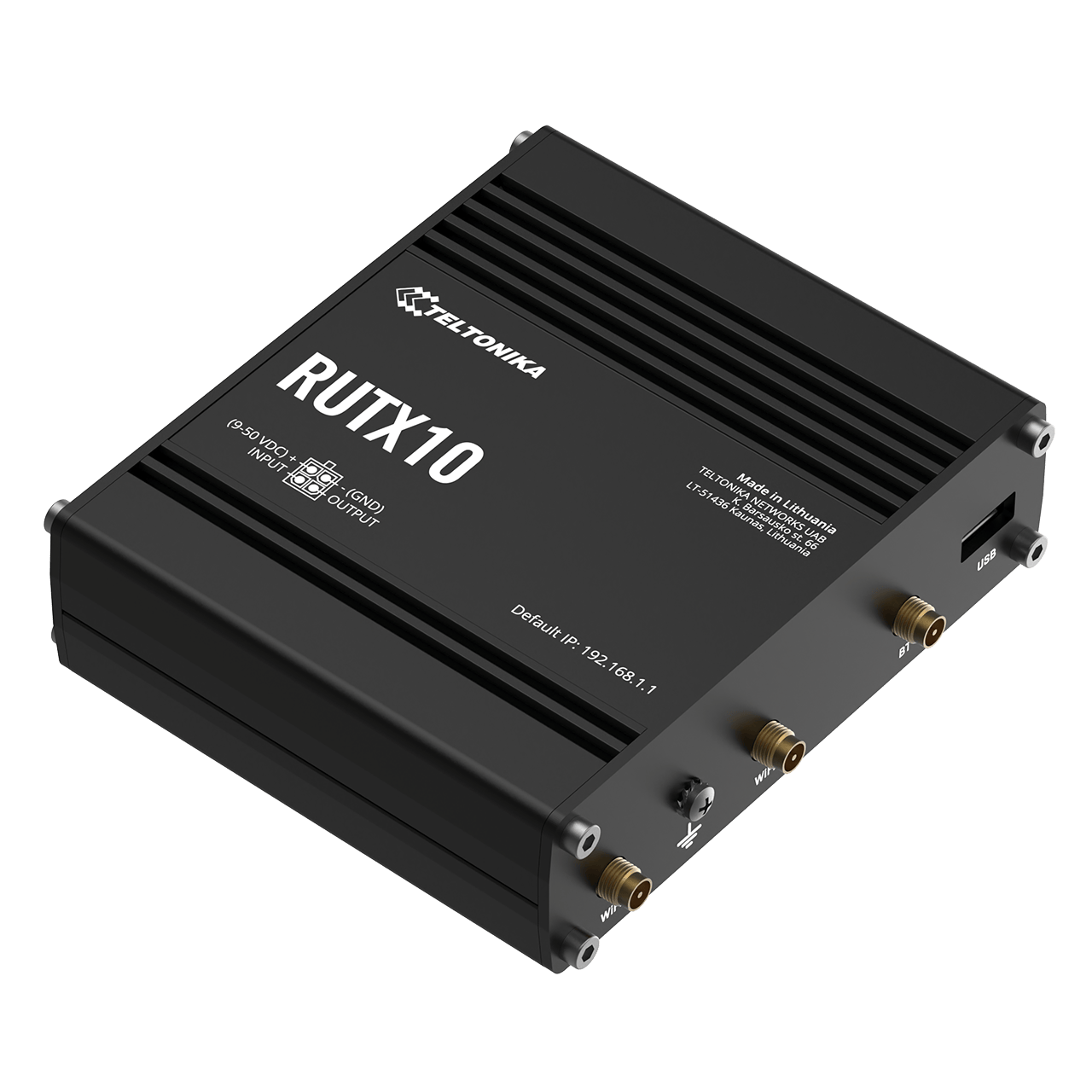

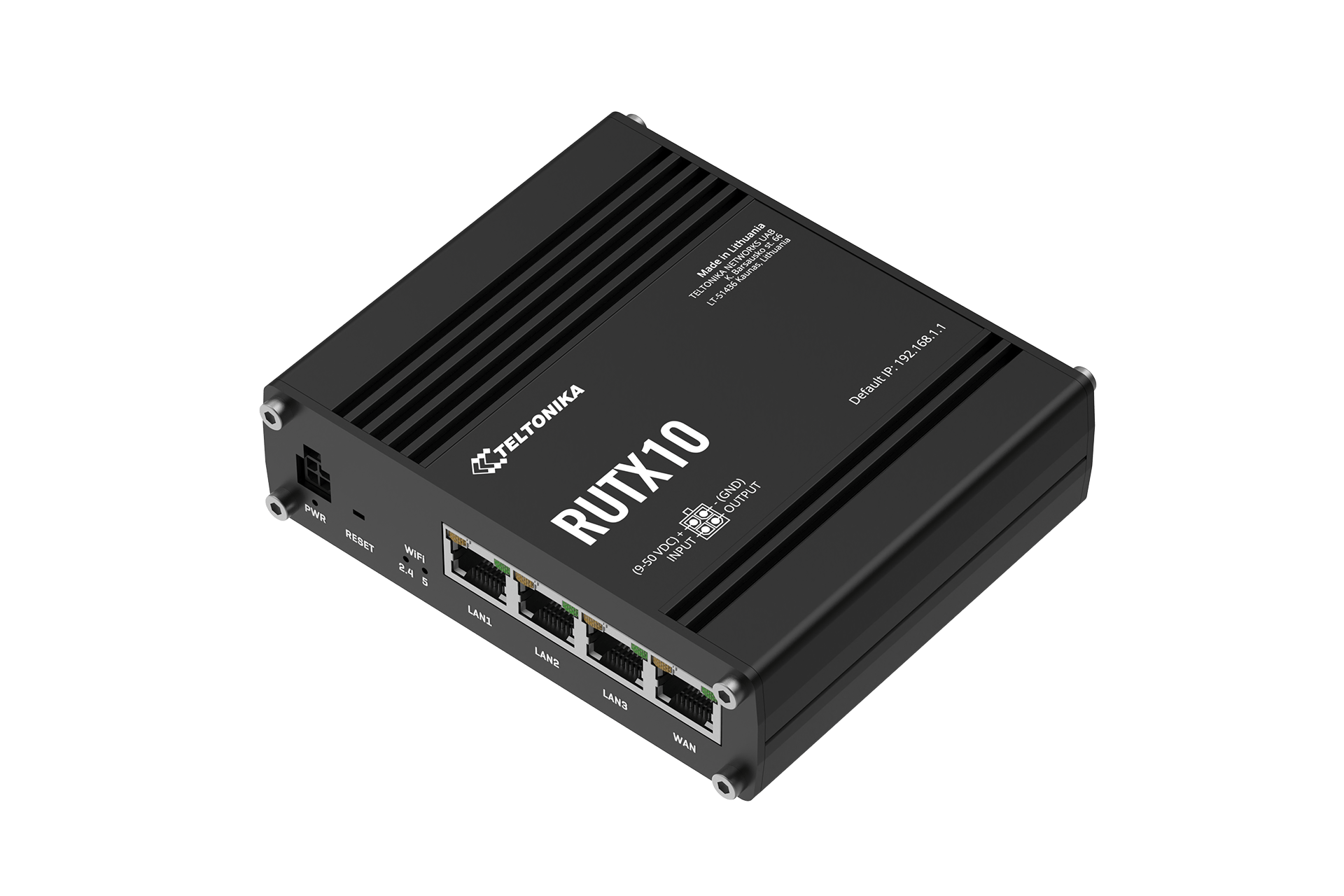

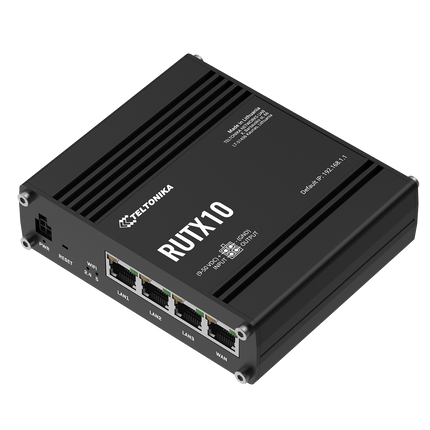

Teltonika RUTX10 Industrial Rugged Ethernet Router
Professional Industrial Ethernet Router with Wi-Fi 5, Bluetooth and Advanced VPN Support
The Teltonika RUTX10 is a professional industrial-grade Ethernet router designed for enterprise, industrial automation, retail, energy, utilities, and smart city applications. Combining Gigabit Ethernet, Dual-Band Wi-Fi 5, Bluetooth LE, advanced routing capabilities, industrial protocol support, and enterprise-level security, the RUTX10 provides a highly reliable networking platform for demanding environments.
Built on Teltonika's powerful RutOS operating system, the RUTX10 offers extensive networking, VPN, security, and remote management features while maintaining the rugged design required for industrial deployments.
Key Features

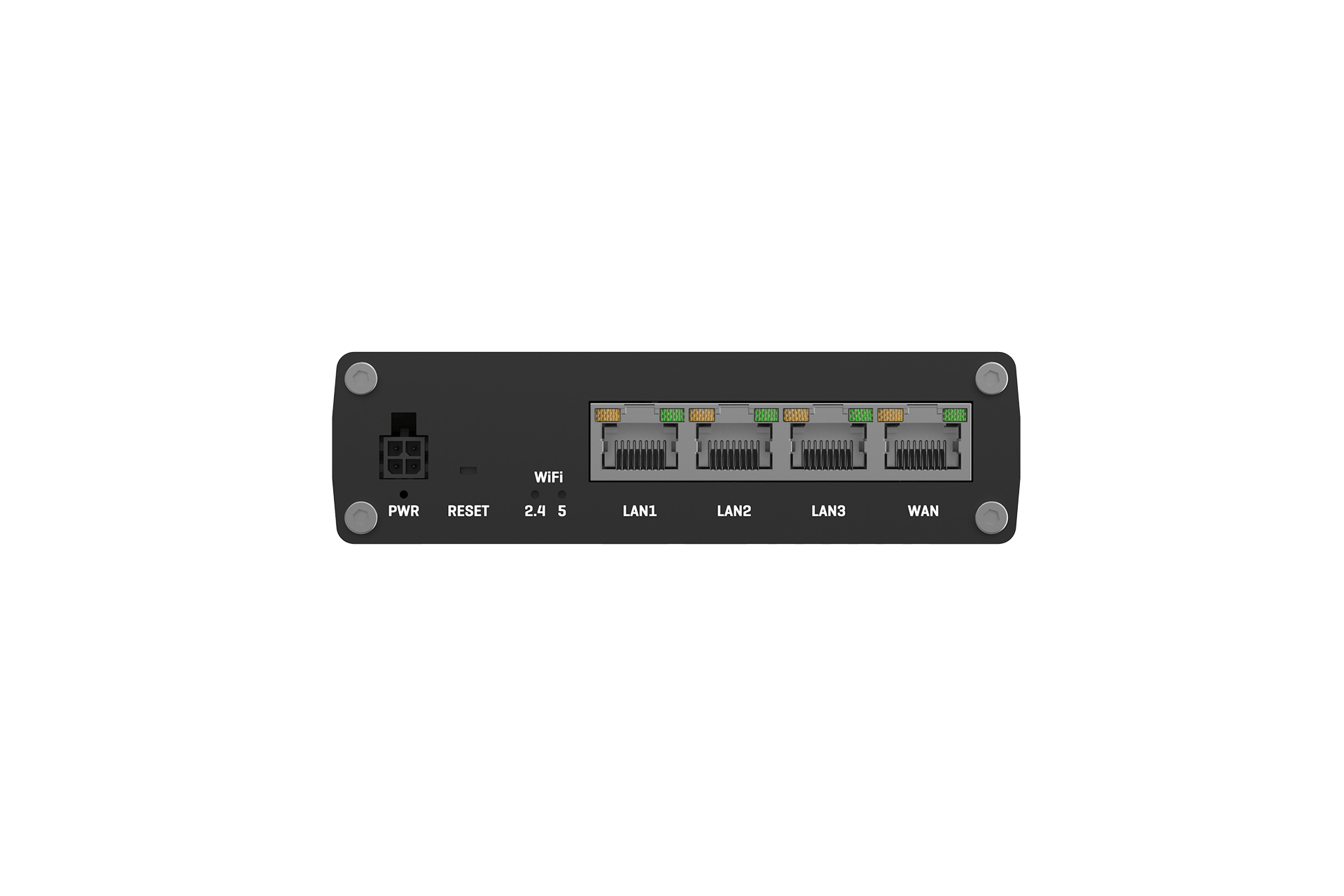

Gigabit Ethernet Connectivity
The RUTX10 delivers high-performance wired networking with:
- 1 × Gigabit WAN Port
- 3 × Gigabit LAN Ports
- Auto MDI/MDIX Support
- IEEE 802.3 Compliance
- Up to 128 Port and Tag-Based VLANs
Ideal for connecting PLCs, SCADA systems, industrial controllers, IP cameras, edge computers, and enterprise infrastructure.
Dual-Band Wi-Fi 5
Integrated enterprise-grade wireless networking includes:
- IEEE 802.11ac Wave 2
- Dual-Band 2.4 GHz and 5 GHz
- MU-MIMO Technology
- Wireless Mesh Support
- Fast Roaming (802.11r)
- BSS Transition Management (802.11v)
- Radio Resource Measurement (802.11k)
Supports wireless data rates up to 867 Mbps and up to 150 simultaneous Wi-Fi clients.
Bluetooth Low Energy
The router includes:
- Bluetooth 5.0 LE
- Short-range wireless communications
- BLE sensor connectivity
- Industrial IoT integration
Suitable for connecting Bluetooth-enabled sensors and field devices.
Why Choose the RUTX10?
The RUTX10 delivers enterprise networking functionality without requiring cellular connectivity.
Key advantages include:
- Gigabit Ethernet Router
- Dual-Band Wi-Fi 5 Access Point
- Bluetooth Low Energy
- Advanced Routing Protocols
- Extensive VPN Support
- OPC UA & Modbus Integration
- MQTT Gateway Functionality
- Digital Input & Output
- RMS Remote Management
- Industrial Temperature Rating
- OpenWrt-Based RutOS
- Rugged Aluminium Housing
Enterprise Networking Features
Dynamic Routing Support
The RUTX10 supports:
- Static Routing
- BGP
- OSPF v2
- RIP v1/v2
- EIGRP
- NHRP
- Policy-Based Routing
Suitable for complex enterprise and industrial network topologies.
Advanced Network Services
Built-in networking services include:
- DHCP Server
- DHCP Relay
- DNS over HTTPS
- DDNS
- QoS / Smart Queue Management
- Captive Portal
- VRRP
- Wake-on-LAN
- SSHFS
- Network Topology Mapping
- Traffic Monitoring
- Load Balancing
- Automatic Failover
These capabilities provide flexibility for both enterprise and industrial deployments.
Load Balancing and Failover
The RUTX10 supports multiple network resilience mechanisms.
Automatic Failover
Supports:
- Wi-Fi WAN Backup
- Wired WAN Backup
- VRRP Redundancy
- Link Monitoring
Load Balancing
Traffic can be balanced across multiple WAN connections to maximise uptime and performance.
Advanced Security
The RUTX10 includes comprehensive enterprise-grade security.
Security Features
- Stateful Firewall
- NAT / NAT64
- DMZ
- VLAN Segmentation
- 802.1X Authentication
- TACACS+
- Internal & External RADIUS
- X.509 Certificates
- TPM 2.0 Support
- Certificate Manager
- Time-Based Login Restrictions
- Random Password Generator
Threat Protection
- DDoS Protection
- SYN Flood Protection
- SSH Attack Prevention
- HTTP/HTTPS Attack Prevention
- Port Scan Prevention
Designed for critical industrial and enterprise infrastructure.
Advanced VPN Support
The RUTX10 supports a comprehensive range of VPN technologies.
Supported VPN Protocols
- OpenVPN
- IPsec
- WireGuard
- GRE
- PPTP
- L2TP
- SSTP
- DMVPN
- ZeroTier
- Tinc
- Tailscale
- Stunnel
Supports both client and server deployments for secure remote access and site-to-site connectivity.
Industrial Protocol Support
The RUTX10 integrates easily into industrial automation systems.
OPC UA
Supported Modes:
- OPC UA Client
- OPC UA Server
Modbus
Supported Modes:
- Modbus TCP Client
- Modbus TCP Server
- USB Modbus Support
Supported Data Formats:
DNP3
Supported Modes:
DLMS/COSEM
Supports utility meter communications and energy monitoring applications.
MQTT and Data Collection
Data to Server
The RUTX10 can:
- Collect data from multiple protocols
- Aggregate information from various sources
- Publish data via:
- HTTP/HTTPS
- MQTT
- Azure MQTT
- Execute Custom LUA Scripts
Modbus MQTT Gateway
Allows:
- Modbus Polling
- MQTT Publishing
- MQTT Command Reception
Ideal for Industrial IoT, telemetry and remote monitoring solutions.
Cloud and IoT Platform Integration
The RUTX10 integrates with major cloud platforms including:
- Teltonika RMS
- Microsoft Azure IoT Hub
- ThingWorx
- Cumulocity IoT
- Cloud of Things
Additional management methods include:
- MQTT
- SNMP
- TR-069
- JSON-RPC API
- SSH
- Web UI
Providing seamless integration into enterprise and Industrial IoT ecosystems.
Remote Management System (RMS)
The RUTX10 is fully compatible with Teltonika RMS.
RMS provides:
- Remote Access
- Device Monitoring
- Firmware Updates
- Configuration Management
- Alerts and Notifications
- Fleet Management
Allowing large-scale deployments to be managed from a single platform.
Digital Input and Output
Built-in industrial I/O enables monitoring and automation.
Digital Input
- Logic Low: 0–6 V
- Logic High: 8–30 V
Digital Output
- Open Collector Output
- Maximum Voltage: 30 V
- Maximum Current: 300 mA
Event Notifications
Can trigger:
- Email Alerts
- RMS Notifications
Suitable for alarms, equipment status monitoring and remote control applications.
USB Connectivity
Integrated USB 2.0 support allows connection of:
- USB-to-Serial Adapters
- External Storage
- Additional Modems
- Printers
- Flash Drives
Supported File Systems:
- FAT
- FAT32
- exFAT
- ext2/ext3/ext4
- NTFS (Read Only)
Hardware Specifications
System
- CPU: Qualcomm Quad-Core ARM Cortex-A7, 717 MHz
- RAM: 256 MB DDR3
- Storage: 256 MB SPI Flash
- Operating System: RutOS (OpenWrt-Based)

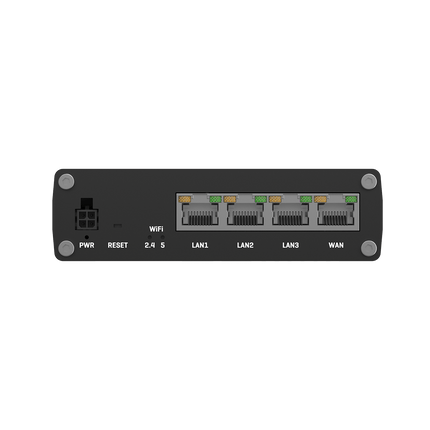

Ethernet
- 1 × Gigabit WAN
- 3 × Gigabit LAN
Wireless
- Dual-Band Wi-Fi 5 (802.11ac Wave 2)
- Bluetooth 5.0 LE
USB
I/O
- 1 × Digital Input
- 1 × Digital Output
Construction
Dimensions:
Weight:
Power Specifications
Input Voltage
- 9–50 VDC
- Reverse Polarity Protection
- Surge Protection
Passive PoE
Supports:
- Passive PoE via LAN1
- 9–50 VDC Input
- Mode B
Power Consumption
Suitable for industrial, remote and renewable energy installations.
Environmental Specifications
Operating Conditions
- Temperature: -40°C to +75°C
- Humidity: 10–90% RH (Non-Condensing)
- Protection Rating: IP30
Built for harsh industrial environments.
Certifications and Compliance
The RUTX10 complies with major international standards including:
- CE
- UKCA
- FCC
- IC (ISED)
- RCM
- UL/CSA Safety
- CB Certification
- Anatel
- Giteki
- MTCTE
- EAC
Suitable for global industrial deployments.
