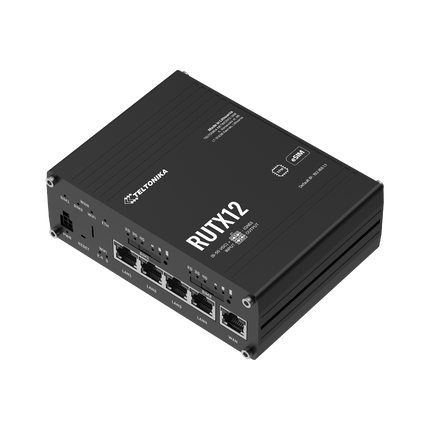

Teltonika RUTX12 Industrial Rugged Cellular DUAL LTE 4G CAT6 Router WiFi
Teltonika RUTX12 Dual LTE Cat 6 Industrial Cellular Router
The Teltonika RUTX12 is a powerful industrial dual LTE Cat 6 cellular router designed for mission-critical applications where reliable and uninterrupted connectivity is essential. Unlike conventional cellular routers, the RUTX12 incorporates two independent 4G LTE Cat 6 modems, allowing two simultaneous mobile connections with intelligent load balancing and automatic failover.
With combined cellular capability of up to 600 Mbps across two simultaneous LTE Cat 6 connections, dual SIM support, Wi-Fi 5 Wave 2, five Gigabit Ethernet ports, Bluetooth Low Energy and integrated GNSS, the RUTX12 provides a highly versatile communications platform for industrial automation, utilities, remote monitoring, transport, smart city and enterprise IoT applications.
Powered by Teltonika RutOS, the RUTX12 also offers extensive industrial protocols, VPN services, network security, remote management and IoT connectivity features, making it an excellent choice for demanding Australian industrial and M2M deployments.
Key Features
-
Dual 4G LTE Cat 6 modems for simultaneous cellular connections
- Up to 300 Mbps download / 50 Mbps upload per LTE modem
- Up to 600 Mbps combined cellular capability with two simultaneous LTE connections
- Carrier Aggregation support
- Dual SIM with automatic switching
- Selected versions support eSIM
- Intelligent load balancing across multiple WAN connections
- Automatic WAN failover and connection backup
- Dual-band Wi-Fi 5 (802.11ac Wave 2) up to 867 Mbps
- Up to 150 simultaneous Wi-Fi connections
- 4 × Gigabit LAN ports
- 1 × Gigabit WAN port configurable as LAN
- Bluetooth® Low Energy
- Integrated GNSS support
- Digital input and digital output
- USB 2.0 host
- 9–50 VDC industrial power input
- Rugged anodised aluminium housing
- Operating temperature from -40°C to +75°C
- Advanced VPN, firewall and cybersecurity functionality
- MQTT, Modbus TCP, BACnet, OPC UA, DNP3 and DLMS/COSEM support
- Teltonika RMS remote management compatibility
Dual LTE Cat 6 – Built for Mission-Critical Connectivity
One of the key advantages of the RUTX12 is its dual cellular modem architecture.
Rather than simply having two SIM cards connected to a single modem, the RUTX12 incorporates two independent LTE Cat 6 modems, allowing both mobile connections to operate simultaneously. This provides significantly greater flexibility for applications where internet connectivity cannot be allowed to fail.
The two cellular connections can be used for:
- Load balancing
- Connection redundancy
- Automatic failover
- Multiple mobile operators
- Increased overall network throughput
- Mission-critical connectivity
Teltonika specifically positions the RUTX12 for applications where losing connectivity is not an option.
Up to 600 Mbps with Dual LTE Connections
Each RUTX12 LTE Cat 6 modem supports cellular speeds of up to:
- 300 Mbps download
- 50 Mbps upload
With two simultaneous LTE Cat 6 connections, the router provides up to 600 Mbps combined cellular capability, subject to carrier network availability, signal conditions and configuration.
Carrier Aggregation further improves cellular performance by combining available LTE frequency resources where supported by the mobile network.
Automatic Failover & Load Balancing
The RUTX12 is designed to keep critical equipment connected even when a primary internet connection fails.
Its network backup functionality supports:
- Cellular WAN
- Wired WAN
- Wi-Fi WAN
- VRRP
Multiple WAN connections can also be configured for load balancing, distributing internet traffic across available connections.
This makes the RUTX12 particularly suitable for unattended installations, remote infrastructure and business-critical systems where connectivity outages can result in significant operational costs.
Dual SIM & eSIM Support
The RUTX12 supports two external Mini SIM (2FF) slots, allowing SIM cards from different mobile network operators to be installed for additional redundancy.
Depending on the selected order code, the latest RUTX12 hardware can also support consumer eSIM with up to seven eSIM profiles. Automatic SIM switching can be triggered by conditions including weak signal, data limits, roaming, no network, network denial or data connection failure.
This provides excellent flexibility when deploying routers across different sites and mobile networks.
High-Speed Dual-Band Wi-Fi 5
The RUTX12 includes 802.11ac Wave 2 Wi-Fi 5 with dual-band operation and data rates up to 867 Mbps.
Wireless capabilities include:
- 2.4 GHz and 5 GHz
- Access Point (AP) mode
- Station (STA) mode
- MU-MIMO
- Up to 150 simultaneous Wi-Fi connections
- 802.11s wireless mesh
- 802.11r fast roaming
- WPA2 and WPA3 security
- MAC-based access control
This allows the RUTX12 to provide both cellular backhaul and local Wi-Fi connectivity from a single industrial networking device.

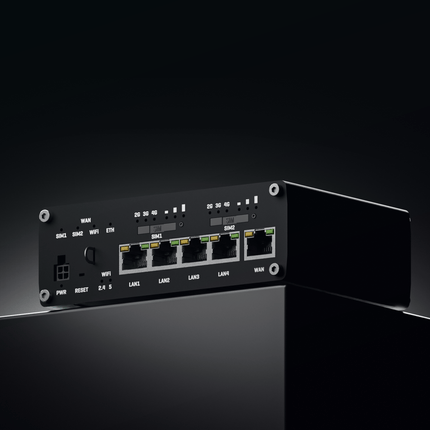

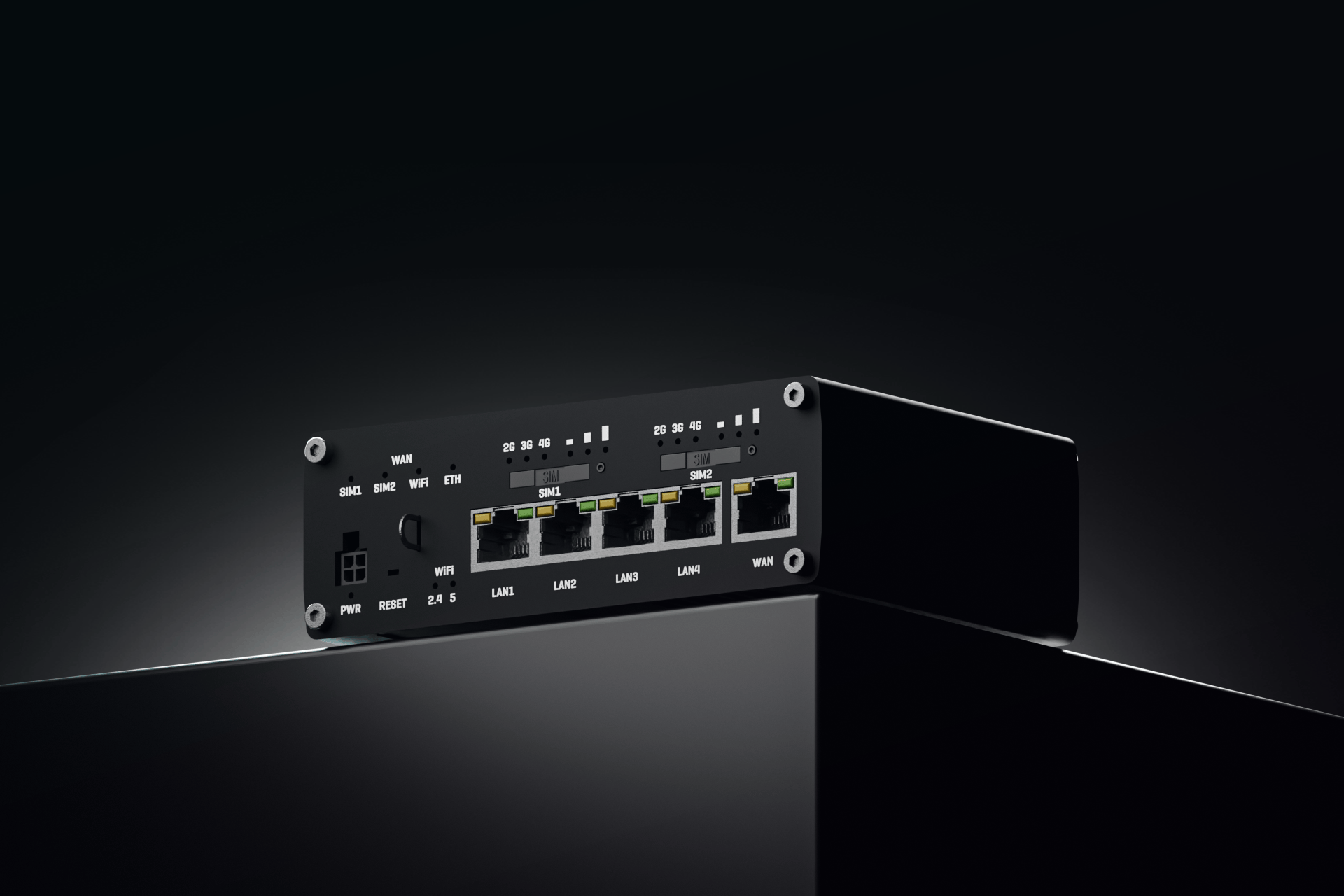

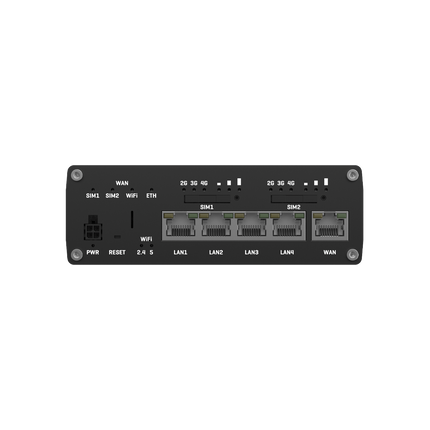

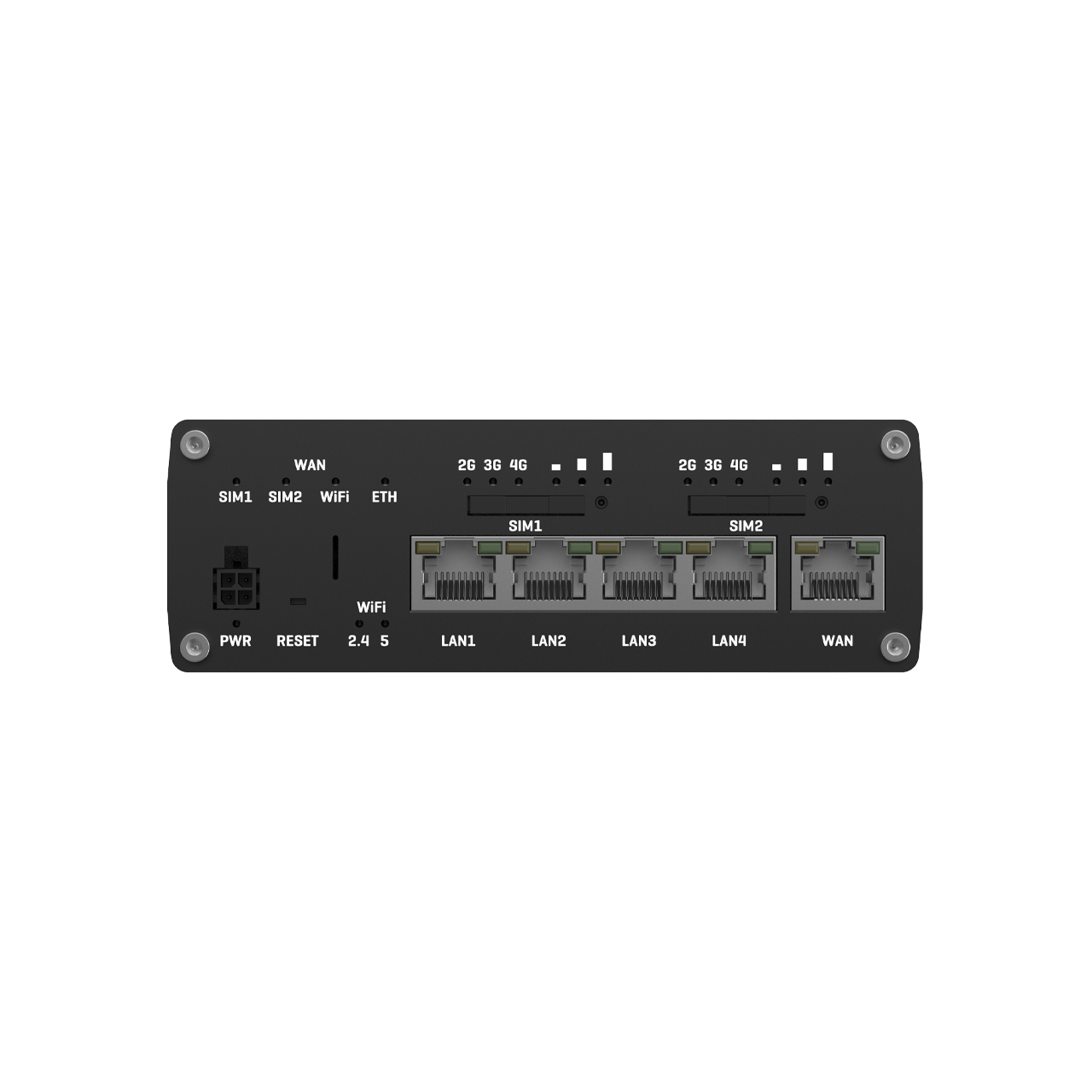

5 × Gigabit Ethernet Ports
For high-speed wired networking, the RUTX12 provides:
- 4 × Gigabit LAN ports
-
1 × Gigabit WAN port, configurable as LAN
All Ethernet interfaces support 10/100/1000 Mbps operation.
The router also supports VLANs, QoS, policy-based routing, static and dynamic routing, network topology visualisation and extensive traffic management functionality.
Industrial IoT & Automation Protocols
The RUTX12 is much more than a standard internet router. RutOS provides an extensive range of industrial protocols and IoT integration capabilities.
Supported technologies include:
- MQTT
- Modbus TCP
- Modbus MQTT Gateway
- BACnet
- OPC UA
- DNP3
- DLMS/COSEM
- SNMP
- HTTP/HTTPS
- Azure MQTT
- Custom Lua scripting
The router's Data to Server functionality can collect parameters from multiple sources and protocols and forward them to a central server using HTTP(S), MQTT or Azure MQTT.
This makes the RUTX12 particularly attractive for Industrial IoT gateways, PLC connectivity, energy monitoring, SCADA and remote telemetry applications.
Advanced VPN & Cybersecurity
For secure remote connectivity, the RUTX12 provides extensive VPN capabilities including:
- OpenVPN
- IPsec
- WireGuard
- ZeroTier
- Tailscale
- DMVPN
- GRE
- SSTP
- L2TP
- PPTP
- Tinc
- Stunnel
Advanced security functionality also includes firewall configuration, DDoS protection, port scan prevention, VLAN separation, access control, certificates and authentication options.

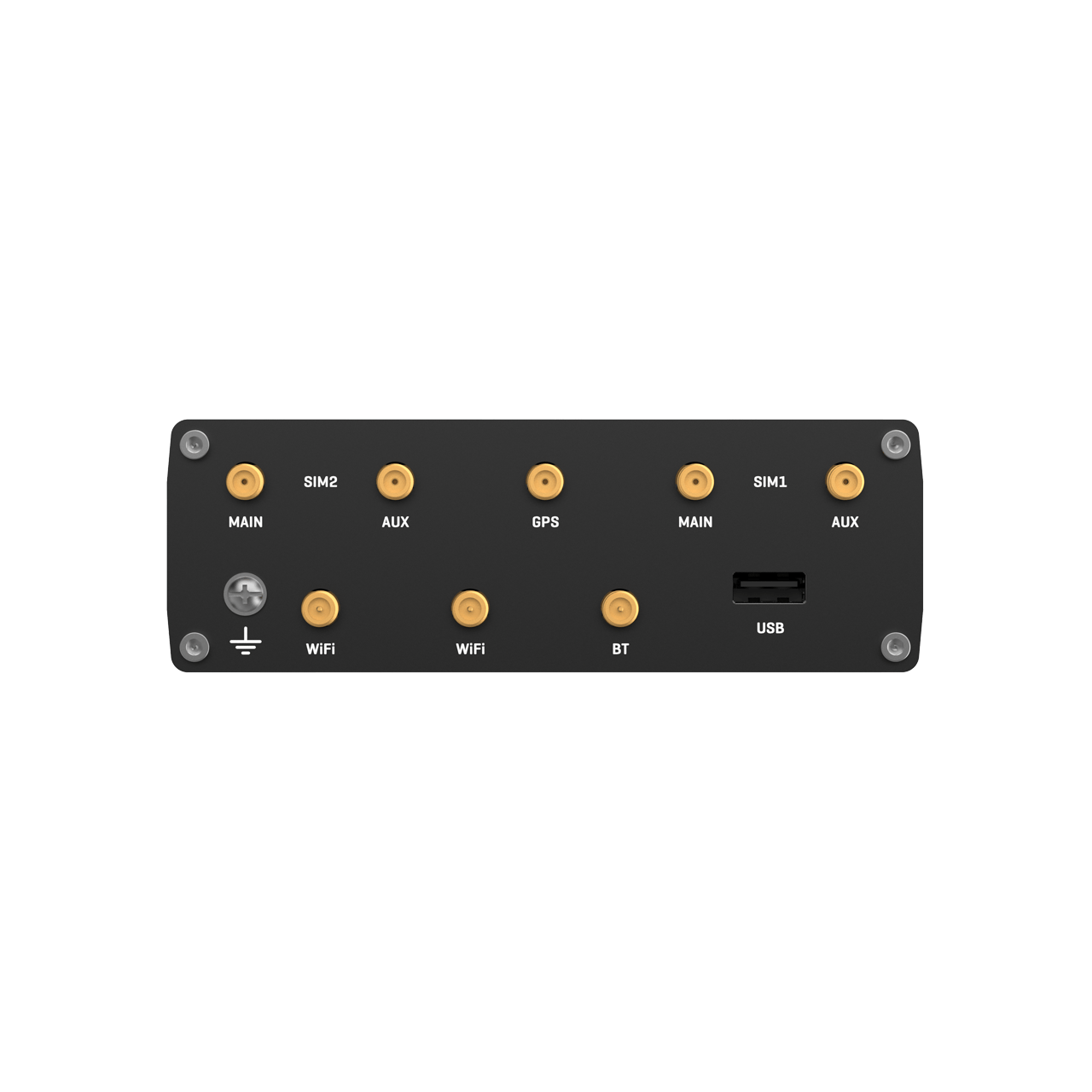

Integrated GNSS / GPS
The RUTX12 includes integrated GNSS functionality supporting:
- GPS
- GLONASS
- BeiDou
- Galileo
- QZSS
Location coordinates can be accessed through WebUI, SMS, TAVL and Teltonika RMS, while configurable geofencing and NMEA 0183 are also supported.
This is particularly useful for mobile installations, transport systems, temporary sites and remote equipment.

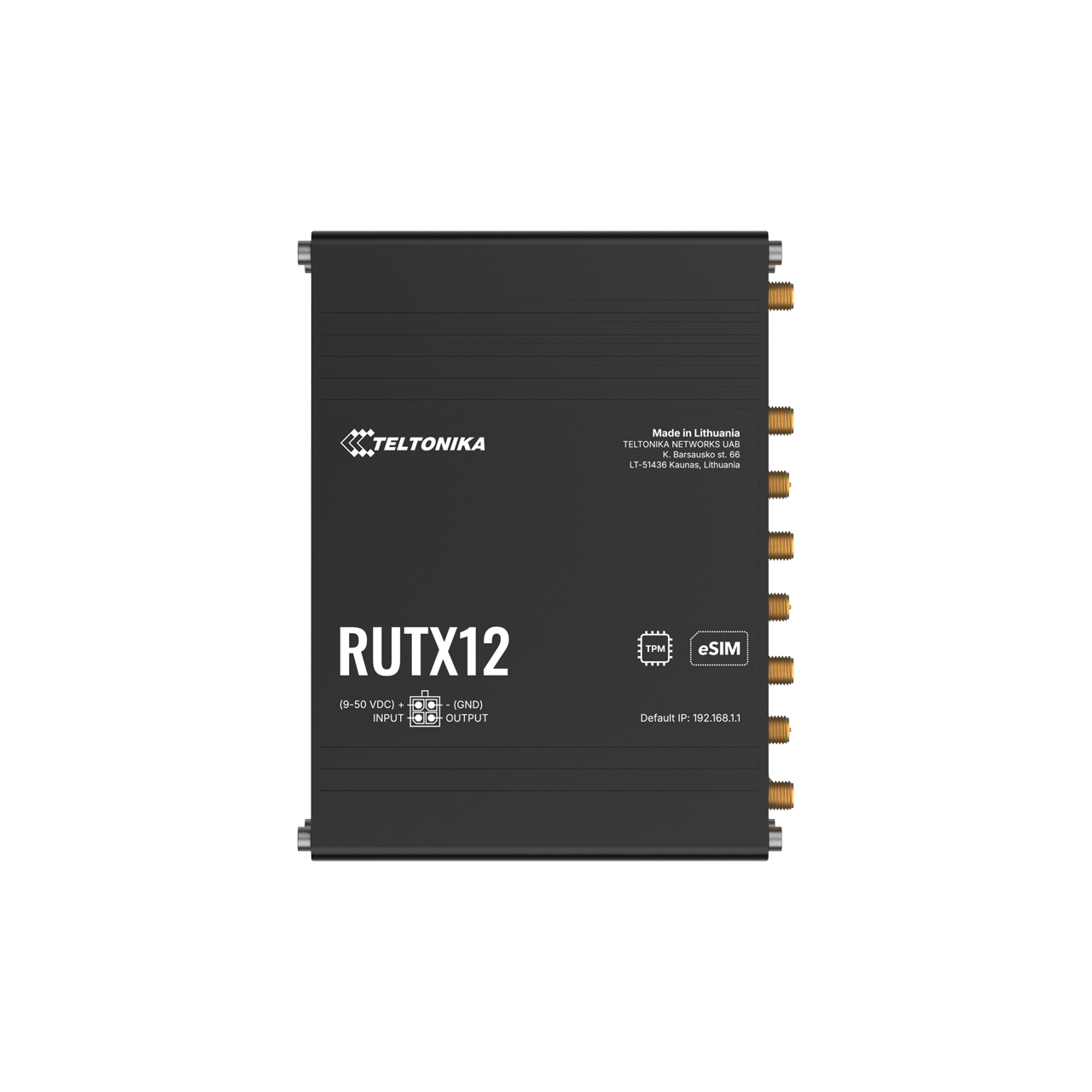

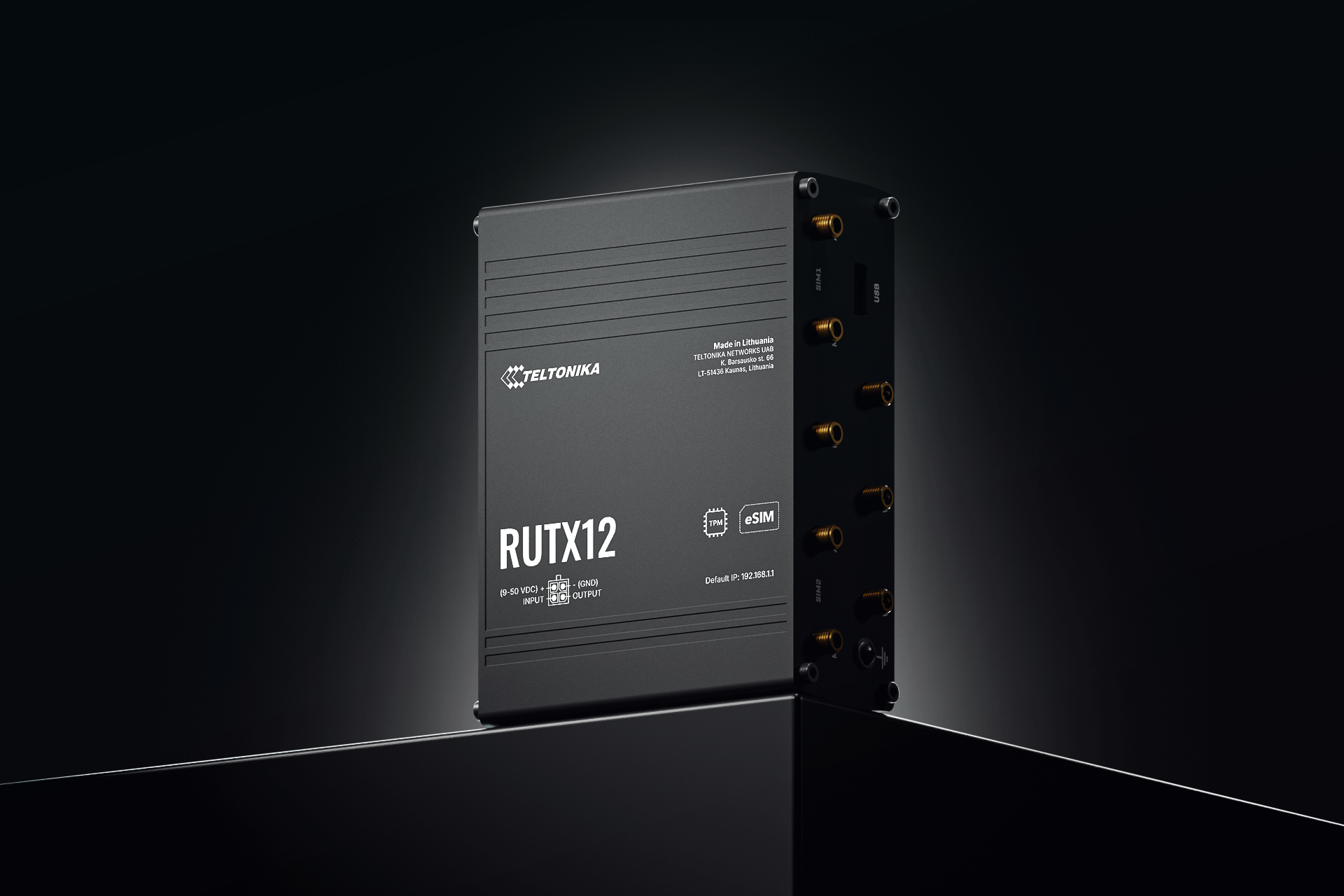

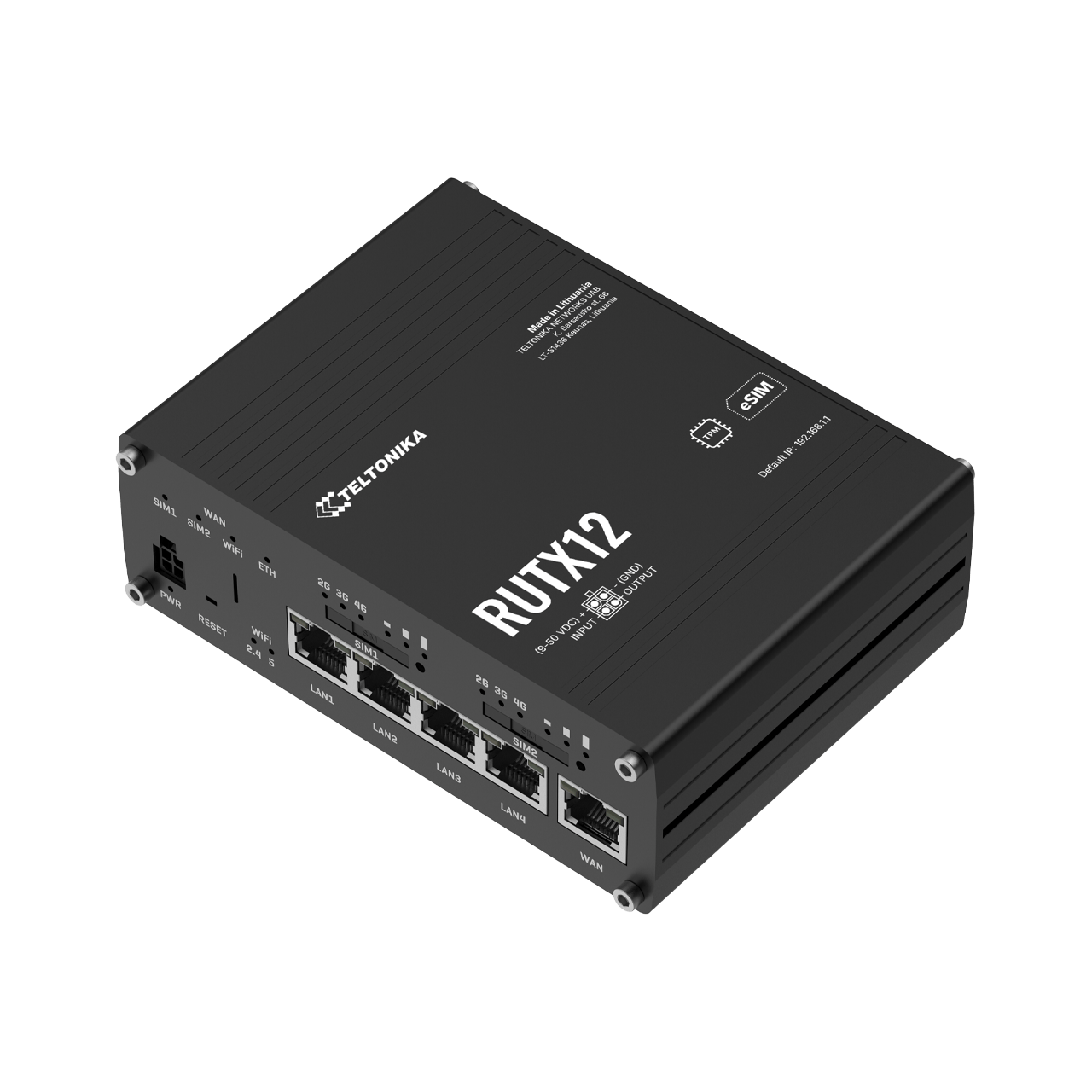

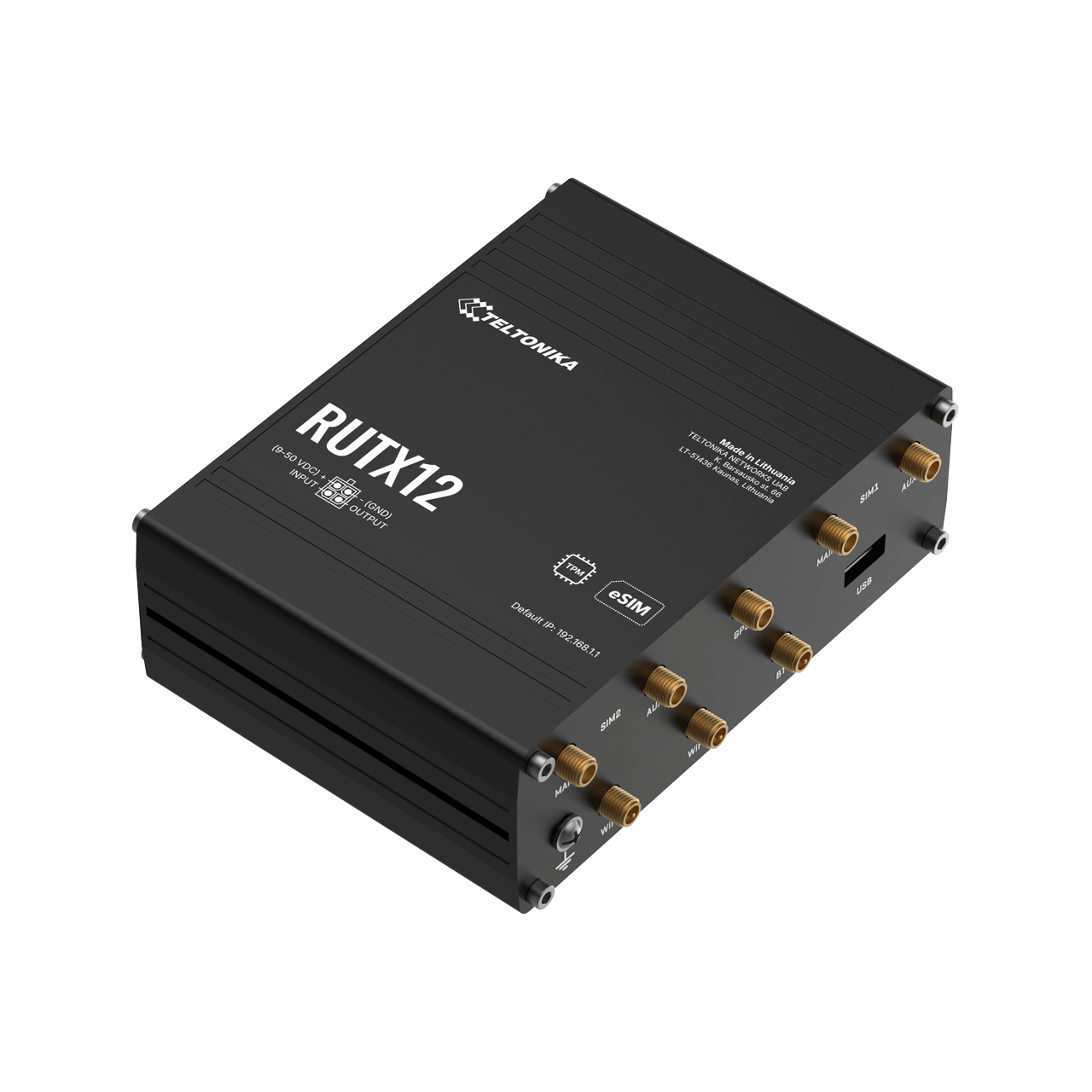

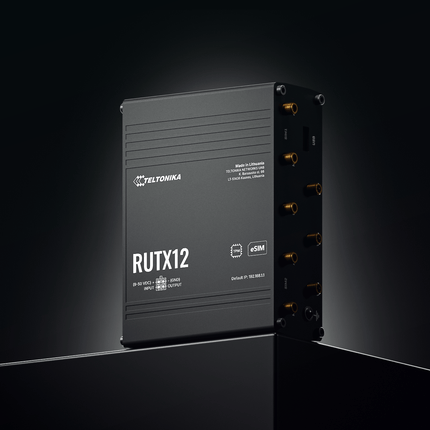

Rugged Industrial Design
The RUTX12 is built for demanding industrial installations with a durable anodised aluminium enclosure and a wide operating temperature range of -40°C to +75°C.
It accepts 9–50 VDC input power with reverse-polarity and surge/transient protection. Passive PoE powering through LAN1 is also supported within the same voltage range.
DIN rail, wall and flat-surface mounting options are available using optional mounting kits.
Teltonika RMS Remote Management
The RUTX12 is compatible with Teltonika Remote Management System (RMS), allowing administrators to remotely monitor and manage deployed routers.
RMS can assist with:
- Remote router access
- Configuration
- Firmware updates
- Device monitoring
- Troubleshooting
- Multi-device management
The router also supports WebUI, SSH, SNMP, MQTT, JSON-RPC, SMS and other management methods.
Technical Specifications
| Feature |
Specification |
| Cellular |
2 × 4G LTE Cat 6 modems |
| LTE Speed |
Up to 300 Mbps DL / 50 Mbps UL per modem |
| Combined Cellular Capability |
Up to 600 Mbps with dual simultaneous LTE connections |
| SIM |
2 × Mini SIM (2FF) |
| eSIM |
Available on selected order codes |
| Wi-Fi |
Wi-Fi 5, 802.11b/g/n/ac Wave 2 |
| Wi-Fi Speed |
Up to 867 Mbps |
| Wi-Fi Users |
Up to 150 simultaneous connections |
| Ethernet |
4 × Gigabit LAN + 1 × Gigabit WAN/LAN |
| Bluetooth |
Bluetooth 4.0 Low Energy |
| GNSS |
GPS, GLONASS, BeiDou, Galileo, QZSS |
| USB |
1 × USB 2.0 Type-A |
| I/O |
1 × Digital Input, 1 × Open Collector Digital Output |
| VPN |
OpenVPN, IPsec, WireGuard, ZeroTier, Tailscale, DMVPN & more |
| Industrial Protocols |
Modbus, MQTT, BACnet, OPC UA, DNP3, DLMS/COSEM |
| Operating System |
RutOS – OpenWrt-based Linux |
| Power Input |
9–50 VDC |
| Power Consumption |
<4 W idle, <22 W maximum |
| Operating Temperature |
-40°C to +75°C |
| Housing |
Anodised aluminium |
| Ingress Protection |
IP30 |
| Dimensions |
132 × 44.2 × 95.1 mm |
| Weight |
540 g |
