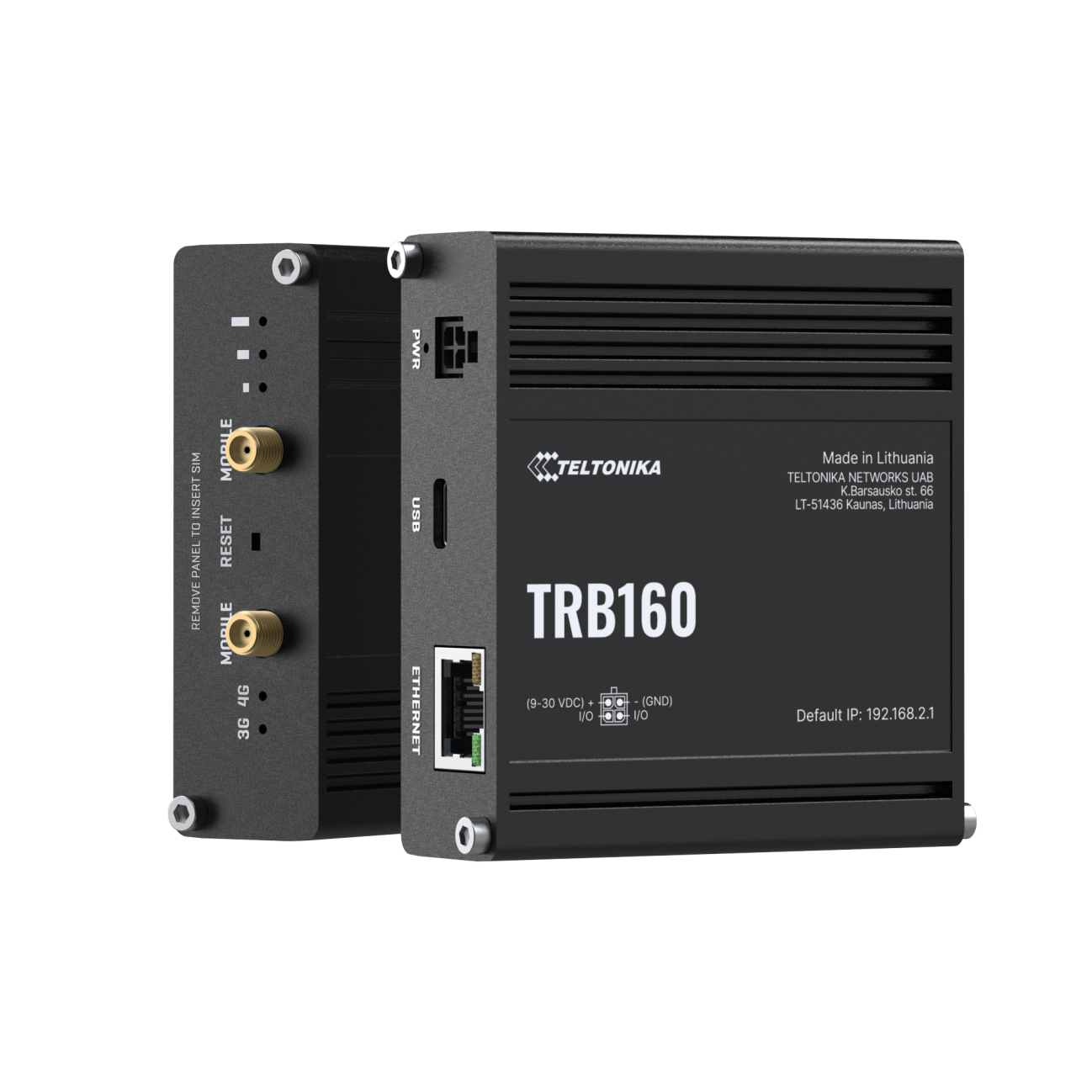

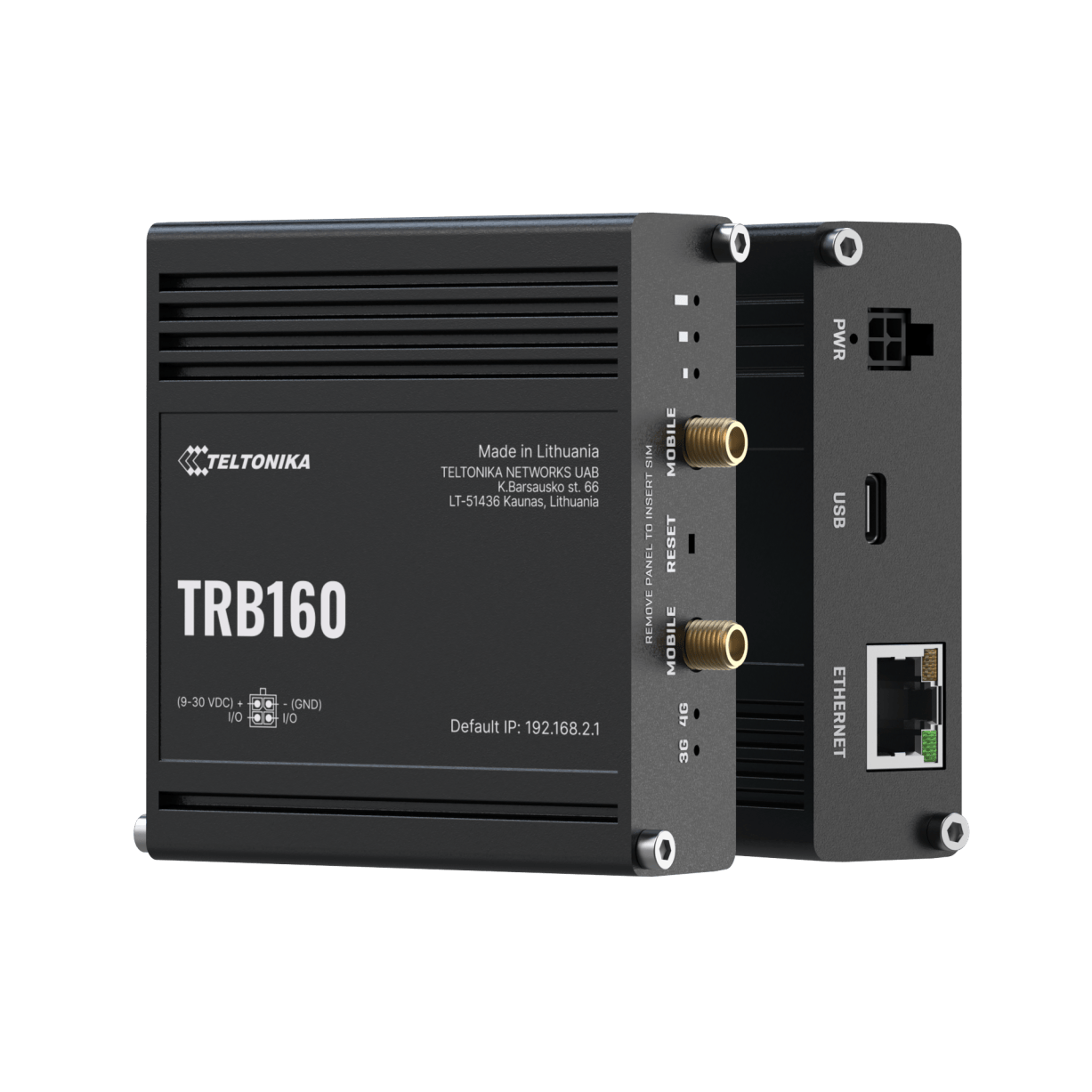

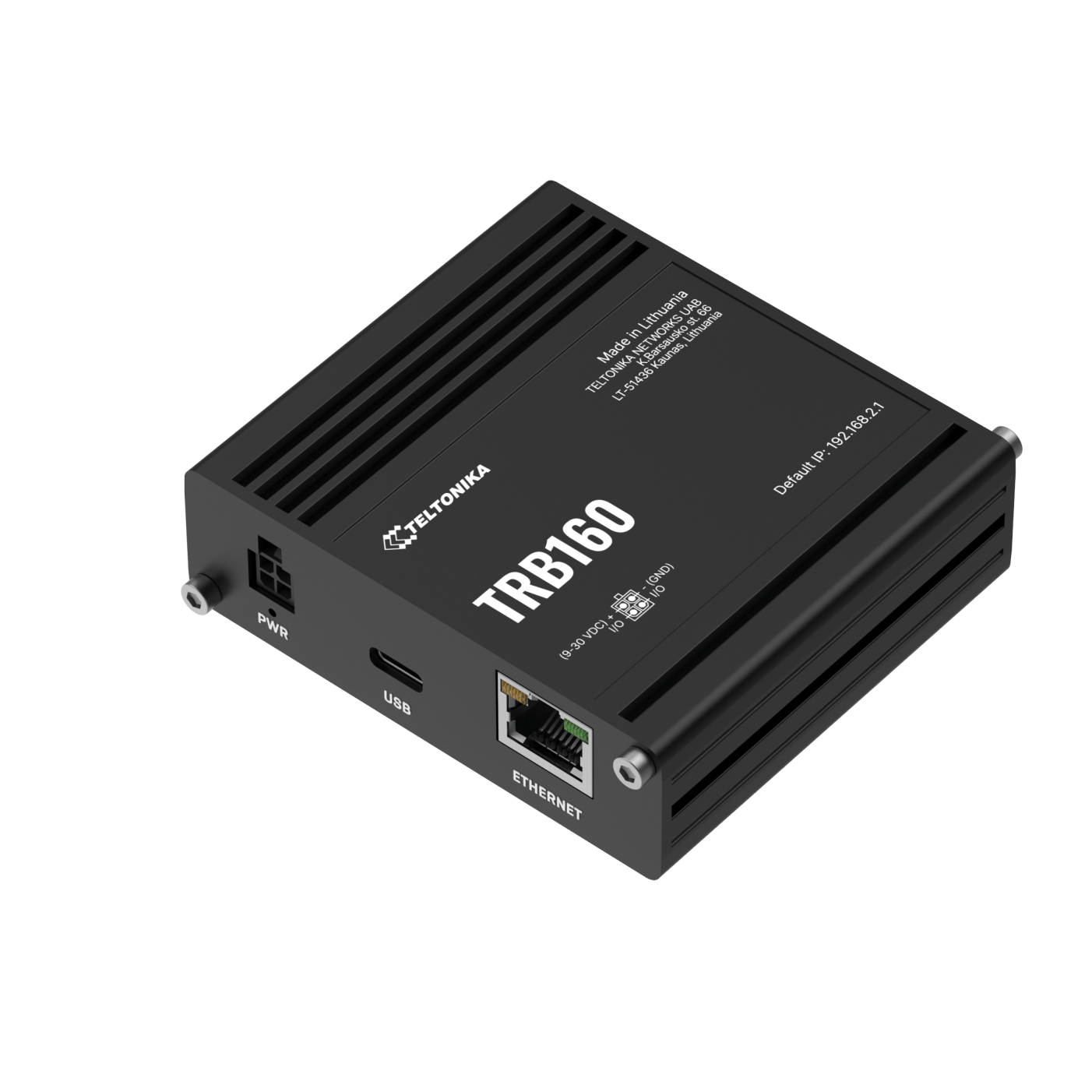

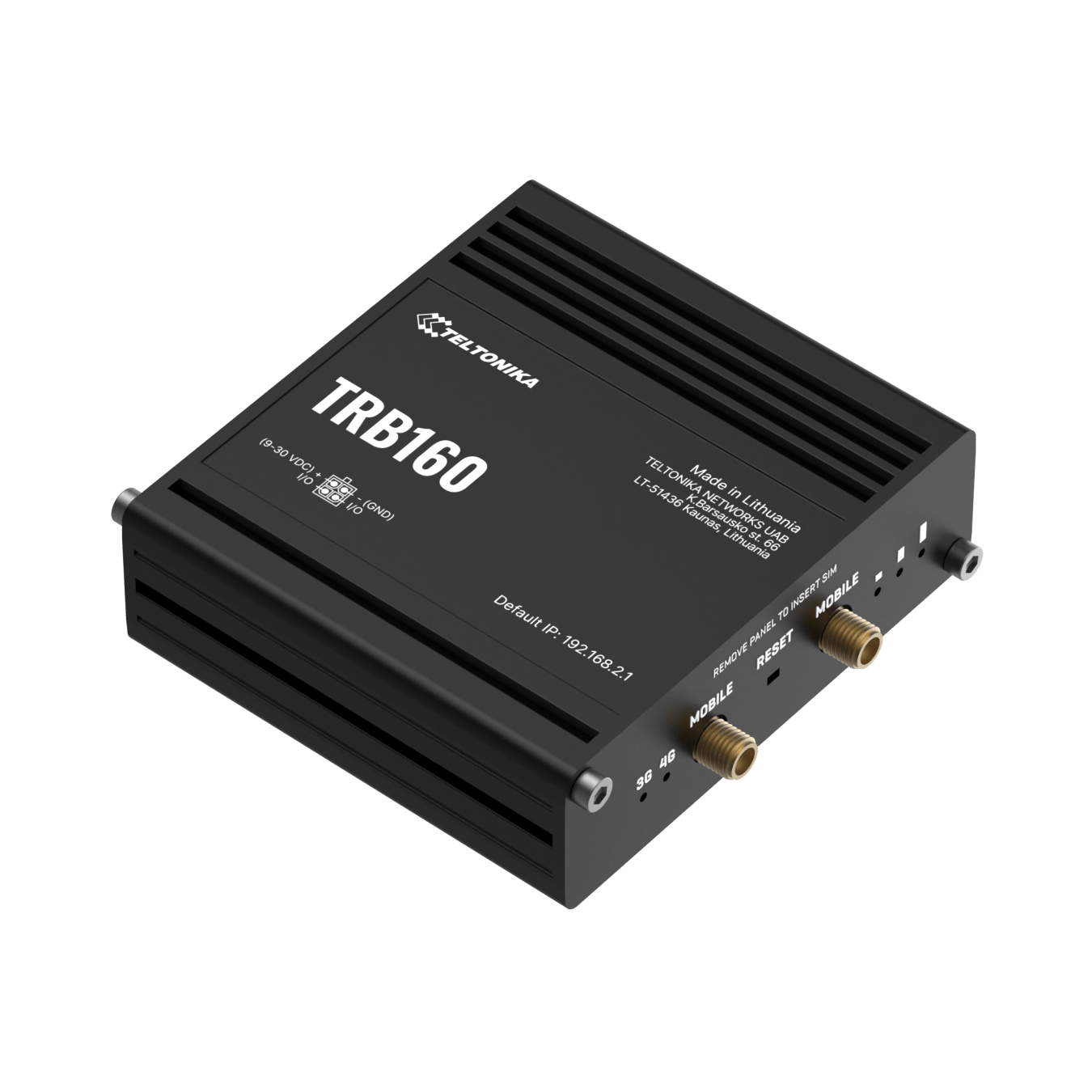

Teltonika TRB160 Industrial Rugged Cellular LTE 4G Cat 6 IoT Gateway (Gigabit Ethernet, USB Type-C)
High-Speed Industrial LTE Cat 6 Gateway with Gigabit Ethernet & Edge Connectivity
The Teltonika TRB160 Industrial LTE Gateway is a high-performance, compact IoT device designed for industrial automation, SCADA, and high-speed M2M communication. Featuring 4G LTE Cat 6 with carrier aggregation, Gigabit Ethernet, and USB Type-C for simultaneous power and data, the TRB160 delivers fast, reliable, and flexible connectivity for modern industrial applications.
As highlighted in the product flyer, the TRB160 supports cellular speeds up to 300 Mbps, making it ideal for data-intensive and real-time IoT deployments .
Key Features
-
4G LTE Cat 6 with Carrier Aggregation
Up to 300 Mbps download / 50 Mbps upload for high-speed data applications
-
Gigabit Ethernet Port (10/100/1000 Mbps)
High-speed wired connectivity for industrial networks
-
USB Type-C (Power + Data Interface)
Enables simultaneous powering and network data provision
-
Ultra-Compact Industrial Design
Small footprint (83 × 25 × 74.2 mm) for easy deployment in cabinets and field installations
-
Industrial Protocol Support
Supports MQTT, Modbus, OPC UA, DNP3, DLMS/COSEM, and more
-
Advanced Networking & Routing
Includes VPNs, firewall, load balancing, and dynamic routing (BGP, OSPF, RIP)
-
Remote Management (RMS)
Centralised monitoring, configuration, alerts, and firmware updates
Why Choose TRB160?
-
High-Speed IoT Gateway
LTE Cat 6 ensures faster data transfer and improved network efficiency
-
Flexible Deployment Options
USB Type-C allows simplified power and connectivity setups
-
Industrial-Grade Reliability
Rugged design with wide temperature support
-
Future-Ready Connectivity
Supports modern IoT protocols and cloud integrations
The TRB160 is ideal for deployments requiring high-speed connectivity, compact design, and advanced networking capabilities.
Typical Applications
- Industrial automation & SCADA systems
- Smart metering & utilities monitoring
- Remote monitoring & telemetry
- Energy & renewable systems
- Smart city infrastructure
- High-speed IoT data gateways
Technical Highlights
-
Cellular: 4G LTE Cat 6 (up to 300 Mbps DL / 50 Mbps UL), 3G fallback
-
SIM: 1 × Mini SIM (2FF), optional eSIM
-
Ethernet: 1 × Gigabit RJ45 port
-
USB: USB Type-C (power + data interface)
-
CPU: ARM Cortex-A7, 1.2 GHz
-
Memory: 128 MB RAM, 256 MB flash
-
I/O: 1 × Digital Input, 1 × Digital Output
-
Power: 9–30 VDC industrial input + USB Type-C 5V
-
PoE: Passive PoE support (Mode B)
-
Operating Temp: -40°C to +75°C
-
Mounting: DIN rail / wall / flat surface (optional kit)
-
OS: RutOS (OpenWrt-based Linux OS)
What’s in the Box
- TRB160 Gateway
- 2 × Mobile antennas (SMA, magnetic mount)
- USB Type-C cable
- Ethernet cable
- Power supply (region dependent)
- Quick Start Guide
- Mounting accessories
