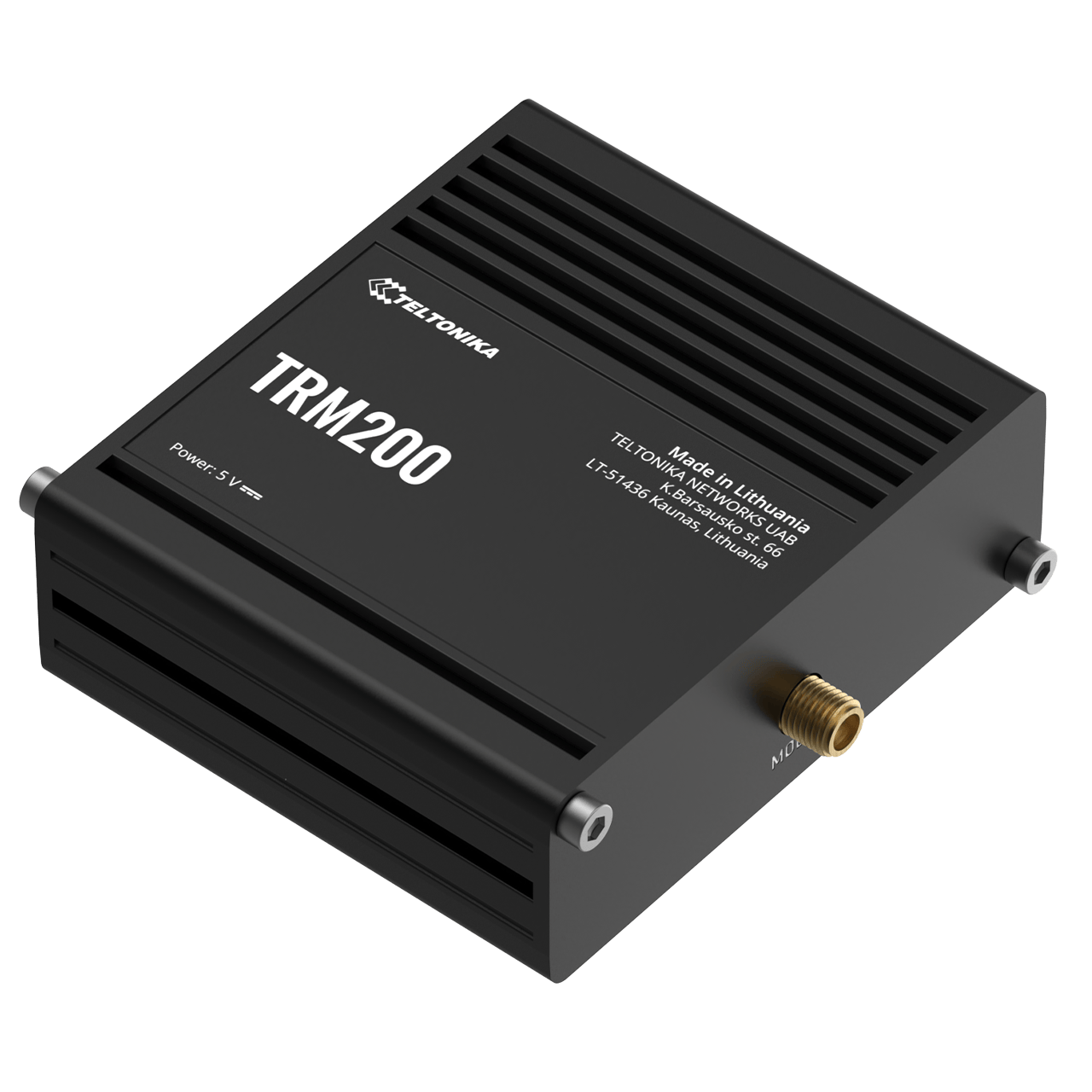

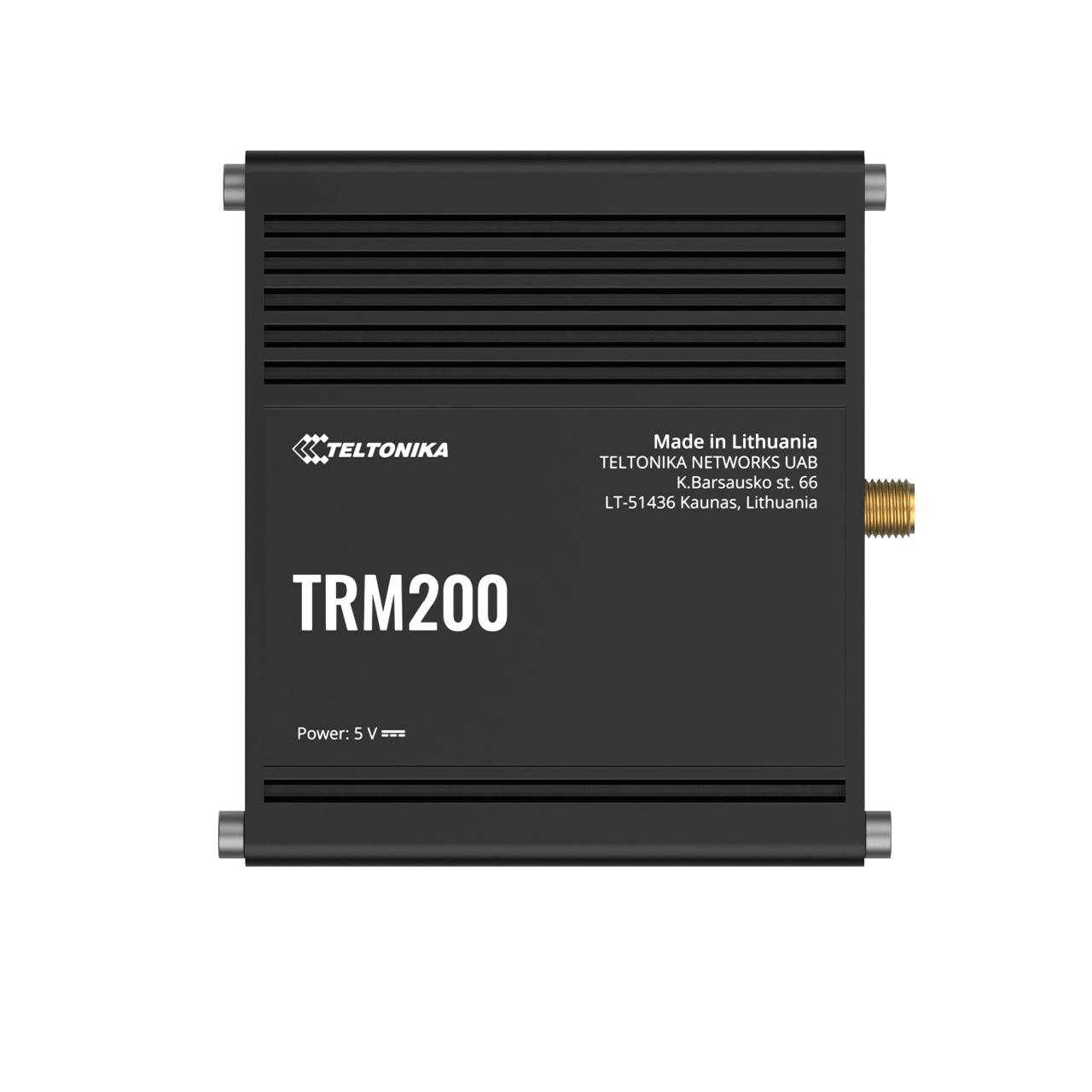

Teltonika TRM200 Industrial Rugged Cellular LTE 4G USB Modem
Compact Industrial LTE Cat 4 USB Modem for Reliable 4G Connectivity
The Teltonika TRM200 is a compact and rugged industrial LTE Cat 4 modem designed to provide reliable 4G cellular connectivity for industrial equipment, embedded systems, kiosks, gateways, edge devices, and IoT applications. Featuring a simple USB interface, external antenna support, and durable aluminium housing, the TRM200 is an ideal solution for upgrading existing systems with industrial-grade LTE connectivity.
According to the official Teltonika datasheet and flyer, the TRM200 supports 4G LTE Cat 4 with fallback to 3G and 2G, micro USB connectivity for both power and data, and broad compatibility with Windows, Linux, and Android systems.
Key Features
-
4G LTE Cat 4 Connectivity
Provides LTE speeds up to 75 Mbps download / 50 Mbps upload with fallback to 3G and 2G networks.
-
USB Connectivity for Power & Data
Simple plug-and-play integration via micro USB interface.
-
External SMA Antenna Connector
Improves signal strength and connectivity reliability in industrial environments.
-
Compact Industrial Design
Small footprint and rugged aluminium housing for easy deployment in tight spaces.
-
Wide Operating Temperature Range
Designed for harsh industrial environments with operation from -40°C to +75°C.
-
Broad OS Compatibility
Supports Windows, Linux, and Android platforms for flexible integration.
-
Low Power Consumption
Efficient operation with power consumption below 3.2 W maximum.
Why Choose the Teltonika TRM200?
The TRM200 is an ideal solution for deployments requiring:
- Reliable industrial LTE connectivity
- Simple USB modem integration
- Compact embedded connectivity
- Rugged industrial operation
- External antenna flexibility
- Low-power LTE communications
- Legacy equipment LTE upgrades
- Cost-effective cellular connectivity
Its compact form factor and plug-and-play simplicity make it ideal for industrial OEM and IoT deployments.
Typical Applications
- Industrial PCs & HMIs
- Remote monitoring systems
- Industrial IoT gateways
- Kiosks & vending machines
- Smart metering systems
- Embedded Linux devices
- Retail & POS systems
- Transportation systems
- Digital signage
- SCADA and telemetry systems
Technical Highlights
Cellular Connectivity
- 4G LTE Cat 4
- Up to 75 Mbps download
- Up to 50 Mbps upload
- 3G fallback up to 42 Mbps
- 2G support
- 3GPP Release 9 modem
USB Interface
- Micro USB interface
- Used for:
- Power input
- Data connectivity
- Plug-and-play operation
SIM Features
- 1 × Mini SIM slot (2FF)
- Supports 1.8 V / 3 V SIM cards
Antenna
- 1 × SMA mobile antenna connector
- External antenna support for improved signal performance
Software & Driver Support
Supports:
- Windows 7/8/8.1/10/11
- Linux kernel 2.6 to 6.3
- Android 4.x to 13
- NDIS drivers for Windows
Power
- 5 VDC via micro USB
- Idle consumption: < 0.9 W
- Maximum consumption: < 3.2 W
Status LEDs
- Power LED
- Network status LED
- LTE status LED
Physical Specifications
- Rugged aluminium housing
- Dimensions: 74.5 × 25 × 64.5 mm
- Weight: 274 g
Mounting Options
- DIN rail mounting
- Wall mounting
- Flat surface installation
Operating Environment
- Operating temperature: -40°C to +75°C
- IP30 rated
- 10%–90% non-condensing humidity
Regional LTE Support
Supports:
- Australia
- New Zealand
- Thailand
- EMEA regions
