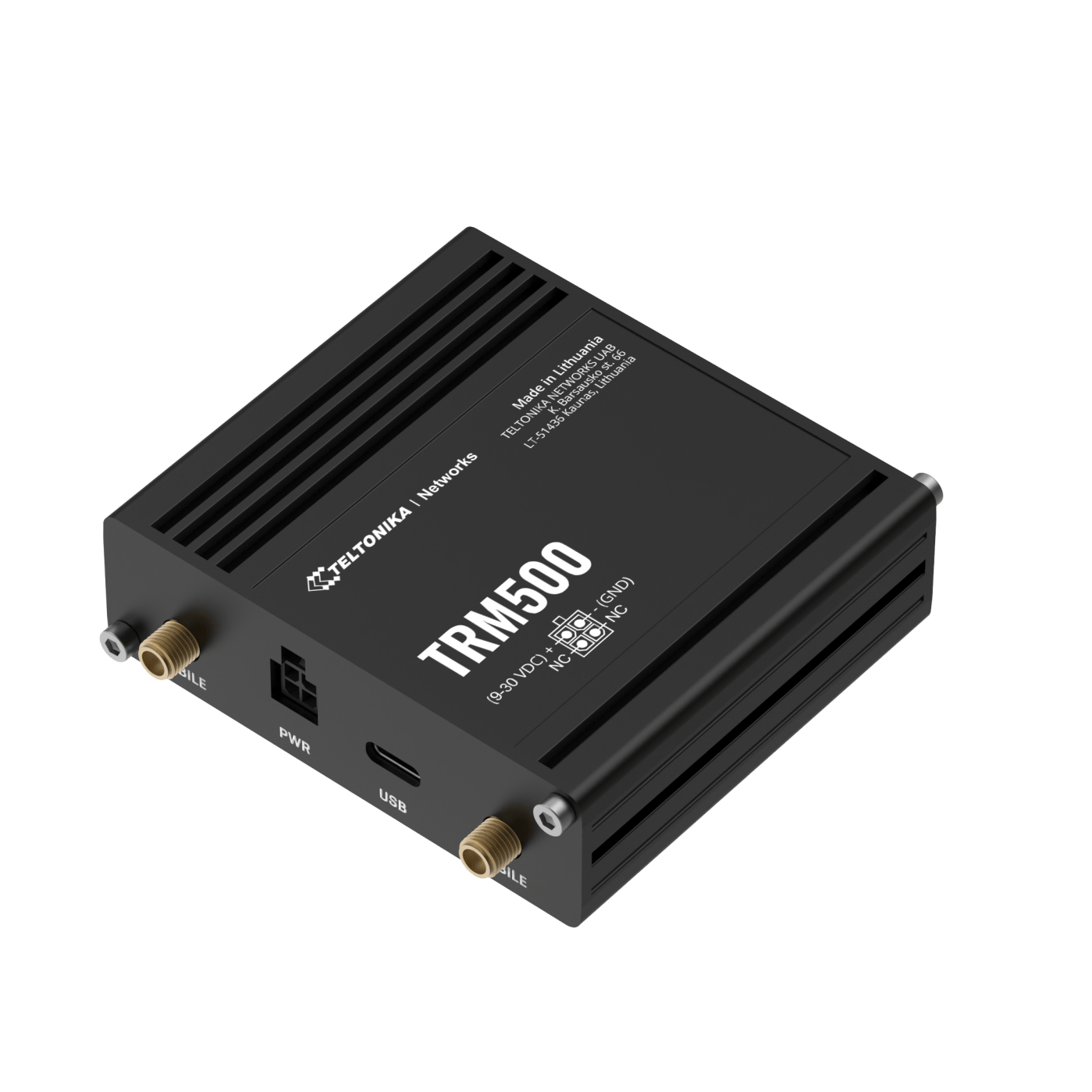

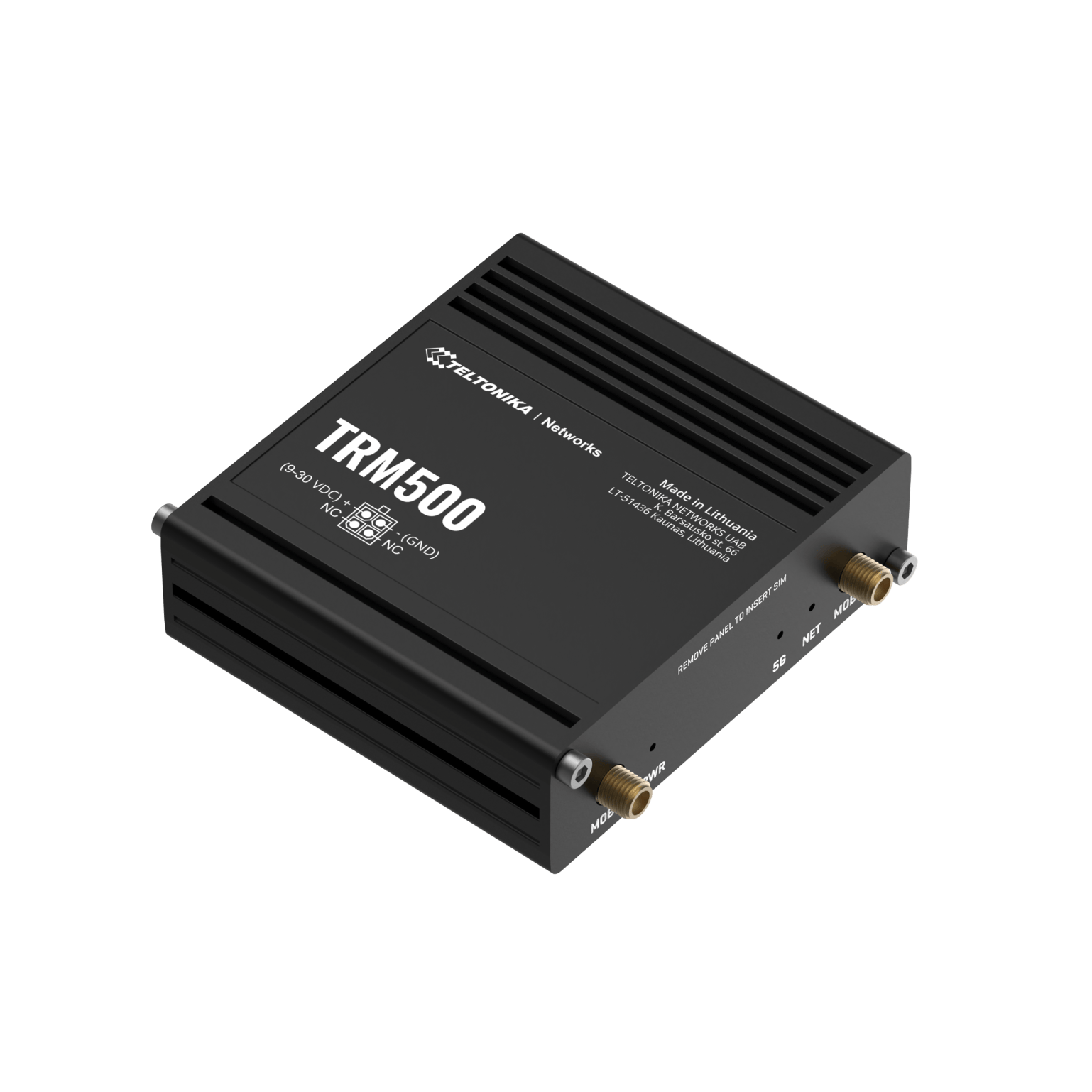

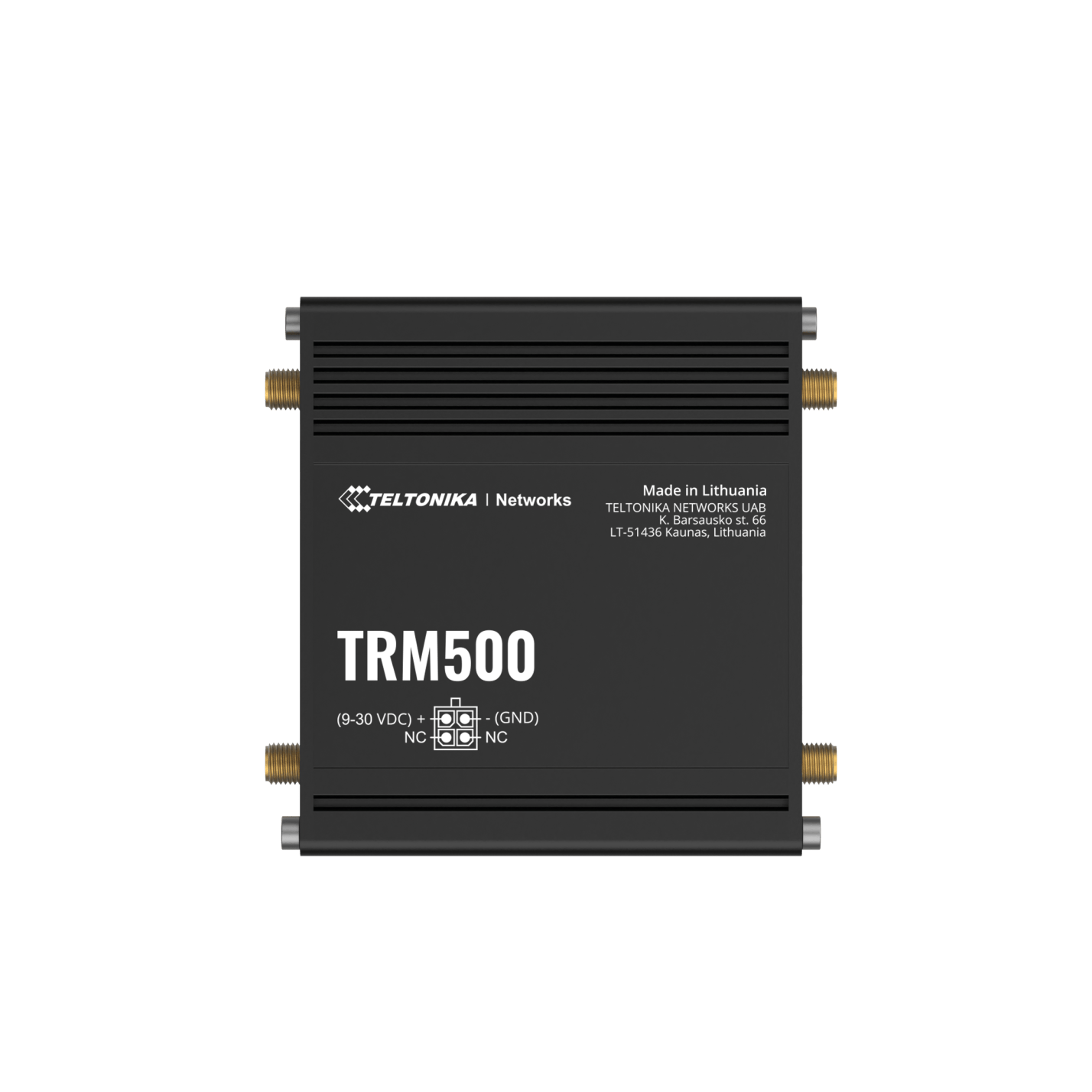

Teltonika TRM500 Industrial Rugged Cellular LTE 5G USB Modem
Ultra-Fast Industrial 5G USB-C Modem for High-Speed IoT & Edge Connectivity
The Teltonika TRM500 is a high-performance industrial-grade 5G USB modem designed for industrial automation, edge computing, transportation, digital signage, embedded systems, and next-generation IoT applications. Featuring ultra-fast 5G connectivity, USB Type-C networking and power, 4 × external SMA antennas, and rugged industrial construction, the TRM500 delivers reliable high-speed cellular connectivity for demanding industrial environments.
According to the official Teltonika datasheet and flyer, the TRM500 supports 5G Sub-6 GHz SA/NSA with download speeds up to 3.4 Gbps, while maintaining backward compatibility with LTE Cat 19 and 3G networks.
Key Features
-
Ultra-Fast 5G Connectivity
Supports 5G Sub-6 GHz SA/NSA with speeds up to 3.4 Gbps download.
-
Backward Compatible with 4G & 3G
Ensures seamless operation across existing LTE and legacy mobile networks.
-
USB Type-C for Power & Data
Single USB-C interface supports both network connectivity and device power.
-
4 × External SMA Antenna Connectors
Enhanced signal strength and 4x4 MIMO support for maximum 5G performance.
-
Industrial Rugged Design
Compact anodized aluminium housing built for harsh industrial environments.
-
Wide Input Power Support
Operates from either industrial DC input or USB Type-C power.
-
Broad Operating System Compatibility
Supports Windows, Linux, and Android environments for flexible deployment.
Why Choose the Teltonika TRM500?
The TRM500 is ideal for deployments requiring:
- High-speed industrial 5G connectivity
- Compact embedded modem integration
- Reliable low-latency communications
- USB-based networking
- Industrial edge computing
- Rugged outdoor and industrial operation
- Future-proof cellular connectivity
- Easy deployment into existing systems
Its combination of industrial durability, compact size, and ultra-fast 5G speeds makes it perfect for modern industrial and enterprise applications.
Typical Applications
- Industrial edge computing
- Smart manufacturing
- AI & vision systems
- Remote monitoring gateways
- Transportation & fleet systems
- Digital signage
- Industrial PCs & embedded systems
- Smart city infrastructure
- Video streaming & surveillance
- High-speed IoT gateways
Technical Highlights
5G Cellular Connectivity
- 5G Sub-6 GHz SA/NSA
- Up to 3.4 Gbps download
- Up to 550 Mbps upload
- 4x4 MIMO downlink support
- LTE Cat 19 fallback up to 1.6 Gbps DL
- 3G fallback support
- 3GPP Release 16 modem

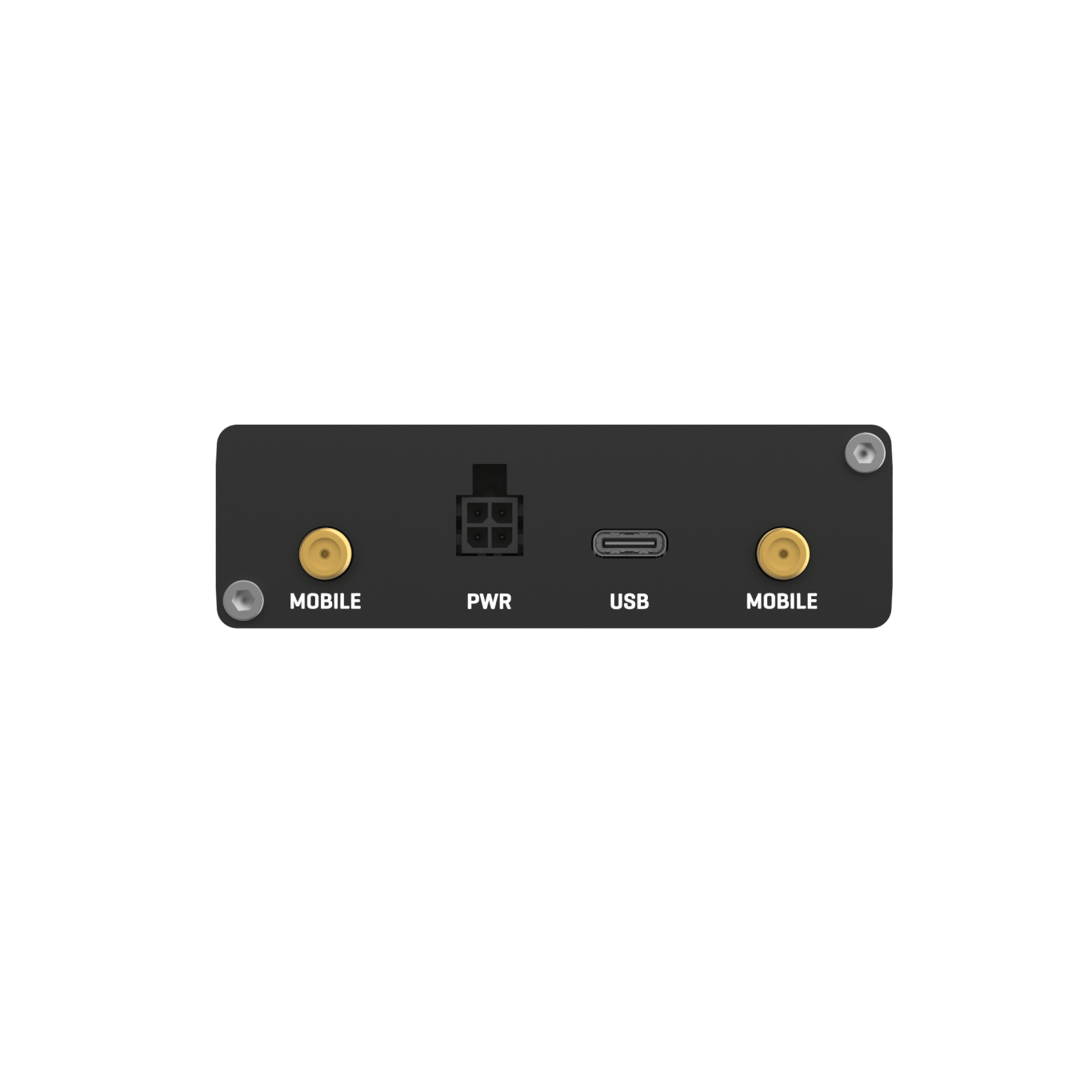

USB-C Networking
- USB Type-C interface
- Simultaneous:
- Network data
- Device power
- Virtual network interface via USB-C
Power Options
Supports:
- 9–30 VDC industrial input
- USB Type-C 5V power
- Overvoltage protection
- Reverse polarity protection
- Surge protection >35 VDC
SIM Features
- 1 × Mini SIM slot (2FF)
- Supports 1.8 V / 3 V SIM cards
Antenna System
- 4 × SMA mobile antenna connectors
- Enhanced 5G signal reception
- 4x4 MIMO support

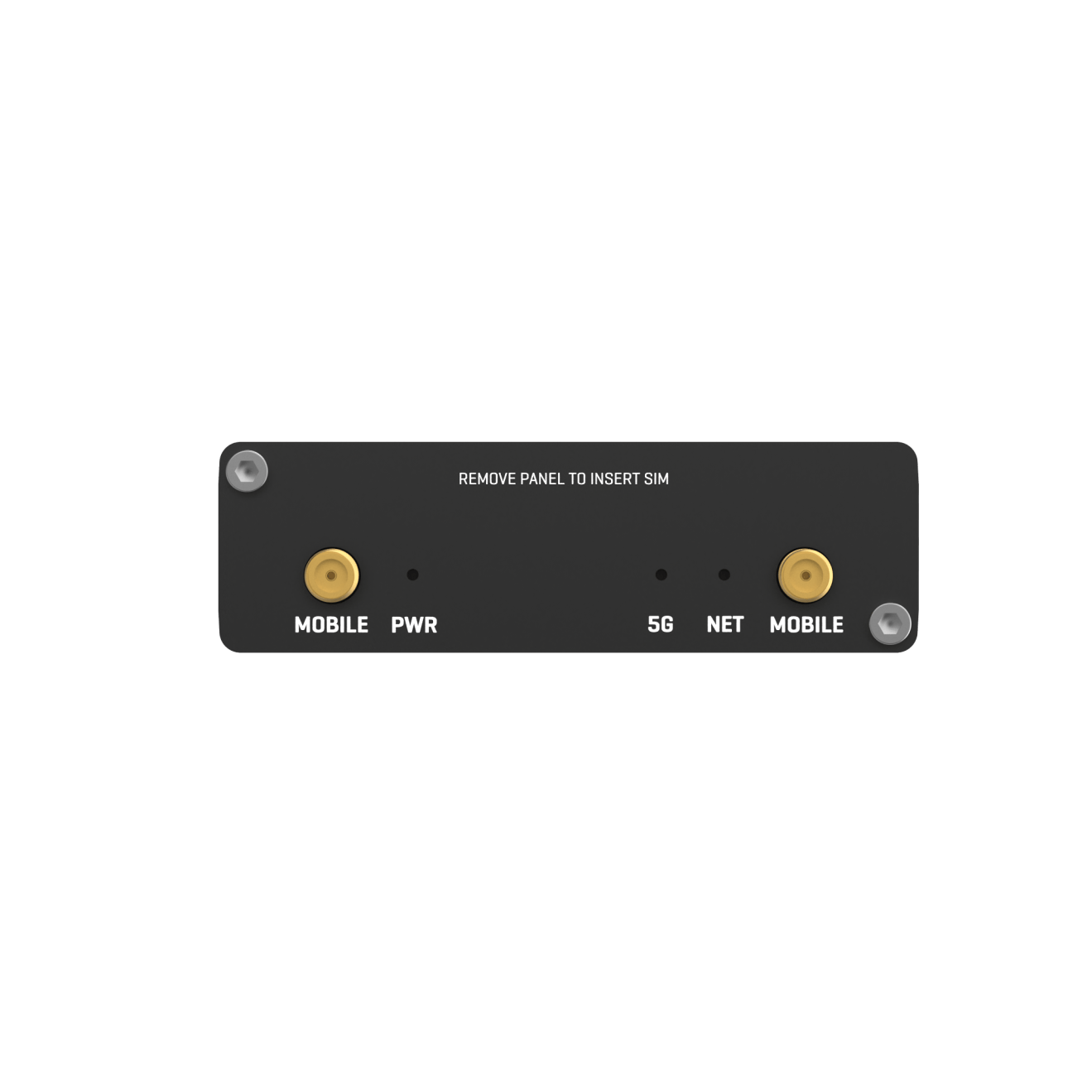

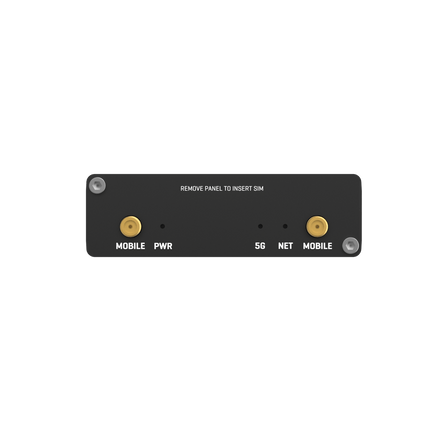

Status LEDs
- Power LED
- 5G status LED
- Network status LED
Software & Driver Support
Supports:
- Windows Connection Manager
- Linux Modem Manager
- Windows 7/8/8.1/10/11
- Linux kernel 2.6–6.3
- Android 4.x–13
- MBIM Driver
- Gobinet Driver
- QMI_WWAN Driver
- NDIS Driver
Power Consumption
- Idle: < 5 W
- Maximum: < 12 W
Physical Specifications
- Anodized aluminium housing
- Dimensions: 83 × 25 × 85.4 mm
- Weight: 94.5 g
Mounting Options
- DIN rail mounting
- Wall mounting
- Flat surface installation
Operating Environment
- Operating temperature: -40°C to +75°C
- IP30 rated
- 10%–90% non-condensing humidity
Regional Compatibility
Supports:
- Australia
- APAC regions
- EMEA regions
- Brazil
- Extensive global 5G/LTE bands
