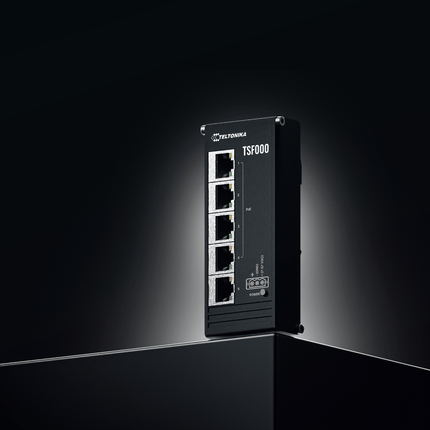

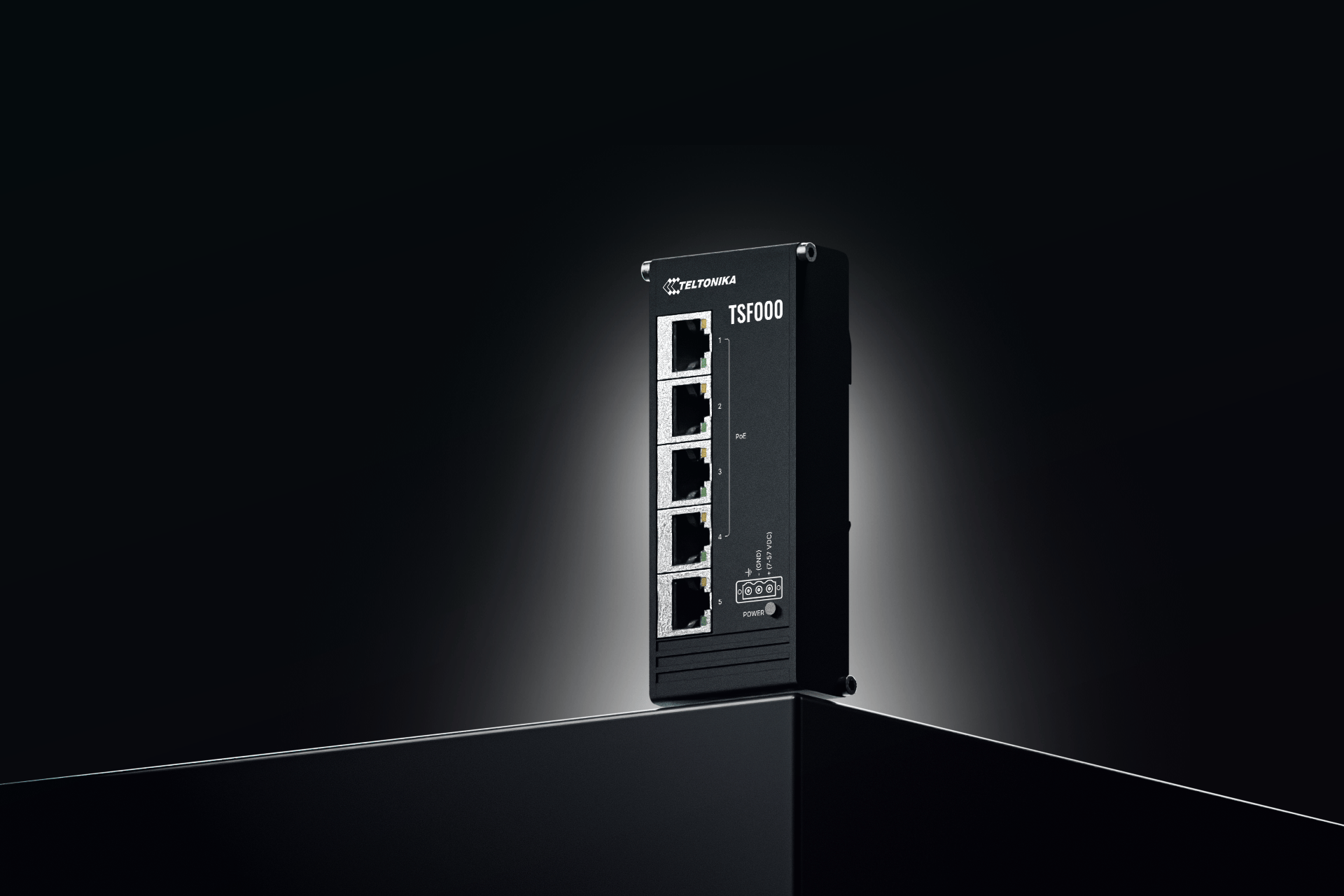

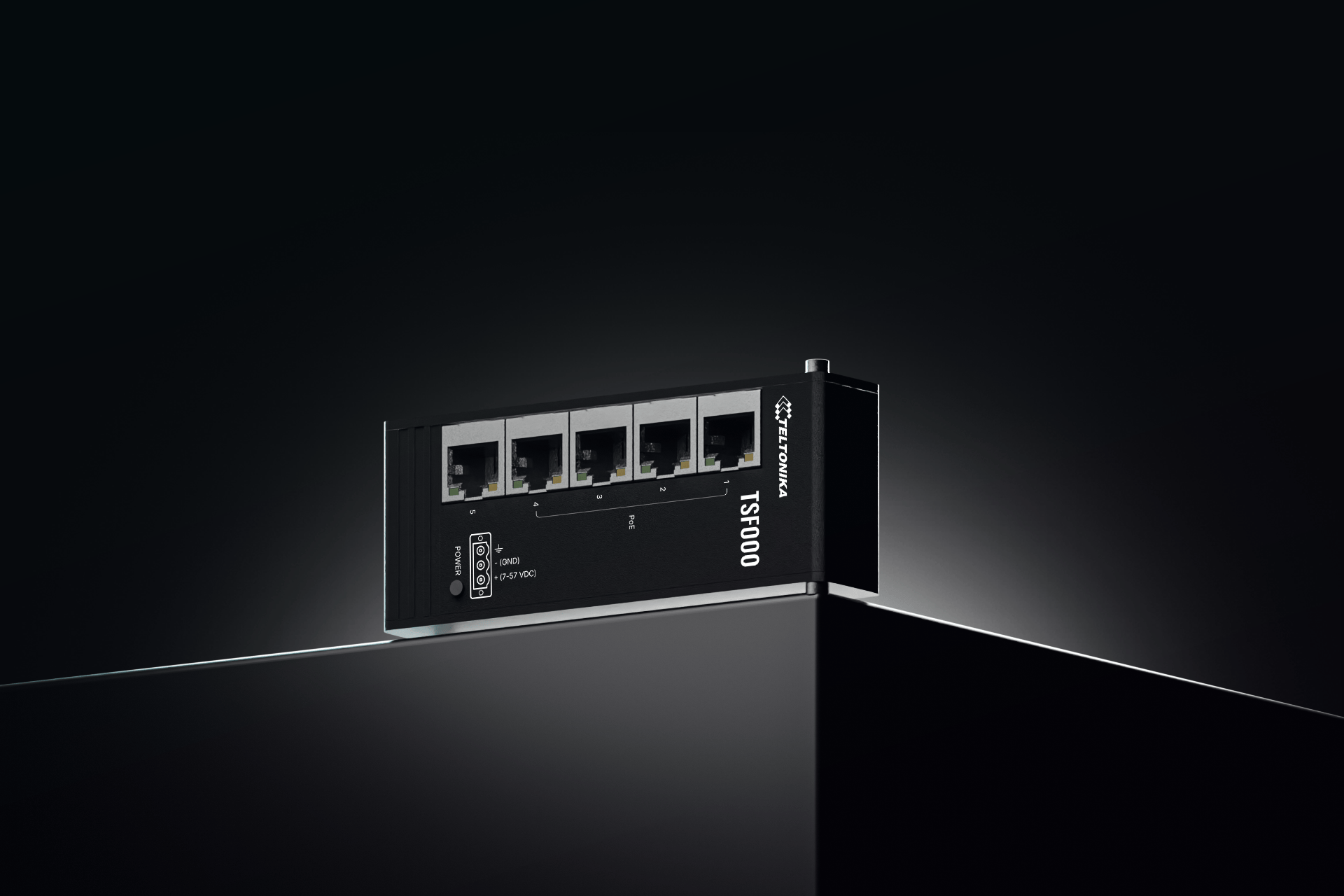

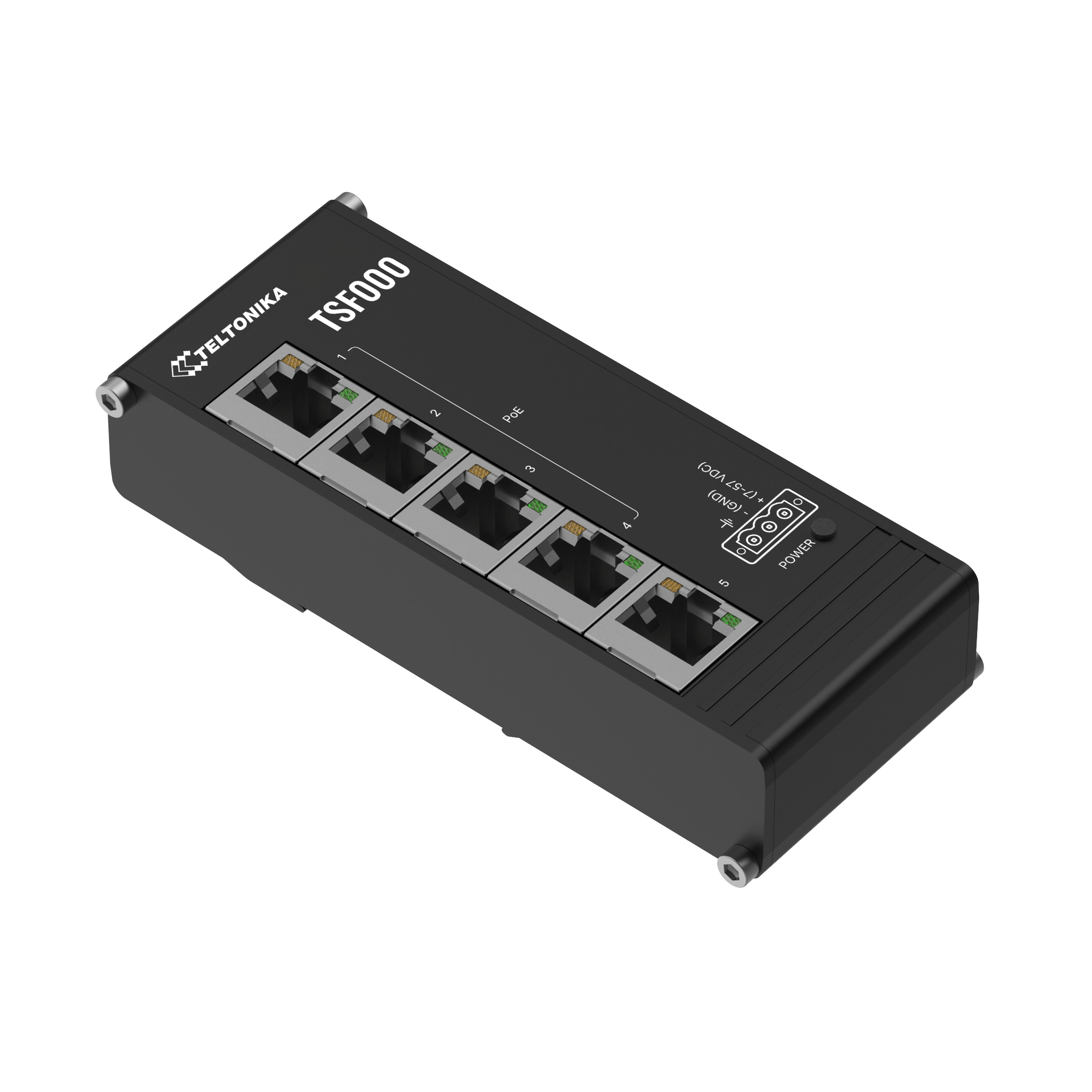

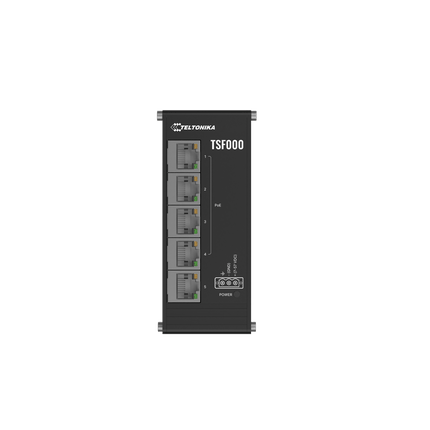

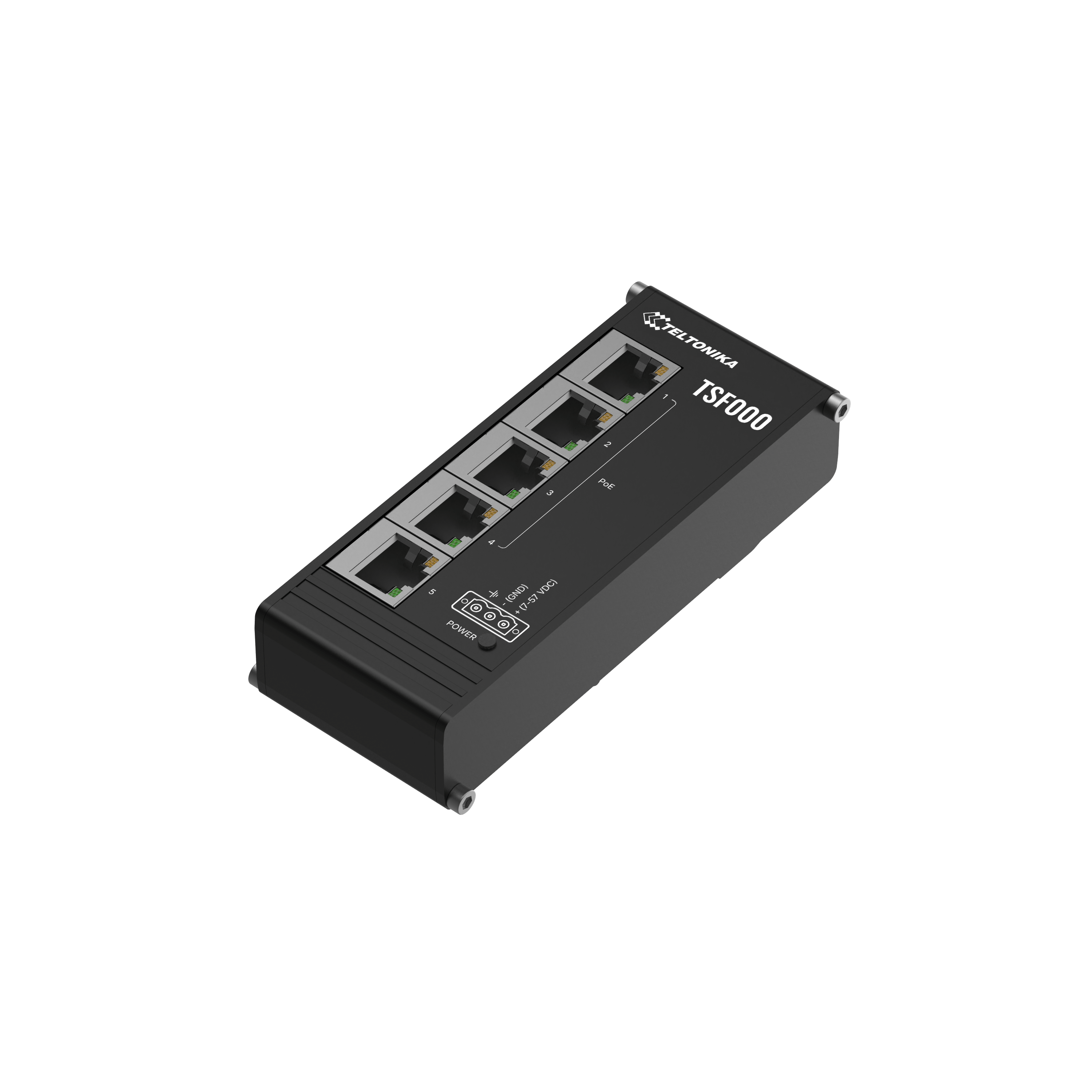

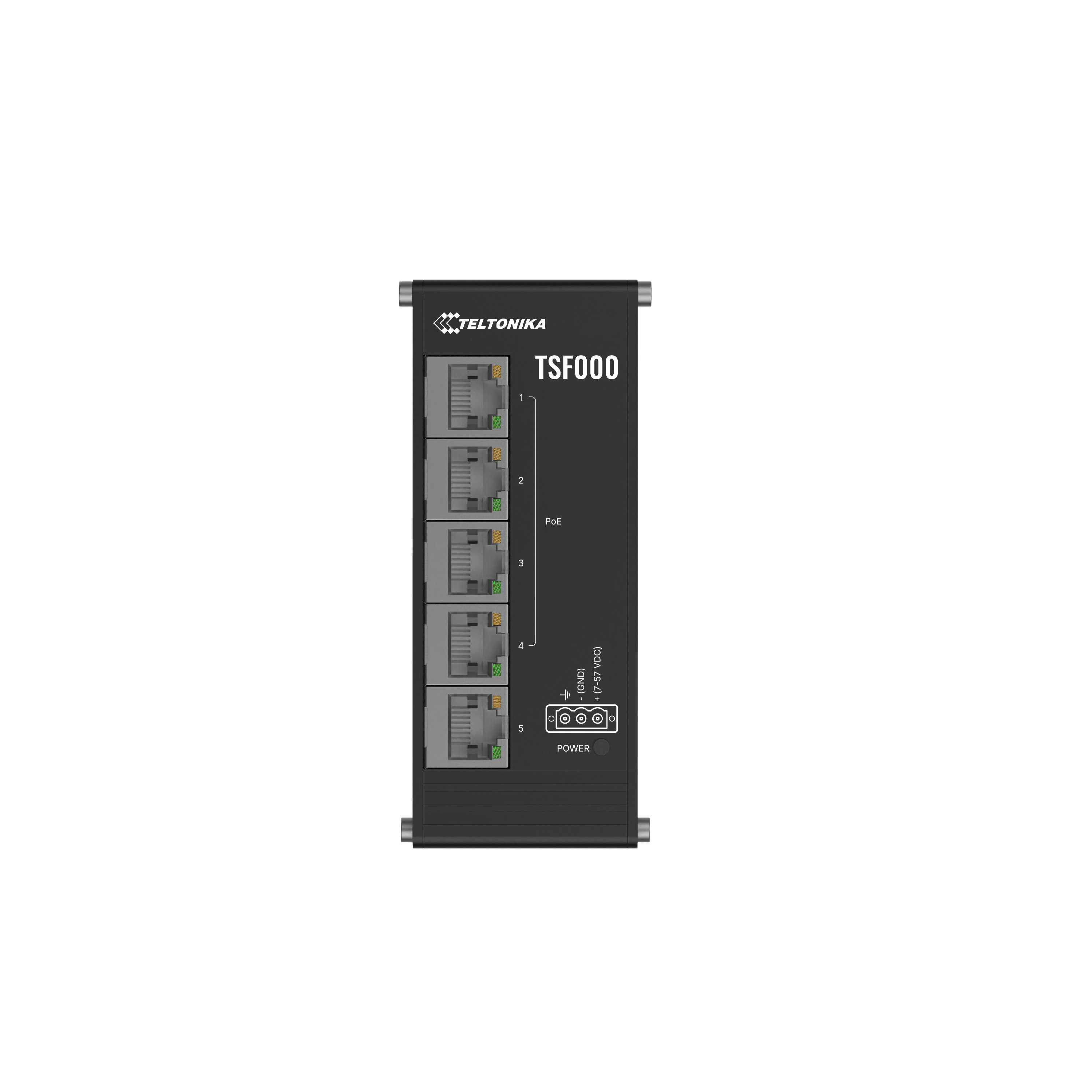

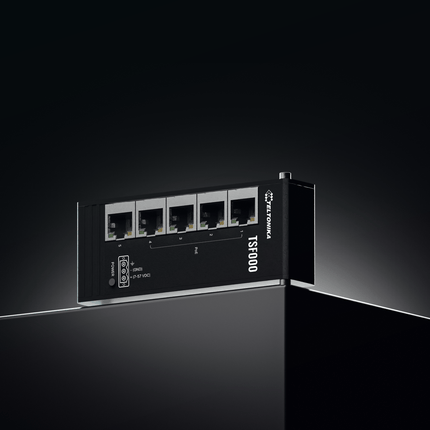

Teltonika TSF000 Low Profile PoE+ Ethernet Switch (5-Port, 4× PoE+, Compact DIN Rail)
Ultra-Compact Industrial PoE+ Switch for Space-Constrained IoT Deployments
The Teltonika TSF000 Low Profile PoE+ Ethernet Switch is a compact, rugged networking solution designed for industrial automation, control cabinets, and space-constrained IoT environments. Featuring 5 Ethernet ports with 4 × PoE+ outputs and a 120W power budget, the TSF000 delivers both power and data over a single cable, simplifying deployments and reducing wiring complexity.
As shown in the datasheet, its flat, low-profile design with DIN rail mounting makes it ideal for installations where space is limited while maintaining industrial-grade reliability.
Key Features
-
4 × PoE+ Output Ports (802.3af/at)
Deliver up to 30W per port with a total 120W PoE budget
-
5 × Ethernet Ports (10/100 Mbps)
Reliable connectivity for industrial devices and network expansion
-
Low-Profile Compact Design
Slim housing ideal for control cabinets and tight installations
-
DIN Rail Mounting
Easy installation in industrial enclosures and panels
-
Flexible Power Input (7–57 VDC)
Compatible with a wide range of industrial and vehicle power systems
-
Plug-and-Play Operation
Unmanaged switch—no configuration required for quick deployment
Why Choose TSF000?
-
Designed for Tight Spaces
Ultra-slim form factor fits easily into compact industrial cabinets
-
Simplified Power Distribution
Power multiple devices (cameras, sensors, APs) via PoE+
-
Reliable Industrial Performance
Wide temperature range and rugged aluminium housing
-
Cost-Effective IoT Networking
Ideal for simple deployments without the need for managed switching
The TSF000 is perfect for applications requiring compact, efficient, and reliable PoE connectivity.
Typical Applications
- Industrial control panels & cabinets
- CCTV and video surveillance systems
- Smart city infrastructure
- Energy & utilities monitoring
- Retail and kiosk installations
- IoT sensor networks
Technical Highlights
-
Ethernet: 5 × RJ45 ports (10/100 Mbps)
-
PoE: 4 × PoE+ ports (802.3af/at), up to 30W per port
-
Total PoE Budget: 120W
-
Switching Capacity: 10 Gbps non-blocking bandwidth
-

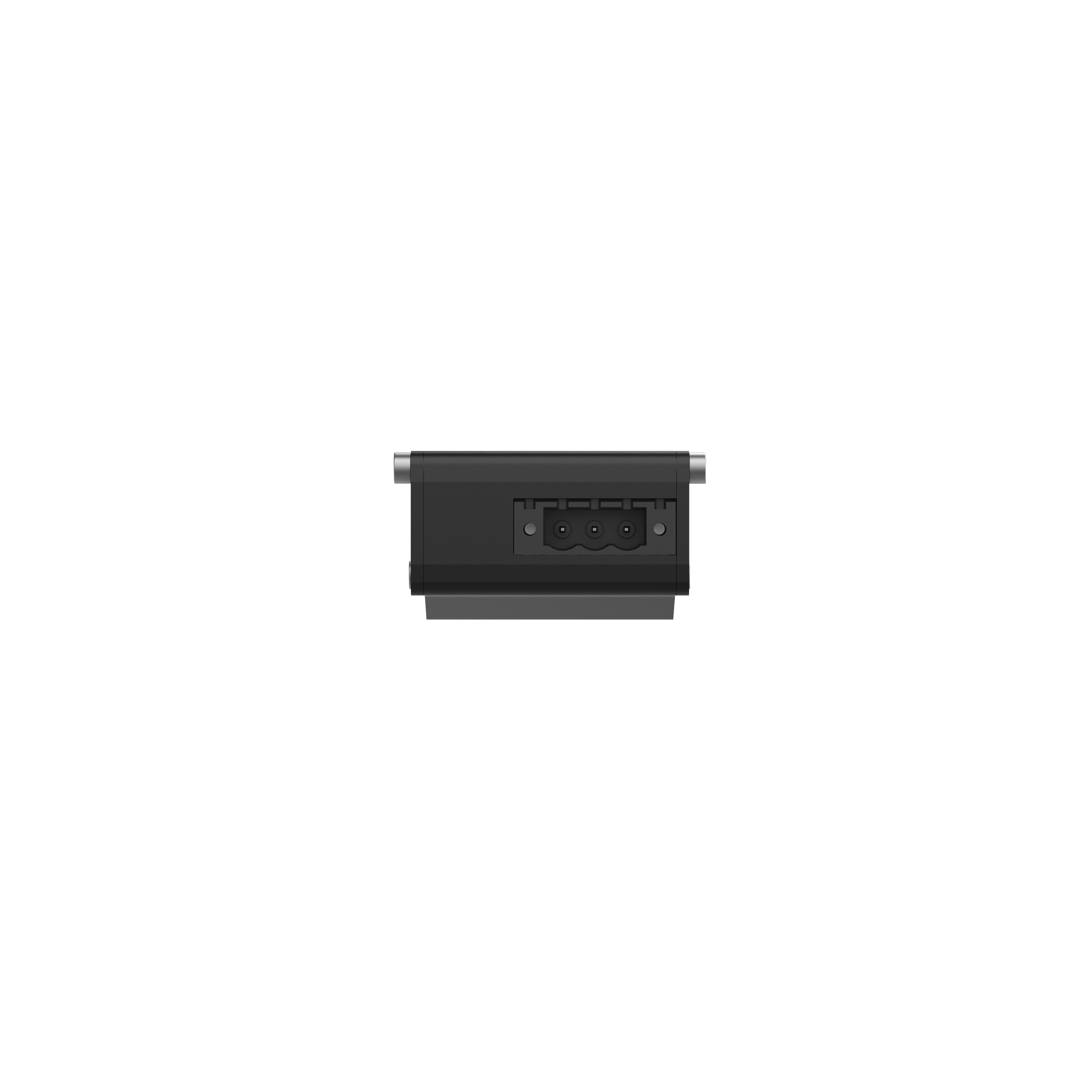

Power Input: 7–57 VDC industrial input
-
Power Consumption: Idle ~1W, Max ~1.5W (excluding PoE load)
-
Operating Temp: -40°C to +75°C
-

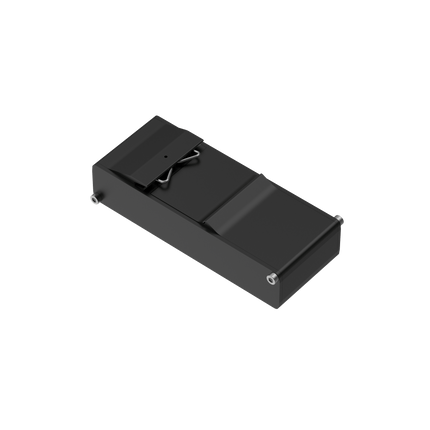

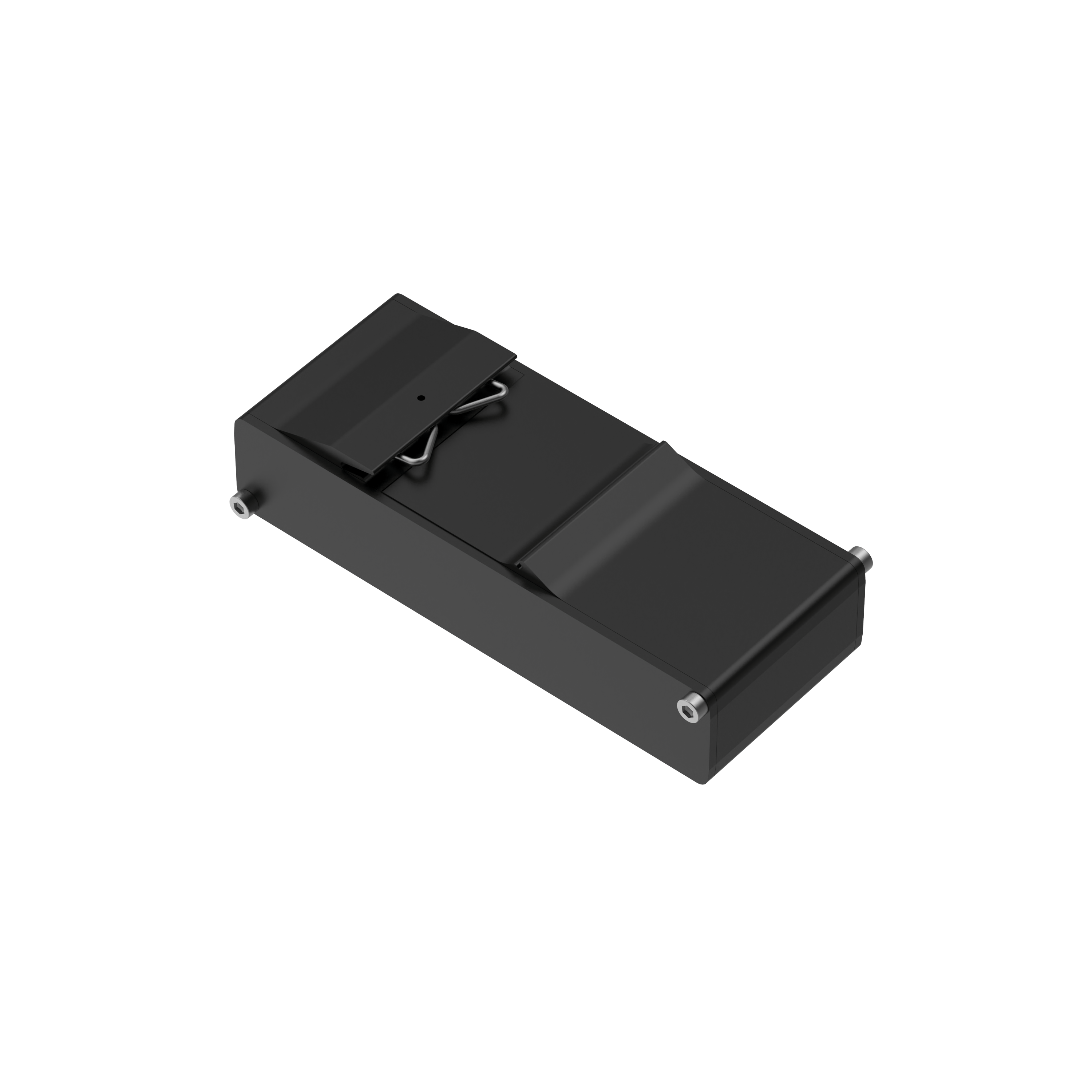

Mounting: Integrated DIN rail bracket
-
Housing: Anodized aluminium (IP30 rated)
-
Weight: 142 g (lightweight design)
Resources:
Teltonika TSF000 Flyer
Teltonika TSF000 Datasheet
Teltonika TSF000 Quick User Guide
Teltonika TSF000 User Guide
Teltonika TSF000 Models
