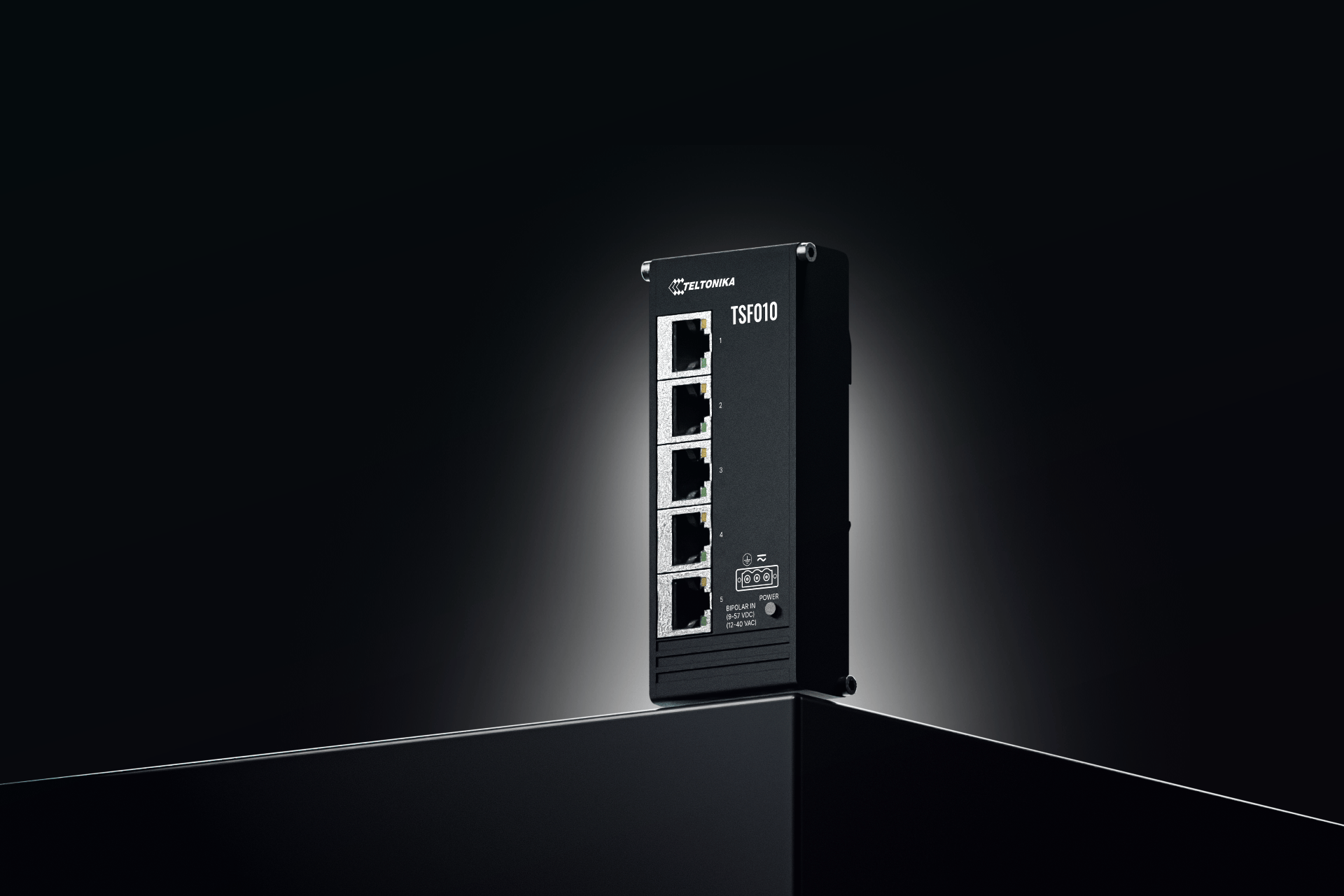

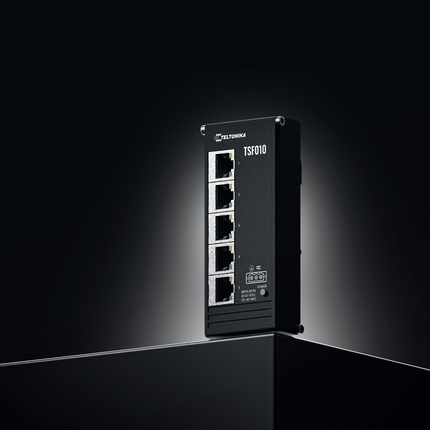

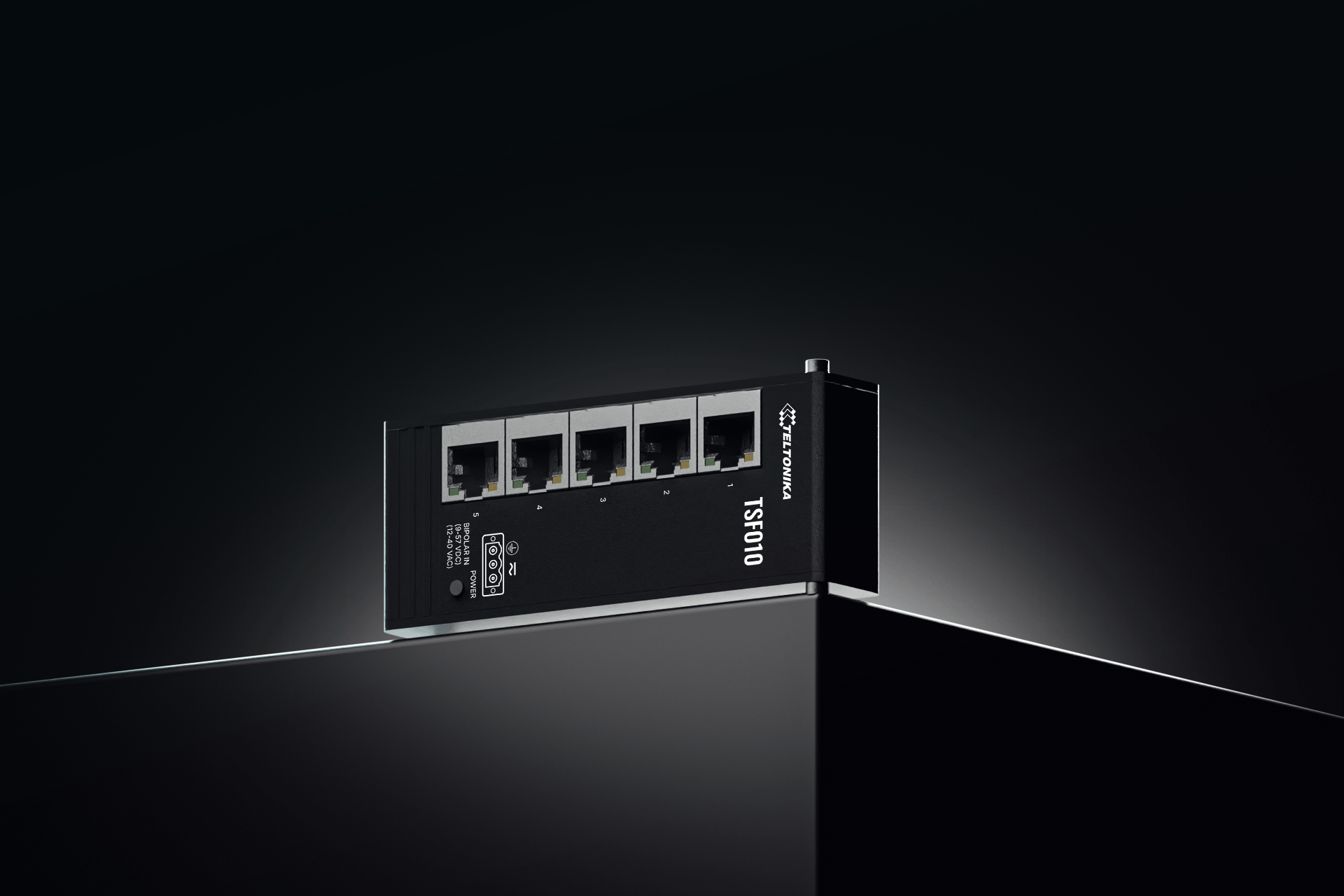

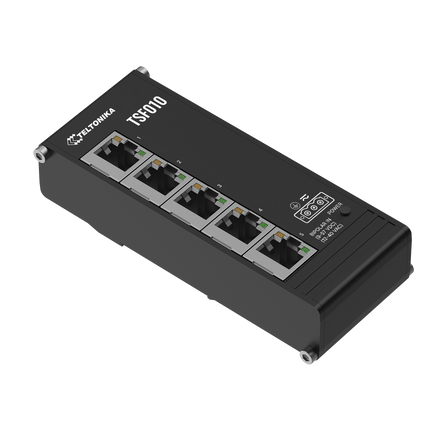

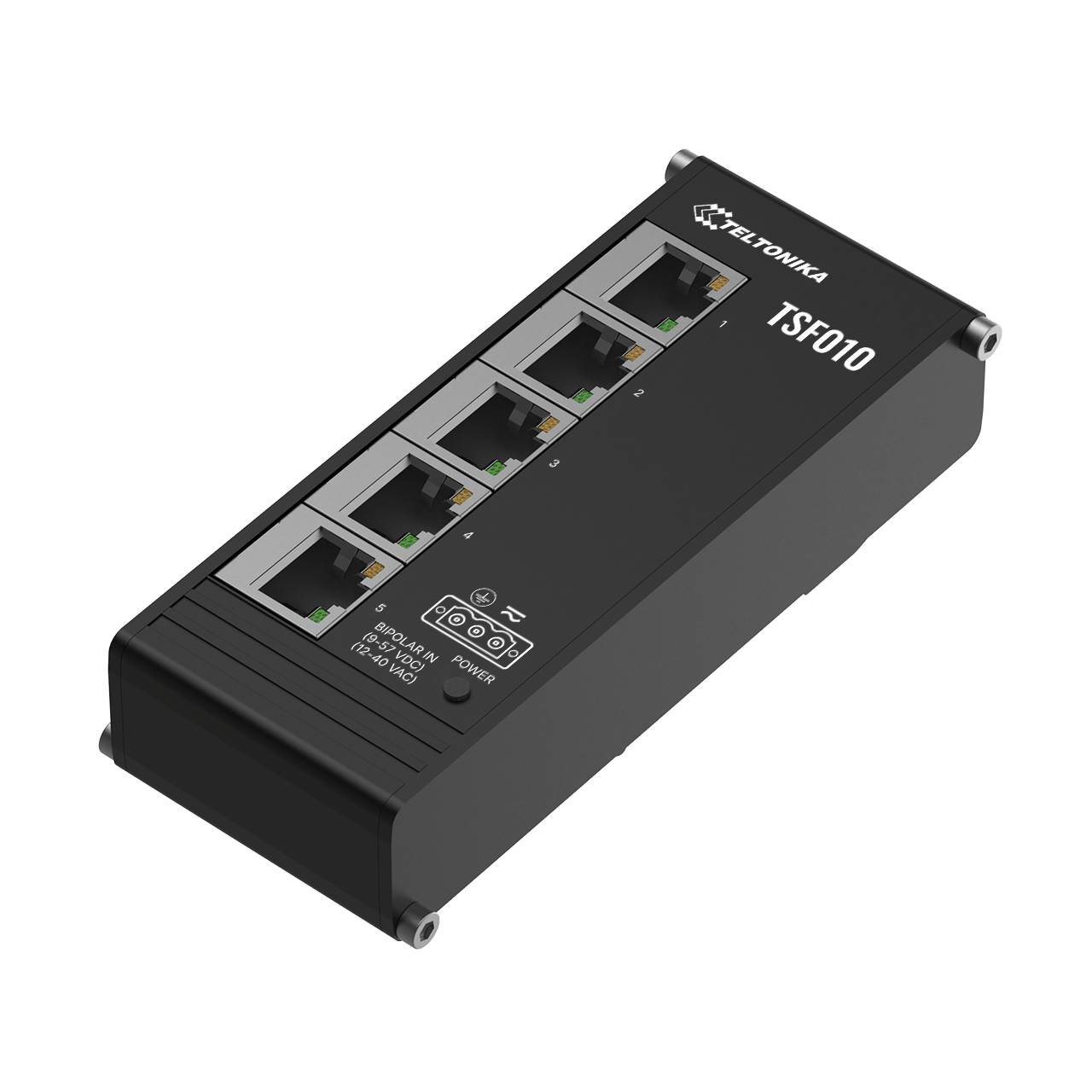

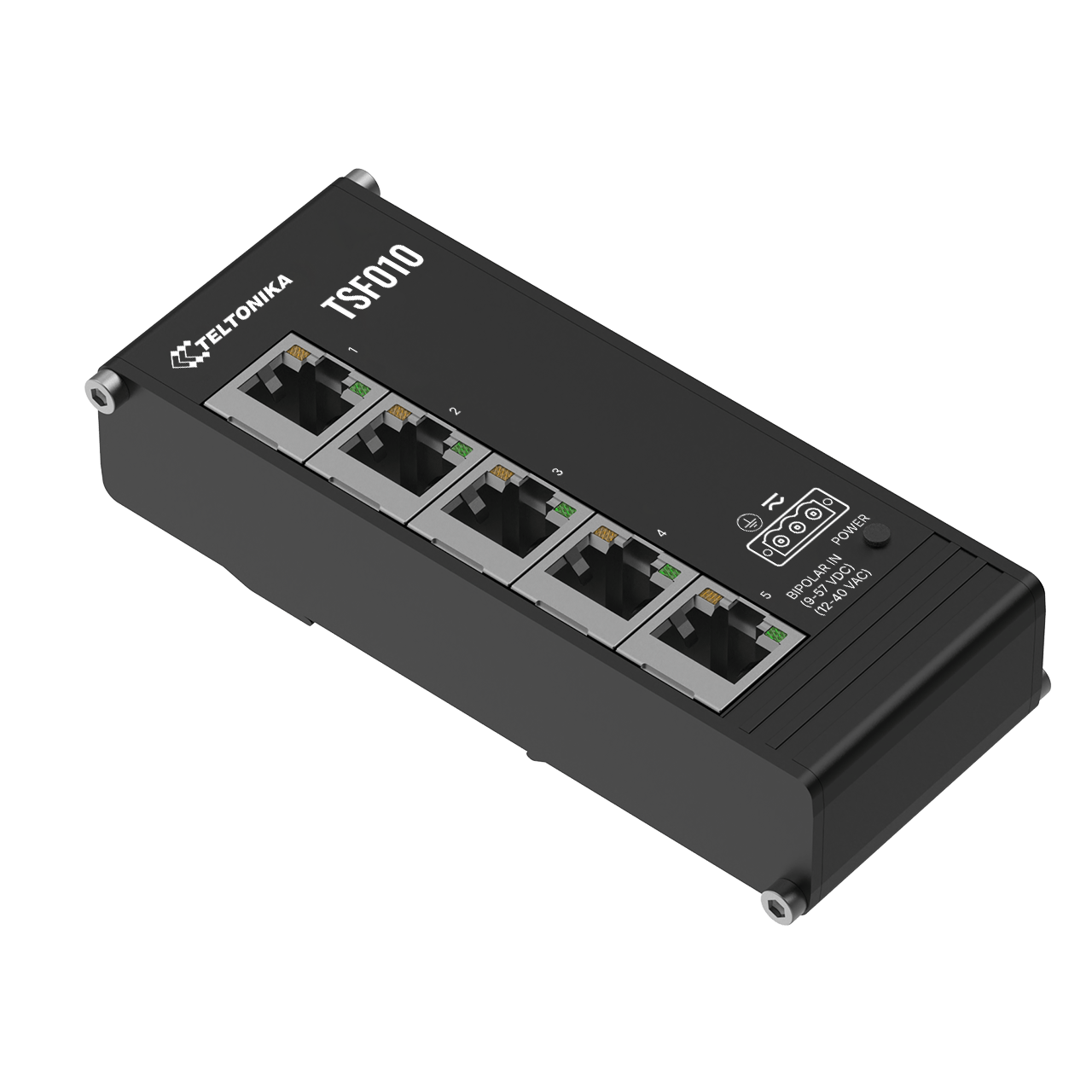

Teltonika TSF010 Low Profile Ethernet Switch 5-Port Compact DIN Rail
The Teltonika TSF010 is a compact, low-profile industrial unmanaged Ethernet switch designed for space-constrained control cabinets, automation panels and industrial networking applications.
Featuring 5 × 10/100 Mbps RJ45 Ethernet ports, an integrated DIN rail bracket and rugged anodised aluminium housing, the TSF010 provides simple plug-and-play Ethernet connectivity without requiring any network configuration.
Its exceptionally slim 28 mm profile and lightweight 142 g construction make it particularly useful where DIN rail space is limited. Teltonika specifically designed the TSF010 for industrial cabinet applications, combining a flat enclosure, integrated DIN rail mounting and flexible industrial power input.
Key Features

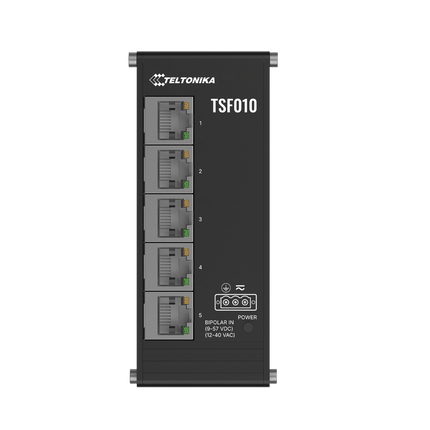

- 5 × 10/100 Mbps RJ45 Ethernet ports
- Unmanaged plug-and-play operation
- No network configuration required
- Ultra-slim 28 mm profile
- Compact 113 × 28 × 50 mm enclosure
- Lightweight design – only 142 g
- Integrated DIN rail bracket
- Rugged anodised aluminium housing
- Wide 9–57 VDC power input on current models
- Selected versions support 12–40 VAC, 50/60 Hz

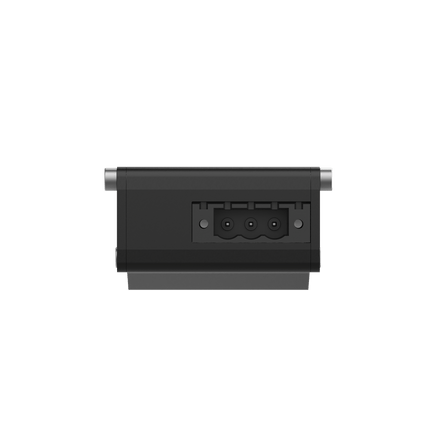

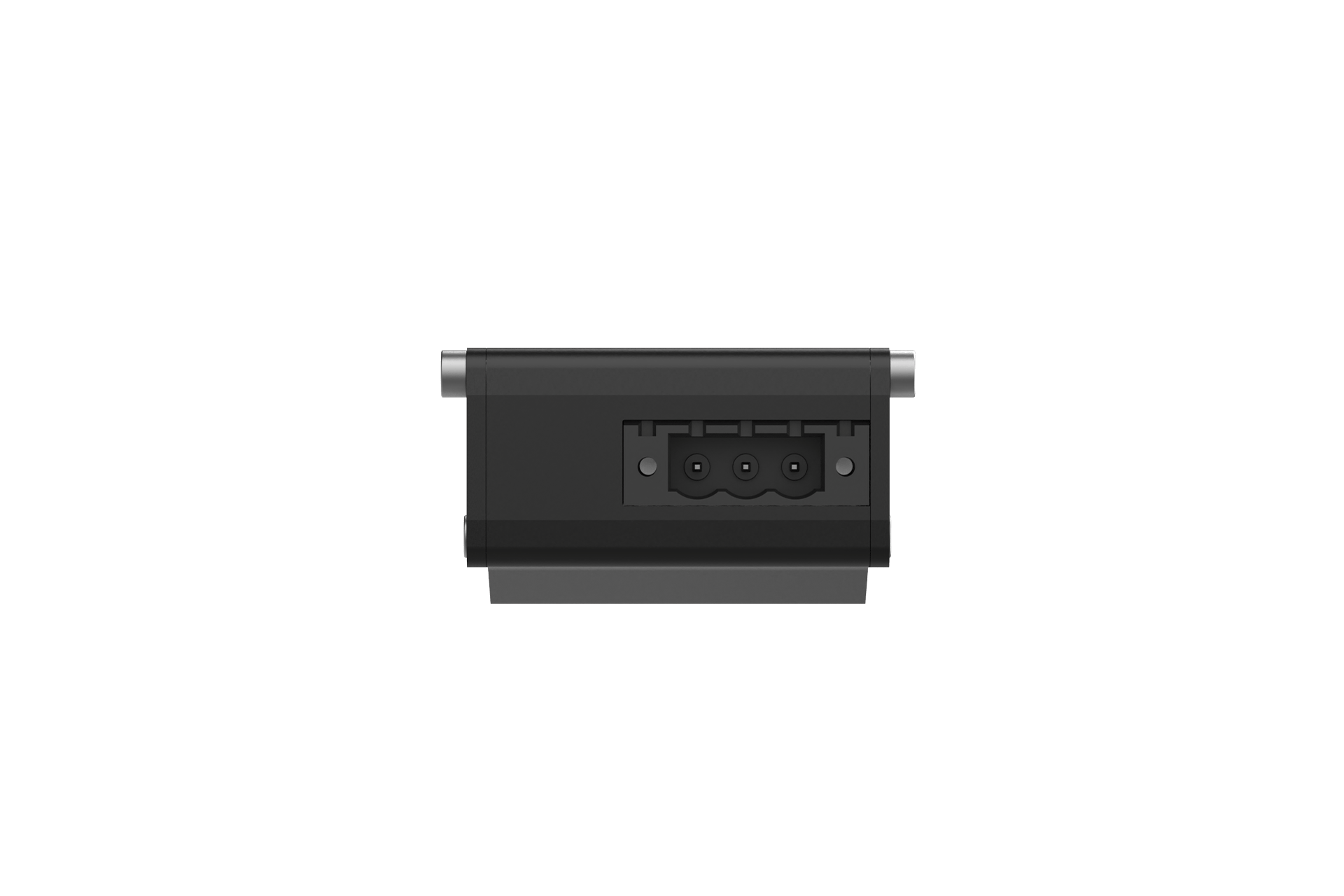

- 3-pin industrial power connector
- Grounding terminal integrated into power connector
- Low power consumption – approximately 1 W idle / 1.5 W maximum
- Auto MDI/MDIX crossover
- 10 Gbps non-blocking bandwidth
- 9216-byte Jumbo Frame support
- 2K MAC address table
- Wide -40°C to +75°C operating temperature
- IP30 protection
- Optional Profinet Class A version
- Ideal for industrial cabinets and space-constrained installations

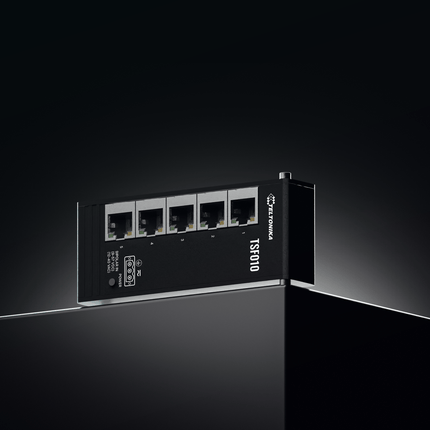

Compact Low-Profile Industrial Design
One of the main advantages of the TSF010 is its extremely compact enclosure.
The switch measures just:
113 × 28 × 50 mm
and weighs:
142 g

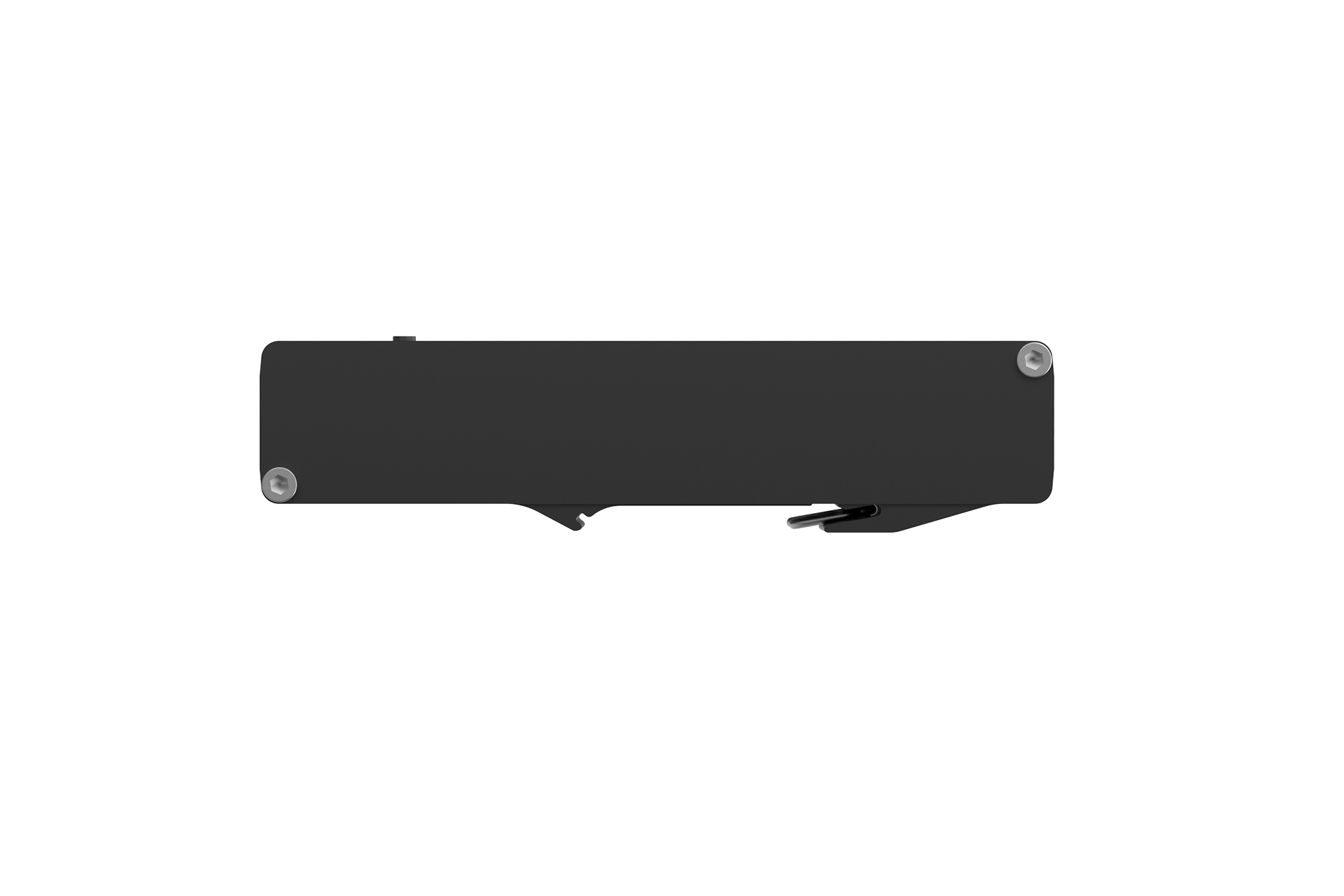

At only 28 mm wide, it occupies minimal DIN rail space compared with many conventional industrial Ethernet switches.
This makes the TSF010 particularly suitable for crowded electrical and automation cabinets where available DIN rail space is valuable. Teltonika highlights the flat, compact design as one of the product's primary features.

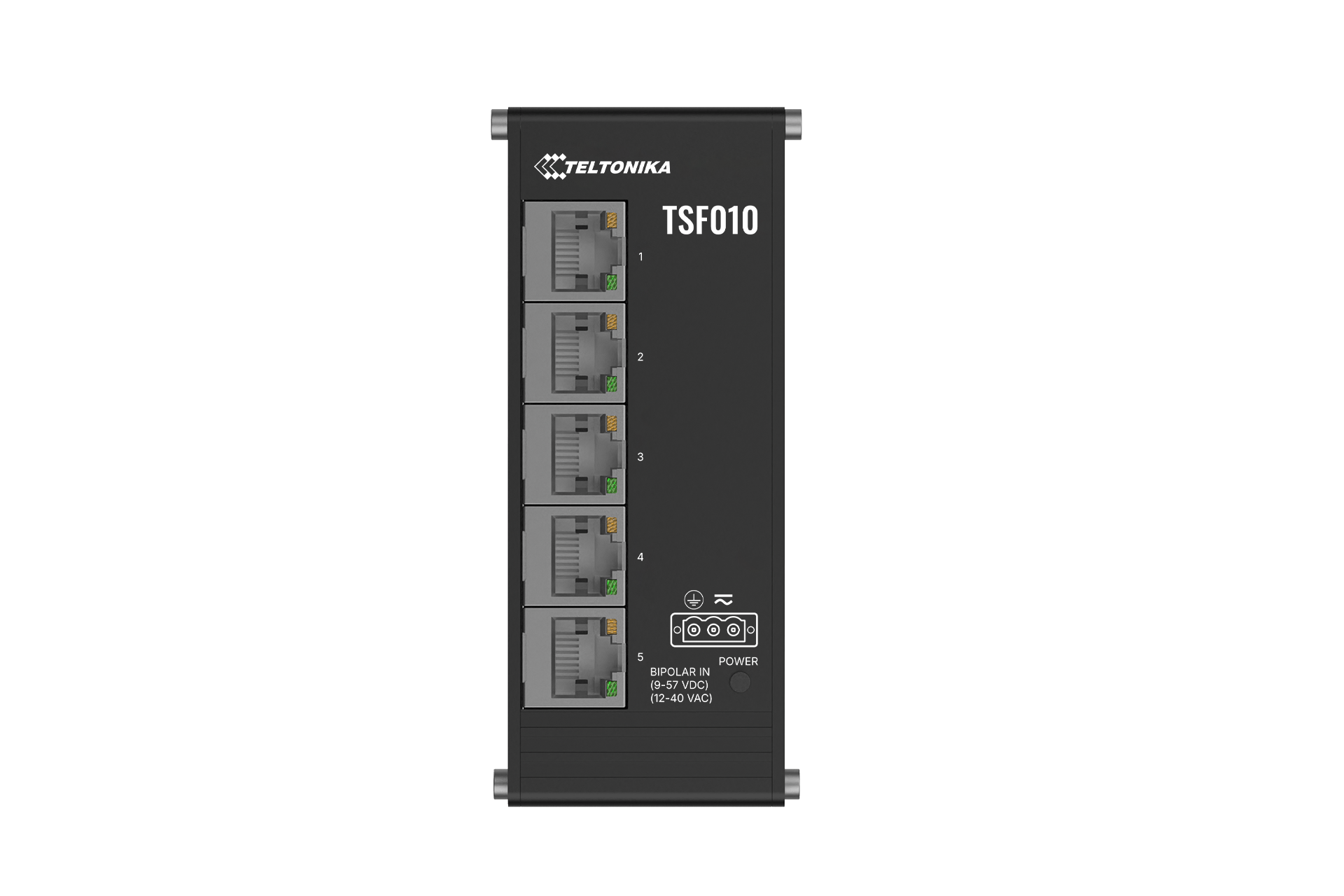

5-Port Fast Ethernet Connectivity
The TSF010 provides:
5 × RJ45 Ethernet ports
supporting:
10/100 Mbps
The ports also support automatic MDI/MDIX crossover, simplifying installation without needing to consider straight-through versus crossover Ethernet cables.
The five ports are suitable for connecting devices such as:
- PLCs
- HMIs
- Industrial controllers
- IoT gateways
- Cellular routers
- Remote I/O
- Data loggers
- Industrial PCs
- Building automation controllers
- Ethernet-enabled sensors and instruments
Plug-and-Play Unmanaged Operation
The TSF010 is an unmanaged Ethernet switch, making deployment straightforward.
There is no requirement to configure an IP address, management interface or switching parameters.
Installation is essentially:
Connect Power → Connect Ethernet Devices → Network Operates
This makes the TSF010 a practical choice for simple industrial networks where managed switching functions are unnecessary.
Integrated DIN Rail Bracket

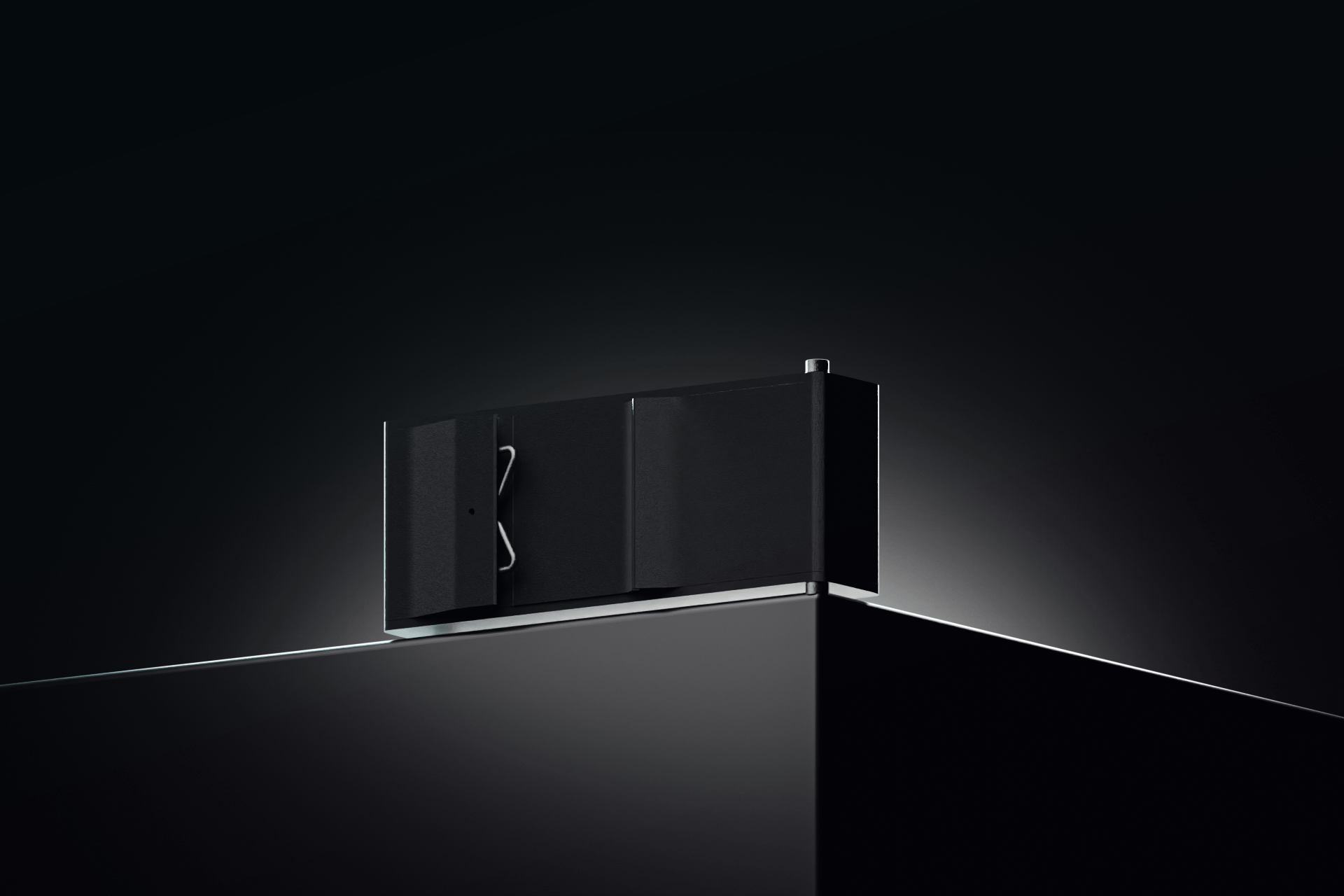

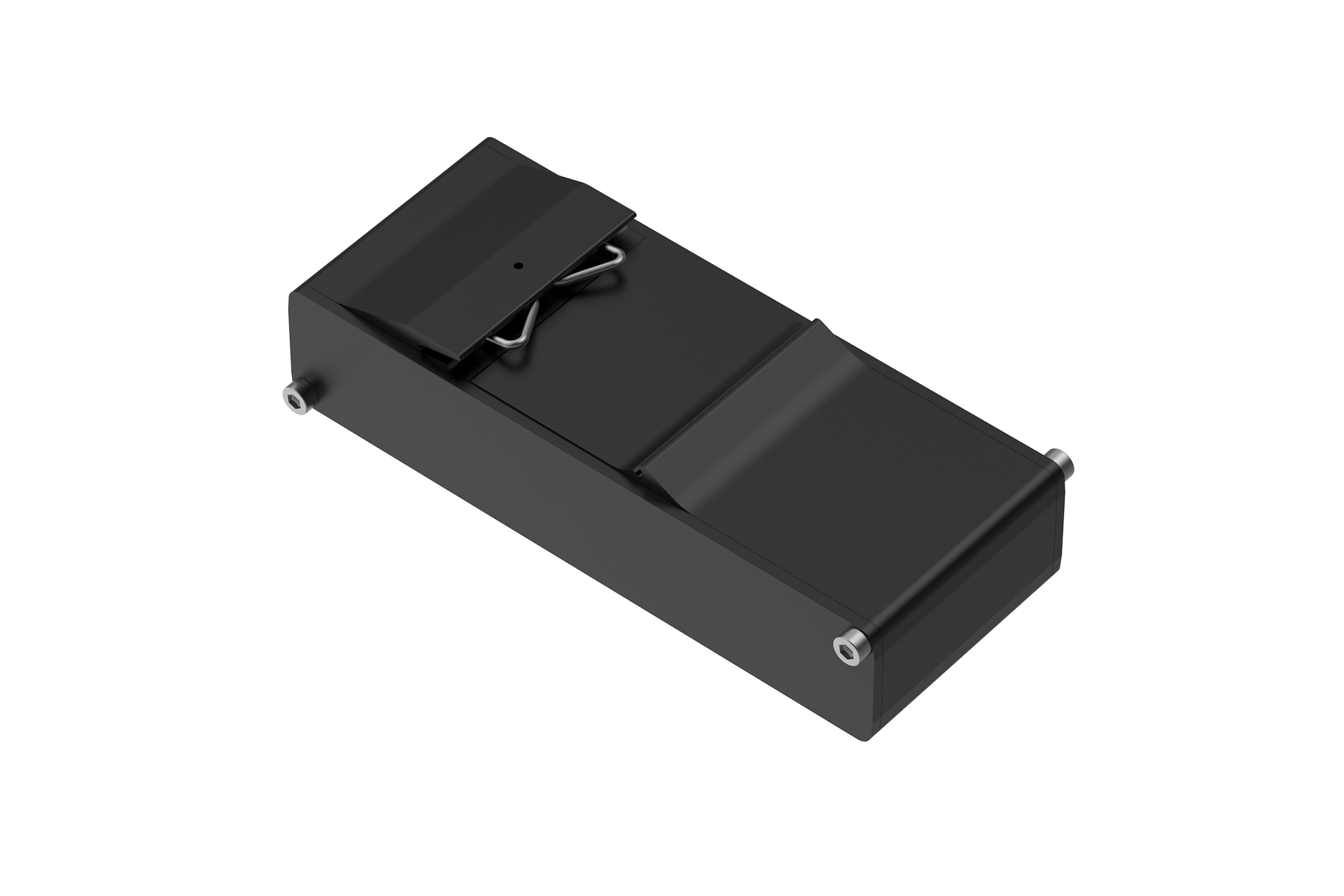

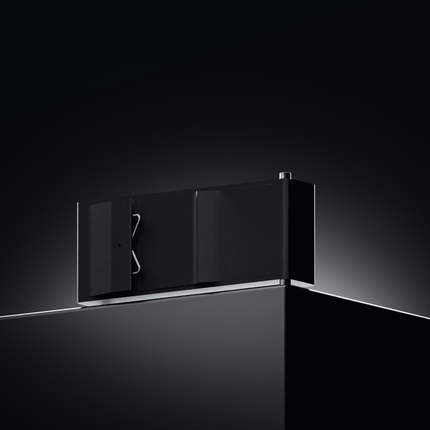

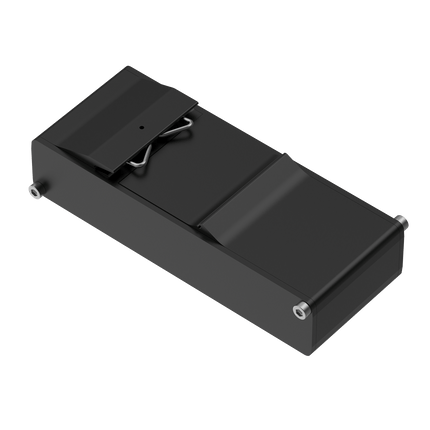

The TSF010 includes an integrated DIN rail bracket, allowing it to mount directly onto a DIN rail without requiring a separate mounting accessory.

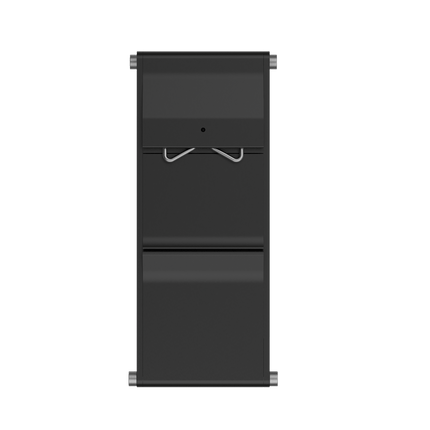

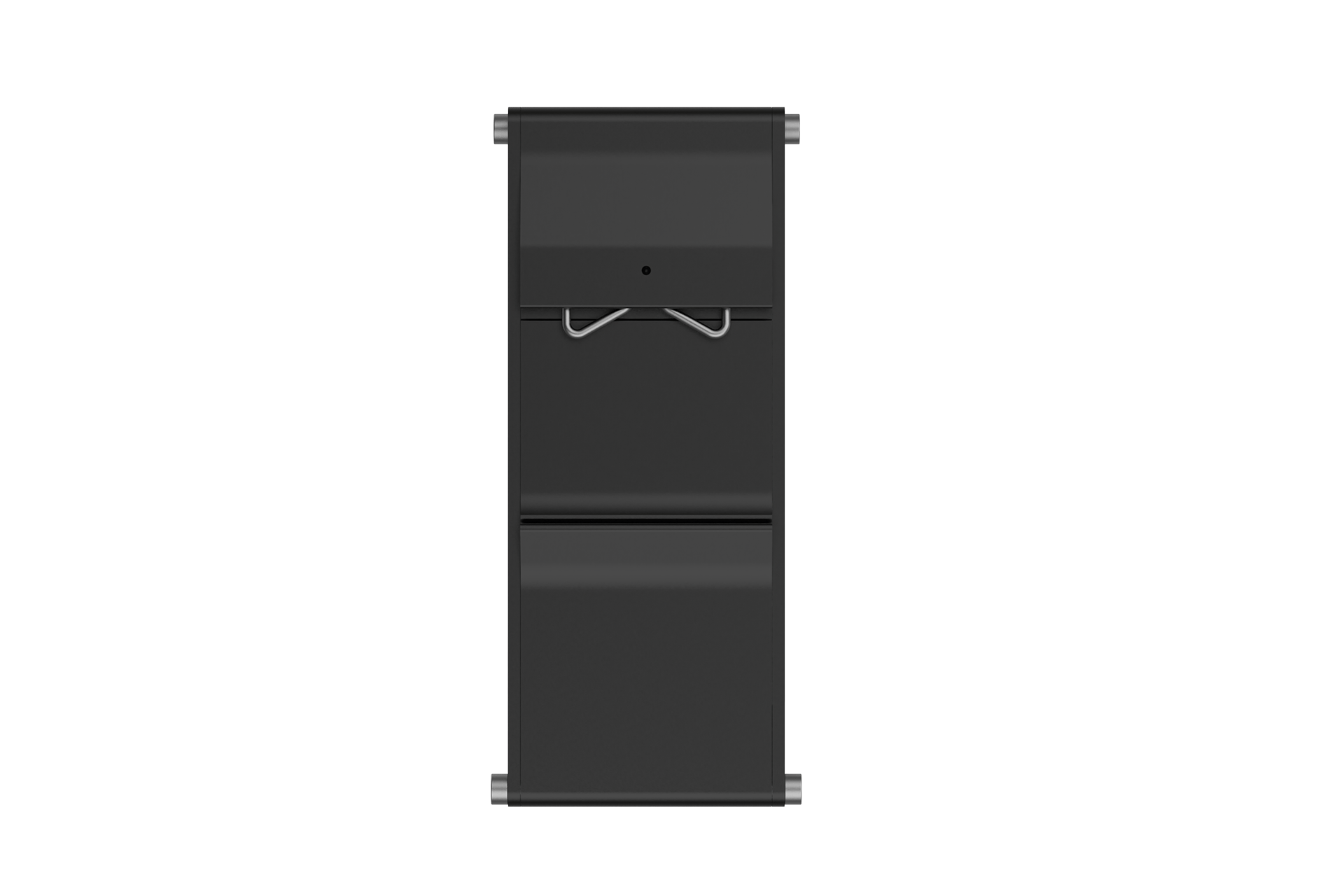

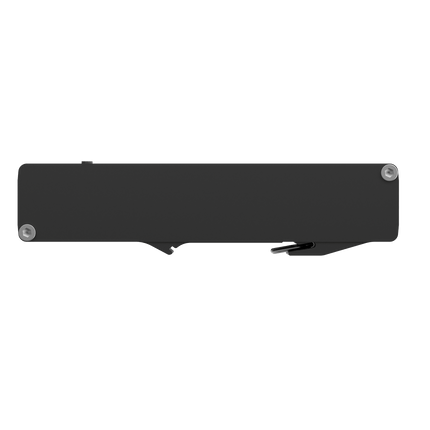

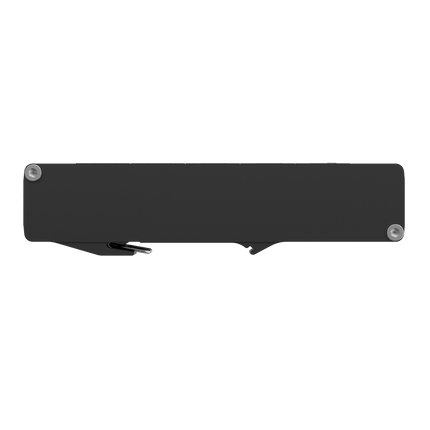

The rear-view hardware diagram in Teltonika's current datasheet shows the DIN rail clip integrated directly into the slim aluminium enclosure.
This makes the switch particularly well suited to:
- Control cabinets
- Electrical panels
- PLC cabinets
- Automation enclosures
- Machine control systems
- Building management panels
- Remote monitoring cabinets
Wide Industrial DC Power Input
The latest Teltonika TSF010 datasheet specifies a:
9–57 VDC input range
through the 3-pin industrial power connector.
The power input also incorporates protection features including overvoltage, reverse-polarity and surge protection.
This wide DC input range provides flexibility when integrating the switch into common industrial DC power systems.
AC Power Option
Certain TSF010 order-code variants additionally support:
12–40 VAC, 50/60 Hz
This is variant-dependent, so AC input should not be advertised as standard across every TSF010 model. The current datasheet specifically states that feature availability varies by order code.
Extremely Low Power Consumption
The TSF010 consumes very little power:
-
Idle: approximately 1 W
-
Maximum: approximately 1.5 W
This makes it particularly suitable for remote monitoring cabinets, solar-powered systems and other installations where available power may be limited.
Industrial Performance
Despite its small enclosure, the TSF010 provides:
| Performance Feature |
Specification |
| Non-blocking bandwidth |
10 Gbps |
| Packet buffer |
128 KB |
| MAC address table |
2K entries |
| Jumbo Frame support |
9216 bytes |
Rugged Aluminium Housing
The TSF010 uses an anodised aluminium housing and panels, providing a durable enclosure for fixed industrial installations.
The physical specifications are:
| Specification |
Value |
| Dimensions |
113 × 28 × 50 mm |
| Weight |
142 g |
| Housing |
Anodised aluminium |
| Mounting |
Integrated DIN rail bracket |
| Grounding |
Terminal on power connector |
Wide Operating Temperature
The TSF010 is designed to operate between:
-40°C and +75°C
with an operating humidity range of:
5% to 95% non-condensing
and an enclosure ingress protection rating of:
IP30.
This makes it more appropriate for protected industrial environments than conventional office-grade Ethernet switches.
Industrial Ethernet Standards
The TSF010 supports IEEE 802.3 series standards including:
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3az
Profinet Class A Option
Teltonika also offers TSF010 variants with Profinet Class A conformance.
Importantly, this is not standard on every TSF010. It is available through specific order codes.
The current datasheet lists four main configurations:
| Order Code |
Power Input |
Profinet Class A |
| TSF010000000 |
9–57 VDC |
No |
| TSF010000001 |
9–57 VDC |
Yes |
| TSF010010000 |
9–57 VDC + 12–40 VAC |
No |
| TSF010010001 |
9–57 VDC + 12–40 VAC |
Yes |
All four are listed as standard packages without PSU.
For your IOT Store listing, I recommend selecting the exact order code you intend to stock before advertising AC input or Profinet Class A as included features.
Typical Applications
- Industrial Automation
- PLC & HMI Networks
- Control Cabinets
- Machine Networking
- Building Automation
- Energy & Utilities
- IoT Gateways
- Remote Monitoring
- SCADA Networks
- Smart City Infrastructure
- Industrial Control Panels
- Compact Electrical Cabinets
- Telecommunications Equipment
- Retail Infrastructure
- Industrial Ethernet Expansion
- Space-Constrained DIN Rail Installations
Technical Specifications
| Feature |
Specification |
| Product |
Teltonika TSF010 |
| Device Type |
Industrial Unmanaged Ethernet Switch |
| Ethernet |
5 × RJ45 |
| Ethernet Speed |
10/100 Mbps |
| Auto MDI/MDIX |
Yes |
| Non-blocking Bandwidth |
10 Gbps |
| Packet Buffer |
128 KB |
| MAC Table |
2K entries |
| Jumbo Frames |
9216 bytes |
| DC Input |
9–57 VDC |
| AC Input |
12–40 VAC on selected variants |
| Power Connector |
3-pin industrial |
| Idle Consumption |
Approx. 1 W |
| Maximum Consumption |
Approx. 1.5 W |
| Housing |
Anodised aluminium |
| Dimensions |
113 × 28 × 50 mm |
| Weight |
142 g |
| Mounting |
Integrated DIN rail bracket |
| Operating Temperature |
-40°C to +75°C |
| Humidity |
5–95% non-condensing |
| Protection |
IP30 |
| Profinet |
Optional Class A variant |
Important Note – Fast Ethernet, Not Gigabit
The TSF010 should not be described as a Gigabit Ethernet switch.
Its five Ethernet ports operate at:
10/100 Mbps
For many PLCs, IoT gateways, industrial controllers and monitoring systems, 100 Mbps is more than sufficient. However, applications requiring Gigabit Ethernet should use another suitable Teltonika switch such as the TSW210.
Important Note – No PoE
The TSF010 does not provide PoE power through its Ethernet ports.
Devices connected to the switch require their own power supply.
Important Note – Unmanaged Switch
The TSF010 is designed for simple plug-and-play Ethernet connectivity rather than advanced network management.
For applications requiring VLANs, STP/RSTP, managed QoS, port configuration, network monitoring or other Layer 2 management functions, a managed Teltonika switch should be selected instead.
Why Choose the Teltonika TSF010?
The Teltonika TSF010 is an excellent choice where DIN rail space is limited and only a small number of Ethernet devices need to be connected.
Its combination of five Fast Ethernet ports, ultra-slim 28 mm enclosure, integrated DIN rail bracket, rugged aluminium construction, wide industrial power input and -40°C to +75°C operating range provides a simple and reliable networking solution for industrial cabinets and automation systems.
At only 142 g, the TSF010 is one of the more compact ways to add five-port industrial Ethernet connectivity without introducing unnecessary managed-switch complexity.
