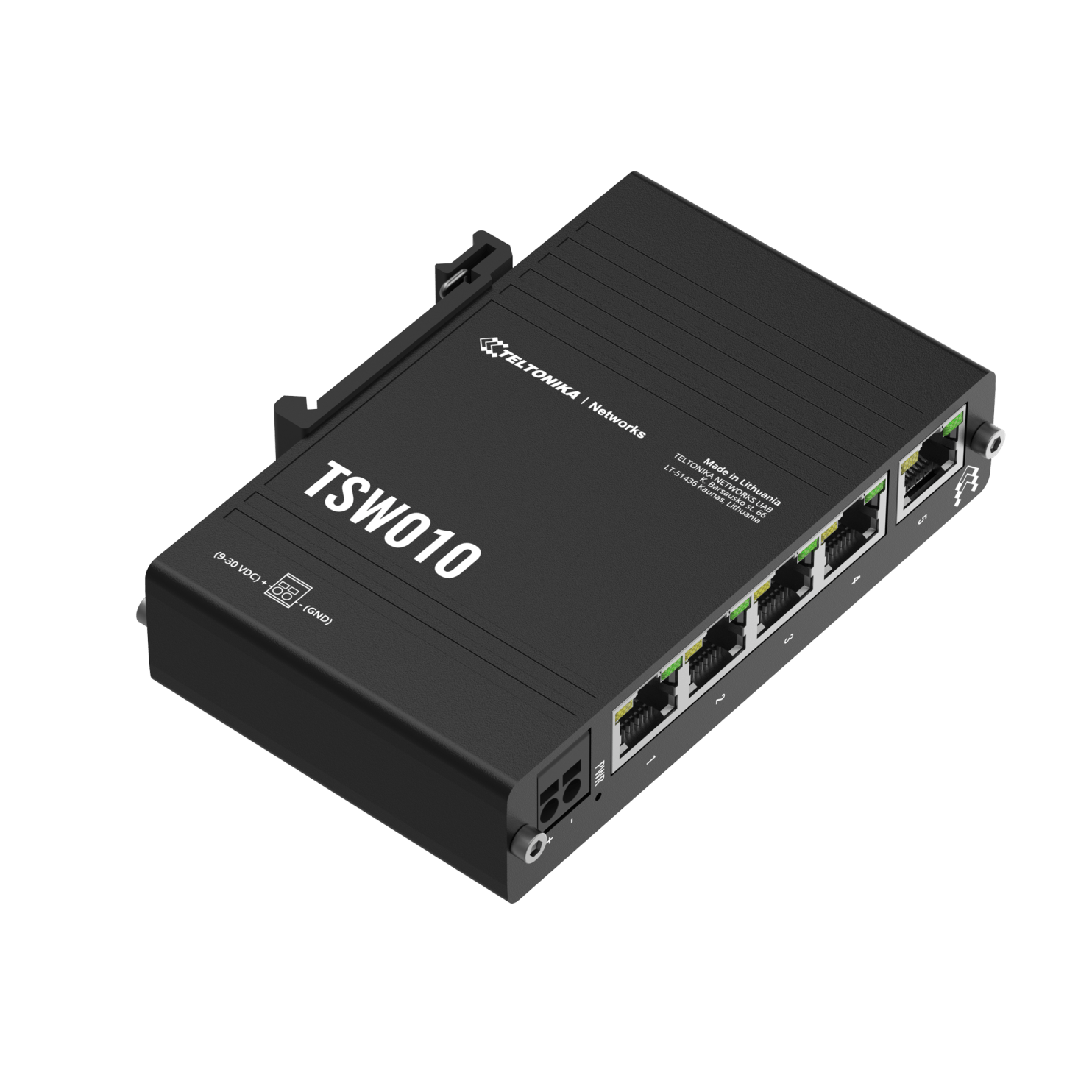

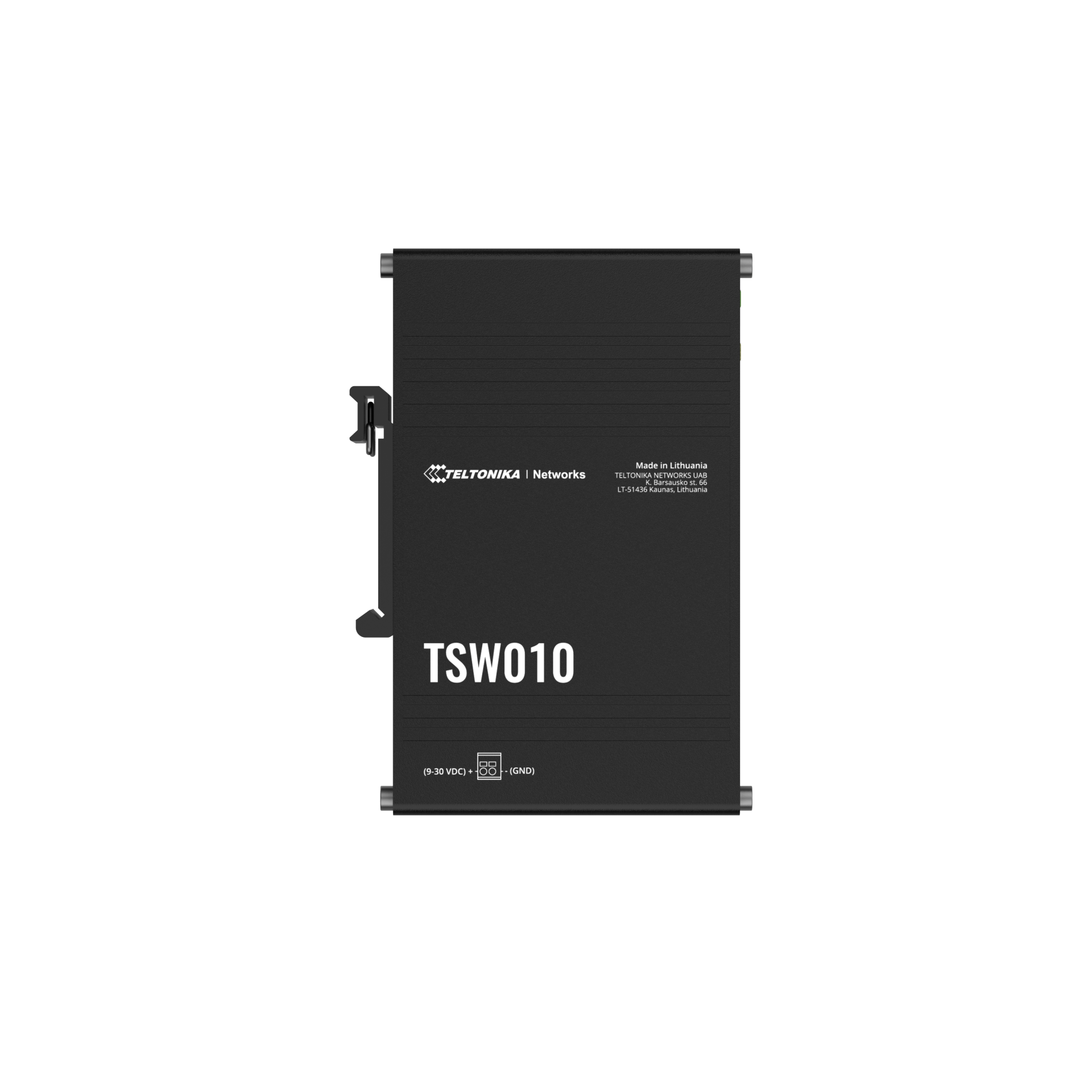

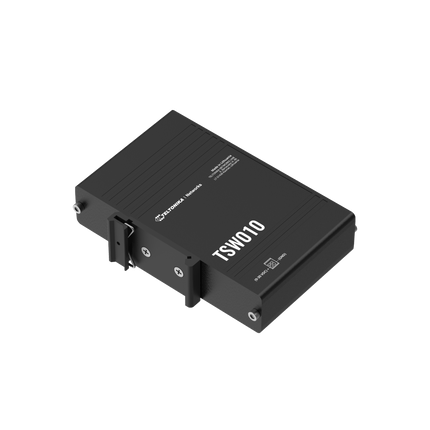

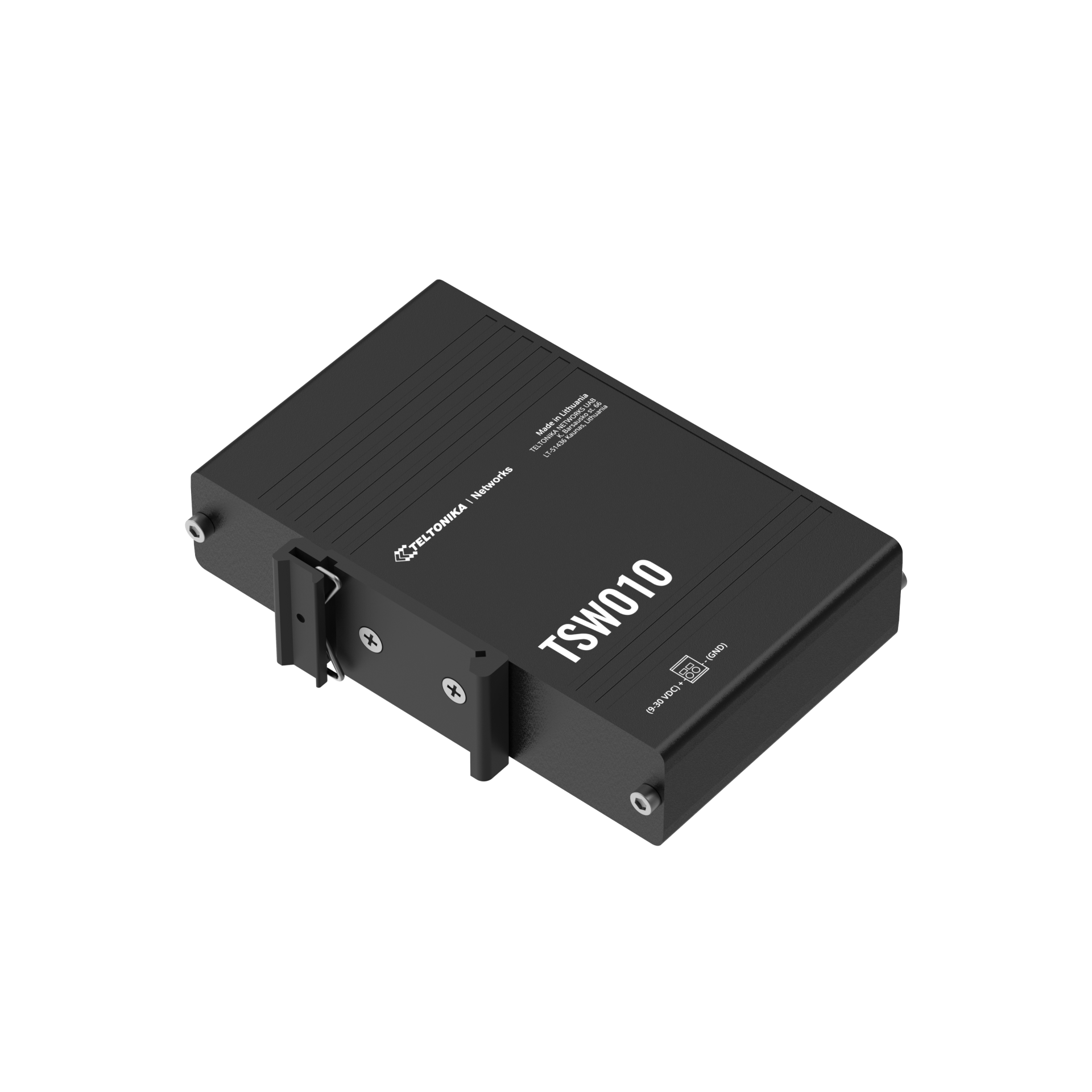

Teltonika TSW010 DIN Rail Ethernet Switch (5-Port, Unmanaged, Industrial)
Compact Industrial 5-Port Ethernet Switch for Reliable IoT Networking
The Teltonika TSW010 DIN Rail Ethernet Switch is a compact, rugged, and cost-effective networking solution designed for industrial automation, control panels, and IoT deployments. Featuring 5 × Fast Ethernet ports (10/100 Mbps), plug-and-play operation, and DIN rail mounting, the TSW010 provides reliable and simple network expansion without the need for configuration.
As highlighted in the datasheet, this switch is built for industrial environments with wide voltage input and robust aluminium housing, ensuring durability and consistent performance .
Key Features
-
5 × Fast Ethernet Ports (10/100 Mbps)
Stable and reliable connectivity for industrial devices
-
Plug-and-Play Operation
No configuration required—quick and easy deployment
-
DIN Rail Mounting (Integrated Bracket)
Designed for easy installation in industrial cabinets and enclosures
-
Wide Power Input (9–30 VDC)
Compatible with industrial and vehicle power systems
-
Passive PoE Support (Optional)
Can be powered via Ethernet (Mode B, non-standard PoE)
-
Industrial-Grade Design
Aluminium housing with wide temperature range (-40°C to +75°C)
Why Choose TSW010?
-
Simple & Cost-Effective Networking
Ideal for deployments that don’t require managed switching
-
Designed for Industrial Environments
Rugged, reliable, and built for long-term operation
-
Easy Installation
DIN rail mounting and compact design save space
-
Flexible Power Options
Supports both DC power and passive PoE
The TSW010 is perfect for applications requiring basic, reliable network expansion in industrial environments.
Typical Applications
- Industrial control panels
- PLC and automation systems
- Smart city infrastructure
- Energy & utilities monitoring
- Retail and kiosk networking
- IoT sensor networks
Technical Highlights
-
Ethernet: 5 × RJ45 ports (10/100 Mbps)
-
Bandwidth: 1 Gbps non-blocking switching capacity
-
MAC Table: 2K entries
-
Standards: IEEE 802.3, 802.3u, 802.3x, 802.3az
-
Power Input: 9–30 VDC (optional 12–40 VAC depending on version)
-
Power Consumption: Idle ~0.3W, Max ~0.9W
-
PoE: Passive PoE (Mode B, non-802.3af/at)
-
Operating Temp: -40°C to +75°C
-
Dimensions: 113.1 × 27.4 × 80.5 mm
-
Weight: 146.5 g
-
Mounting: Integrated DIN rail, wall, or flat surface (optional kit)
