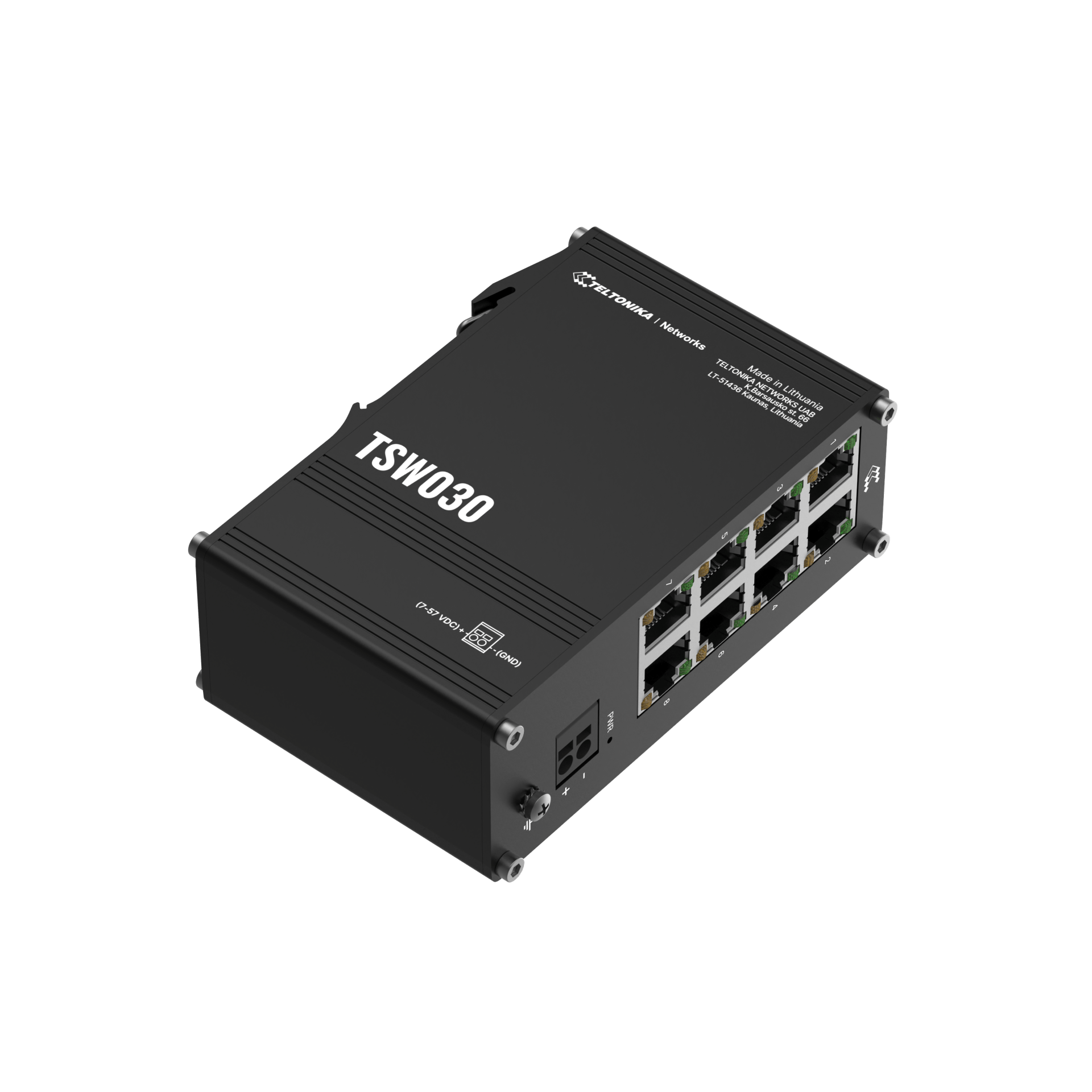

Teltonika TSW030 DIN Rail 8-Port Ethernet Switch Unmanaged
Compact Industrial 8-Port Unmanaged Ethernet Switch for Reliable Network Expansion
The Teltonika TSW030 is a compact, cost-effective unmanaged Ethernet switch designed for industrial networking applications requiring simple, reliable, plug-and-play connectivity. Featuring eight Fast Ethernet ports, integrated DIN rail mounting, ultra-low power consumption, and a rugged industrial-grade aluminium housing, the TSW030 is ideal for industrial automation, control cabinets, utilities, smart city infrastructure, building management systems, and machine networking applications.
Designed for installations where simplicity, reliability, and low power consumption are critical, the TSW030 provides effortless network expansion without requiring configuration or management software.
Key Features
8-Port Fast Ethernet Connectivity
The TSW030 includes:
- 8 × RJ45 Ethernet Ports
- 10/100 Mbps Auto-Negotiation
- Auto MDI/MDIX Support
- Plug-and-Play Operation
The switch automatically detects cable types and network speeds, simplifying deployment and installation.
Unmanaged Plug-and-Play Design
The TSW030 operates as a fully unmanaged switch:
- No configuration required
- No software setup
- No web interface
- No management complexity
Simply connect power and Ethernet devices for instant operation.
Why Choose the TSW030?
The TSW030 is designed for users needing:
- Simple Plug-and-Play Networking
- Eight Ethernet Connections
- Industrial DIN Rail Installation
- Low Power Consumption
- Wide DC Power Input Range
- Rugged Industrial Housing
- Fanless Operation
- Industrial Temperature Rating
- Cost-Effective Network Expansion
- Reliable Industrial Performance
Industrial Ethernet Performance
Ethernet Standards
Supported IEEE standards:
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3az
These standards provide compatibility with virtually all Ethernet-based industrial devices and networks.
Switching Performance
The TSW030 provides excellent switching performance for industrial applications.
| Specification |
Value |
| Switching Bandwidth |
20 Gbps |
| Packet Buffer |
128 KB |
| MAC Address Table |
2,000 Entries |
| Jumbo Frame Support |
9,216 Bytes |
These capabilities ensure reliable operation in busy industrial environments.
Industrial Protocol Support
Profinet Compatibility
An optional hardware version supports:
- Profinet Class A Conformance
This makes the TSW030 suitable for industrial automation systems and manufacturing environments using Siemens PLCs and Profinet-based equipment.
Ultra-Low Power Consumption
One of the key advantages of the TSW030 is its exceptionally low power consumption.
Power Consumption
- Idle: 0.5 W
- Maximum: 1.5 W
Ideal for:
- Solar-powered systems
- Battery-backed installations
- Remote monitoring stations
- Energy-conscious industrial deployments
Flexible Industrial Power Input
Power Connector
- 2-Pin Industrial DC Terminal
Input Voltage Range
Protection Features
- Reverse Polarity Protection
- Overvoltage Protection
- Surge Protection
Protection ratings include:
- Overvoltage Protection: 60 V max
- Reverse Polarity Protection: 80 V max
- Surge Protection: Up to 93.6 V reverse surge voltage
These protections enhance reliability in harsh industrial environments.
Industrial Design
Rugged Construction
The TSW030 features:
- Industrial-Grade Aluminium Housing
- Fanless Design
- Passive Cooling
- Compact Footprint
Built to withstand demanding industrial operating conditions.

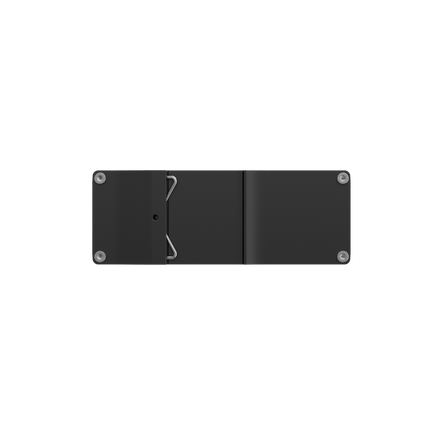

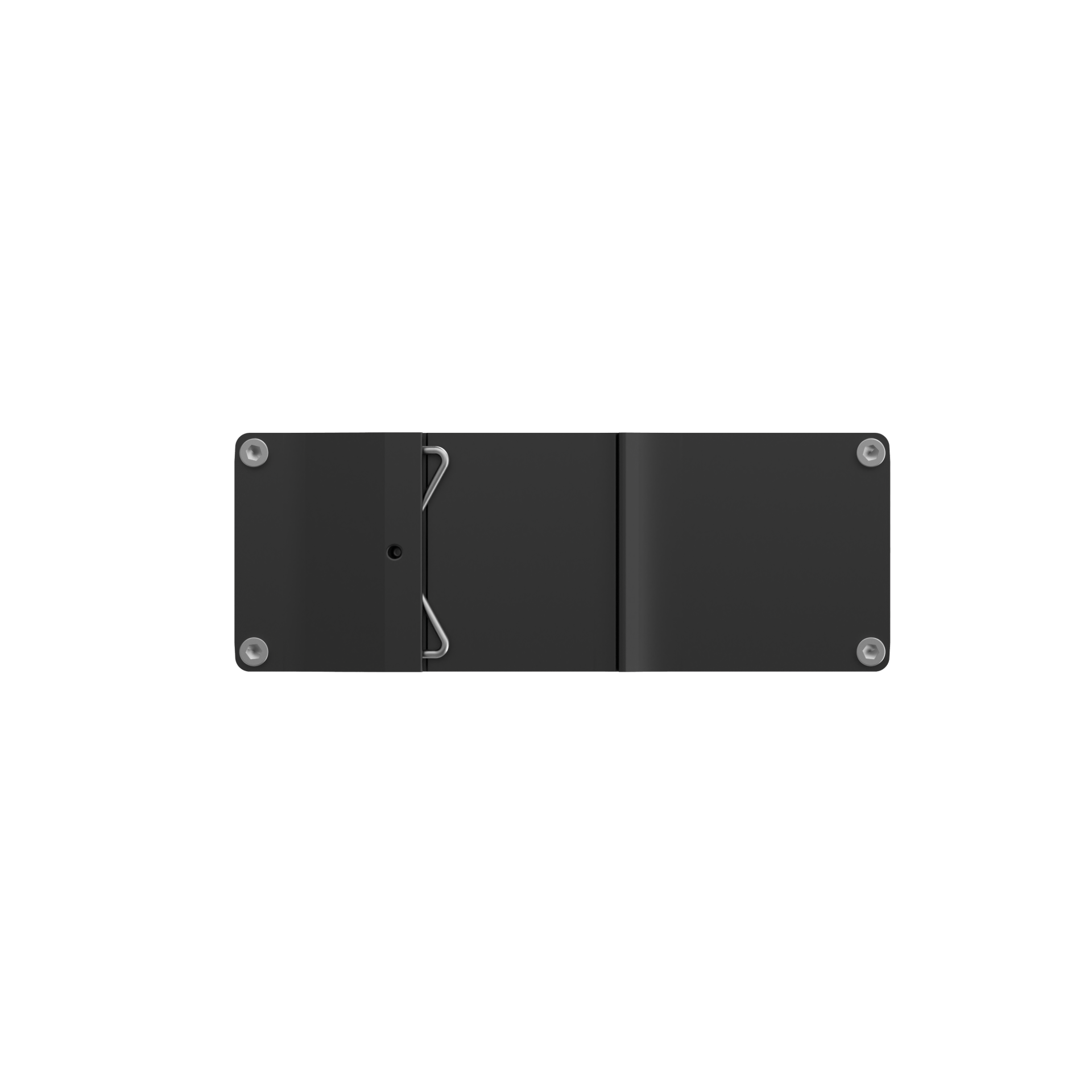

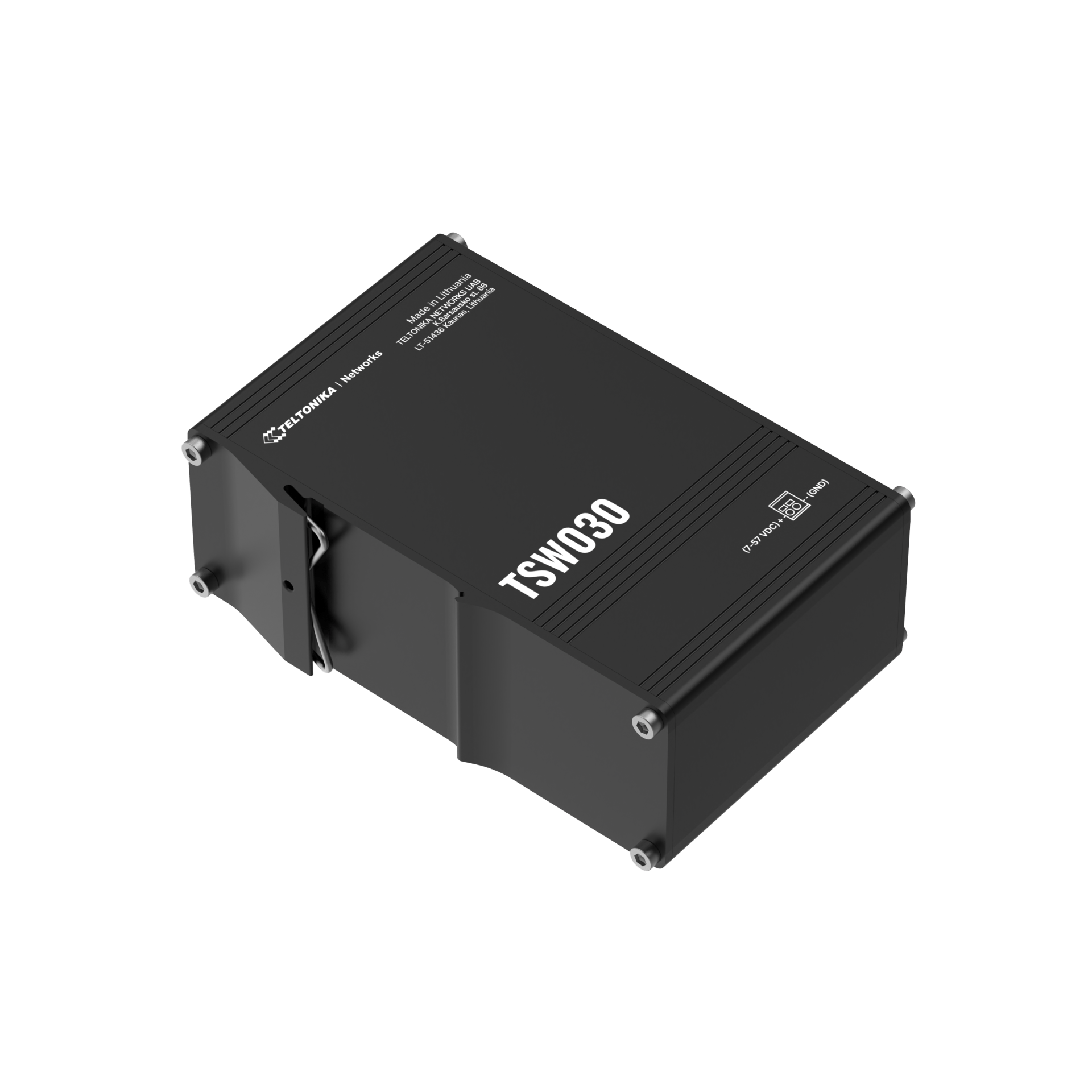

DIN Rail Mounting
Integrated Mounting Bracket
The TSW030 includes:
- Integrated DIN Rail Bracket
- No Additional DIN Rail Kit Required
Additional mounting options:
- Wall Mount (Optional Kit)
- Flat Surface Mount (Optional Kit)
The integrated bracket allows fast deployment inside industrial control cabinets and enclosures.
Status Indicators
The switch includes comprehensive visual diagnostics.
LEDs
- 1 × Power LED
- 16 × Ethernet Status LEDs
Ethernet LED Functions
- Solid Orange: Link Established (10/100 Mbps)
- Flashing Orange: Active Data Transmission
Provides quick network troubleshooting and status verification.
Hardware Specifications

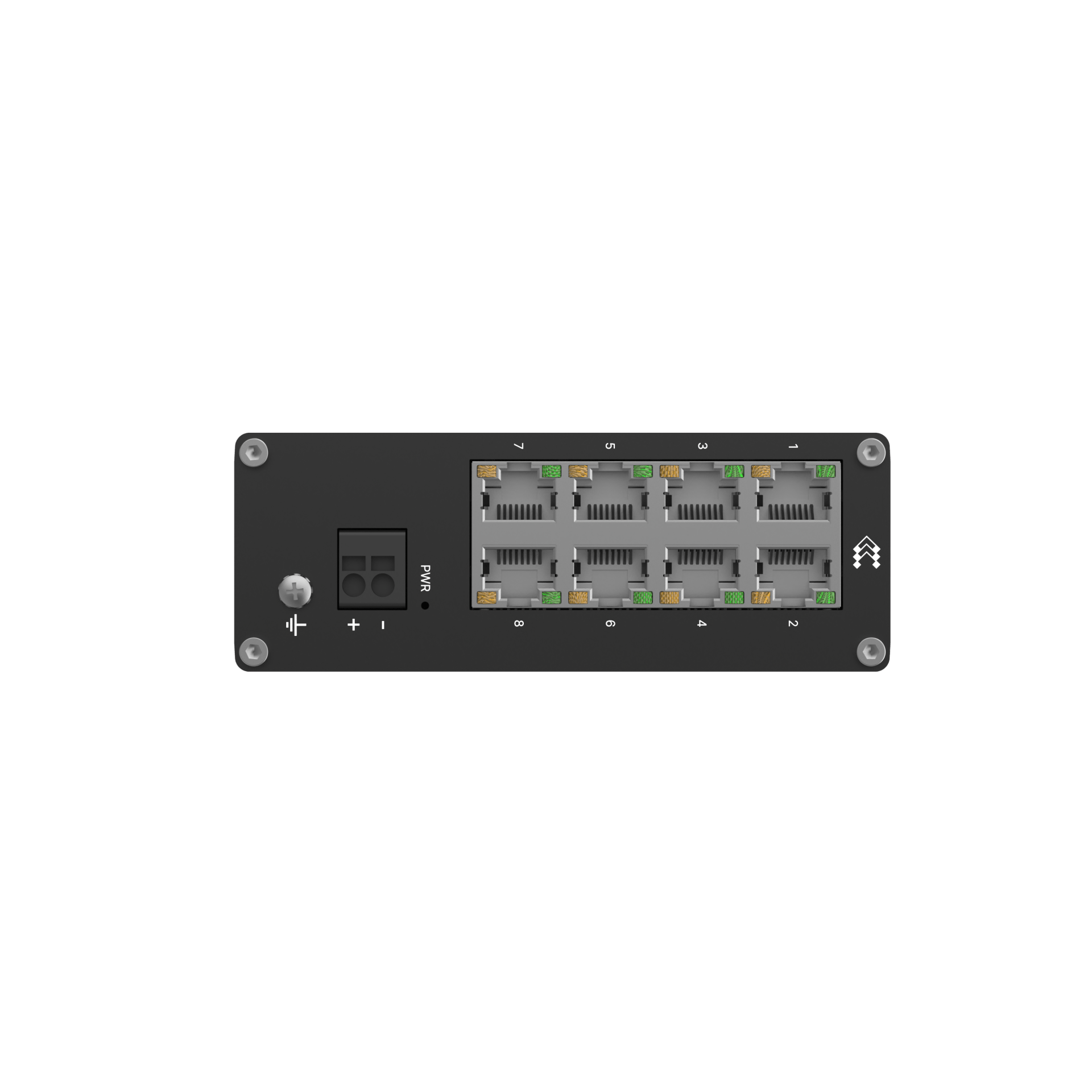

Ethernet Ports
- 8 × RJ45 Ports
- 10/100 Mbps Fast Ethernet
- Auto MDI/MDIX
Power Interface
- 1 × 2-Pin Industrial Power Connector
Grounding
LEDs
- 1 × Power LED
- 16 × Ethernet Activity LEDs
Physical Specifications
Dimensions
Weight
Housing
- Anodized Aluminium Housing
Mounting
- Integrated DIN Rail Bracket
- Optional Wall Mount
- Optional Flat Surface Mount
Compact size allows installation in space-constrained industrial cabinets.
Environmental Specifications
Operating Temperature
Operating Humidity
- 5% to 95% RH (Non-Condensing)
Ingress Protection
Suitable for demanding industrial environments and outdoor enclosure installations.
Certifications and Compliance
The TSW030 complies with major international standards.
Certifications
- CE
- UKCA
- FCC
- RCM
- E-Mark
- UL/CSA
- RoHS
- REACH
- WEEE
- CB
- EAC
- ISED (IC)
- NOM
- NYCE
Providing confidence for global industrial deployments.
