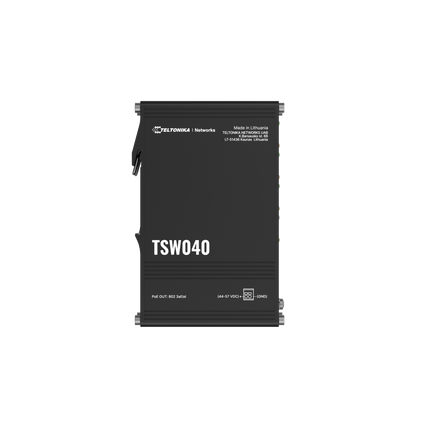

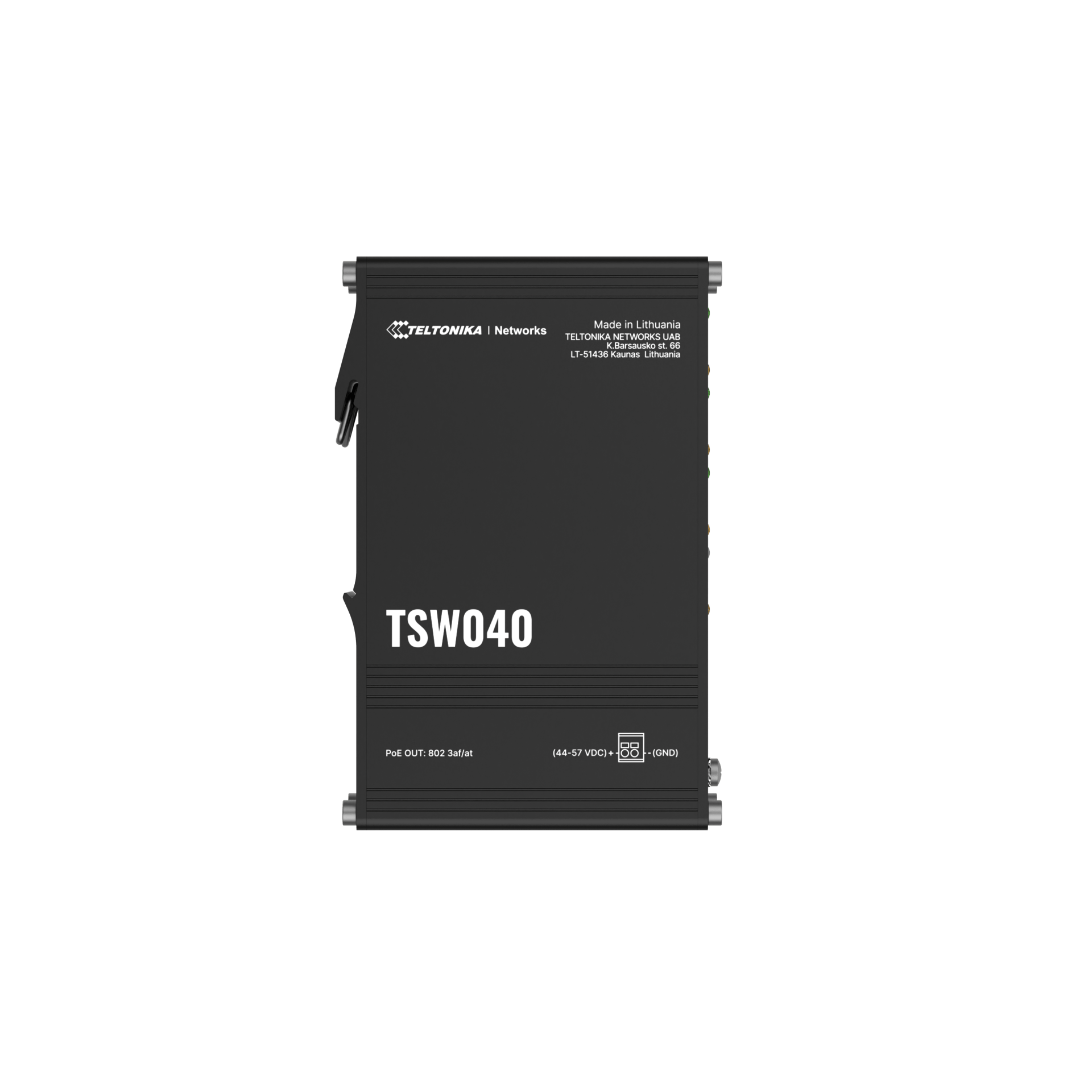

Teltonika TSW040 DIN Rail 8-Port PoE+ Ethernet Switch (Unmanaged, 240W Budget)
Industrial 8-Port PoE+ Switch for Reliable Power & Data Distribution
The Teltonika TSW040 DIN Rail PoE+ Ethernet Switch is a rugged, high-power networking solution designed for industrial automation, CCTV, and IoT deployments. Featuring 8 × Fast Ethernet ports with PoE+ output (802.3af/at) and a total power budget of 240W, the TSW040 enables seamless connectivity while powering multiple devices such as IP cameras, access points, and industrial equipment.
As shown in the datasheet and product flyer, the TSW040 combines plug-and-play simplicity, wide voltage support, and industrial-grade durability, making it ideal for demanding environments .
Key Features
-
8 × PoE+ Ethernet Ports (802.3af/at)
Deliver up to 30W per port with a total 240W PoE budget
-
Unmanaged Plug-and-Play Operation
No configuration required—quick deployment in any environment
-
Wide Voltage Input (7–57 VDC)
Flexible power options for industrial and field installations
-
Integrated DIN Rail Mounting
Easy installation in industrial cabinets and enclosures
-
High Switching Performance
Non-blocking bandwidth up to 20 Gbps for stable data transfer
-
Industrial-Grade Design
Rugged aluminium housing with wide temperature support (-40°C to +75°C)
Why Choose TSW040?
-
Power + Data in One Device
Simplify installations by powering devices via Ethernet
-
Designed for Industrial Environments
Built for reliability in harsh conditions and continuous operation
-
High Power Capacity
Ideal for powering multiple high-consumption devices like cameras
-
Easy & Scalable Deployment
Plug-and-play design with DIN rail mounting
The TSW040 is perfect for applications requiring high-density PoE connectivity with industrial reliability.
Typical Applications
- CCTV and video surveillance systems
- Industrial automation & control panels
- Smart city infrastructure
- Energy & utilities monitoring
- Warehouse and logistics networks
- IoT device power distribution
Technical Highlights
-

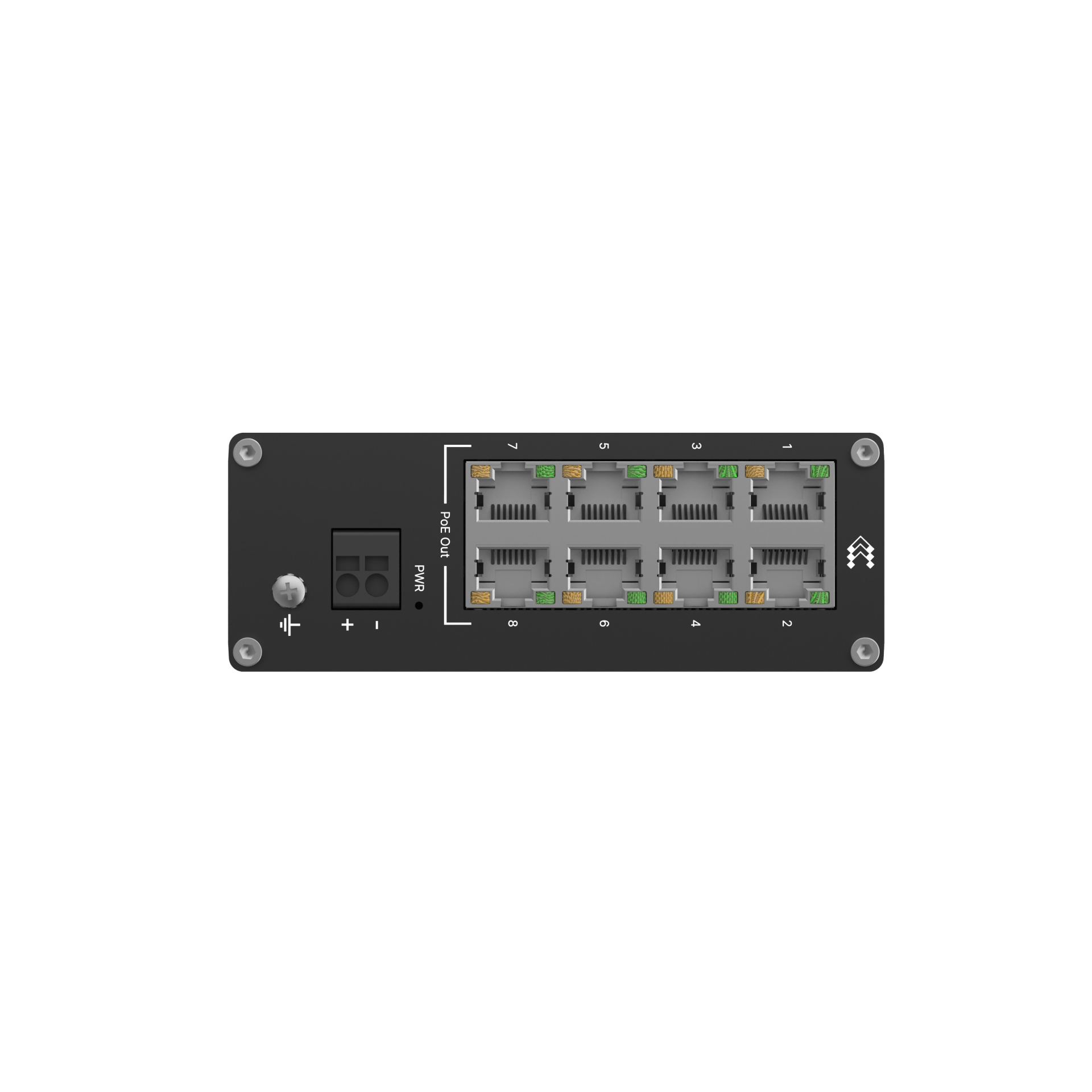

Ethernet: 8 × RJ45 ports (10/100 Mbps)
-
PoE: 8 × PoE+ ports (802.3af/at), up to 30W per port
-
Total PoE Budget: 240W
-
Bandwidth: 20 Gbps non-blocking switching capacity
-
MAC Table: 2K entries
-
Jumbo Frame: Up to 9216 bytes
-
Power Input: 7–57 VDC (PoE-out requires 44–57 VDC)
-
Power Consumption: Idle ~1W, Max ~2W (excluding PoE load)
-
Operating Temp: -40°C to +75°C
-
Dimensions: 113.1 × 41.2 × 74.6 mm
-
Weight: 280 g
-

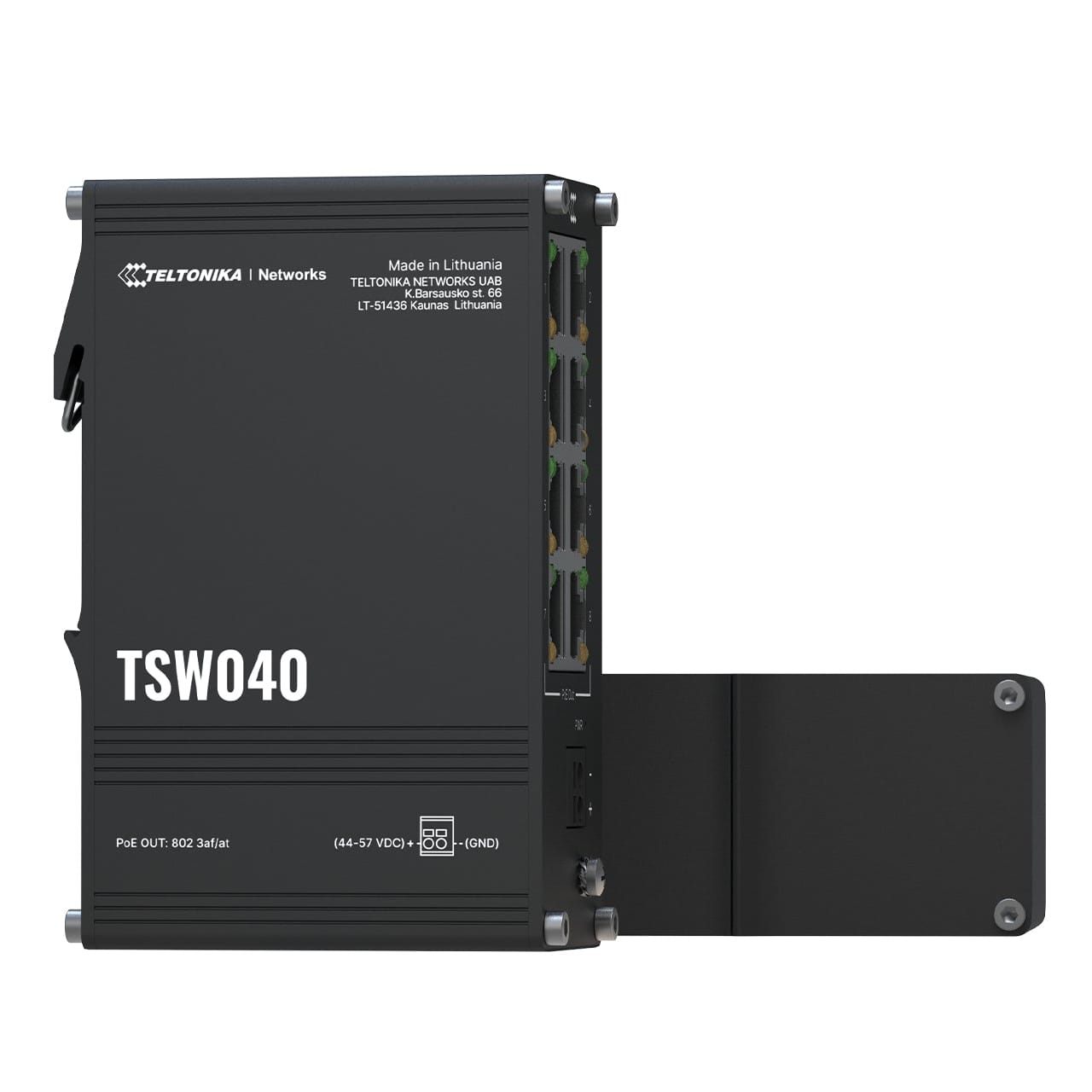

Mounting: Integrated DIN rail, wall, or flat surface
-
Ingress Protection: IP30
Resources:
Teltonika TSW040 Flyer
Teltonika TSW040 Datasheet
Teltonika TSW040 Quick User Guide
Teltonika TSW040 User Guide
Teltonika TSW040 Models
