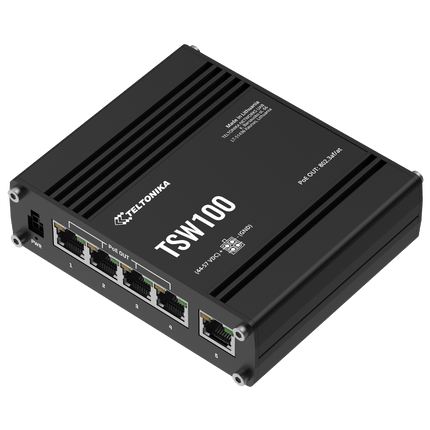

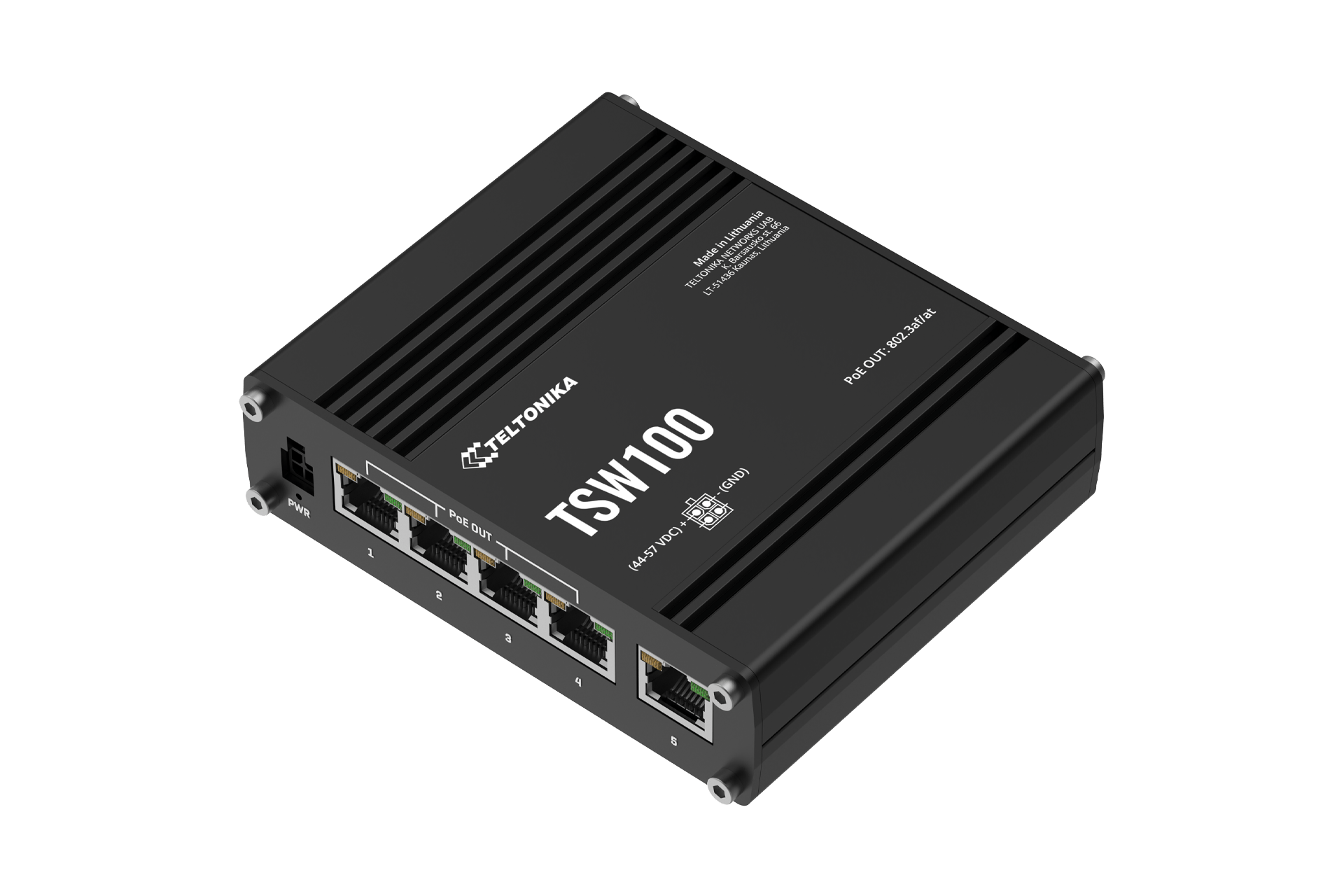

Teltonika TSW100 DIN Rail 5-Port PoE+ Ethernet Switch Unmanaged
Industrial Gigabit PoE+ Switch for Powering Cameras, Access Points and IoT Devices
The Teltonika TSW100 is a rugged unmanaged Gigabit Ethernet switch featuring 4 PoE+ output ports, 1 Gigabit uplink port, and a total PoE power budget of 120W. Designed for industrial automation, surveillance systems, wireless networking, smart cities, and IIoT deployments, the TSW100 simplifies installations by delivering both power and data over a single Ethernet cable.
With industrial-grade construction, support for IEEE 802.3af/at PoE standards, wide-range DC power input, and operation from -40°C to +75°C, the TSW100 provides reliable network connectivity and power distribution in demanding industrial environments.
Key Features
5-Port Gigabit Ethernet Switch
The TSW100 provides:
- 5 × Gigabit Ethernet Ports
- 10/100/1000 Mbps Auto-Negotiation
- Auto MDI/MDIX Support
- Non-Blocking Switching Architecture
- Plug-and-Play Deployment
Ideal for industrial and commercial networking applications requiring high-speed Ethernet connectivity.
4 × PoE+ Output Ports
Ports 1–4 support Power over Ethernet:
- IEEE 802.3af (PoE)
- IEEE 802.3at (PoE+)
- Up to 30W per Port
- 120W Total PoE Budget
The switch acts as Power Sourcing Equipment (PSE), allowing connected devices to receive both power and data through a single Ethernet cable.
Why Choose the TSW100?
The TSW100 is ideal for deployments requiring network expansion and PoE power delivery without the complexity of managed switches.
Key advantages include:
- 4 × PoE+ Output Ports
- 120W Total PoE Budget
- 5 × Gigabit Ethernet Ports
- Industrial Rugged Design
- Plug-and-Play Operation
- Wide DC Power Input Range
- Industrial Temperature Rating
- Profinet Class A Version Available
- DIN Rail and Surface Mounting Options
- Low Maintenance Deployment
Power over Ethernet (PoE+)
The TSW100 is specifically designed to power Ethernet devices.
PoE Specifications
| Feature |
Specification |
| PoE Ports |
4 |
| PoE Standard |
IEEE 802.3af/at |
| Maximum Per Port |
30W |
| Total Power Budget |
120W |
| PoE Type |
Alternative A or B (model dependent) |
Suitable for powering:
- IP Cameras
- Wireless Access Points
- VoIP Phones
- Access Control Devices
- IoT Gateways
- Industrial Sensors
- Edge Controllers
Gigabit Ethernet Performance
Unlike Fast Ethernet switches, the TSW100 provides full Gigabit performance.
Ethernet Features
- 10 Mbps
- 100 Mbps
- 1000 Mbps
- Auto-Negotiation
- Auto MDI/MDIX
This ensures sufficient bandwidth for:
- HD Video Surveillance
- Wireless Backhaul
- Industrial Networks
- Building Automation Systems
Industrial Protocol Support
Profinet Compatibility
An optional version supports:
- Profinet Class A Conformance
This allows integration into industrial automation and manufacturing environments using Siemens PLCs and Profinet devices.
Unmanaged Plug-and-Play Operation
The TSW100 requires no configuration.
Benefits include:
- No software setup
- No management interface
- No programming
- Immediate operation after power-up
Perfect for installers seeking reliable network expansion with minimal deployment time.
Industrial Performance
Switching Performance
| Specification |
Value |
| Switching Bandwidth |
10 Gbps |
| Packet Buffer |
128 KB |
| MAC Address Table |
2,000 Entries |
| Jumbo Frame Support |
9,216 Bytes |
Provides efficient traffic handling for industrial and surveillance networks.
Flexible Power Input
The TSW100 supports wide-range industrial power systems.
Power Input
- 4-Pin Industrial Power Connector
- Input Voltage: 7–57 VDC
PoE Power Input Range
This flexibility allows deployment in:
- Industrial Control Panels
- Solar Systems
- Vehicle Installations
- Utility Infrastructure
- Remote Monitoring Stations
Power Consumption
Switch Consumption
| Mode |
Consumption |
| Idle |
2W |
| Maximum (No PoE) |
9W |
| Maximum with PoE |
129W |
The switch remains energy efficient while delivering substantial PoE power to connected devices.

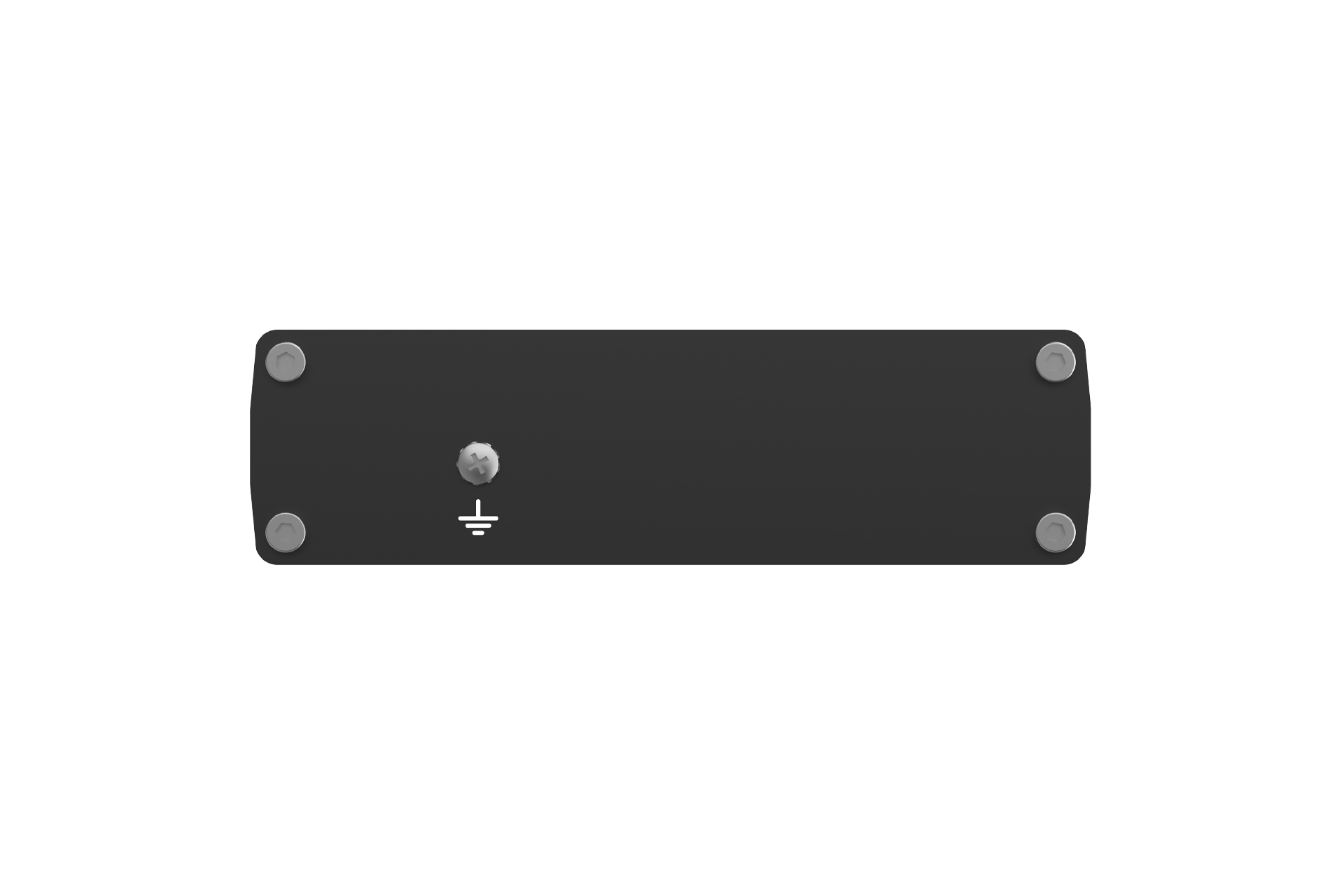

Industrial Design

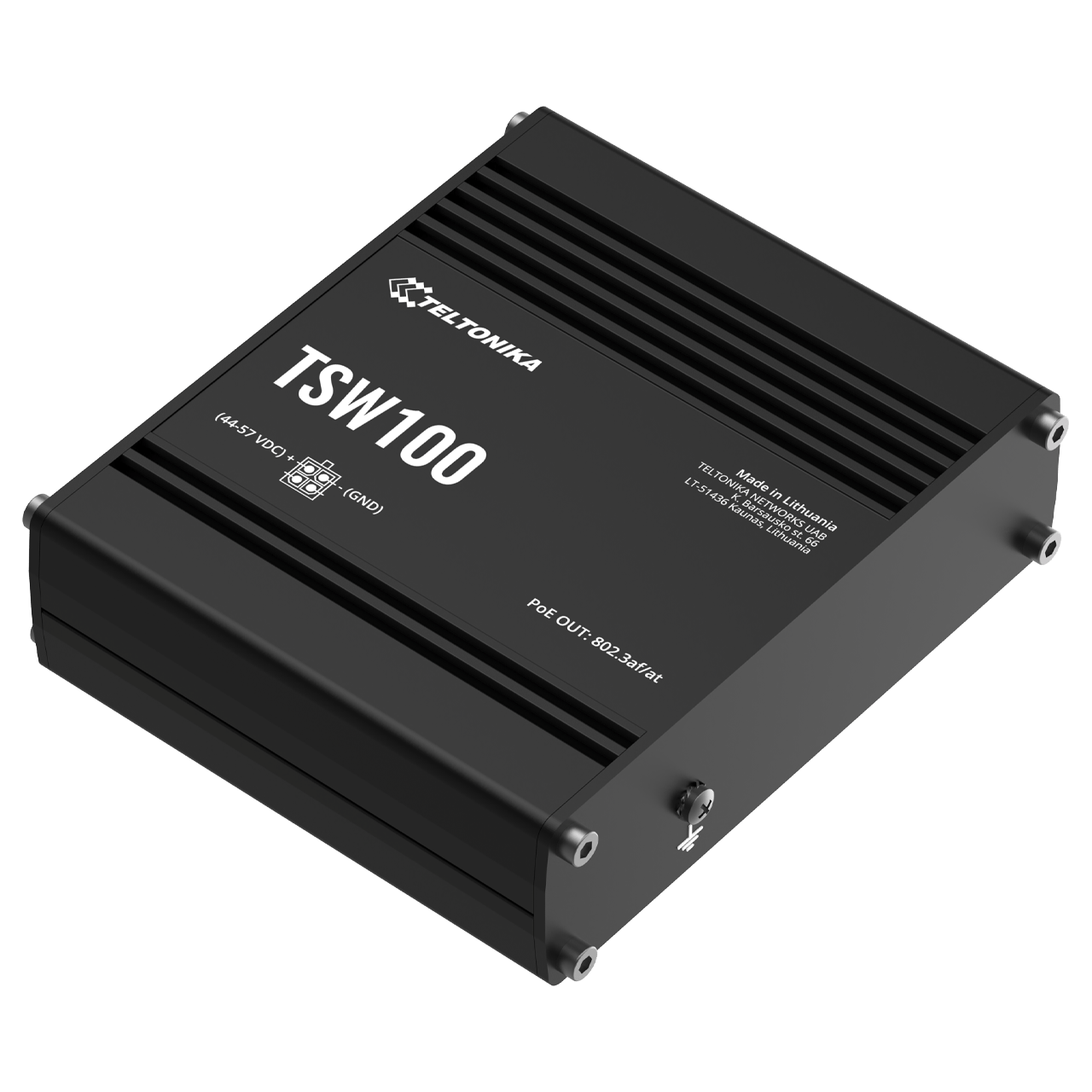

Rugged Construction
The TSW100 features:
- Full Aluminium Housing
- Fanless Design
- Passive Cooling
- Industrial-Grade Construction
Designed for long-term operation in harsh environments.
Mounting Options
The TSW100 supports:
- DIN Rail Mounting
- Wall Mounting
- Flat Surface Mounting
Mounting accessories are available separately depending on installation requirements.
Status Indicators
LED Indicators
The switch includes:
- 1 × Power LED
- 10 × Ethernet Status LEDs

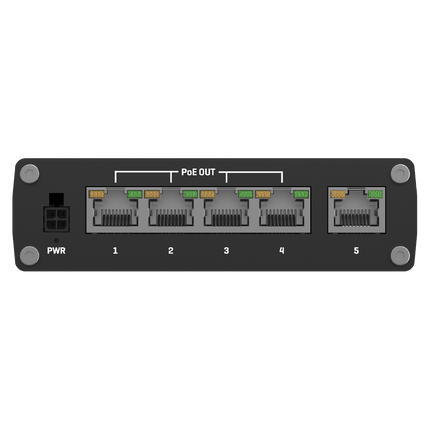

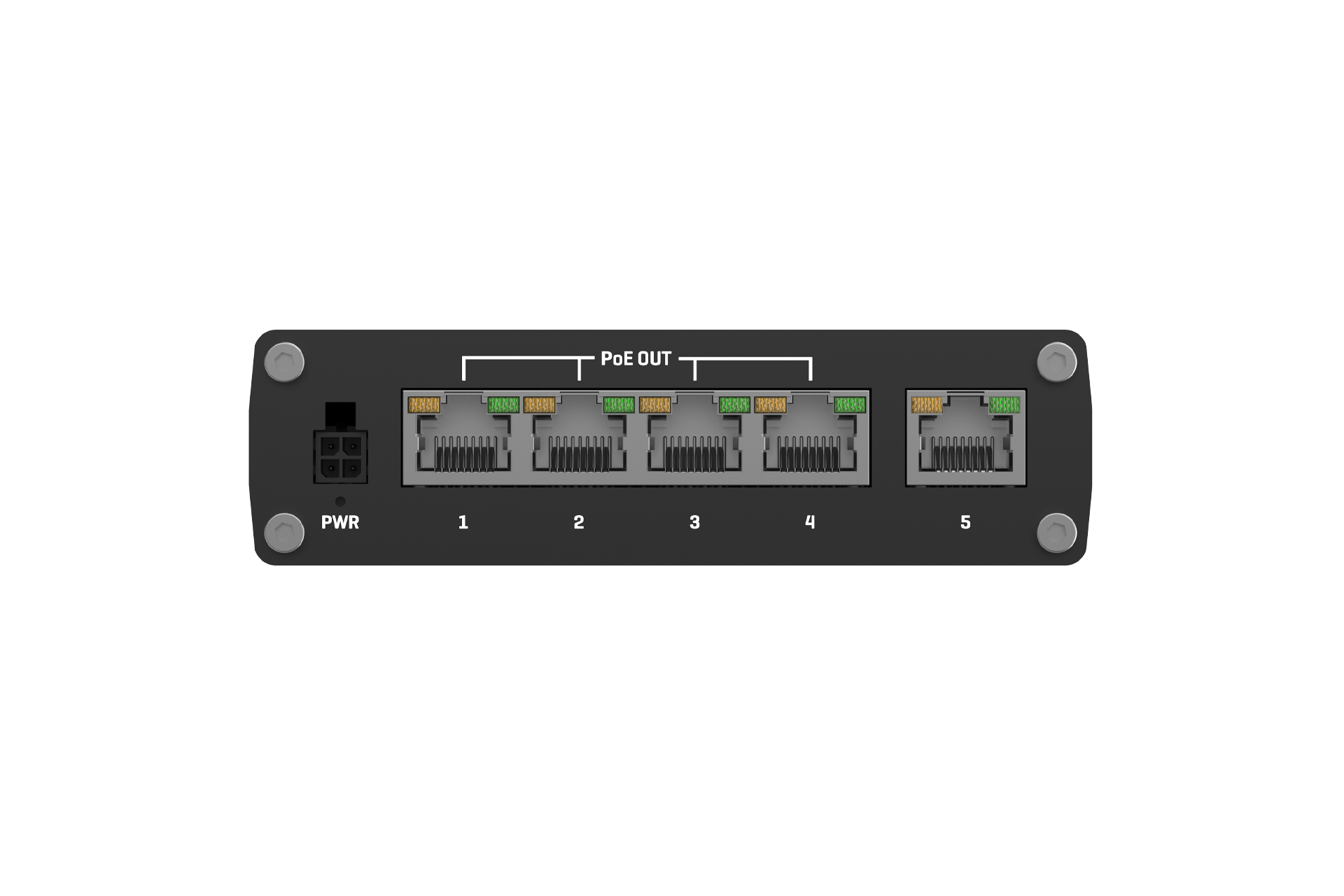

Ethernet Port LEDs
- Orange LED: 10/100 Mbps Link
- Orange Flashing: Data Activity
- Green LED: 1000 Mbps Link
Provides quick network status diagnostics and troubleshooting.
Hardware Specifications
Ethernet Interfaces
- 5 × RJ45 Gigabit Ethernet Ports
- 4 × PoE+ Output Ports
- 1 × Standard Ethernet Port
Power Interface
- 1 × 4-Pin Industrial DC Connector
Other Interfaces
Indicators
- 1 × Power LED
- 10 × Ethernet LEDs
Physical Specifications
Dimensions
Weight
Housing
Compact enough for installation inside industrial cabinets and network enclosures.
Environmental Specifications
Operating Temperature
Operating Humidity
- 5% to 95% RH (Non-Condensing)
Protection Rating
Suitable for harsh industrial environments and outdoor cabinet installations.
Certifications and Compliance
The TSW100 complies with major international standards.
Certifications
- CE
- UKCA
- FCC
- IC
- EAC
- E-Mark
- CB
- Anatel
- NOM
- MTCTE
- UCRF
- CITC
- ANRT
Safety Standards
- IEC 62368-1:2018
- EN IEC 62368-1:2020+A11:2020
Suitable for global industrial deployments.
