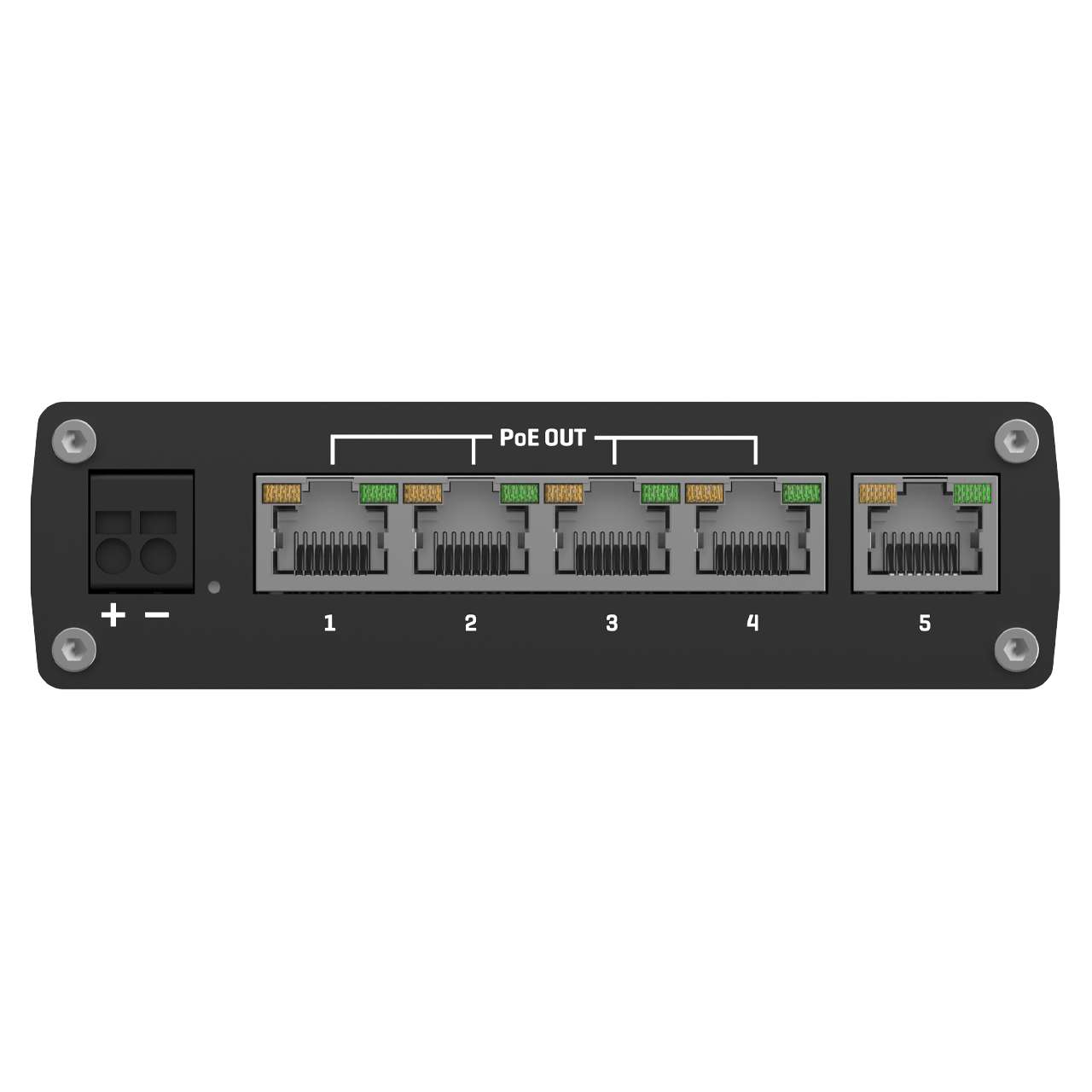

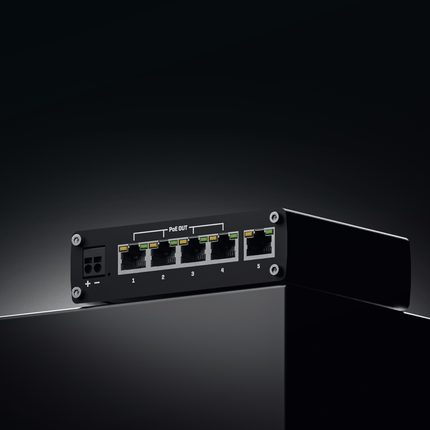

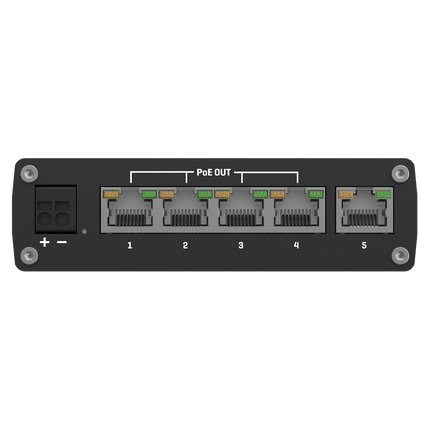

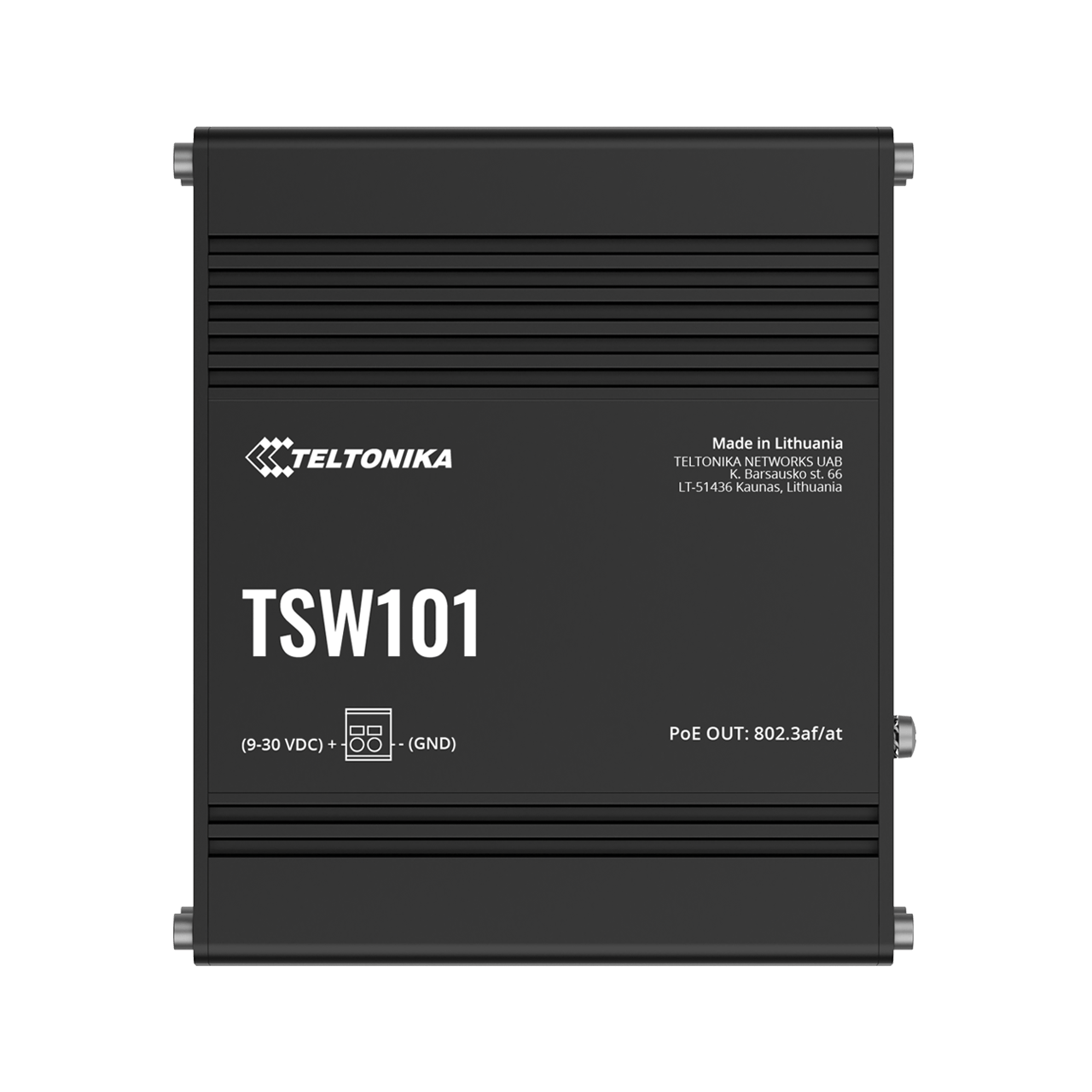

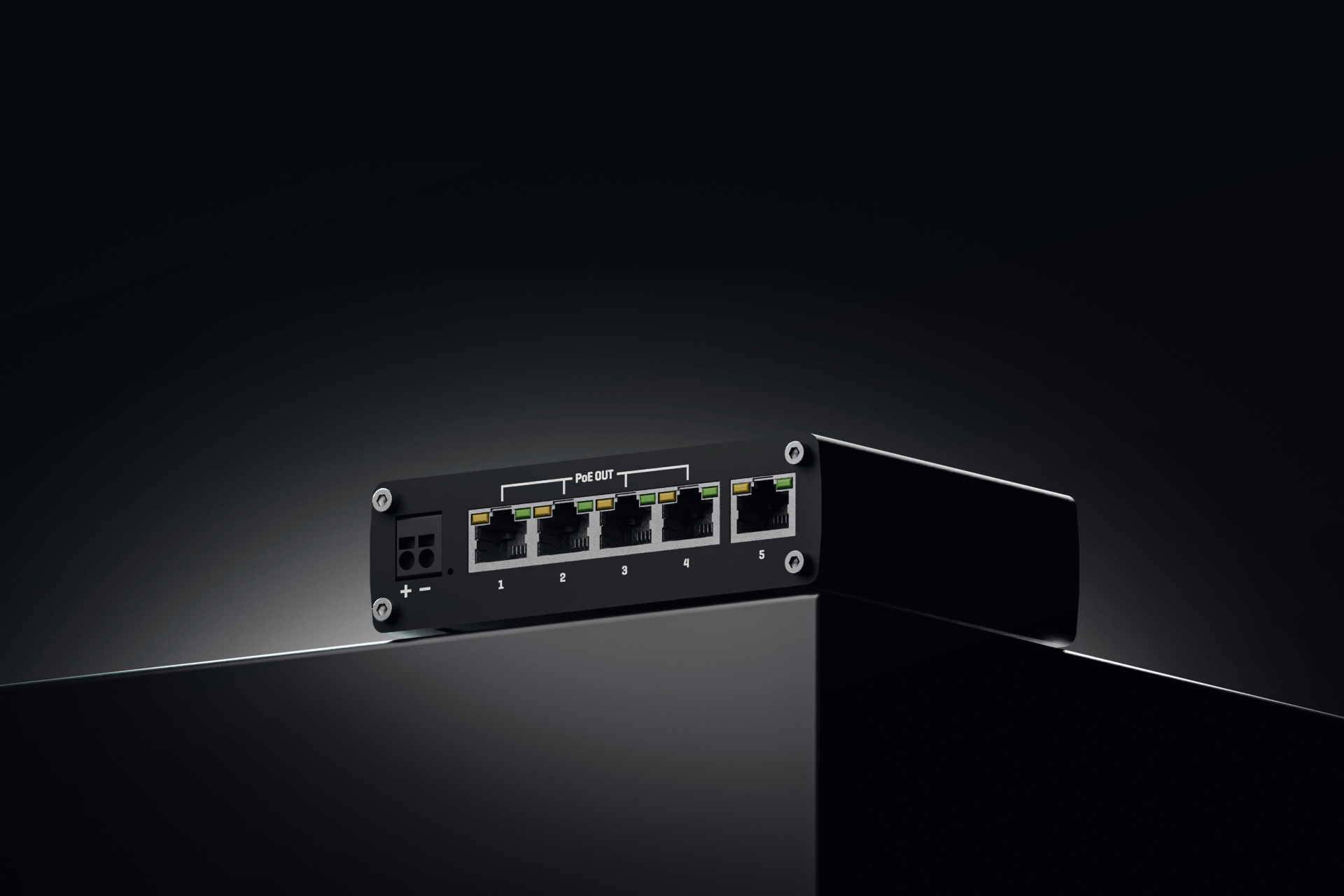

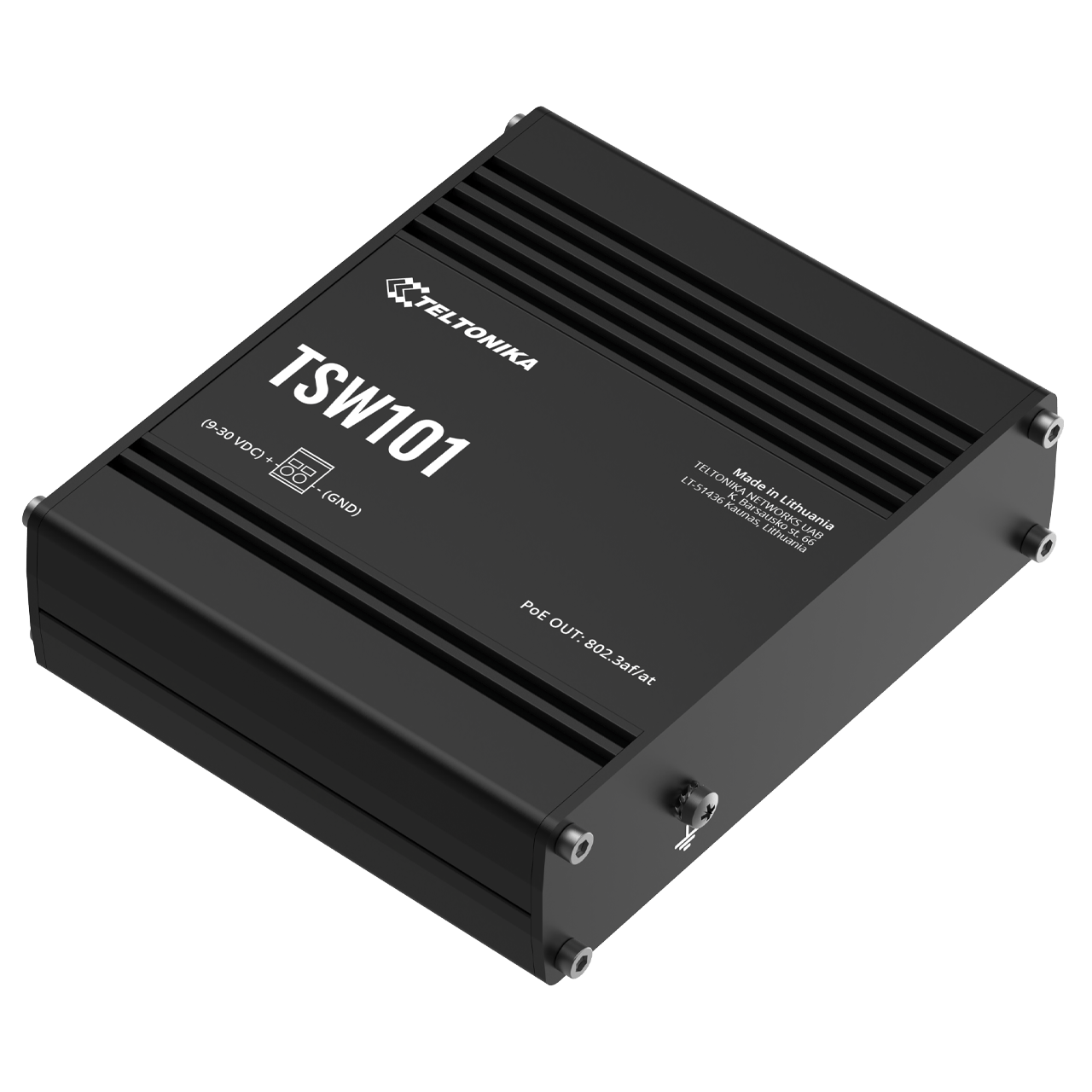

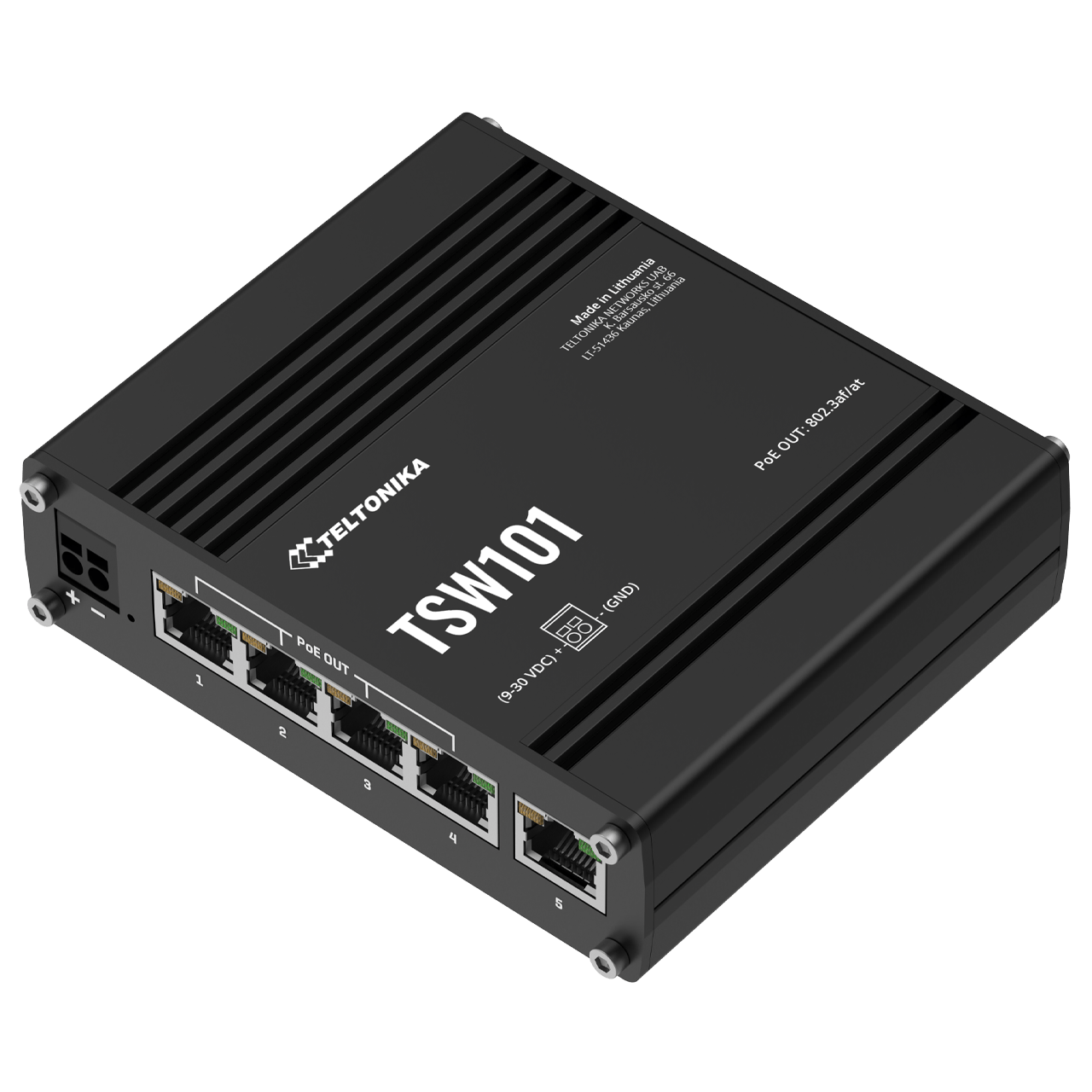

Teltonika TSW101 Automotive PoE+ Switch (5-Port Gigabit Ethernet, 4× PoE+, 12/24V DC)
Compact Automotive Gigabit Switch with PoE+ for In-Vehicle & Industrial Networking
The Teltonika TSW101 Automotive PoE+ Switch is a compact, rugged Ethernet switch designed for in-vehicle, industrial, and mobile IoT applications. Featuring 5 × Gigabit Ethernet ports, including 4 × PoE+ (802.3af/at) outputs, the TSW101 enables seamless data connectivity while powering connected devices such as IP cameras, routers, and IoT sensors.
As highlighted in the datasheet, this switch is engineered for automotive environments and low-voltage systems, operating directly from 9–30 VDC (12V/24V vehicle power) without requiring an additional power supply.
Key Features
-
5 × Gigabit Ethernet Ports
High-speed networking with up to 1000 Mbps per port
-
4 × PoE+ Output Ports (802.3af/at)
Power IP cameras, routers, and IoT devices directly via Ethernet
-
60W Total PoE Power Budget
Up to 30W per port for demanding devices
-
Automotive Power Input (9–30 VDC)
Designed for 12V/24V vehicle systems with no additional PSU required
-
Plug-and-Play Operation
No configuration required—simple deployment in any environment
-
Compact Rugged Aluminium Housing
Built for harsh environments with vibration resistance and durability
Why Choose TSW101?
-
Perfect for Mobile & Vehicle Deployments
Designed specifically for automotive and transport environments
-
Simplified Power & Connectivity
Combine data and power over a single Ethernet cable (PoE+)
-
Reliable Industrial Performance
Wide operating temperature range and robust build quality
-
Scalable Network Expansion
Easily connect multiple devices in a compact footprint
The TSW101 is ideal for vehicle-based networking, mobile surveillance, and distributed IoT systems.
Typical Applications
- Fleet & vehicle connectivity
- Mobile CCTV and surveillance systems
- Public transport networking (bus, rail, taxi)
- Industrial machinery networking
- Smart logistics & asset monitoring
- Temporary or portable network deployments
Technical Highlights
-
Ethernet: 5 × RJ45 Gigabit ports (10/100/1000 Mbps)
-
PoE: 4 × PoE+ ports (802.3af/at), up to 30W per port
-
Total PoE Budget: 60W
-
Bandwidth: 10 Gbps non-blocking switching capacity
-
Power Input: 9–30 VDC (12V/24V vehicle systems)
-
Power Consumption: Idle < 1W, Max ~2.3W (excluding PoE load)
-
Operating Temp: -40°C to +75°C
-
Housing: Industrial aluminium casing
-
Mounting: DIN rail / wall / flat surface (optional kit)
Resources:
Teltonika TSW101 Flyer
Teltonika TSW101 Datasheet
Teltonika TSW101 Quick User Guide
Teltonika TSW101 User Guide
Teltonika TSW101 Models
