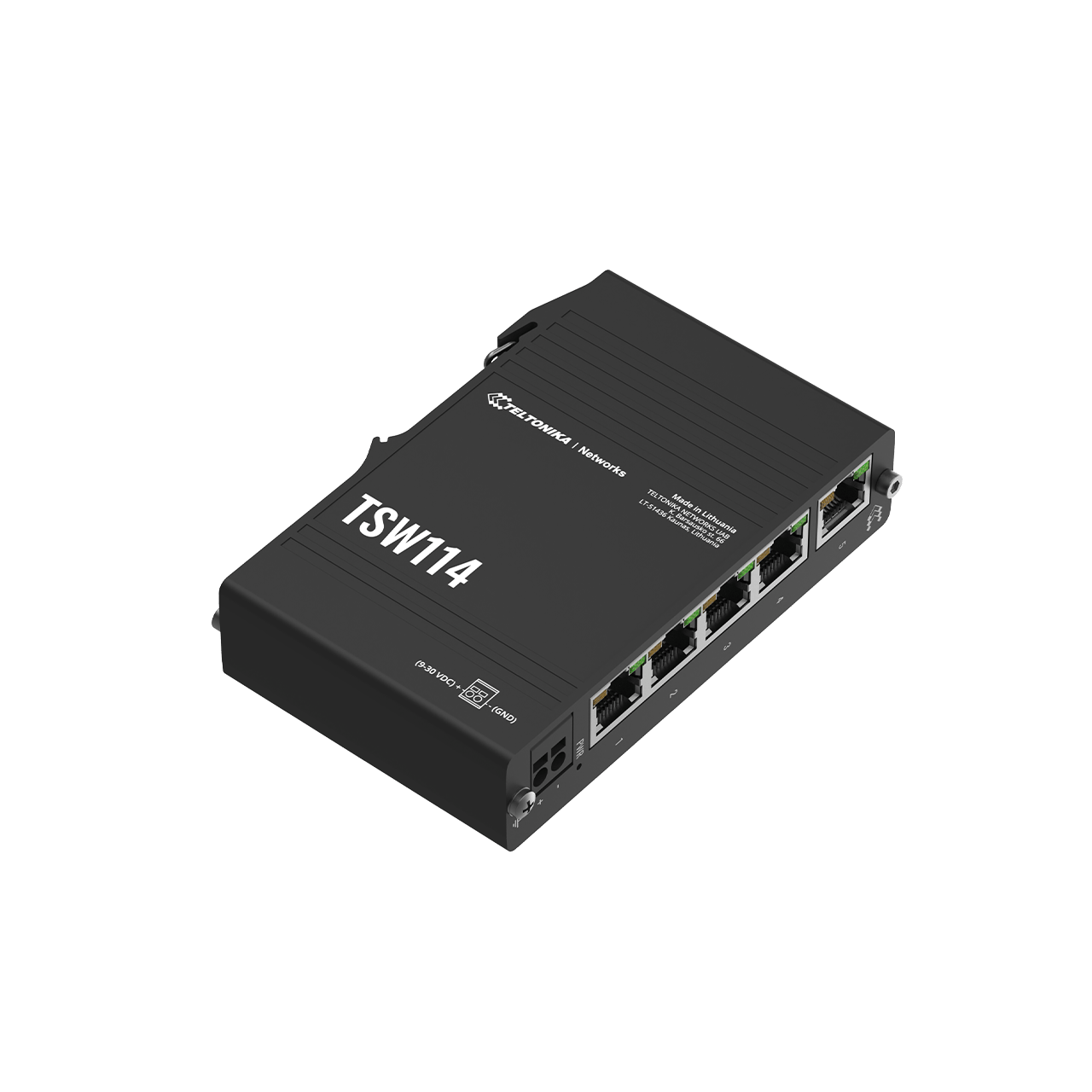

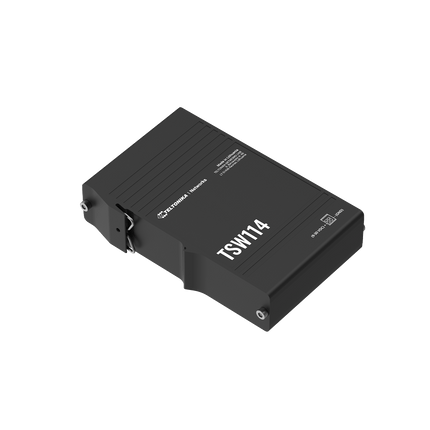

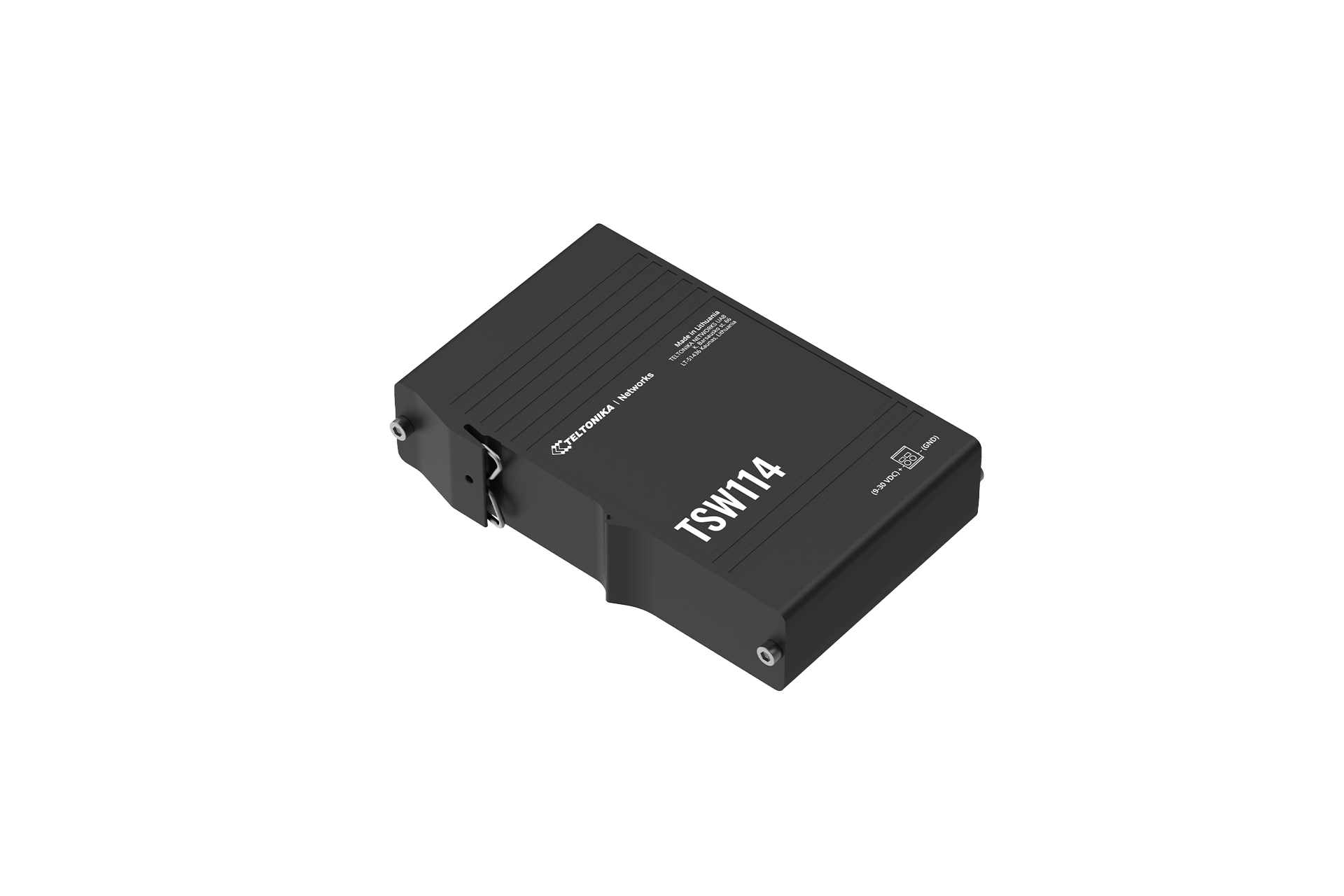

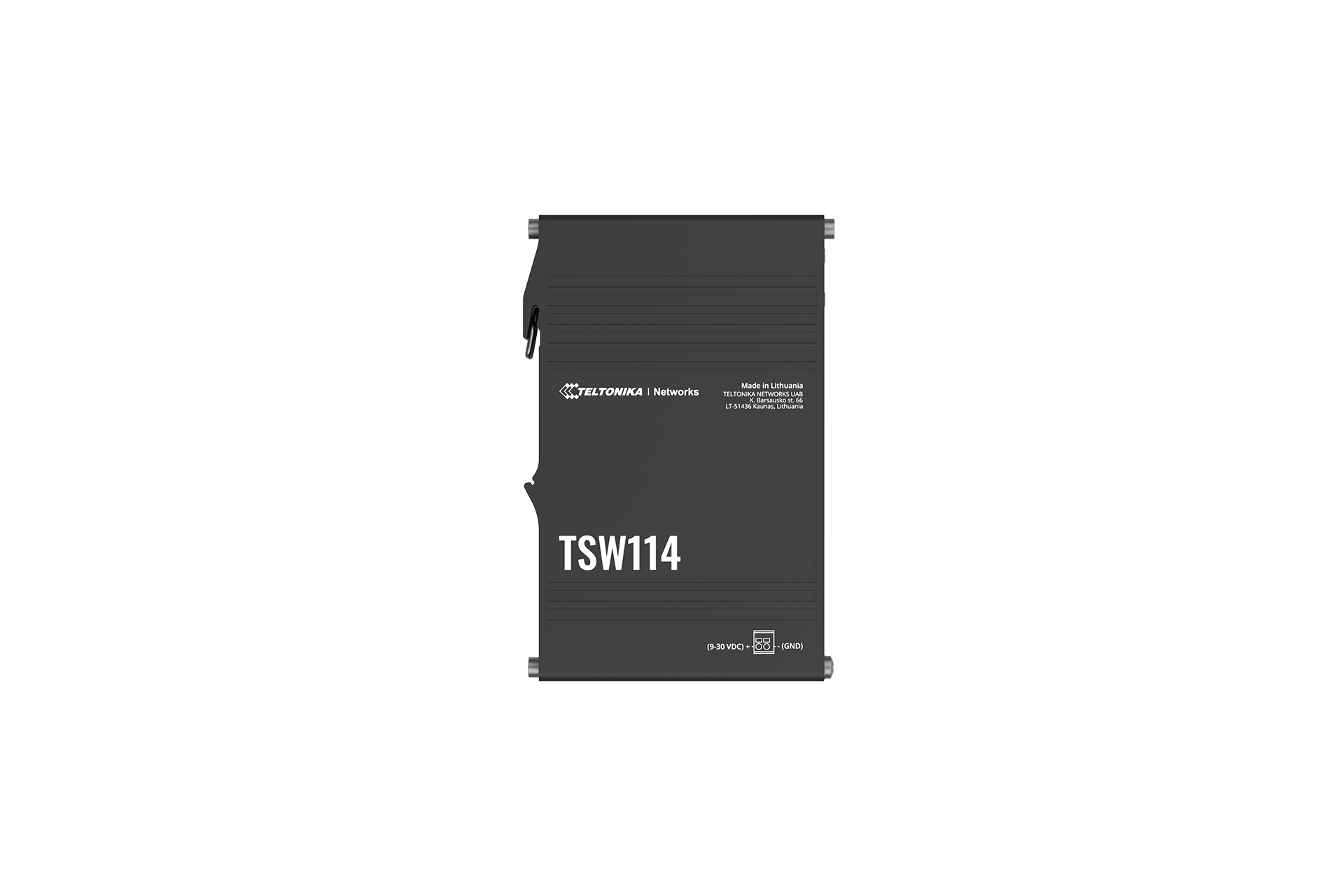

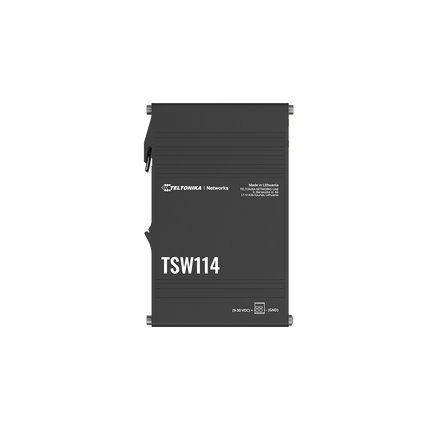

Teltonika TSW114 DIN Rail 5-Port Gigabit Ethernet Switch Unmanaged
Compact Industrial Gigabit Ethernet Switch with Integrated DIN Rail Mount
The Teltonika TSW114 is a compact unmanaged Gigabit Ethernet switch designed for industrial networking applications where reliability, simplicity, and space efficiency are essential. Featuring 5 Gigabit Ethernet ports, an integrated DIN rail mounting bracket, front-facing ports, and ultra-low power consumption, the TSW114 provides plug-and-play network expansion for industrial automation, utilities, control cabinets, smart cities, and IoT deployments.
Its slim form factor, rugged aluminium housing, and industrial temperature rating make it particularly suitable for installations where cabinet space is limited and long-term reliability is critical.
Key Features
5-Port Gigabit Ethernet Connectivity
The TSW114 provides:
- 5 × RJ45 Gigabit Ethernet Ports
- 10/100/1000 Mbps Auto-Negotiation
- Auto MDI/MDIX Support
- Full Gigabit Switching Performance
This allows reliable connectivity for PLCs, HMIs, industrial PCs, sensors, gateways, and other Ethernet-enabled equipment.
Plug-and-Play Operation
The TSW114 is a fully unmanaged switch.
Benefits include:
- No software configuration required
- No management interface
- No licensing costs
- Simple deployment
Simply connect power and Ethernet devices for immediate operation.
Why Choose the TSW114?
The TSW114 is ideal for installations requiring compact, reliable network expansion.
Key advantages include:
- 5 × Gigabit Ethernet Ports
- Integrated DIN Rail Mount
- Ultra-Compact Design
- Front-Facing Ports
- Extremely Low Power Consumption
- Passive PoE Power Input Support
- Industrial Temperature Rating
- Rugged Aluminium Housing
- Profinet Class A Version Available
- Plug-and-Play Operation
Compact Industrial Design
One of the key strengths of the TSW114 is its space-saving design.
Features
- Slim Vertical Form Factor
- Front-Facing Ethernet Ports
- Integrated DIN Rail Bracket
- Lightweight Construction
This makes installation particularly easy inside:
- Electrical Cabinets
- Control Panels
- Machine Enclosures
- Industrial Racks
Gigabit Ethernet Performance
Ethernet Standards
Supported standards include:
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3az
All five ports support:
- 10 Mbps
- 100 Mbps
- 1000 Mbps
with automatic speed negotiation and crossover detection.
Industrial Performance
Switching Specifications
| Feature |
Specification |
| Switching Bandwidth |
10 Gbps |
| Packet Buffer |
128 KB |
| MAC Address Table |
2,000 Entries |
| Jumbo Frame Support |
9,216 Bytes |
This provides reliable operation for industrial networks carrying high volumes of Ethernet traffic.
Industrial Protocol Support
Profinet Compatibility
Optional hardware versions support:
- Profinet Class A Conformance
This allows integration with industrial automation systems and Siemens-based environments requiring Profinet networking.
Flexible Power Options
Standard Power Input
- 2-Pin Industrial DC Power Connector
- Input Voltage Range: 9–30 VDC
Passive PoE Power Input
The TSW114 can also be powered via:
- Ethernet Port 1 (ETH1)
- Passive PoE Mode B
- 9–30 VDC
Important:
- Not compatible with IEEE 802.3af
- Not compatible with IEEE 802.3at
- Not compatible with IEEE 802.3bt
This provides flexible installation options where local power wiring is difficult.
Ultra-Low Power Consumption
The TSW114 is one of the most energy-efficient industrial switches in its class.
Power Consumption
| Mode |
Consumption |
| Idle |
0.3 W |
| Maximum |
2.3 W |
This makes it ideal for:
- Solar-Powered Systems
- Battery-Powered Installations
- Remote Monitoring Sites
- Energy-Efficient Networks
Industrial Construction
Rugged Housing
The TSW114 features:
- Anodized Aluminium Housing
- Fanless Design
- Passive Cooling
- Industrial-Grade Construction
Designed for reliable operation in harsh environments.
Mounting Options

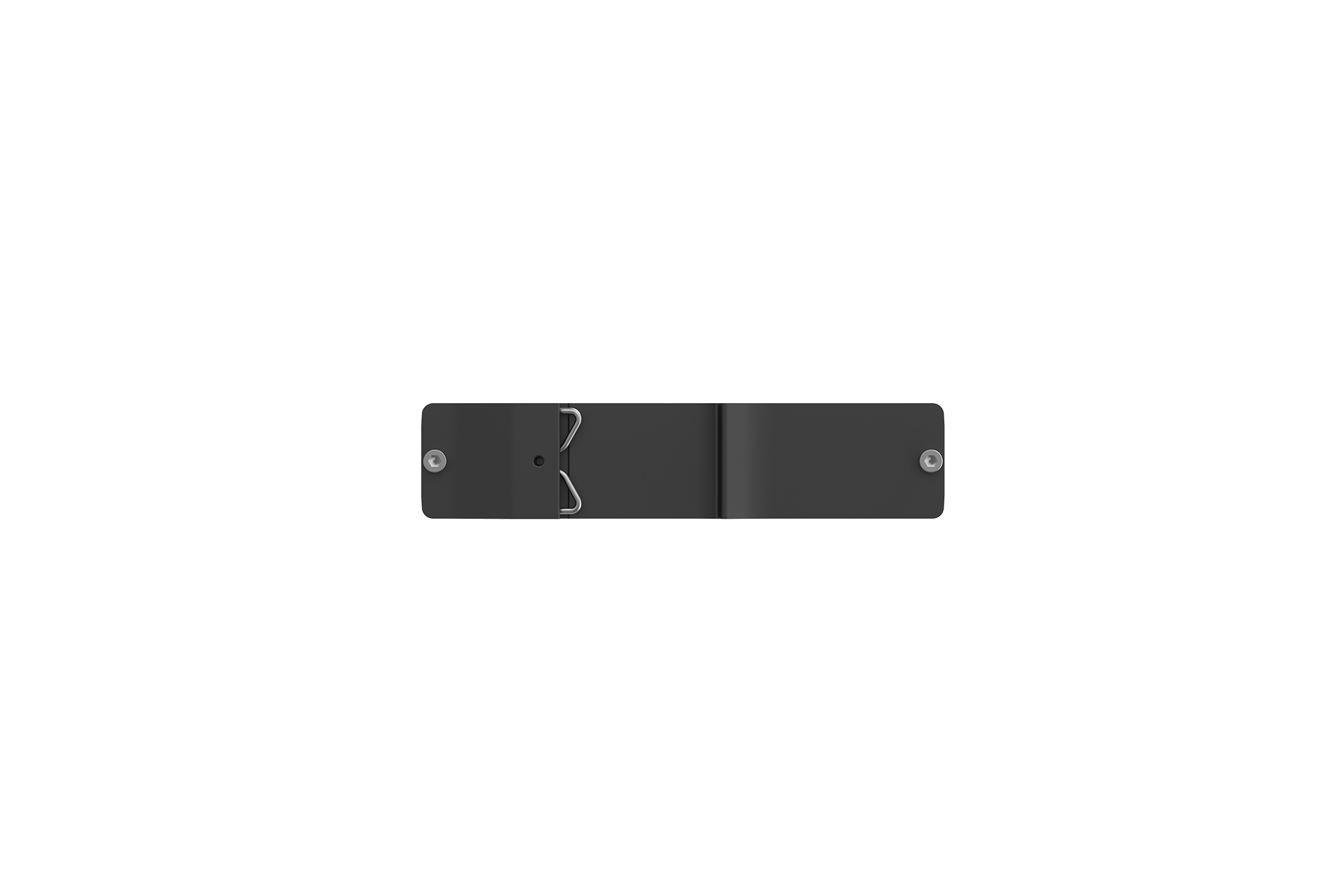

Integrated DIN Rail Mount
The switch includes:
- Built-In DIN Rail Bracket
- Tool-Free Cabinet Installation
Additional options:
- Wall Mount Kit (Optional)
- Flat Surface Mounting (Optional)
The integrated bracket reduces installation time and hardware requirements.
Status Indicators
LEDs
The switch includes:
- 1 × Power LED
- 10 × Ethernet Status LEDs

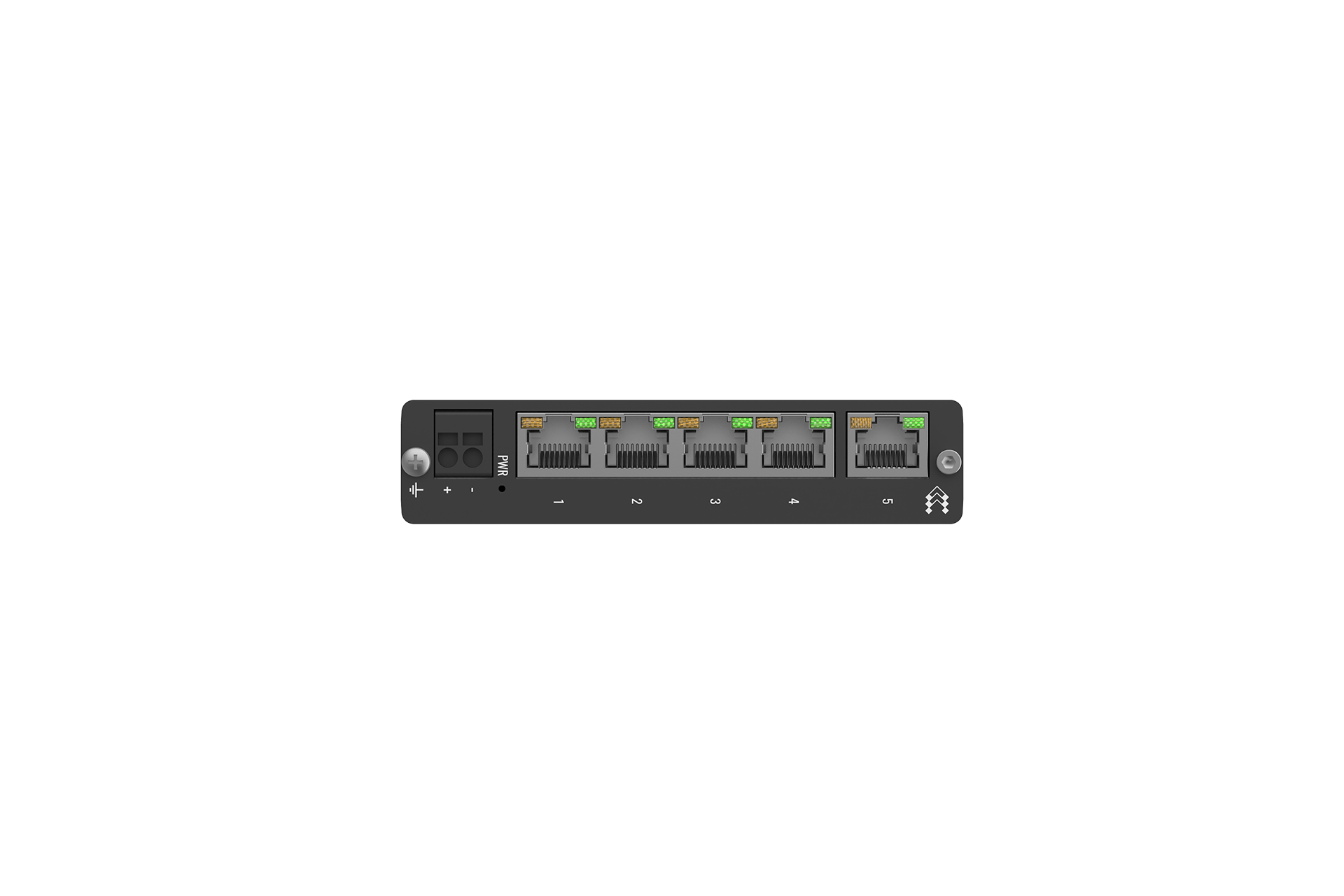

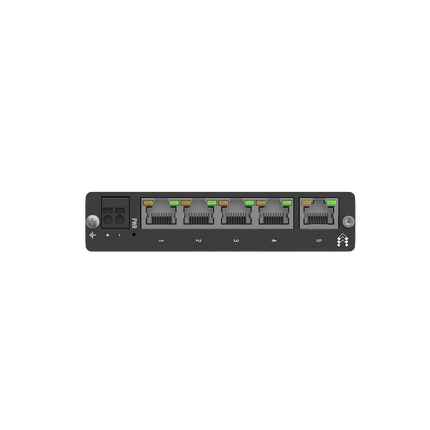

Ethernet Port Indicators
- Orange LED: 10/100/1000 Mbps Link
- Orange Flashing: Network Activity
- Green LED: 1000 Mbps Link Established
Provides quick diagnostics and troubleshooting capability.
Hardware Specifications
Ethernet Interfaces
- 5 × RJ45 Gigabit Ethernet Ports
- Auto MDI/MDIX Support
Power Interface
- 1 × 2-Pin Industrial DC Connector
Additional Features
- 1 × Grounding Screw
- Integrated DIN Rail Bracket
Indicators
- 1 × Power LED
- 10 × Ethernet LEDs
Physical Specifications
Dimensions
Weight
Housing
- Anodized Aluminium Housing
Its slim profile allows installation in very tight spaces where traditional switches cannot fit.
Environmental Specifications
Operating Temperature
Operating Humidity
- 5% to 95% RH (Non-Condensing)
Protection Rating
Suitable for industrial cabinets, factory floors, utility installations, and outdoor enclosures.
Certifications and Compliance
The TSW114 complies with major international standards.
Certifications
- CE
- UKCA
- FCC
- IC
- CB
- RCM
- CITC
- MTCTE
- RoHS
- REACH
- WEEE
Safety Standards
- IEC 62368-1:2018
- EN IEC 62368-1:2020+A11:2020
- AS/NZS 62368.1:2022
Suitable for global industrial deployments.
