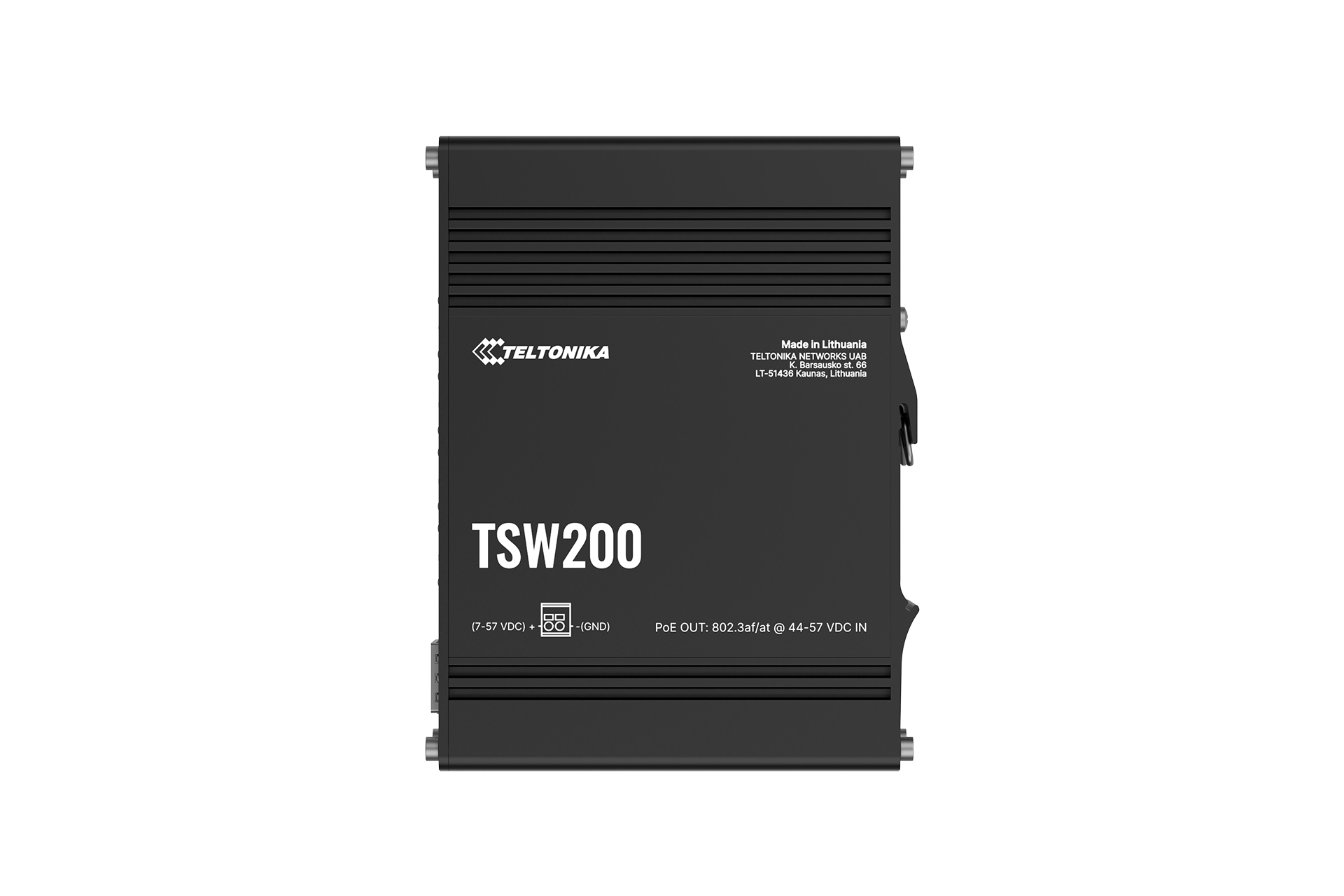

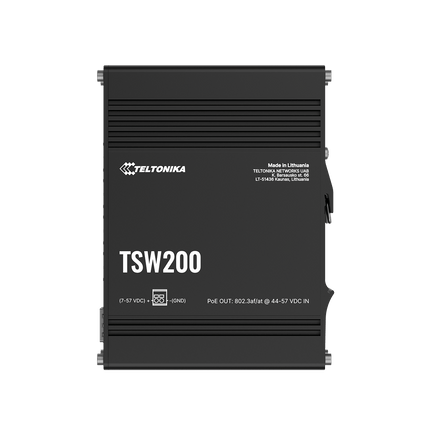

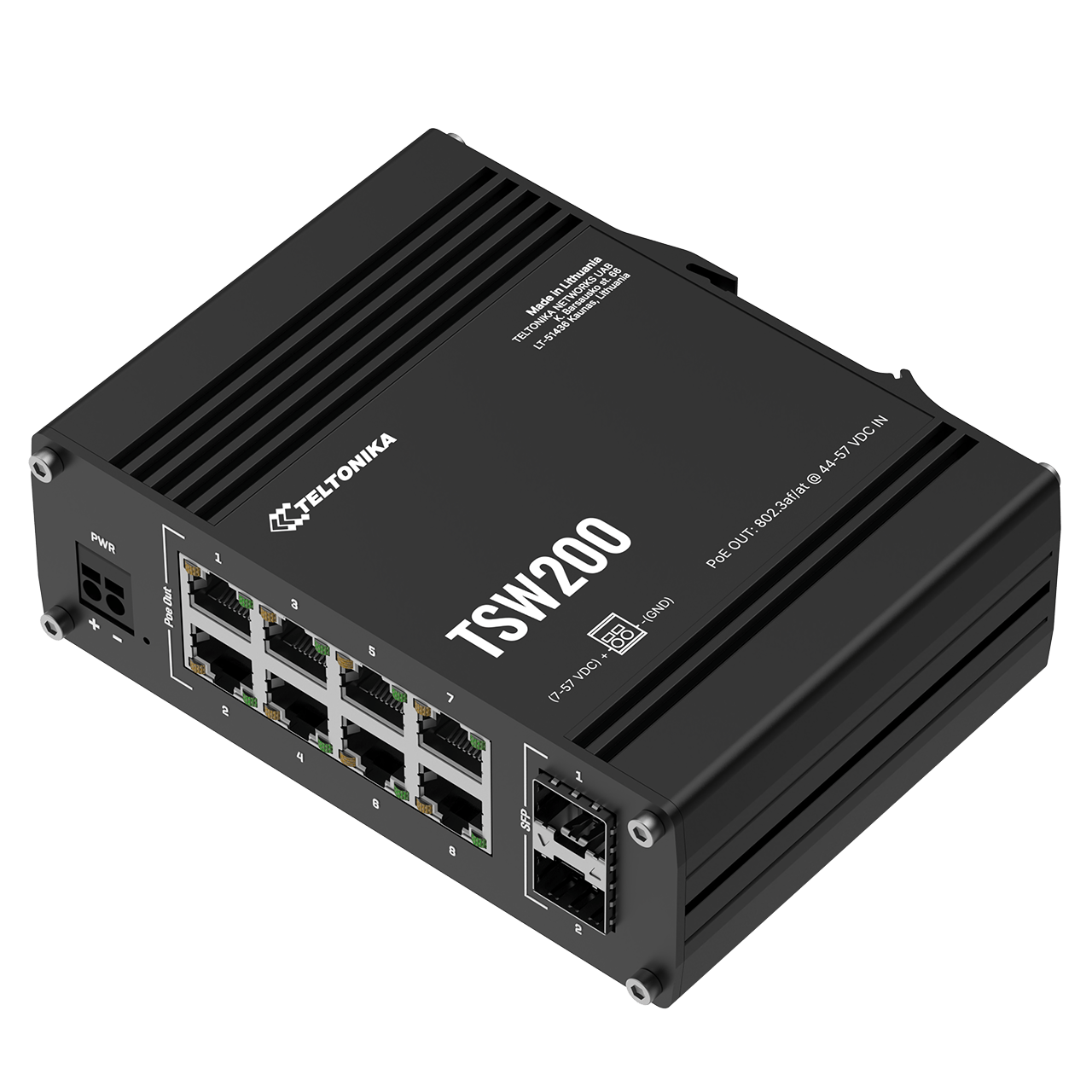

Teltonika TSW200 DIN Rail 8-Port PoE+ Gigabit Ethernet Switch with SFP
Industrial Gigabit PoE+ Switch with SFP Fibre Connectivity & 240W Power Budget
The Teltonika TSW200 Industrial PoE+ Ethernet Switch is a rugged, high-performance networking solution designed for industrial automation, CCTV systems, smart city infrastructure, and IoT deployments. Featuring 8 × Gigabit PoE+ Ethernet ports and 2 × SFP fibre ports, the TSW200 delivers reliable high-speed networking with flexible long-range fibre connectivity.
As highlighted in the official datasheet and flyer, the TSW200 supports IEEE 802.3af/at PoE+ standards with a total PoE budget of up to 240W, making it ideal for powering IP cameras, wireless access points, routers, and industrial devices directly through Ethernet cables
Key Features
-

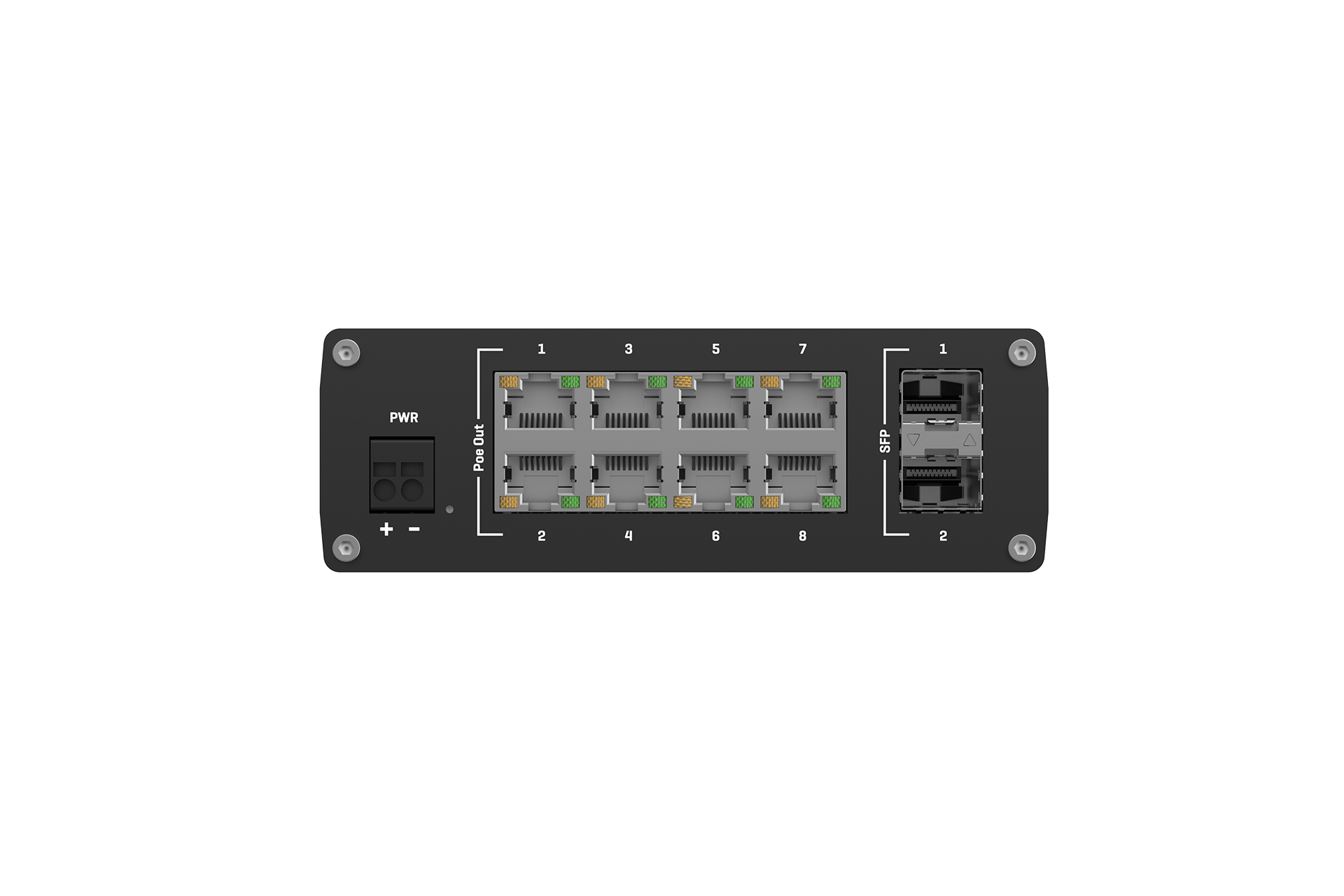

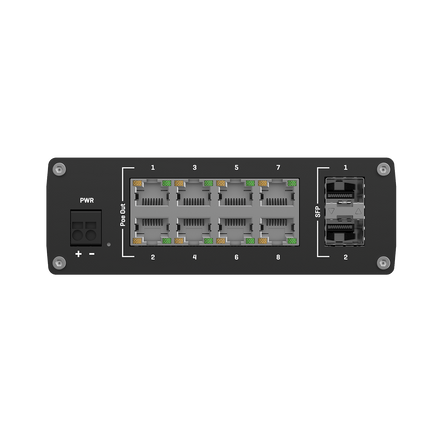

8 × Gigabit PoE+ Ethernet Ports
Supports 10/100/1000 Mbps speeds with PoE+ output up to 30W per port
-
2 × SFP Fibre Ports
Long-range fibre-optic communication for backbone and extended network deployments
-
240W Total PoE Power Budget
Centralised power distribution for multiple powered devices
-
Industrial-Grade Rugged Design
Aluminium housing with DIN rail mounting and grounding support
-
Plug-and-Play Unmanaged Switch
Easy deployment without complex configuration
-
Wide Voltage Input Range (7–57 VDC)
Flexible compatibility with industrial and vehicle power systems
-
High Network Performance
20 Gbps non-blocking bandwidth with jumbo frame support
Why Choose TSW200?
-
Power & Data Over One Cable
Simplifies installation of IP cameras, APs, and IoT devices
-
Ideal for Industrial & CCTV Networks
Gigabit ports and SFP uplinks provide reliable high-speed communication
-
Flexible Fibre Integration
SFP ports enable long-distance connectivity between buildings or cabinets
-
Industrial Reliability
Designed for harsh environments with wide temperature operation
The TSW200 is perfect for applications requiring high-speed PoE networking with fibre expansion capabilities.
Typical Applications
- Industrial automation & smart factories
- CCTV and surveillance systems
- Smart city infrastructure
- Warehouse and logistics networking
- Energy & utilities monitoring
- Enterprise edge networking
Technical Highlights
-
Ethernet: 8 × RJ45 Gigabit Ethernet ports (10/100/1000 Mbps)
-
PoE: IEEE 802.3af/at PoE+ (up to 30W per port)
-
Total PoE Budget: 240W
-
Fibre: 2 × SFP ports for optical uplink
-
Bandwidth: 20 Gbps non-blocking switching capacity
-
Packet Buffer: 128 KB
-
MAC Address Table: 2K entries
-
Jumbo Frame Support: Up to 9216 bytes
-
Power Input: 7–57 VDC (PoE-out requires 44–57 VDC)
-
Operating Temp: -40°C to +75°C
-
Ingress Protection: IP30
-
Dimensions: 132 × 44.2 × 95.1 mm
-
Weight: 517 g
-

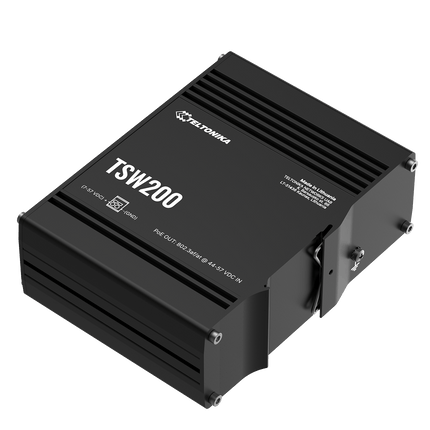

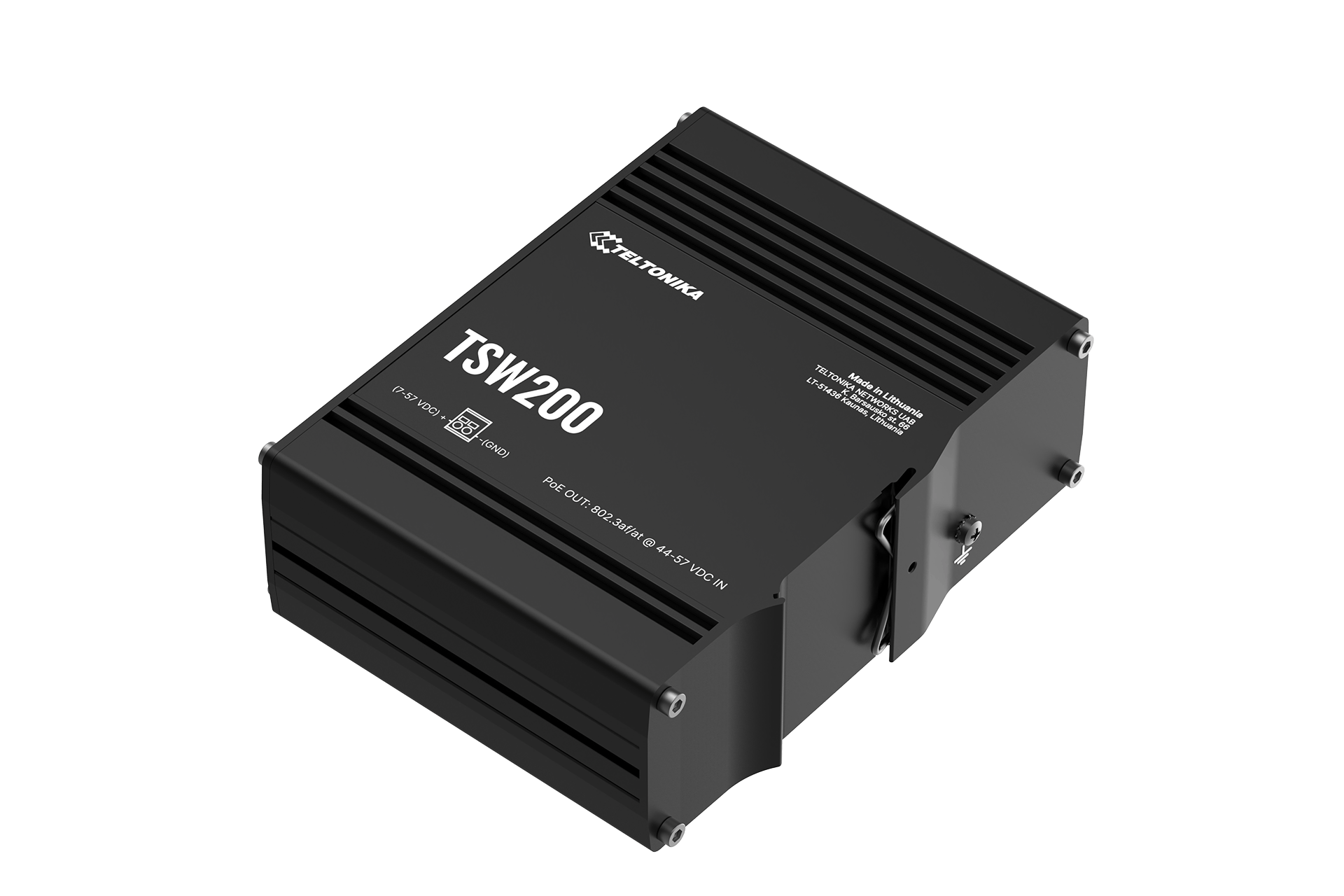

Mounting: Integrated DIN rail bracket
