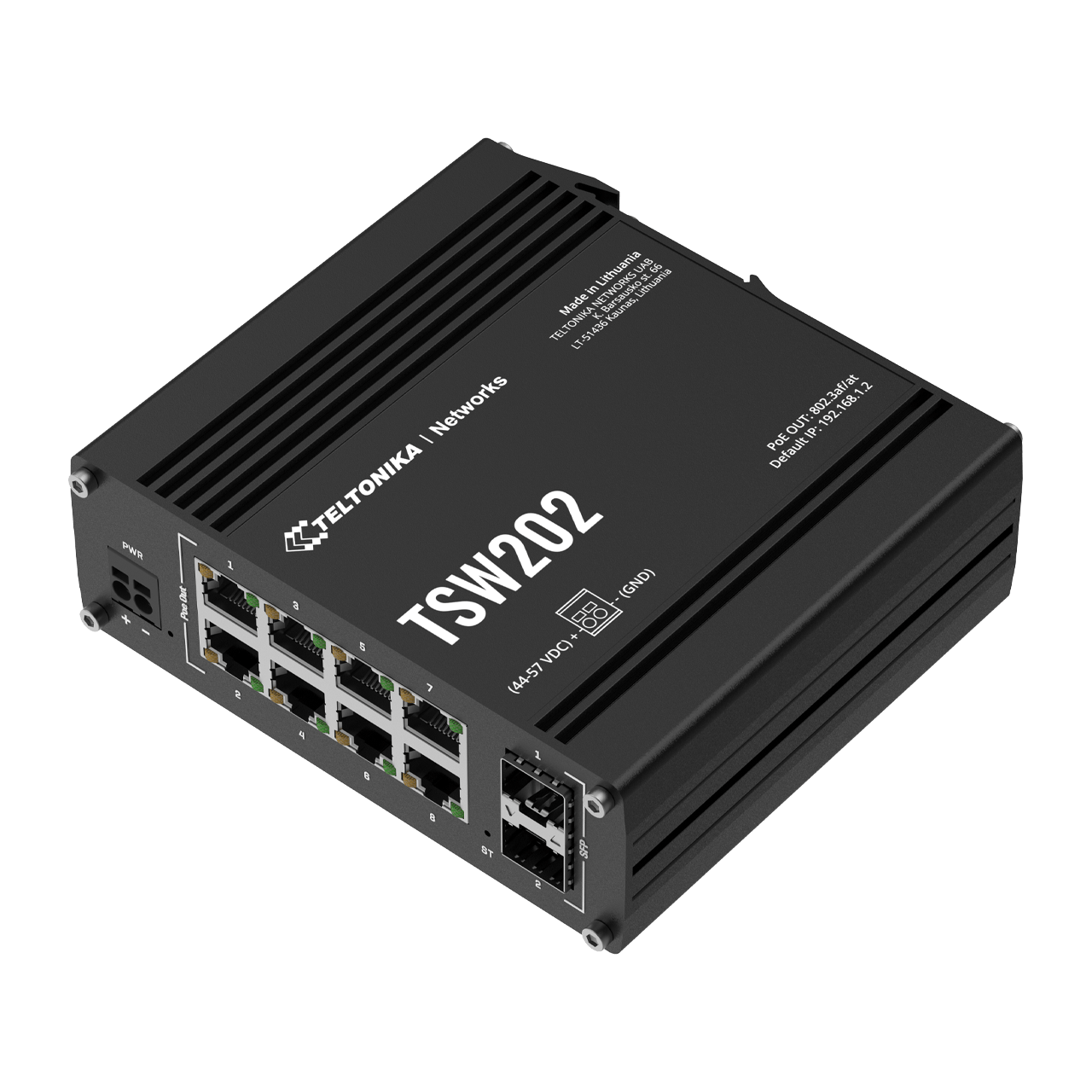

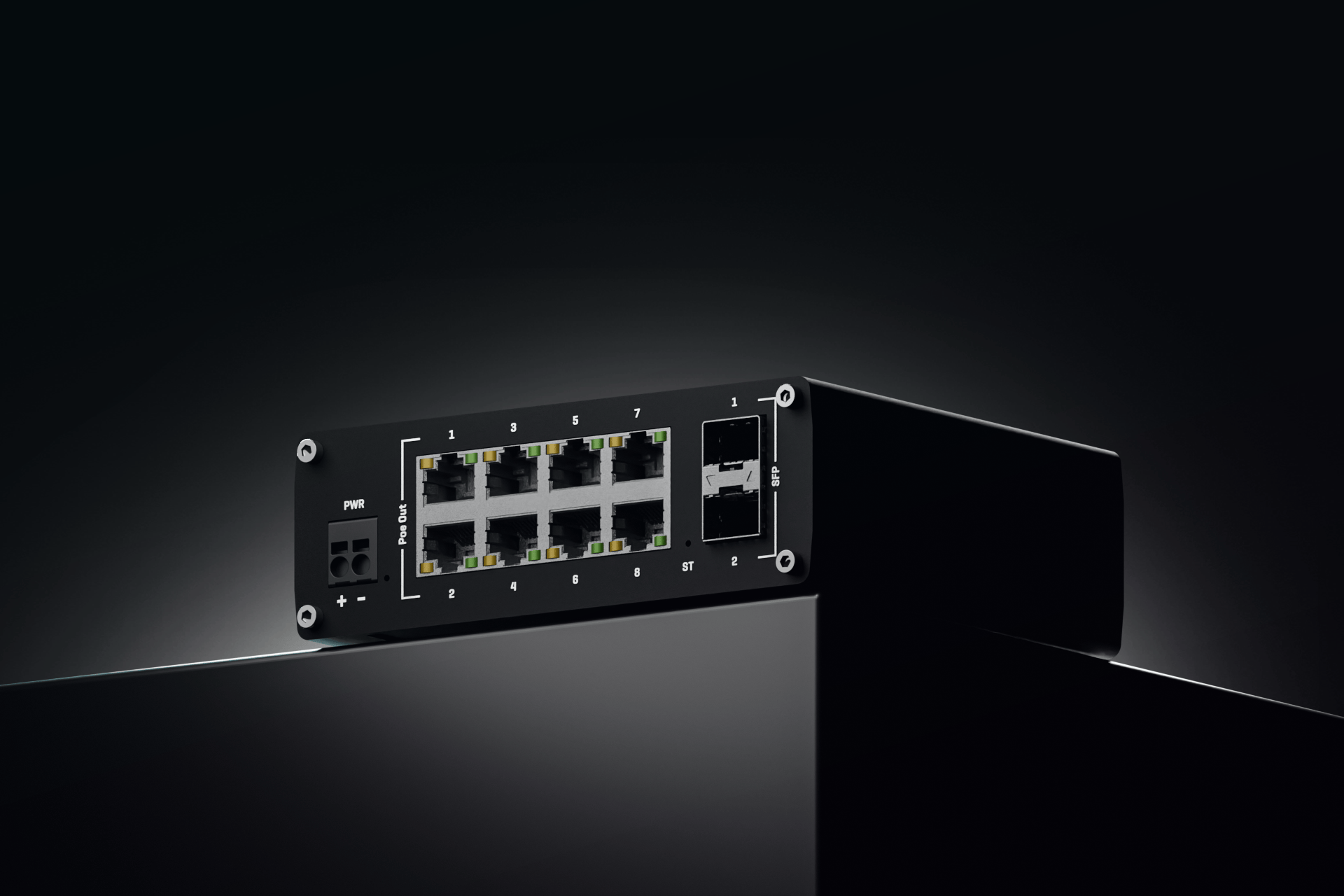

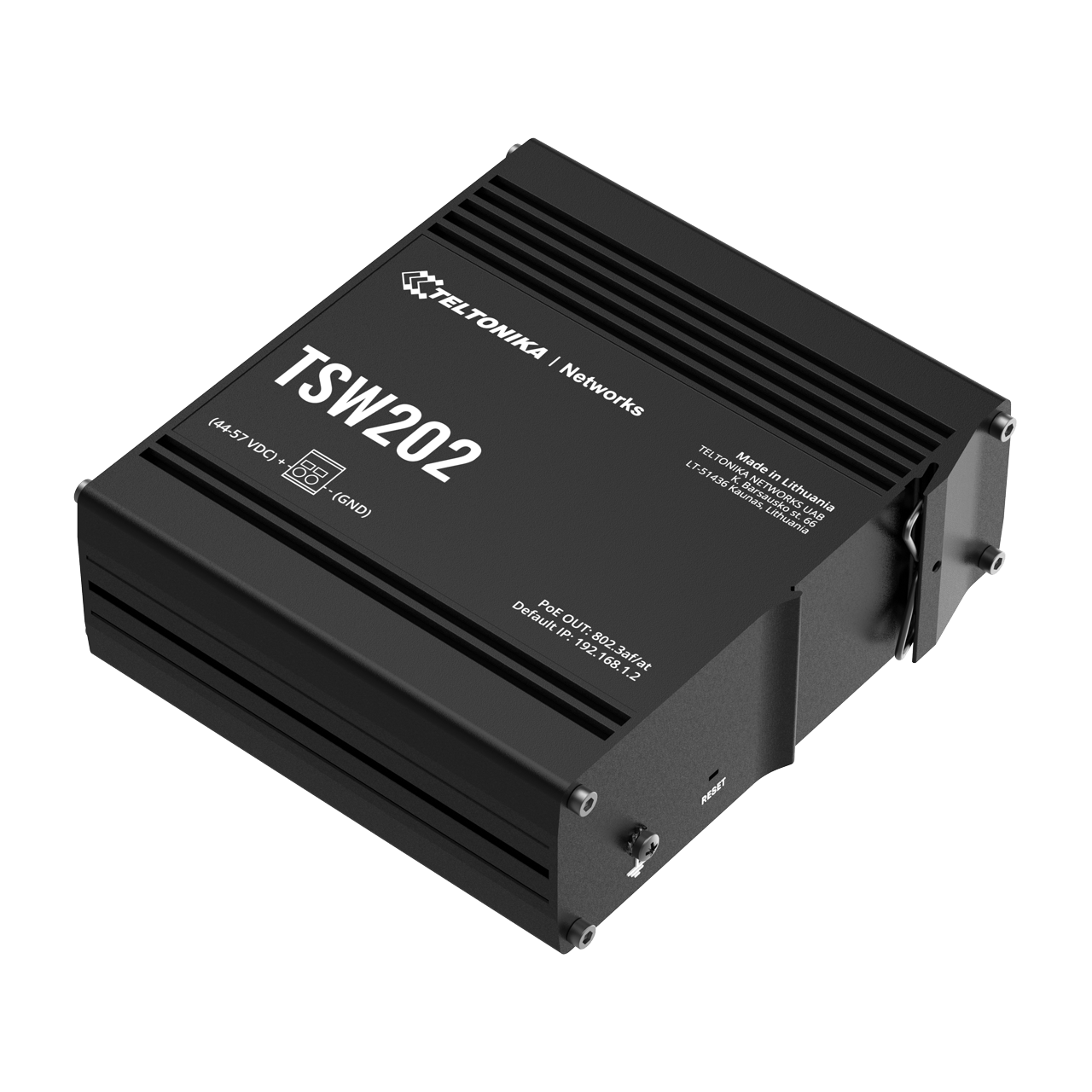

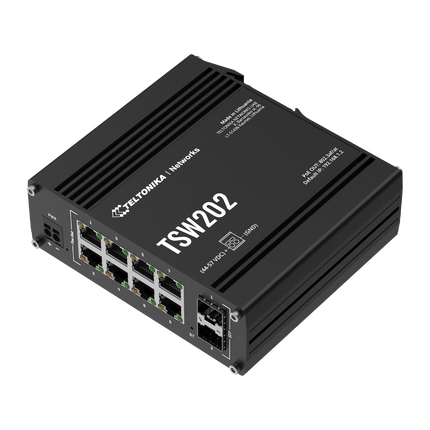

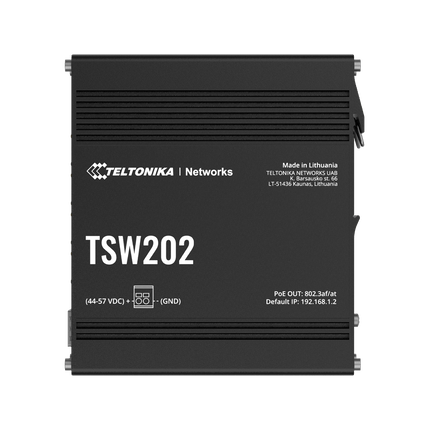

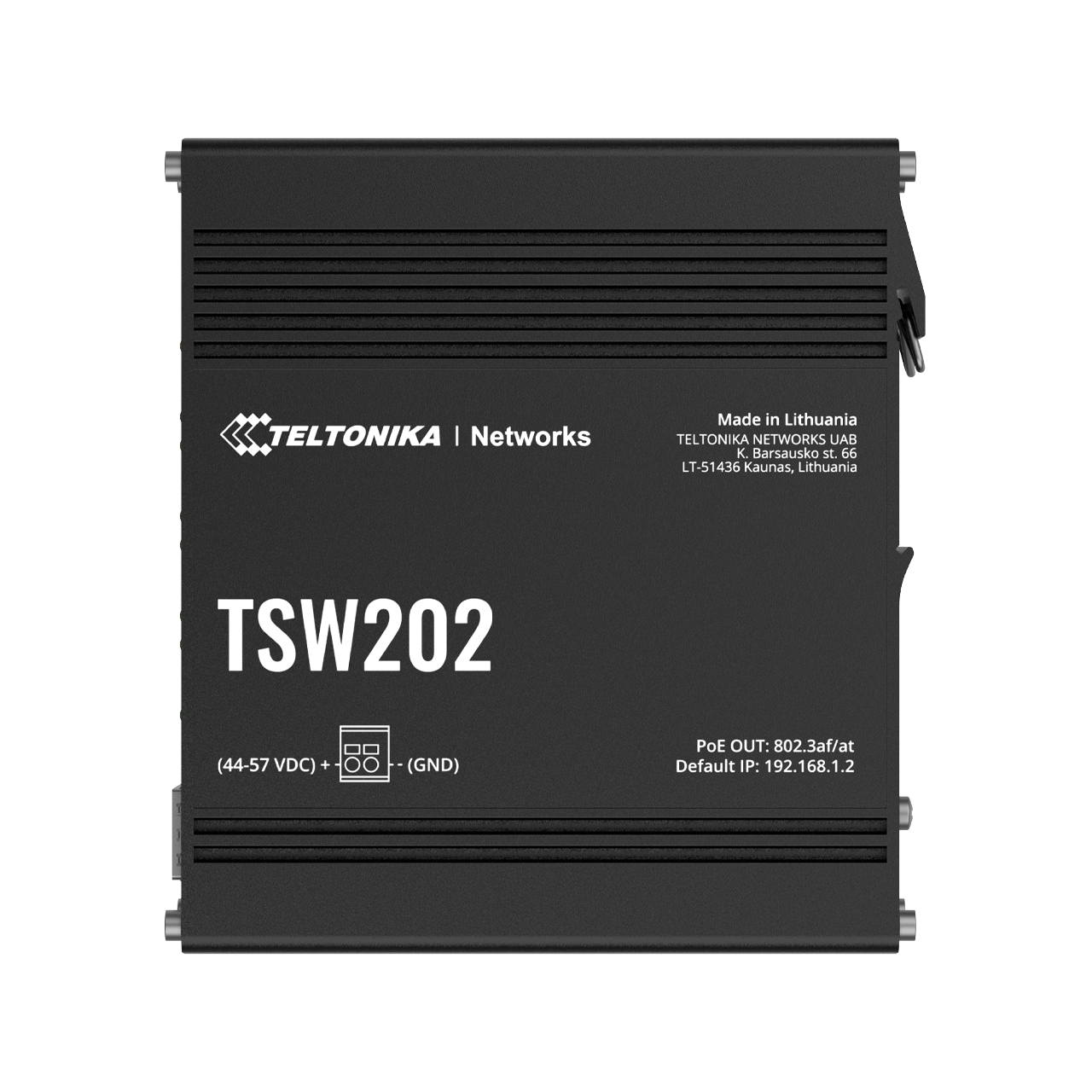

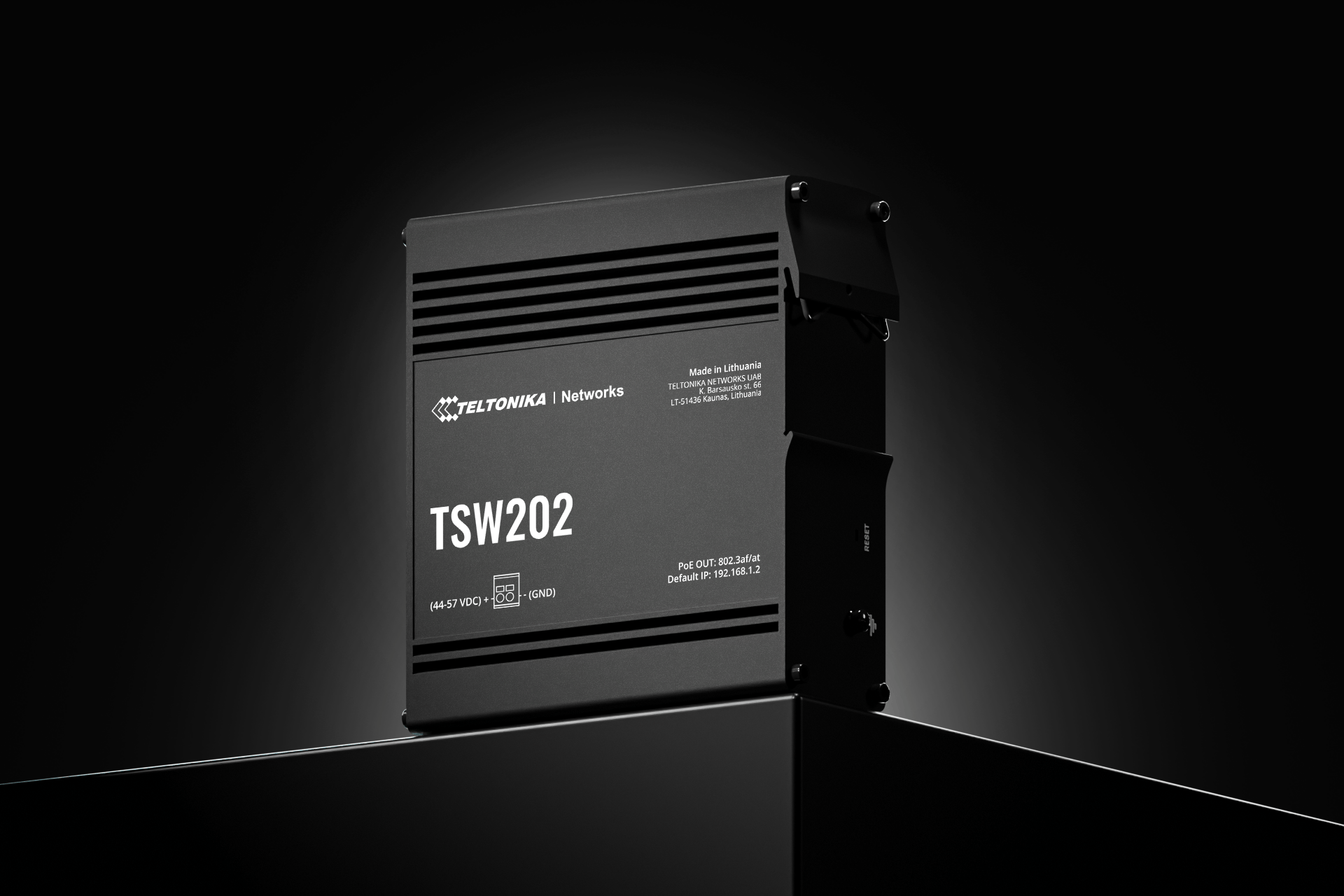

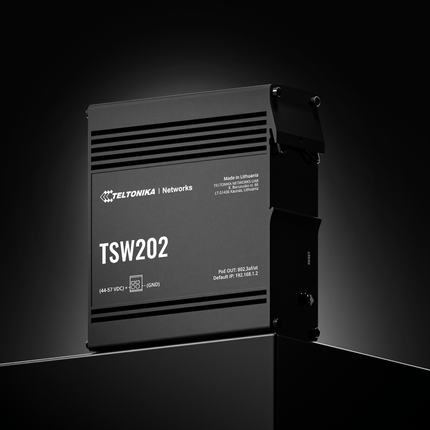

Teltonika TSW202 Managed PoE+ Ethernet Switch (8× PoE+, 2× SFP, L2/L3 Features)
Industrial Managed PoE+ Switch with Advanced Network Control & Fibre Connectivity
The Teltonika TSW202 Managed PoE+ Ethernet Switch is a high-performance industrial networking solution designed for advanced IoT, automation, and enterprise deployments. Featuring 8 × Gigabit PoE+ ports, 2 × SFP fibre ports, and Layer 2 with additional Layer 3 capabilities, the TSW202 delivers powerful network control, scalability, and centralised power distribution.
As highlighted in the datasheet, this switch supports PROFINET, EtherNet/IP, MRP, and advanced routing protocols, making it ideal for industrial automation and smart infrastructure environments.
Key Features
-
8 × Gigabit PoE+ Ports (802.3af/at)
Deliver up to 30W per port with a total PoE budget up to 240W
-
2 × SFP Ports for Fibre Connectivity
Enables long-distance, high-speed backbone networking
-
Managed Switch (L2 + L3 Features)
Advanced networking with VLAN, routing, QoS, and traffic control
-
Industrial Protocol Support
Supports PROFINET (Class B), EtherNet/IP, MRP, and more for OT environments
-
TSWOS Operating System
Teltonika’s intuitive switch OS enabling deep configuration and control
-
Advanced Network Management
Includes SNMP, LLDP, DHCP, port mirroring, and API access for integration
-
Robust Industrial Design
Aluminium housing, DIN rail mounting, and wide temperature operation
Why Choose TSW202?
-
Full Network Control & Visibility
Manage traffic, prioritise data, and optimise performance across your network
-
Power + Data in One Device
Centralised PoE+ simplifies deployment of cameras, sensors, and access points
-
Designed for Industrial Automation
Supports critical protocols like PROFINET and MRP for real-time systems
-
Scalable & Future-Proof Networking
Fibre SFP ports enable expansion across large facilities
The TSW202 is ideal for deployments requiring high-performance switching, advanced management, and reliable power distribution.
Typical Applications
- Industrial automation & manufacturing
- Smart city infrastructure
- Energy & utilities monitoring
- CCTV & video surveillance systems
- Enterprise and campus networks
- SCADA and control systems
Technical Highlights
-

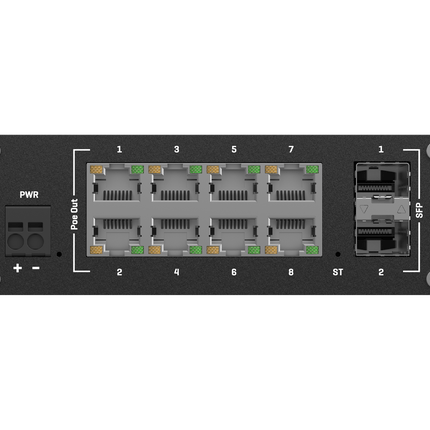

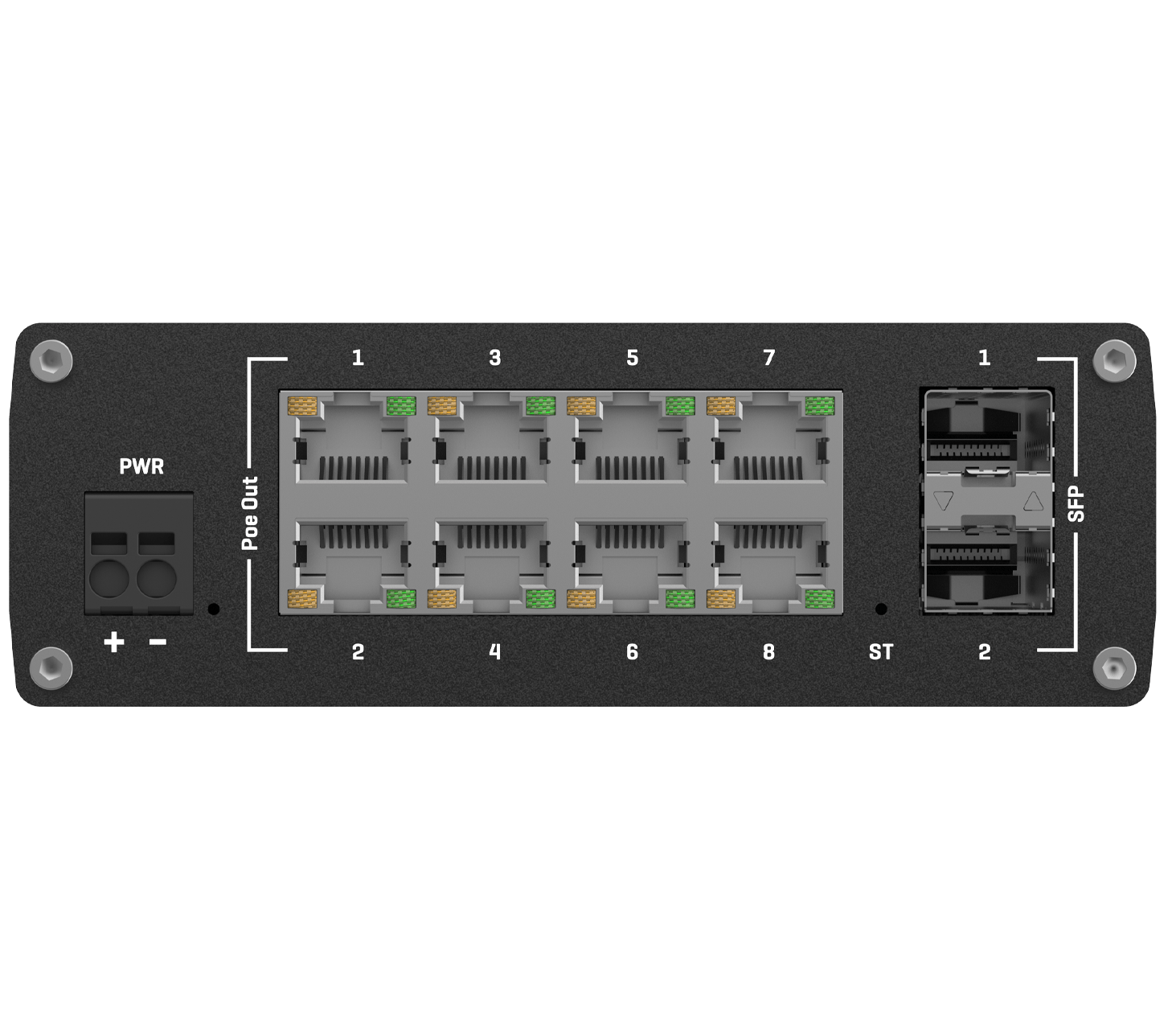

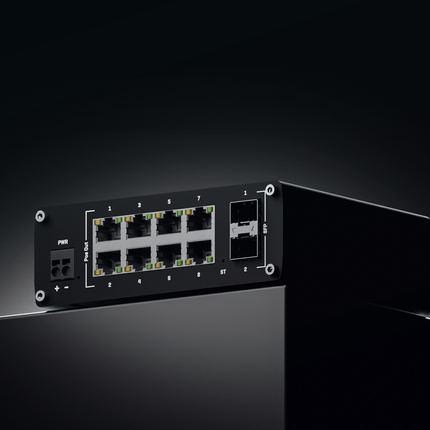

Ethernet: 8 × RJ45 Gigabit ports (10/100/1000 Mbps)
-
PoE: 8 × PoE+ ports (802.3af/at), up to 30W per port
-
Total PoE Budget: Up to 240W
-
Fibre: 2 × SFP ports
-
Switching Capacity: 20 Gbps non-blocking bandwidth
-
Routing: Static IPv4/IPv6 + dynamic routing (BGP, OSPF, RIP)
-
Protocols: PROFINET, EtherNet/IP, MRP, SNMP, LLDP
-
Power Input: 7–57 VDC industrial input
-
Operating Temp: -40°C to +75°C
-
Mounting: DIN rail, wall, or flat surface
-
OS: TSWOS (OpenWrt-based)
