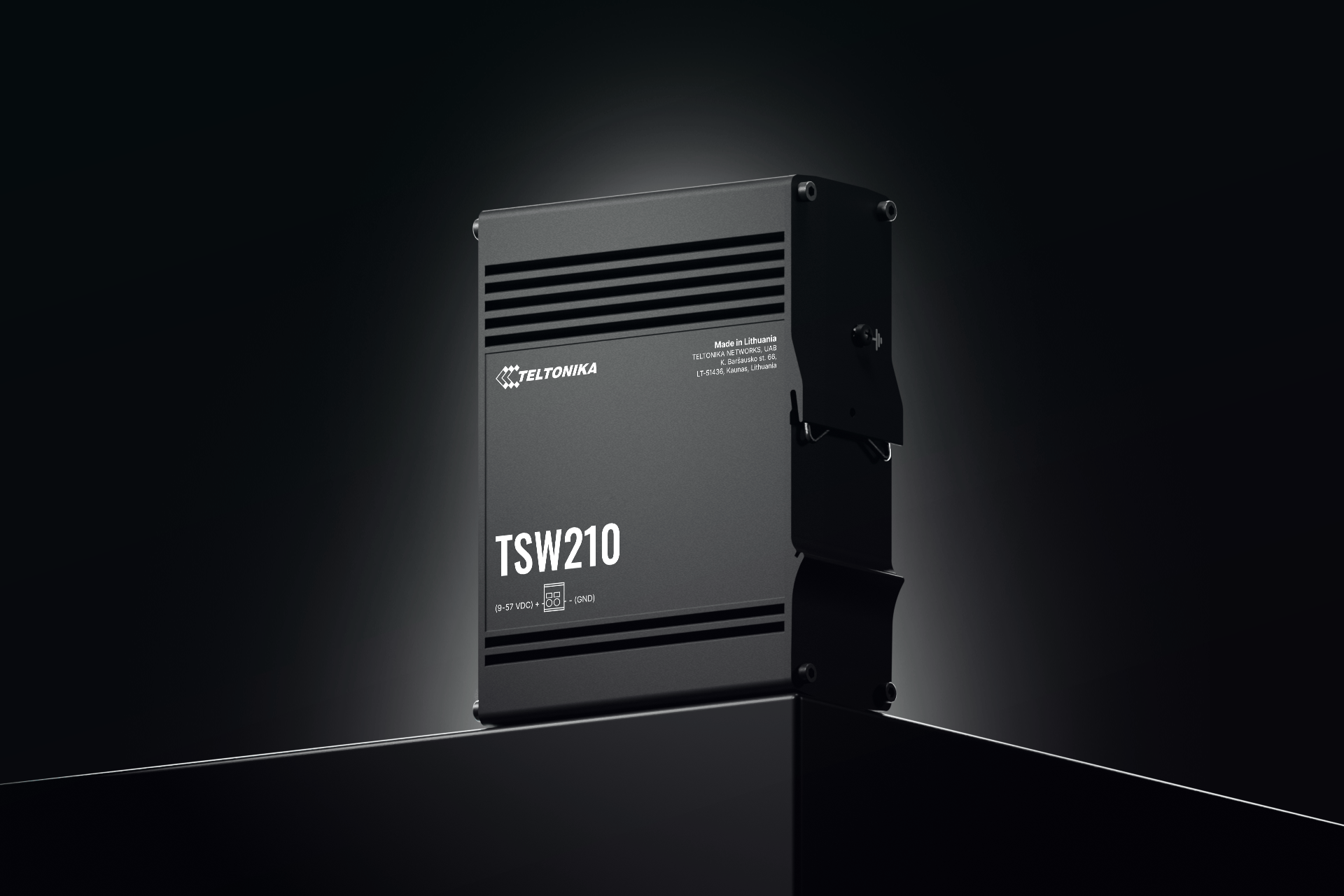

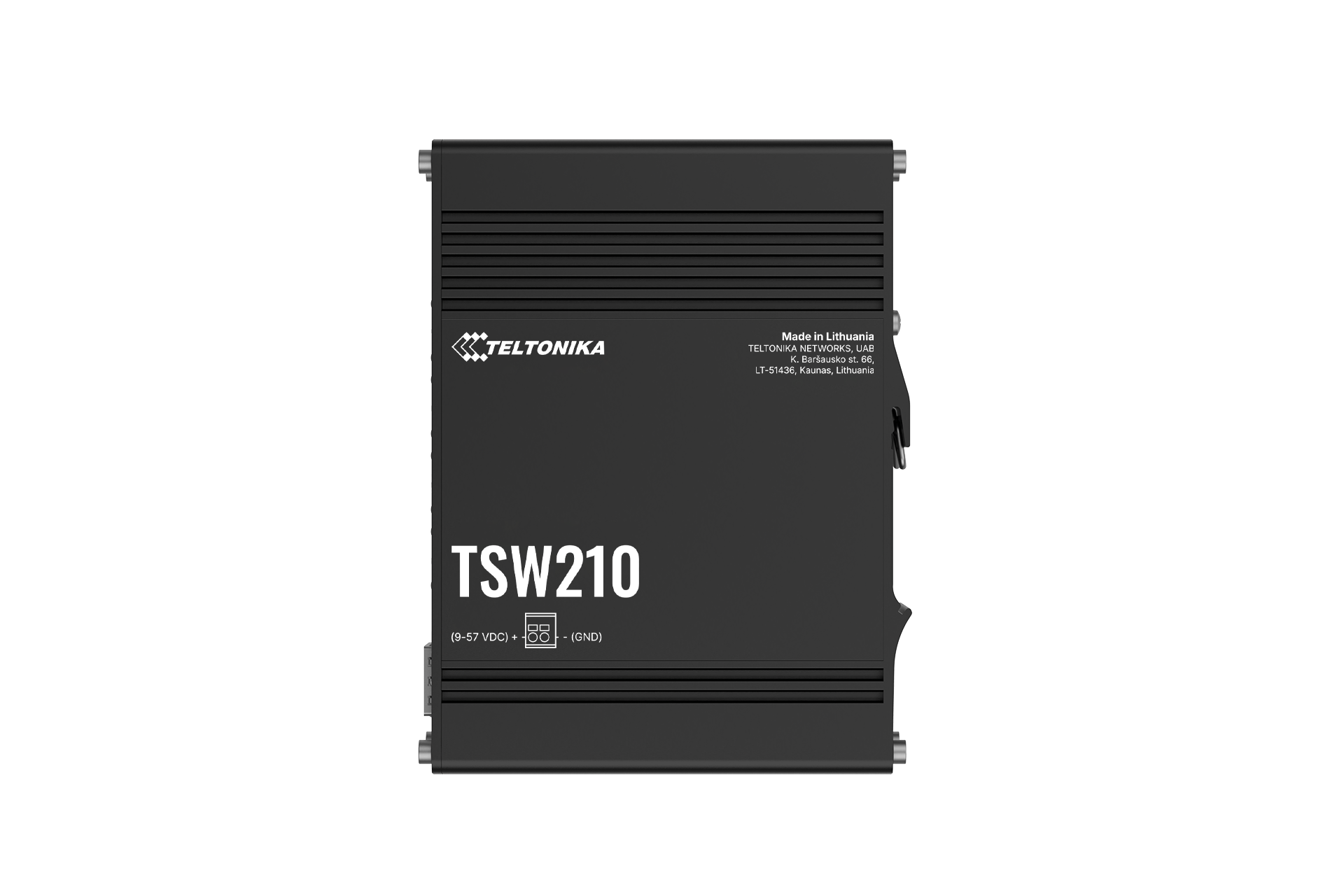

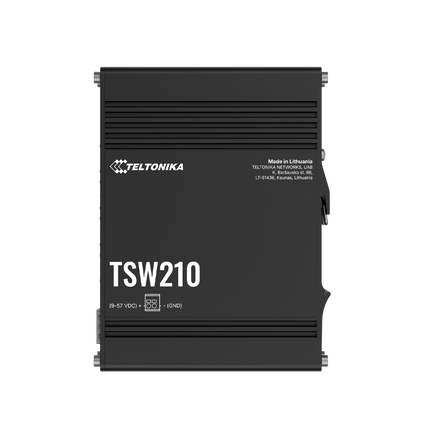

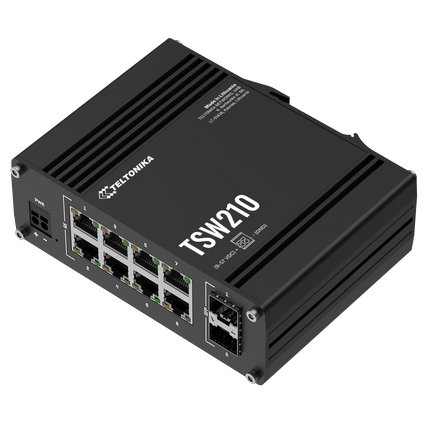

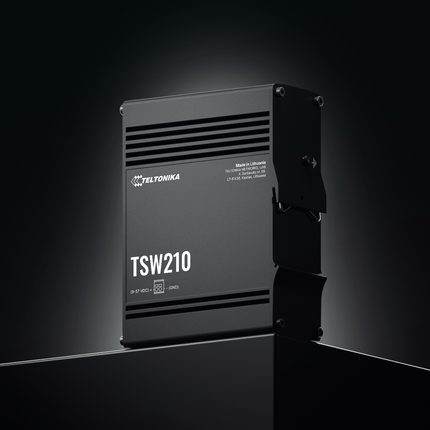

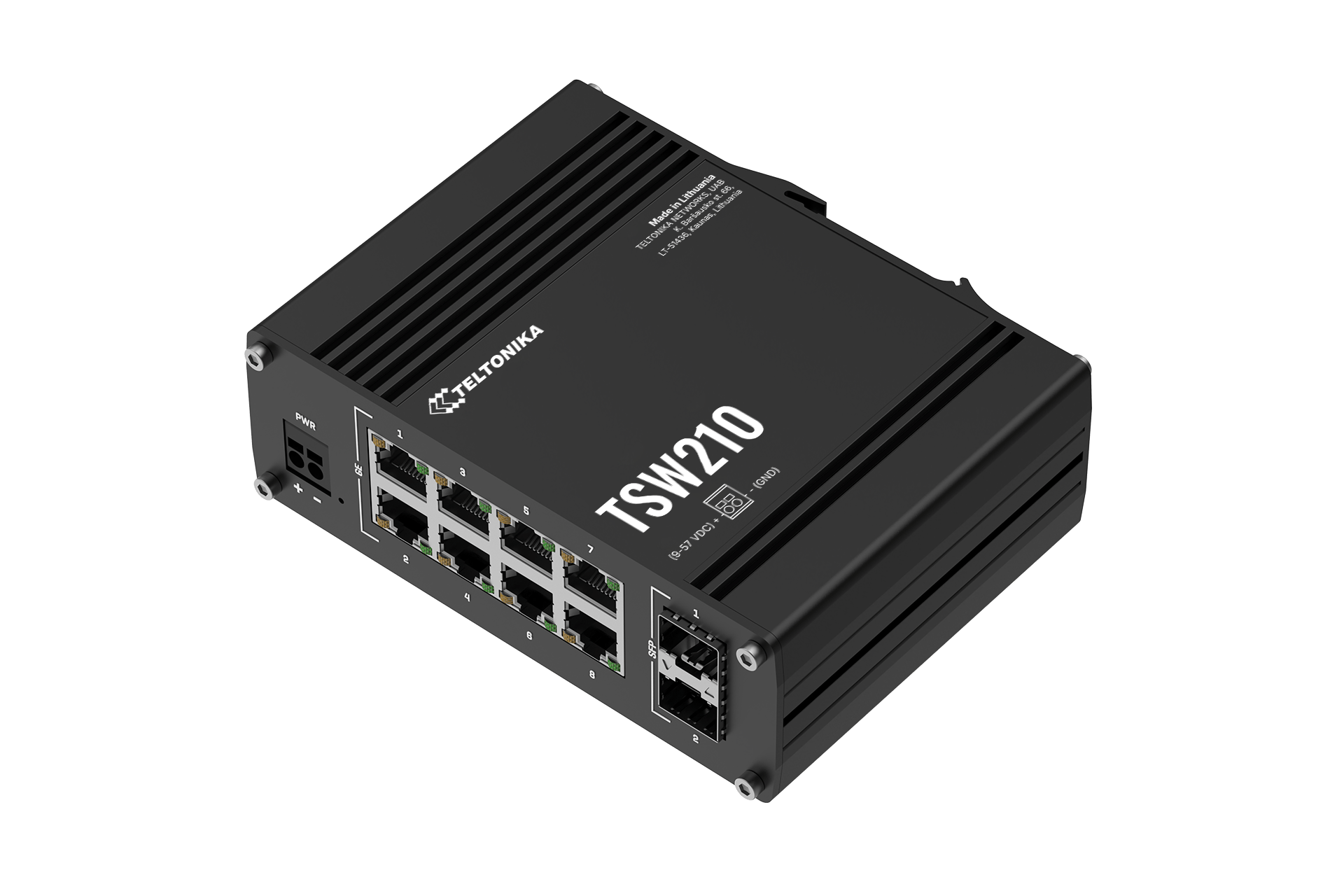

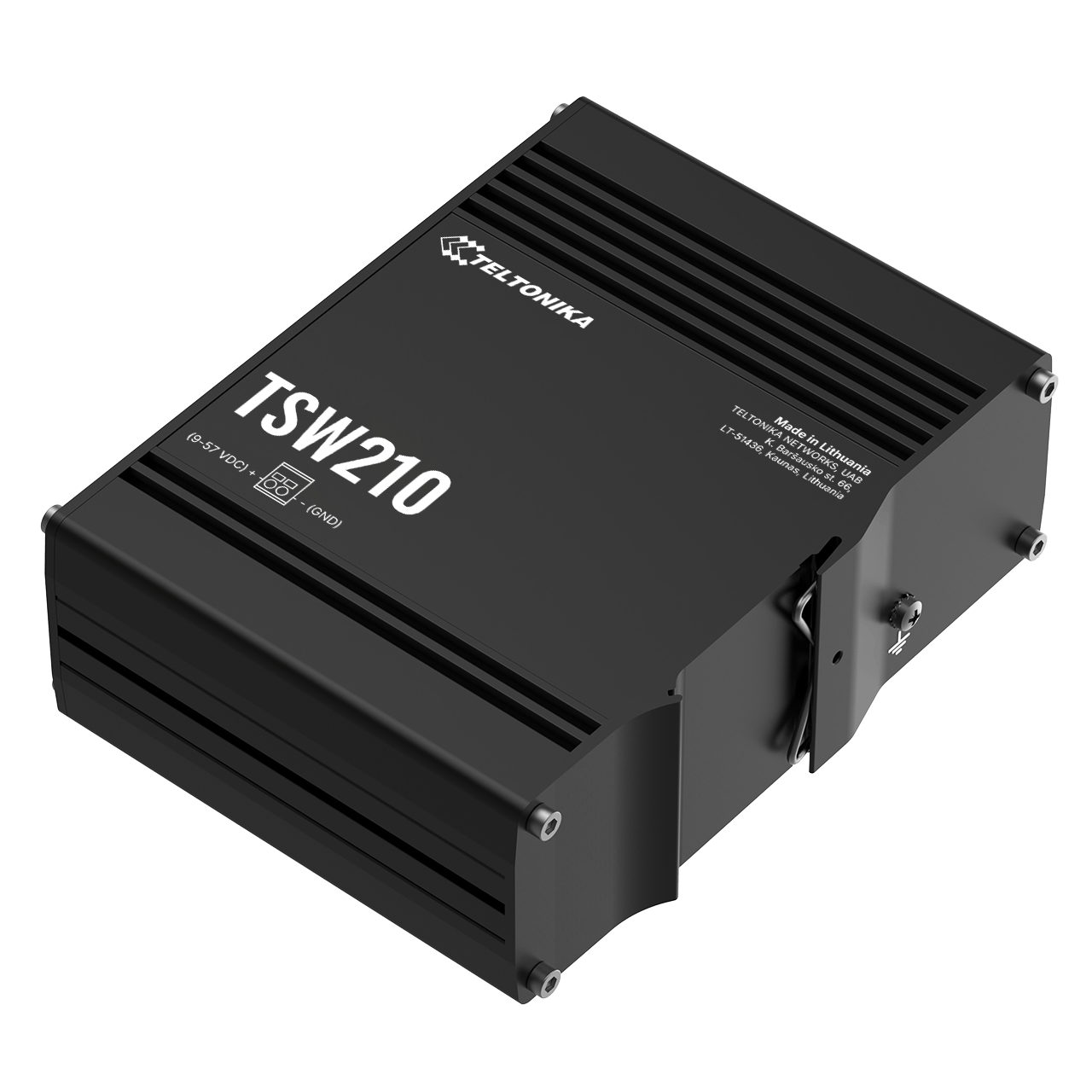

Teltonika TSW210 DIN Rail 8-Port Gigabit Ethernet Switch with SFP
The Teltonika TSW210 is a rugged industrial unmanaged Gigabit Ethernet switch featuring 8 × Gigabit RJ45 Ethernet ports and 2 × SFP fibre ports for reliable, high-speed network connectivity in industrial and commercial applications.
Designed for simple plug-and-play deployment, the TSW210 requires no additional configuration and provides up to 1000 Mbps Ethernet connectivity across all eight RJ45 ports. Two SFP interfaces enable fibre-optic connections for extending networks over longer distances while maintaining high data rates and reliable communications. Teltonika specifically positions the combination of Gigabit Ethernet and SFP as a way to connect multiple local devices while also integrating equipment located further apart.
With a rugged full-aluminium enclosure, integrated DIN rail bracket, wide 7–57 VDC power input and -40°C to +75°C operating temperature, the TSW210 is well suited to industrial automation, energy, utilities, IoT, smart city and enterprise networking applications.
Key Features
- 8 × 10/100/1000 Mbps Gigabit Ethernet RJ45 ports
-
2 × SFP ports for fibre-optic connectivity
- Up to 20 Gbps non-blocking bandwidth
- Plug-and-play unmanaged operation
- No network configuration required
- Auto MDI/MDIX crossover
- 9216-byte Jumbo Frame support
- 2K MAC address table
- Wide 7–57 VDC power input
- Reverse polarity protection
- Very low power consumption – approximately 1.03 W idle
- Maximum power consumption of only 3.71 W
- Rugged full-aluminium housing
- Integrated DIN rail bracket
- Wall and flat-surface mounting options*
- Grounding connection
- Wide -40°C to +75°C operating temperature
- IP30 protection
- Profinet Class A version available with optional order code
- RCM and international regulatory approvals
- Designed for industrial and automation networks
*Wall and flat-surface mounting require an additional kit.
8-Port Gigabit Ethernet Connectivity
The TSW210 provides:
8 × RJ45 Gigabit Ethernet ports
Each port supports:
10/100/1000 Mbps
allowing high-speed connections between industrial controllers, gateways, computers, cameras, access points, IoT devices and other Ethernet-enabled equipment.
Auto MDI/MDIX support simplifies installation by automatically handling Ethernet crossover requirements.
Dual SFP Fibre Ports
In addition to its eight copper Ethernet ports, the TSW210 provides:
2 × SFP ports
These interfaces allow compatible SFP modules to be used for fibre-optic network connections.
Fibre is particularly useful for industrial networks where equipment must be connected across longer distances than conventional copper Ethernet allows, or where fibre is preferred for network infrastructure.
This makes the TSW210 suitable for applications such as:
Control Cabinet → Fibre Backbone → Remote Control Cabinet
or:
Industrial Network → Fibre Link → Remote Equipment
Teltonika specifically highlights the two SFP ports for long-range fibre-optic communication.
SFP modules are not specified as part of the standard package and should be selected separately according to the required fibre type, wavelength and distance.
Plug-and-Play Unmanaged Switch
The TSW210 is designed for straightforward deployment.
There is no requirement to configure IP addresses, VLANs or switch management settings before putting the unit into service.
Simply:
Connect Power → Connect Ethernet/Fibre Devices → Network Operates
This makes the TSW210 particularly useful where a reliable industrial switch is required without the additional configuration and administration associated with a managed Ethernet switch.
20 Gbps Switching Capacity
The TSW210 provides 20 Gbps non-blocking bandwidth, allowing high-speed traffic across its Gigabit interfaces.
Performance specifications include:
| Feature |
Specification |
| Non-blocking bandwidth |
20 Gbps |
| Packet buffer |
128 KB |
| MAC address table |
2K entries |
| Jumbo Frame support |
9216 bytes |
These specifications make the switch suitable for demanding industrial Ethernet networks carrying traffic between multiple Gigabit devices.
Wide 7–57 VDC Power Input
The TSW210 accepts a wide:
7–57 VDC input
through its 2-pin industrial DC power socket.
This broad voltage range simplifies integration into industrial electrical systems where different DC supply voltages may already be available.
Power consumption is exceptionally low:
-
Idle: approximately 1.03 W
-
Maximum: 3.71 W
The current datasheet also specifies reverse-polarity protection.
Rugged Industrial Construction
The TSW210 uses a full aluminium housing designed for fixed industrial installations.
The enclosure measures approximately:
132 × 44.2 × 95.1 mm
and weighs:
500 g
A grounding screw is also provided for appropriate industrial installation practices.

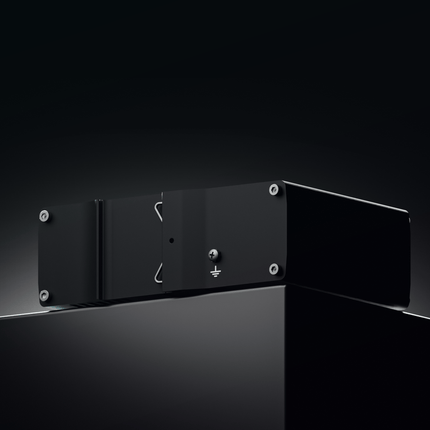

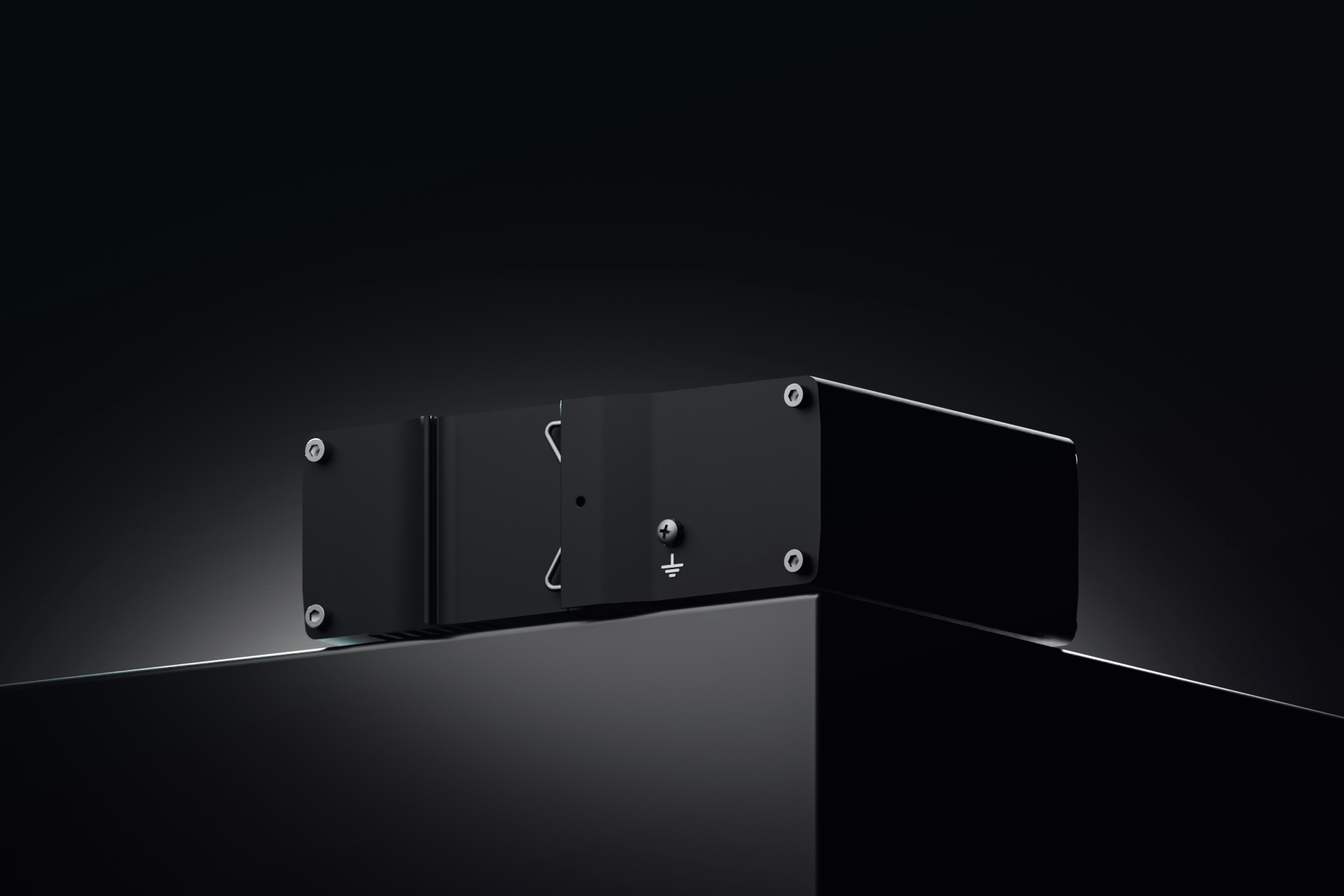

Integrated DIN Rail Mounting

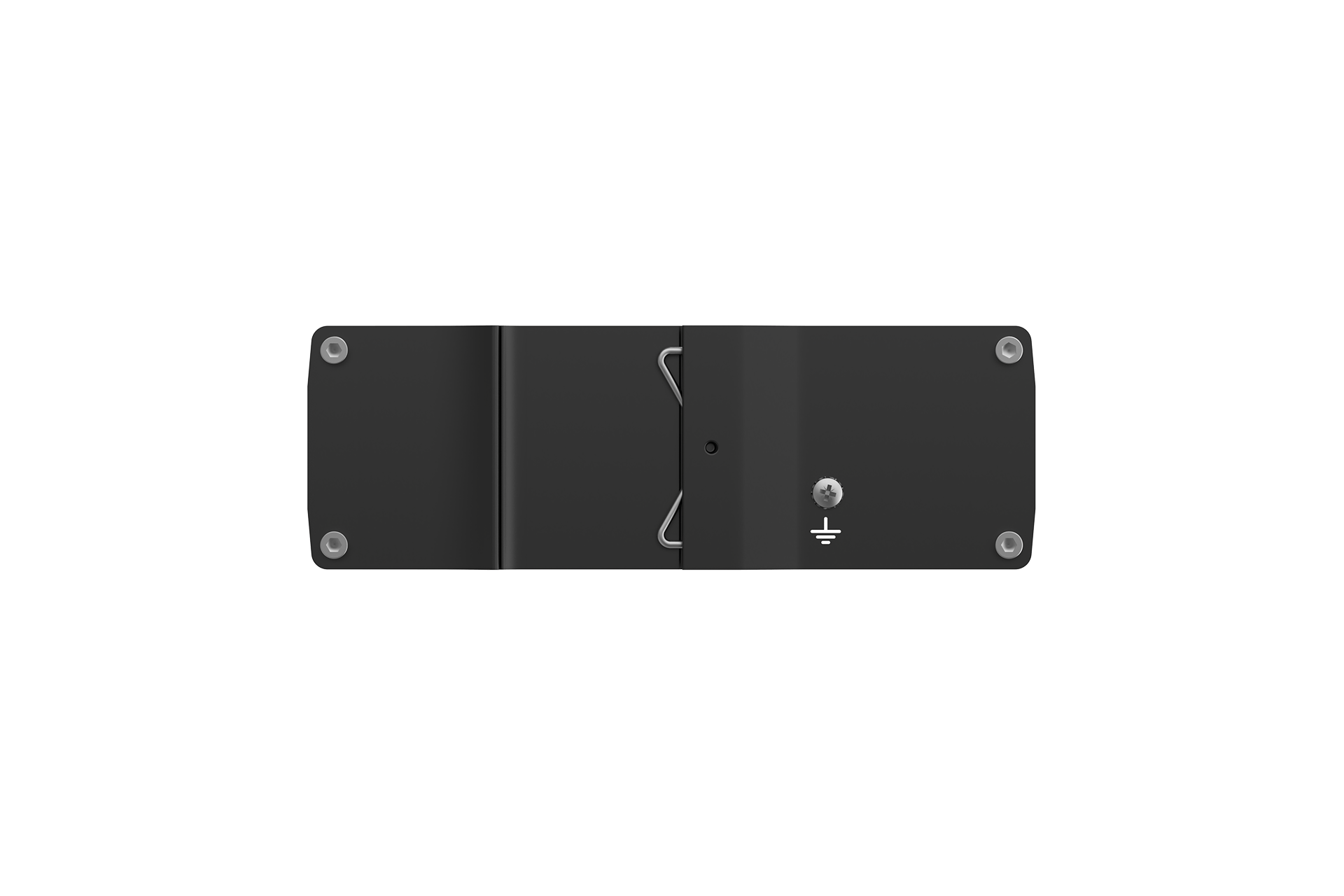

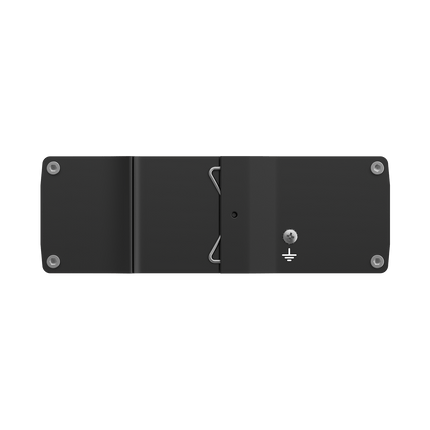

A particularly useful feature for industrial installations is the integrated DIN rail bracket.
Unlike products that require a separate DIN rail kit, the TSW210's standard housing incorporates the DIN rail mounting bracket, as shown in the hardware diagram on page 4 of Teltonika's current datasheet.
This makes installation straightforward inside:
- Industrial control cabinets
- Automation panels
- Electrical switchboards
- Communications cabinets
- Machine control systems
- Remote monitoring enclosures
Wall and flat-surface mounting are also supported with an additional mounting kit.
Wide Industrial Operating Temperature
The TSW210 is designed to operate from:
-40°C to +75°C
with:
10% to 90% non-condensing humidity
and an ingress protection rating of:
IP30
This makes it suitable for protected industrial environments where conventional office-grade Ethernet switches may not be appropriate.
Industrial Network Applications
The TSW210 can be used to connect a wide range of Ethernet equipment, including:
- PLCs
- Industrial PCs
- HMIs
- IoT gateways
- Cellular routers
- Industrial controllers
- Remote I/O
- IP cameras
- Networked sensors
- Data loggers
- SCADA equipment
- Building automation controllers
- Access points
- Edge computers
- Remote monitoring equipment
The two SFP interfaces also allow the local copper network to be integrated into a fibre backbone.
Profinet Class A Option
The current Teltonika datasheet identifies Profinet Class A conformance as an available optional hardware/order-code version.
This distinction is important when listing the product: do not advertise every TSW210 as Profinet Class A unless you are supplying the applicable version.
Teltonika currently identifies:
-
TSW210000040 – Standard package without PSU
-
TSW210000011 – Profinet Class A version, standard package without PSU
IEEE Ethernet Standards
The TSW210 supports the following IEEE 802.3 series standards:
- IEEE 802.3i
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.3az
Status LEDs
Front-panel indicators provide quick visual confirmation of network operation, including:
- 1 × Power LED
- 16 × Ethernet status LEDs
- 2 × SFP status LEDs

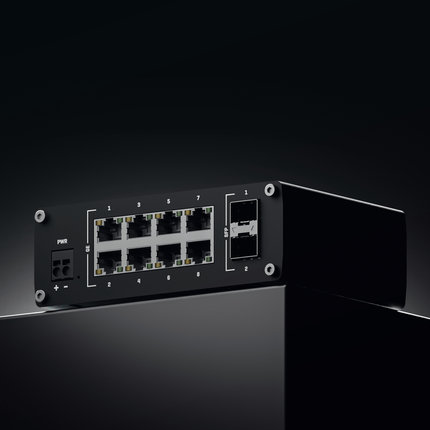

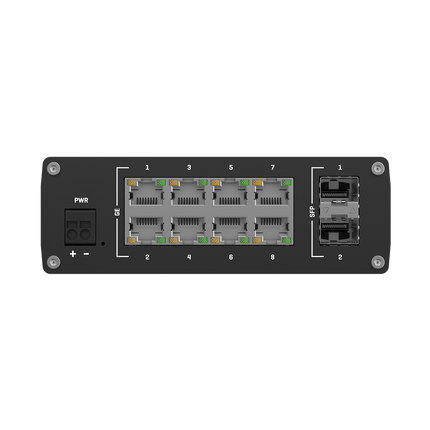

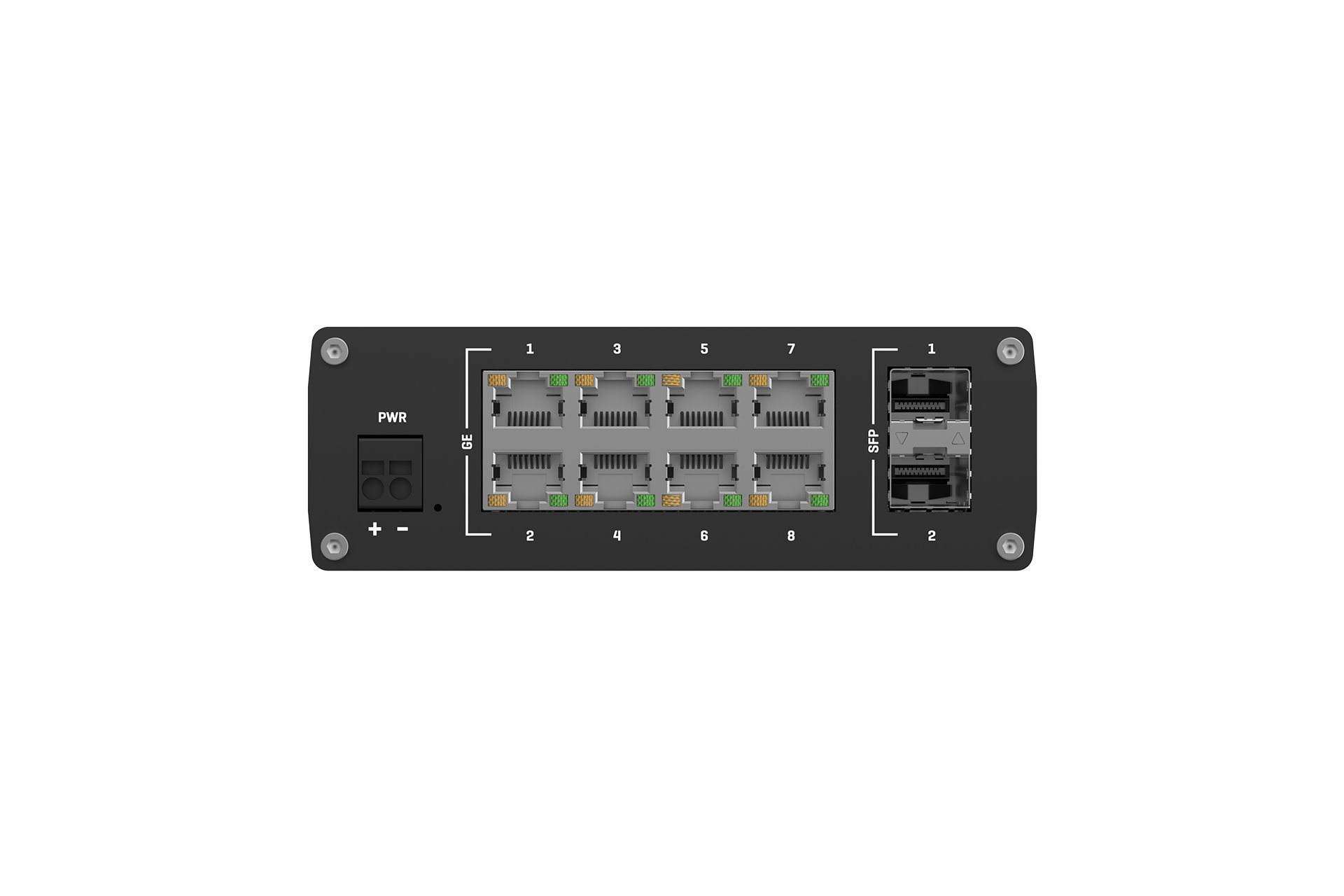

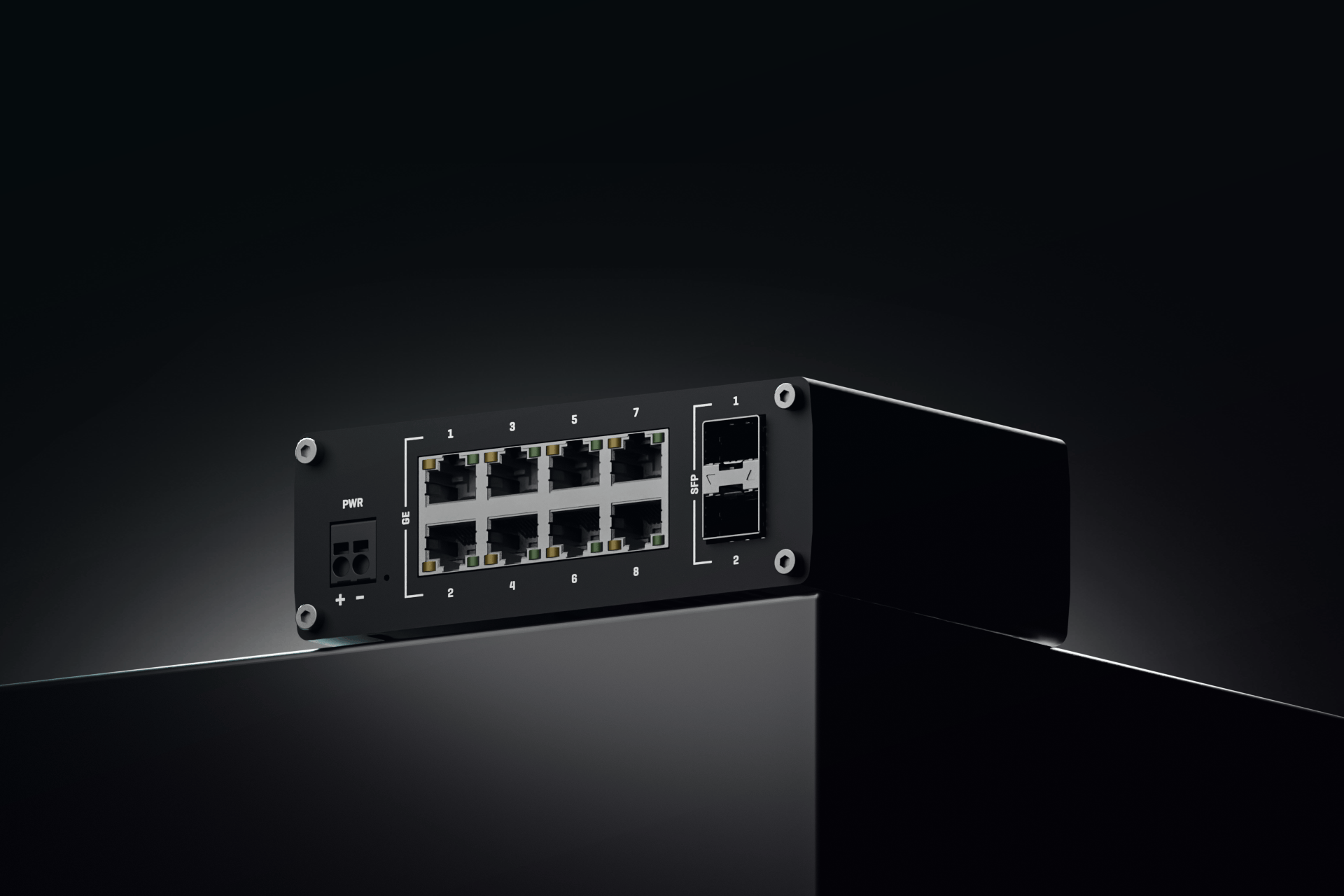

The hardware diagram on page 4 also shows the eight numbered RJ45 ports, two vertically arranged SFP interfaces, 2-pin power connector, integrated rear DIN rail bracket and grounding screw.
Technical Specifications
| Feature |
Specification |
| Product |
Teltonika TSW210 |
| Device Type |
Industrial Unmanaged Ethernet Switch |
| Ethernet Ports |
8 × RJ45 Gigabit |
| Ethernet Speed |
10/100/1000 Mbps |
| Fibre Ports |
2 × SFP |
| Switching Bandwidth |
20 Gbps non-blocking |
| Packet Buffer |
128 KB |
| MAC Table |
2K entries |
| Jumbo Frames |
Up to 9216 bytes |
| Auto MDI/MDIX |
Yes |
| Power Input |
7–57 VDC |
| Power Connector |
2-pin industrial DC |
| Idle Consumption |
Approx. 1.03 W |
| Maximum Consumption |
3.71 W |
| Housing |
Full aluminium |
| Operating Temperature |
-40°C to +75°C |
| Operating Humidity |
10–90% non-condensing |
| Protection |
IP30 |
| Dimensions |
132 × 44.2 × 95.1 mm |
| Weight |
500 g |
| DIN Rail |
Integrated bracket |
| Other Mounting |
Wall / flat surface* |
| Grounding |
Grounding screw |
| Profinet |
Optional Class A version |
