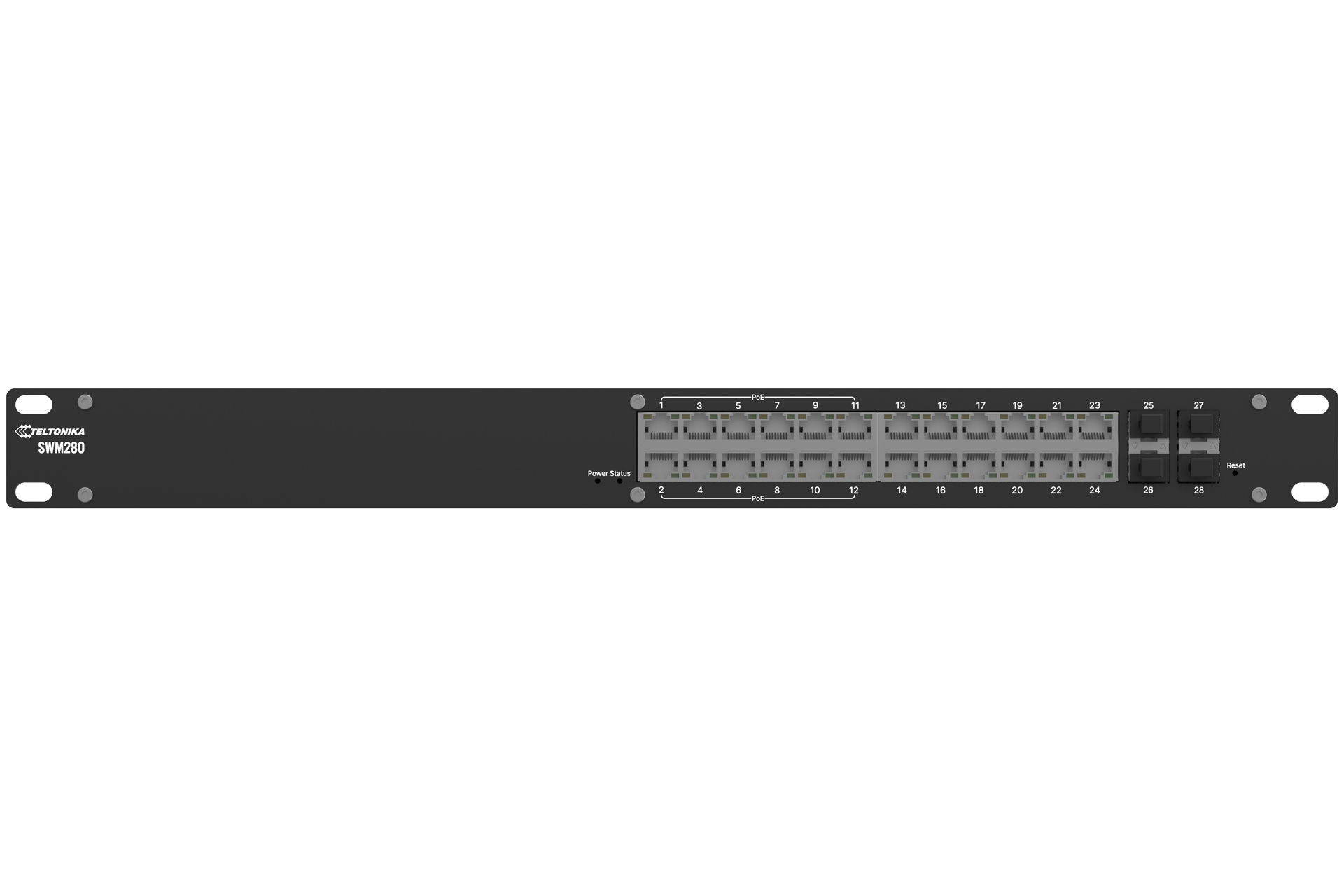

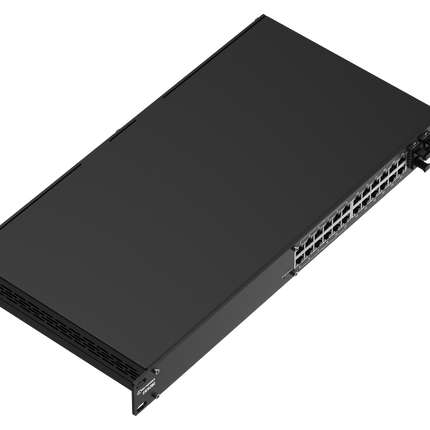

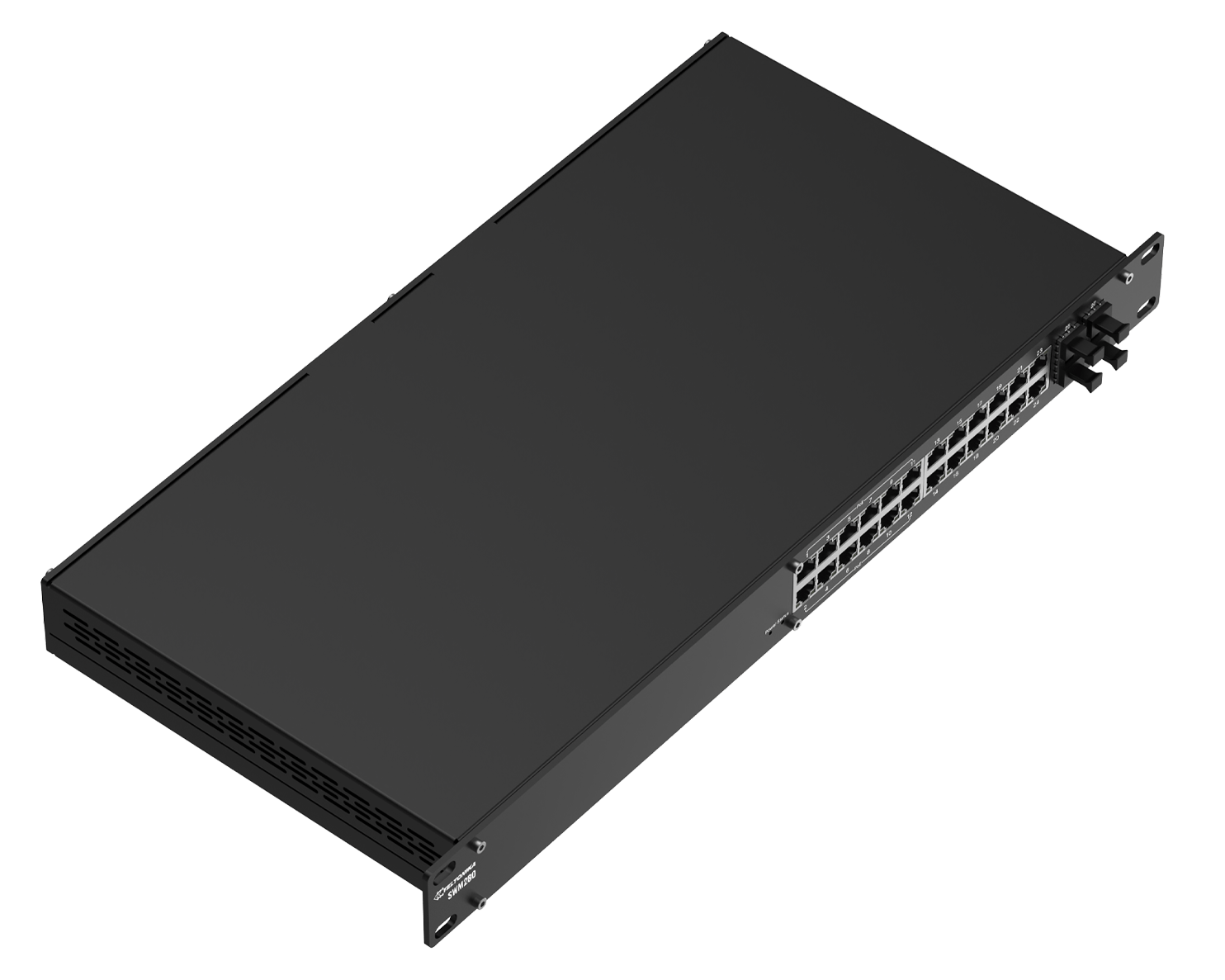

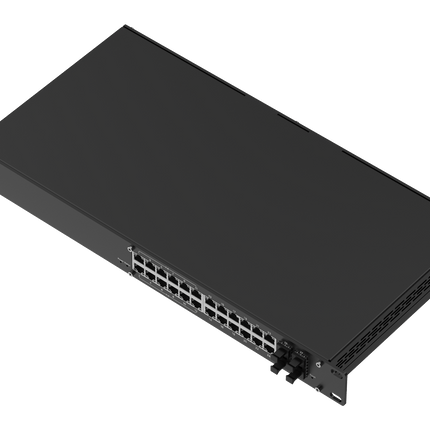

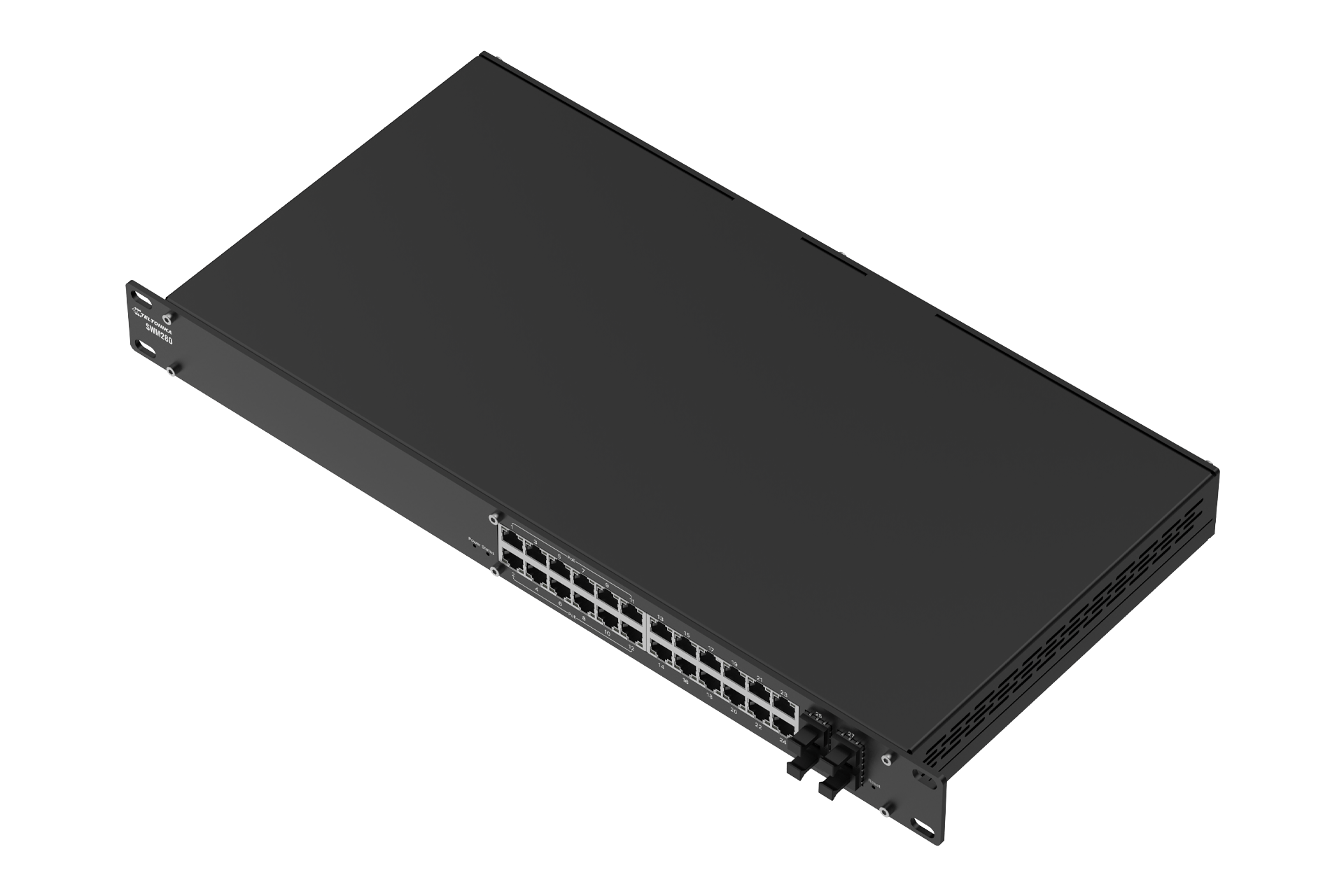

Teltonika TSW280 Managed PoE+ Ethernet Switch (24 Port, 12× PoE+, 4× SFP)
Enterprise-Grade Managed PoE+ Switch for Industrial and Business Networks
The Teltonika TSW280 is a powerful Layer 2+ managed Ethernet switch designed for enterprise, industrial automation, energy, utilities, retail, and smart city deployments. Featuring 24 Gigabit Ethernet ports, 12 PoE+ ports, 4 SFP fibre uplink ports, advanced Layer 2 and Layer 3 networking capabilities, industrial protocol support, and Teltonika RMS cloud management, the TSW280 delivers high-performance connectivity and centralised network control for demanding environments.
With a substantial 300 W PoE budget, support for Profinet, MRP, EtherNet/IP, dynamic routing protocols, and enterprise-grade security features, the TSW280 is ideal for powering and managing IP cameras, wireless access points, industrial controllers, PLCs, edge devices, and network infrastructure.
Key Features

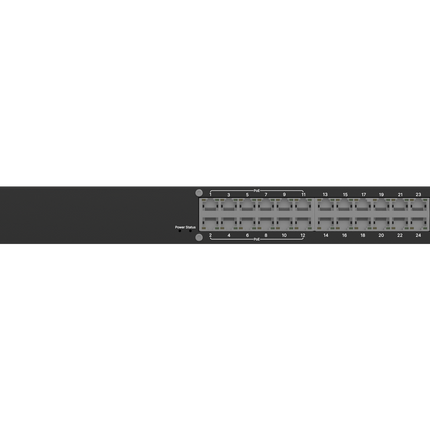

24-Port Gigabit Managed Switch
The TSW280 provides:
- 24 × Gigabit RJ45 Ethernet Ports
- 12 × PoE+ Enabled Ports
- 12 × Standard Gigabit Ports
- 4 × Gigabit SFP Fibre Ports
- Auto MDI/MDIX Support
- IEEE 802.3ad Link Aggregation (LACP)
Designed for high-density industrial and enterprise networking environments.
High-Power PoE+
The first 12 ports support PoE+ power delivery.
PoE Specifications
- IEEE 802.3af (PoE)
- IEEE 802.3at (PoE+)
- Up to 30 W per Port
- 300 W Total PoE Budget
- Alternative A Power Delivery
Ideal for powering:
- IP Cameras
- Wireless Access Points
- VoIP Phones
- IoT Gateways
- Building Automation Devices
- Industrial Edge Equipment
4 × SFP Fibre Uplink Ports
Integrated fibre connectivity includes:
- 4 × SFP Ports
- High-Speed Backbone Connectivity
- Long-Distance Fibre Networking
- Network Expansion and Aggregation
Suitable for inter-switch links, fibre backbones, and campus-wide deployments.
Why Choose the TSW280?
The TSW280 combines enterprise switching performance with industrial protocol support and cloud-based management.
Key benefits include:
- 24 Gigabit Ethernet Ports
- 12 PoE+ Ports
- 4 SFP Fibre Ports
- 300 W PoE Budget
- Layer 2+ Managed Switching
- Dynamic Routing Support
- Industrial Protocol Compatibility
- VLAN Segmentation
- RMS Cloud Management
- Industrial Aluminium Housing
- Rack Mount Design
- Enterprise Security Features
Industrial Protocol Support
The TSW280 is designed for industrial automation environments.
Supported Industrial Protocols
Profinet
- Profinet Class B Conformance
- Available with Optional Profinet Version
MRP (Media Redundancy Protocol)
EtherNet/IP
Supports industrial control and automation systems.
These capabilities make the TSW280 ideal for manufacturing, utilities, process control, and industrial networking applications.
Advanced Layer 2+ Networking
The TSW280 provides comprehensive managed switching functionality.
Layer 2 Features
- VLAN Support
- 802.1Q VLAN
- Loop Protection
- Forwarding Table Management
- STP
- RSTP
- IGMP Snooping
- Multicast Querier Support
- Port Mirroring
Layer 3 Features
- Static IPv4 Routing
- Static IPv6 Routing
- DHCPv6 Client
- Static IPv6 Addressing
Dynamic Routing
Supports:
- BGP
- OSPF v2
- RIP v1/v2
- EIGRP
Suitable for complex enterprise and industrial network architectures.
VLAN and Traffic Segmentation
The TSW280 provides advanced network segmentation features.
VLAN Capabilities
- 802.1Q VLAN
- Port-Based VLAN Separation
- Port Isolation
- Access Control
- Network Segmentation
Perfect for separating:
- OT and IT Networks
- Security Systems
- Building Automation
- Corporate Traffic
- Guest Networks
Quality of Service (QoS)
Advanced traffic prioritisation ensures critical applications receive priority.
QoS Features
- Port Priority
- DSCP Priority
- 802.1p Priority
- TOS Priority
- SP Scheduling
- WFQ Scheduling
- WRR Scheduling
Traffic Management
- Rate Limiting
- Storm Control
- Traffic Shaping
Optimises performance for voice, video, industrial control, and critical network traffic.
Enterprise Security
The TSW280 incorporates comprehensive security mechanisms.
Authentication
- PAM Authentication
- Pre-Shared Keys
- RADIUS
- TACACS+
- Login Attempt Blocking
Access Control
- 802.1X Port-Based Authentication
- MAC Address Filtering
- Port Security
- VLAN Separation
Allows administrators to control and secure access across the network infrastructure.
Diagnostics and Monitoring
Built-in diagnostic tools simplify deployment and troubleshooting.
Diagnostic Tools
- Cable Diagnostics
- Ping
- Traceroute
- NSLookup
PoE Monitoring
- Remote PoE Port Management
- PoE Port Restart Capability
- Port Enable/Disable Control
Provides efficient remote maintenance and troubleshooting.
Cloud Management with RMS
The TSW280 includes:
- 2 Years RMS Management
- Remote Monitoring
- Remote Configuration
- Alerts and Notifications
- Firmware Updates
- Network Mapping
- Device Access
RMS Benefits
- Centralised Device Management
- Multi-Site Visibility
- Fleet-Wide Configuration
- Simplified Maintenance
- Secure Remote Access
Ideal for organisations managing large distributed networks.
API and Automation
The TSW280 supports:
- Teltonika Networks Web API
- Configuration Management
- Automation Integration
- Third-Party System Integration
Developers can retrieve and modify switch settings through configurable API endpoints.
Operating System and Customisation
The switch runs:
SwmOS
- OpenWrt-Based Linux Operating System
- Package Manager Support
- Firmware Customisation
- SDK Development Environment
Supported Development Languages
Provides flexibility for advanced networking and automation applications.
Performance Specifications
Switching Performance
- Non-Blocking Bandwidth: 56 Gbps
- Forwarding Rate: 83.33 Mpps
- MAC Address Table: 8K Entries
- Packet Buffer: 512 KB
- Jumbo Frames: Up to 10,000 Bytes
Designed for high-throughput enterprise and industrial networks.
Hardware Specifications
System
- CPU: Realtek Single-Core 500 MHz MIPS-4KEc
- RAM: 128 MB DDR3
- Flash Storage: 16 MB Serial Flash
Ethernet
- 24 × Gigabit RJ45 Ports
- Auto MDI/MDIX
Fibre
Indicators
- 1 × Power LED
- 48 × Ethernet Status LEDs
- 1 × Status LED
- 4 × SFP Status LEDs
Physical Controls
- Reset Button
- Grounding Screw

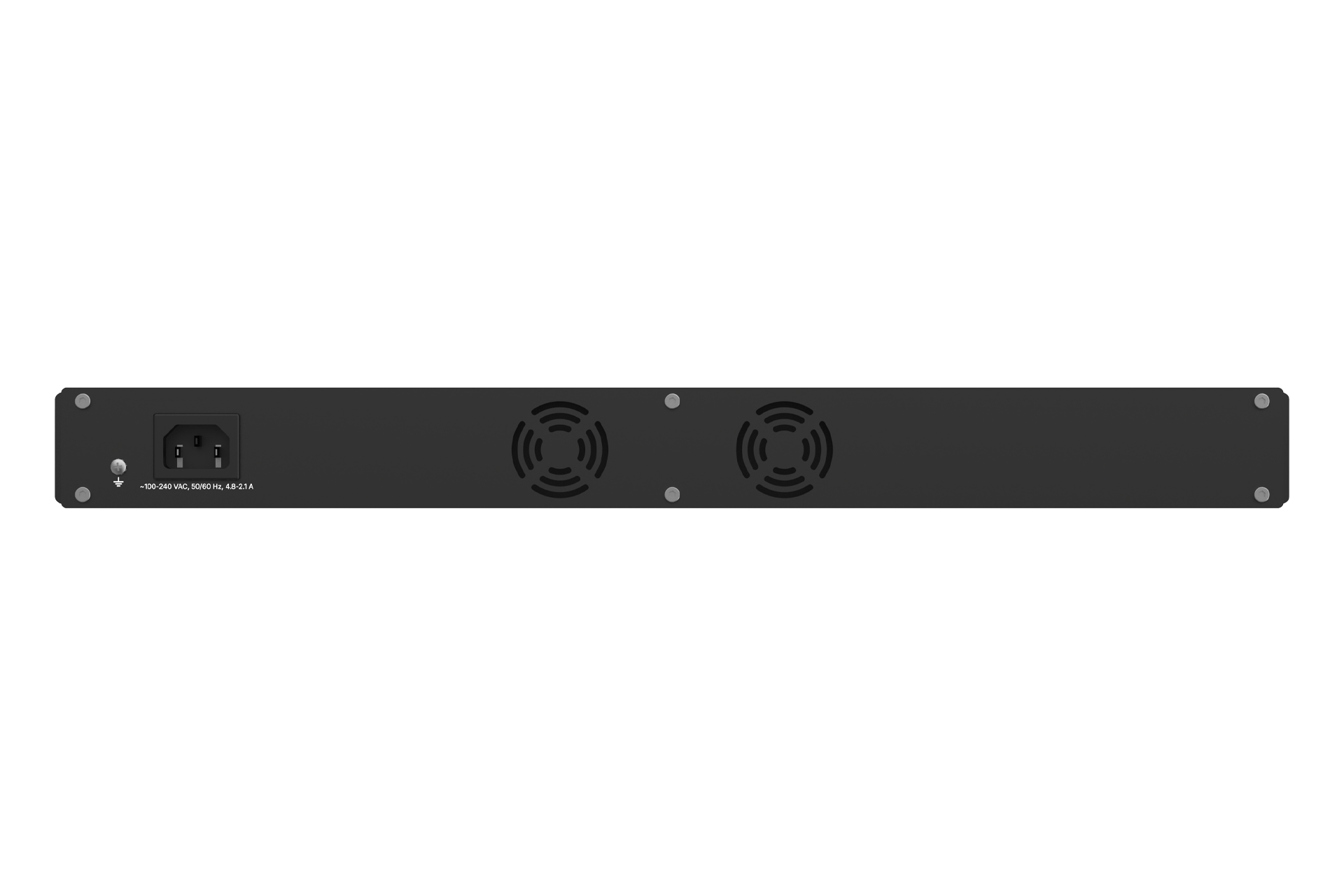

Power Specifications
Input Power
- 100–240 VAC
- 50/60 Hz
- IEC C14 Power Connector
Consumption
- Idle: 7.5 W
- Maximum: 325 W
- PoE Budget: 300 W
Suitable for enterprise and industrial rack installations.
Mechanical Specifications
Construction
- Anodised Aluminium Housing
- Industrial-Grade Design

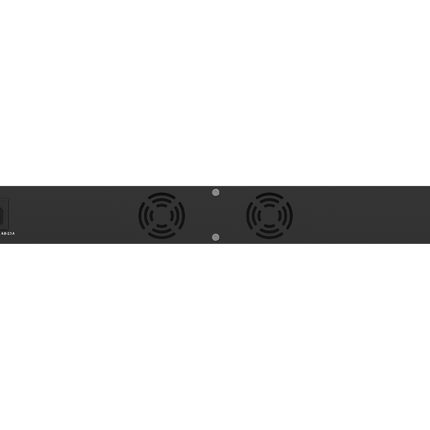

Cooling
- Active Cooling
- 2 Internal Fans
- Side-to-Back Airflow
Dimensions
Weight
Mounting
- Standard Rack Mount Kit Included
Environmental Specifications
Operating Conditions
- Temperature: 0°C to +50°C
- Humidity: 10% to 90% RH (Non-Condensing)
- Protection Rating: IP30
Suitable for indoor industrial cabinets, network rooms, control panels, and rack installations.
Certifications and Compliance
The TSW280 complies with major international standards:
Suitable for deployment across global enterprise and industrial environments.
