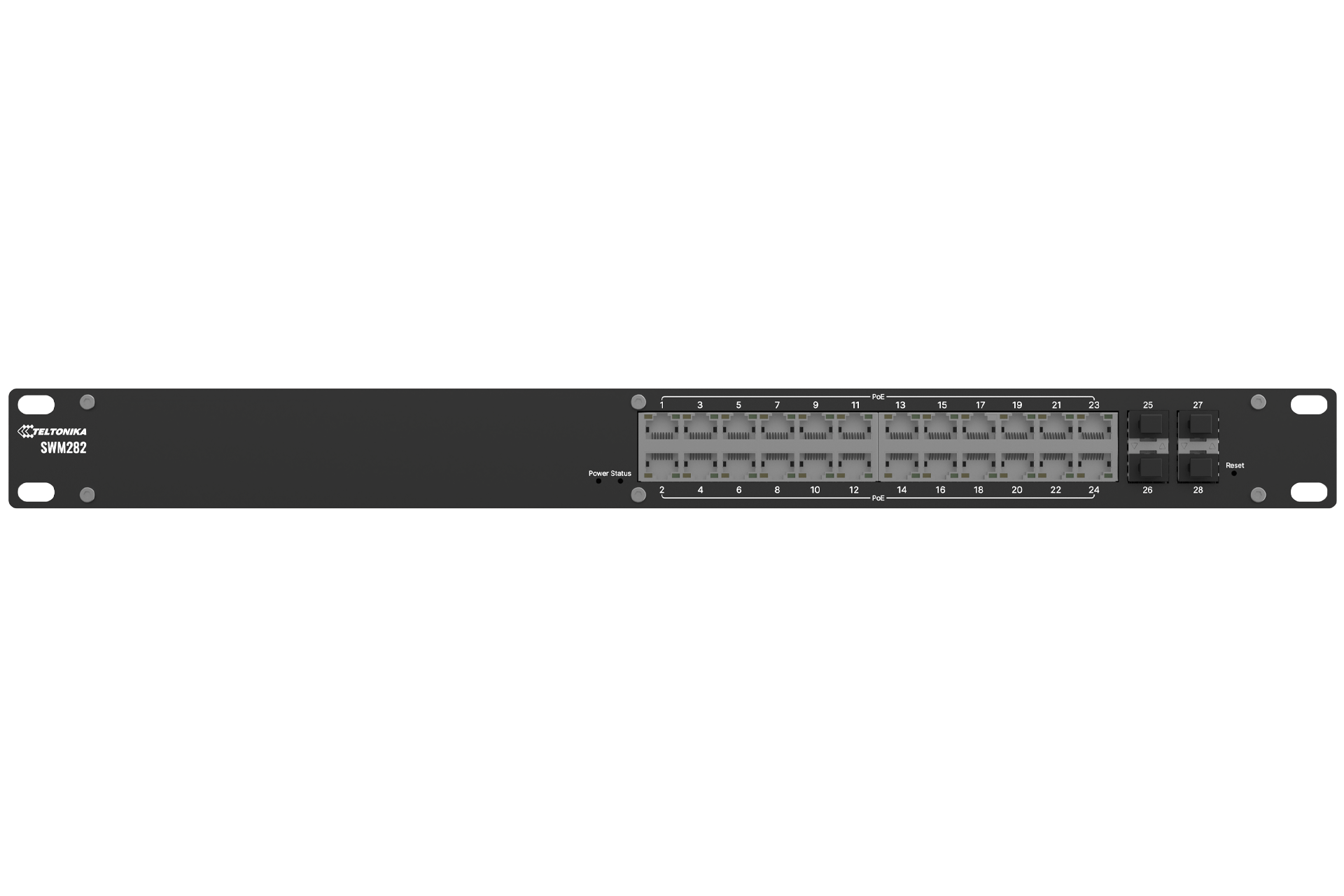

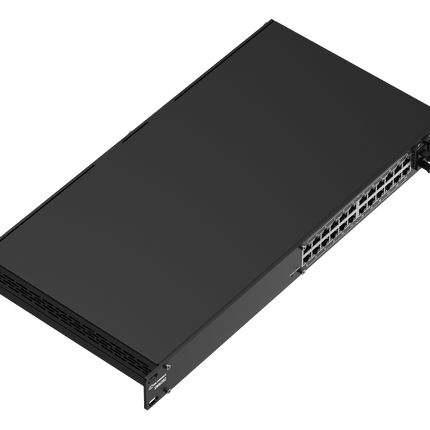

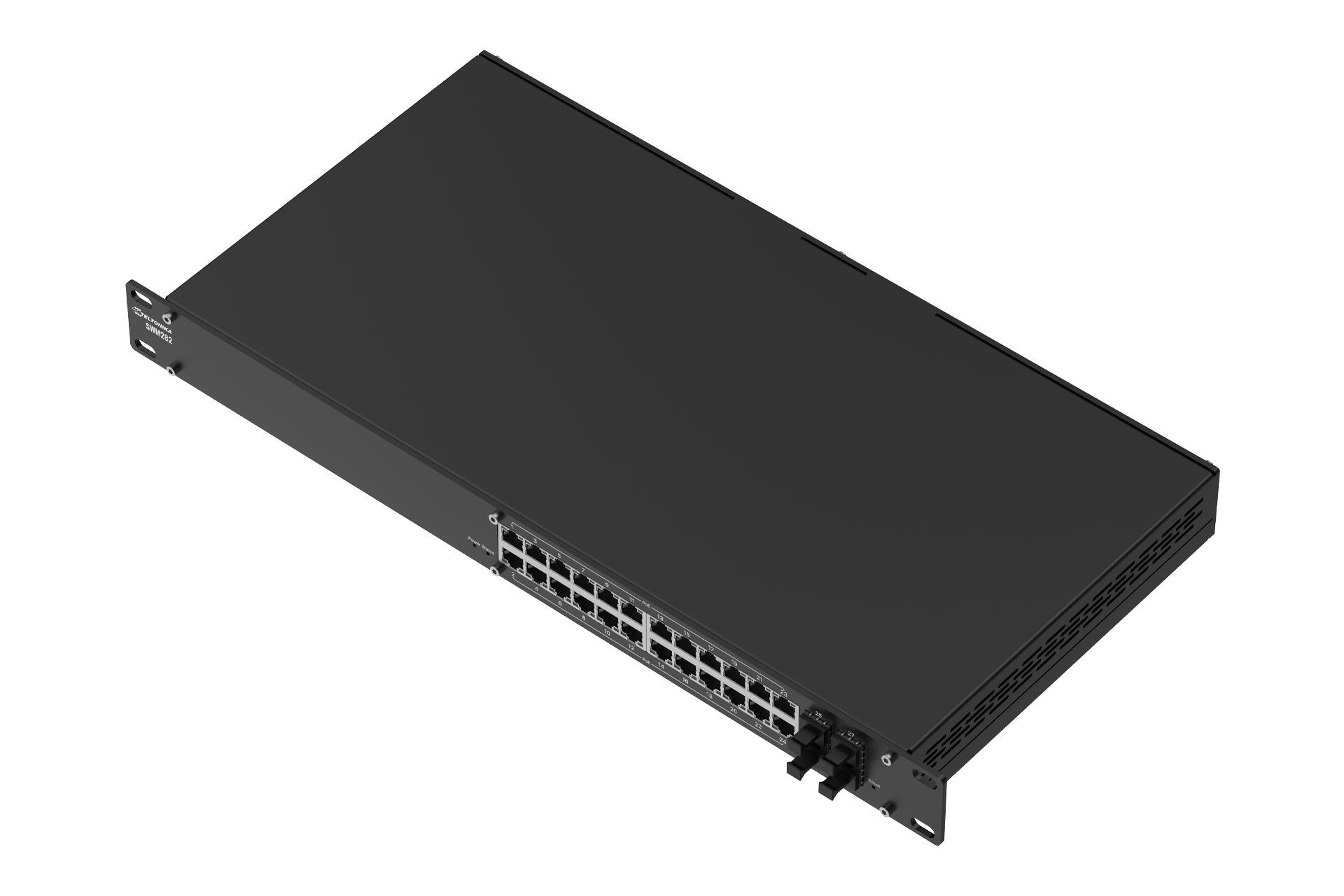

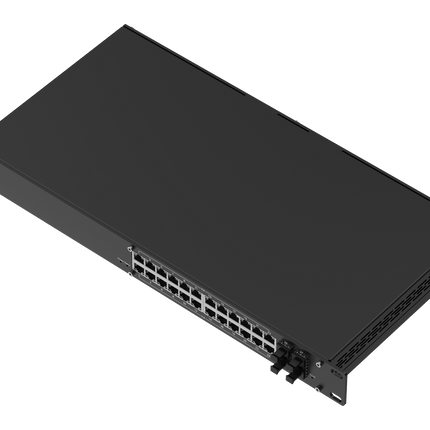

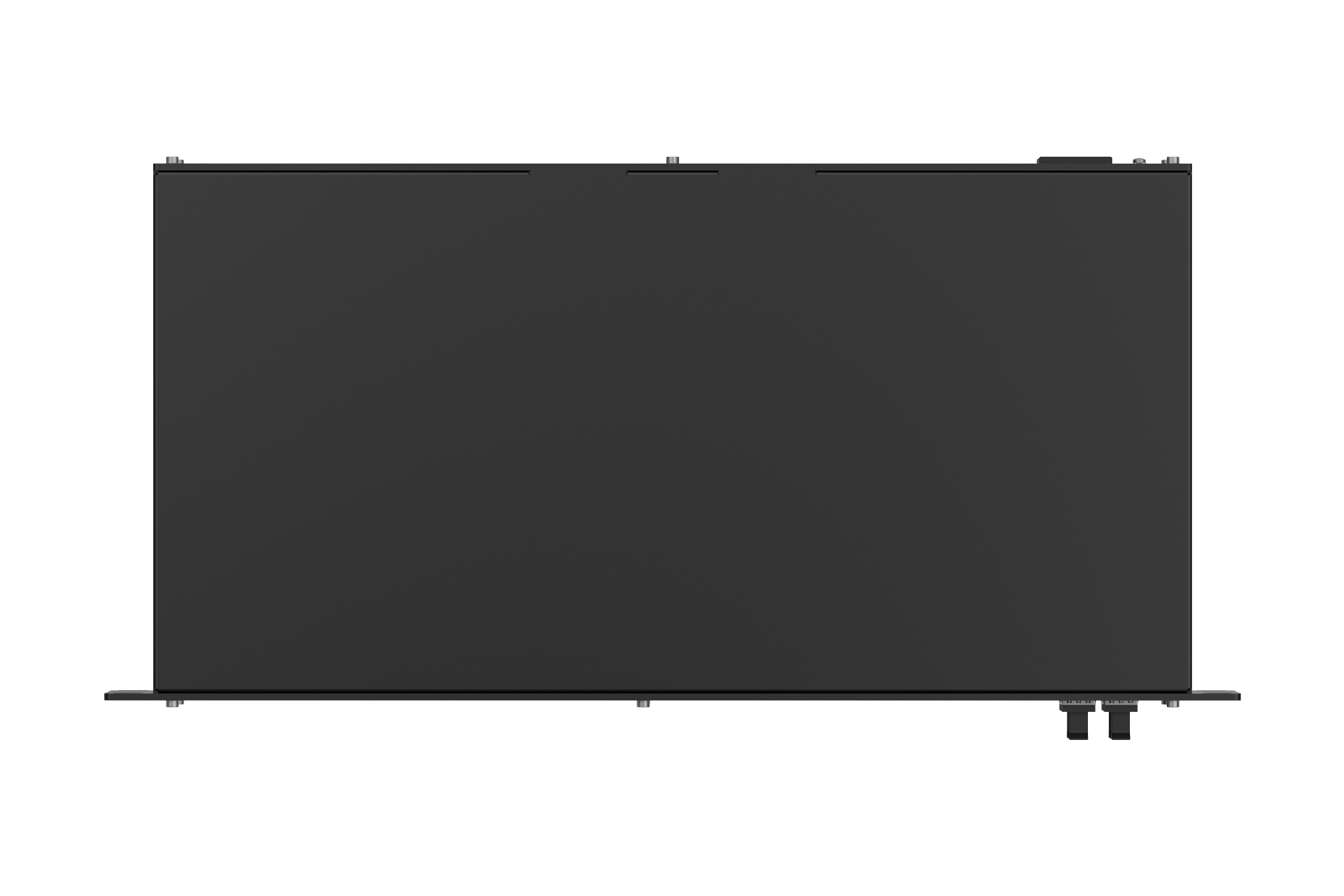

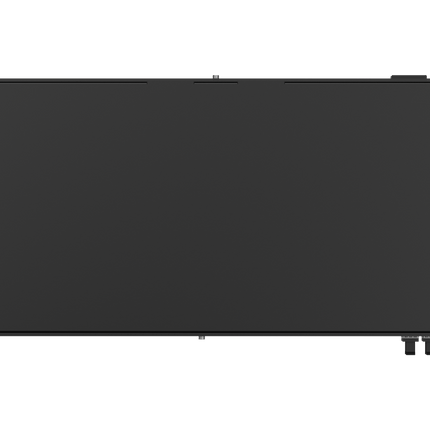

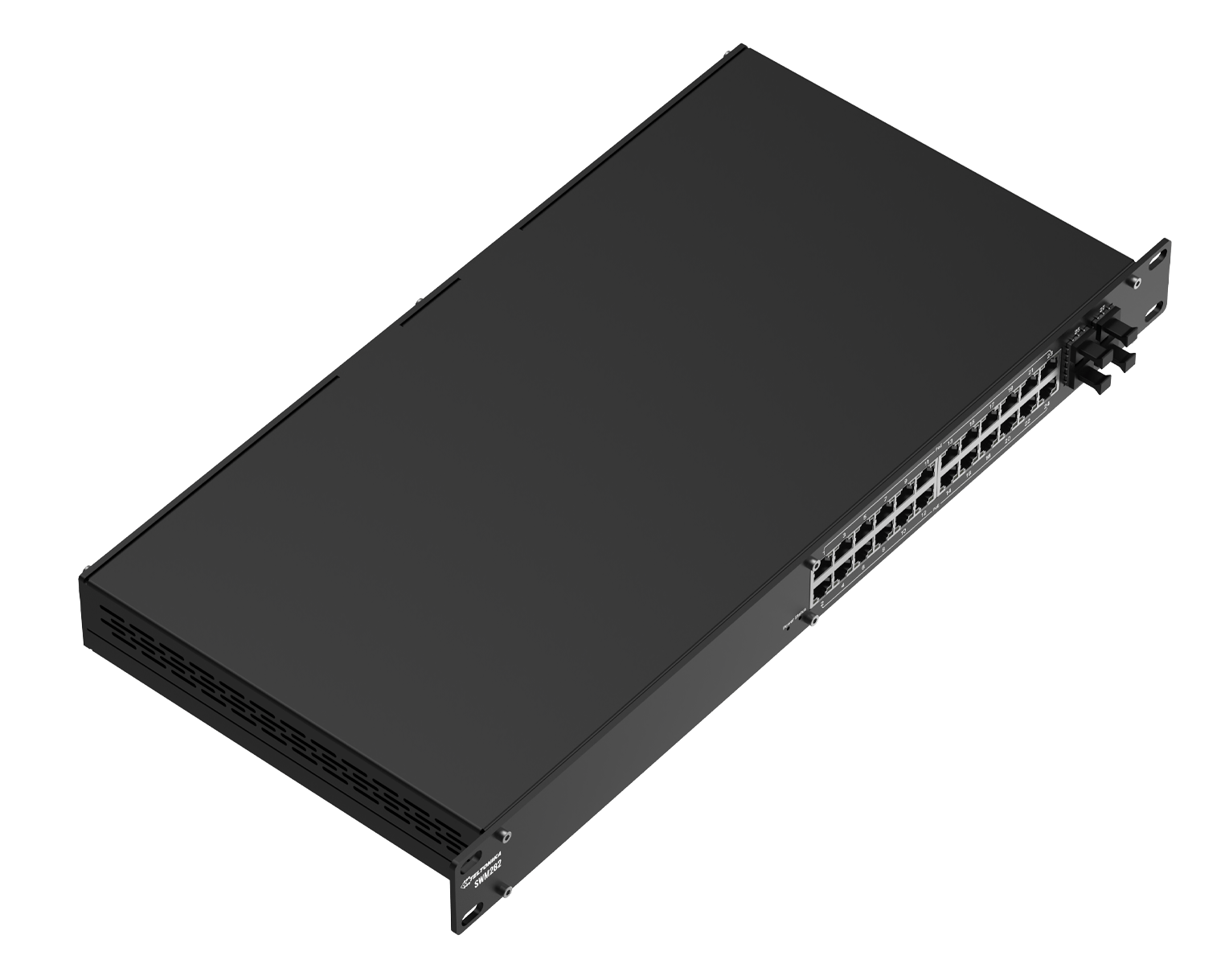

Teltonika TSW282 Managed PoE+ Ethernet Switch (24× PoE+, 4× SFP)
Enterprise-Grade Layer 2+ Managed PoE+ Switch for Industrial and Business Networks
The Teltonika TSW282 is a high-capacity Layer 2+ managed Ethernet switch designed for enterprise, industrial automation, smart city, energy, and IIoT deployments. Featuring 24 Gigabit PoE+ ports, 4 dedicated SFP fibre uplink ports, advanced Layer 2 and Layer 3 networking capabilities, industrial protocol support, and a generous 300W PoE power budget, the TSW282 delivers both power and high-speed connectivity across large-scale network infrastructures.
With support for IEEE 802.3af/at PoE+, dynamic routing, VLAN segmentation, industrial protocols, and Teltonika RMS cloud management, the TSW282 is an ideal solution for powering IP cameras, wireless access points, industrial controllers, VoIP phones, and IoT devices from a single switch.
Key Features

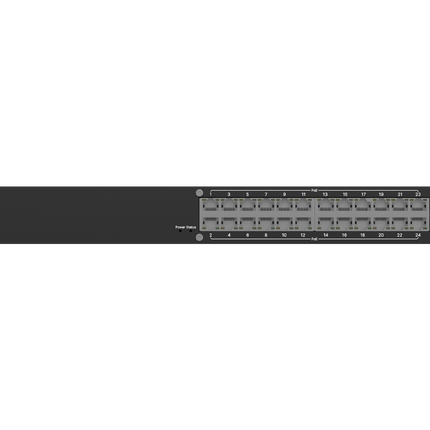

24 Gigabit PoE+ Ethernet Ports
The TSW282 provides:
- 24 × Gigabit Ethernet Ports
- 10/100/1000 Mbps Auto-Negotiation
- Auto MDI/MDIX Support
- PoE+ on All 24 Ports
- Up to 30W per Port
- Centralised Power and Data Delivery
Ideal for:
- IP Cameras
- Wireless Access Points
- VoIP Phones
- Industrial Gateways
- Building Automation Controllers
- IoT Devices
- Access Control Systems
4 Dedicated SFP Fibre Ports
The integrated fibre uplinks provide:
- Long-Distance Fibre Connectivity
- High-Speed Backbone Links
- Building-to-Building Networking
- Switch Aggregation
- Industrial Fibre Infrastructure
Suitable for enterprise campuses, industrial facilities, and distributed network deployments.
Why Choose the TSW282?
The TSW282 combines enterprise-grade switching, industrial networking functionality, and high-density PoE+ power delivery in a single rack-mounted device.
Key benefits include:
- 24 × Gigabit PoE+ Ports
- 4 × Dedicated SFP Fibre Ports
- 300W Total PoE Budget
- Up to 30W Per Port
- Layer 2+ Managed Switching
- Dynamic Routing Support
- Industrial Protocol Compatibility
- RMS Cloud Management Included
- Enterprise Security Features
- Rack Mount Design
- Industrial Aluminium Housing
Power over Ethernet (PoE+)
One of the key advantages of the TSW282 is its high-capacity PoE power delivery.
PoE Specifications
- PoE+ Ports: 24
- IEEE 802.3af (PoE)
- IEEE 802.3at (PoE+)
- Alternative A Power Delivery
- Maximum Output per Port: 30W
- Total PoE Budget: 300W
This allows a single switch to power large numbers of devices while eliminating the need for separate power supplies.
Industrial Protocol Support
The TSW282 is designed to integrate seamlessly into industrial automation environments.
Supported Industrial Protocols
Profinet
- Profinet Class B Conformance
- Available with Optional Profinet Version
MRP (Media Redundancy Protocol)
EtherNet/IP
Industrial communication protocol support for manufacturing and automation systems.
These capabilities make the TSW282 suitable for:
- Manufacturing Plants
- Process Automation
- Utilities
- Smart Infrastructure
- Industrial Control Networks
Advanced Layer 2+ Networking
The TSW282 includes comprehensive managed networking functionality.
Layer 2 Features
- VLAN Support
- 802.1Q VLAN
- STP
- RSTP
- Loop Protection
- Port Mirroring
- IGMP Snooping
- Multicast Querier Support
Layer 3 Features
- Static IPv4 Routing
- Static IPv6 Routing
- DHCPv6 Client
- Static IPv6 Addressing
Dynamic Routing Protocols
- BGP
- OSPF v2
- RIP v1/v2
- EIGRP
These capabilities allow deployment in complex enterprise and industrial networks.
VLAN and Network Segmentation
The TSW282 enables advanced traffic separation and security.
VLAN Features
- Port-Based VLAN Separation
- 802.1Q VLAN
- Port Isolation
- Traffic Segmentation
- Network Access Control
Ideal for separating:
- OT and IT Networks
- CCTV Systems
- Corporate Networks
- Automation Systems
- Guest Networks
Quality of Service (QoS)
Advanced QoS functionality ensures critical traffic receives priority.
QoS Features
- Port Priority
- DSCP Priority
- 802.1p Priority
- TOS Priority
Scheduling Methods
Traffic Control
- Rate Limiting
- Storm Control
- Port-Based Traffic Shaping
Optimised for industrial control traffic, voice communications, video streams, and mission-critical applications.
Enterprise Security
The TSW282 includes comprehensive network security features.
Authentication
- PAM Authentication
- Pre-Shared Keys
- RADIUS
- TACACS+
- Login Attempt Blocking
Access Control
- 802.1X Port Authentication
- MAC Address Filtering
- Port Security
- VLAN Segmentation
Ensures secure deployment across enterprise and industrial networks.
PoE Management and Diagnostics
The switch provides advanced monitoring and management capabilities.
Diagnostic Tools
- Cable Diagnostics
- Ping
- Traceroute
- NSLookup
PoE Management
- PoE Port Monitoring
- Individual Port Power Control
- Remote PoE Restart Capability
- Port Power Cycling
Port Controls
- Enable/Disable Ports
- Link Speed Control
- Port Isolation
- Port Mirroring
These features simplify maintenance and remote troubleshooting.
Cloud Management with RMS
The TSW282 includes:
- 2 Years RMS Management
- Remote Monitoring
- Configuration Management
- Alerts and Notifications
- Firmware Updates
- Remote Troubleshooting
RMS Benefits
- Fleet Management
- Multi-Site Monitoring
- Configuration Backup
- Device Health Monitoring
- Centralised Administration
Ideal for organisations managing distributed network infrastructure.
API and Integration
The TSW282 supports:
- Teltonika Networks Web API
- Remote Configuration
- Monitoring Integration
- Third-Party Platform Connectivity
Developers can integrate and automate network management workflows using API access.
Operating System and Customisation
SwmOS Platform
The TSW282 runs:
- SwmOS
- OpenWrt-Based Linux Operating System
Development Support
- BusyBox Shell
- Lua
- C
- C++
- SDK Package
- Package Manager
Suitable for customised networking and automation applications.
Performance Specifications
Switching Performance
- Non-Blocking Bandwidth: 56 Gbps
- Forwarding Rate: 83.33 Mpps
- MAC Address Table: 8K Entries
- Packet Buffer: 512 KB
- Jumbo Frames: Up to 10,000 Bytes
Provides high-performance switching for bandwidth-intensive environments.
Hardware Specifications
System
- CPU: Realtek 500 MHz MIPS-4KEc
- RAM: 128 MB DDR3
- Flash Storage: 16 MB Serial Flash
Interfaces
- 24 × Gigabit PoE+ Ethernet Ports
- 4 × SFP Fibre Ports
Indicators
- 1 × Power LED
- 48 × Ethernet Status LEDs
- 1 × Status LED
- 4 × SFP Status LEDs
Controls
- Reset Button
- Grounding Screw
Power Specifications

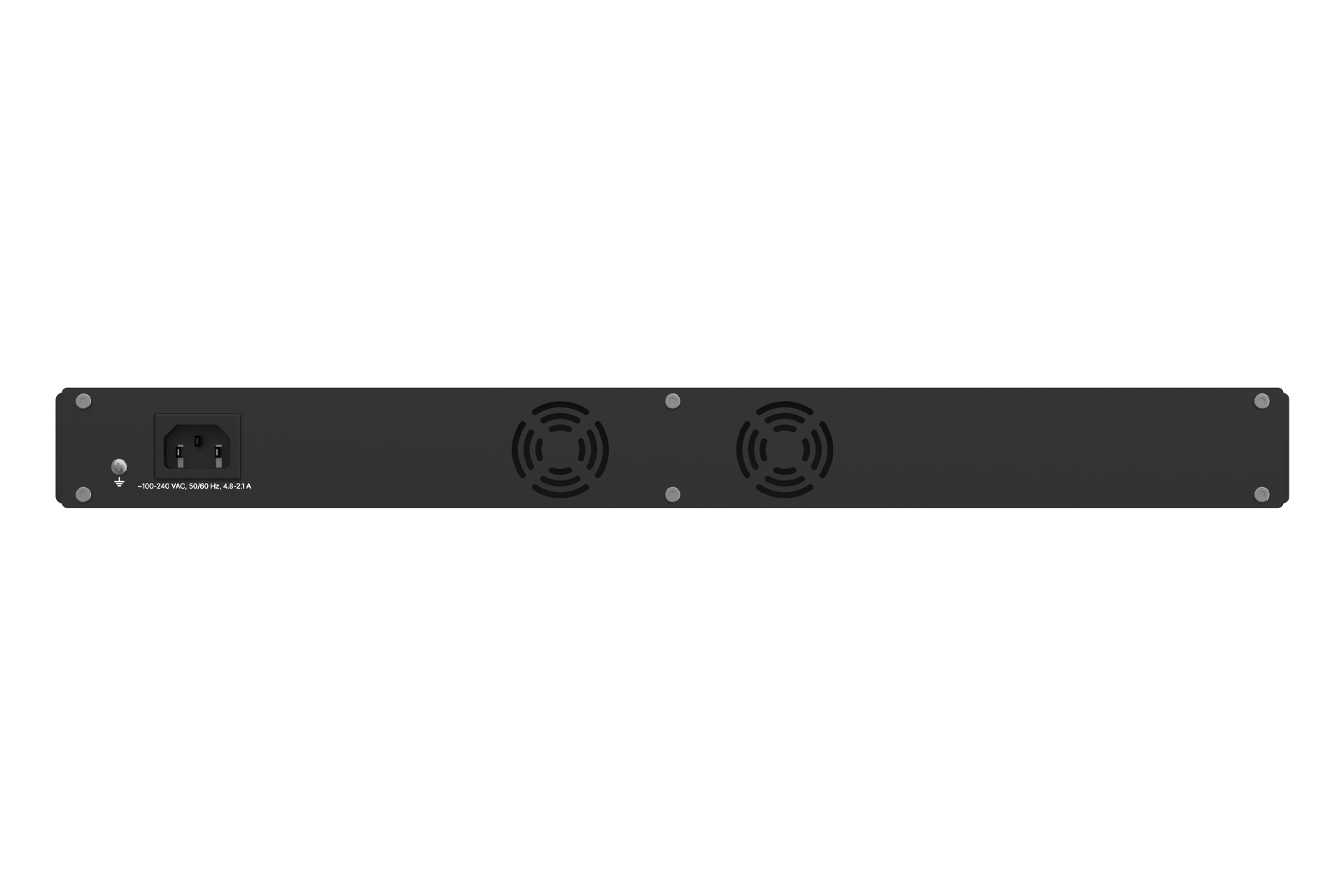

AC Input
- 100–240 VAC
- 50/60 Hz
- IEC C14 Connector
Power Consumption
- Idle: 9W
- Maximum: 330W
- Maximum PoE Budget: 300W
Designed for high-density PoE deployments while maintaining efficient power management.

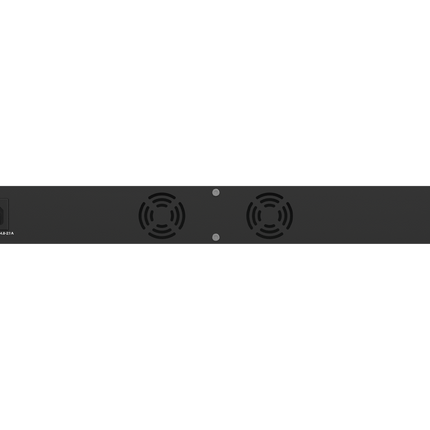

Cooling System
The TSW282 includes active cooling for reliable operation under high PoE loads.
Cooling Features
- Active Cooling Design
- 2 × Internal Cooling Fans
- Side-to-Back Airflow
Ensures stable performance during continuous operation.
Mechanical Specifications
Construction
- Anodised Aluminium Housing
- Industrial-Grade Design
Dimensions
Weight
Mounting
Suitable for enterprise racks, industrial cabinets, and communications rooms.
Environmental Specifications
Operating Conditions
- Operating Temperature: 0°C to +50°C
- Humidity: 10% to 90% RH (Non-Condensing)
- Protection Rating: IP30
Suitable for indoor industrial and commercial deployments.
Certifications and Compliance
The TSW282 complies with major international standards:
Suitable for deployment in global enterprise and industrial projects.
