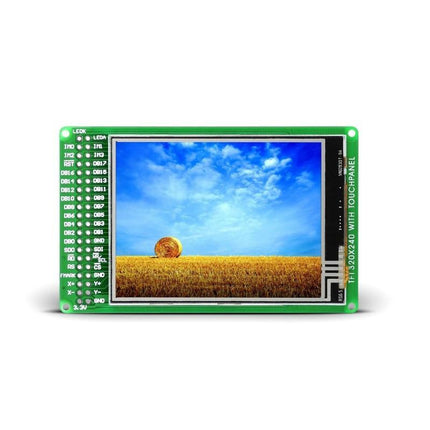

TFT PROTO Board 320x240px TFT Color Display
TFT PROTO Board 320x240px TFT Color Display
The TFT - PROTO Board features a TFT Color Display MI0283QT-9A with 320x240px resolution. It contains ILI9341 display driver that is capable of showing advanced graphical content. It also features a Touch Screen and therefore can be used as input device. This tool provides a complete, high-quality display features for developing advanced graphical embedded applications.
Specifications
| Type | TFT |
| Applications | This display is ideal for Human-To-machine interfaces, mobile phones, PDA devices, status monitors and home automation devices |
| Display size | 2.8" |
| Resolution | 320x240px |
| Graphic controller | ILI9341 |
| Touch Screen | Resistive |
| On-board modules | MI0283QT-9A TFT screen, ILI9341 display driver |
| Key Features | a-TFT LCD driver with on-chip full display RAM: 172,800 bytes. Power saving mode. 8 data lines and 5 control lines. Capable of displaying 262K RGB colors |
| Key Benefits | Popular graphics controller supported in MikroElektronika compilers |
| Interface | GPIO |
| Integration | Mounting holes |
| Input Voltage | 3.3V |
| Compatibility | Breadboard (PROTO) |
