High-performance edge computing gateway, extend your IoT analytics at the edge network

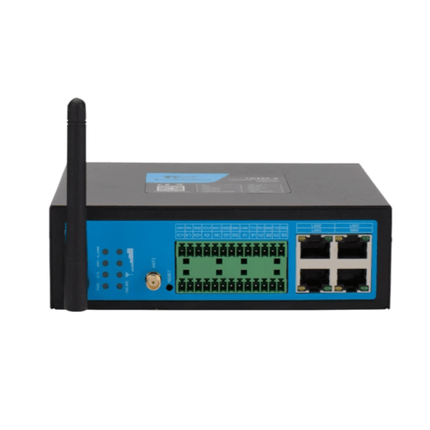

TG452 Industrial Cellular 4G LTE Edge IOT Computing Gateway
TG452 Industrial Cellular 4G LTE Edge IOT Computing Gateway
Freq. Bands: B1-B2-B3-B5-B7-B8-B20-B28 (Telstra and all other AU providers)

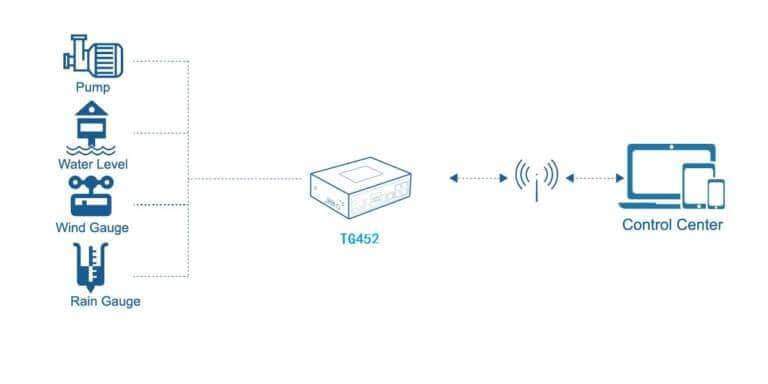

Bivocom TG452 Edge IoT gateways are designed for collecting data from diverse sensors, controllers or equipment, with the capacity of processing, analyzing and storing the data at the edge network, and transferring the field data to your remote location under secure VPN tunnel. It has been widely for the water pump station, transportation monitor and track, industry 4.0, HVAC and industrial automation, etc.
TG452 supports worldwide carrier 4G LTE CAT6/CAT4/3G/2G/LTE CAT M1(eMTC) and NB-IoT cellular network. With the option of Dual SIM (Single module and Dual module), GPS (Option) and WIFI (Option), the TG452 can be suitable for most of IoT applications in many industries.
TG452 is designed based on Openwrt, allows the developers to install their own application based on Python or LUA.
● Rich I/O for connecting your legacy and modern system to a cloud
● 4-RJ45, 2-RS232, 3-RS485, 2-DI, 2-DO, 2-ADC, 1-SD,
● 1-CAN*, WIFI*, GPS*
● The capacity of collecting, processing and storing data locally, and transfer the data over a cellular network
● 4-RJ45, 2-RS232, 3-RS485, 2-DI, 2-DO, 2-ADC, 1-SD,
● 1-CAN*, WIFI*, GPS*
● The capacity of collecting, processing and storing data locally, and transfer the data over a cellular network
● Easy to use and program the gateway, customizable for your applications
● Dual module load balance or dual SIM failover, for seamless, reliable and high-speed data transmission
List of Australia 4G LTE Frequencies: https://en.wikipedia.org/wiki/4G_connectivity_in_Australia
Specifications
| Item |
TG452 |
|---|---|
| Cellular Interfaces | |
|
Antenna Connector
SIM Slot |
2 × 50 Ω SMA Female
1, or 2 (For DSDM or DSSM) |
| Ethernet Interface | |
|
Ports
Data Rate |
4-RJ45 (1-WAN, 3-LAN or 4-LAN)
10/100 Mbps (Auto-Sensing), Auto MDI/MDIX |
| Serial Interface | |
| Ports |
2-RS232 + 3-RS485 |
| Wi-Fi(Option) |
|
|
Antenna Connector
Standard Transmission Rate |
1 × 50 Ω SMA Male
IEEE 802.11b/g/n IEEE802.11b/g: Up to 54Mbps IEEE802.11n: Up to 300Mbps |
| External Storage | |
|
SD (Optional)
Usage |
1 x Micro SD interface, Up to 32G
User Program, Data Storage and Firmware Upgrade |
| I/O | |
|
DI
DO ADC |
2-DI (0-30V Input)
2-Relay (Up to 5A and 30VDC/250VAC output) 2 x 16-bit AD, supports 4-20mA current signal input, and 0-5V voltage signal input(Option) |
| GPS (Optional) | |
| Module Antenna Connector | Built-in independent GPS module 1 × 50 Ω SMA Female |
| Power Supply | |
| Standard Power Input Voltage | DC 12V/1.5A 5-35 VDC |
| Software | |
| Network Protocols Serial Port VPN Tunnel |
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, VLAN, SSH MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP) IPsec/PPTP/L2TP/GRE/OpenVPN
|
| Physical | |
|
Ingress Protection
Housing & Weight Dimensions Mounting |
IP30

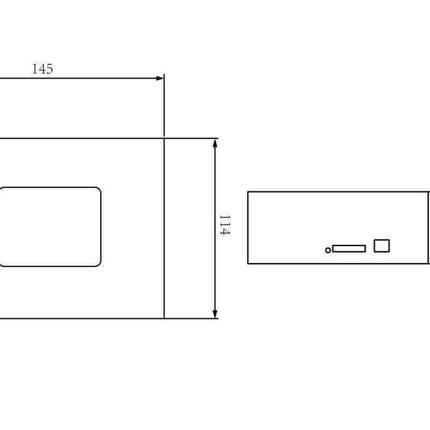

Metal, 790 g(1.74lbs) 145 x 114 x 45mm (5.71 x 4.49 x 1.77in) Desktop, Din Rail |
| Environmental | |
| Operating Temperature | -35°C to +75°C (-31℉ to +167℉) |
| Others | |
|
Reset Button
LED Indicators Approvals
Warranty Period |
1
POWER, WiFi, SYSTEM, ALARM,ONLINE, Signal Strength CE*, RCM*, NBTC*, FCC*(*Under Progress)
Standard: 12 Months |
The kit includes:
- TG451 Gateway Host
- Power Adapter (DC 12V/1.5A)
- WIFI Antenna(Female SMA)
- 2xCellular Antennas (Male SMA)
- Console Cable(RS232)
- Ethernet Cable(1 meter)
- 2x6-Pin Terminal Block
- 1x2-Pin Terminal Block
- DIN-rail mounting
Documentations:
