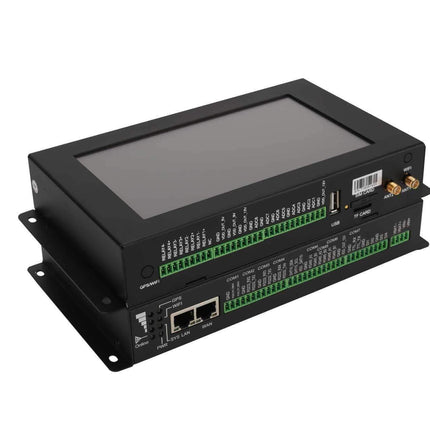

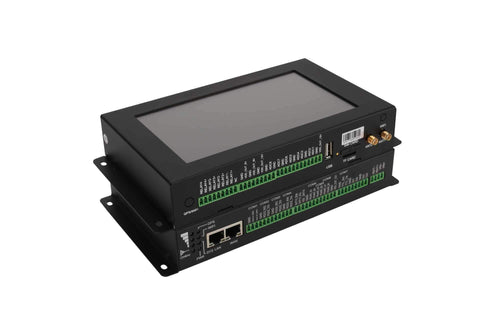

TG462 Industrial Cellular 4G LTE Touch Screen IOT Edge Gateway

Description

TG462 Industrial Cellular 4G LTE Touch Screen IOT Edge Gateway

Freq. Bands: B1-B2-B3-B5-B7-B8-B20-B28 (Telstra and all other AU providers)

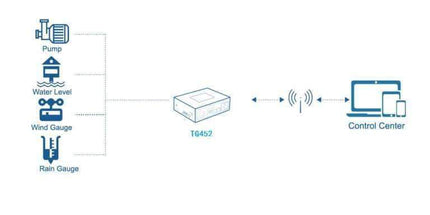

The TG462/TG462S Industrial cellular 4G Edge Gateways are designed for connecting diverse types of field sensors and equipment to cloud via LTE/4G/3G cellular network, which is suitable for IIoT and M2M applications that require secure and rugged LTE connectivity in harsh environment, such as water&waste water, oil&gas, industry 4.0, smart city, vending machines, etc.

With rich interfaces, includes Ethernet ports, RS232/RS485, digital inputs, analog inputs, relay outputs, I2C, power output, USB, GPS, WIFI, etc., The TG462/TG462S Edge Gateways allow users to integrate legacy systems with modern sensors. With high-performance 32-bit ARM-based CPU, Modbus RTU/TCP, MQTT, TCP/IP, and customized protocols, as well as up to 1G flash and 32G micro SD local data storage, enables users to collect, store and process data at IoT edge network.

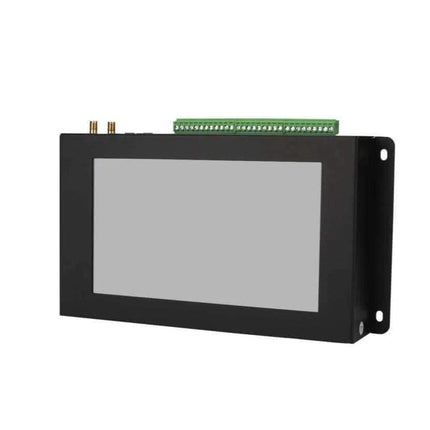

Besides, TG462S embedded with a 7inch HD TFT touch screen provides a better user experience for field data display and maintenance. The LTE CAT 6/CAT4 and VPN provide ample bandwidth and secure connectivity for transferring field data to a remote server.
7" touch screen ARM-based IoT edge gateway, provides a better user experience for field data display and maintenance
  • High-performance ARM-based CPU
  • 2-RJ45, 4-RS232, 3-RS485, 4-DI, 8-ADC,   4-Relay, 5-Power Output, 1-I2C, 1-TTL, USB
  • 7'' HD Touch screen (Only for TG462S)
  • Up to 1GB flash, 1-Micro SD card supports up to 32GB data and program storage
  • LTE CAT 6/CAT4* provides ample bandwidth for high data demand
  • GPS* and WIFI*
  • Capacity of collecting, processing and storing data locally, and transferring the data over the cellular network
  • Easy to use and program the gateway, customizable for your applications
  • Secondary Customization and OEM/ODM are available

List of Australia 4G LTE Frequencies: https://en.wikipedia.org/wiki/4G_connectivity_in_Australia

Specifications:

System
CPU

Flash

RAM
32-bit ARM Cortex A7, 528MHz

TG462: 256MB (Extendable to 1GB)
TG462S: 1GB

256MB DDR3
Cellular Interfaces
Antenna Connector
SIM Slot
2 × 50 Ω SMA Female

1
15KV ESD Protection
LCD Screen
TG462S 800*480, TFT Touch Screen
Ethernet Port
Ports

Data Rate
2 x RJ45 (1-WAN, 1-LAN or 2-LAN, configurable via Web UI)
10/100 Mbps (Auto-Sensing), Auto MDI/MDIX
1.5KV Magnet Isolation
Serial Port
Connector
Ports
Baud Rate
Terminal block, 3.5 mm female socket with lock
4 x RS232(1 for debug), 3 x RS485
100bps to 230400bps
15KV ESD Protection
I/O
Connector
I2C
TTL
ADC

DI


DO(Relay)

Power Output
Terminal block, 3.5 mm female socket with lock
1, For temperature, humidity sensors
1
8 x 16-bit AD, supports 4-20mA current signal input, or 0-5V voltage signal input (Option)
4 Logic 0: Wet contact 0-3VDC, or dry contact close Logic 1: Wet contact DC 5-30V, or dry contact open
4
(5A and 30VDC/250VAC output)
5 (3-channel 12V output, 1-channel 9V output, rated current 1A, 1-channel 5V output, rated current 1A) Built-in overcurrent protection, for external devices DC power input.
WIFI(Option)
Antenna Connector

Transmission Rate


Security
1 × 50 Ω SMA Male (or 2, option) Standard IEEE 802.11b/g/n, supporting AP and Client modes
IEEE802.11b/g: Up to 54Mbps, IEEE802.11n: Up to 300Mbps
Open, WPA, WPA2, WPA/WPA2 Enterprise, Radius
GPS(Option)
Module
Antenna Connector
Built-in independent GPS Module
1 × 50 Ω SMA Female
External Storage Interface
Micro SD Card Slot
USB
Usage
1 x TF card, Up to 32GB
1 x USB2.0
User Program, Data Storage and Firmware Upgrade
Power Supply and Consumption
Connector

Standard Power
Input Voltage
Data acquisition mode
Communication mode
4-pin with 3.5 mm terminal block Main and backup power input
DC 12V/1.5A
5-35 VDC
251mA～357mA@12VDC
305mA～412mA@12VDC
Software
Network Protocols


Serial Port


VPN Tunnel
Firewall
Management

Reliability
Secondary Development
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH, etc.
MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP)
IPsec/PPTP/L2TP/GRE/OpenVPN
ACL/DMZ/Port Mapping/MAC Binding
Web, CLI, SMS, Cloud DMP (Device Management Platform)
WAN Failover, Hardware & Software Watchdog
OpenWrt based, support Python, LUA and SDK
Physical Characteristics
Ingress Protection
Housing & Weight

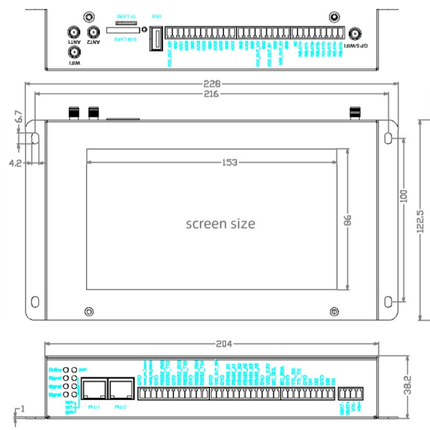

Dimensions
Mounting
IP30
Metal
TG462: 850g(1.87lbs)
TG462S: 900g(1.98lbs), without accessories
228×122.5×38.2mm(8.97x4.82x1.50in)
Wall mount, Desktop
Environmental
Operating Temperature
Storage Temperature
Relative Humidity
Ethernet Isolation
-35°C to +75°C (-31℉ to +167℉)

-40°C to +80°C (-40℉ to +176℉)

0% to 93% (non-condensing) at 25°C/77℉
1.5 kV RMS
Others
LED Indicators
Built-in

Certifications
Warranty Period
Signal strength, WIFI, System (SYS), Online, Power (PWR), GPS*
Watchdog, RTC, Timer
CE*, RCM*, FCC*
Standard: 12 Months Extended: 2-5 Years

       The kit includes:

      • TG462 Gateway Host
      • Power Adapter (DC 12V/1.5A)
      • 2 x Cellular Antennas (Male SMA)
      • Console Cable (RS232)
      • Ethernet Cable (1 meter)
      • Terminal Blocks

      Case Study:

      Edge Gateway Empowers Automatic Car Wash

      TG462 Datasheet

      TG462 User Guide



        Read more

        TG462 Industrial Cellular 4G LTE Touch Screen IOT Edge Gateway

        Product form
        Free pickup in our shop(s)

        SKU: TG462-LQAU-1W

        $749.00 $649.00 Excl. GST

        $649.00
        Product available in stock.

          • We ship from our stock in AU (Perth), pickup by prior booking
          • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
          • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

          Description

          TG462 Industrial Cellular 4G LTE Touch Screen IOT Edge Gateway

          Freq. Bands: B1-B2-B3-B5-B7-B8-B20-B28 (Telstra and all other AU providers)

          The TG462/TG462S Industrial cellular 4G Edge Gateways are designed for connecting diverse types of field sensors and equipment to cloud via LTE/4G/3G cellular network, which is suitable for IIoT and M2M applications that require secure and rugged LTE connectivity in harsh environment, such as water&waste water, oil&gas, industry 4.0, smart city, vending machines, etc.

          With rich interfaces, includes Ethernet ports, RS232/RS485, digital inputs, analog inputs, relay outputs, I2C, power output, USB, GPS, WIFI, etc., The TG462/TG462S Edge Gateways allow users to integrate legacy systems with modern sensors. With high-performance 32-bit ARM-based CPU, Modbus RTU/TCP, MQTT, TCP/IP, and customized protocols, as well as up to 1G flash and 32G micro SD local data storage, enables users to collect, store and process data at IoT edge network.

          Besides, TG462S embedded with a 7inch HD TFT touch screen provides a better user experience for field data display and maintenance. The LTE CAT 6/CAT4 and VPN provide ample bandwidth and secure connectivity for transferring field data to a remote server.
          7" touch screen ARM-based IoT edge gateway, provides a better user experience for field data display and maintenance
          • High-performance ARM-based CPU
          • 2-RJ45, 4-RS232, 3-RS485, 4-DI, 8-ADC,   4-Relay, 5-Power Output, 1-I2C, 1-TTL, USB
          • 7'' HD Touch screen (Only for TG462S)
          • Up to 1GB flash, 1-Micro SD card supports up to 32GB data and program storage
          • LTE CAT 6/CAT4* provides ample bandwidth for high data demand
          • GPS* and WIFI*
          • Capacity of collecting, processing and storing data locally, and transferring the data over the cellular network
          • Easy to use and program the gateway, customizable for your applications
          • Secondary Customization and OEM/ODM are available

          List of Australia 4G LTE Frequencies: https://en.wikipedia.org/wiki/4G_connectivity_in_Australia

          Specifications:

          System
          CPU

          Flash

          RAM
          32-bit ARM Cortex A7, 528MHz

          TG462: 256MB (Extendable to 1GB)
          TG462S: 1GB

          256MB DDR3
          Cellular Interfaces
          Antenna Connector
          SIM Slot
          2 × 50 Ω SMA Female

          1
          15KV ESD Protection
          LCD Screen
          TG462S 800*480, TFT Touch Screen
          Ethernet Port
          Ports

          Data Rate
          2 x RJ45 (1-WAN, 1-LAN or 2-LAN, configurable via Web UI)
          10/100 Mbps (Auto-Sensing), Auto MDI/MDIX
          1.5KV Magnet Isolation
          Serial Port
          Connector
          Ports
          Baud Rate
          Terminal block, 3.5 mm female socket with lock
          4 x RS232(1 for debug), 3 x RS485
          100bps to 230400bps
          15KV ESD Protection
          I/O
          Connector
          I2C
          TTL
          ADC

          DI


          DO(Relay)

          Power Output
          Terminal block, 3.5 mm female socket with lock
          1, For temperature, humidity sensors
          1
          8 x 16-bit AD, supports 4-20mA current signal input, or 0-5V voltage signal input (Option)
          4 Logic 0: Wet contact 0-3VDC, or dry contact close Logic 1: Wet contact DC 5-30V, or dry contact open
          4
          (5A and 30VDC/250VAC output)
          5 (3-channel 12V output, 1-channel 9V output, rated current 1A, 1-channel 5V output, rated current 1A) Built-in overcurrent protection, for external devices DC power input.
          WIFI(Option)
          Antenna Connector

          Transmission Rate


          Security
          1 × 50 Ω SMA Male (or 2, option) Standard IEEE 802.11b/g/n, supporting AP and Client modes
          IEEE802.11b/g: Up to 54Mbps, IEEE802.11n: Up to 300Mbps
          Open, WPA, WPA2, WPA/WPA2 Enterprise, Radius
          GPS(Option)
          Module
          Antenna Connector
          Built-in independent GPS Module
          1 × 50 Ω SMA Female
          External Storage Interface
          Micro SD Card Slot
          USB
          Usage
          1 x TF card, Up to 32GB
          1 x USB2.0
          User Program, Data Storage and Firmware Upgrade
          Power Supply and Consumption
          Connector

          Standard Power
          Input Voltage
          Data acquisition mode
          Communication mode
          4-pin with 3.5 mm terminal block Main and backup power input
          DC 12V/1.5A
          5-35 VDC
          251mA～357mA@12VDC
          305mA～412mA@12VDC
          Software
          Network Protocols


          Serial Port


          VPN Tunnel
          Firewall
          Management

          Reliability
          Secondary Development
          PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DNS, DDNS, HTTP, ARP, QoS, SNTP, Telnet, SSH, etc.
          MQTT, Transparent (TCP Client/Server, UDP Client/Server), Modbus Gateway (Modbus RTU to Modbus TCP)
          IPsec/PPTP/L2TP/GRE/OpenVPN
          ACL/DMZ/Port Mapping/MAC Binding
          Web, CLI, SMS, Cloud DMP (Device Management Platform)
          WAN Failover, Hardware & Software Watchdog
          OpenWrt based, support Python, LUA and SDK
          Physical Characteristics
          Ingress Protection
          Housing & Weight


          Dimensions
          Mounting
          IP30
          Metal
          TG462: 850g(1.87lbs)
          TG462S: 900g(1.98lbs), without accessories
          228×122.5×38.2mm(8.97x4.82x1.50in)
          Wall mount, Desktop
          Environmental
          Operating Temperature
          Storage Temperature
          Relative Humidity
          Ethernet Isolation
          -35°C to +75°C (-31℉ to +167℉)

          -40°C to +80°C (-40℉ to +176℉)

          0% to 93% (non-condensing) at 25°C/77℉
          1.5 kV RMS
          Others
          LED Indicators
          Built-in

          Certifications
          Warranty Period
          Signal strength, WIFI, System (SYS), Online, Power (PWR), GPS*
          Watchdog, RTC, Timer
          CE*, RCM*, FCC*
          Standard: 12 Months Extended: 2-5 Years

               The kit includes:

              • TG462 Gateway Host
              • Power Adapter (DC 12V/1.5A)
              • 2 x Cellular Antennas (Male SMA)
              • Console Cable (RS232)
              • Ethernet Cable (1 meter)
              • Terminal Blocks

              Case Study:

              Edge Gateway Empowers Automatic Car Wash

              TG462 Datasheet

              TG462 User Guide



                Read more
