- Quad-core 64-bit ARM Cortex-A55 up to 2GHz
- NPU up to 1 TOPS, ARM G52 2EE GPU
- Up to 2GB RAM (DDR4, 8GB Option) and 16GB Flash(eMMC, 128GB Option), NVMe SSD(Option, up to 2TB)
- Openwrt Linux OS with Python/C/C++ programmable, or Unbuntu Linux OS, docker container, flexible for secondary development
- 5G NR or 4G LTE to choose
- 4-RJ45(GbE),1-RS232, 6-RS485, 3-DI(Up to 4, Option), 2-Relay(Up to 4, Option), 1-USB3.0, 1-TF, WIFI6(Option), HDMI(Option), Super capacitor(Option)
- MQTT broker/client, Modbus RTU/TCP, JSON, TCP/UDP, OPC UA, IEC101/104 and VPN
Specification:
System
● CPU: ARM Cortex-A55, 64-bit, quad-core
● RAM: DDR4, 2GB( 8GB, Option)
● Flash: eMMC, 16GB(128GB, Option)
● NPU: 512MAC , up to 1 TOPS
● GPU: Mali-G52, OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Cellular Interface
● Antenna Connector: 4×50 Ω SMA Female(5G Version TG465-NR)
2×50 Ω SMA Female(4G Version TG465-LF)
● SIM Slot: 1 x Micro SIM(Dual SIM, Option)
● ESD Protection: 15KV
Ethernet Interface
● Ports: 4-RJ45 (1-WAN, 3-LAN or 4-LAN configurable)
● Data Rates: 10/100/1000 Mbps (Auto-Sensing), Auto MDI/MDIX
● ESD Protection: 1.5KV
Serial Interfaces
● Connector: Terminal block, 3.5 mm female socket
● Ports: 2-RS232(1-Debug, 1-Shared via RS485), 6-RS485(or 5-RS485, 1-Shared by RS232)
● Baud Rate: 300bps to 230400bps
● ESD protection: 8KV for RS232, 15KV for RS485
I/O
● Connector: Terminal block, 3.5 mm female socket with lock
● Digital Input: 3-DI (Option, Up to 4-DI, 0-30V Input) Status “0”: 0-3V, status “1”: 5-30V
● Relay Output: 2-Relay (Option, up to 4-DO, 5A and 30VDC/250VAC switch)
● Power Output: 2(5-60VDC, controlled via device power input)
Wi-Fi 6(Option)
● Antenna Connector: 2 × 50 Ω RP-SMA Female
● Standard: 2T2R 802.11 a/b/g/n/ac/ax, AP and Client modes
● Security: Open, WPA, WPA2, WPA/WPA2 Enterprise, Radius
GNSS (Option)
● Module: GNSS from cellular module
● Antenna Connector: 1 × 50 Ω SMA Female
External Storage & Display(Option)
● TF Card Slot: 1x Micro SD interface, Up to 32G
● SSD: 1x M2.0 NVMe SSD(Option, up to 2TB)
● USB: 1x USB3.0
● Usage: User Program, Data Storage and Firmware Upgrade
● HDMI: 1 HDMI 2.0 (Option, up to 4K display)
● Others(Option): AI computing card, Audio
Power Supply and Consumption
● Connector: Terminal block, 3.5 mm female socket
● Standard Power: DC 12V/1.5A
● Input Voltage: 5-60 VDC
● Super Capacitor(Option): Power-off alarm, data&log storage
Software
● Network Protocols: PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, HTTP, HTTPS ARP, QoS, SNTP, Telnet, SSH
● Industrial Protocols: MQTT client/broker, Transparent (TCP/UDP Client/Server), Modbus RTU/TCP, OPC UA, IEC101/104, DL/T645-2007, PLC(S7, FP)*
● VPN Tunnel: IPsec/PPTP/L2TP/GRE/OpenVPN
● Firewall: ACL/DMZ/Port Mapping/MAC Binding
● Management: Web, CLI, SMS, Cloud DMP (Device Management Platform)*
● Reliability: Dual SIM, WWAN and WAN Failover, Hardware & Software Watchdog
● Secondary Development: OpenWrt based Linux OS, C/C++, Python SDK; or Ubuntu, Docker container*
Physical Characteristics
● Ingress Protection: IP30
● Housing & Weight: Metal, 799g(1.76lbs), without accessories
● Dimensions: 162x125x55mm (6.38 x 4.92 x 2.16in)
● Mounting: Desktop, DIN-Rail
Environmental
● Operating Temperature: -35°C to +75°C (-31℉ to +167℉)
● Storage Temperature: -40°C to +80°C (-40℉ to +176℉)
● Relative Humidity: 5% to 95% (non-condensing)
Others
● Reset Button: 1
● LED Indicators: Signal strength, Alarm, GPS, WIFI, SSD, System, 5G/4G
● Built-in: Watchdog, RTC, Timer
● Approvals: CE*, RCM*, FCC*, NBTC*
● Warranty Period: Standard: 12 Months; Extended: 2-5 Years
● EMC: Level 3
Standard Package Content

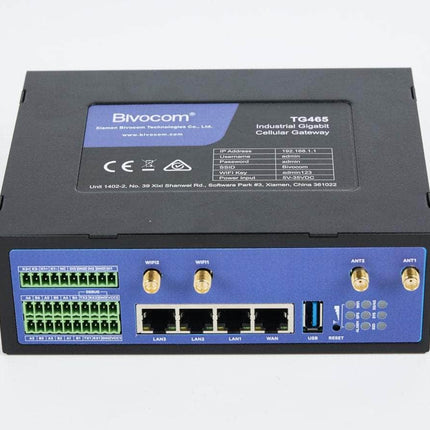

1. TG465 Gateway: 1 PCS
2. Power Adapter(DC 12V/1.5A, EU/US/UK/AU plug optional): 1 PCS
3. Mag-mount Cellular Antenna (SMA Male, 1 meter, 5dBi):5G: 4PCS; 4G: 2PCS
4. RS232 Cable (DB9 Female, 1 meter): 1 PCS
5. Ethernet Cable(1 meter): 1 PCS
6. 10-Pin Terminal Block: 3 PCS
7. 2-Pin Terminal Block: 1 PCS
8. DIN-Rail Mount Kits: 1 PCS
