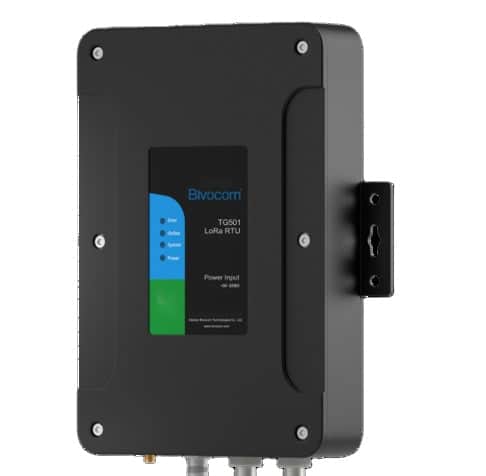

Bivocom TG501 LoRa RTU is a robust and versatile remote terminal unit designed for various outdoor applications. Engineered to withstand extreme environments, this device features a comprehensive suite of connectivity options, including 1 RS232 (Debug), 1 RS485, 4 digital inputs, 2 relays(option), 1 pulse input(option), and 3 analog inputs(option). With low power consumption and a remarkably long-range capability of up to 10 km in open air, it ensures reliable communication even in challenging conditions.

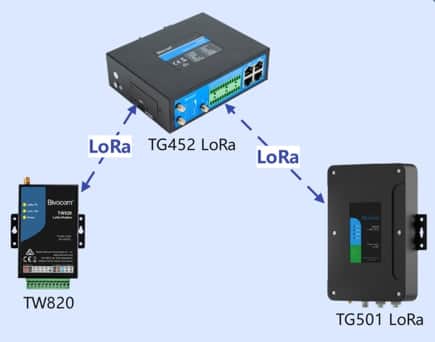

Built with anti-interference technology and high receiving sensitivity, the Bivocom TG501 LoRa RTU guarantees secure and stable data transmission. Its AES encryption and decryption capabilities ensure that your data remains protected over the air. The device supports point-to-point and fixed-point transparent transmission modes, making it easy to integrate into existing systems.
User-friendly in design, this RTU is easy to configure and operates in a plug-and-play manner, allowing for quick deployment. With an impressive operating temperature range of -35 to +75 °C and power input flexibility of 5-35V DC, the Bivocom Outdoor IP67 TG501 LoRa RTU is the ideal solution for all your remote monitoring and control needs.
System
● CPU: Industrial 32-bit MCU
● Flash: 512KB
● SRAM: 256KB
● Data Storage Flash: 16MB
LoRa Interface
● Frequency: 850~931MHz, or 410-490MHz(Option)2
● Distance: Building: Up to 3KM
Open air: Up to 10KM
● Sensitivity: Up to -129dBm
● TX Power: 21-30dBm
● Encryption: AES
● Air Data Rate: 1.2~62.5kbps (default: 4.8kbps)
● Single-packet Data Size: Up to 230 Bytes
● Channel: 82 Channels
● Antenna Connector: 1× 50 Ω SMA Female
Serial Interface
● Ports: 1× RS232(debug) + 1 × RS485
● Baud Rate: 1200bps to 15200bps
● 8KV for RS232, 15KV for RS485
I/O
● ADC(Option): 3x ADC, 12-bit AD, 4-20mA, or 0-5V (Option)
● DI: 4, Wet Contact
Status “0”: 0-3VDC
Status “1”: 5-30VDC
● DO(Option): 2-Relay
Max switching voltage: 30VDC/250VAC
Max switching current: 5A (Pure resistive load)
● Power Output(Option): 1
The default is 12V. rated output current is 1A, built-in overcurrent protection
Built-in overcurrent protection, for external devices DC power input
Power Supply and Consumption
● Standard Power: DC 12V/1.5A
● Input Voltage: 5-35 VDC
● Idle Mode: 20～45mA@12VDC
● Communication: RX: 23mA@12VDC TX: 350mA@12VDC
Physical
● Ingress Protection: IP67
● Housing & Weight: Die-Cast Aluminium, 810.50g (1.79lbs), without accessories

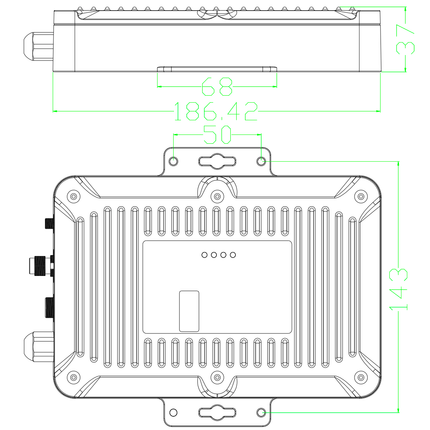

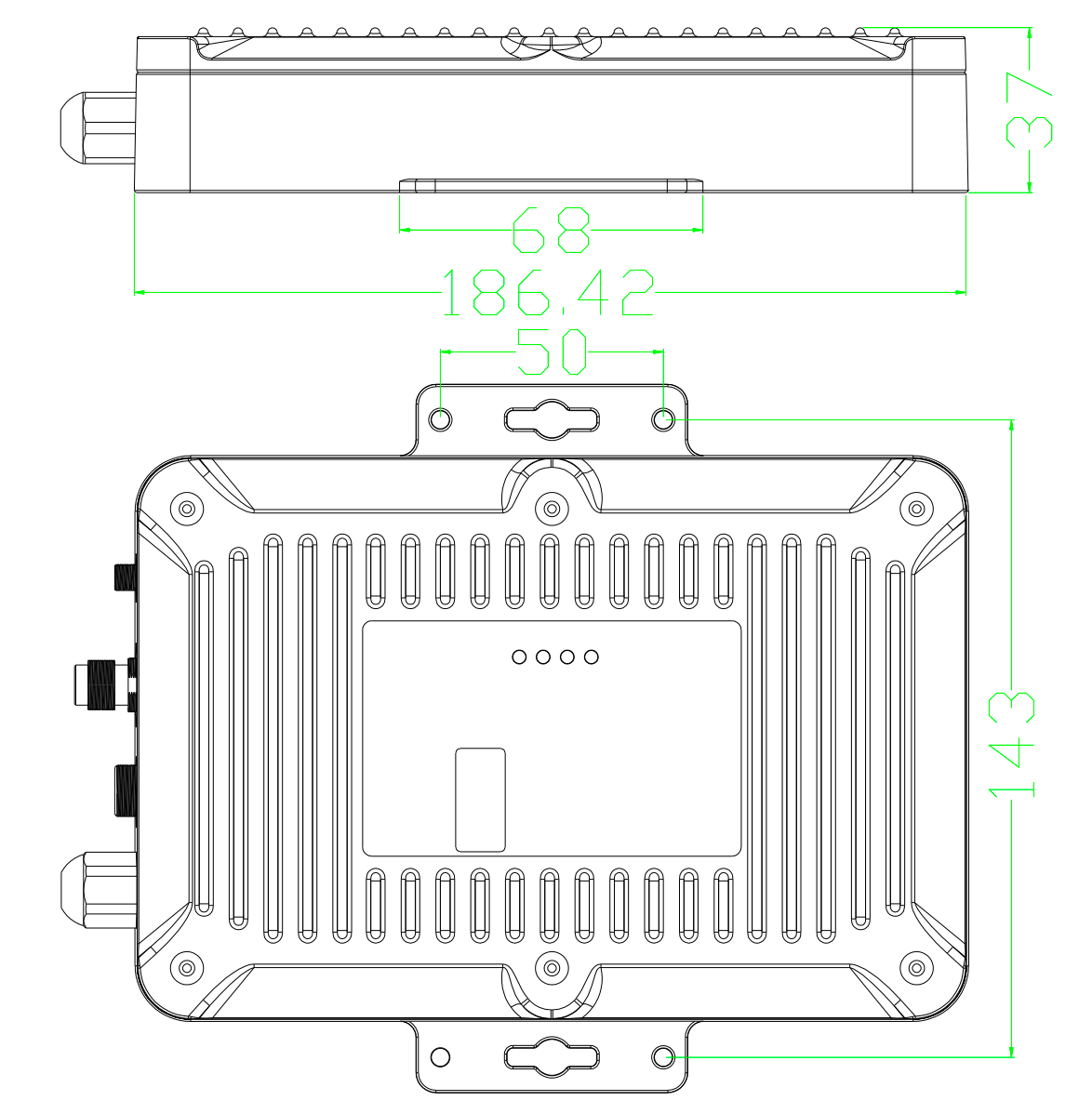

● Dimensions: 187 x 158 x 35mm (7.36 x 6.22 x 1.38 in)
● Mounting: Wall mount
Environmental
● Operating Temperature: -35°C to +75°C (-31℉ to +167℉)
● Storage Temperature: -40°C to +80°C (-40℉ to +176℉)
● Humidity: 5% to 98% (non-condensing)
Others
● LED Indicators: System, Online, Power, Error
● Warranty Period: Standard: 12 Months, Extended: 2-5 Years*(Please refer to warranty policy)
● Approvals: CE*, RCM*, NBTC*, FCC*(*Under Progress)
Standard Package Content
● TG501-LR RTU: 1PCS
● Power Adapter(DC 12V/1.5A, EU/US/UK/AU plug, Option): 1PCS
● LoRa Antenna: 1PCS
● RS232 Cable (DB9 Female, 1 meter): 1PCS
● 7-in-1 Cable: 2PCS
