Make a custom controller for your project with this thumbstick. Two-axis with a center pushbutton, it plugs into a VINT port.

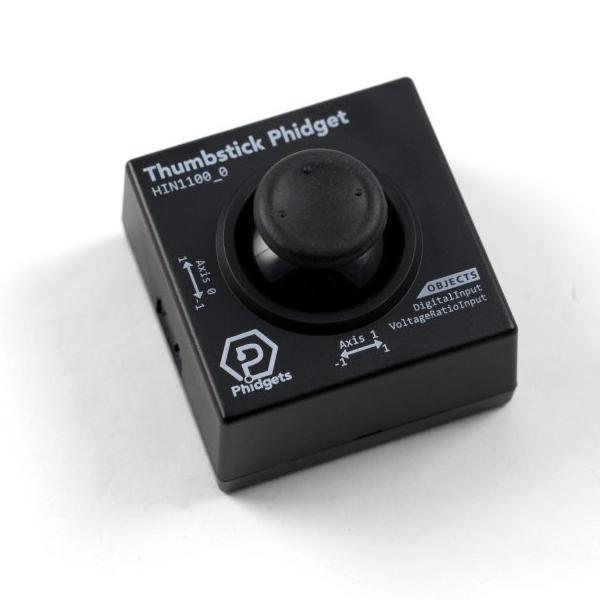

Does your project need a high degree of control from your users? The Thumbstick Phidget provides a familiar 2-axis thumbstick similar to those on a video game controller. The stick springs back to the neutral position when released. It can also be pressed down with a click, which will register in software and can be tied to a function in your software. The HIN1100 connects to a port on a VINT Hub. See the "Comaptible Products" tab for a list of hubs.
How it Works
The two axes of the thumbstick correspond to two VoltageRatioInput software objects which each range from -1.0 to 1.0, with zero being in the neutral position. These two numbers can be combined and converted into an angle and a magnitude in your software to be more useful. When the stick is pressed down, a DigitalInput object will change from false to true, so your program can use the change event to trigger a function or feature of your project.
Product Specifications
| Sensor Properties | |
|---|---|
| Controlled By | VINT |
| VoltageRatio Input Resolution | 0.0021 |
| Electrical Properties | |
| Current Consumption (Unconfigured) | 20 μA |
| Current Consumption Max | * 1 mA |
| Physical Properties | |
| Operating Temperature Min | -40 °C |
| Operating Temperature Max | 85 °C |
* - Current consumption varies depending on the selected data interval. See the technical section of the User Guide for details.
