TinyLily Mini Processor Board - TinyCircuits

Description

TinyLily Mini Processor Board - TinyCircuits

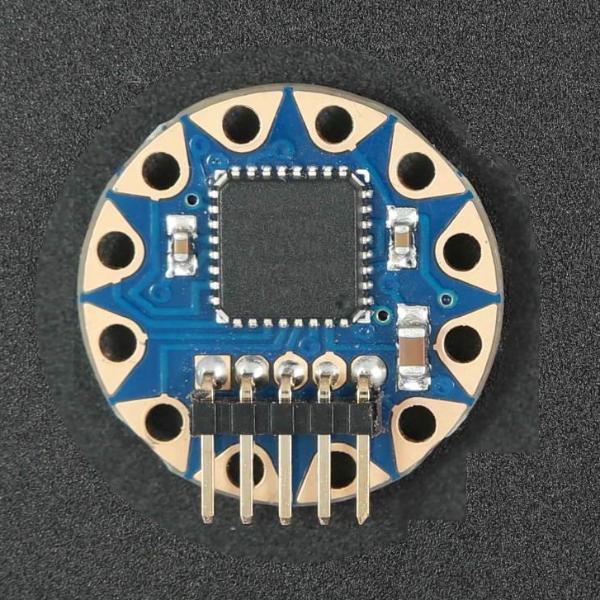

The TinyCircuits TinyLily Mini is an Arduino compatible module in an ultra compact package. Designed to be used in e-textile and wearable applications, the TinyLily Mini is very similar to the Arduino LilyPad with the same processing power and Arduino software compatibility – but at 1/12th the size!
  • Arduino and LilyPad Compatible
  • Atmel Atmega328P processor (same as is used on the Arduino Uno and LilyPad)
  • Washable

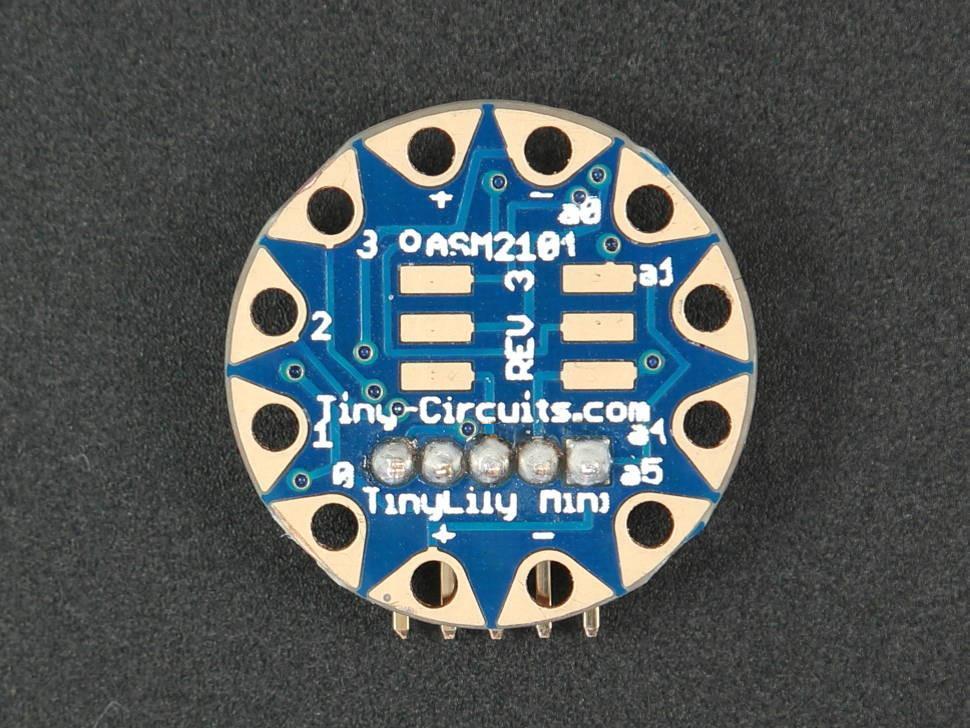

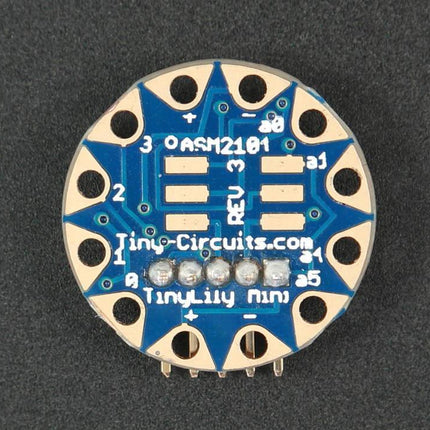

  • Sewtabs for 8 I/O (4 Digital, 4 Analog / Digital) and 4 Power Sewtabs (2 for power, 2 for ground)
Note: To program this board, you need to use the TinyLily Mini USB Boardwhich is sold separately.

    TECHNICAL DETAILS

    • Arduino and LilyPad Compatible
    • Washable
    • Robust Gold Finish – makes soldering easy and is non-corrosive
    • Sewtabs for 8 I/O (4 Digital, 4 Analog / Digital) and 4 Power Sewtabs (2 for power, 2 for ground)
    • Sewtabs are 1.2mm in diameter, easy to use with standard conductive thread and needles
    • Arduino Bootloader preprogrammed (uses approx 0.5 KBytes of Flash Memory)

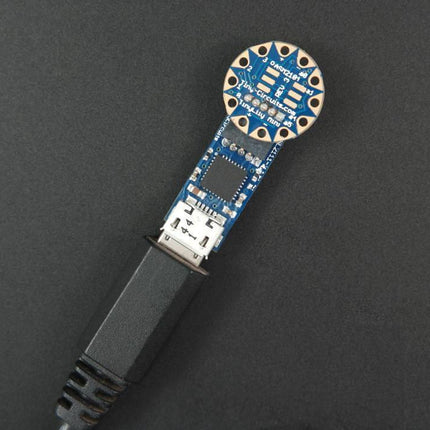

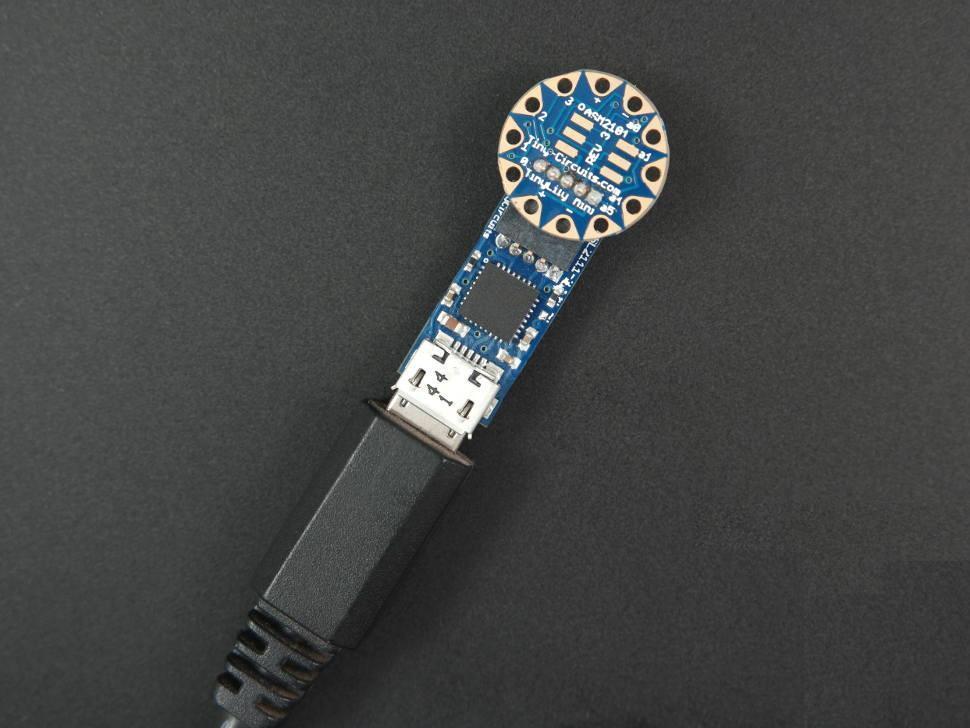

    • USB expansion header (for use with the TinyLily Mini USB Board)

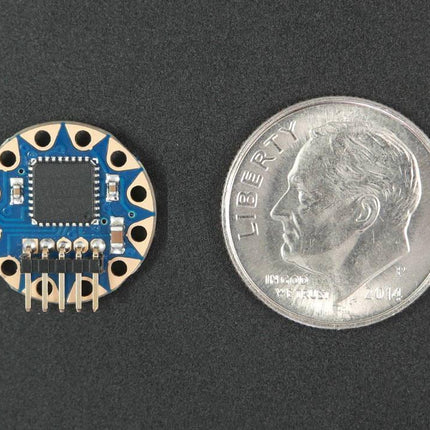

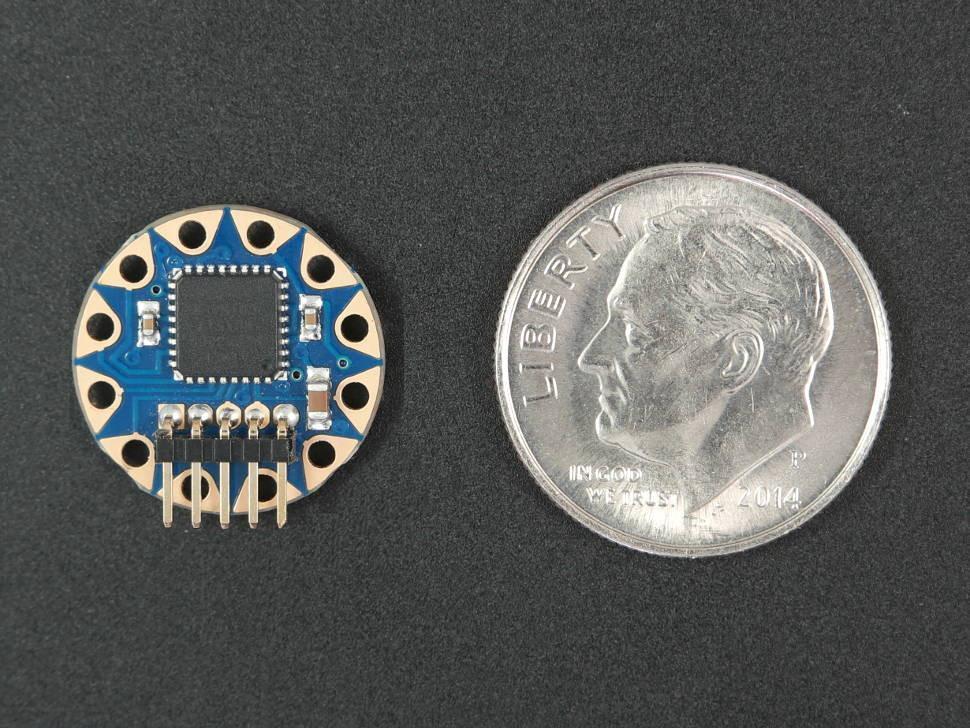

    • Ultra compact size and weight (smaller than a US Dime!)
      • 14.0mm (0.55 inch) diameter
      • Max Height: 2.8mm (0.11 inches)
      • Ultra-thin 0.61mm (0.024 inches) PCB
      • Weight: .39 grams (.01 ounces)
    • Atmel ATmega328P Microcontroller
      • 32KB Flash, 2KB RAM, 1KB EEPROM
      • 1.2mA (typical) @ 3V, 4MHz
      • Clock speed: 8MHz
    • 2.7V – 5.5V operating voltage

      NOTES

      • If you are brand new to the TinyLily, buying a kit is the best way to go since it will have all the parts needed.  Check out the kits here.
      • This board does not include a voltage regulator – do not supply more than +5.5V or you will permanently damage the board and ruin your day.

      DOWNLOADS





      TinyLily Mini Processor Board - TinyCircuits

      Product form
      Free pickup in our shop(s)

      SKU: ASM2101

      $20.00 $10.00 Excl. GST

      $10.00
      Product available in stock.

        • We ship from our stock in AU (Perth), pickup by prior booking
        • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
        • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

        Description

        TinyLily Mini Processor Board - TinyCircuits

        The TinyCircuits TinyLily Mini is an Arduino compatible module in an ultra compact package. Designed to be used in e-textile and wearable applications, the TinyLily Mini is very similar to the Arduino LilyPad with the same processing power and Arduino software compatibility – but at 1/12th the size!
        • Arduino and LilyPad Compatible
        • Atmel Atmega328P processor (same as is used on the Arduino Uno and LilyPad)
        • Washable
        • Sewtabs for 8 I/O (4 Digital, 4 Analog / Digital) and 4 Power Sewtabs (2 for power, 2 for ground)
        Note: To program this board, you need to use the TinyLily Mini USB Boardwhich is sold separately.

          TECHNICAL DETAILS

          • Arduino and LilyPad Compatible
          • Washable
          • Robust Gold Finish – makes soldering easy and is non-corrosive
          • Sewtabs for 8 I/O (4 Digital, 4 Analog / Digital) and 4 Power Sewtabs (2 for power, 2 for ground)
          • Sewtabs are 1.2mm in diameter, easy to use with standard conductive thread and needles
          • Arduino Bootloader preprogrammed (uses approx 0.5 KBytes of Flash Memory)
          • USB expansion header (for use with the TinyLily Mini USB Board)
          • Ultra compact size and weight (smaller than a US Dime!)
            • 14.0mm (0.55 inch) diameter
            • Max Height: 2.8mm (0.11 inches)
            • Ultra-thin 0.61mm (0.024 inches) PCB
            • Weight: .39 grams (.01 ounces)
          • Atmel ATmega328P Microcontroller
            • 32KB Flash, 2KB RAM, 1KB EEPROM
            • 1.2mA (typical) @ 3V, 4MHz
            • Clock speed: 8MHz
          • 2.7V – 5.5V operating voltage

            NOTES

            • If you are brand new to the TinyLily, buying a kit is the best way to go since it will have all the parts needed.  Check out the kits here.
            • This board does not include a voltage regulator – do not supply more than +5.5V or you will permanently damage the board and ruin your day.

            DOWNLOADS
