Description

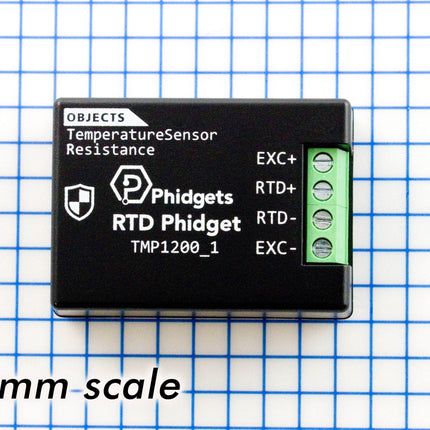

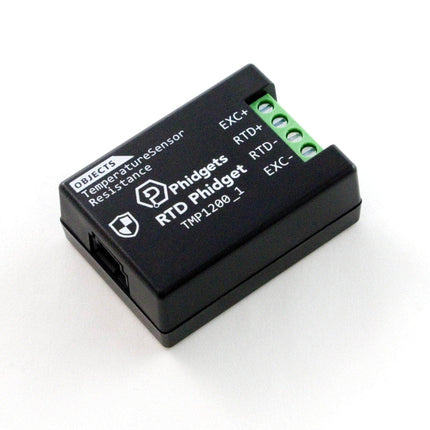

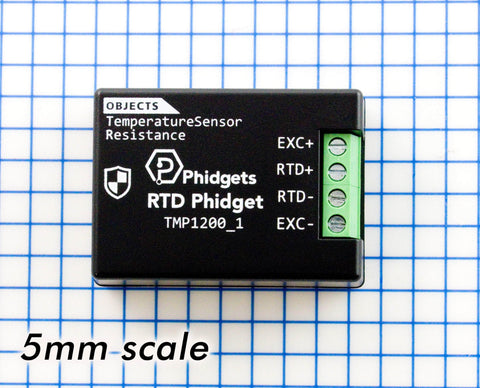

TMP1200 RTD Phidget
Measure RTDs, thermistors, and other resistance-based sensors with this VINT port adapter.
This revision of the TMP1200 differs from the _0 revision in the following ways:
- VINT filter improves immunity to interference and increases maximum VINT cable length (see Specifications tab for more info)
- Greatly improved accuracy and drift, especially in 3-wire mode
- Minimum Data Interval is now 333ms

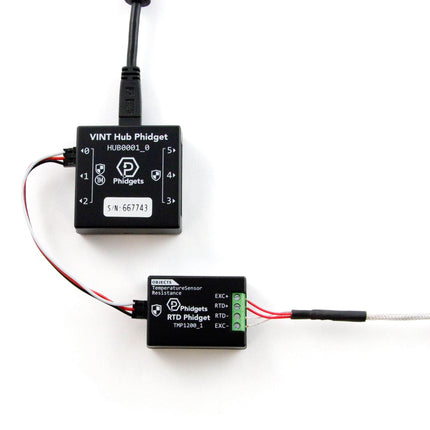

The TMP1200 allows you to precisely measure temperature using RTDs, thermistors, and other resistance-based sensors. A resistance temperature detector measures subtle temperature changes using the resistance of the element made of a pure metal (usually platinum). The resistance value will change in a precise and repeatable way. The RTD Phidget measures these subtle resistance changes, so you can get the most accurate temperature measurements. This Phidget connects to your computer through a VINT Hub.
Features:
- Connect one resistance temperature detector (RTD)
- Select the number of wires (2, 3, or 4) and the RTD type via the software
-
The adapter does all the math - sampled temperature in degrees Celsius.
-
Read thermistors and other resistive sensors - receive the data in ohms
