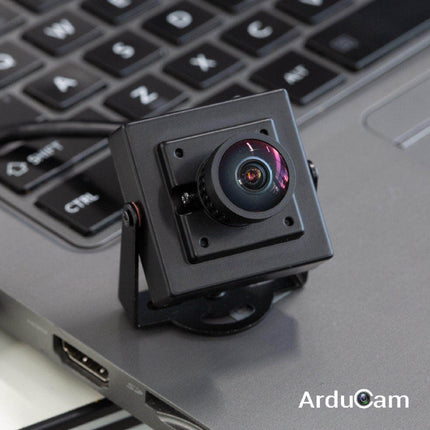

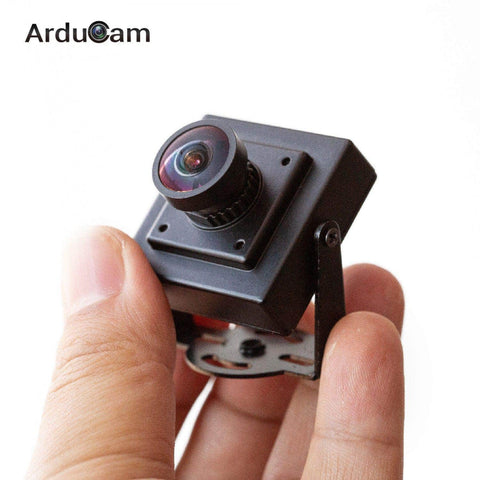

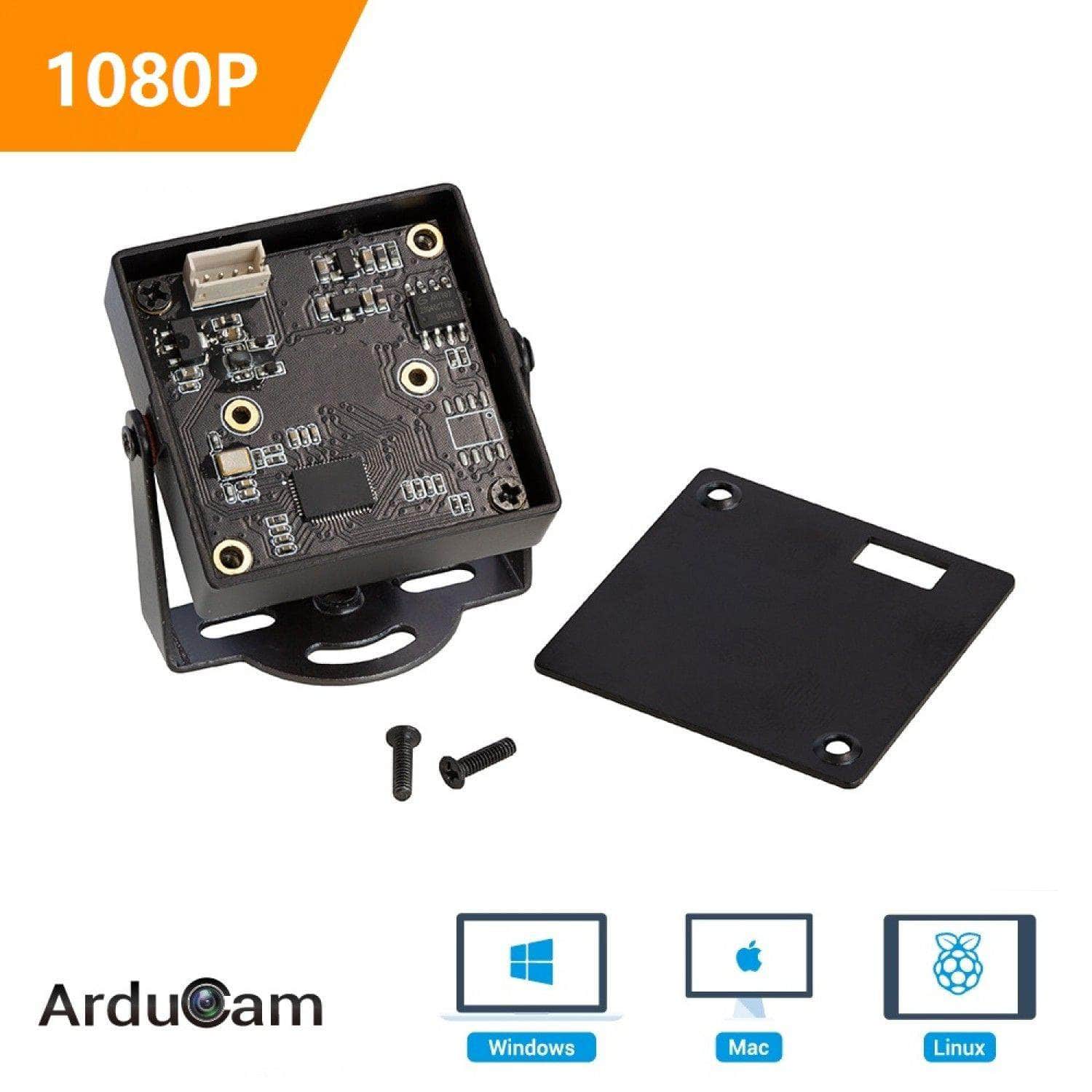

The B020201 is a new member of the Arducam’s USB camera family. Based on the 1/2.8” Sony IMX291 image sensor, it’s a 2MP, UVC compliant, ultra wide-angle, low light, high-speed USB 2.0 camera with metal case.
Specifications
- Sensor: 1/2.8” IMX291
- Resolution: 2MP 1945H x 1109V
- Data Format: MJPG/YUY2/H.264
- Frame Rate: H.264 30fps@1920 x 1080; MJPG 30fps@1920 x 1080; YUY2 30fps@640 x 360.
- Dynamic Range: 80DB
- Minimum Illumination: 0.001Lux
Lens
- Field of View (FOV)：D= 160°
- Lens Mount: M12
- Focusing Range: 6.56ft (2M) to infinity
- IR Sensitivity: Integral IR filter, visible light only
Functionality and Compatibility
- Auto Controlled Features Saturation, Contrast, Acutance, White balance, Exposure.
- Audio: Dual microphones

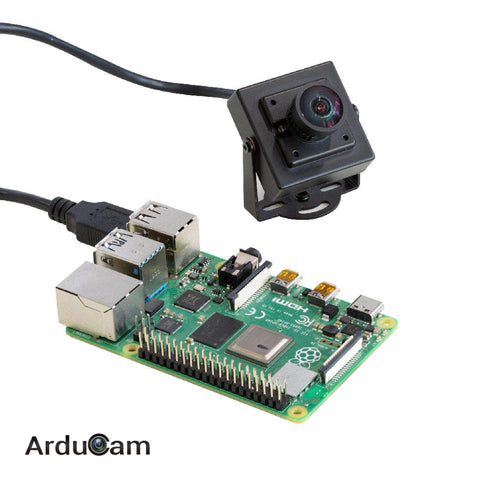

- System Compatibility: Windows, Linux, and Mac with UVC (Android compatibility: contact us for support.)
Power
- Power Supply: USB powered 5V
- Working Current: MAX 300mA
Physical
- Operating Temp.: -4°F~167°F (-20°C~+75°C).

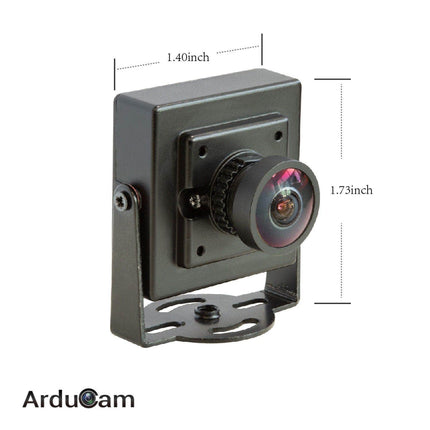

- Dimension: 39x42mm

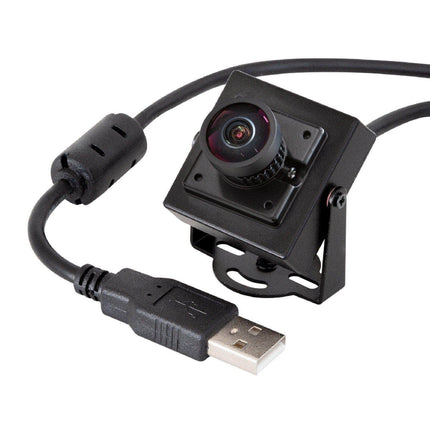

- Cable Length: 3.3ft (1M)
Additional Resources
User Guide
