UB0212 Arducam 2MP 1080P Low Light Low Distortion USB Camera with Microphones IMX323

Description



UB0212 Arducam 2MP 1080P Low Light Low Distortion USB Camera with Microphones IMX323

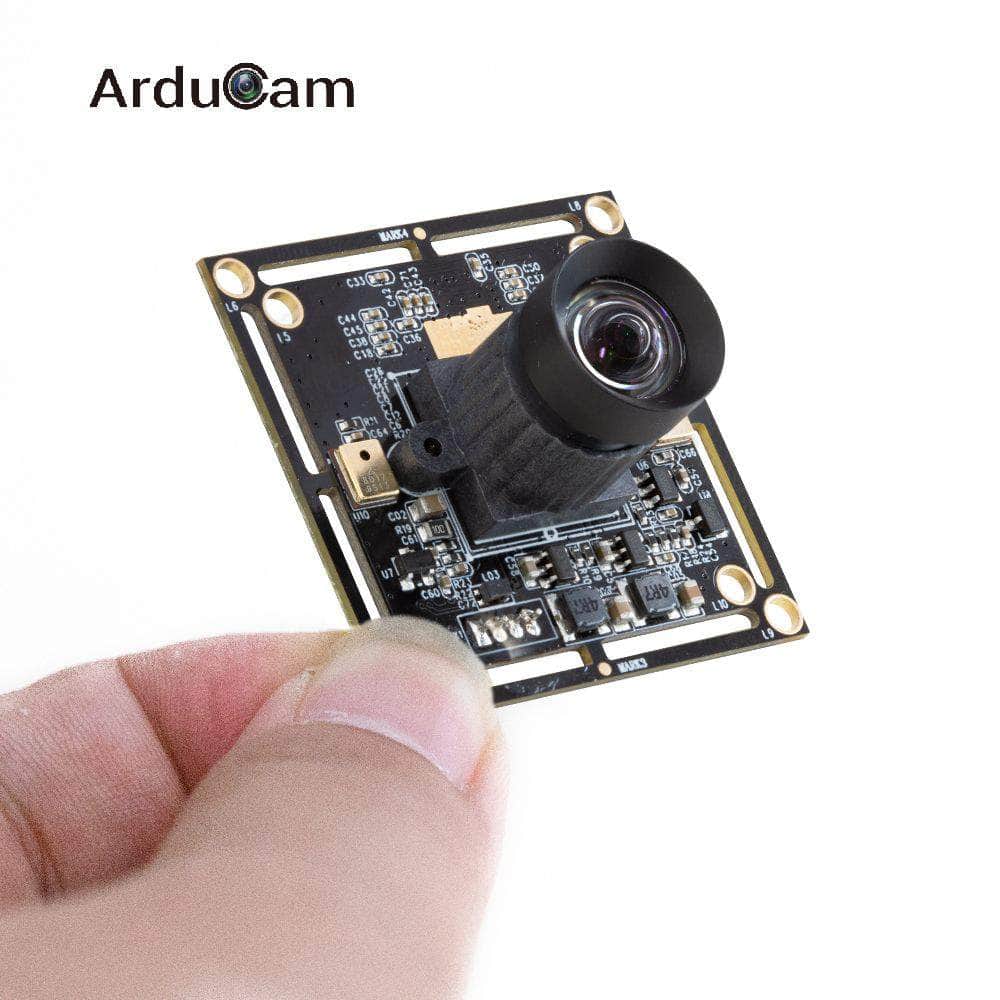

Arducam UB0212 is a new member of the Arducam's USB camera family. It's a 2MP, based on the 1/2.9" Sony IMX323 image sensor, UVC compliant USB 2.0 camera.

No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

This SONY 2MP IMX323 color COMS sensor produces the camera capture the minimum illumination 0.01Lux, which gives you clearer visual joy for low light and night vision.

Applications:

  • Video conference
  • The home video surveillance system
  • Dashcam
  • Monitoring 3D printer
  • Baby Camera
  • Robot and machine vision
  • ......


Specifications

  • Camera

- Sensor: 1/2.9” IMX323

- Resolution: 2MP 1920 x 1080

- Data Format: H.264/MJPG/YUY2

- Frame Rate: H.264 30fps@1080p; MJPG 30fps@1080p; YUY2 30fps@640 x 480;

  • Lens

- Field of View (FOV):68°(H)

- Lens Mount: M12

- IR Sensitivity: Integral IR filter, visible light only

  • Functionality and Compatibility

- Adjustable parameter: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Exposure.

- System Compatibility: Windows, Linux, Mac, and Android with UVC.

  • Power

- Power Supply: USB powered 5V

- Working Current: MAX 300mA

  • Physical

- Operating Temp.: -4°F~158°F (-20°C~+70°C).

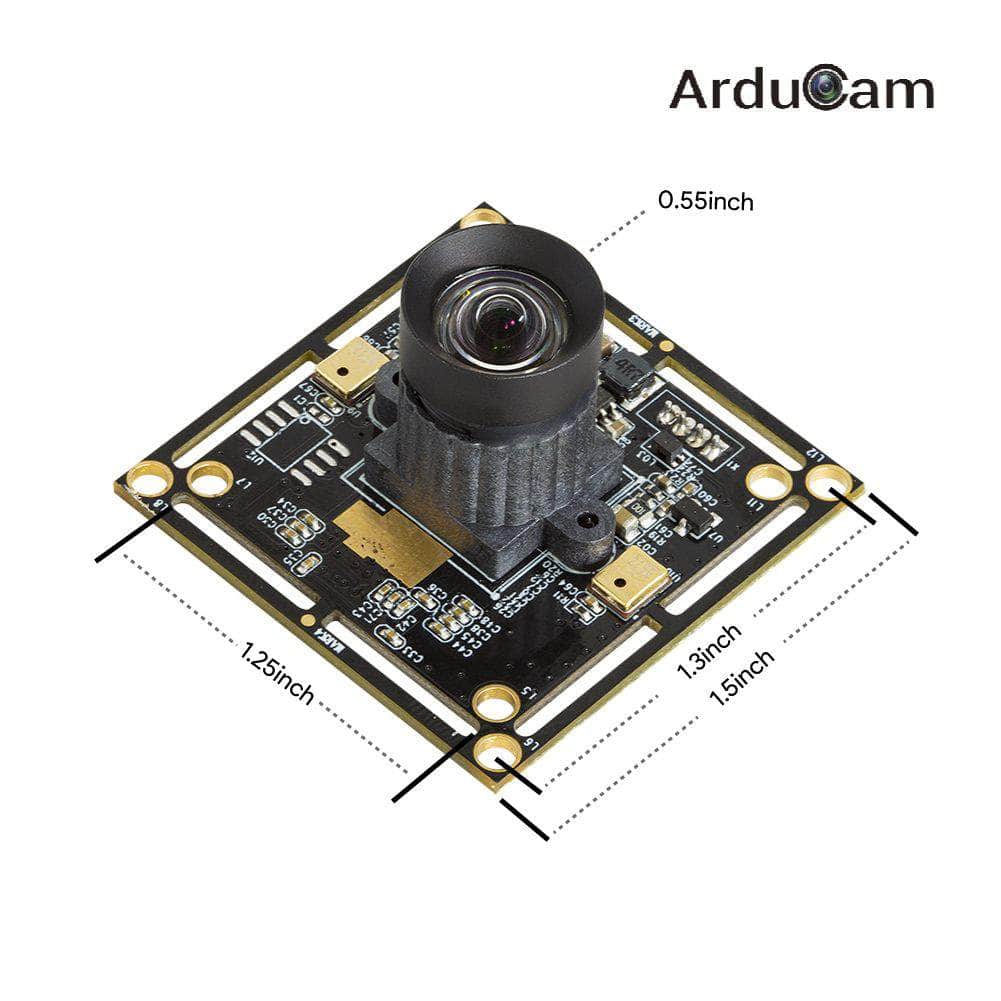

- Dimension: 38mmx38mm (compatible with 34mmx34mm, 28x28mm)

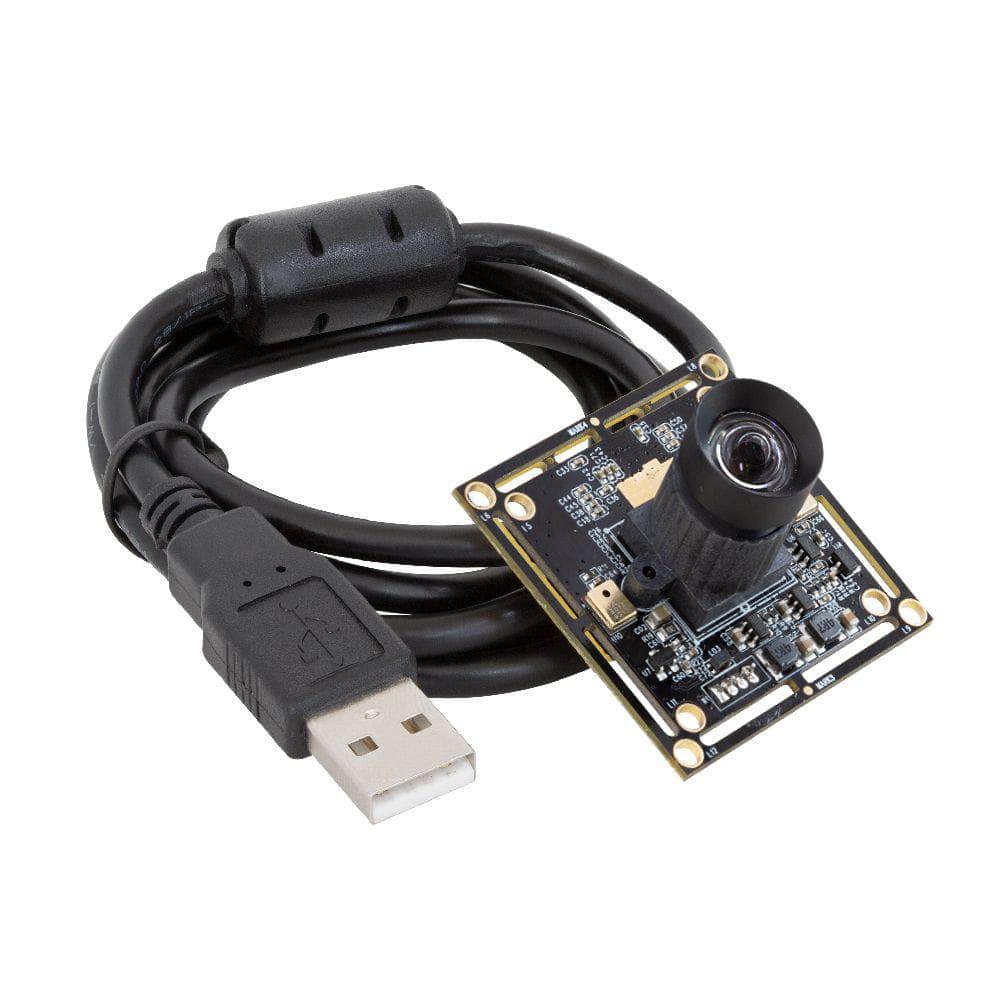

- Cable Length: 3.3ft (1M)

UB0212 Arducam 2MP 1080P Low Light Low Distortion USB Camera with Microphones IMX323

Product form
Free pickup in our shop(s)

SKU: UB0212

$119.00 $79.00 Excl. GST

$79.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts

    Description



    UB0212 Arducam 2MP 1080P Low Light Low Distortion USB Camera with Microphones IMX323

    Arducam UB0212 is a new member of the Arducam's USB camera family. It's a 2MP, based on the 1/2.9" Sony IMX323 image sensor, UVC compliant USB 2.0 camera.

    No longer be anxious about installing the driver! The native UVC drivers of Windows, Linux and Mac shall be compatible with this camera so that it does not require extra drivers to be installed.

    This SONY 2MP IMX323 color COMS sensor produces the camera capture the minimum illumination 0.01Lux, which gives you clearer visual joy for low light and night vision.

    Applications:

    • Video conference
    • The home video surveillance system
    • Dashcam
    • Monitoring 3D printer
    • Baby Camera
    • Robot and machine vision
    • ......


    Specifications

    • Camera

    - Sensor: 1/2.9” IMX323

    - Resolution: 2MP 1920 x 1080

    - Data Format: H.264/MJPG/YUY2

    - Frame Rate: H.264 30fps@1080p; MJPG 30fps@1080p; YUY2 30fps@640 x 480;

    • Lens

    - Field of View (FOV):68°(H)

    - Lens Mount: M12

    - IR Sensitivity: Integral IR filter, visible light only

    • Functionality and Compatibility

    - Adjustable parameter: Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, Gain, White balance, Exposure.

    - System Compatibility: Windows, Linux, Mac, and Android with UVC.

    • Power

    - Power Supply: USB powered 5V

    - Working Current: MAX 300mA

    • Physical

    - Operating Temp.: -4°F~158°F (-20°C~+70°C).

    - Dimension: 38mmx38mm (compatible with 34mmx34mm, 28x28mm)

    - Cable Length: 3.3ft (1M)
