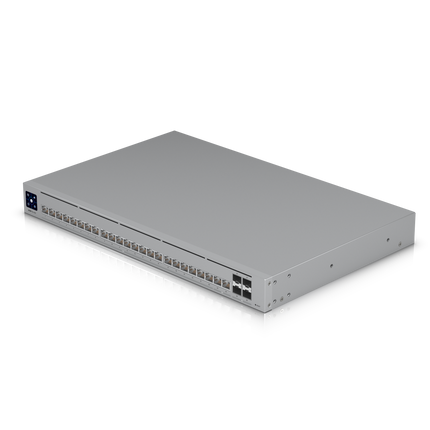

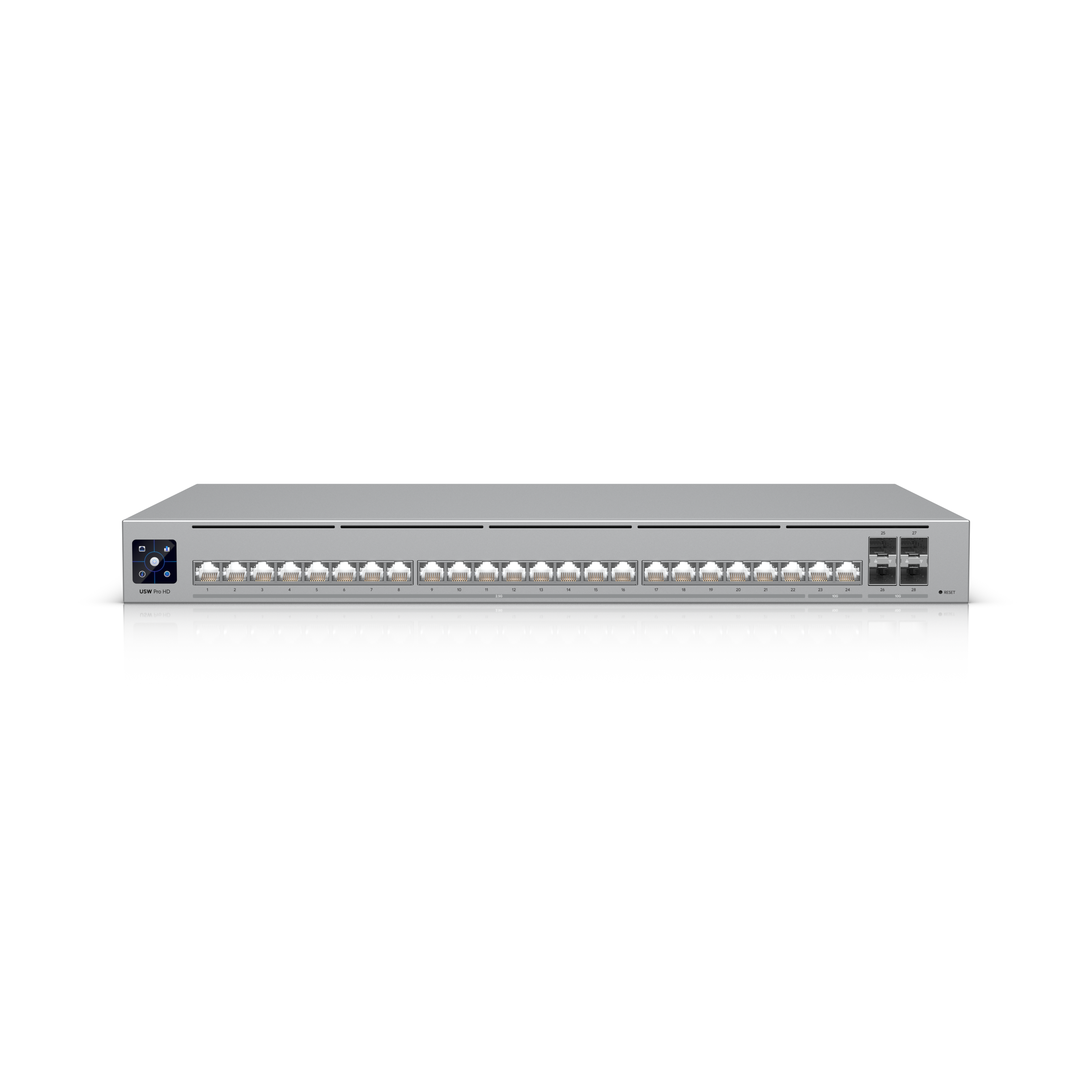

Ubiquiti UniFi USW-Pro-HD-24 Ethernet Switch 24 Port (2x 10G 22x 2.5G) Pro HD L3 4x SFP

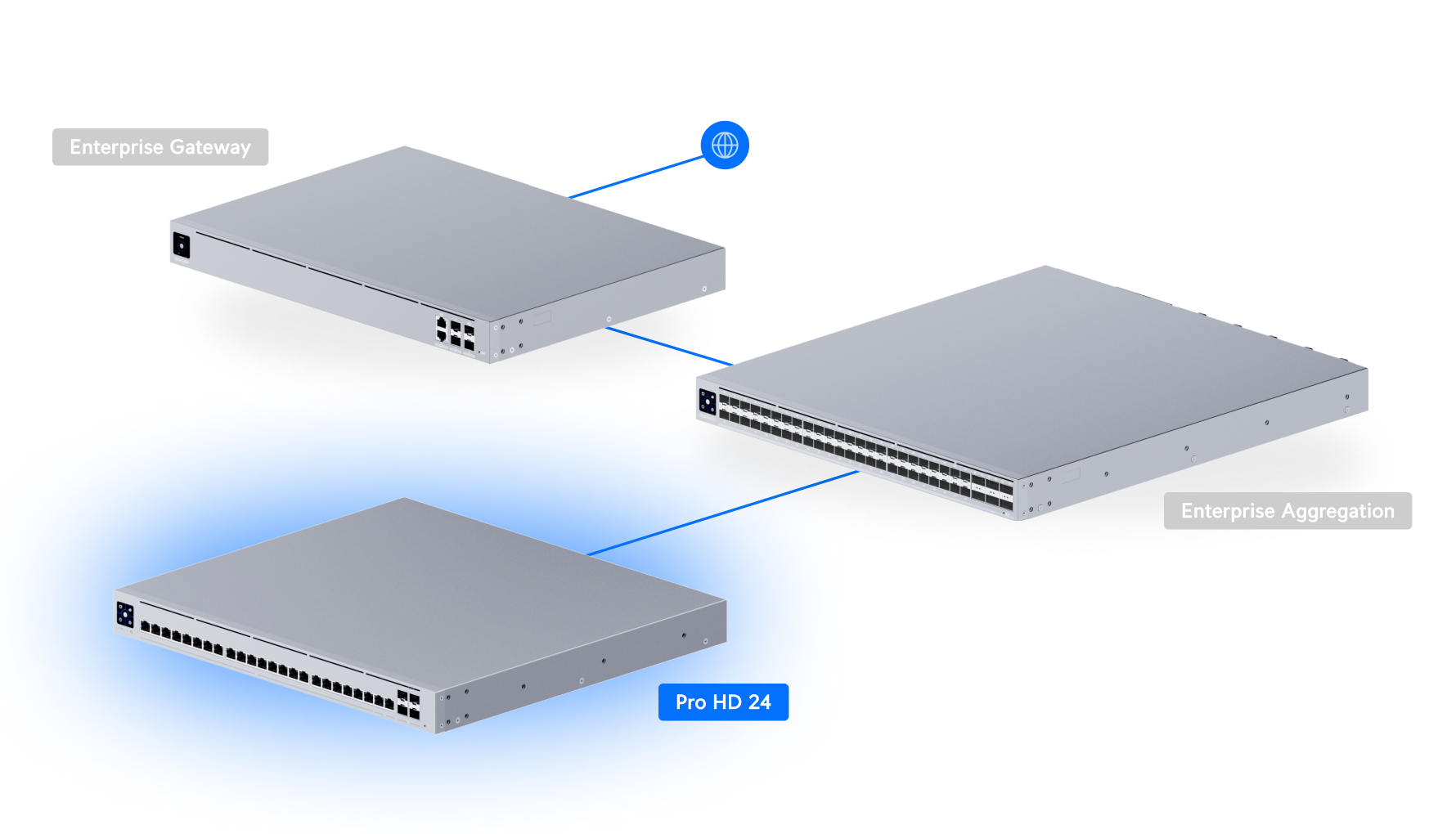

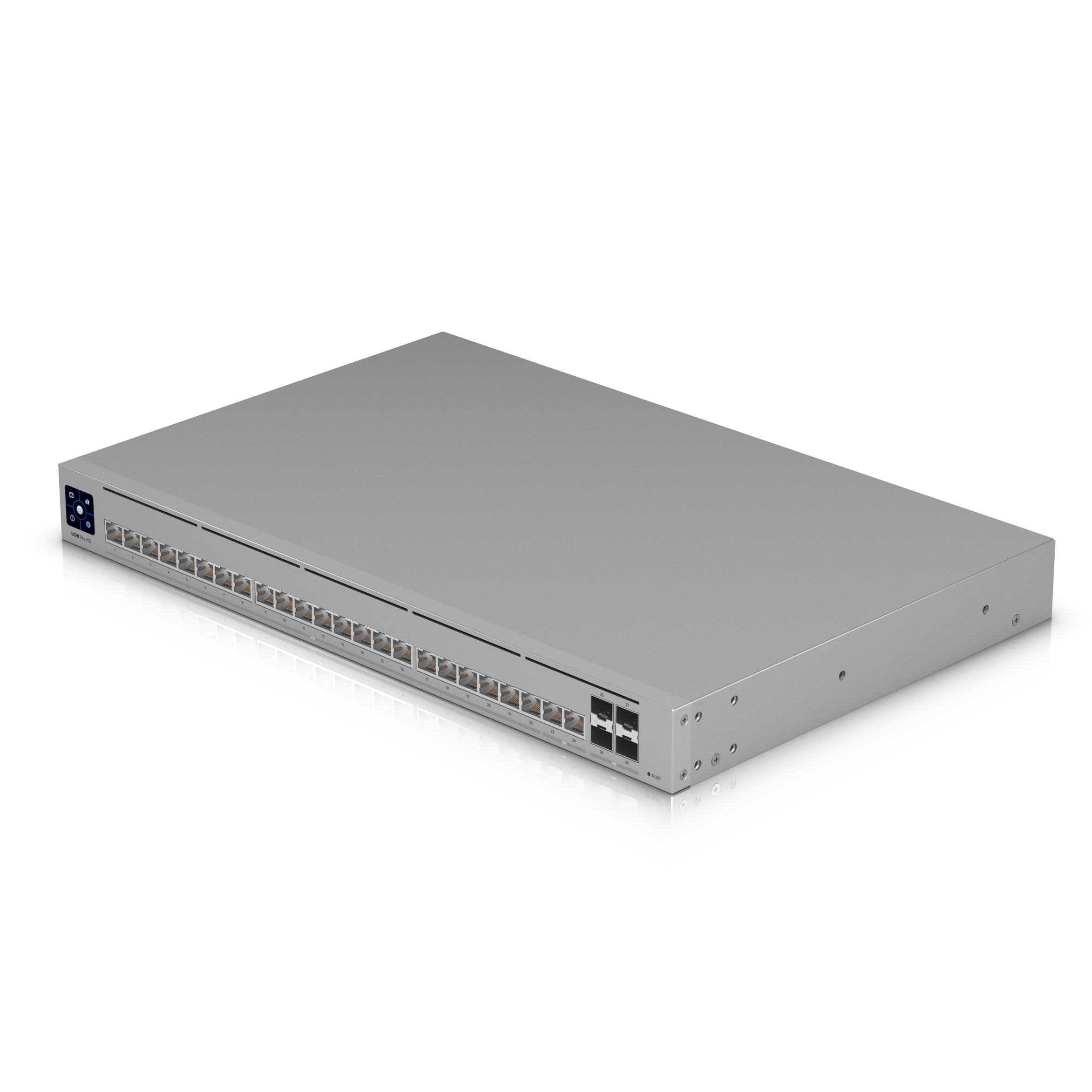

The Ubiquiti UniFi Pro HD 24 is a professional-grade, high-performance Layer 3 switch designed to optimise next-generation enterprise networks. Featuring advanced network capability, this fully managed switch provides massive bandwidth for high-speed devices while maintaining seamless data flow across demanding office and corporate deployments. With its sleek rack-mountable design and integrated 1.3" touchscreen, managing your infrastructure has never been more intuitive.
Equipped with cutting-edge Etherlighting™ technology, this innovative switch illuminates individual ports to visually indicate location, speed, link status, and native VLAN configurations. This completely streamlines port identification and diagnostics, allowing network administrators to monitor and troubleshoot complex configurations at a glance. The non-PoE design ensures energy efficiency, making it the perfect central hub for high-capacity data environments.
Engineered for ultimate reliability, the switch supports dual-power input options, including a universal AC input and a dedicated DC input for power backup redundancy via the UniFi SmartPower system. This ensures uninterrupted operation even during unexpected power failures. Fully integrated with the intuitive UniFi Network application, it delivers full network visibility, advanced security controls, and effortless multi-device provisioning from a single interface.
Features
- Etherlighting ports that illuminate to show location, speed, link, and native VLAN
- Comprehensive Layer 3 routing capabilities including inter-VLAN and static routing
- Multi-gigabit connectivity with twenty-two high-speed ports and dual ultra-fast ports
- Four dedicated optical uplink ports for high-capacity aggregation
- Power backup redundancy ready to protect against network downtime
- Dynamic management via an integrated colour touchscreen interface
Specifications

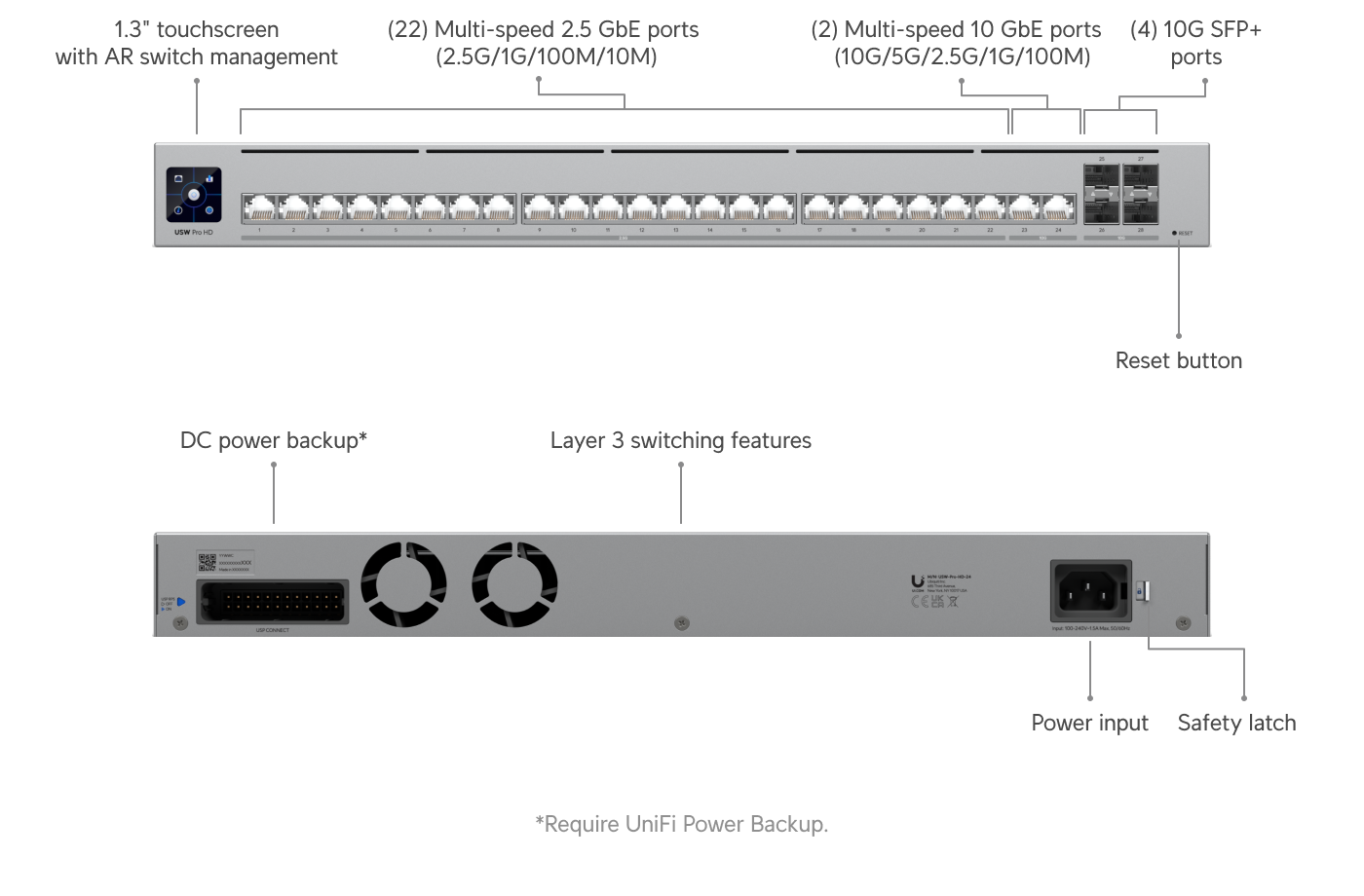

- Networking Interfaces: 22x 2.5GbE RJ45 ports, 2x 10GbE RJ45 ports, 4x 10G SFP+ ports
- Management Interface: Ethernet In-Band
- Switching Capacity: 230Gbps
- Total Non-Blocking Throughput: 115Gbps
- Forwarding Rate: 171.12Mpps

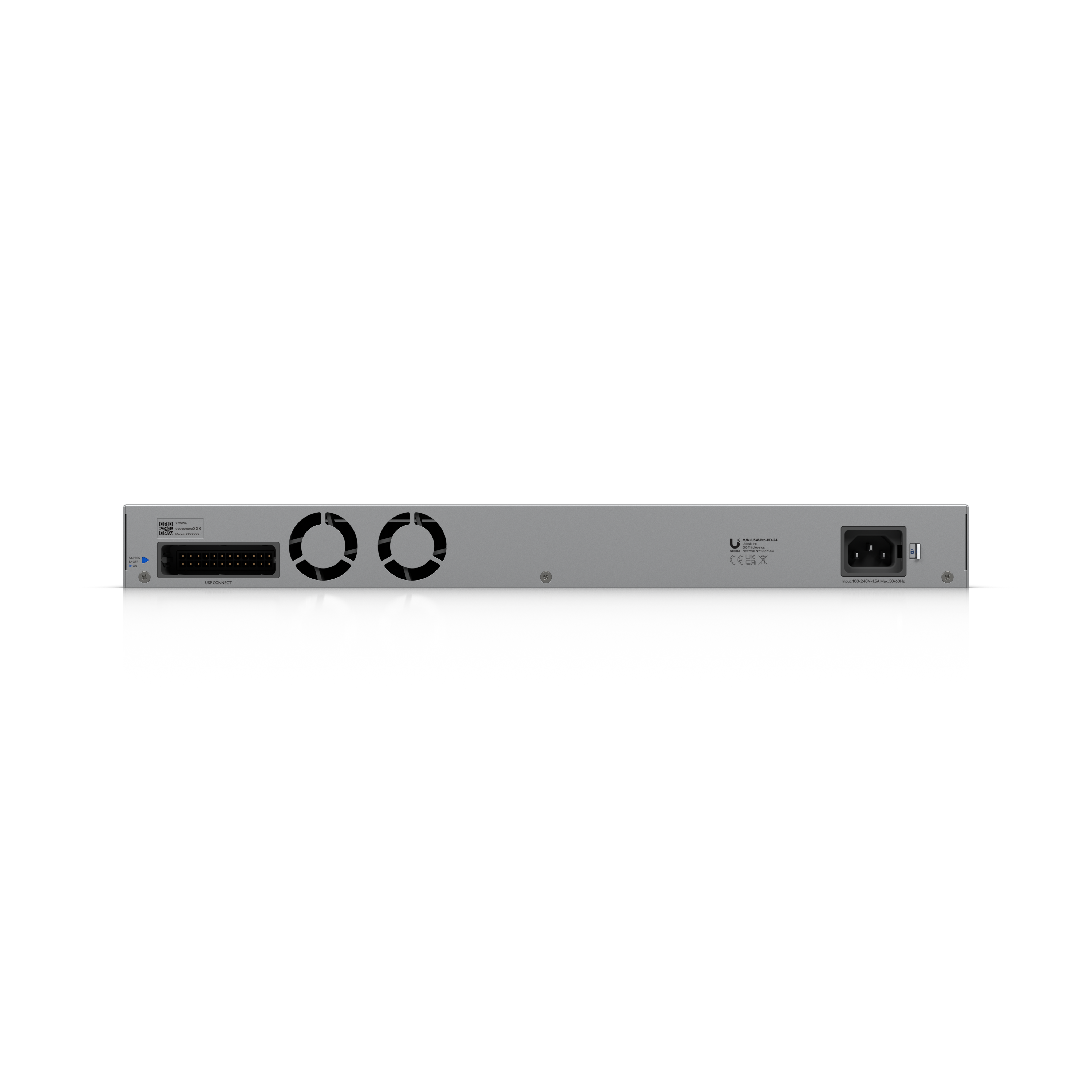

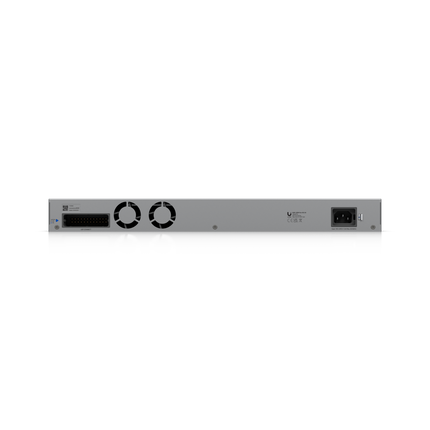

- Power Method: 100-240VAC universal input, 1x DC input for power backup
- Max Power Consumption: 50W
- Display: 1.3" touchscreen
- Enclosure Material: SGCC steel

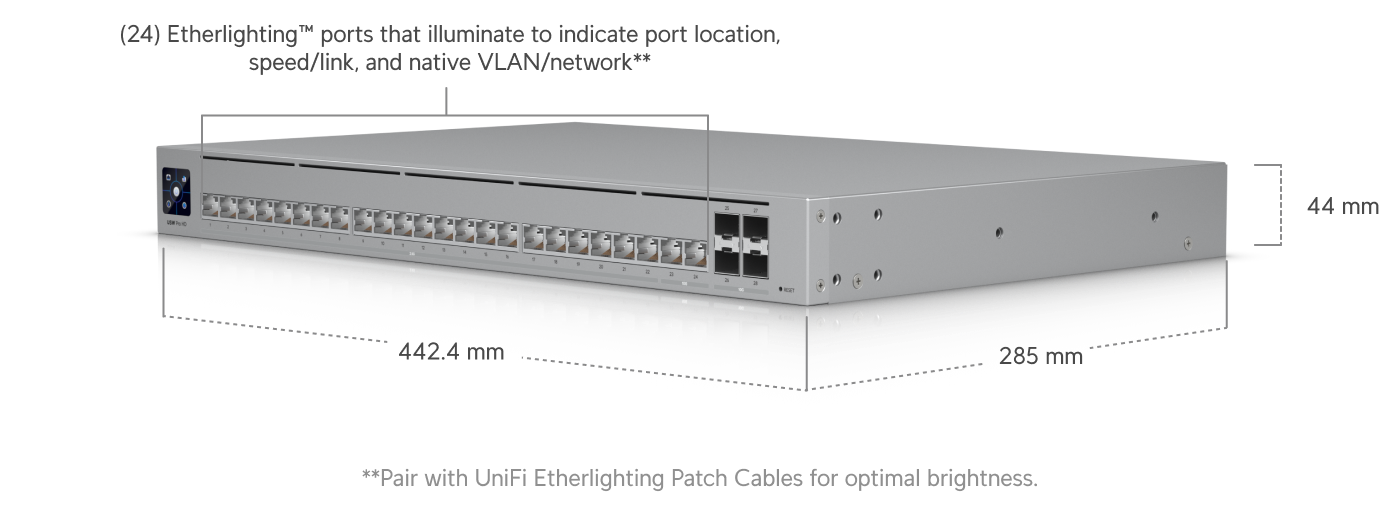

- Dimensions: 442.4x285x44mm
- Weight: 4.2kg without mounting brackets, 4.3kg with mounting brackets
