| Hardware System | CPU | ARM Cortex-A7，528 MHz |
| Memory | 128 MB DDR3 RAM and 128MB Flash | |
| Cellular Interface | Antenna Connector | 1 × 50 Ω SMA Connectors (Center PIN: SMA Female) |
| SIM Slots | 1（Mini SIM-2FF） | |
| Ethernet Interface | Numbers | 1 × WAN + 1 × LAN or 2 × LAN |
| Property | 1（Mini SIM-2FF） | |
| Mode | Full or half duplex (Auto-Sensing) | |
| PoE | 2 × 802.3 af/at PoE PSE on LAN Ports (Optional) | |
| Software | Network Protocols | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, etc. |
| VPN | DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE | |
| Security | Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough |
|
| Management | Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub | |
| AAA | Radius, Tacacs+, LDAP, Local Authentication | |
| Multilevel Authority | Multiple Levels of User Authority | |
| Reliability | VRRP, WAN Failover | |
| Power Supply | Power Connector | 2-pin 5.08 mm Terminal Block |
| Input Voltage | 9-48 VDC, with Surge-Protection and Reverse Polarity Protection | |
| Physical Characteristics | Ingress Protection | IP30 |
| Housing | Metal | |

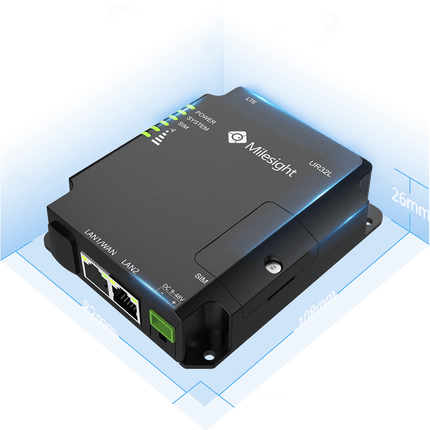

| Dimension | 108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in) | |
| Installation | Desktop, Wall or DIN Rail Mounting | |
| Environmental | Operating Temperature | -40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Ab |
| Storage Temperature | -40°C to +85°C (-40℉ to +185℉) | |
| Ethernet Isolation | 1.5 kV RMS | |
| Relative Humidity | 0% to 95% (non-condensing) at 25°C/77℉ |

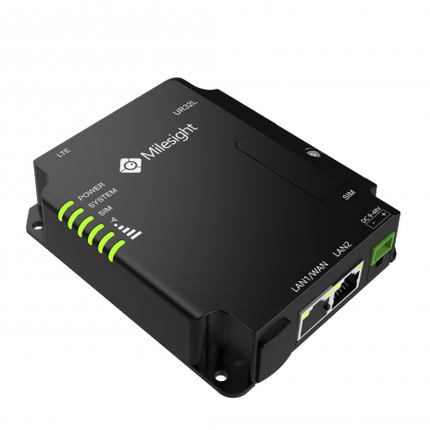

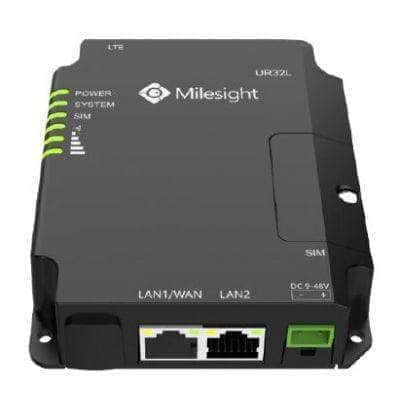

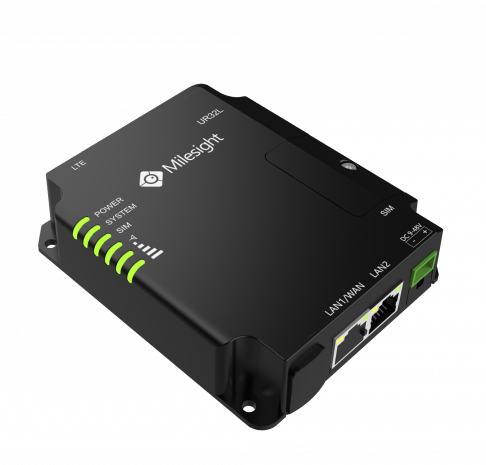

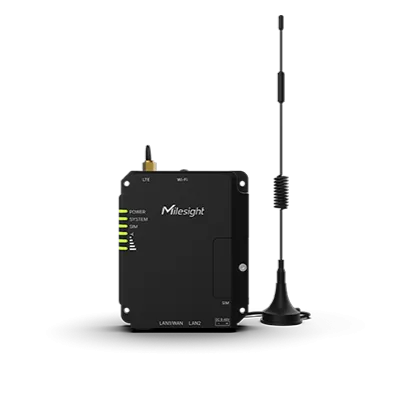

UR32L Milesight Lite Industrial Cellular 4G LTE Router
UR32L Milesight Lite Industrial Cellular 4G LTE Router
UR32L is a cost-effective industrial cellular router with embedded intelligent features that are designed for global M2M/IoT applications. Global WCDMA and 4G LTE carrier supported to make this drop-in connectivity a great help for operators in maximizing uptime. UR32L also has 2 fast Ethernet ports, which deliver users uninterrupted internet access. Integrating watchdog and multi-link failover detection, UR32L provides stable communications. Combining DeviceHub and MilesightVPN, UR32L
can help you manage your network easily and efficiently. Easy deployment and comprehensive remote device management make UR32L versatile in most IoT/M2M applications.
- Industrial-grade Design
- -40°C to 70°C Operating Temperature
- Fit Into Limited Space with a Compact Size
Global 4G LTE Network
- 150 Mbps Downlink & 50 Mbps Uplink
- Global 4G/3G Frequency Bands Compatibility
Advanced Routing Features
- Stateful Firewall VPN
- VPN (OpenVPN/IPsec/PPTP/L2TP/DMVPN/GRE)
- SNMP v1/v2c/v3
DeviceHub
- Remote Management Platform
- Remote Configuration
- Bulk Firmware Upgrade
- Location Tracking
- Device Status Monitoring
Specifications
Documents:
Milesight UR32L Datasheet
Milesight UR32L Quick Guide
Milesight UR32 User Guide
