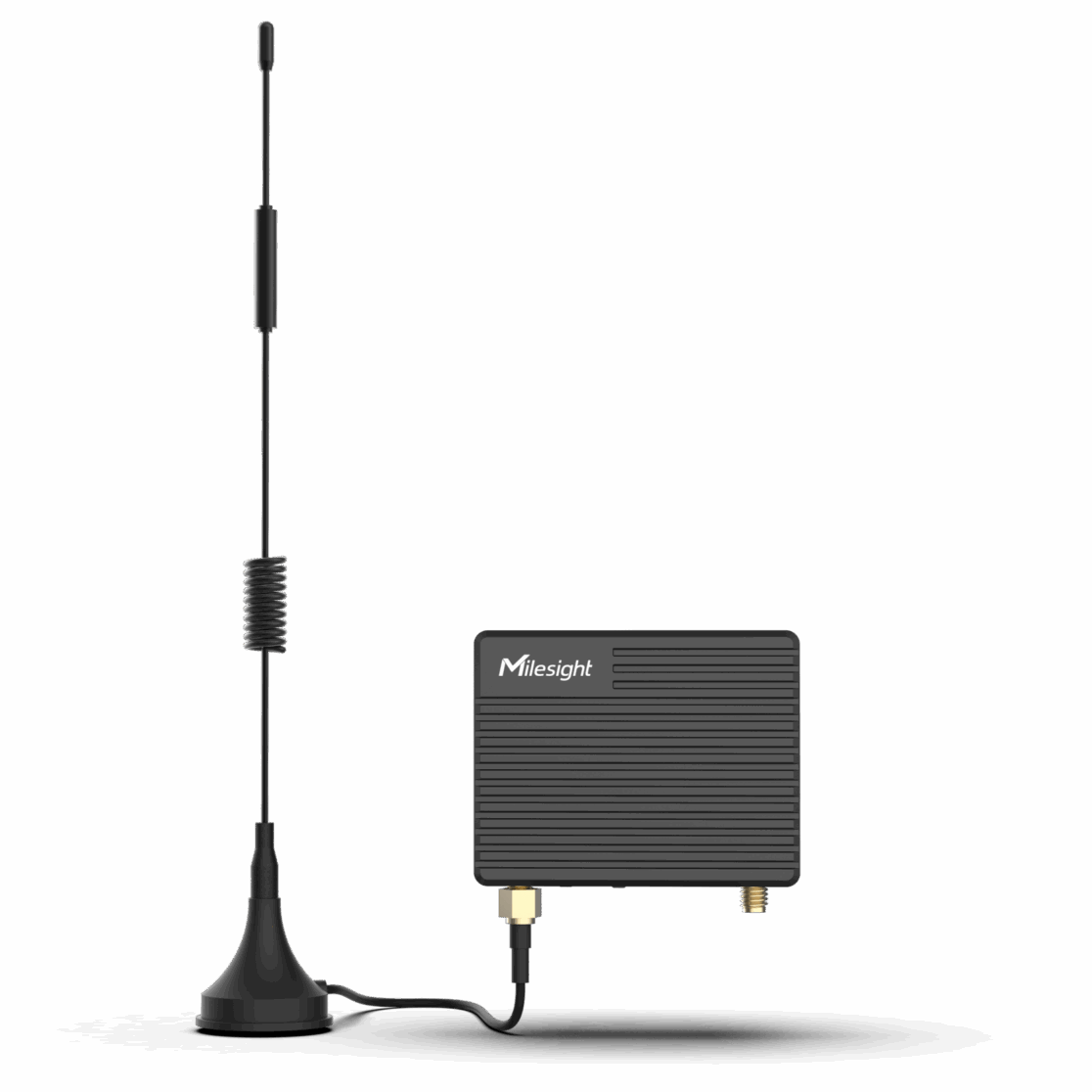

Milesight UR41 4G LTE Mini Industrial Cellular Router GPS Ultra Low Power

Description


Milesight UR41 LTE Mini Industrial Cellular Router GPS Ultra Low Power

  • Secure 4G or Global LTA CAT-1 Connectivity in a Compact Design
  • Low Power Consumption with Smart Operating Modes
  • Remote and Bulk Management for Easy Maintenance
  • Support GPS & Multiple Interfaces for Various Applications

4G Connectivity in Small Embedded Scenes

  • Palm-Sized and Lightweight Design
  • Global 4G LTE CAT4 or CAT1 Network with Multiple Carrier Networks

Ultra-Low-Power Consumption Eve

Milesight UR41 is designed to operate on limited power sources through advanced power management, which make it an ideal battery-powered and solar-powered applications.
Typical: 226mA
Maximum: 260mA

Advanced Power Management with Less than 1 Watt in Idle Mode

  • Power consumption as low as 60mA in idle mode
  • Fast network response from standby mode triggered by timers, DI, Cellular, Ethernet or serial port
  • Protect power sources by dropping power consumption to a target of 6.3mA in standby mode

Maximum Uptime from Safe and Stable Data Transmission Failover Back-up Connectivity

  • Automated failover/failback backup between Ethernet and Cellular
  • Embedded with hardware watchdog to automatically recover from various failures

Security Protection

  • Local authentication and remote authentication (RADIUS, TACACS+, LDAP) management to control access to devices in the field
  • Encryption for data privacy over the Internet through VPN tunnels (Open VPN/IPsec/GRE/L2TP/PPTP/DMVPN)

Industrial Grade Design for Harsh Environment

  • NXP Industrial Grade Processor
  • Wide Operating Temperature Range (-40°C to 60°C)
  • Broad Supply Voltage Range (5V to 24V DC)
  • Metal IP30 Enclosure for Dust and Water Ingress

GPS and Global Navigation Satellite System (GNSS) Included

  • GPS and GNSS (Galileo, Glonass, and Beidou) are included
  • The capability of real-time location tracking of remote assets
  • Availability of network clock updates for accurate time-stamp usage

Rich Interfaces for Intelligent Building and Process Automation Controllers

  • 1 × RS232 or 1 x RS485 (Software Switchable)
  • 1 × Digital Inputs + 1 × Digital Outputs
  • USB 2.0 (Type-C) for Power Supply, Network Supply and Debug

Specifications

Hardware System CPU ARM Cortex-A7, 528 MHz
Memory 128 MB DDR3 RAM and 128 MB Flash
Cellular Interface Network 4G LTE (CAT 4)/CAT 1
Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: SMA Female)
SIM Slot 1（Nano SIM-4FF）
Ethernet Interface Numbers 1 × 10/100 Mbps LAN Port
Mode Full or Half Duplex (Auto-Sensing)
GNSS Antenna Connector 1 × 50 Ω SMA Connector (Center PIN: SMA Female)
Technology GPS/GLONASS/Beidou/Galileo/QZSS
Serial Interface Number 1 × RS232 or 1 x RS485 (Software Switchable)
Connector 3.5mm Terminal Block
Terminal Resistor 1 × 120 Ω Resister Switch (for RS485)
Baud Rate 300bps to 230400bps
DI/DO Numbers 1 × DI (dry contact) + 1 × DO (wet contact), Galvanic Isolation
Connector 3.5mm Terminal Block
Maximum V/A 0.3A@30VDC (DO)
Others Reset Button 1 × RESET
USB 1 × USB 2.0 (Type-C) for Power Supply, Network Supply and Debug
LED Indicators 1 × SYSTEM，1 × SIM
Built-in Watchdog, Timer
Software Network Protocols IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, SSH, etc.
VPN DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
Security SPI Firewalls, Access Control (ACL), DMZ, Port Mapping, MAC Binding,
DoS&DDoS Protection, Filtering(IP&Domain)
Management Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub,
MilesightVPN
AAA Radius, Tacacs+, LDAP, Local Authentication
Multilevel Authority Multiple Levels of User Authority
Serial Port Transparent(TCP Client/Server, UDP), Modbus Master/Slave, Modbus Gateway (Modbus RTU to Modbus TCP)
Power Supply and Consumption Power Connector 2-pin 3.5 mm Terminal Block
Power Input 1. 5-24 VDC, with Surge-Protection and Reverse Polarity Protection
2. 5V/1A by USB Type-C Port
Power Consumption Idle: 78mA@12V
Data link: 226mA (peak)@12V
Standby mode: 6.3 mA@12V
Physical Characteristics Ingress Protection IP30
Housing & Color Metal, Black
Weight 103g

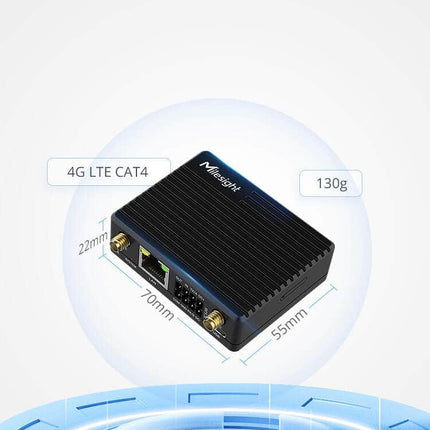

Dimension 70 x 55 x 22 mm (2.76 x 2.17 x 0.87 in)
Installation Desktop, Wall Mounting
Environmental Operating Temperature -40°C to +60°C (-40°F to +140°F)
Storage Temperature -40°C to +85°C (-40°F to +185°F)
Ethernet Isolation 1.5 kV RMS
Relative Humidity 0% to 95% (Non-condensing)



Download

Datasheet

User Guide

Read more

Milesight UR41 4G LTE Mini Industrial Cellular Router GPS Ultra Low Power

Product form
Free pickup in our shop(s)

SKU: UR41L-L0CEU

$239.00 $199.00 Excl. GST

$239.00 $199.00
Product available in stock.

    • We ship from our stock in AU (Perth), pickup by prior booking
    • We Offer Quantity Discounts for Large Orders 10+ qty (Request Quote)
    • We accept Purchase Orders & Net 30-day Payment for Eligible Accounts
