Ursalink Milesight UC11-N1 LoRaWAN Multi-Sensor Node Battery Powered
Ursalink is now part of Milesight company and solution base.

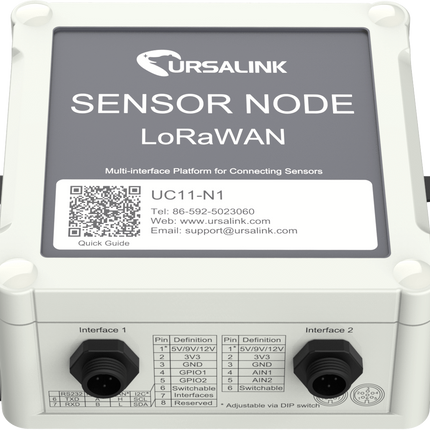

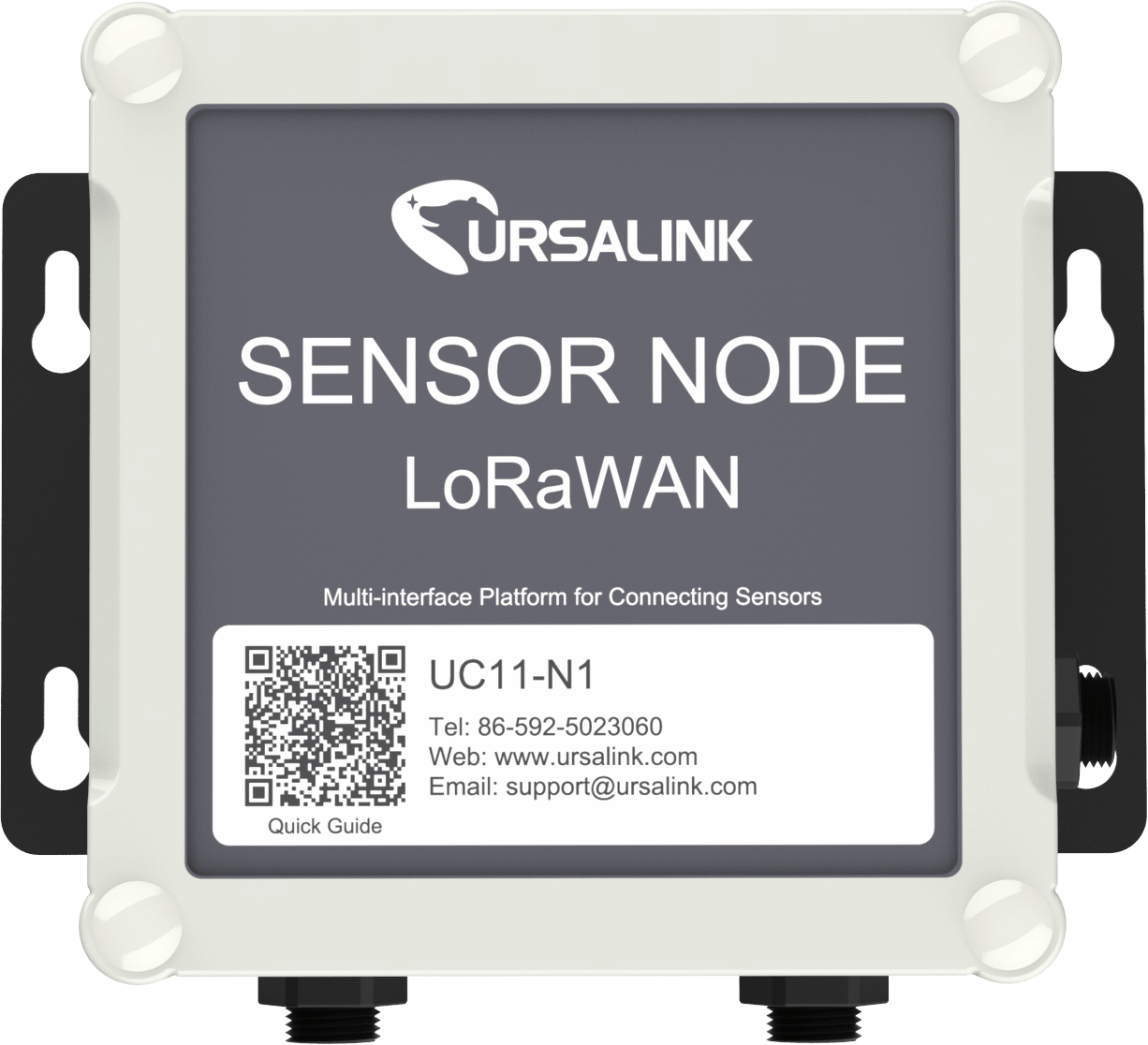

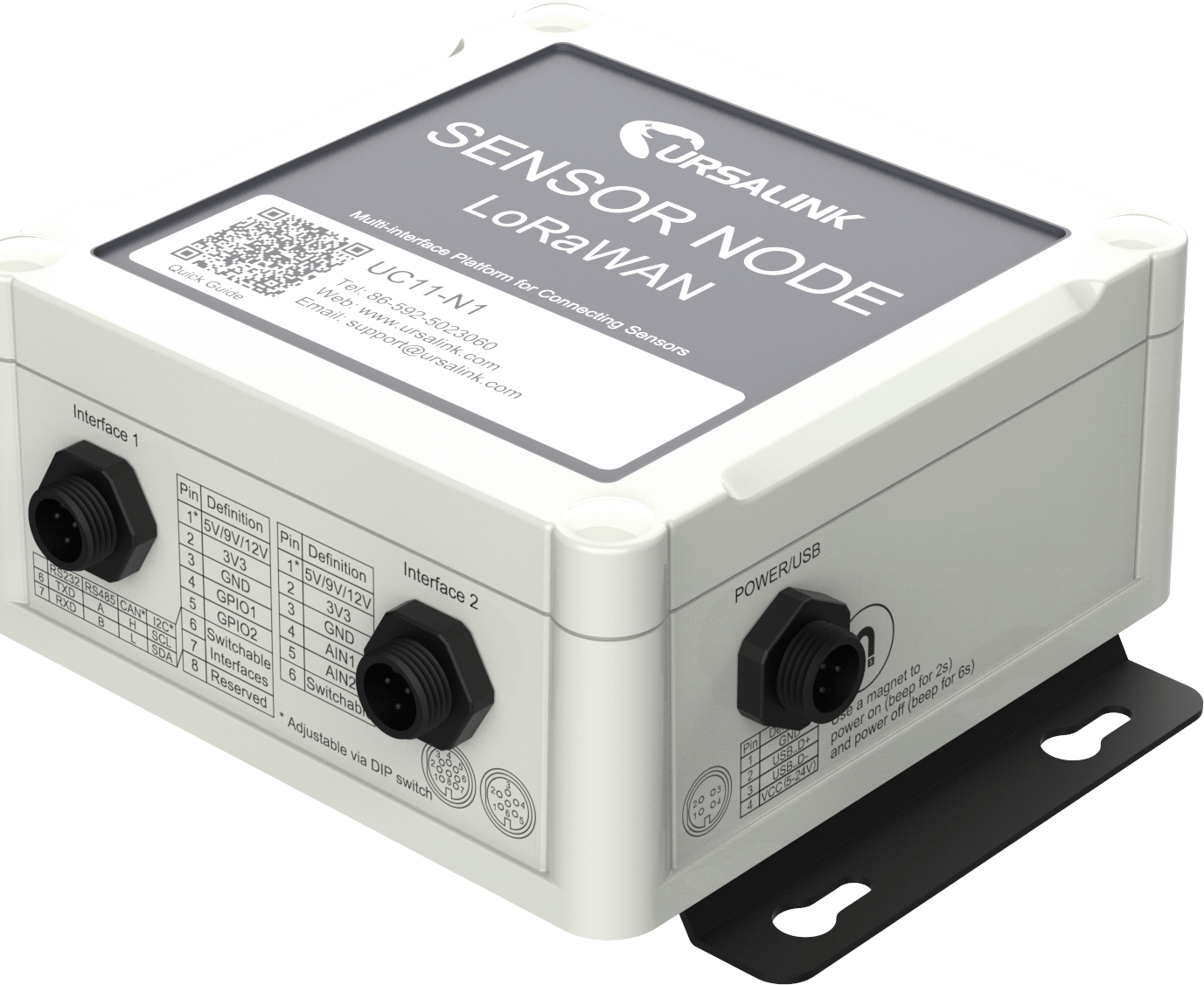

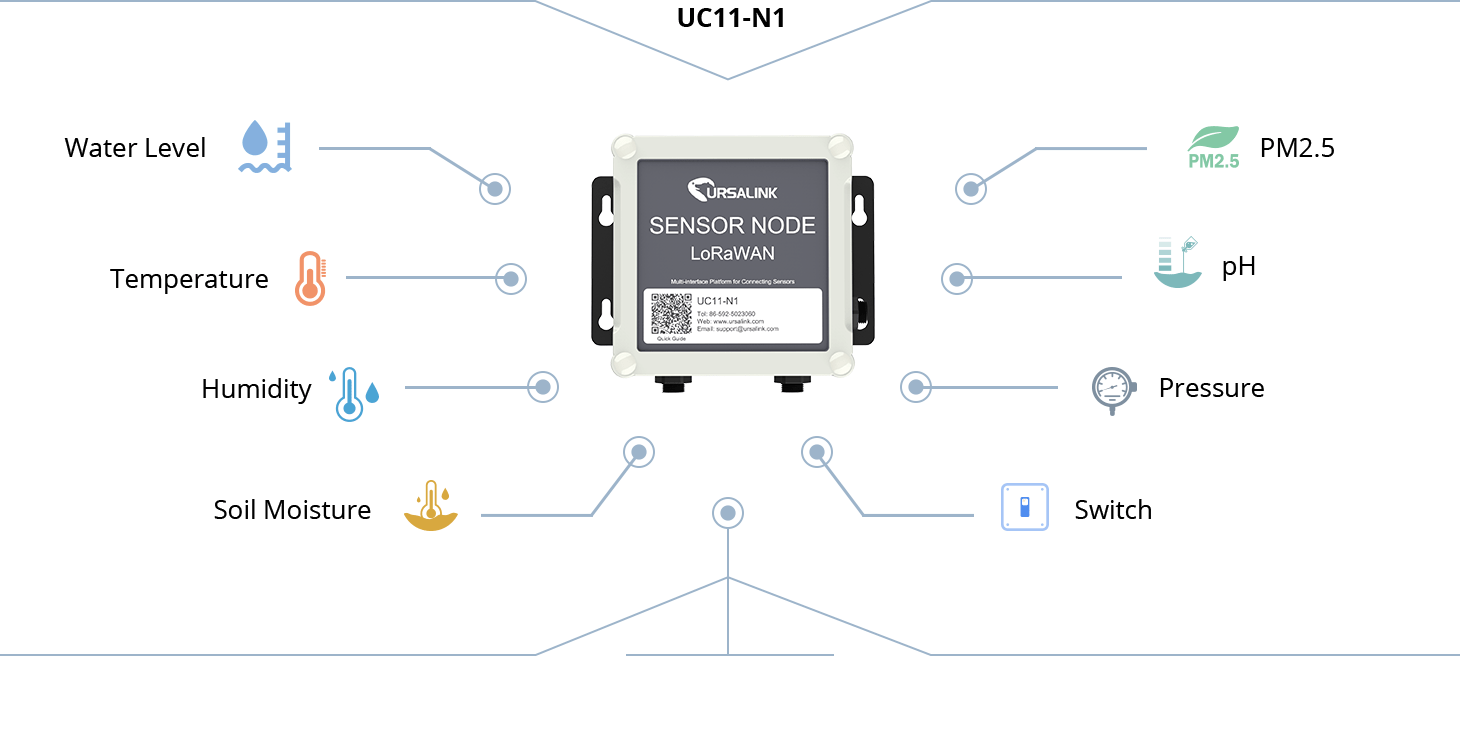

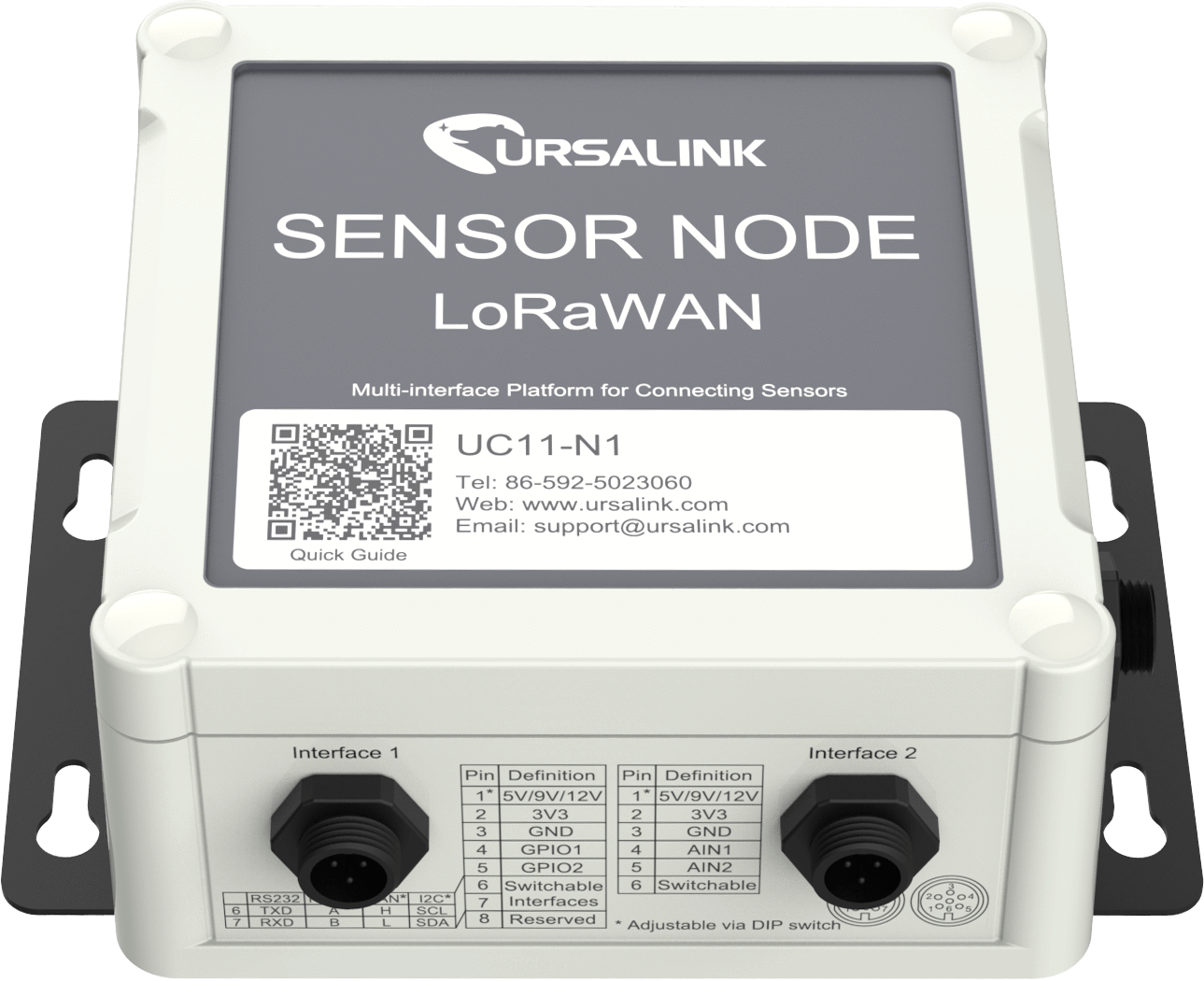

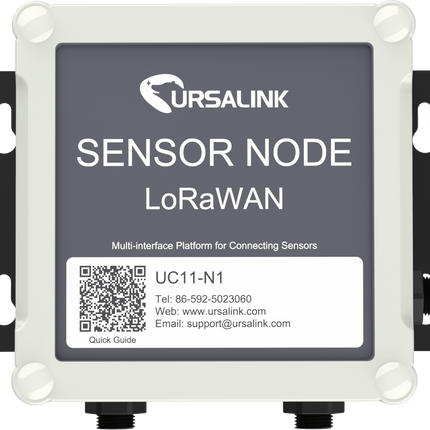

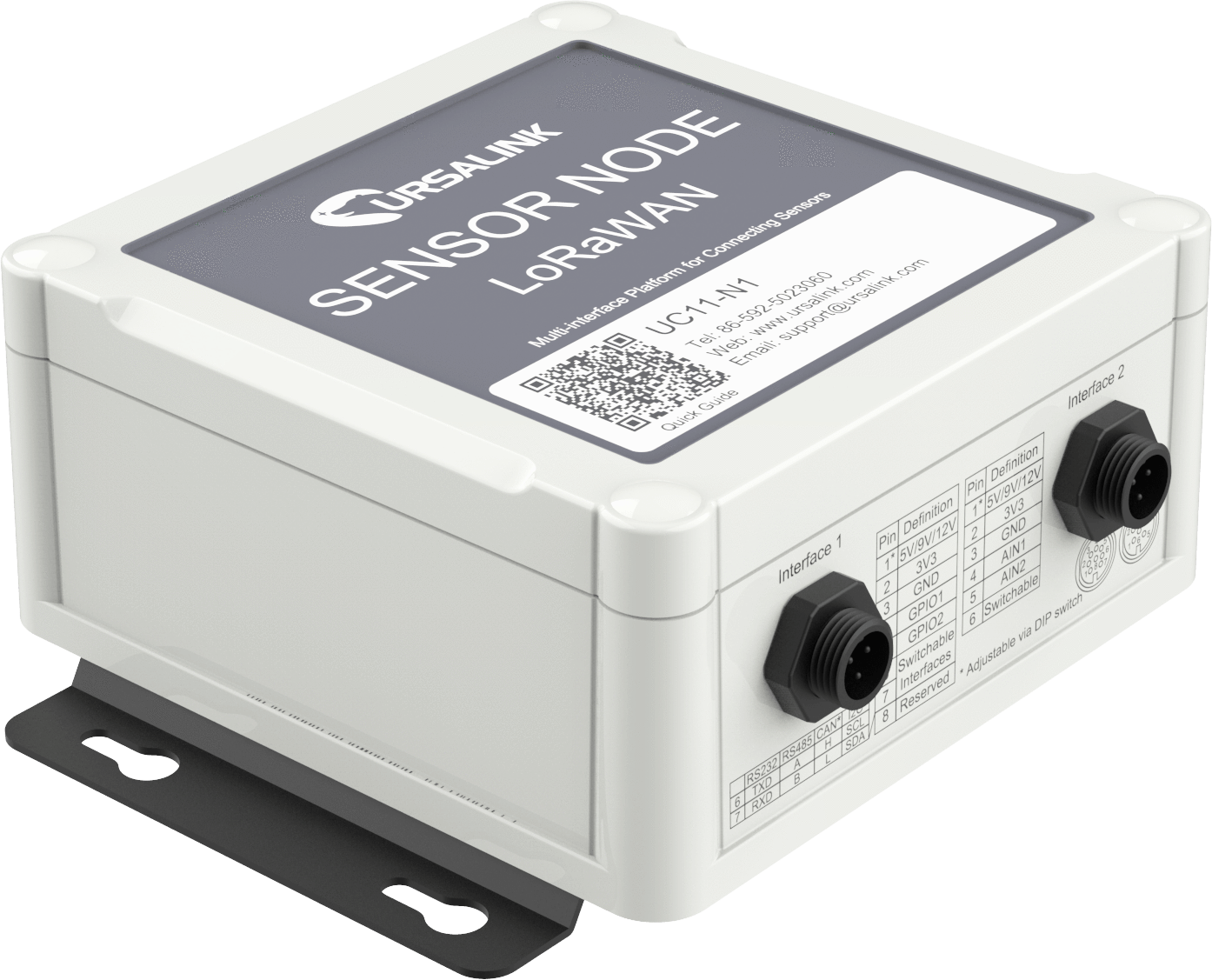

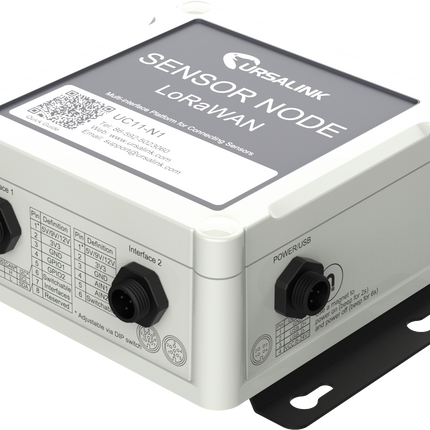

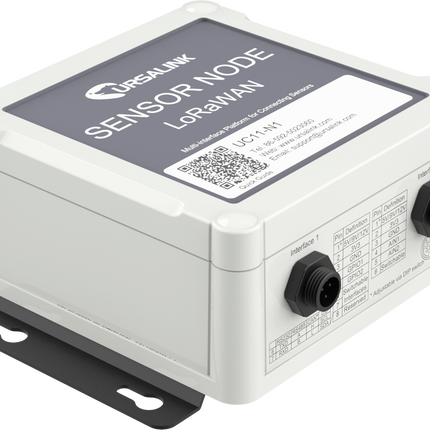

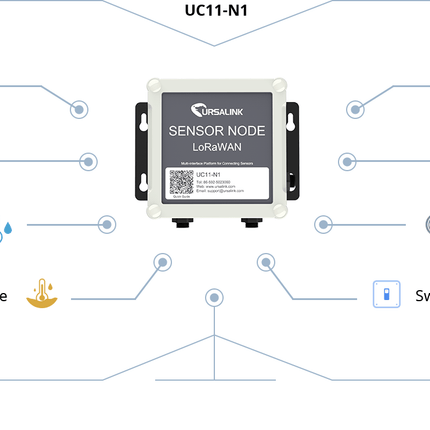

The Ursalink UC11-N1 is a fully integrated, IP67 waterproof, battery-powered LoRaWAN node with multiple communication interfaces for connecting to a wide range of external sensors.
Learn how to convert your legacy solutions into LoRaWAN
| Specifications |
|
| Dimension |
120.1 × 120.1 × 55.4 mm (4.73 × 4.73 × 2.18 in) |

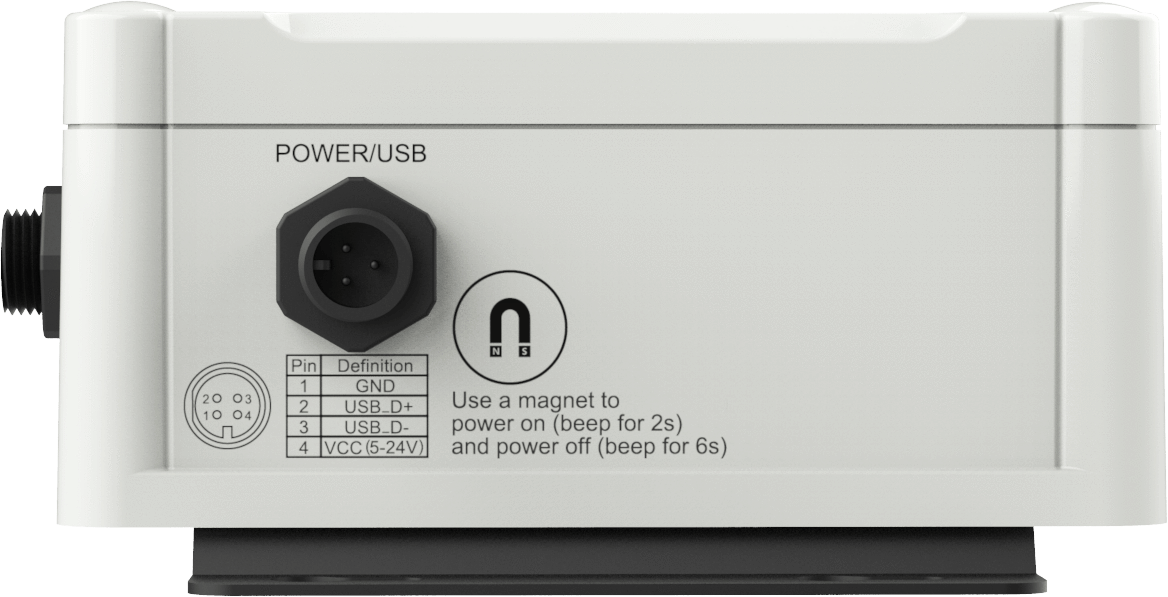

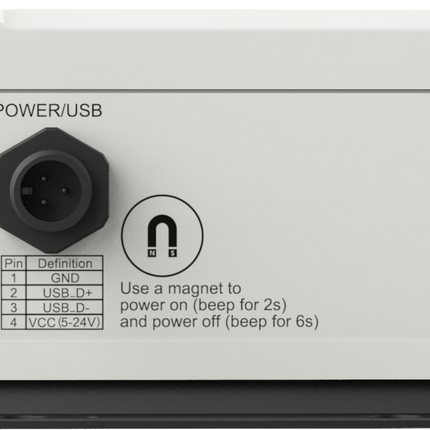

| Input Power |
1. 19000 mAh replaceable Li-SOCl2 battery
2. 5-24 VDC with battery backup(over 24 hrs use life with LoRaWAN class C protocol) |

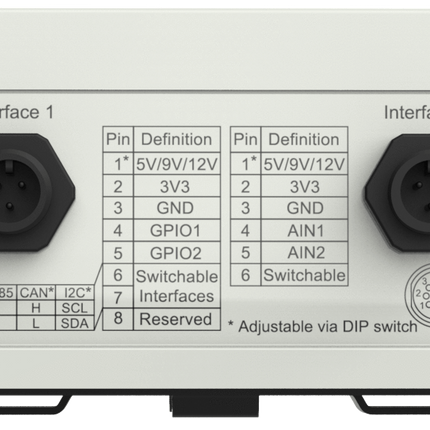

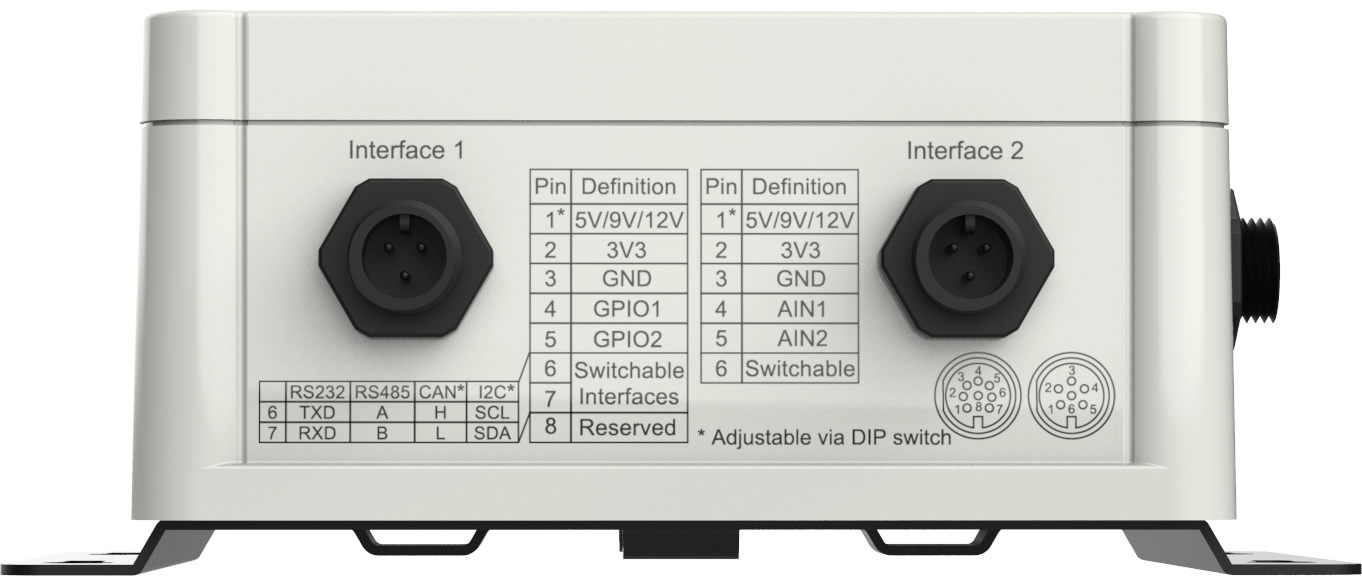

| Interface 1 |
2 × GPIO (UC11-N1-DC GPIO 2 can be customized as pulse counter; Toolbox V5.20 and above; UC11-N1-DC 0080.0110.0131 and above)
1 × RS485/RS232 switchable
1 × 3.3 V output
1 × 5/9/12 V output switchable |
| Interface 2 |
2 × analog input
1 × 3.3 V output
1 × 5/9/12 V output switchable |
| Available Frequency |
AU915/AS923 |
Documentations:
UC11-N1 Datasheet
UC11-N1 Quick Guide
UC11-N1 User Guide
UC11-N1 Payload Structure
