Ursalink Milesight UC1152 Modbus to LoRaWAN Converter
Ursalink is now part of Milesight company and solution base.
Featuring 2 serial inputs and 1 alarm input & relay output, UC1152 supports standard LoRaWAN class C protocol, which is perfectly used as a remote data logger or a remote I/O controller.

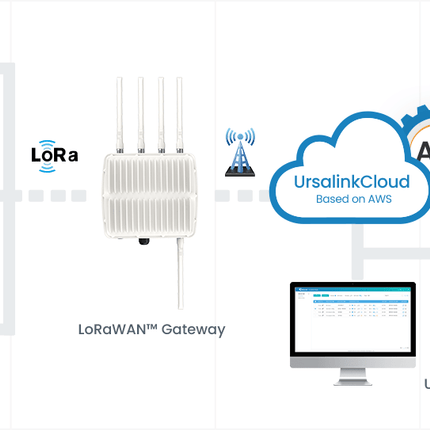

Coupled with a LoRaWAN gateway, UC1152 enables users to fastly build up a LoRa-Based IoT solution for data collection, remote control and monitoring of field devices.
- 1 x RS232 + 1 x RS485, 1 x Digital Input, 1 x Relay Output
- Compliant with LoRaWAN 1.0/1.0.2 class C
- Quick configuration by USB and Ursalink Cloud
- Supports AU915/AS923
- Report updated I/O status to Cloud if any changes are detected
- Up to 10km communication distance with omni-directional antenna
Ursalink LoRa Remote I/O Controller supports LoRaWAN class C protocol to be in full compatibility with most LoRaWAN gateways on the market. It is ideal for large-scale IoT application deployments, such as projects for the building automation, smart metering, HVAC system, etc.
With multiple interfaces, LoRa Remote I/O can perfectly help retrofit legacy assets into IoT enablement.
Specifications
| LoRa Interface |
| Connector |
1 × 50 Ω SMA (Center PIN: SMA Female) |
| Protocol |
LoRaWAN 1.0/1.0.2 Class C |
| Configuration Interface |
| Port |
1 × Micro USB Port |
| IO |

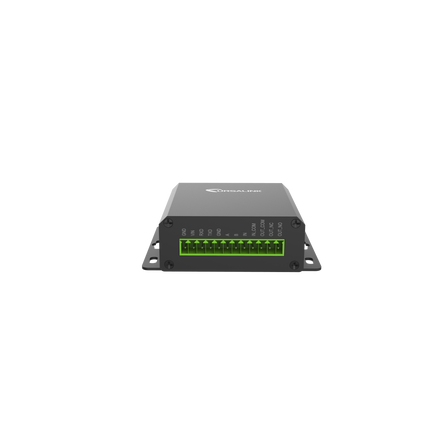

| Connector |
Terminal block |
| Digital Inputs |
2 x Opto-isolated Digital Inputs
DC Voltage (3-24V) |
| Digital Outputs |
2 x SPDT Relay Contact Rating:
3 Amp DC (Max: 30 V) or 3 Amp AC (Max: 250 V) |
| Power Supply |
| Connector |
Terminal block |
| Input Voltage |
5-24V DC (Standard adapter: DC 12V/0.5A) |
| Physical Characteristics |
| Ingress Protection |
IP30 |
| Dimensions |
79 x 60 x 24 mm (3.11 x 2.36 x 0.94 in) |
| Mounting |
Desktop or Wall Mounting |
| Others |
| Reset Button |
1 × RESET (Inside The Device) |

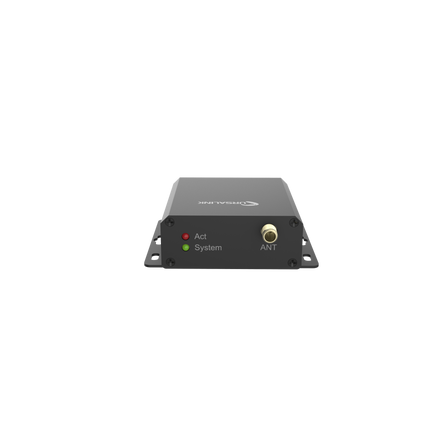

| LED Indicators |
1 × System, 1 × ACT |
| Built-in |
Watchdog |
| Operating Temperature |
-40°C to 70°C |
