Ursalink Milesight UC34xx Industrial Cellular 4G LTE SMS Remote I/O
Ursalink is now part of Milesight company and solution base.
The UC34xx series is smart I/O product with an embedded cellular 4G LTE modem. The intelligent software and ultra-compact portable form factor design make it an ideal solution for a variety of industrial applications like field device monitoring, remote controlling and data acquisition.

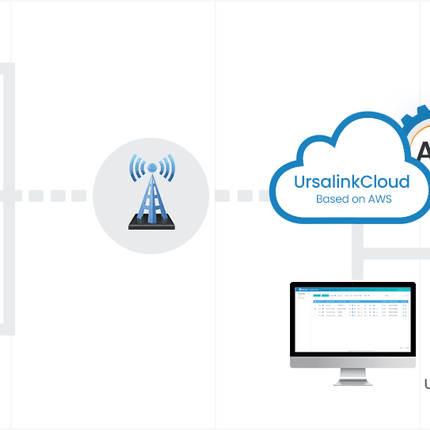

Embedded with a range of trigger conditions and actions, UC34xx series enables users to create various combinations of commands accordingly. Benefiting from the management on Ursalink Cloud, users can easily monitor and control the remote equipment without travelling to site back and forth.
Product Features:
- Easy operation anywhere and anytime
- 2 alarm input and 2 relay drivable outputs (UC3414)
- Industrial metal enclosure
- Customizable conditions & programmable actions
- Quick configuration by USB and Ursalink Cloud
- Hundreds of combinations of trigger conditions and actions
- Support global GSM/WCDMA/4G LTE network
- Report updated I/O status to Cloud if any changes are detected
- Transmit data to AWS, private UDP/TCP server or MQTT broker
| Models |

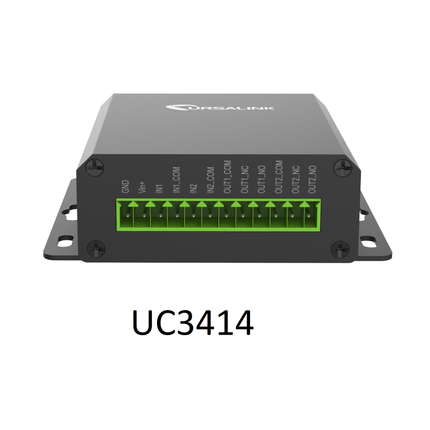

| UC3414 |
2 × DI, 2 x Relay Output |

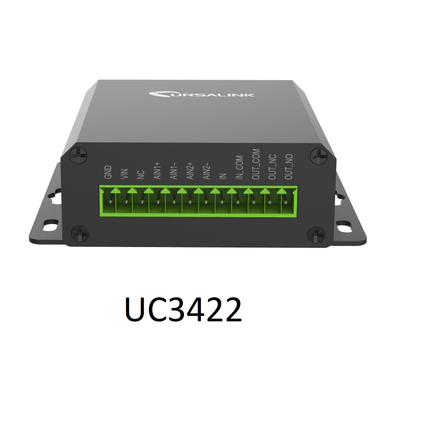

| UC3422 |
2 × AI, 1 × DI, 1 x Relay Output |

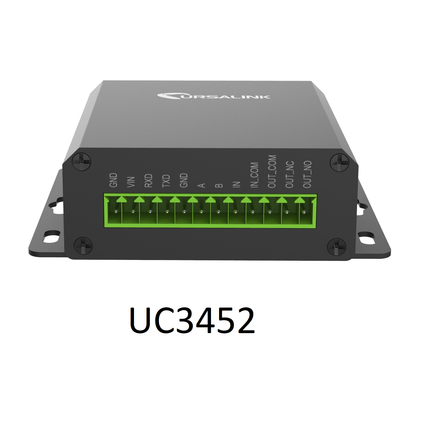

| UC3452 |
1 × RS232, 1 x RS485, 1 × DI, 1 x Relay Output |
| Cellular Interface |
| Connector |
1 × 50 Ω SMA (Center PIN: SMA Female) |
| SIM |
Micro SIM (Inside the device) |
| Configuration Interface |
| Port |
1 × Micro USB |
| Baud Rate |
115200bps |
| IO |
| Connector |
Terminal block |
| Digital Inputs |
Opto-isolated Digital Input
DC Voltage (3-24V) |
| Digital Outputs |
SPDT Relay Contact Rating:
3 Amp DC (Max: 30 V) or 3 Amp AC (Max: 250 V) |
| Serial Interface |
| Ports |
RS232, RS485 |
| Connector |
Terminal Block |
| Baud Rate |
9600bps to 115200bps |
| Power Supply |
| Connector |
Terminal block |
| Input Voltage |
5-24V DC (Standard adapter: DC 12V/0.5A) |
| Physical Characteristics |
| Ingress Protection |
IP30 |
| Dimensions |
79 x 60 x 24 mm (3.11 x 2.36 x 0.94 in) |
| Mounting |
Desktop or Wall Mounting |
| Others |

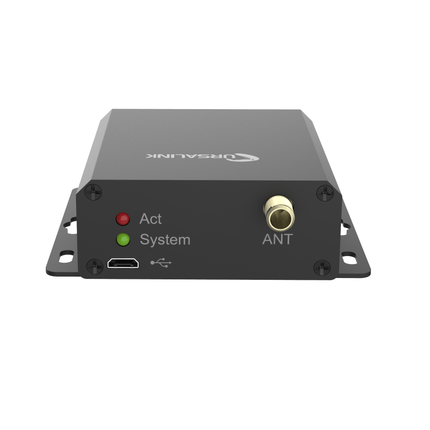

| LED Indicators |
1 × System, 1 × ACT |
| Built-in |
Watchdog |
| Operating Temperature |
-40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C |
| Relative Humidity |
0% to 95% (non-condensing) at 25℃/77℉ |
Documentation:
Cellular Remote I/O Datasheet
Cellular Remote I/O Quick Start Guide
UC3x52 User Guide
UC3x22 User Guide
UC3x14 User Guide
