Description
USB to 4Ch Serial RS485 Converter
Features:
- Extending USB to 4CH RS485, allows concurrent and independent communication for each channel
- Onboard TVS (Transient Voltage Suppressor), effectively suppress surge voltage and transient spike voltage in the circuit, lightningproof & anti-electrostatic
- Onboard resettable fuse and protection diodes, ensures the current/voltage stable outputs, provides over-current/over-voltage proof, improves shock proof performance

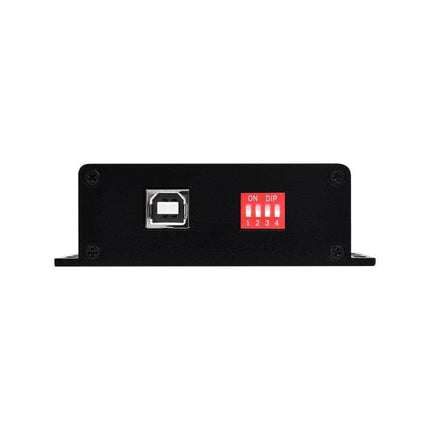

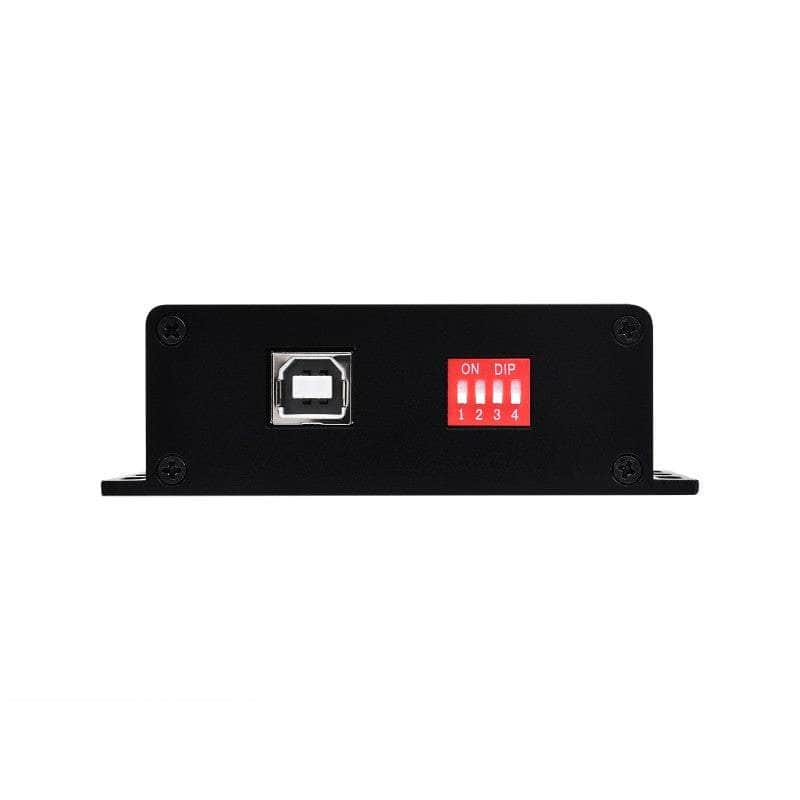

- Onboard RS485 output terminal 120R resistors, enabled/disabled via DIP switch
- Aluminium alloy case with oxidation dull-polish surface, CNC process opening, solid and durable, well-crafted
Specifications
| PRODUCT TYPE |
Industrial Grade USB to RS485 converter |
| HOST PORT |
USB |
| DEVICE PORT |
RS485 |
| BAUDRATE |
1200bps ~ 460800bps |
| USB |
Operating voltage |
5V |
| Connector |
USB-B |
| Protection |
500mA resettable fuse, ESD protection |
| Transmission distance |
About 5m |
| RS485 |
Connector |
Screw terminal |
| Protection |
600W lightning proof and surge-suppress, 15KV ESD protection |
| Transmission distance |
Maximum communication distance is about 1200m (at a low rate, with 120R resistor turned on) |
| Transmission mode |
Point-to-multipoint (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more) |
| OPERATING ENVIRONMENT |
Temperature |
-40 ~ 85℃ |
| Humidity |
5%RH ~ 95%RH |
| OPERATING SYSTEM |
Win7/8/8.1/10/11, Mac, Linux, Android |
Multiple Protection, Safe And Stable
The onboard Resettable Fuse And Protection Diode, provide over-current/Over-Voltage Proof and improves Shock Proof Performance; Onboard Voltage Translator Circuit, With Surge Suppress And ESD Protection, Safe And Stable Communication
Multi-System Support
Supports Win7/8/8.1/10/11, Mac, Linux, Android, Etc.
Transmission Distance Up To 1.2km
The USB Signal Can Be Converted Into 4 Balanced Differential RS485 Signals And The Transmission Rate Is Stable. The Reliable Speed Is 1200~460800bps, The Transmission Distance Is About 1.2km For RS485 And About 5 Meters For USB.

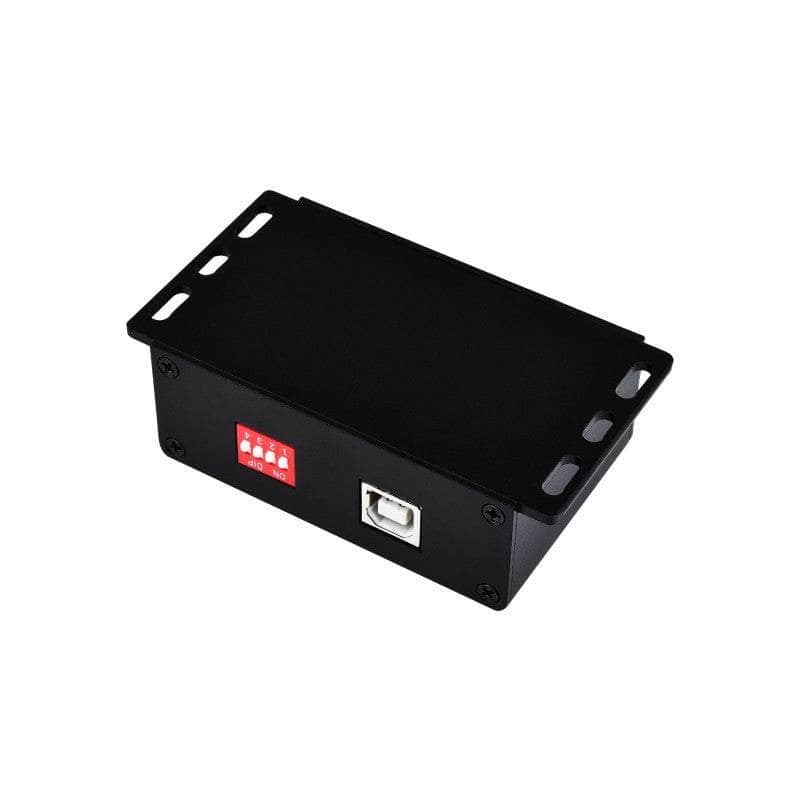

Wall-Mount & Rail-Mount Support
Interface Introduction
| INDICATOR INTRODUCTION |
| PWR |
power indicator, lights up while the USB is connected and voltage is detected |
| ACT |
Status indicator, lights up green while the driver is detected. |
| RXD(1~4) |
Blue RXD indicators, light up when the device ports send data back
(corresponding to 4 channels respectively) |
| TXD(1~4) |
Blue TXD indicators, light up when the USB port is sending data
(corresponding to 4 channels respectively) |

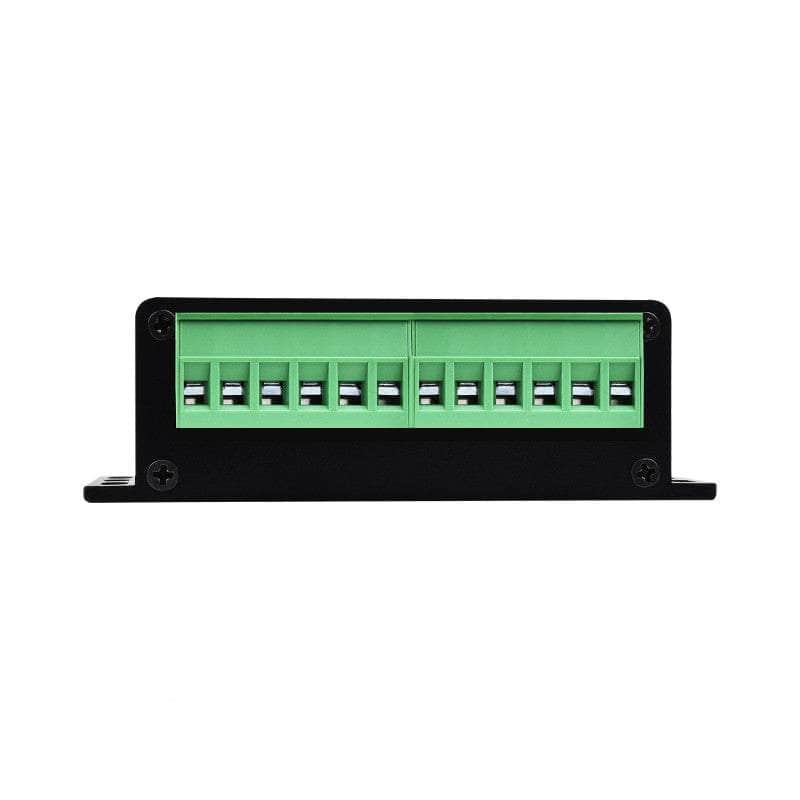

Pin Description
| PE |
Signal ground |
| A(1~4) |
A(1~4) differential signal A+ |
| B(1~4) |
B(1~4) differential signal B- |

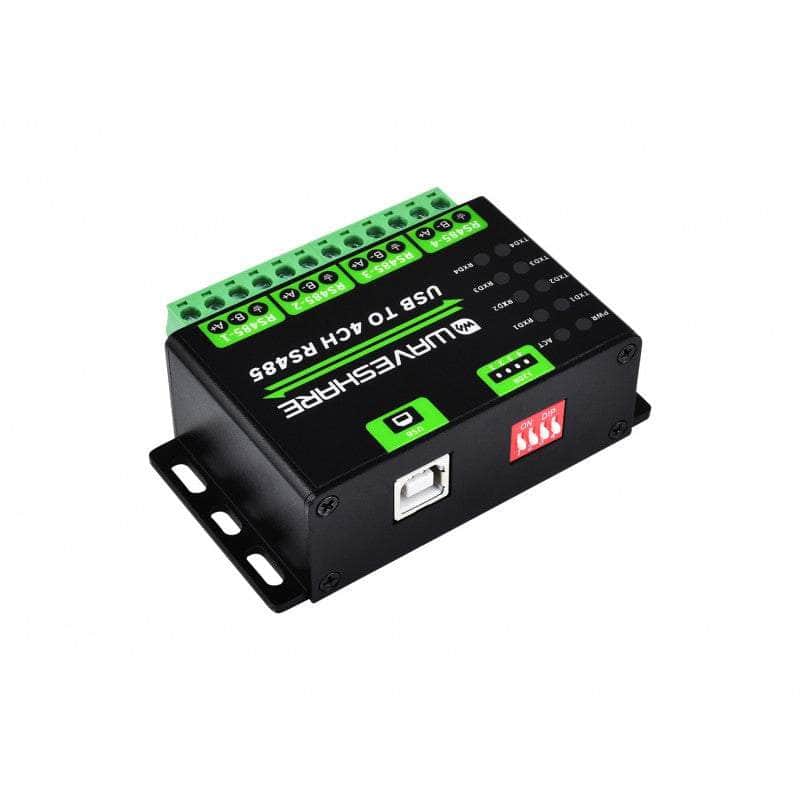

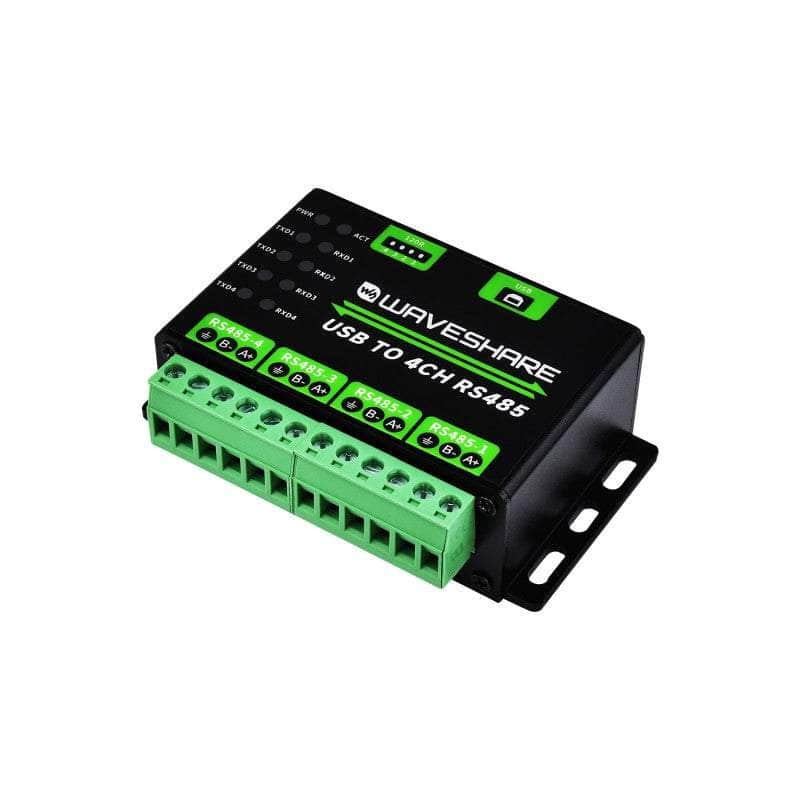

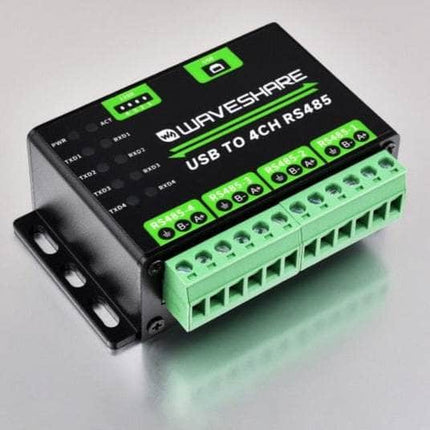

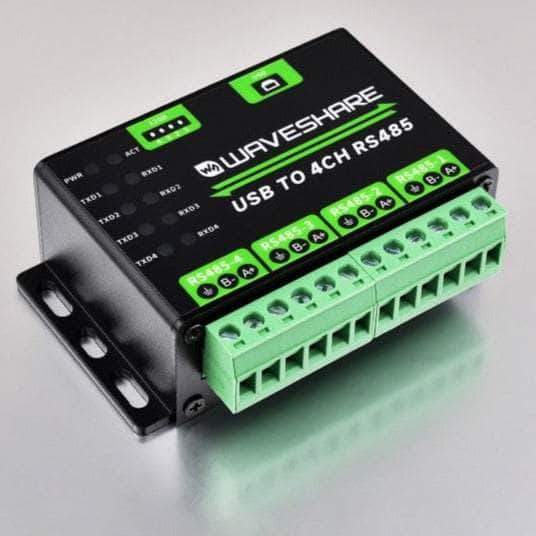

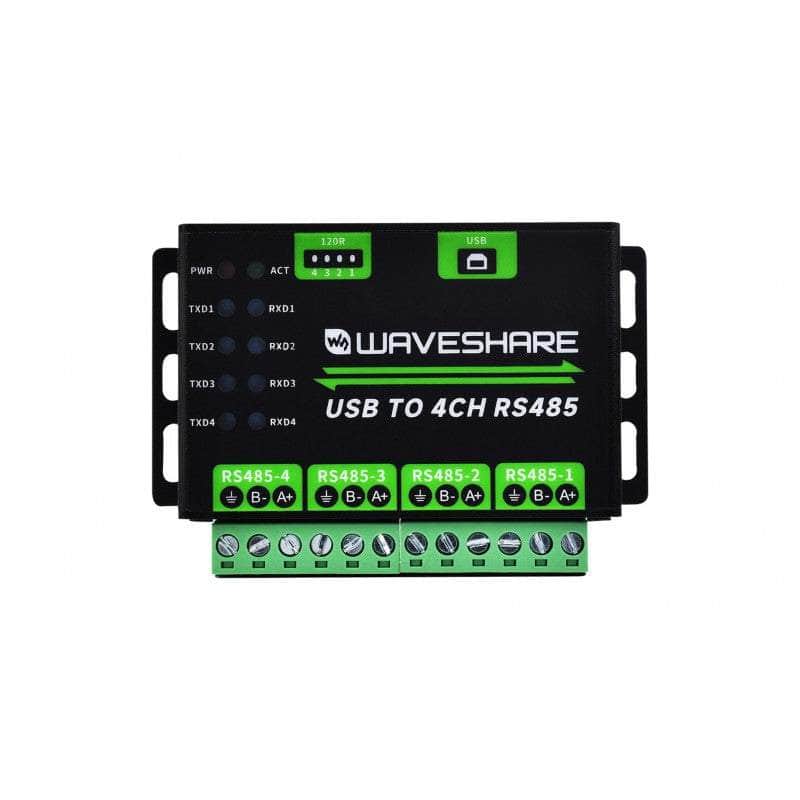

Product Show
Dimensions
